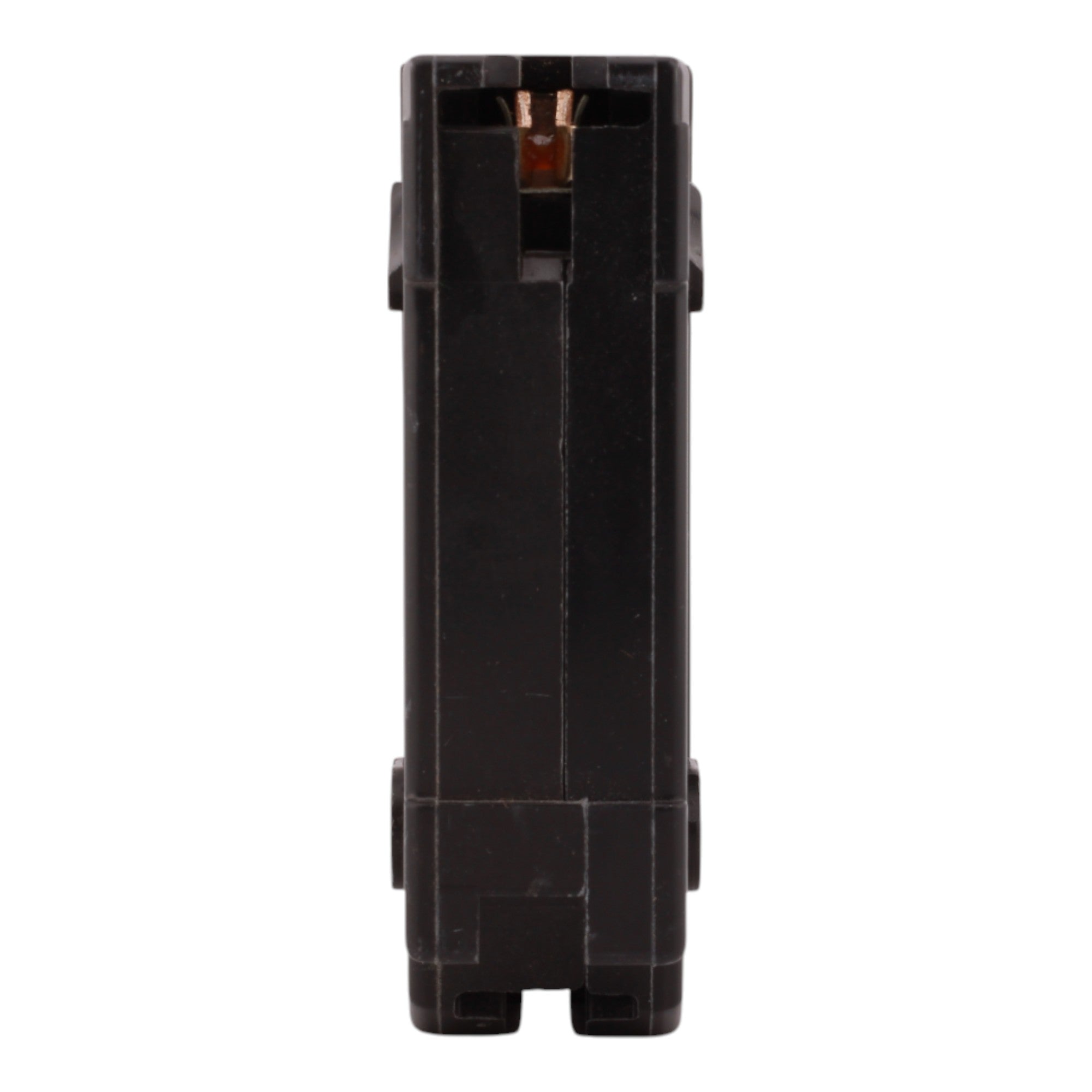

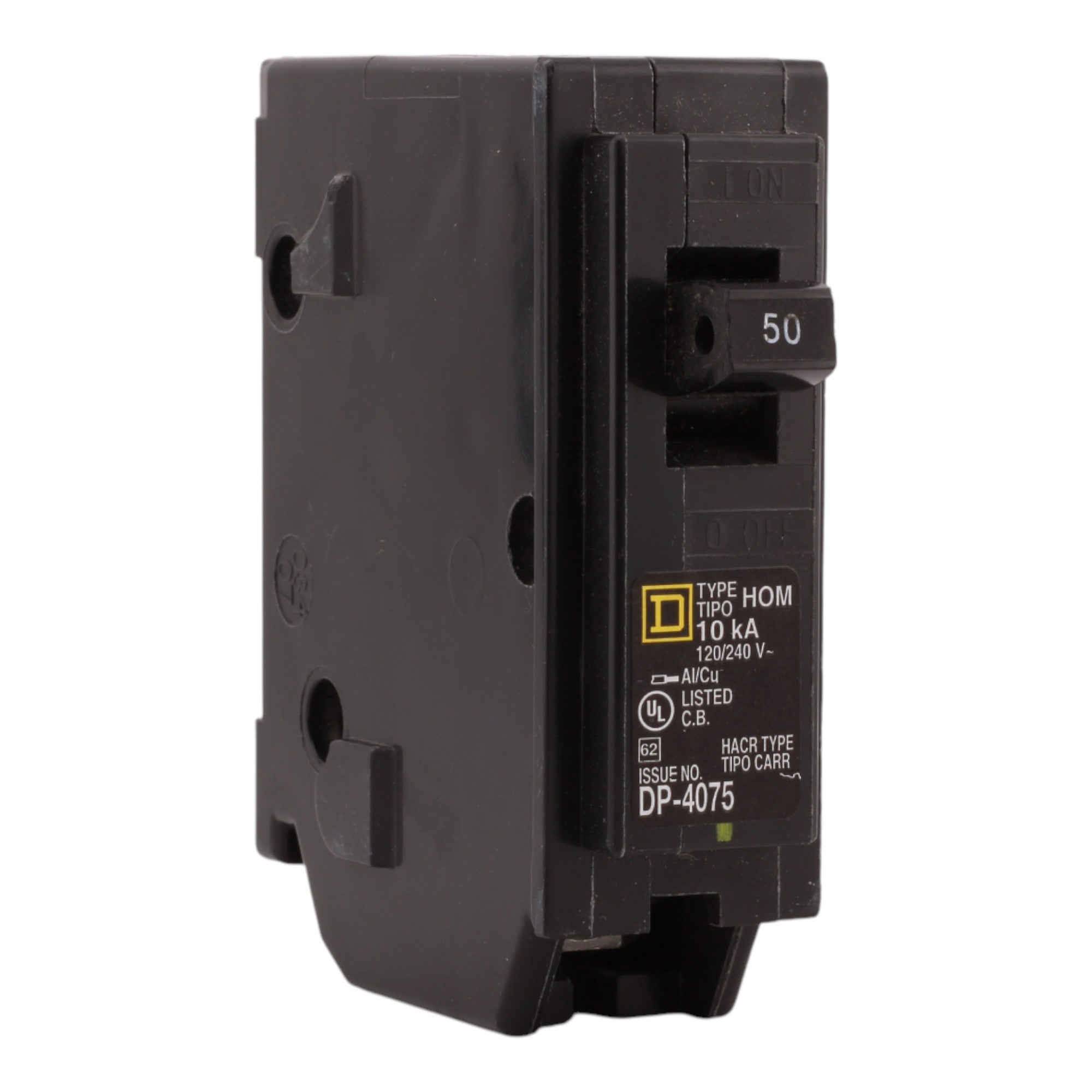

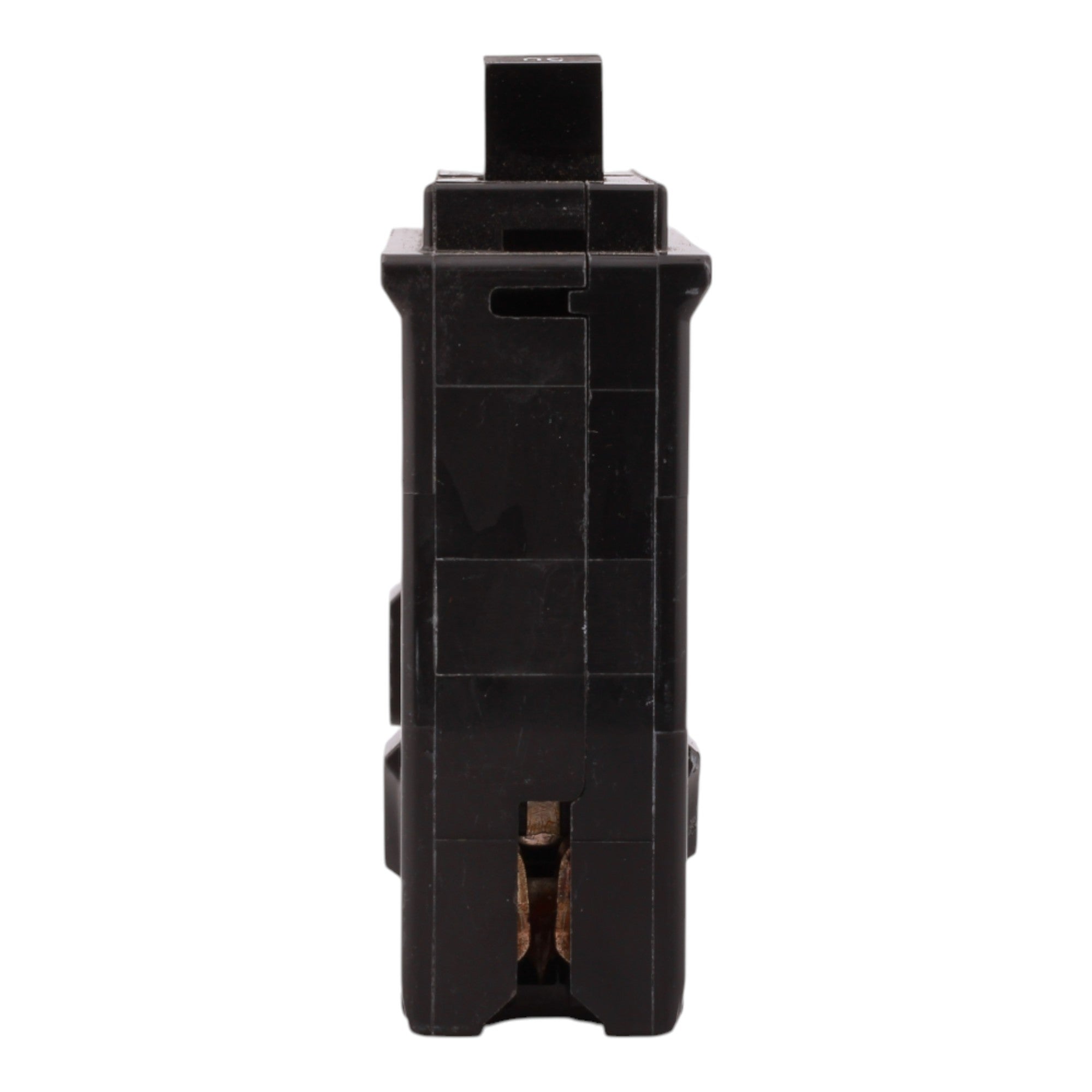

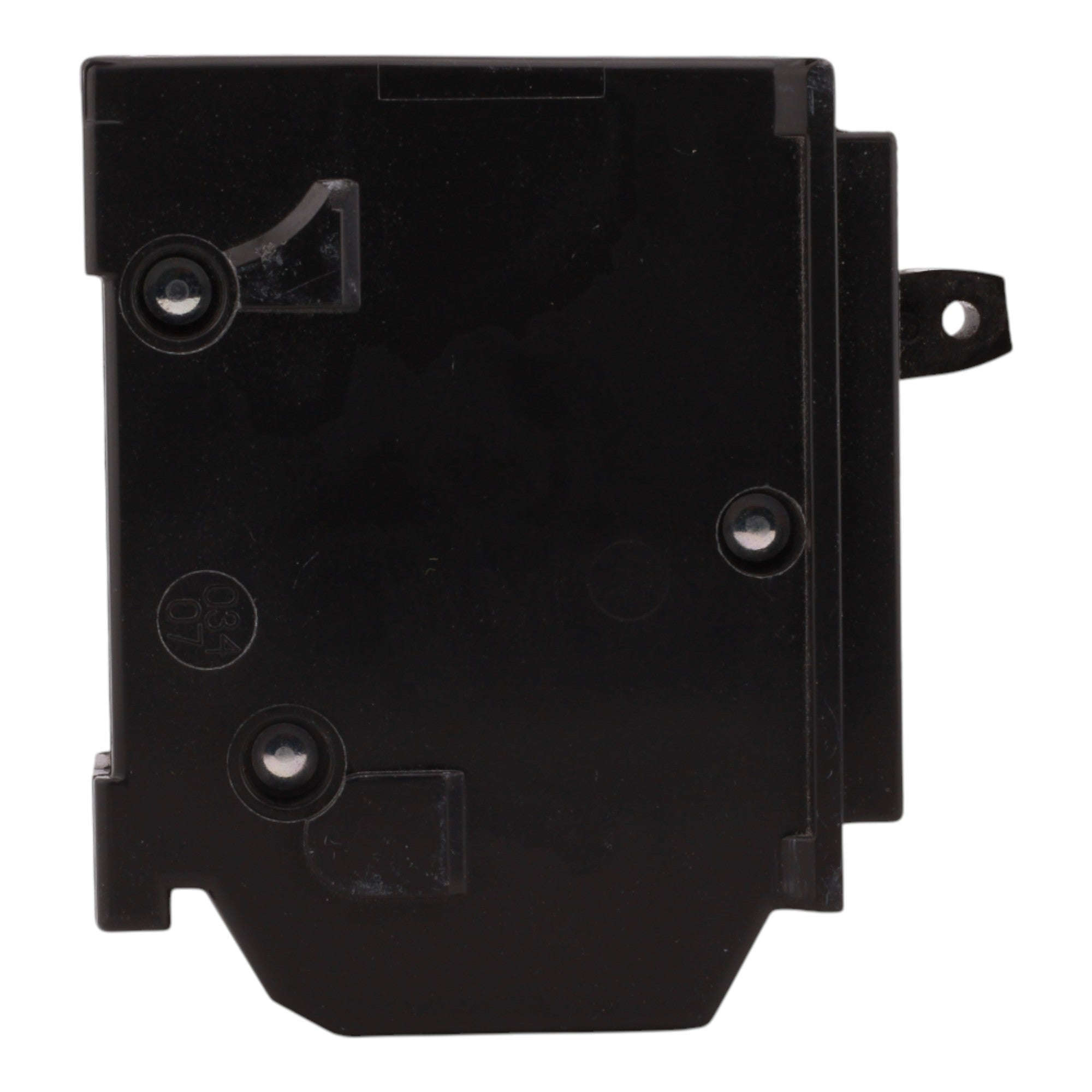

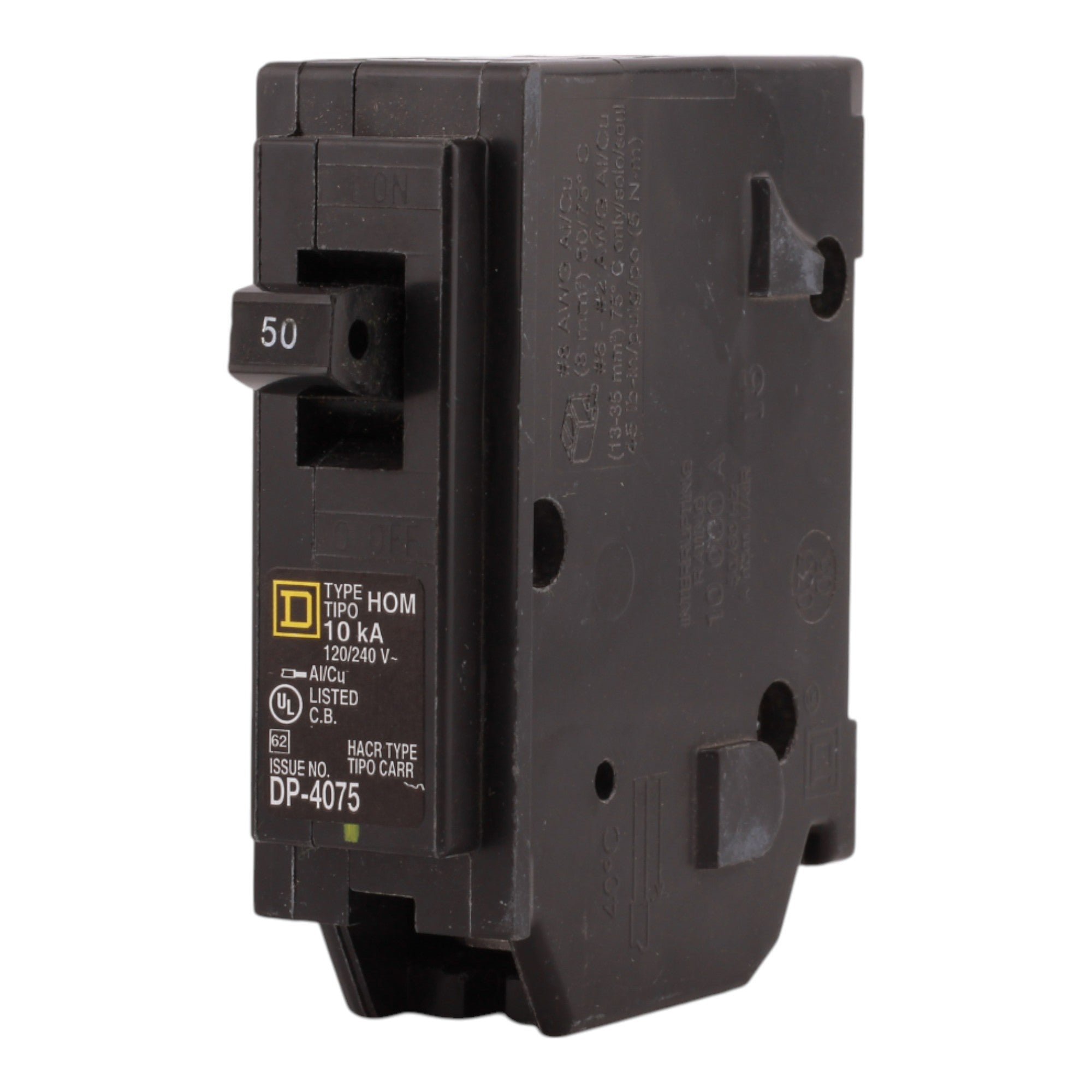

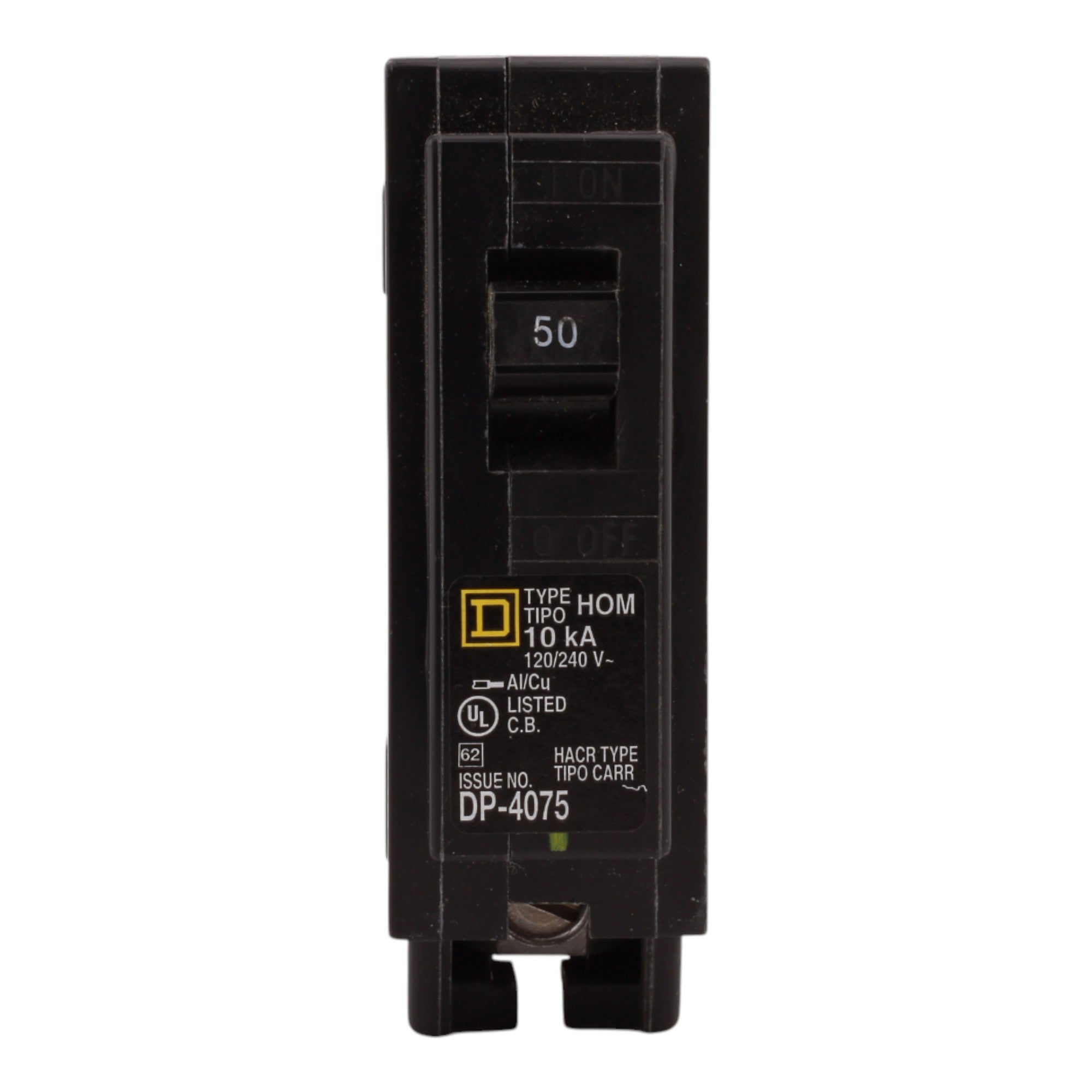

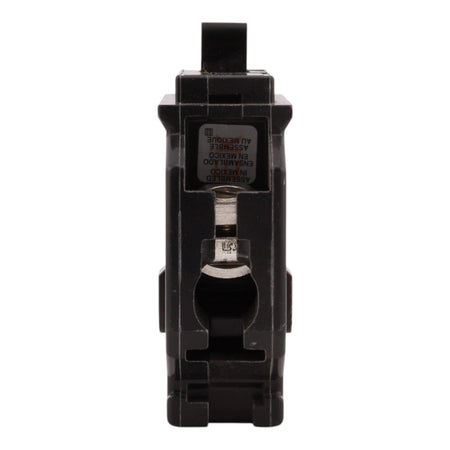

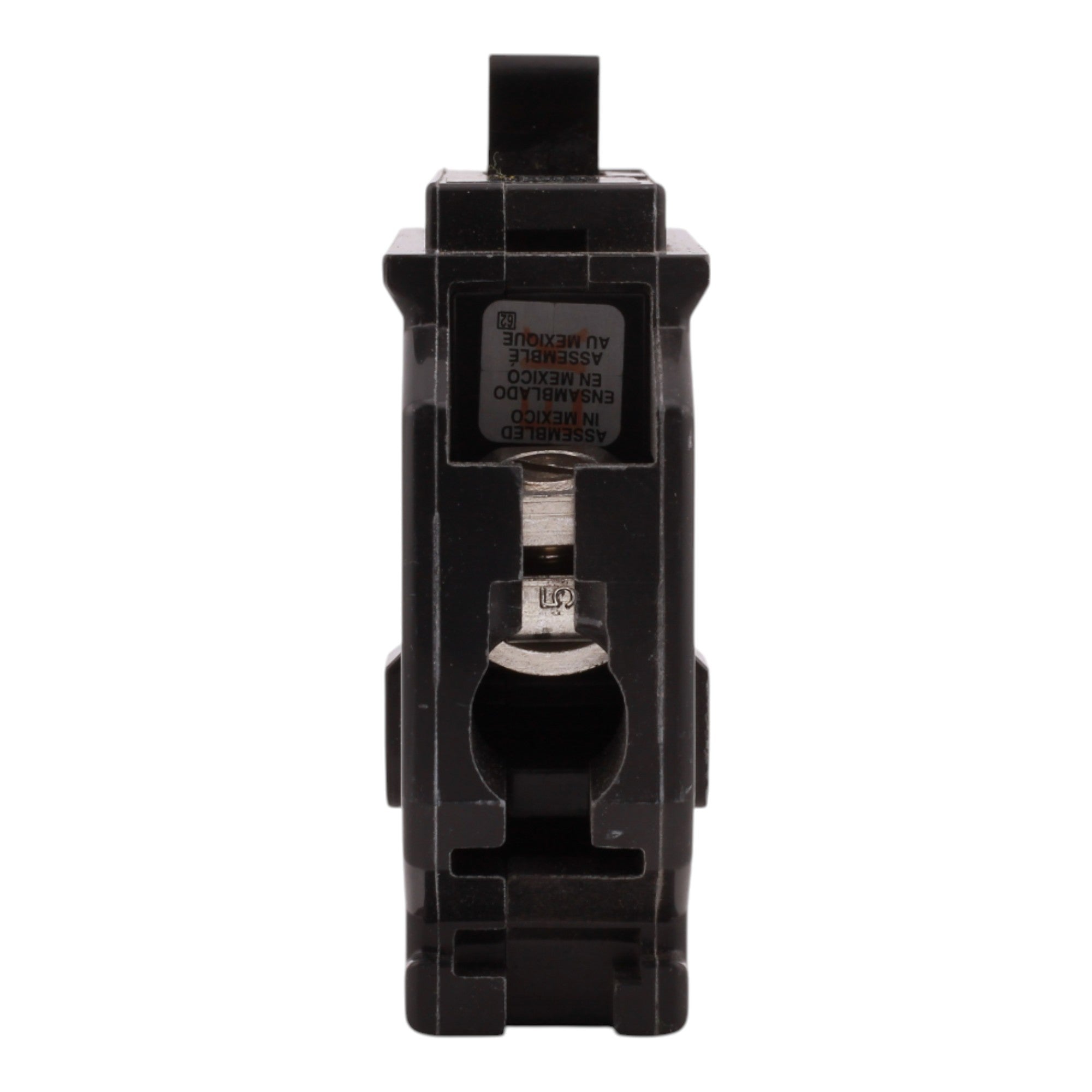

Square D Homeline HOM150 50A 1P 120/240V Circuit Breaker

Square D HOM150: 50 Amp 1-Pole Standard Circuit Breaker, 120/240V, 10kA interrupt rating, plug-in mounting, HACR rated, UL listed.

Product Specifications

• Manufacturer: Schneider Electric
• Brand: Square D
• Range: Homeline Series (For Homeline load centers and panels)
• UPC: 785901065258
• Model Number: HOM150
• Breaker Type: Standard Miniature Circuit Breaker
• Amperage: 50 Amps
• Poles: 1-Pole
• Voltage: 120/240 Volts AC
• Interrupt Rating: 10kA
• Mounting Mode: Plug-In
• Electrical Connection: Box lugs
• Wire Size: AWG 8 to AWG 2 (aluminum/copper)
• Tightening Torque: 40.7 lbf.in (4.6 N.m)
• Dimensions: Height: 3.13 in; Width: 1 in; Depth: 2.98 in
• Weight: 5.44 oz
• Certifications: UL Listed
• Special Features: HACR rated
