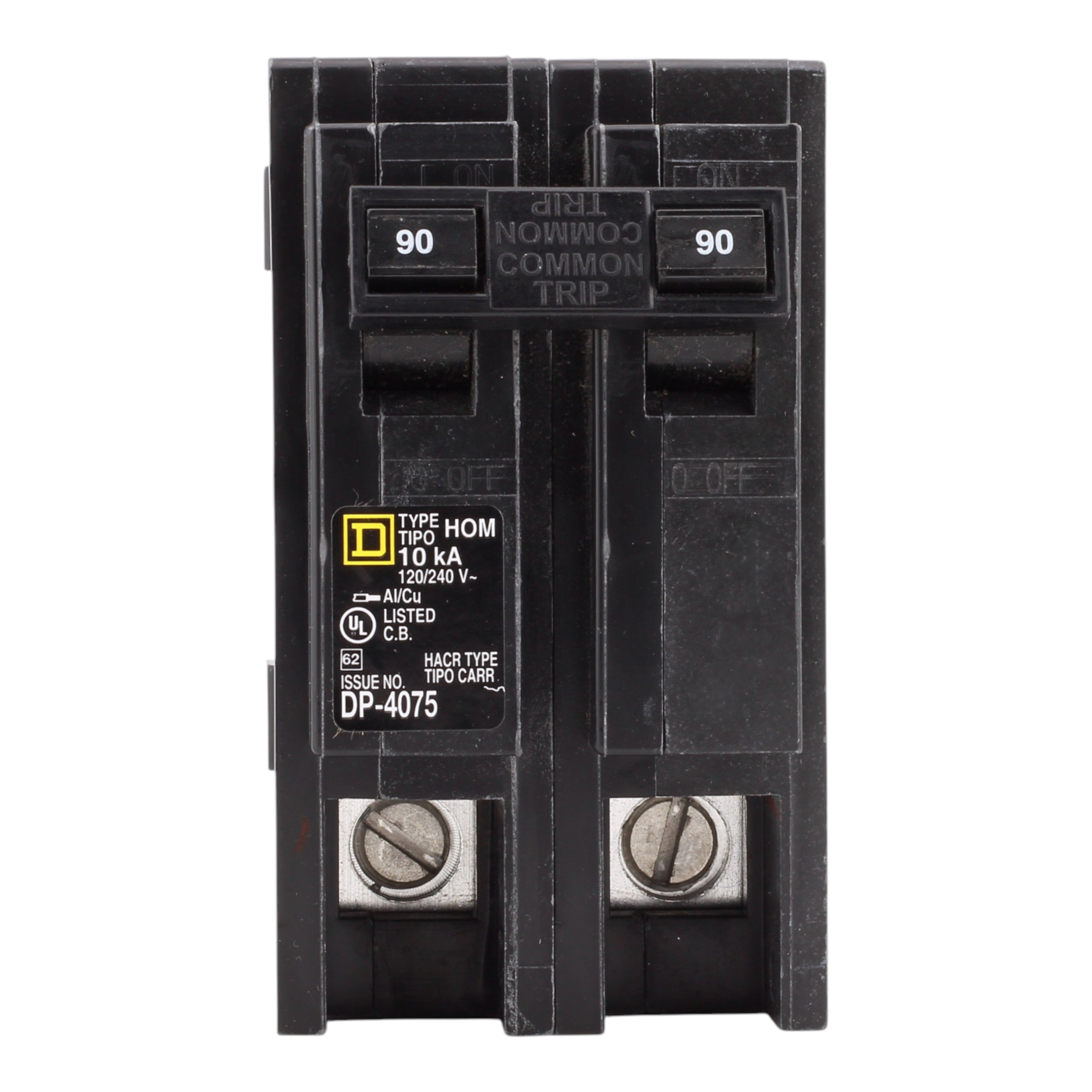

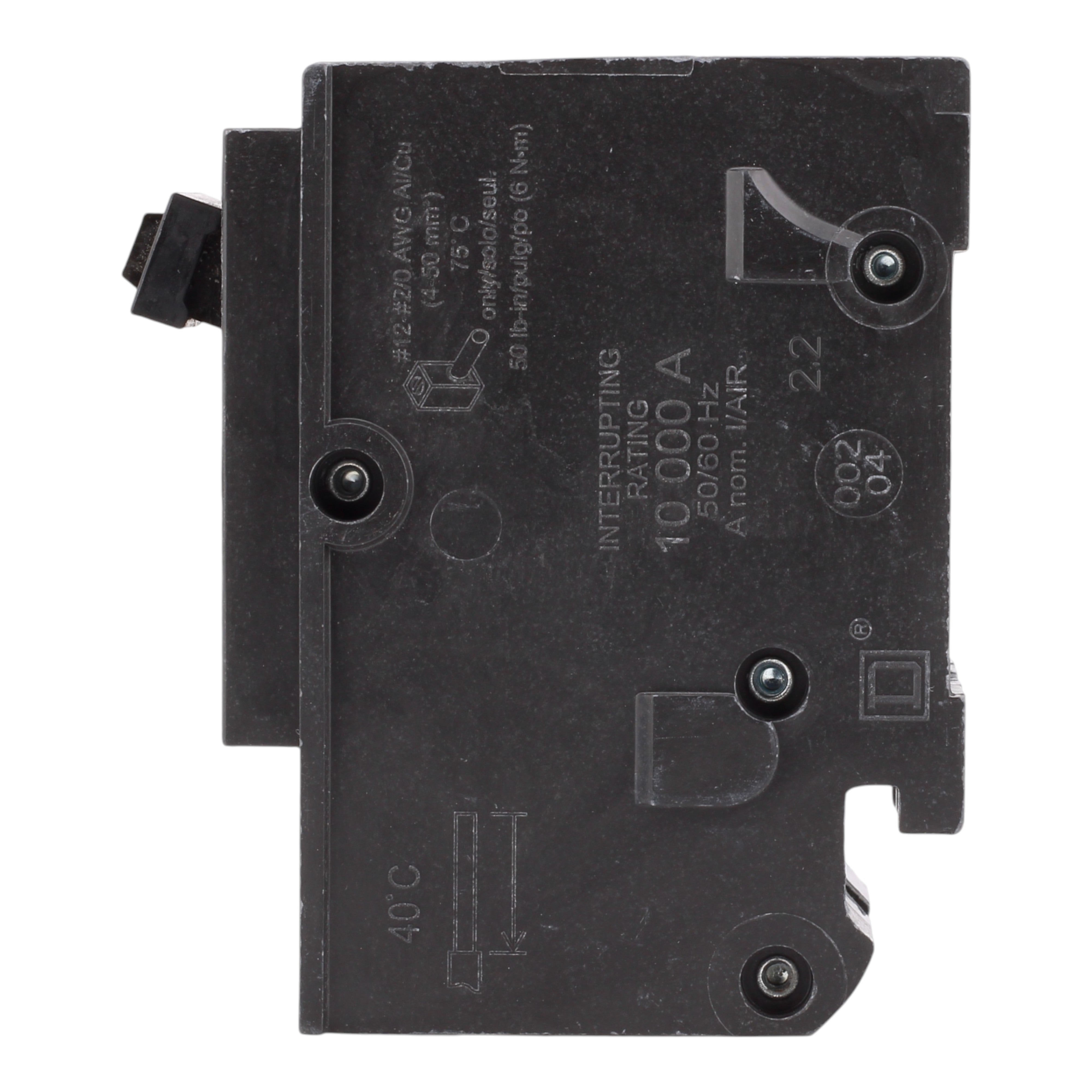

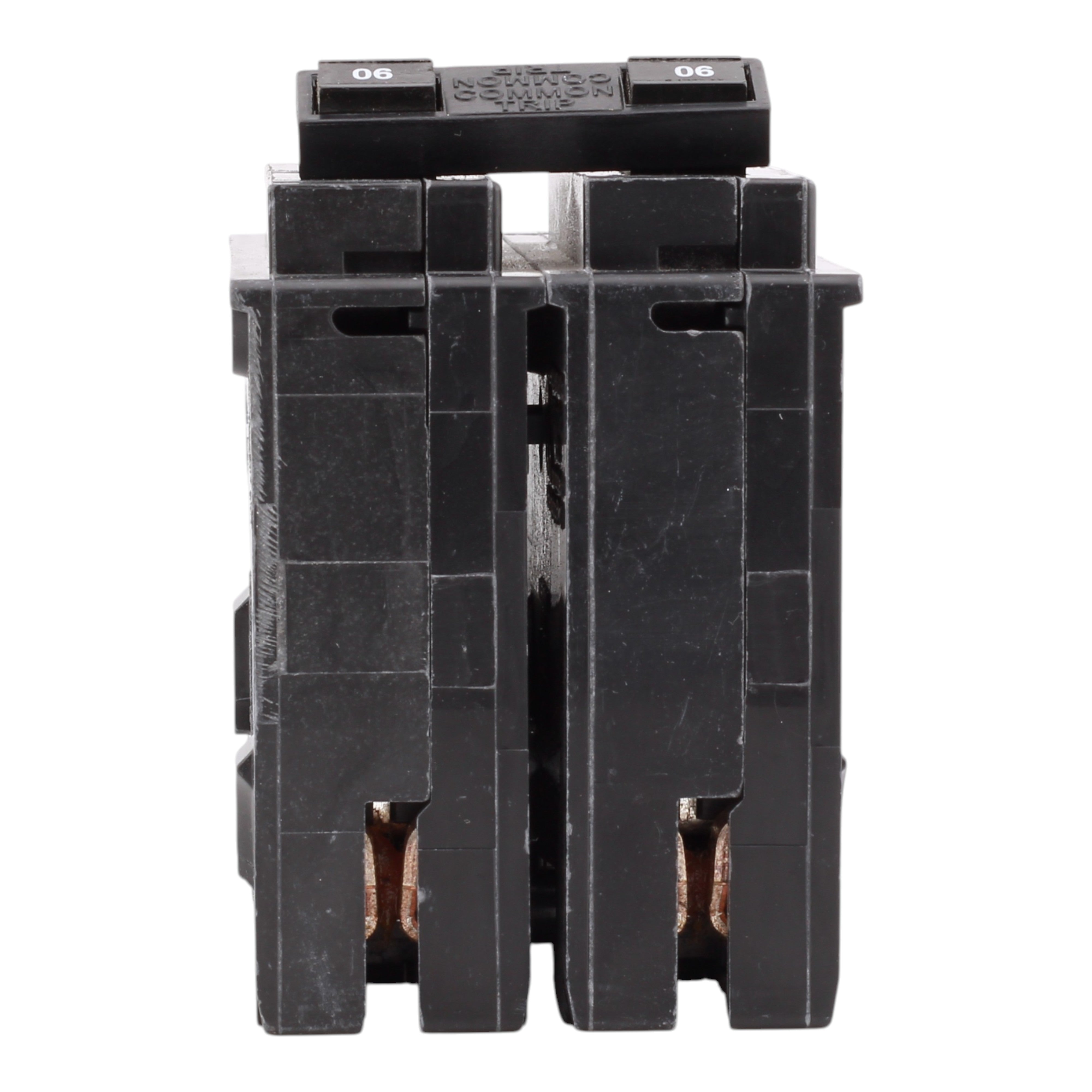

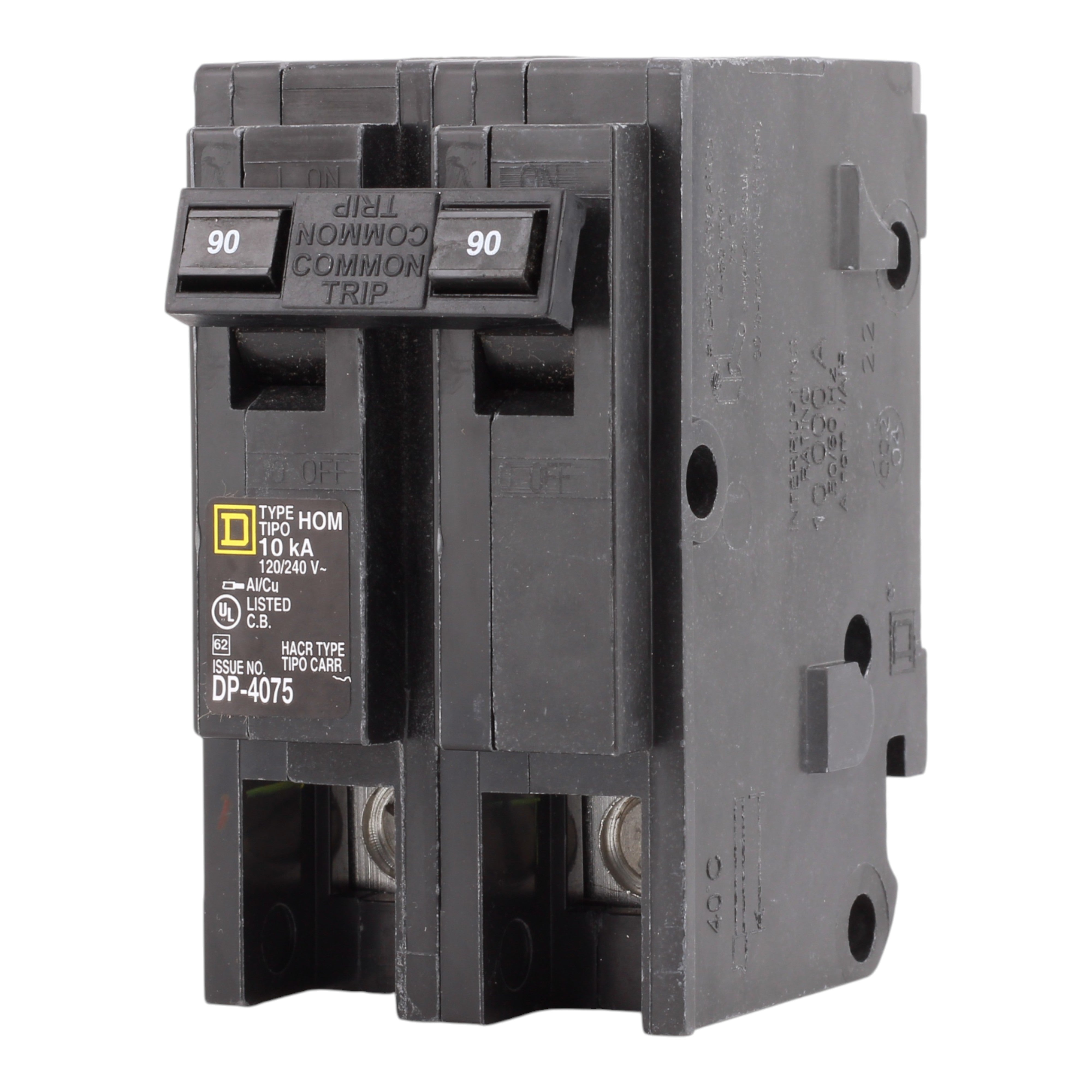

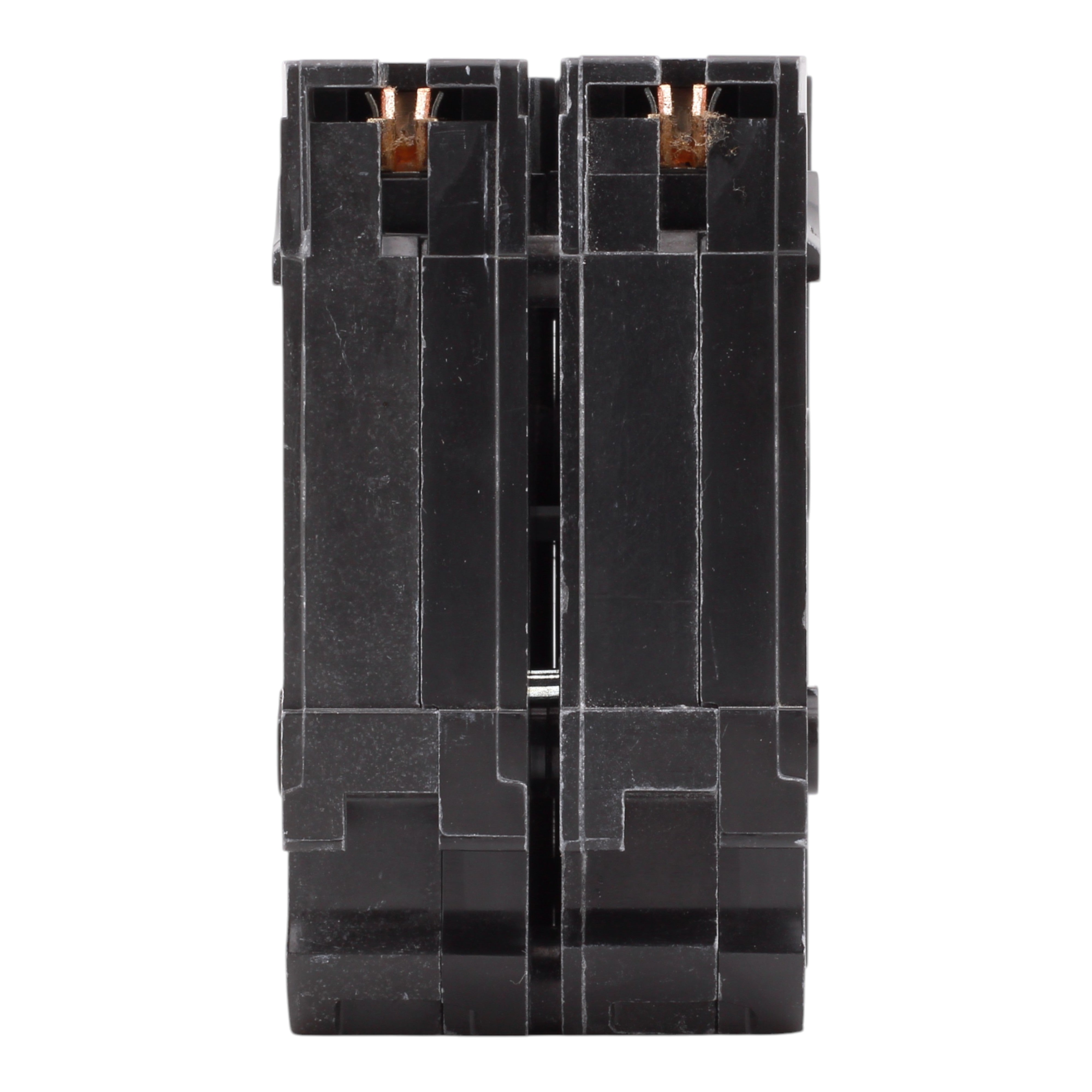

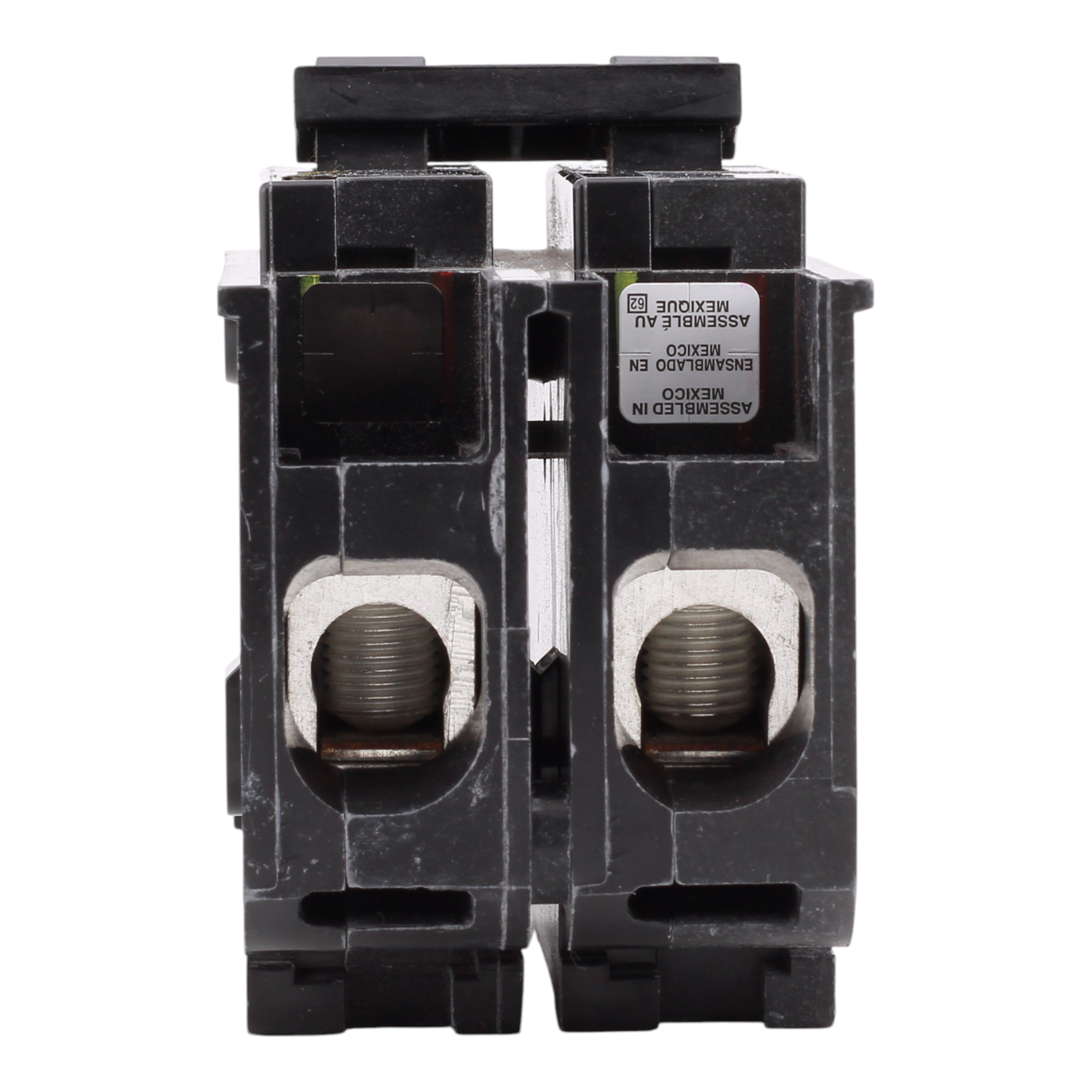

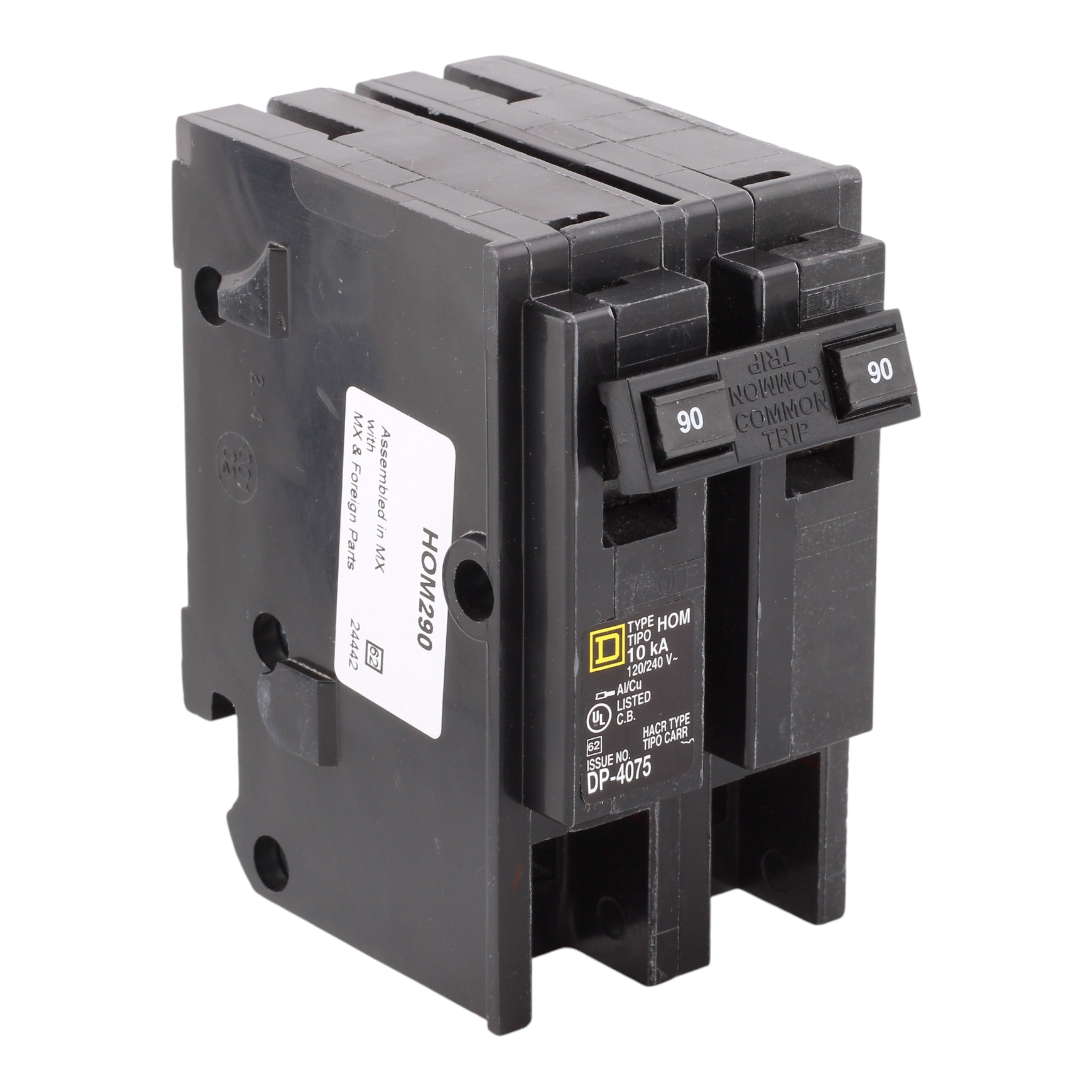

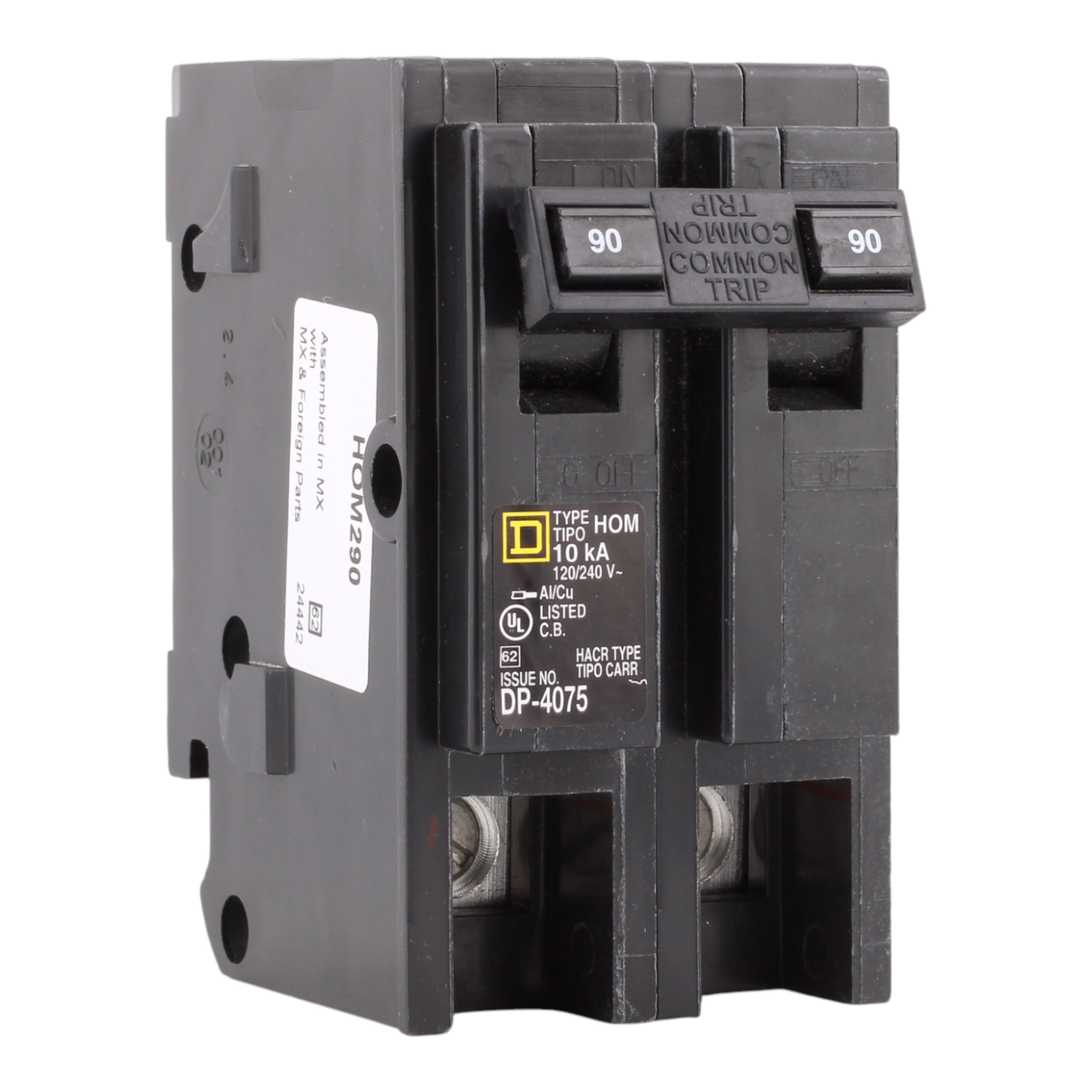

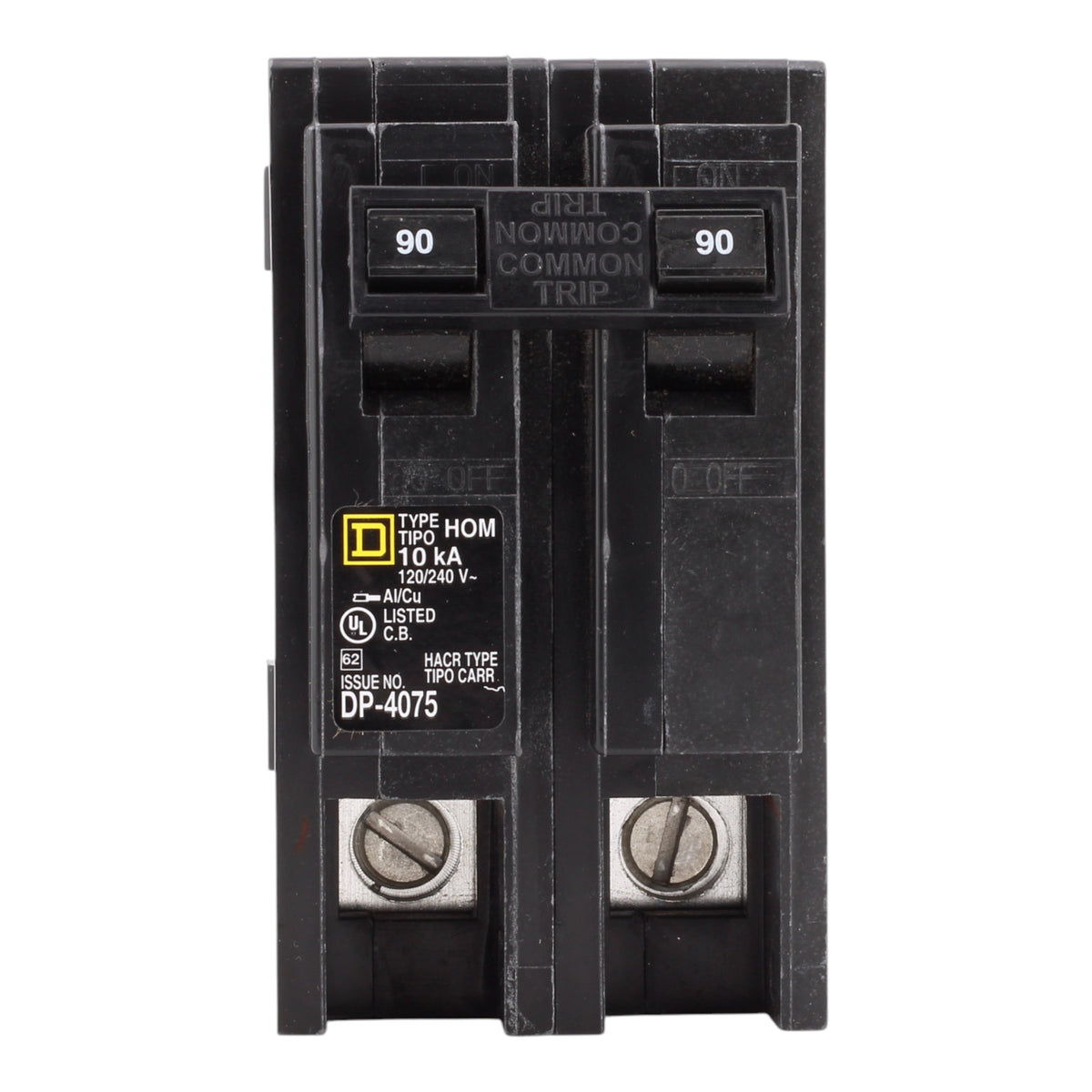

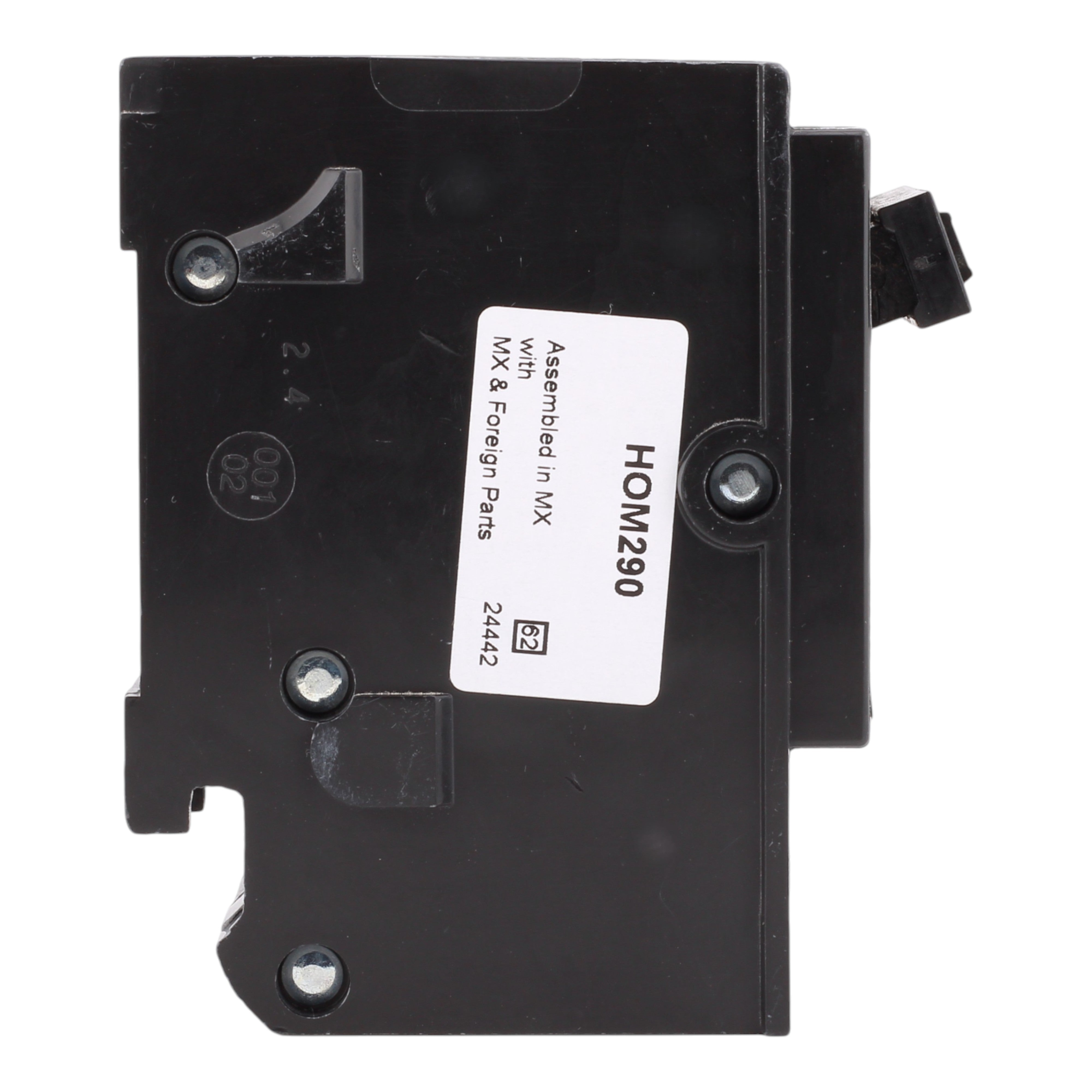

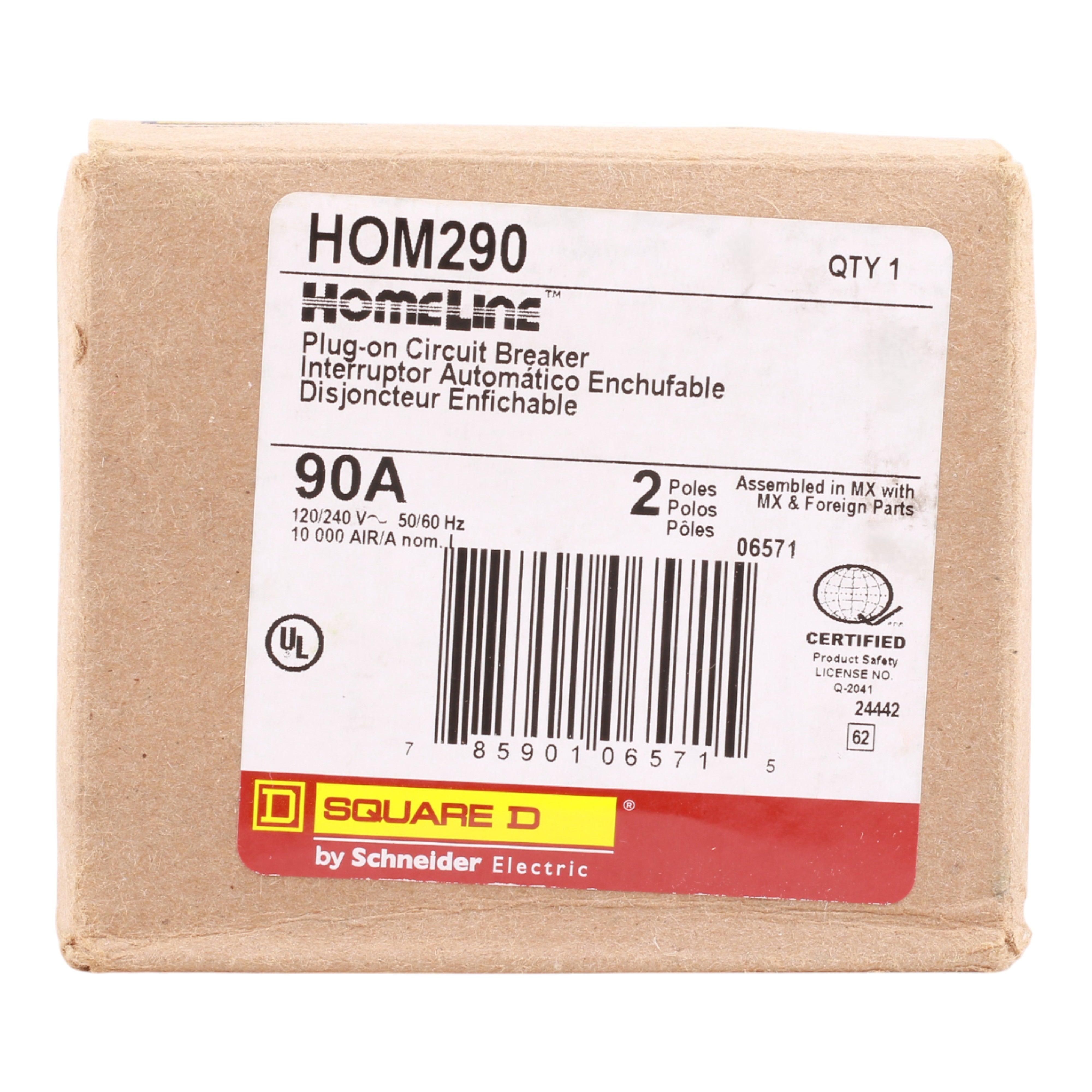

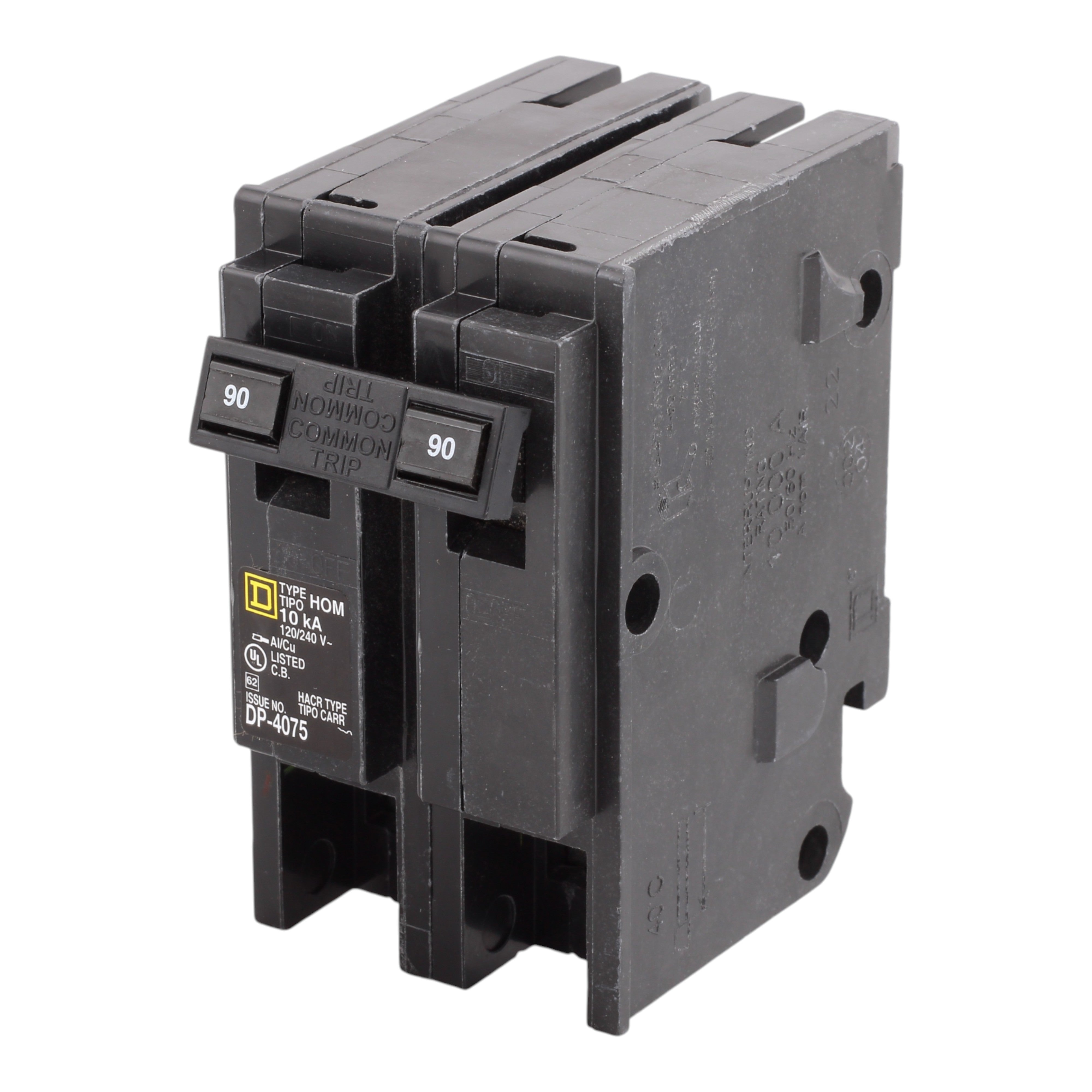

Square D Homeline HOM290 90A 2P 120/240V Standard Plug-In Circuit Breaker

Square D HOM290: 90 Amp 2-Pole Standard Circuit Breaker, 120/240V, 10kA, plug-in, UL listed, HACR rated.

• Manufacturer: Schneider Electric
• Brand: Square D
• Product Range: Homeline (for Square D Homeline loadcenters and equipment)
• UPC: 785901065715
• Model Number: HOM290
• Breaker Type: Standard
• Amperage: 90 Amps
• Poles: 2-Pole
• Voltage: 120/240 Volts AC
• Interrupt Rating: 10 kAIC
• Mounting Mode: Plug-in
• Connections Terminals: Box lugs
• Wire Size: 1 x AWG 4...2/0 (Cu/Al)
• Tightening Torque: 42.5 lb-in
• Dimensions: Height: 3.13 in; Width: 2.0 in; Depth: 2.98 in
• Weight: 0.856 lbs
• Certifications: UL Listed, HACR Rated

This Square D HOM290 plug-in circuit breaker provides reliable 90A, 2-pole standard protection for 120/240V circuits in Homeline loadcenters. Engineered for fast installation and superior circuit protection, it ensures dependable performance for residential and light commercial applications.
