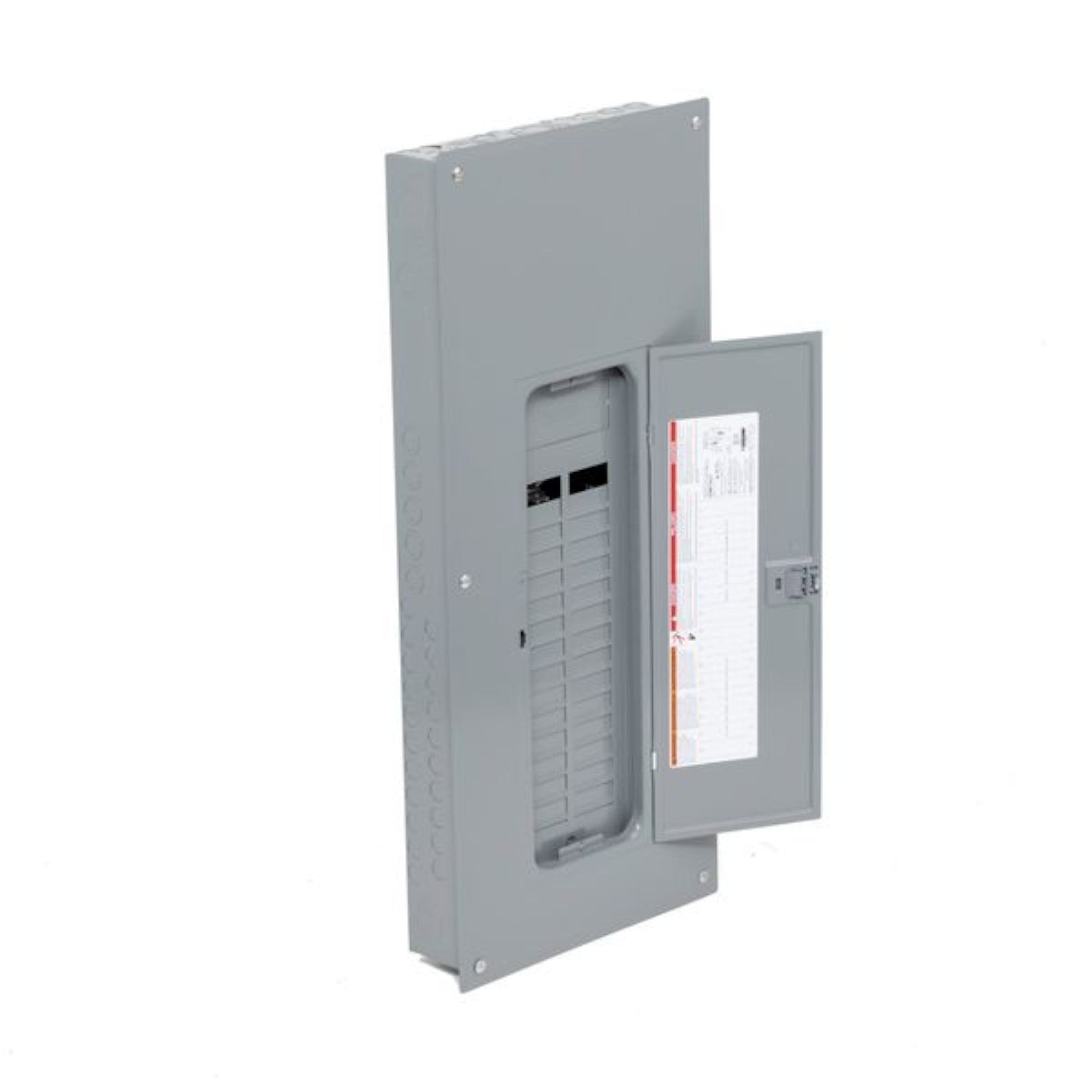

Square D Homeline HOM3060L225PGC 225A 1PH 120/240V PoN Load Center

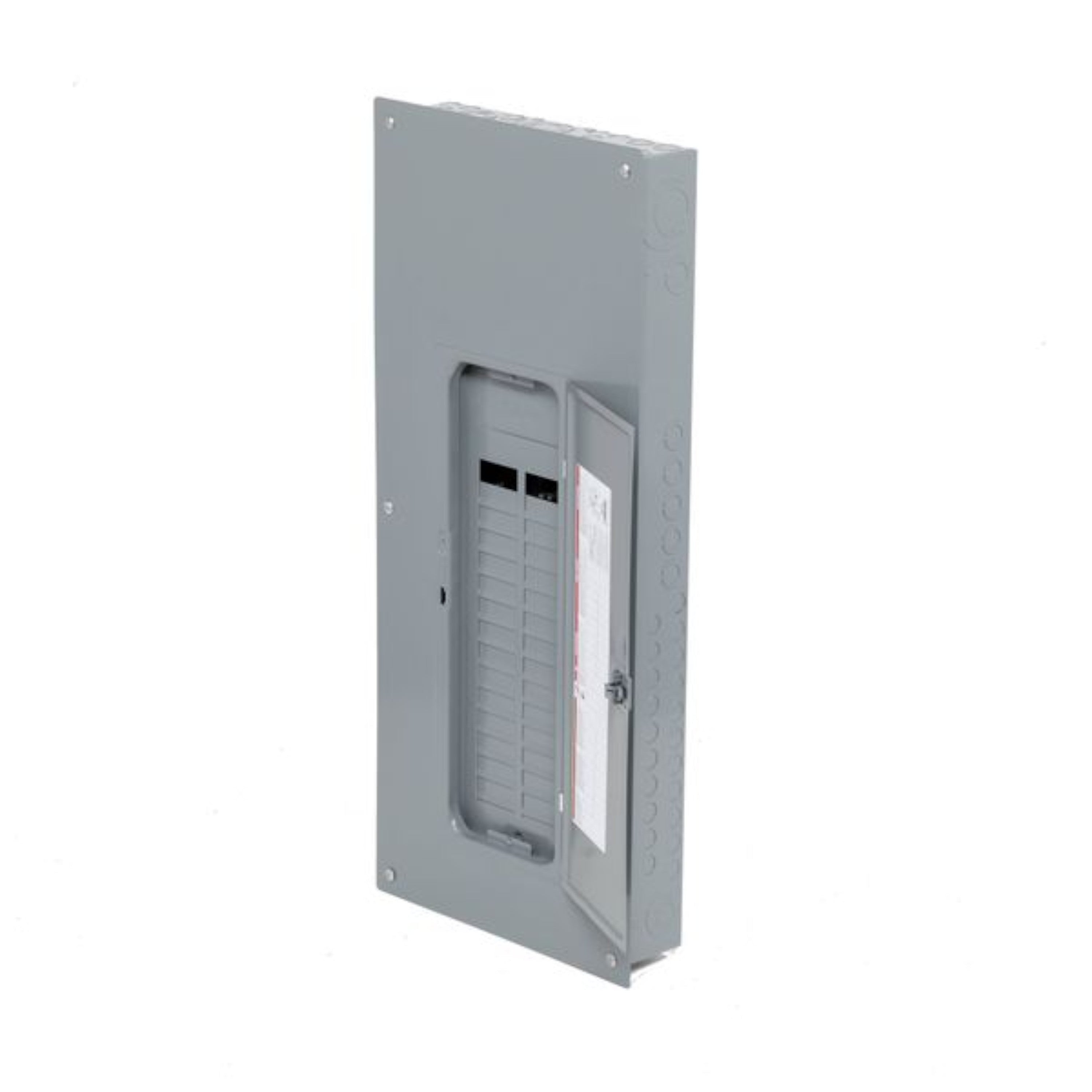

Square D Homeline HOM3060L225PGC 225A 1PH 120/240V PoN Load Center - Image 2

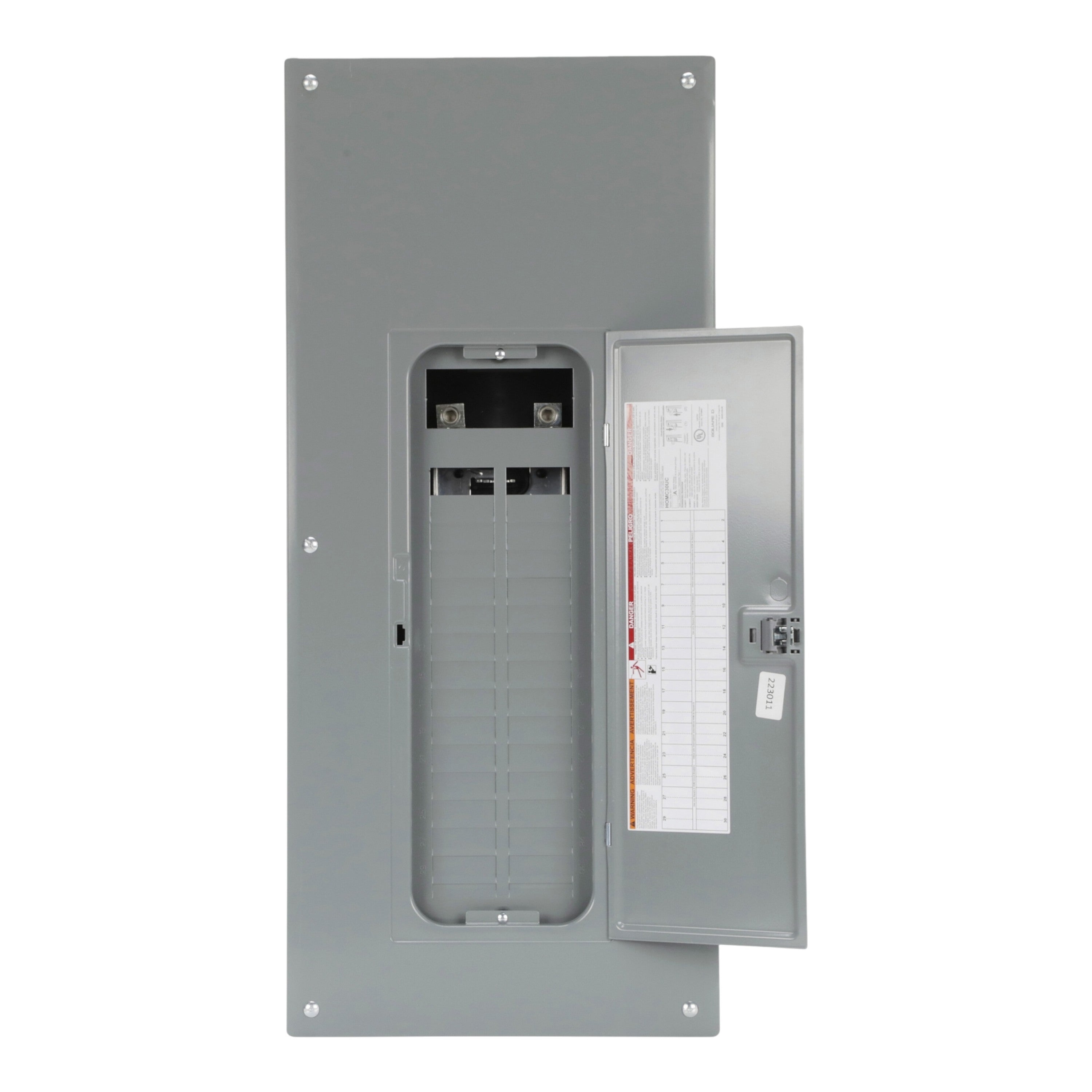

Square D Homeline HOM3060L225PGC 225A 1PH 120/240V PoN Load Center - Image 3

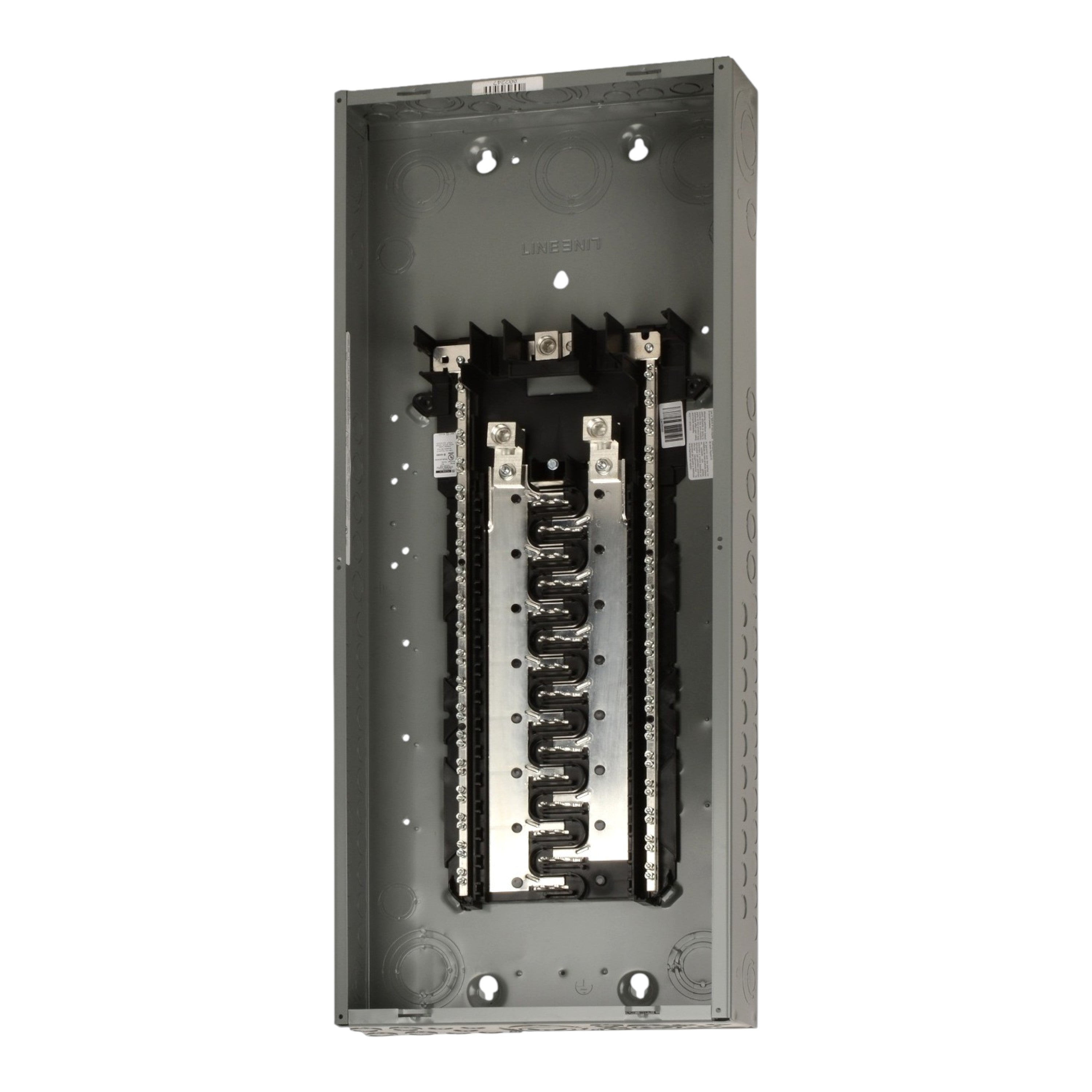

Square D Homeline HOM3060L225PGC 225A 1PH 120/240V PoN Load Center - Image 4

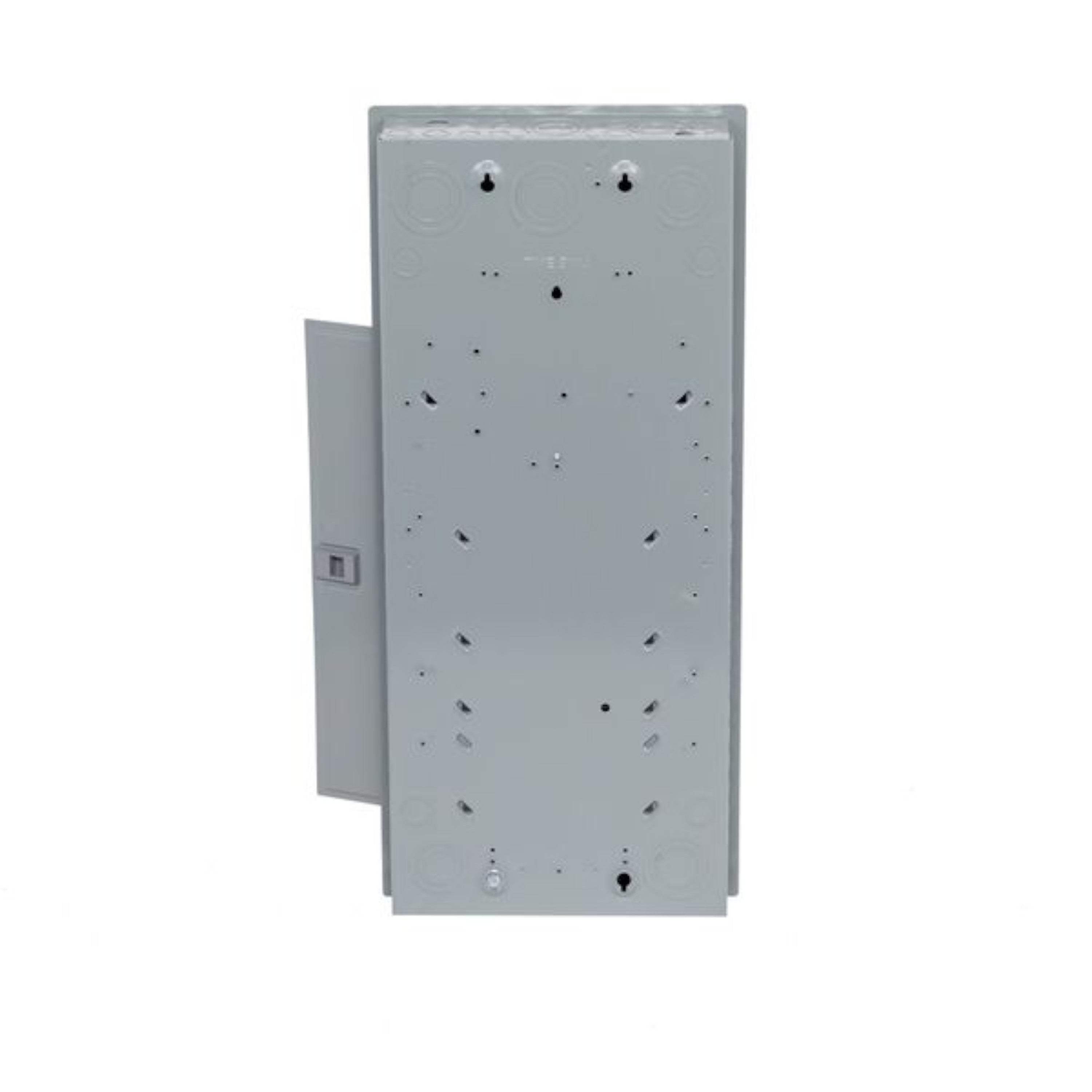

Square D Homeline HOM3060L225PGC 225A 1PH 120/240V PoN Load Center - Image 5

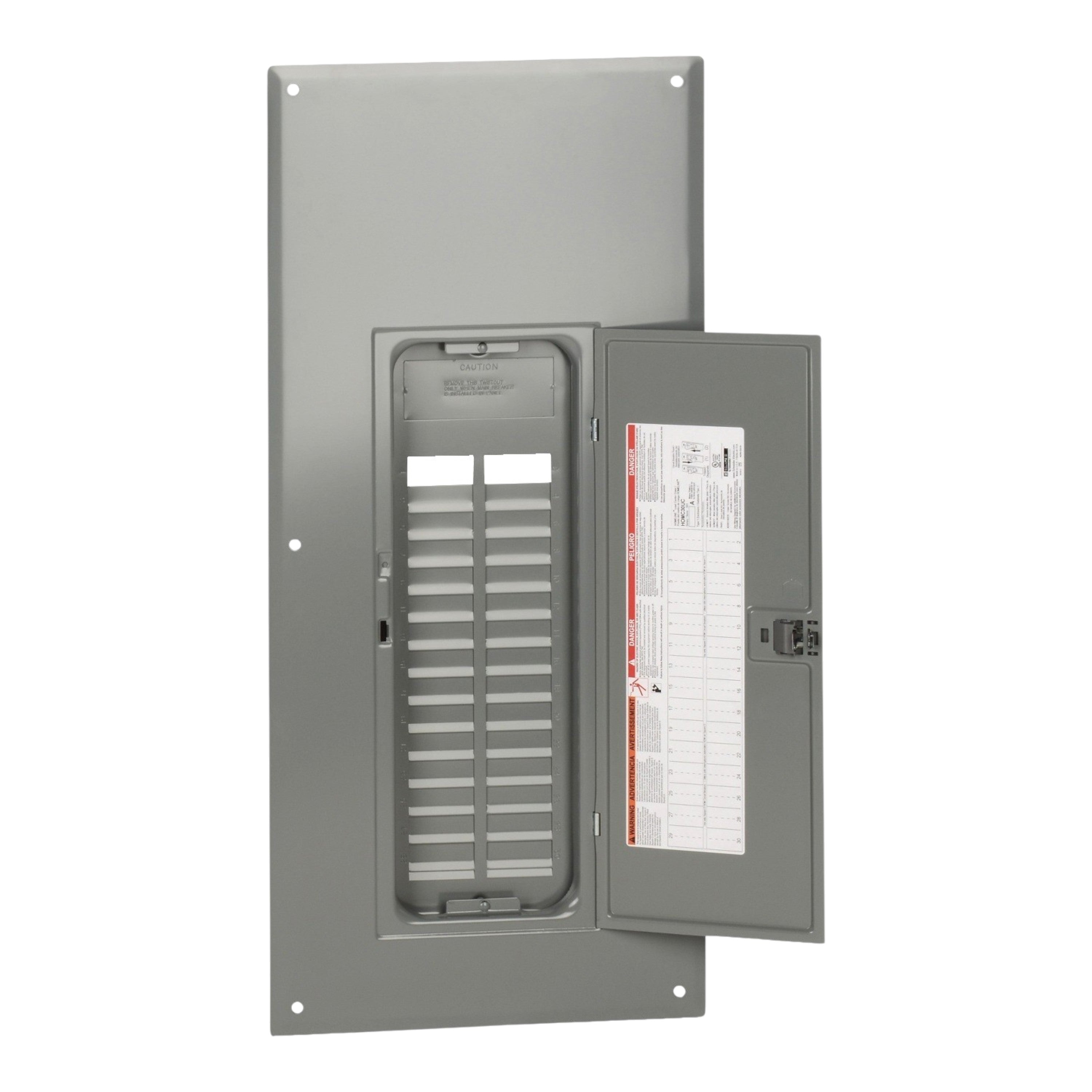

Square D Homeline HOM3060L225PGC 225A 1PH 120/240V PoN Load Center - Image 6
Square D Homeline HOM3060L225PGC 225A 1PH 120/240V PoN Load Center
Square D Homeline HOM3060L225PGC 225A 1PH 120/240V PoN Load Center - Image 2
Square D Homeline HOM3060L225PGC 225A 1PH 120/240V PoN Load Center - Image 3
Square D Homeline HOM3060L225PGC 225A 1PH 120/240V PoN Load Center - Image 4
Square D Homeline HOM3060L225PGC 225A 1PH 120/240V PoN Load Center - Image 5
Square D Homeline HOM3060L225PGC 225A 1PH 120/240V PoN Load Center - Image 6

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Square D

Square D Homeline HOM3060L225PGC 225A 1PH 120/240V PoN Load Center

Out of stock
SKU: HOM3060L225PGC UPC: 785901977223
(0)
$130.00
-32% $191.00 $130.00
Out of stock
Condition

HOM3060L225PGC specifications

  • Manufacturer: Schneider Electric
  • Brand: Square D
  • Product Range: Homeline (for Square D Homeline loadcenters and equipment)
  • UPC: 785901977223
  • Model Number: HOM3060L225PGC
  • Product Type: Load Center
  • Rated Current: 225 Amps
  • Number of Phases: 1-Phase (3 wires)
  • Voltage Rating: 120/240 Volts AC
  • Number of Spaces: 30
  • Maximum Number of Single Pole Circuits: 60
  • Maximum Number of Tandem Breakers: 30
  • Short Circuit Current Rating: 10 kAIC
  • Enclosure Rating: NEMA 1 indoor enclosure
  • Cover Type: Combination flush/surface cover
  • Electrical Connection: Lugs
  • Wire Size: AWG 4-250 kcmil (Copper); AWG 4-300 kcmil (Aluminum)
  • Busbar Material: Tin-plated aluminum
  • Ground Bar: Grounding bar included (not installed)
  • Dimensions: Height: 33.8 in; Width: 14.3 in; Depth: 3.7 in
  • Weight: 30.6 lbs
  • Certifications: UL Listed

This Square D Homeline HOM3060L225PGC plug-on neutral load center delivers reliable 225A, 1-phase power distribution for 120/240V circuits in Homeline loadcenters. With 30 spaces and support for up to 60 circuits, it offers flexible installation for residential and industrial applications, featuring a NEMA 1 indoor enclosure and combination flush/surface cover for enhanced versatility and circuit protection.

There is a $15 charge for delivery. Additional charges will be imposed by our couriers for delivery to remote areas, a surcharge may be levied to cover carriage to these areas.

Warranty Coverage

We stand behind every product we sell. Coverage depends on the condition of the item at time of purchase:

  • New: 12-month warranty
  • New Open Box: 10-month warranty
  • Reconditioned: 90-day warranty

Warranty coverage begins on the date of delivery and covers manufacturing and functional defects under normal use. It does not cover damage from misuse, improper installation, or unauthorized repair. To make a warranty claim, contact us at support@breakersmart.com with your order number and a description of the issue.
