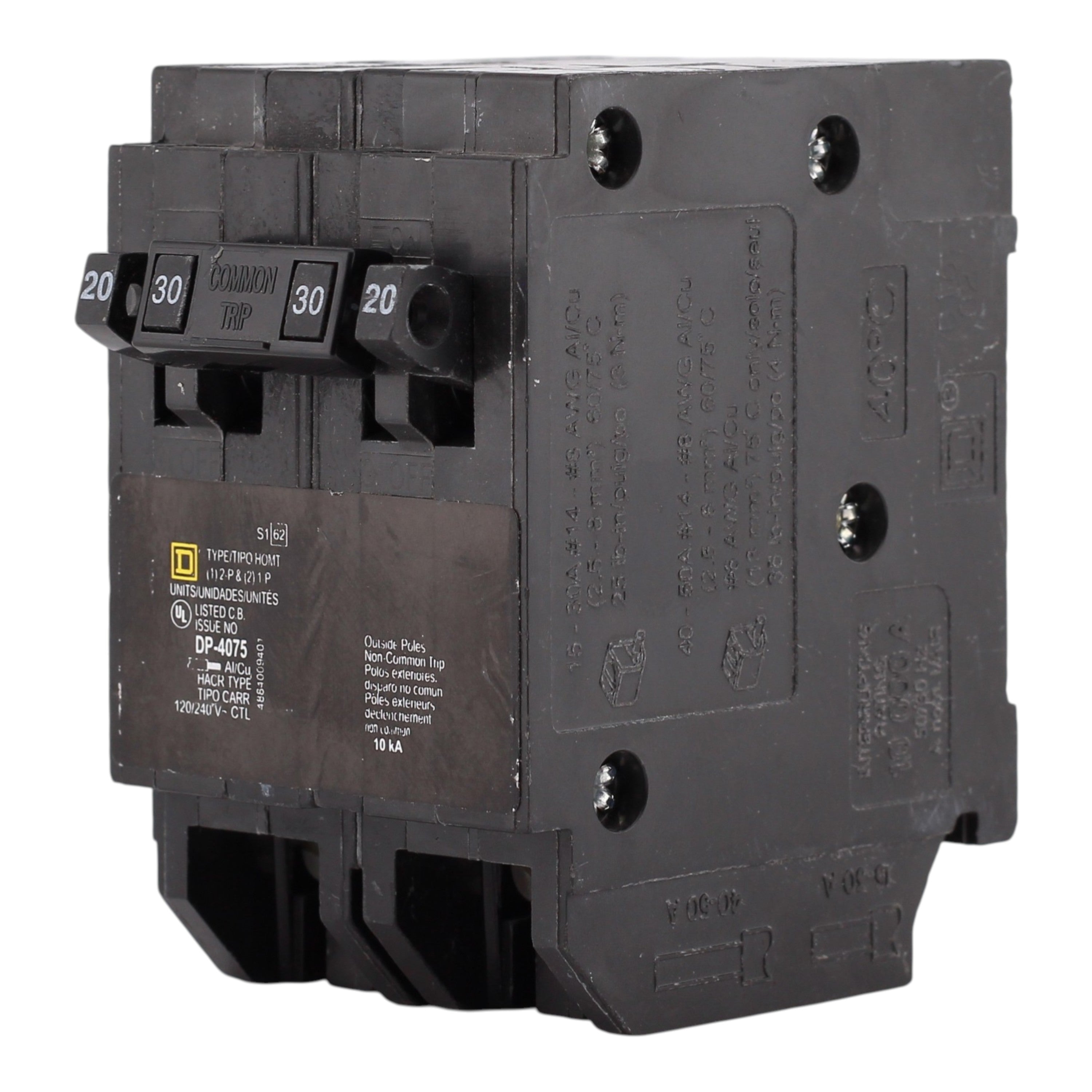

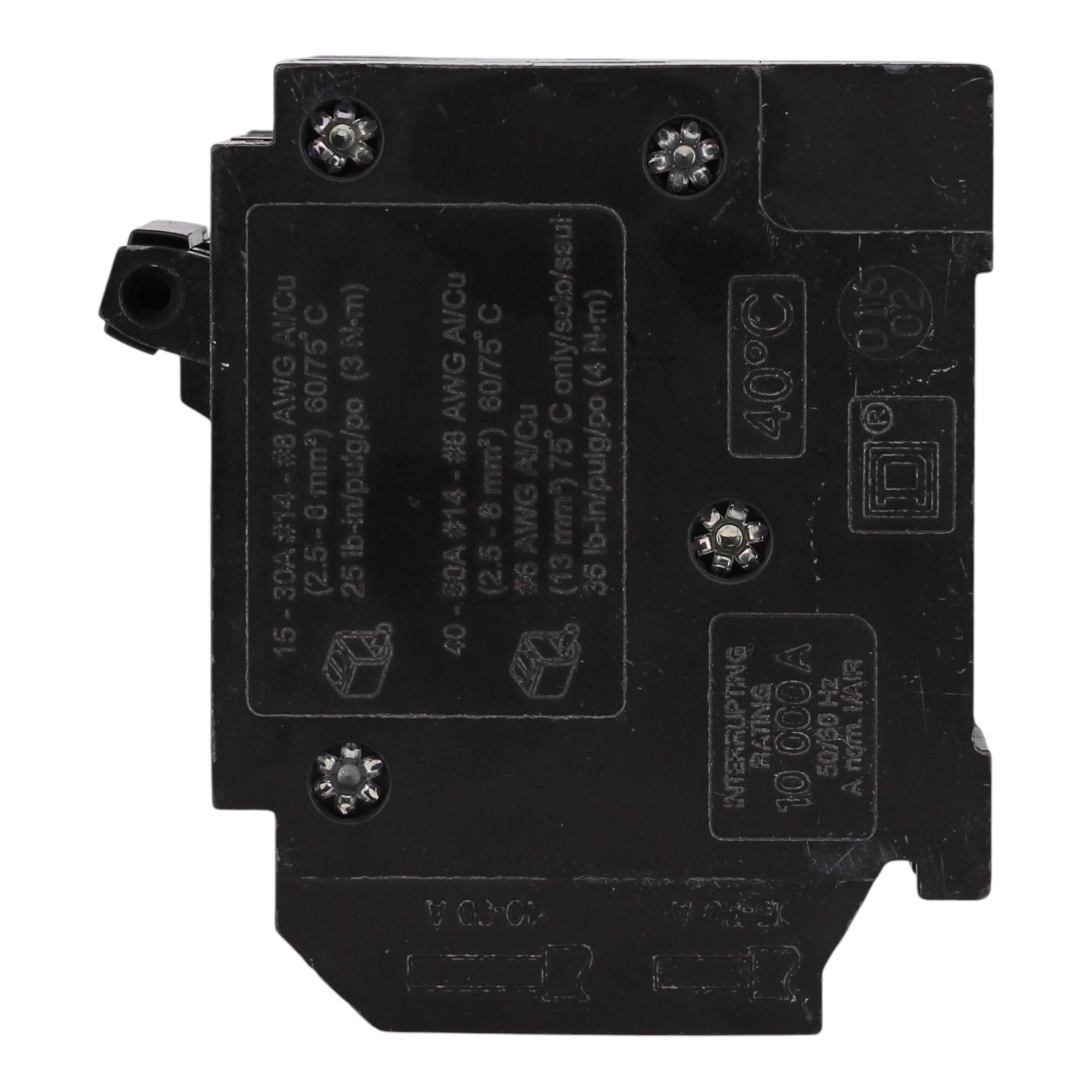

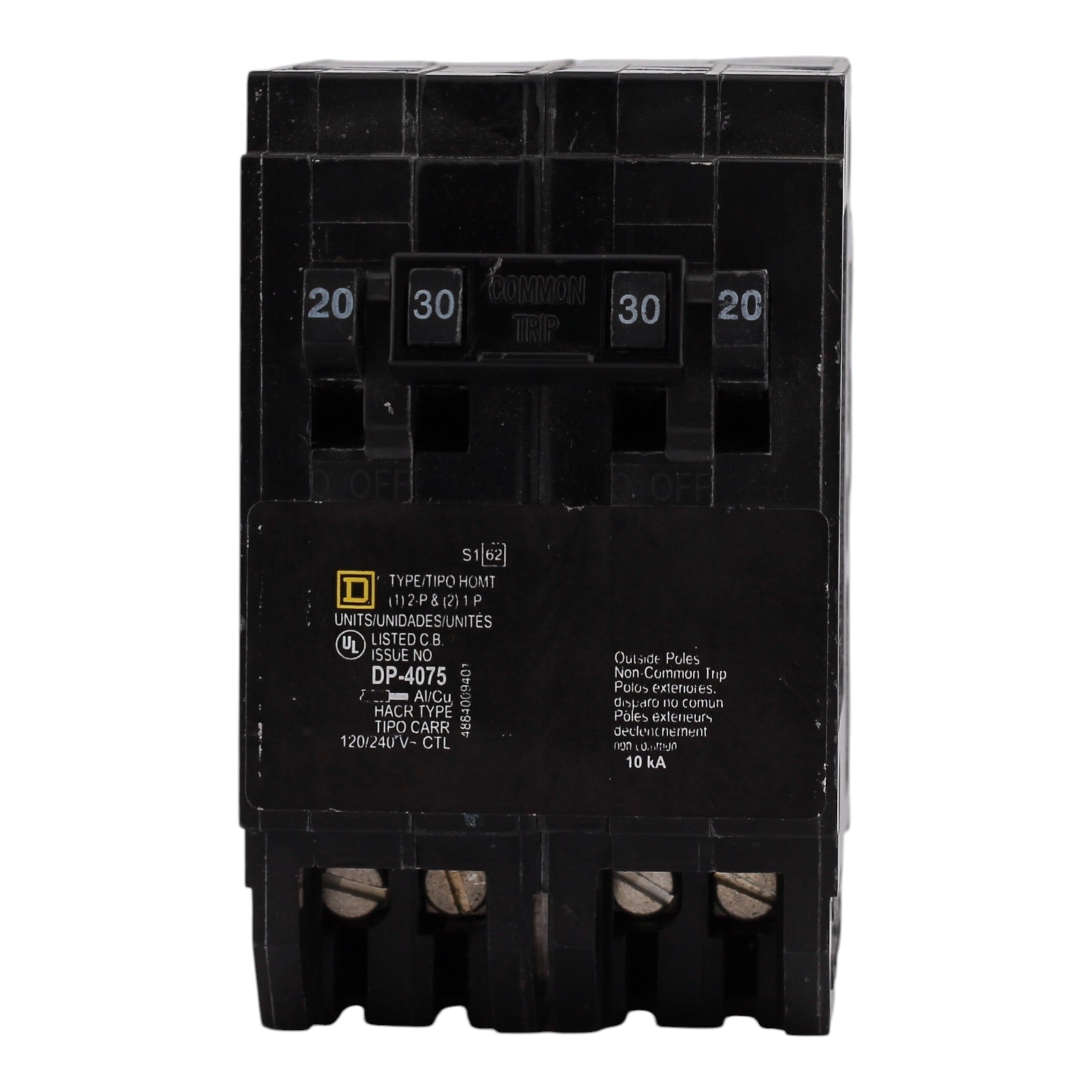

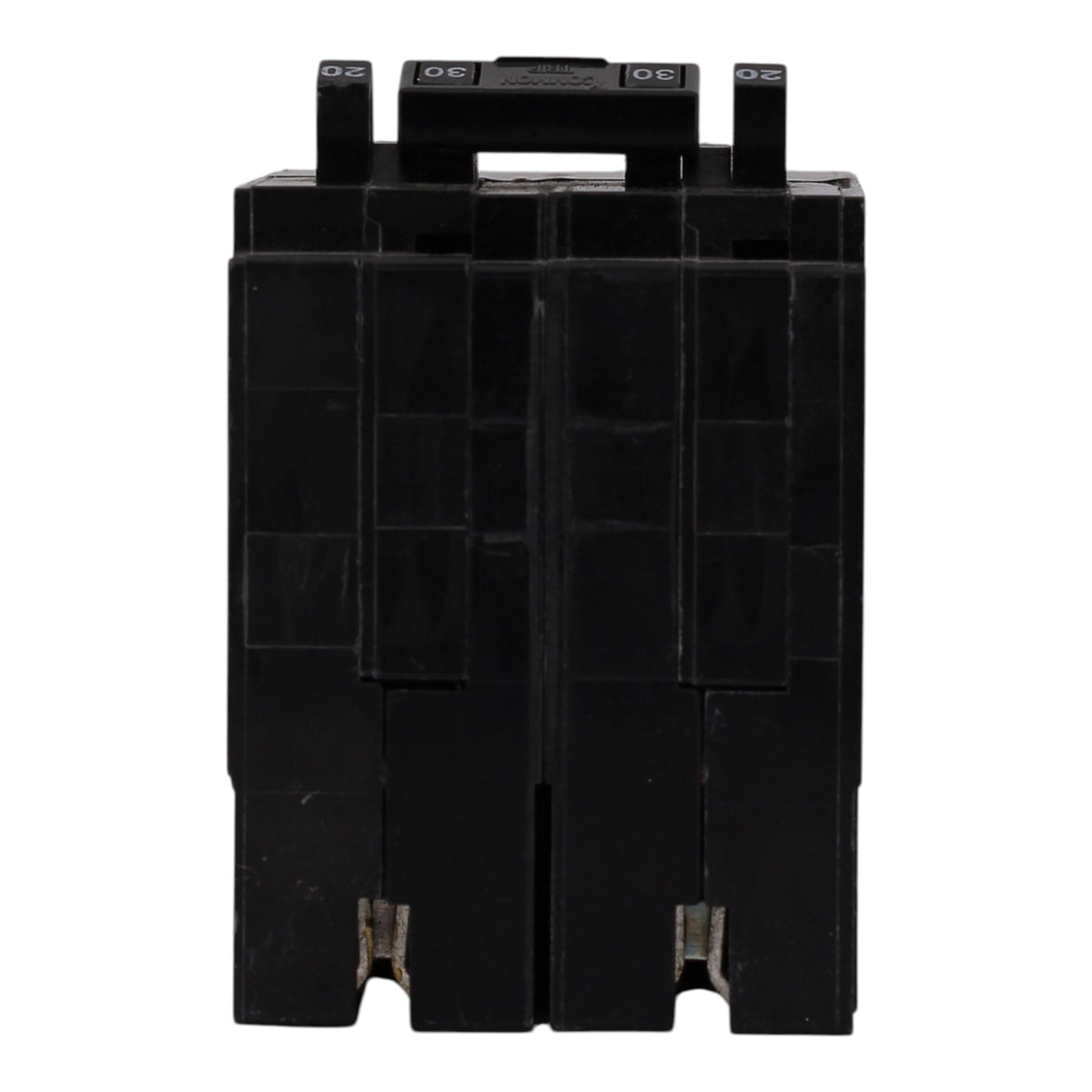

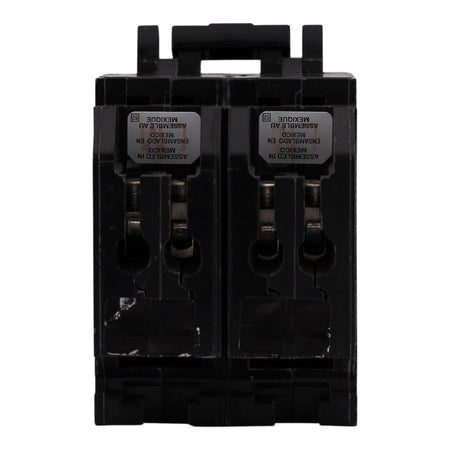

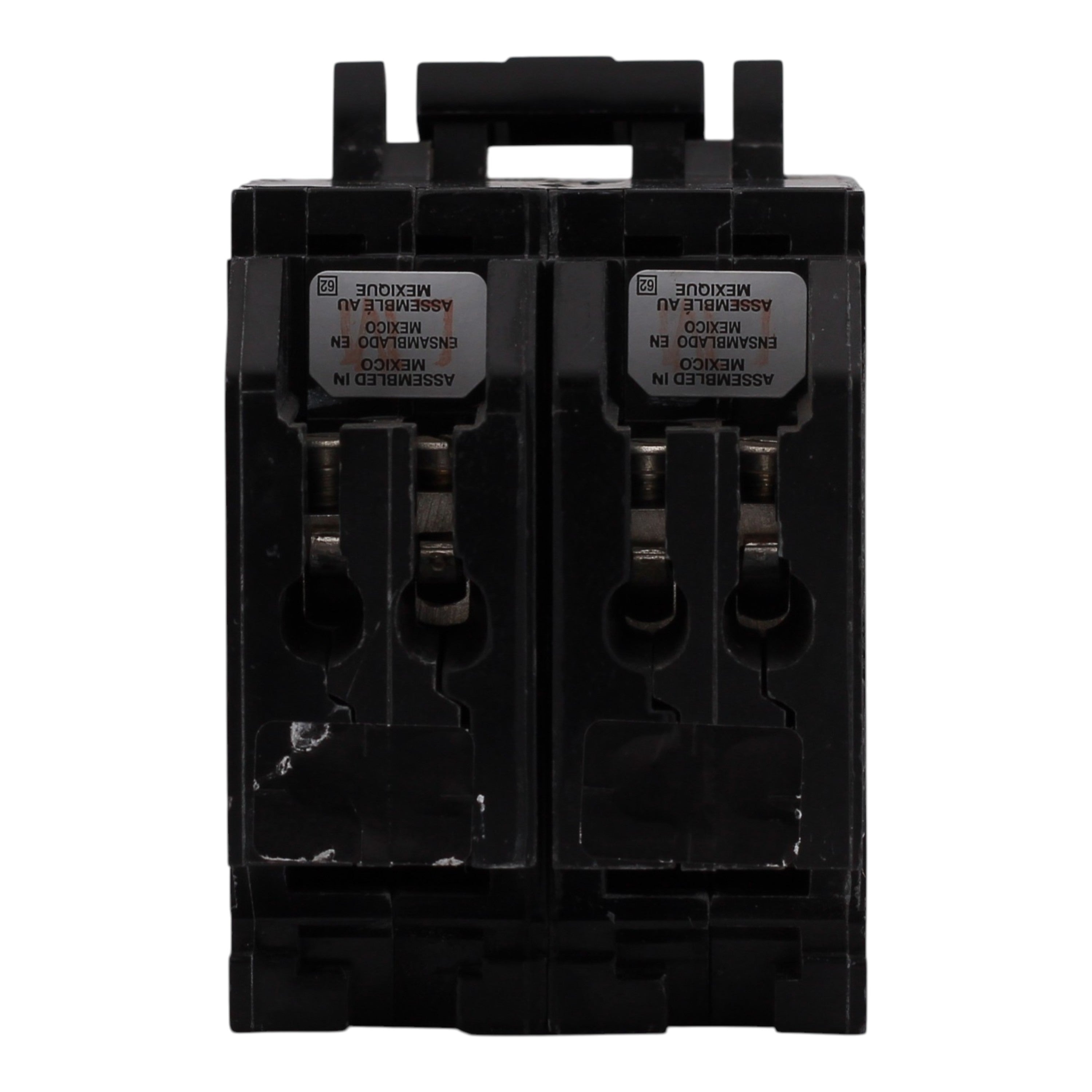

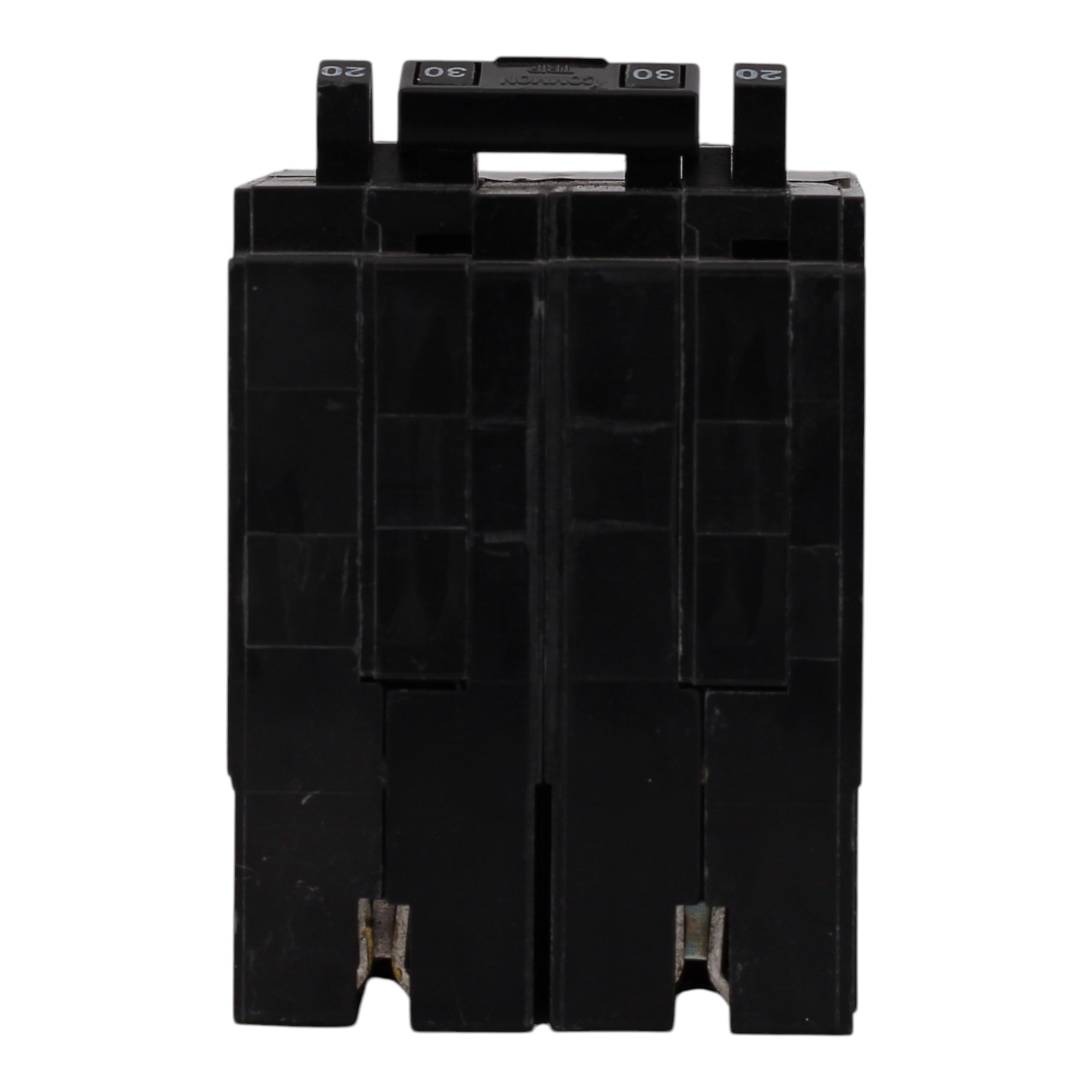

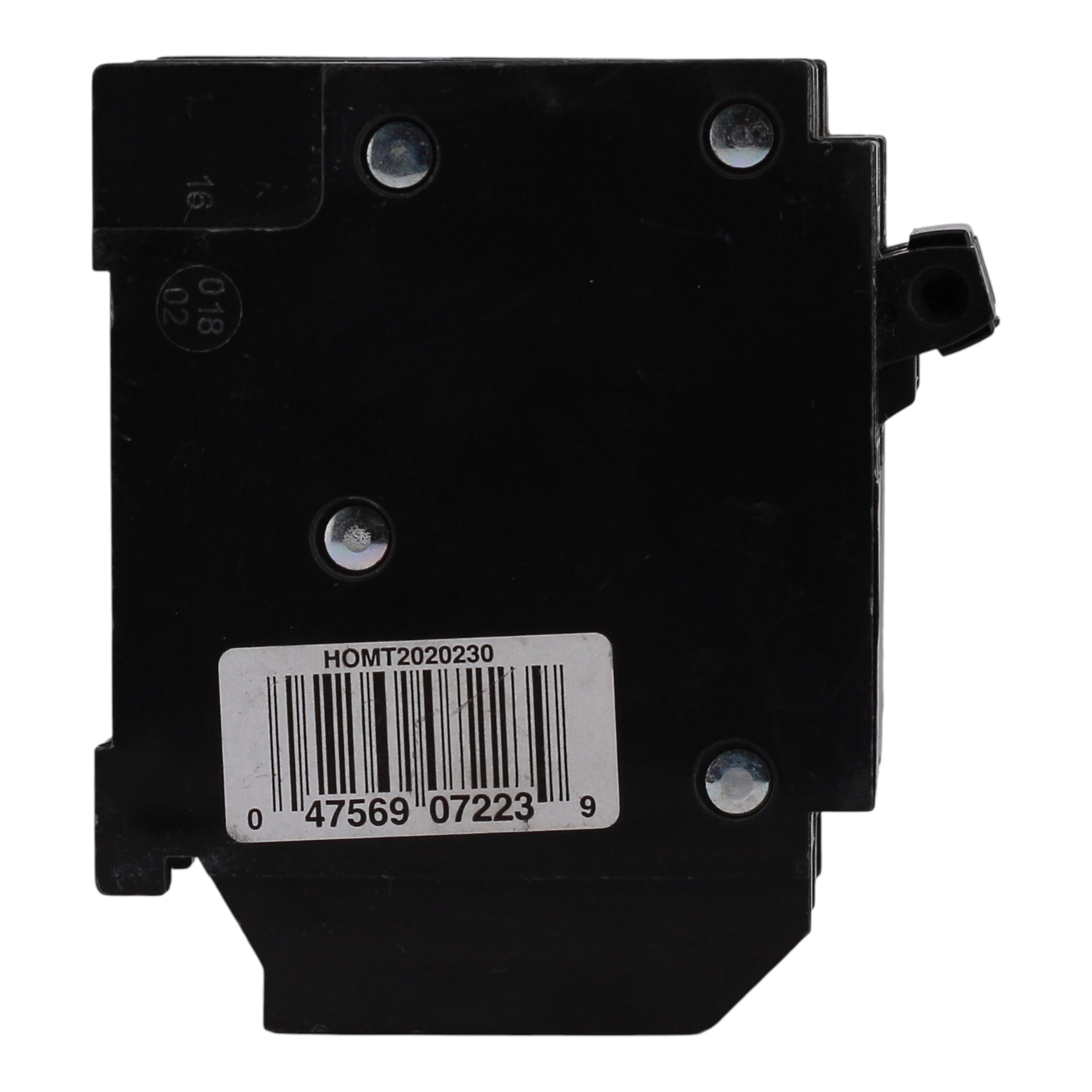

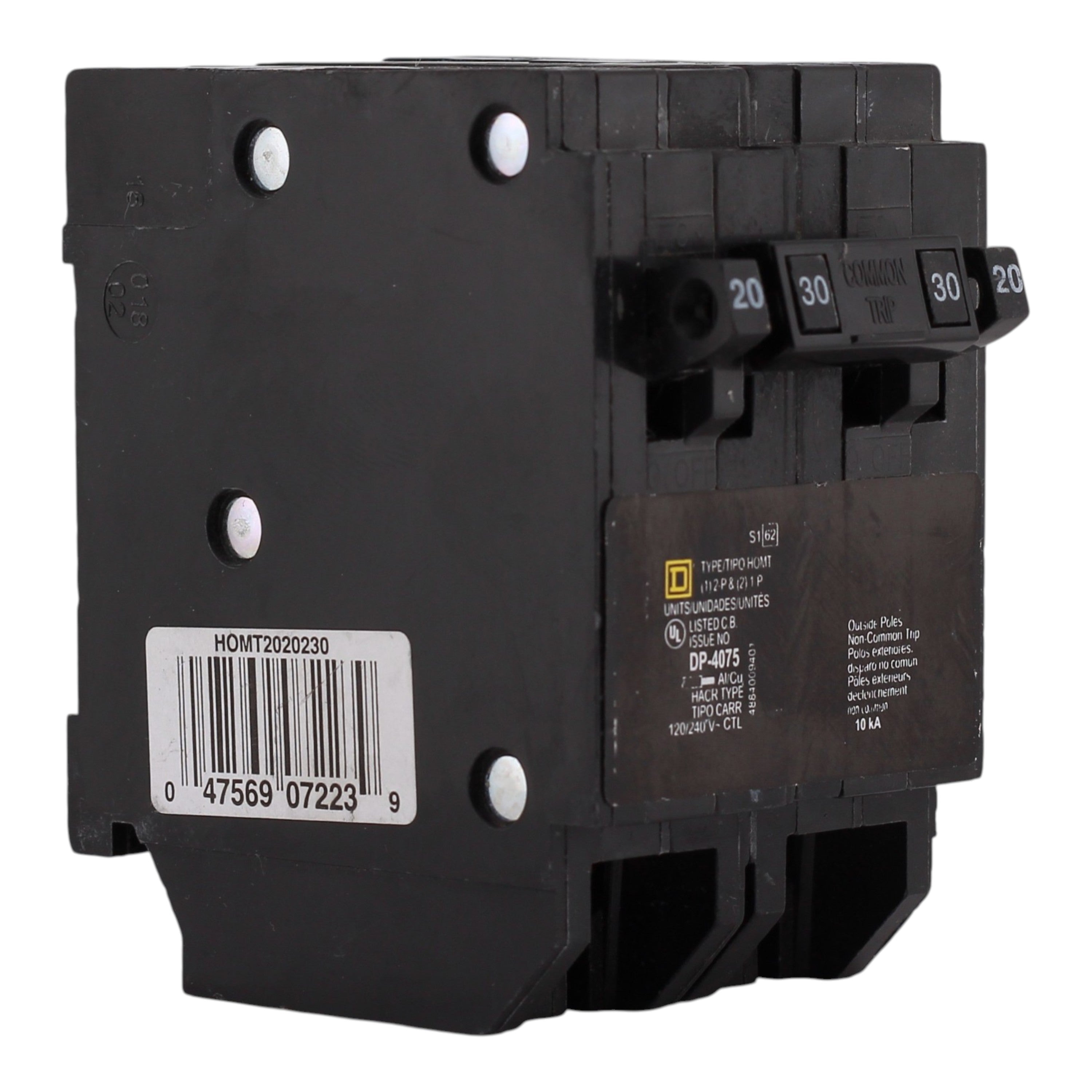

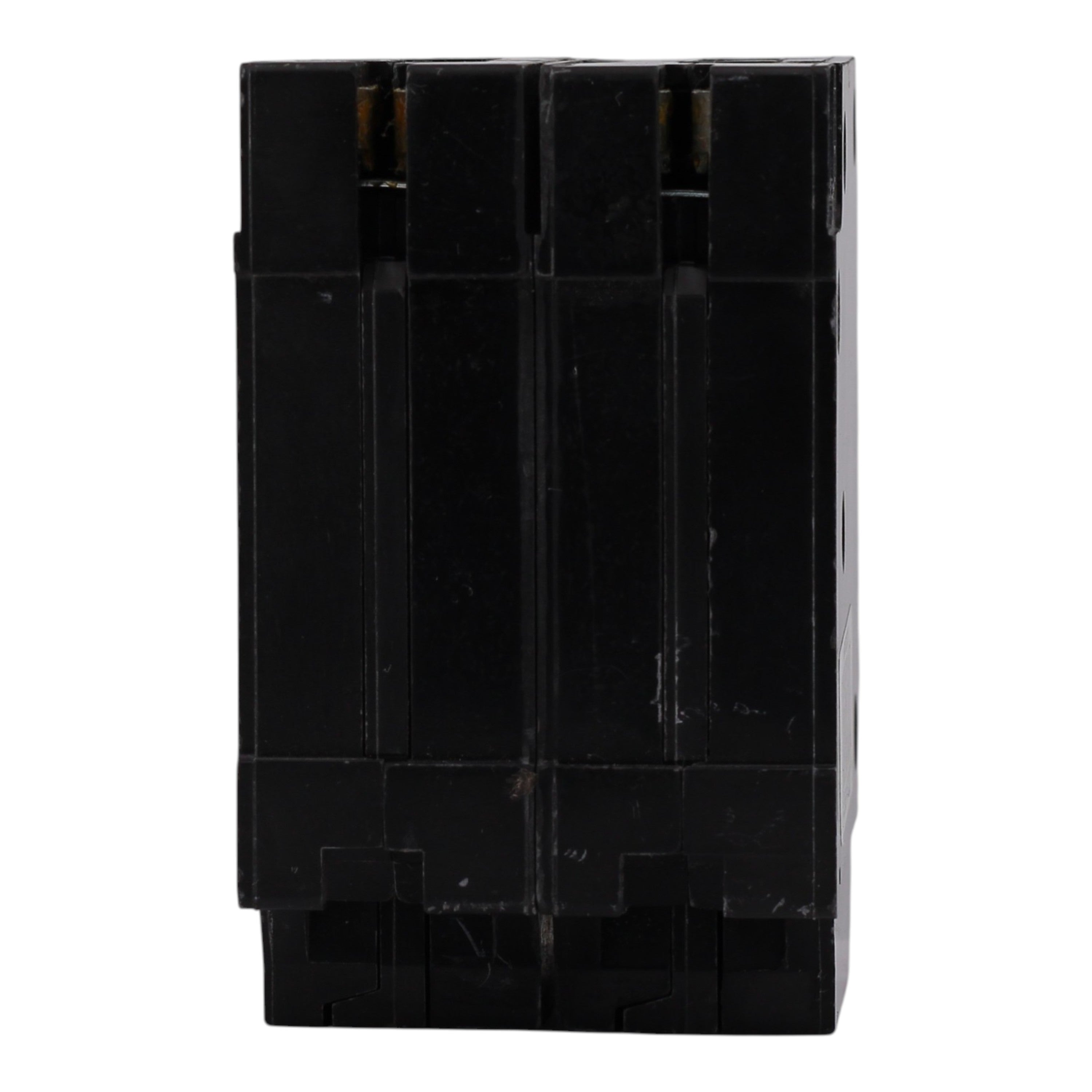

Square D Homeline, HOMT2020230, 20/30A, 2x1P/1x2P, 120/240V, Tandem, Circuit Breaker

Square D HOMT2020230: 20/30 Amp, Quad Tandem, 2x1-Pole 20A & 1x2-Pole 30A, 120/240V, 10kA, plug-in, HACR rated, UL listed.

• Manufacturer: Schneider Electric
• Brand: Square D
• Product Range: Homeline (for Square D Homeline loadcenters and CSED devices)
• UPC: 785901101031
• Model Number: HOMT2020230
• Breaker Type: Quad Tandem Thermal Magnetic Circuit Breaker
• Configuration: 2 x 1-Pole at 20 Amps, 1 x 2-Pole at 30 Amps
• Poles: 4-Pole (occupies 2 pole spaces)
• Voltage: 120/240 Volts AC
• Interrupt Rating: 10 kAIC
• Mounting Mode: Plug-in
• Wire Size: #14-8 AWG Cu, #14-8 AWG Al
• Dimensions: Height: 3.13 in; Width: 2.00 in; Depth: 2.98 in
• Certifications: UL Listed, HACR Rated

This Square D HOMT2020230 quad tandem circuit breaker delivers dependable 20/30 Amp, 4-circuit protection in just 2 pole spaces for 120/240V circuits in Homeline loadcenters. Ideal for space-saving residential and light commercial panels.
