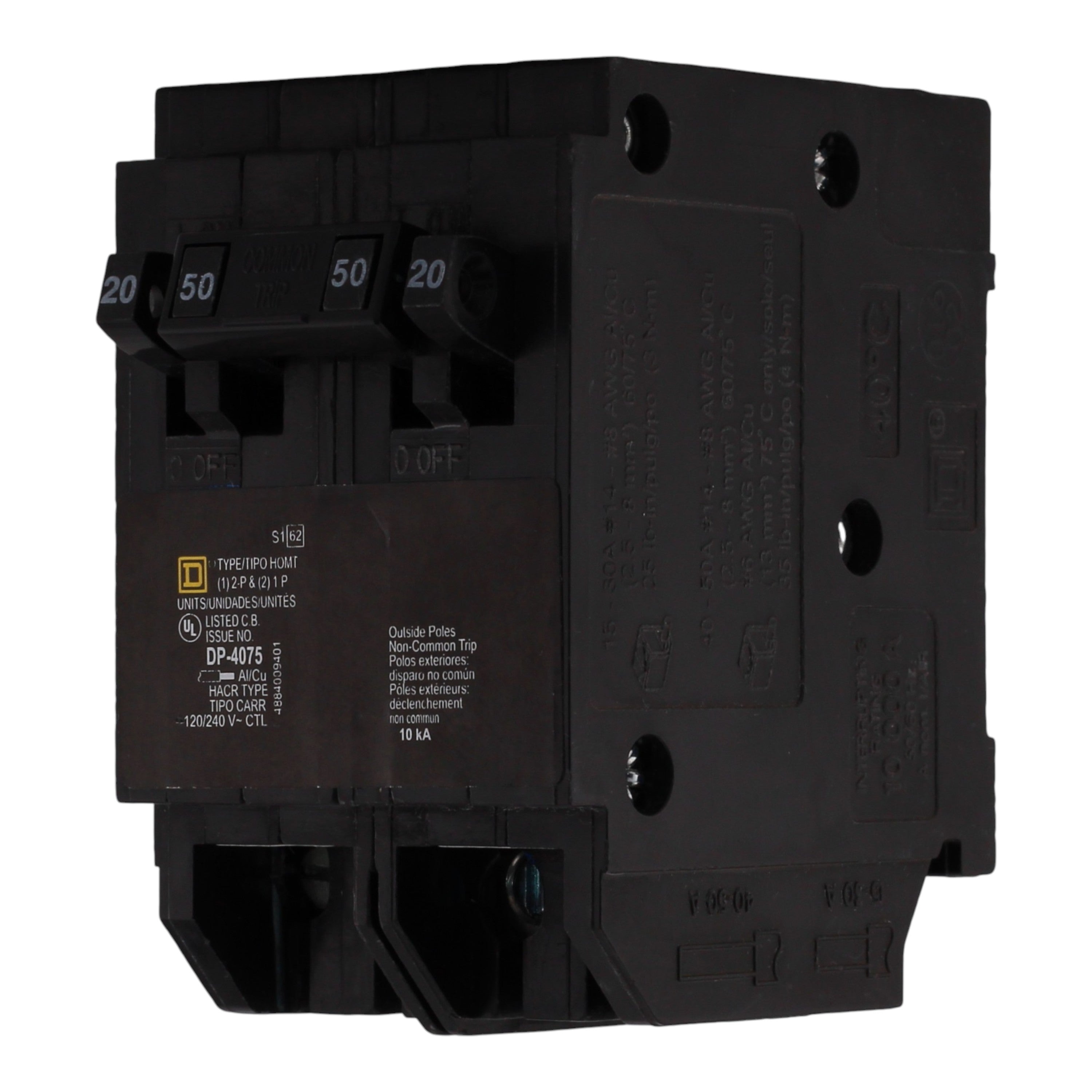

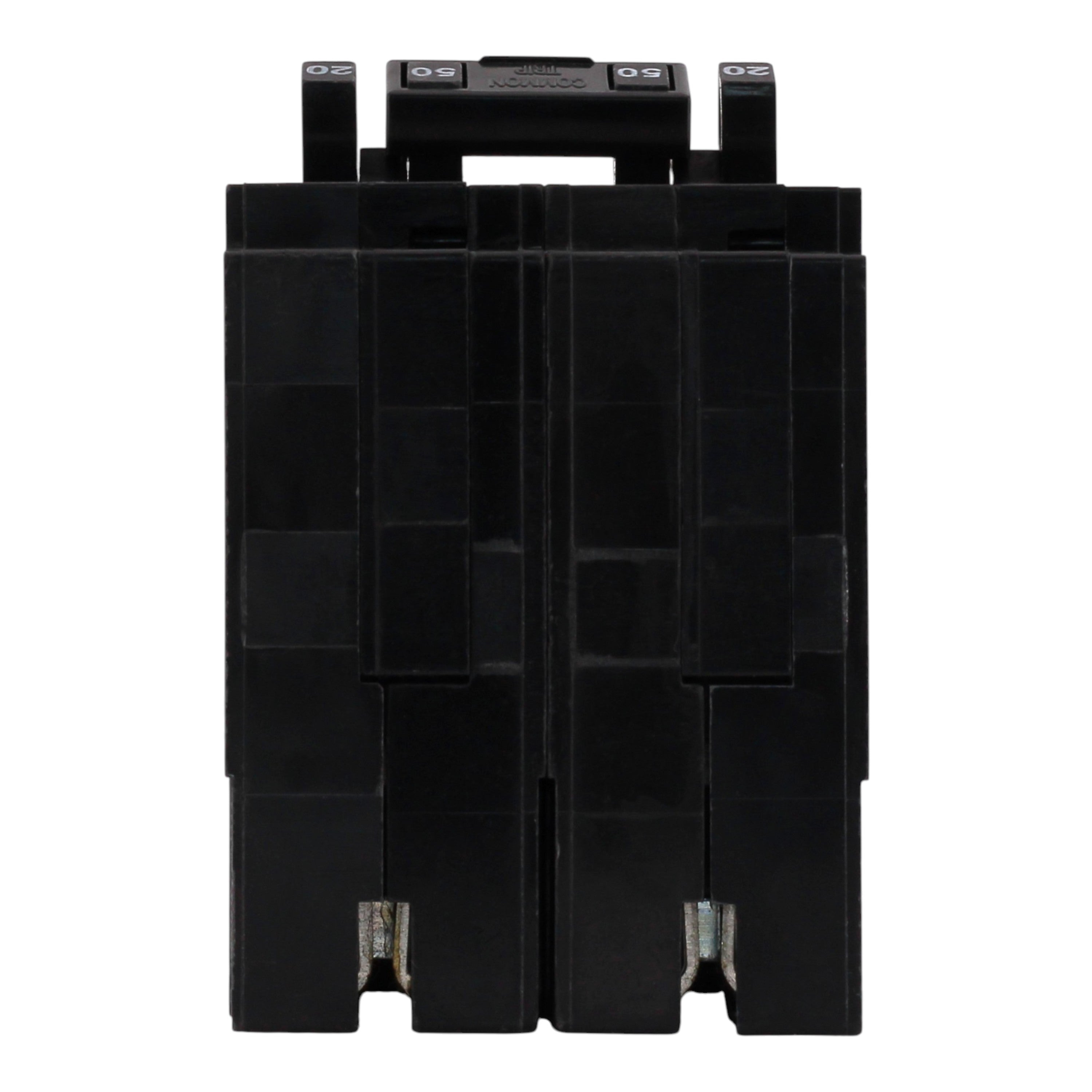

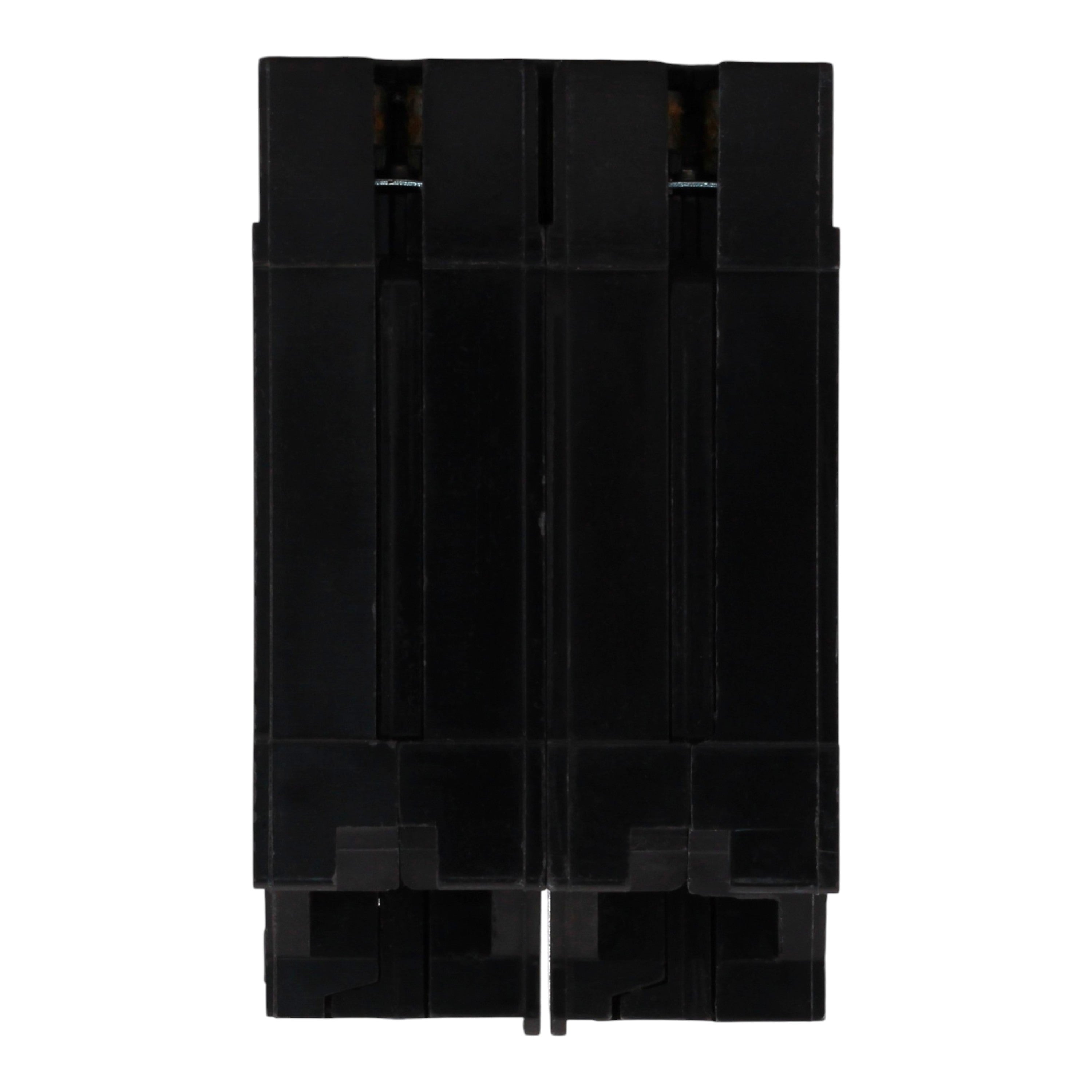

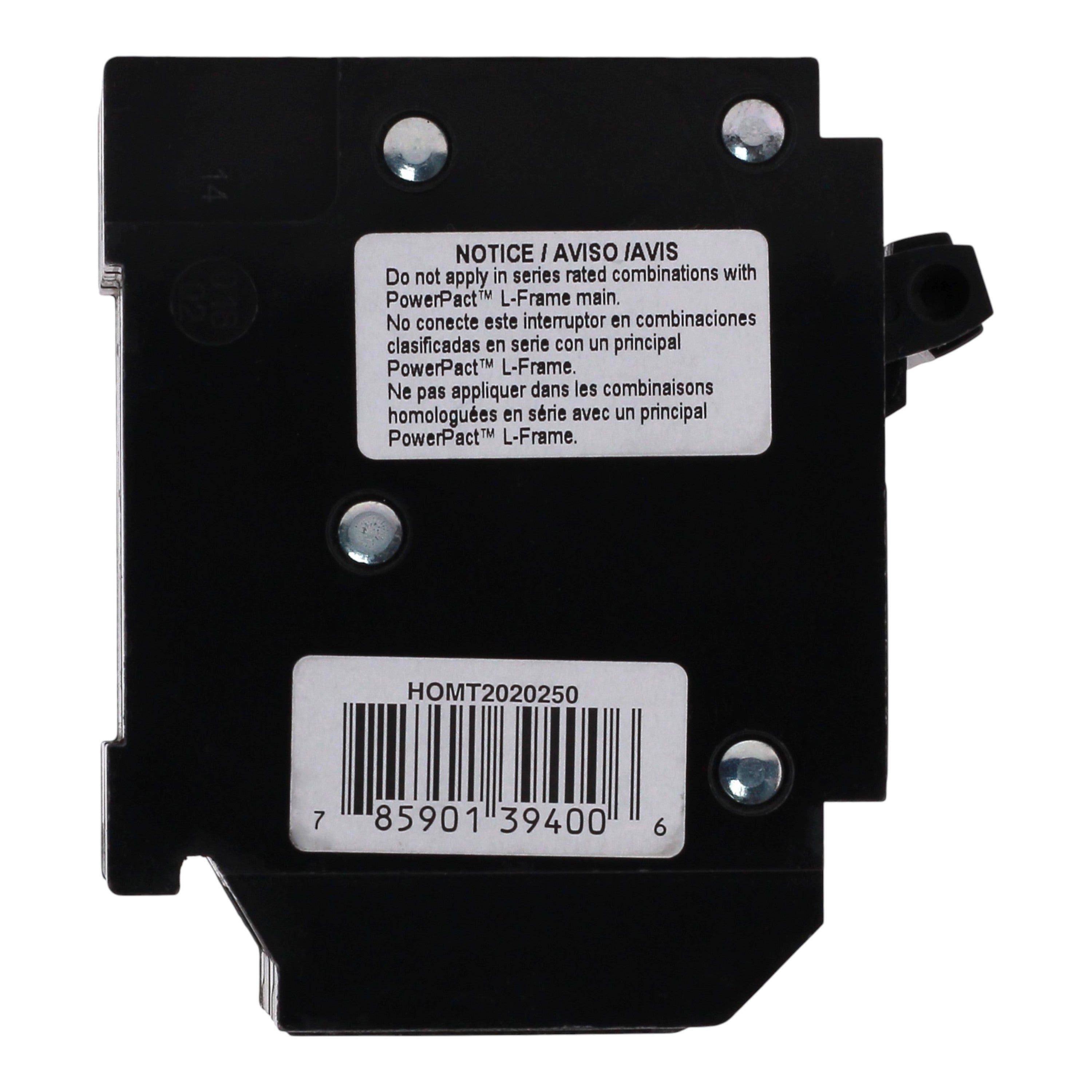

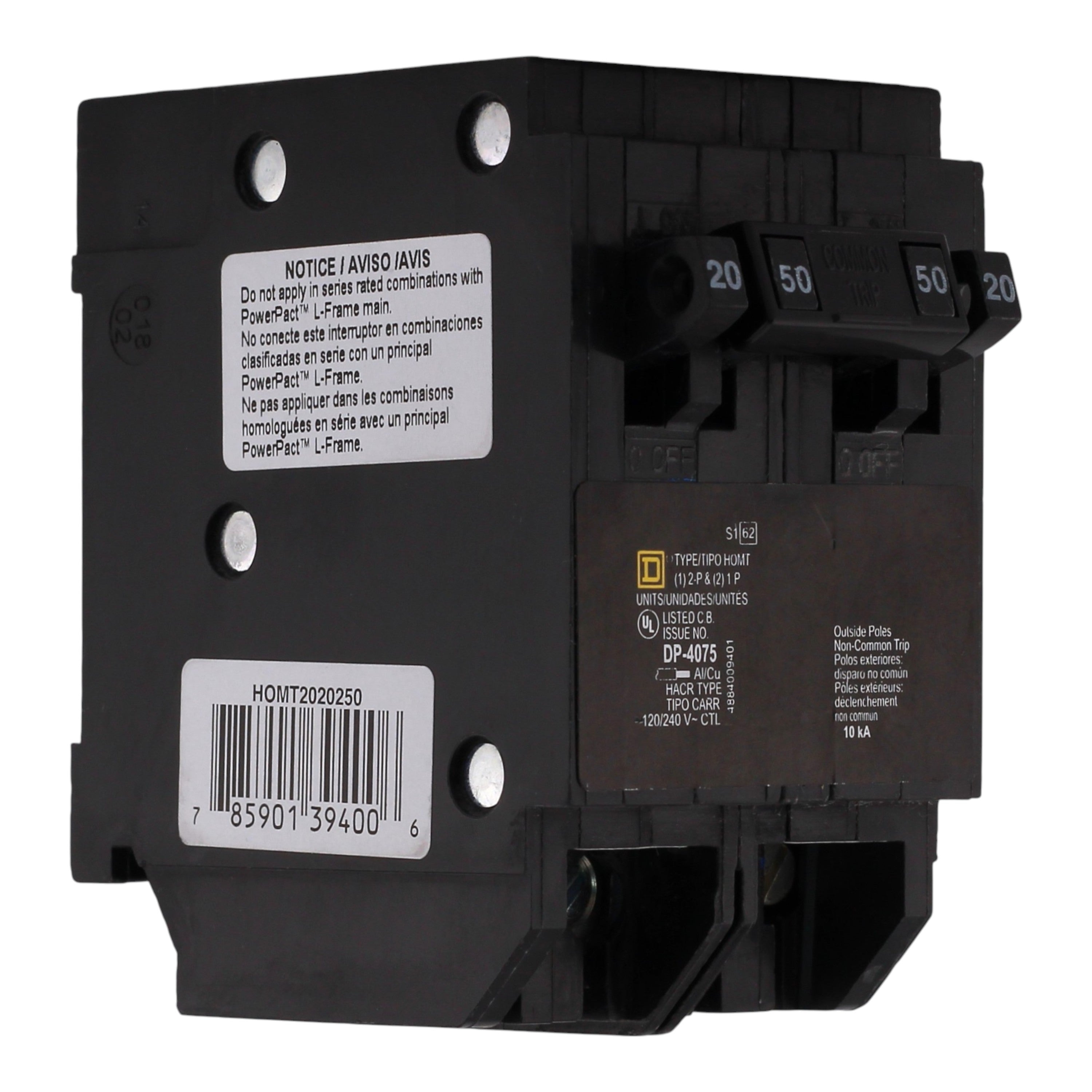

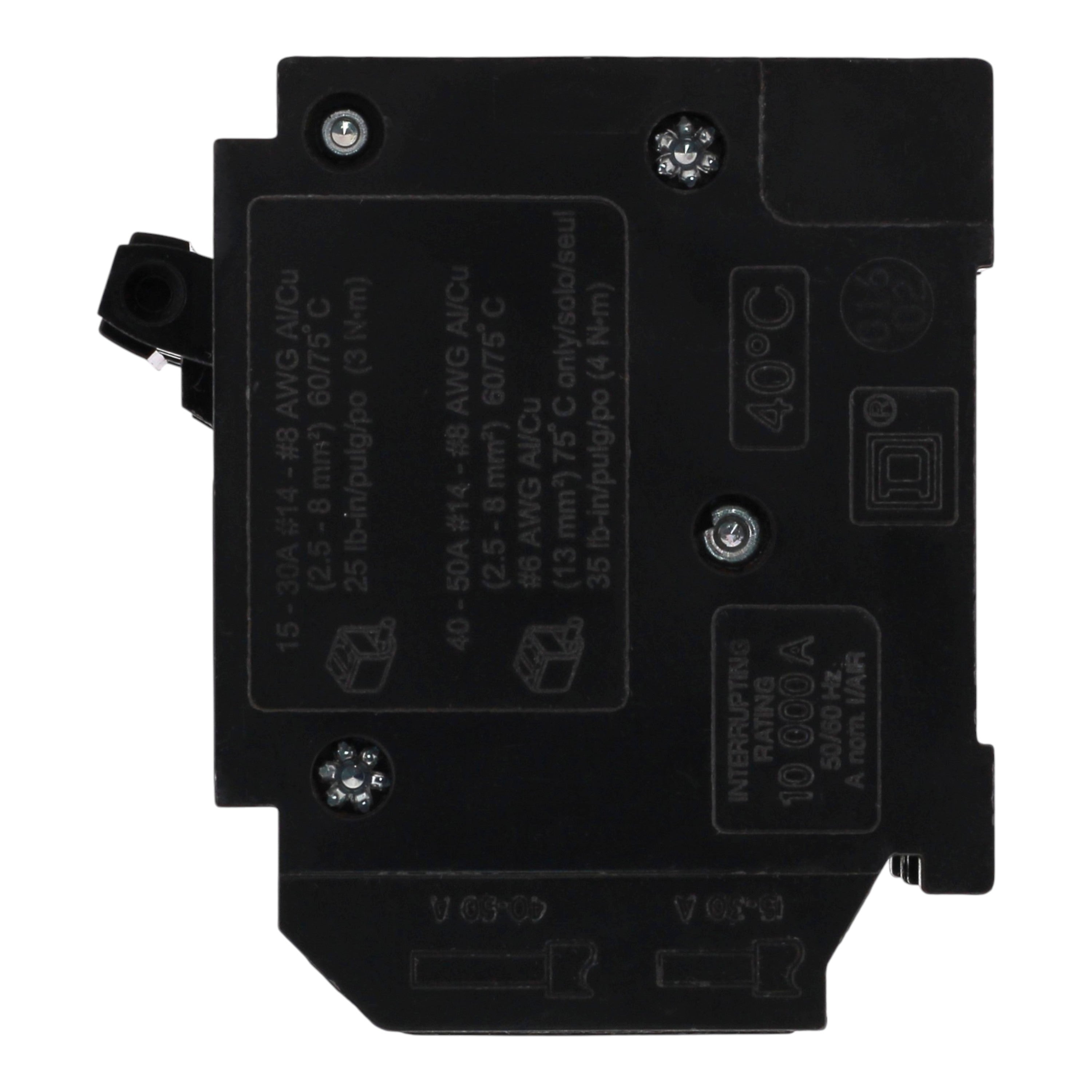

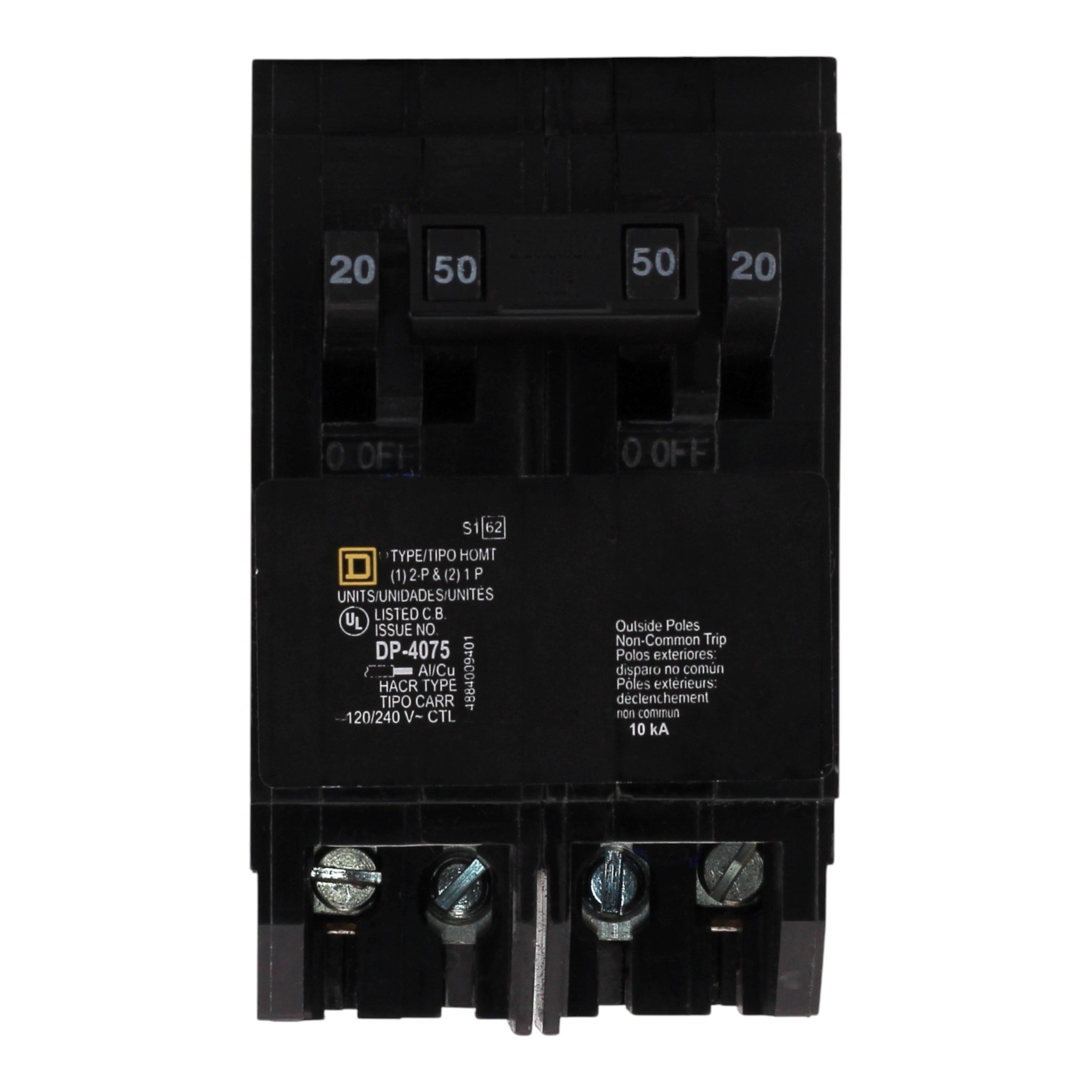

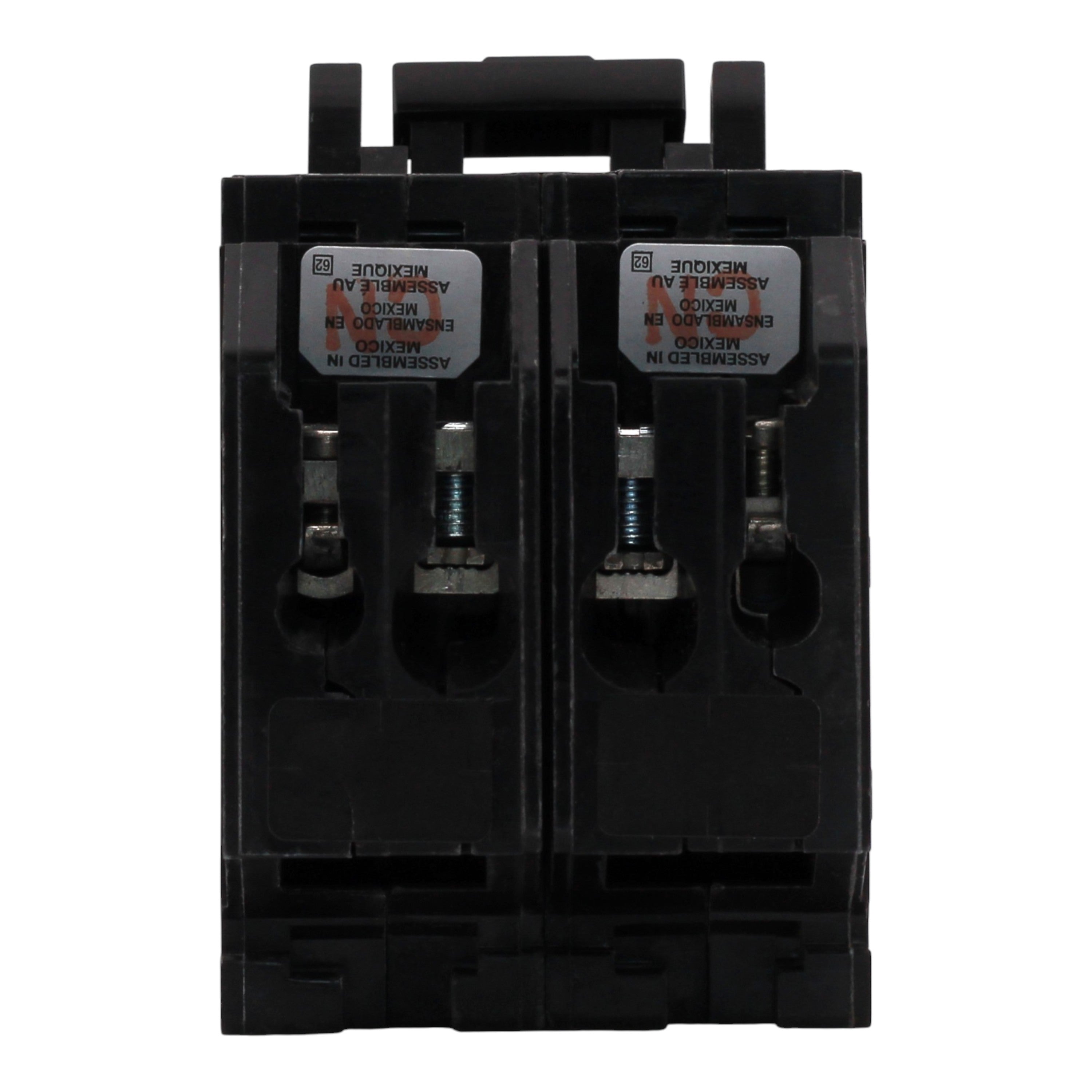

Square D HOMT2020250: Quad Tandem Circuit Breaker, Homeline, (2) 20 Amp 1-Pole + (1) 50 Amp 2-Pole, 120/240V AC, 10kA, plug-in mounting, UL Listed.
-
Manufacturer: Schneider Electric
-
Brand: Square D
-
Product Range: Homeline (for Square D Homeline loadcenters and equipment)
-
UPC: 785901377054
-
Model Number: HOMT2020250
-
Breaker Type: Quad Tandem (CTL)
-
Amperage: (2) 20 Amps 1-Pole, (1) 50 Amps 2-Pole
-
Poles: 1-Pole + 1-Pole + 2-Pole configuration
-
Voltage: 120/240 Volts AC
-
Interrupt Rating: 10 kAIC
-
Mounting Mode: Plug-in
-
Connections Terminals: Box lugs
-
Wire Size: 50A section: (1) #14-6 AWG Cu / #12-6 AWG Al; 20A sections: (1) #14-8 AWG Cu/Al or (2) #14-10 AWG Cu/Al
-
Tightening Torque: 35.4 lb-in
-
Dimensions: Height: 3.13 in; Width: 2.0 in; Depth: 2.98 in
-
Weight: 0.85 lbs
-
Certifications: UL Listed, HACR Rated
This Square D Homeline HOMT2020250 quad tandem circuit breaker combines two 20A single-pole breakers and one 50A double-pole breaker in just two spaces, ideal for adding circuits in full Homeline loadcenters. Delivering reliable overload and short-circuit protection with 10kA interrupt rating, it installs quickly via plug-in design and provides proven performance for residential and light commercial applications.
