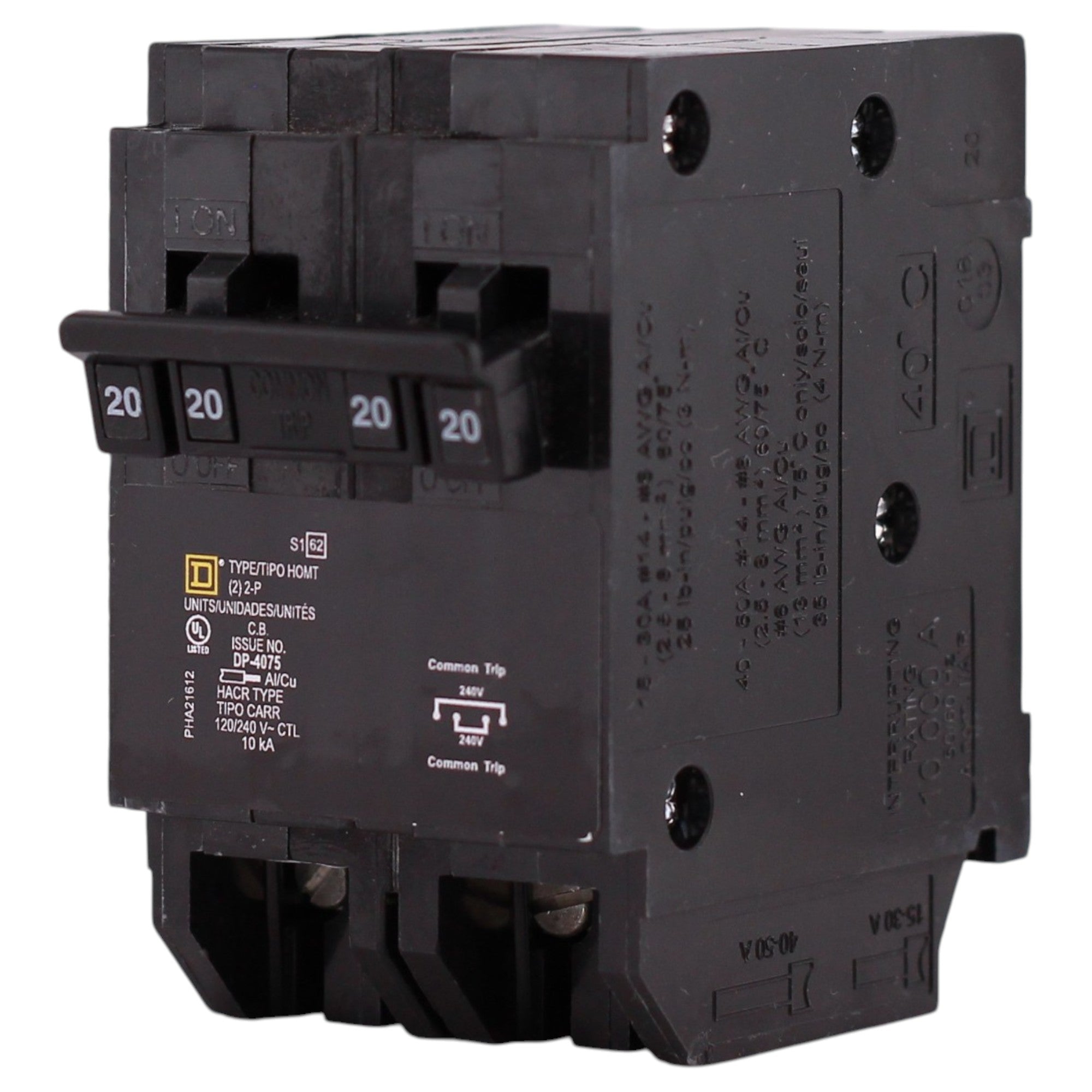

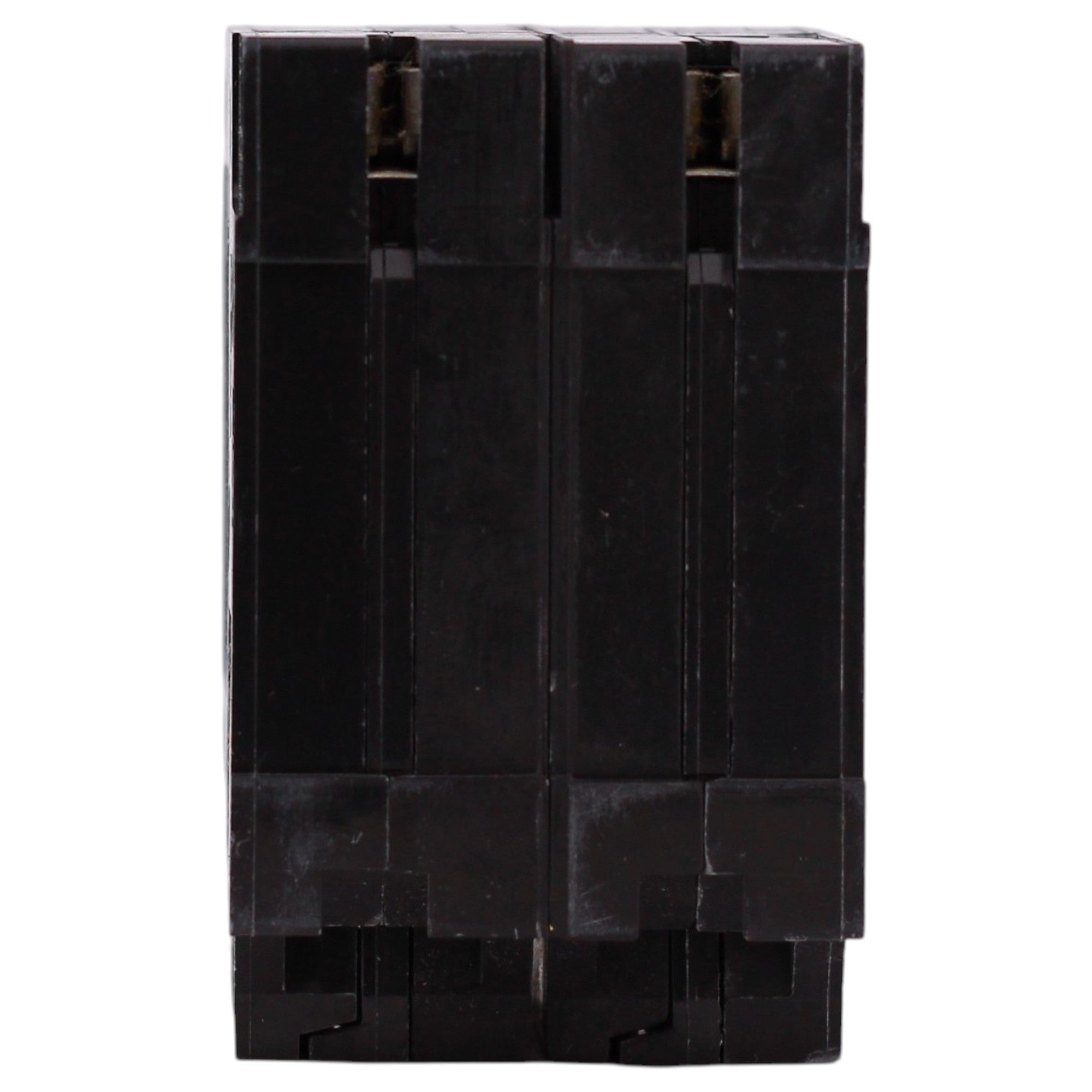

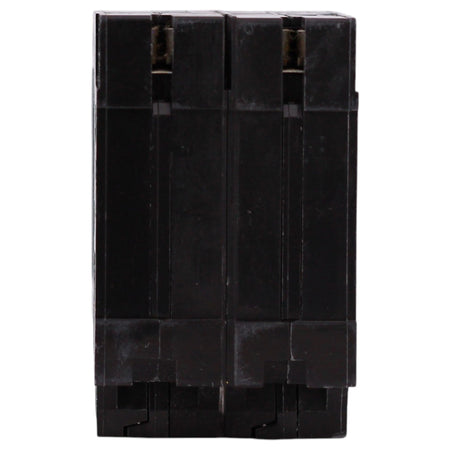

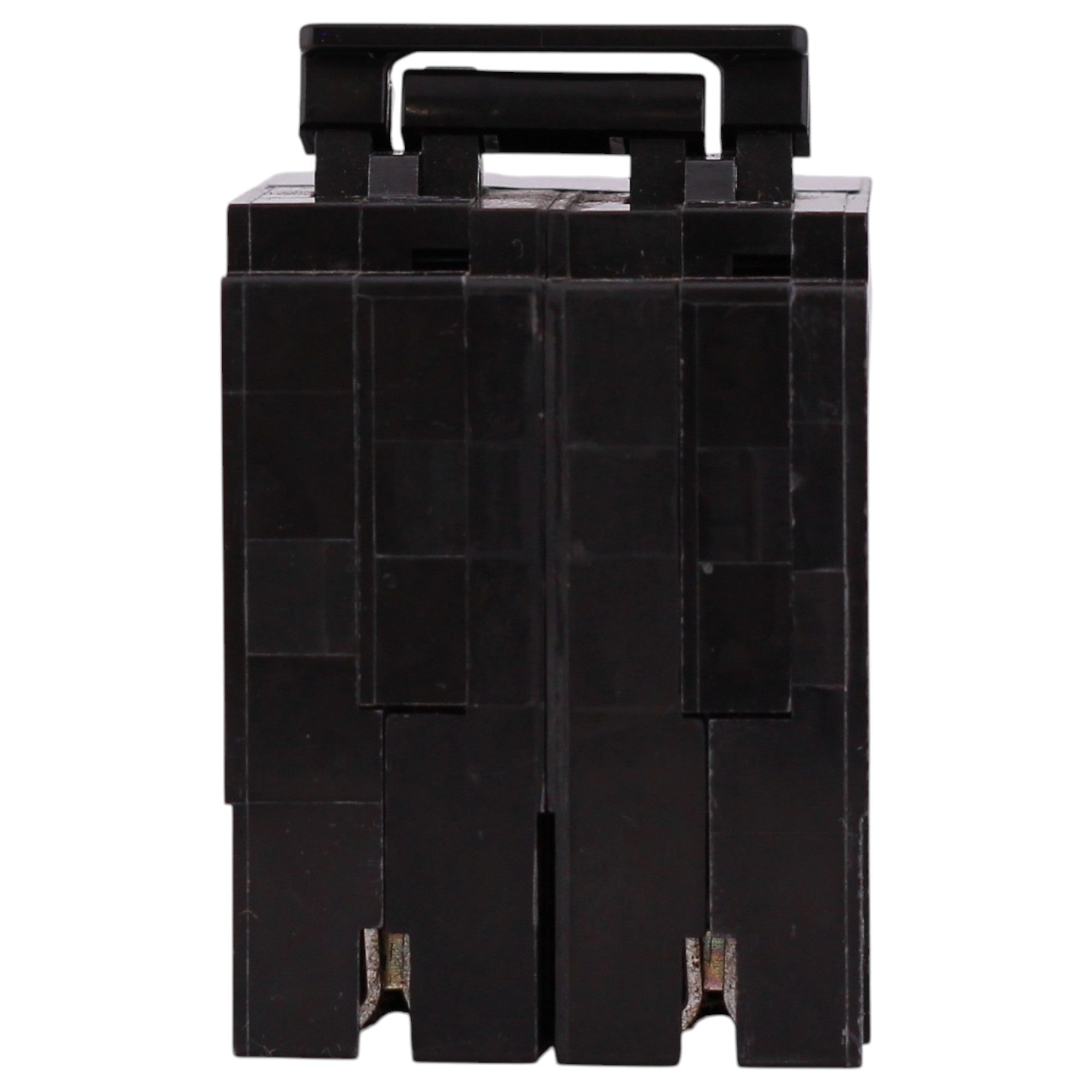

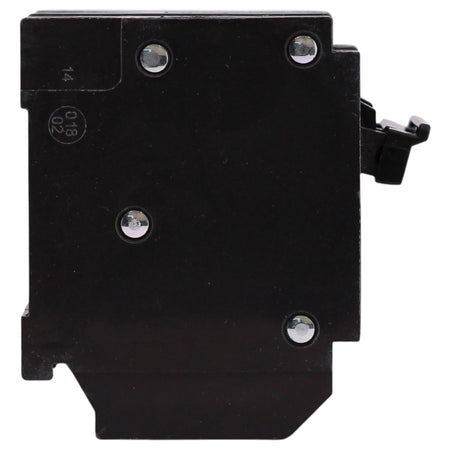

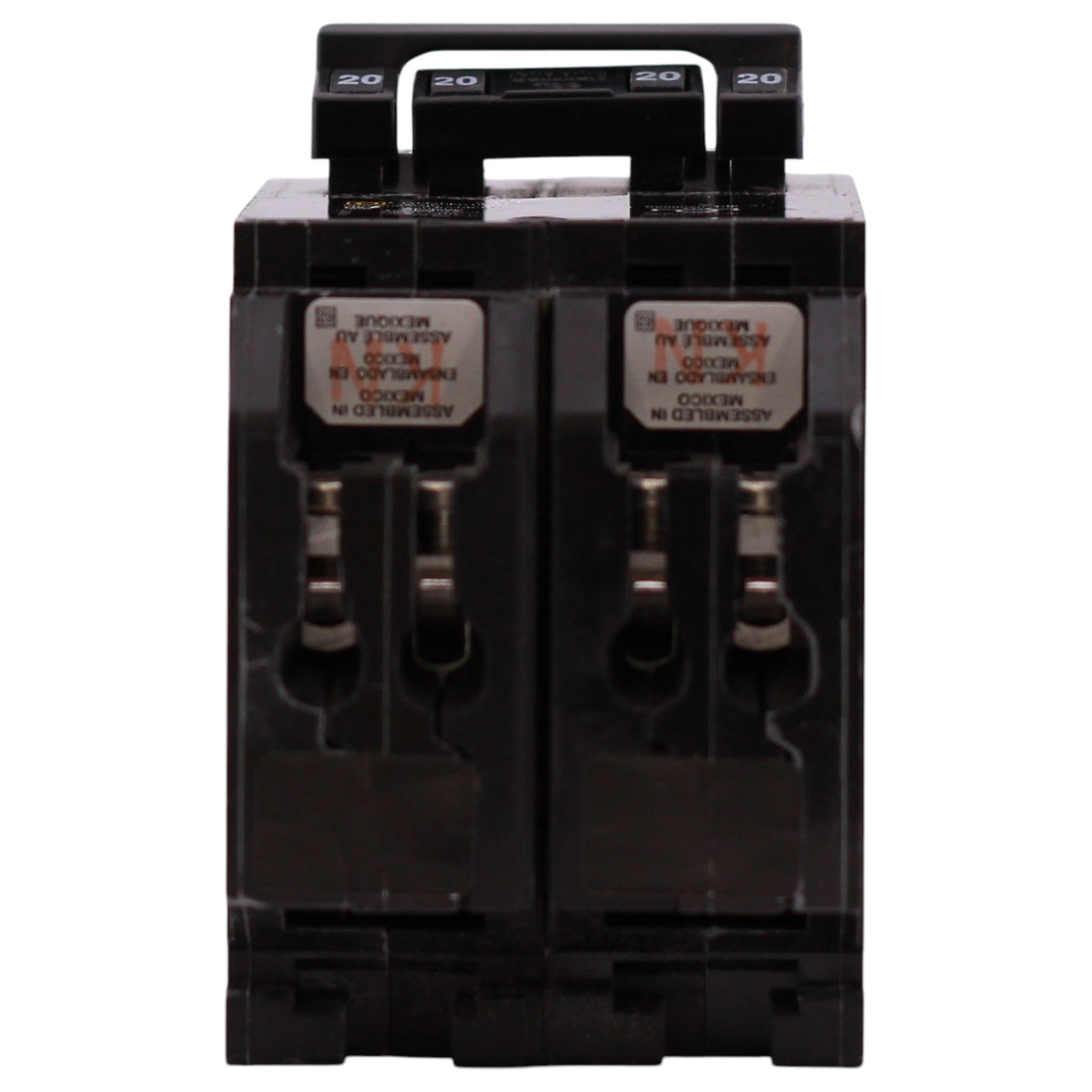

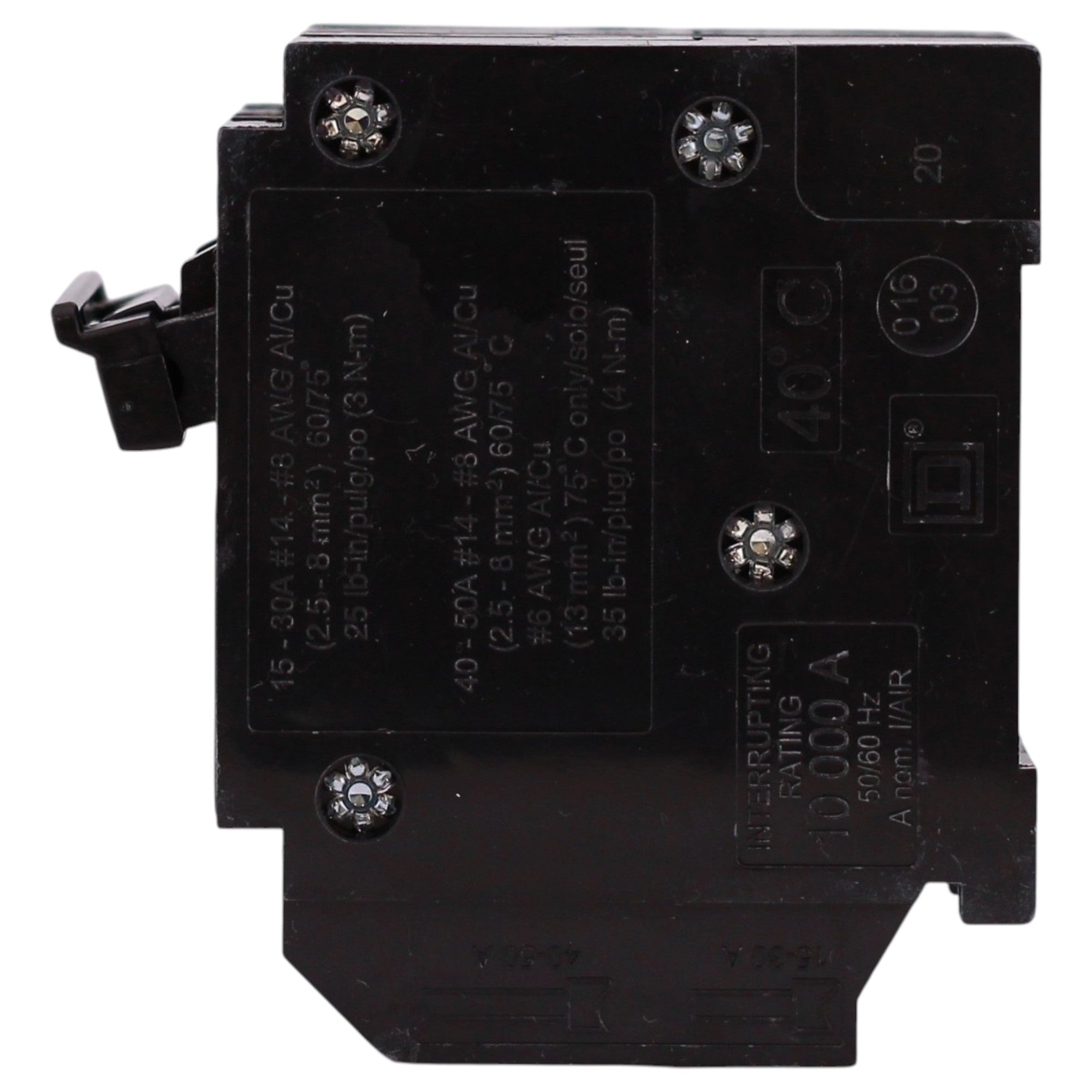

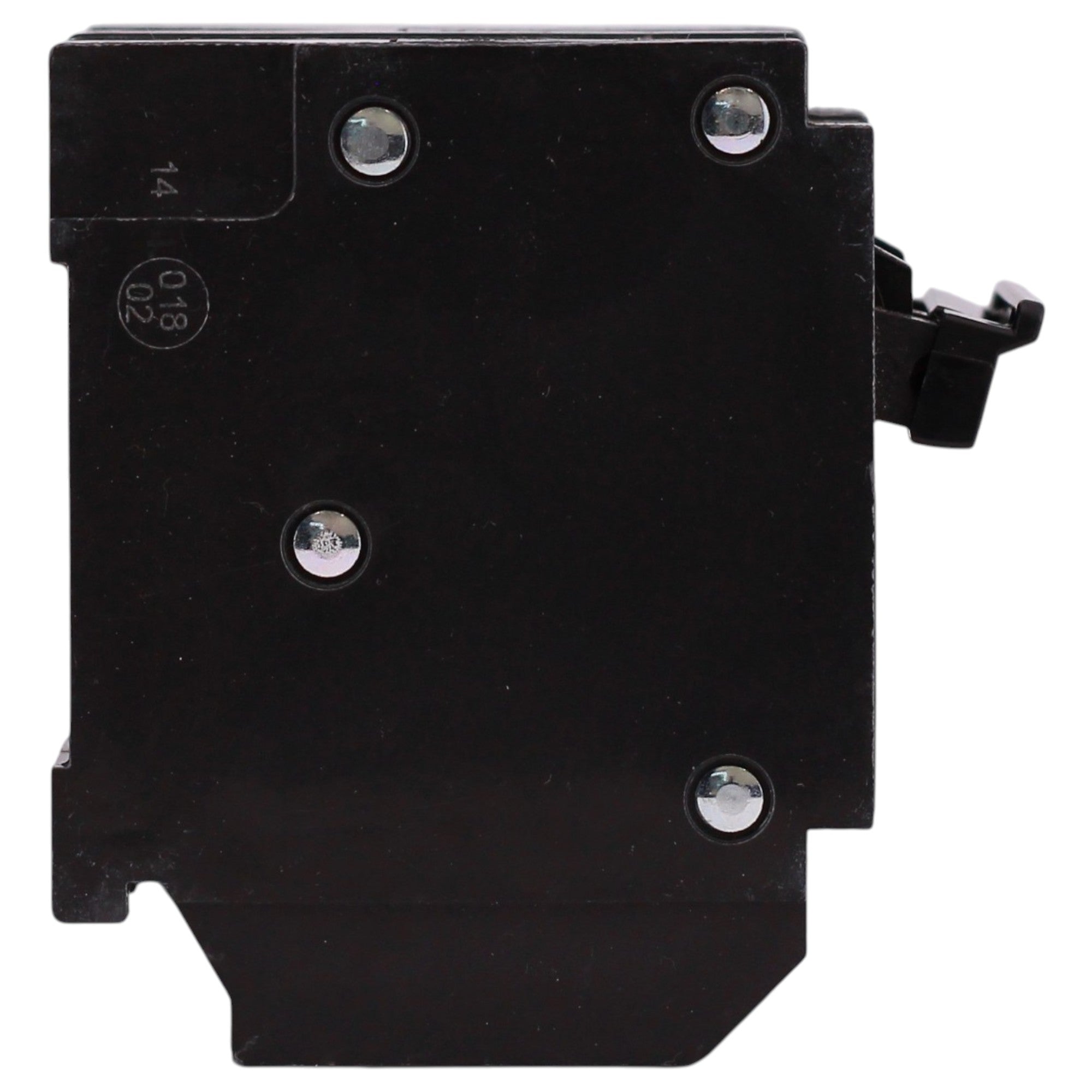

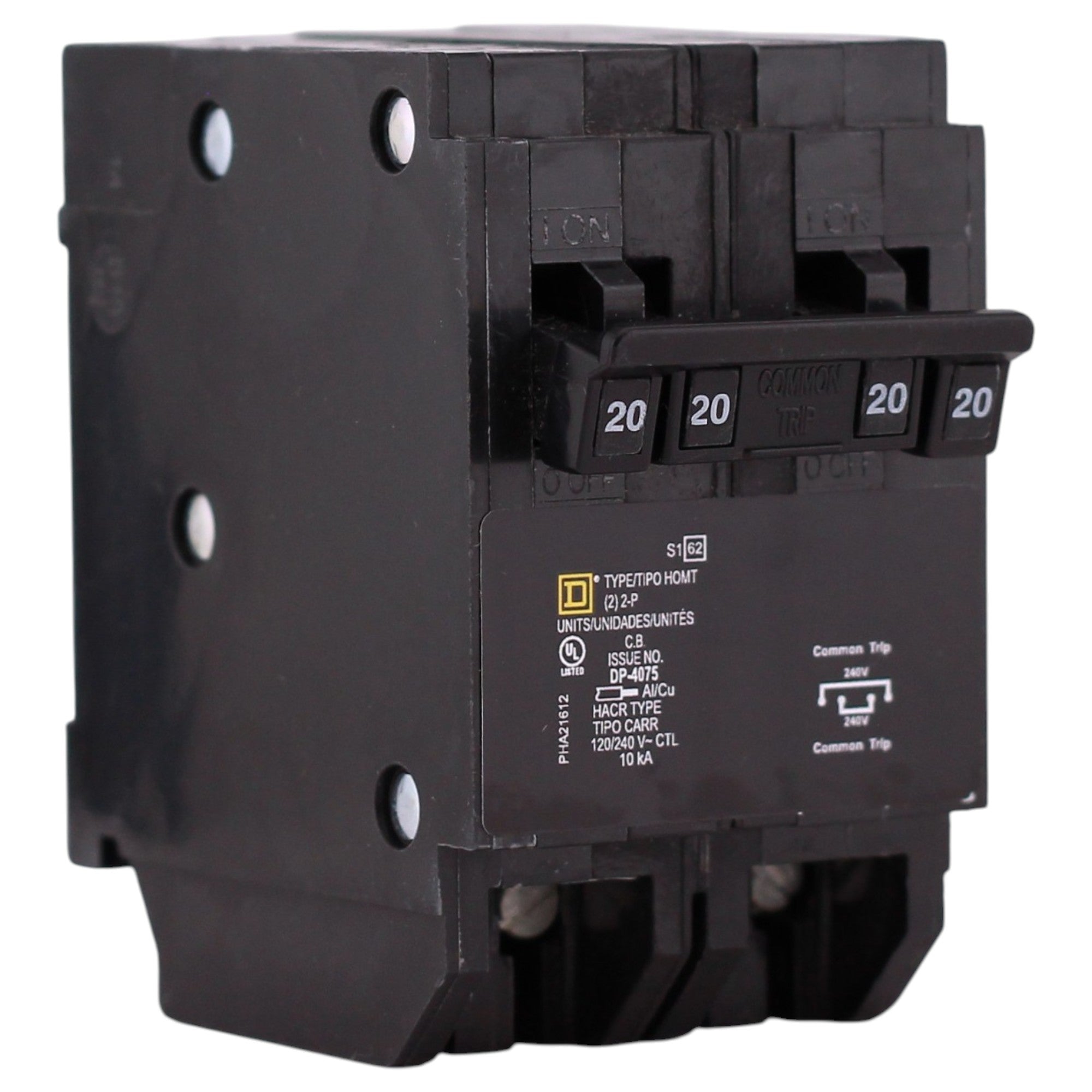

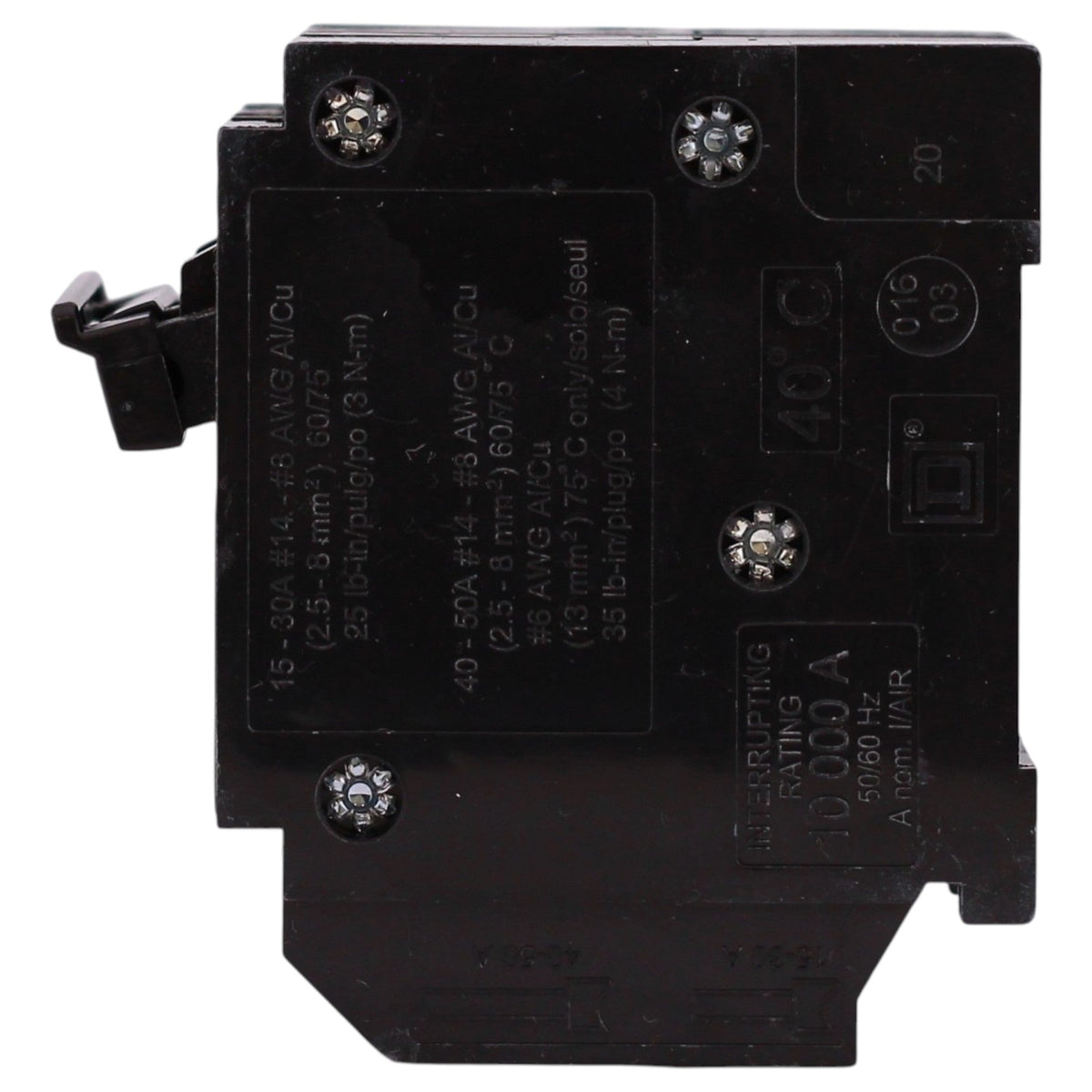

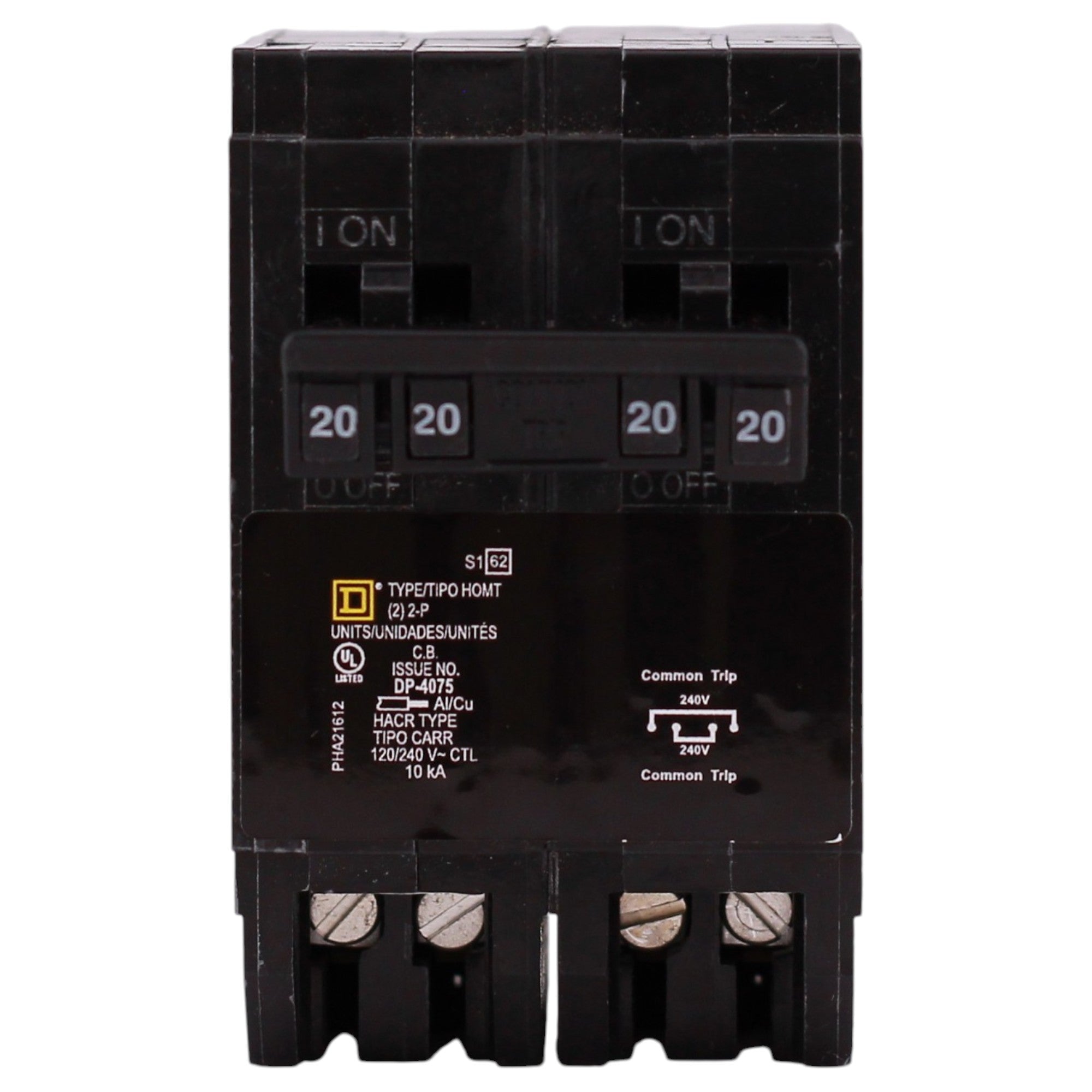

Square D Homeline, HOMT220220, 20A, 4P, 120/240V, Quad Tandem, Plug-In, Circuit Breaker

Square D HOMT220220: 20 Amp, 4-Pole, Homeline Quad Tandem Circuit Breaker, 2×2-Pole, 120/240V, 10kA, Plug-In, HACR Rated, UL Listed.

• Manufacturer: Schneider Electric
• Brand: Square D
• Product Range: Homeline (for Square D Homeline load centers)
• Model Number: HOMT220220
• UPC:
• Breaker Type: Thermal Magnetic Quad Tandem Circuit Breaker
• Configuration: (2) 2-Pole 20A circuits in tandem
• Amperage: 20 Amps (both circuits)
• Poles: 4-Pole (Quad Tandem)
• Voltage: 120/240 Volts AC
• Interrupt Rating: 10 kAIC
• Number of Spaces: 2
• Mounting Mode: Plug-in
• Wire Size: 1×#14–8 AWG Cu/Al
• Tightening Torque: 35.4 lb-in (#14–8 AWG)
• Dimensions: Height: 3.13 in; Width: 2.00 in; Depth: 2.98 in
• Weight: 0.75 lbs
• Certifications: UL Listed, CSA Certified, HACR Rated, ANSI Certified

This Square D HOMT220220 quad tandem circuit breaker delivers dependable 20 Amp protection across two independent 2-pole circuits for 120/240V applications in Square D Homeline load centers. Designed for plug-in installation in just two panel spaces, it maximizes residential panel capacity while maintaining 10kA interrupt capacity.
