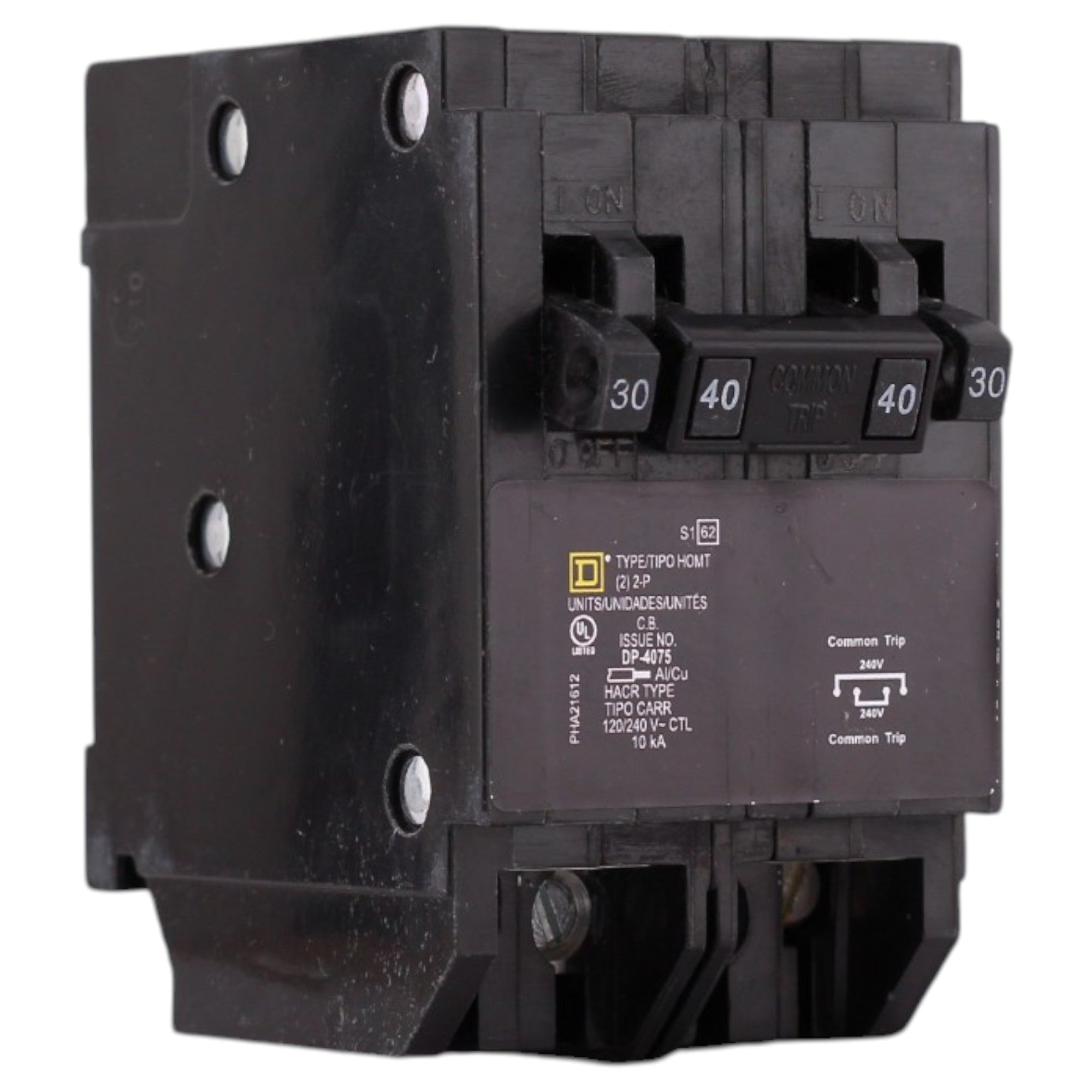

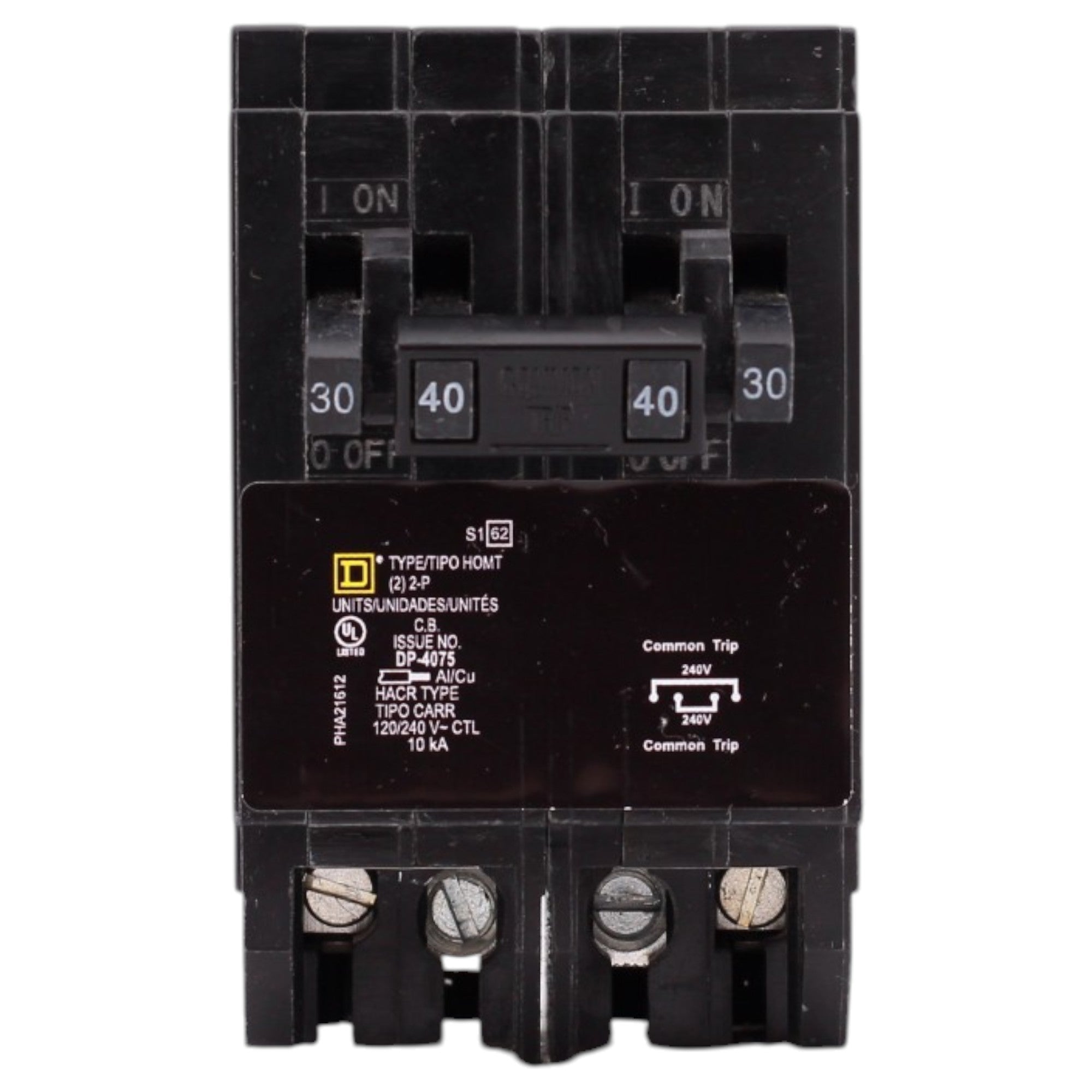

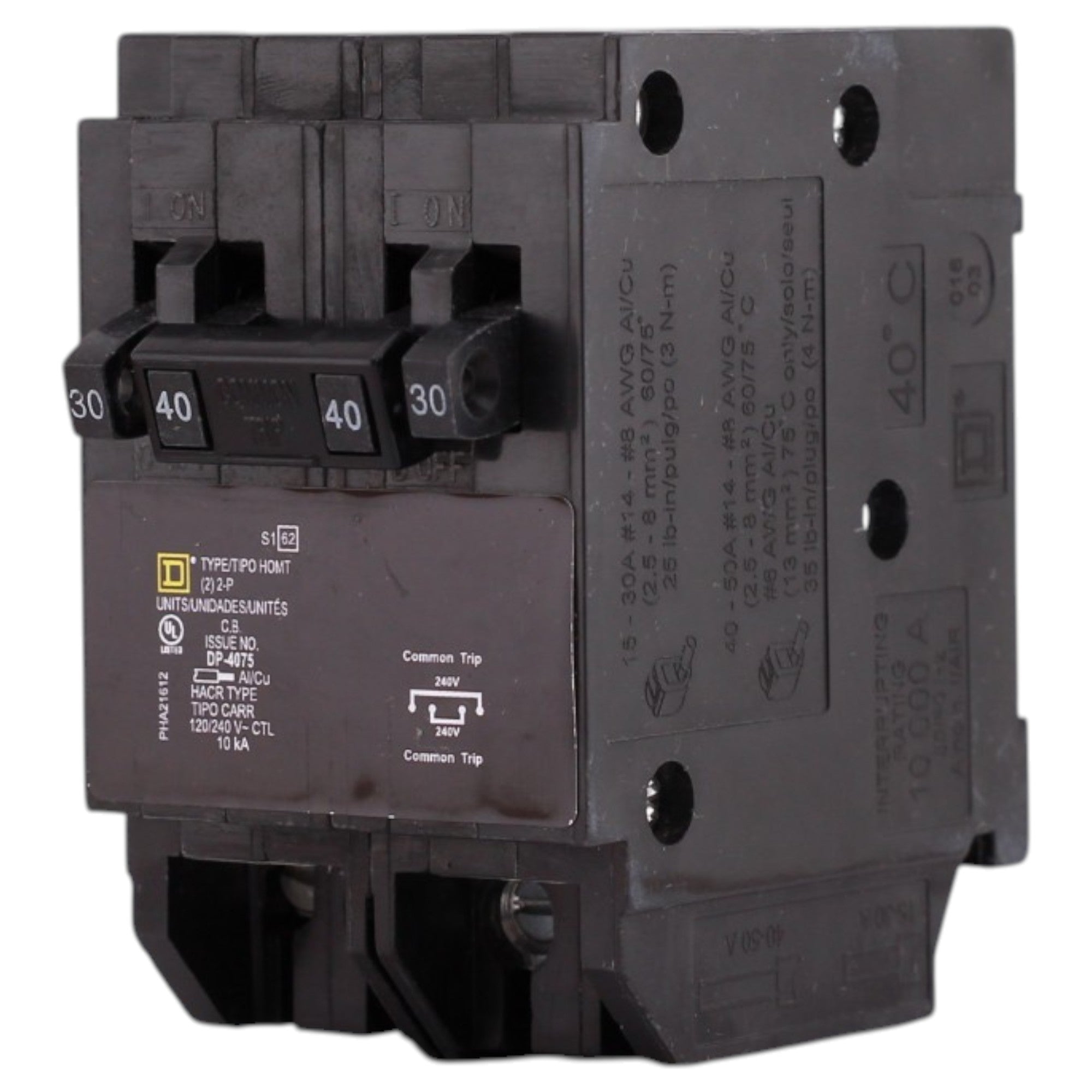

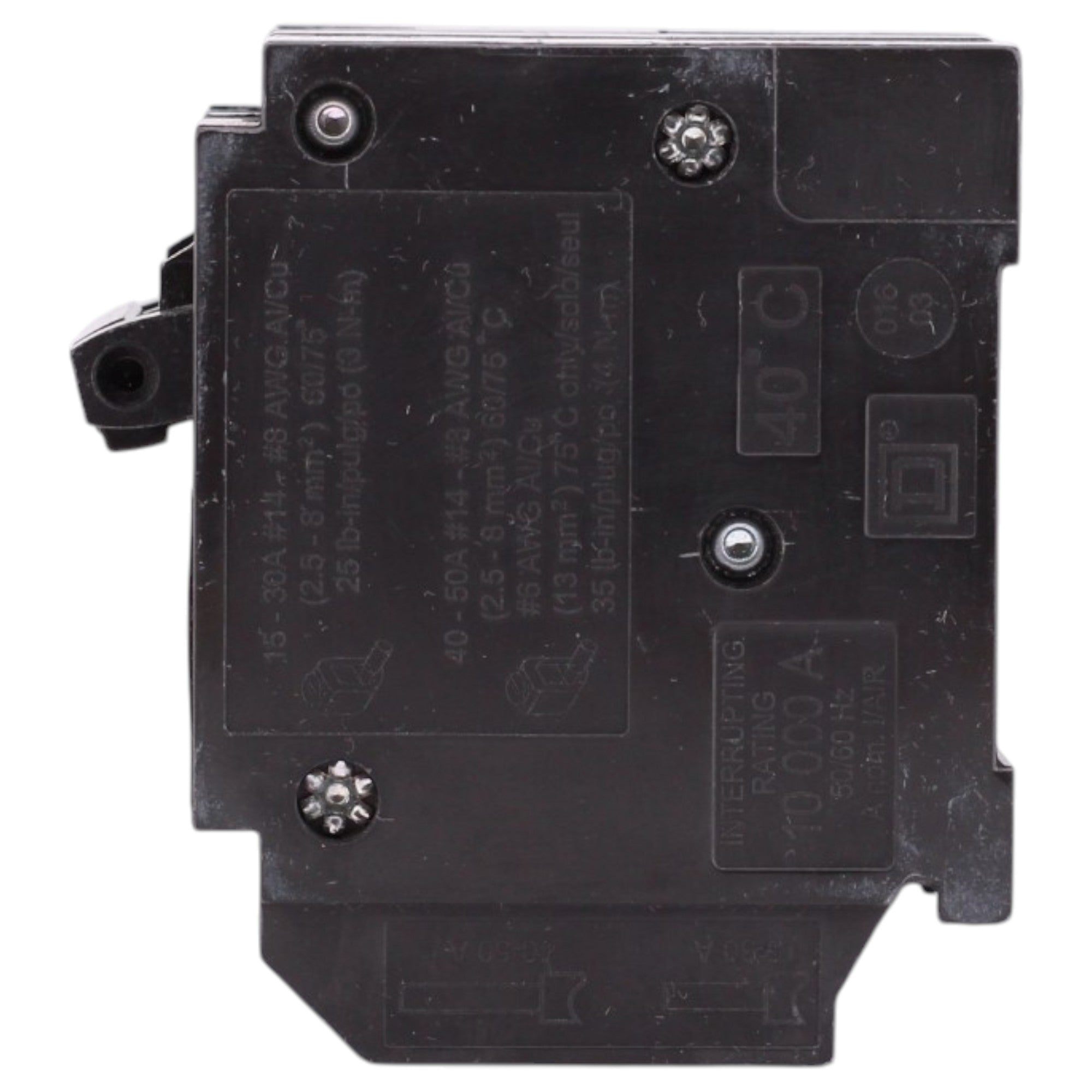

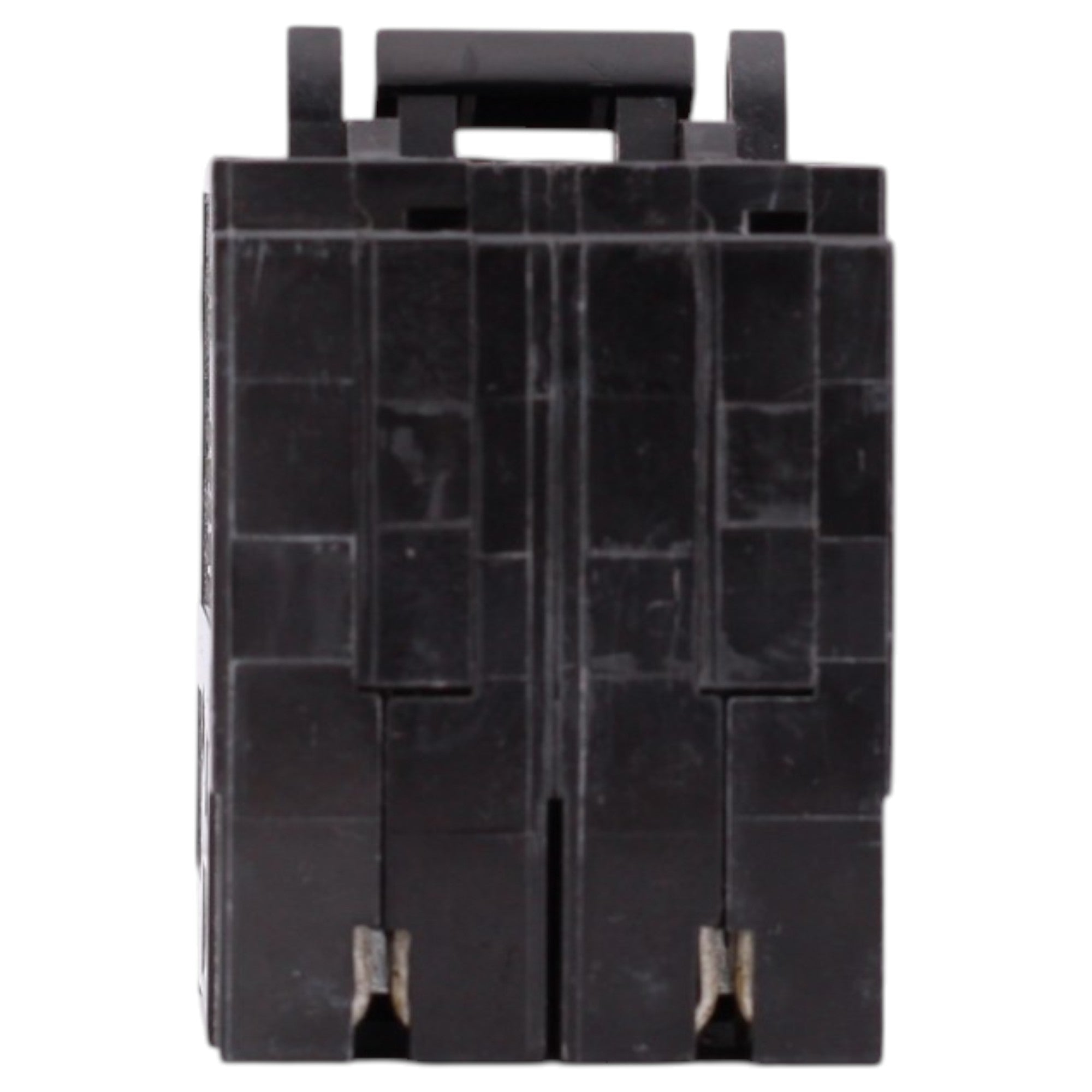

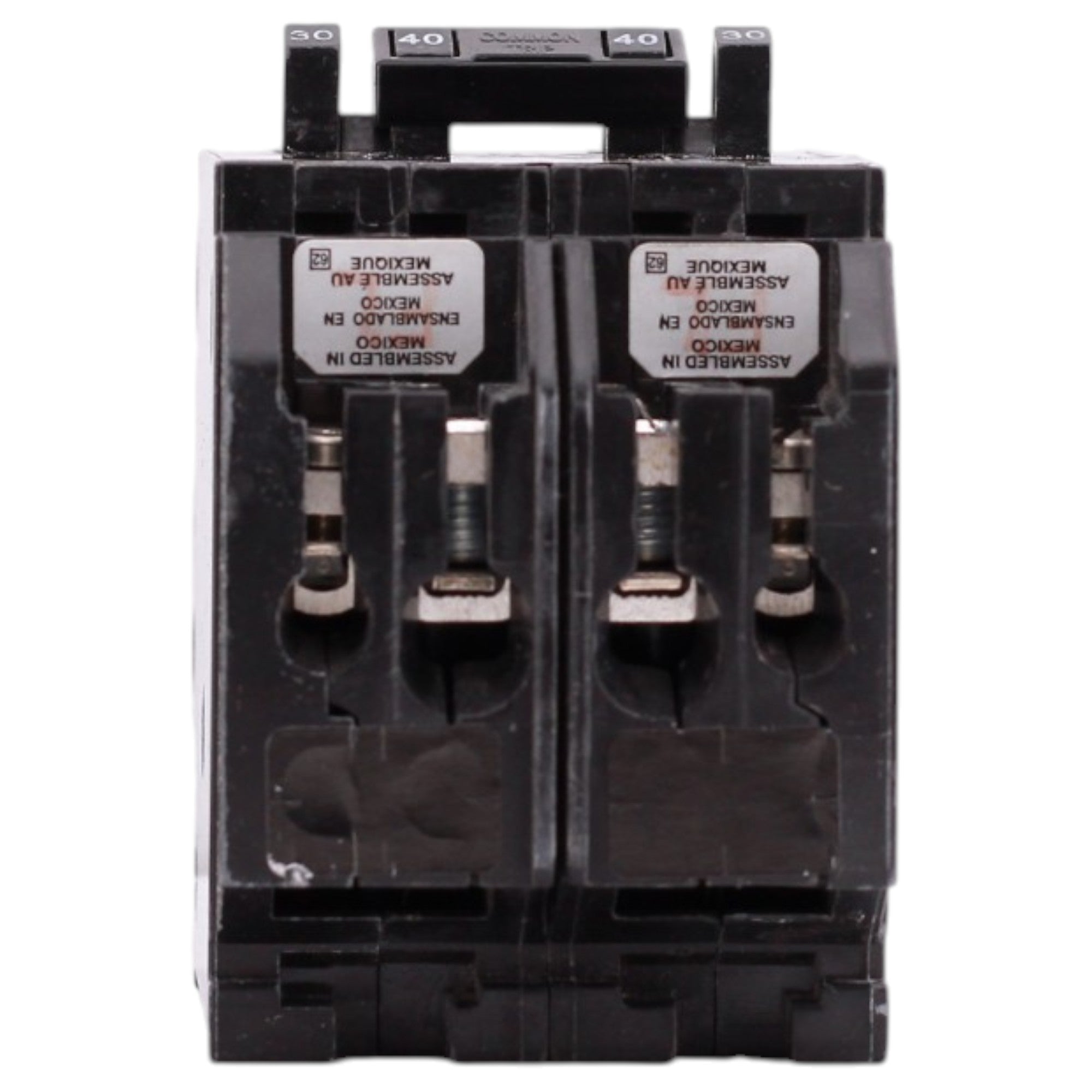

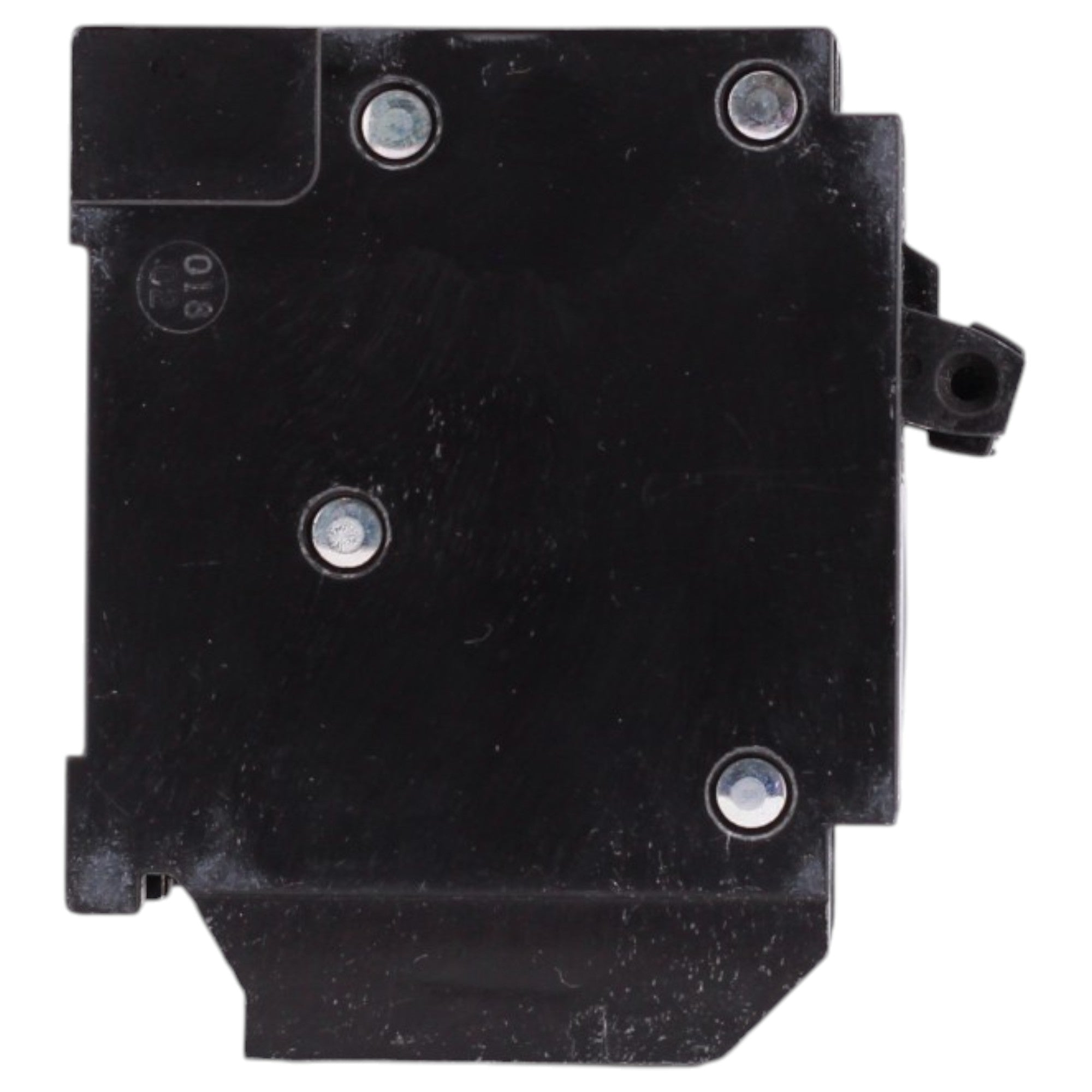

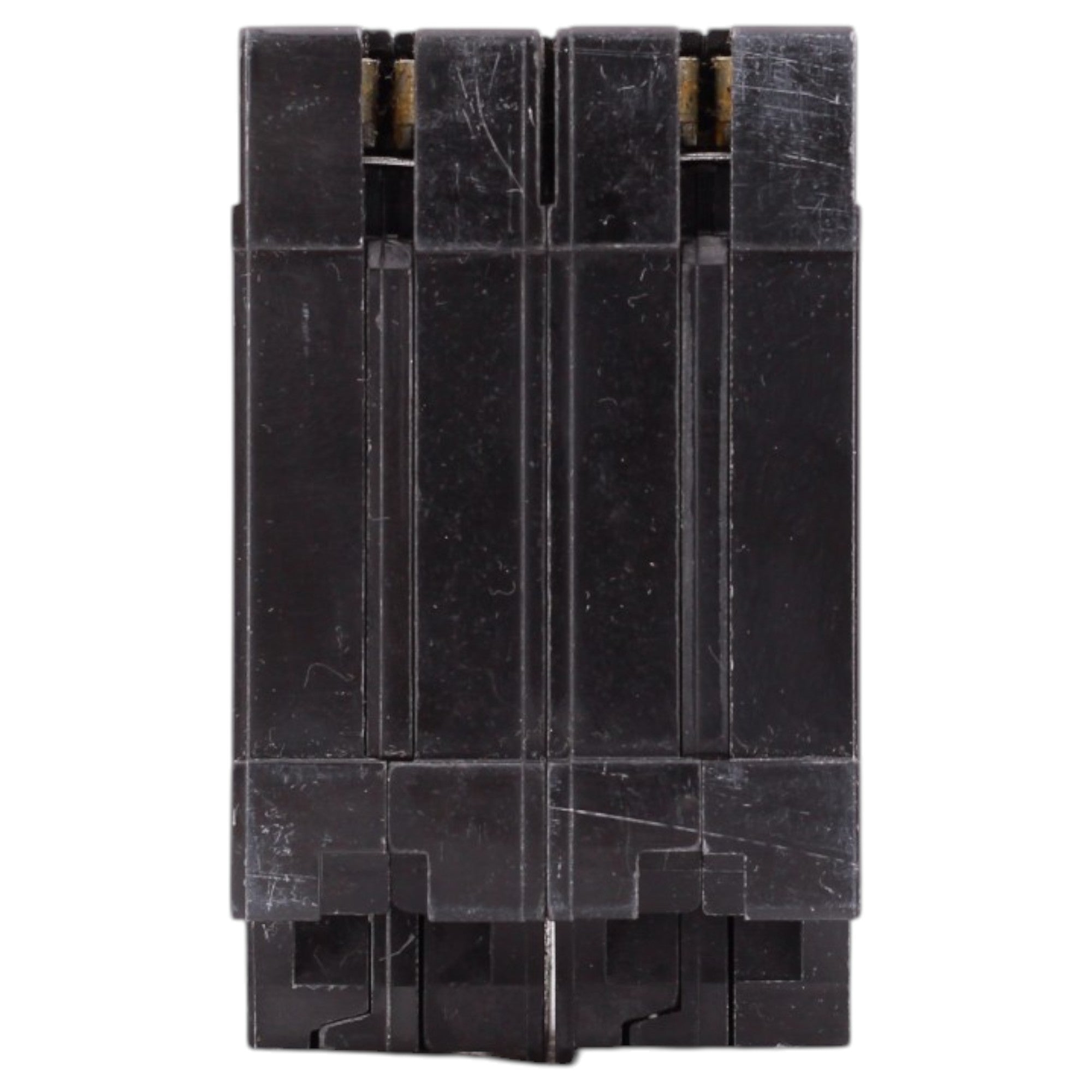

Square D Homeline, HOMT230240, 30A/40A, 2P/2P, 120/240V, Quadplex, Circuit Breaker

Square D HOMT230240: 30 Amp / 40 Amp, Quadplex (2x 2-Pole), Thermal Magnetic Circuit Breaker, 120/240V, 10kA, plug-in, UL Listed.

• Manufacturer: Schneider Electric
• Brand: Square D
• Product Range: Homeline (for Homeline loadcenters and residential panels)
• UPC: 785901484714
• Model Number: HOMT230240
• Breaker Type: Thermal Magnetic Quadplex Circuit Breaker
• Amperage: (1) 30 Amp Double Pole + (1) 40 Amp Double Pole
• Poles: 2-Pole / 2-Pole (Quadplex)
• Voltage: 120/240 Volts AC
• Interrupt Rating: 10 kAIC
• Mounting Mode: Plug-in
• Connections Terminals: Pressure Plate
• Wire Size: #14-8 AWG Cu, #12-8 AWG Al
• Dimensions: Height: 3.13 in; Width: 2.00 in; Depth: 3.13 in
• Weight: 0.66 lbs
• Certifications: UL Listed, HACR Rated

This Square D HOMT230240 quadplex circuit breaker combines one 30 Amp 2-pole and one 40 Amp 2-pole breaker in a compact design for 120/240V circuits in Homeline loadcenters. Designed for plug-in installation with 10kA interrupt rating, it is ideal for space-saving residential panel applications.
