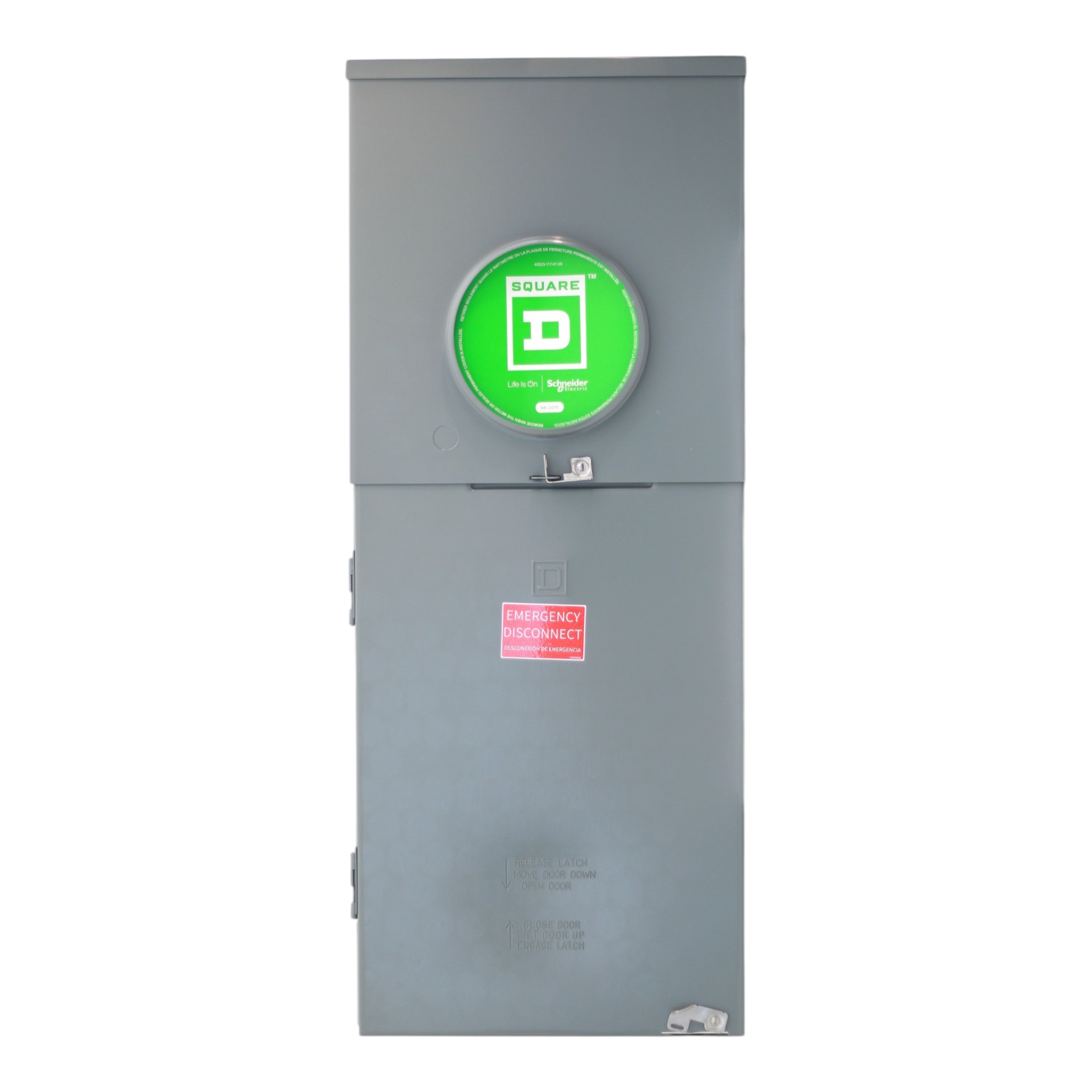

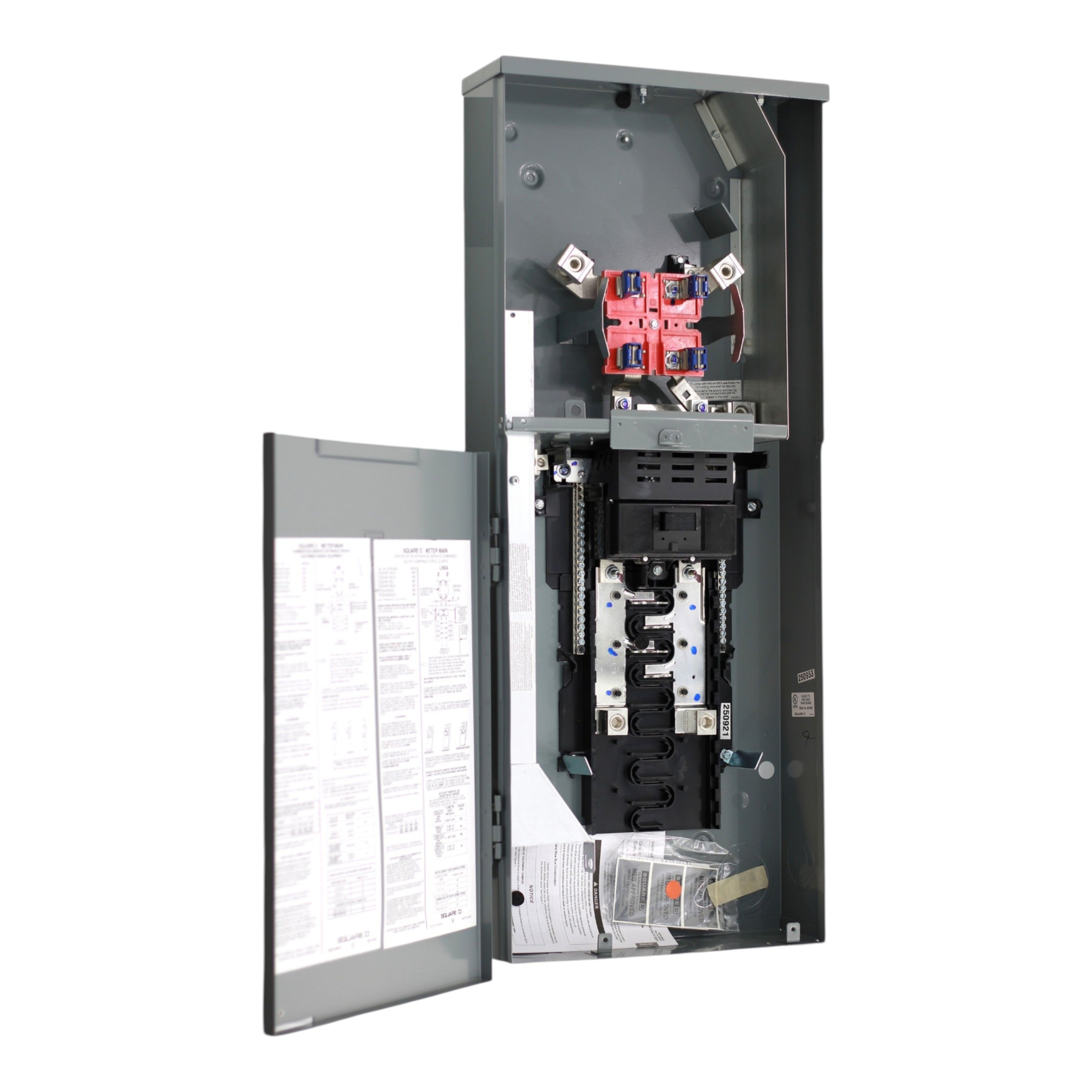

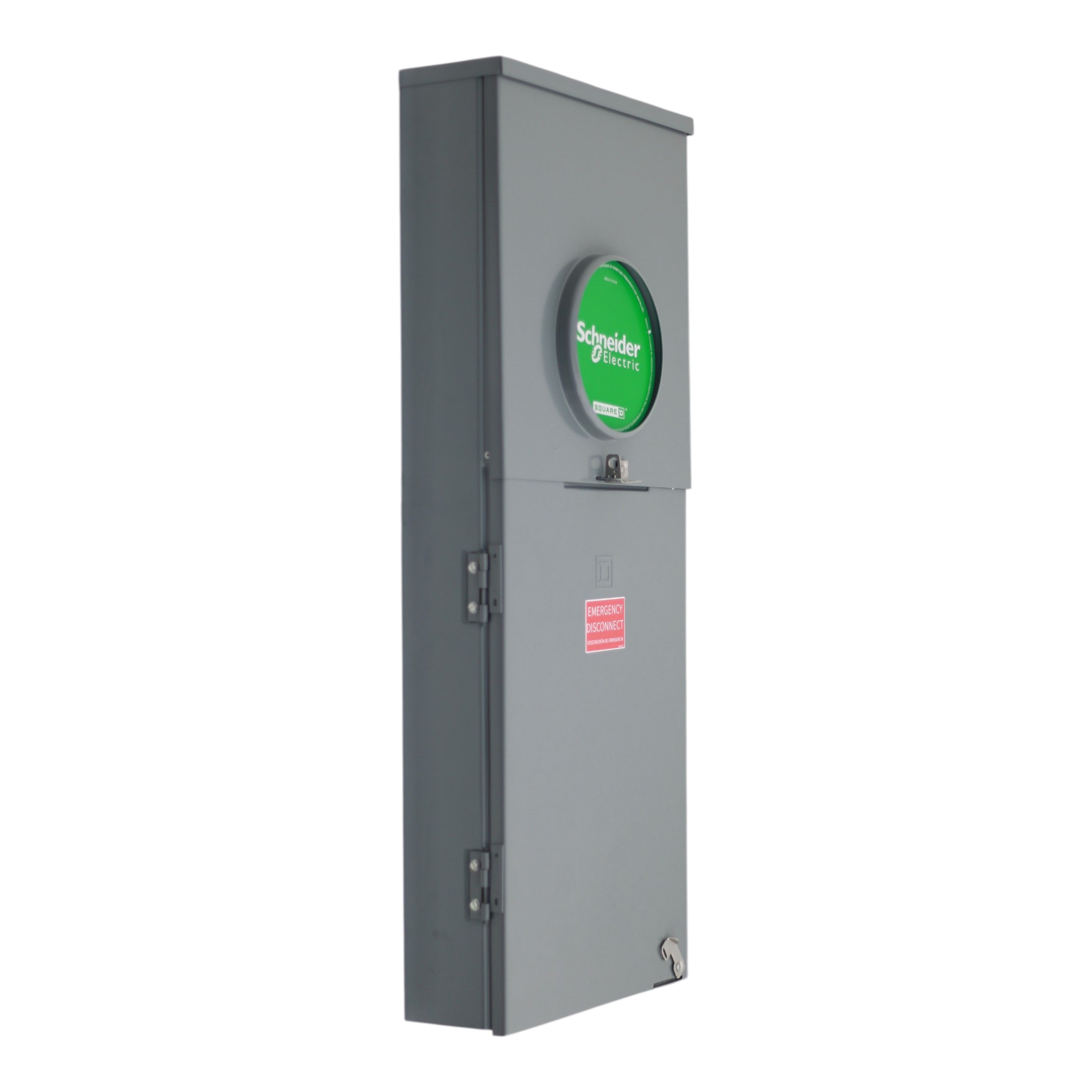

Square D RC816F200C: 200 Amp, 1-Phase, Homeline Ringless Meter Main, CSED, 120/240V, 22kA, 8-Space, 16-Circuit, Surface Mount, UL Listed.
-
Manufacturer: Schneider Electric
-
Brand: Square D
-
Product Range: Homeline (for Homeline CSED loadcenters and residential service entrance applications)
-
UPC: 785901863922
-
Model Number: RC816F200C
-
Product Type: Combination Service Entrance Device (CSED), Ringless Meter Main
-
Amperage: 200 Amps
-
Phases: 1-Phase, 3-Wire
-
Voltage: 120/240 Volts AC
-
Short-Circuit Rating: 22 kAIC
-
Meter Socket: Ringless, No Bypass
-
Mounting: Surface Mount (convertible to semi-flush with optional flange kit)
-

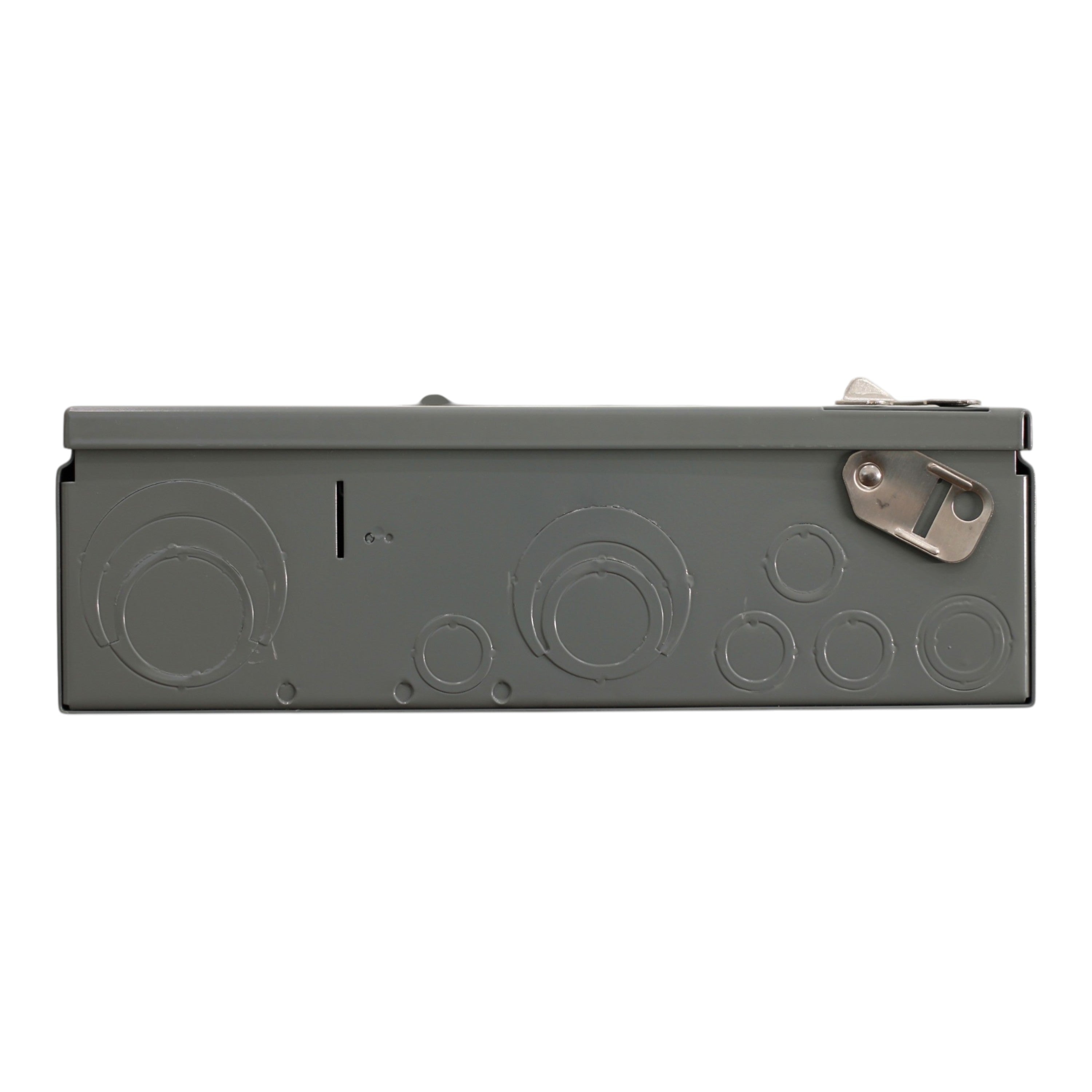

Service Feed: Overhead (OH) / Underground (UG)
-

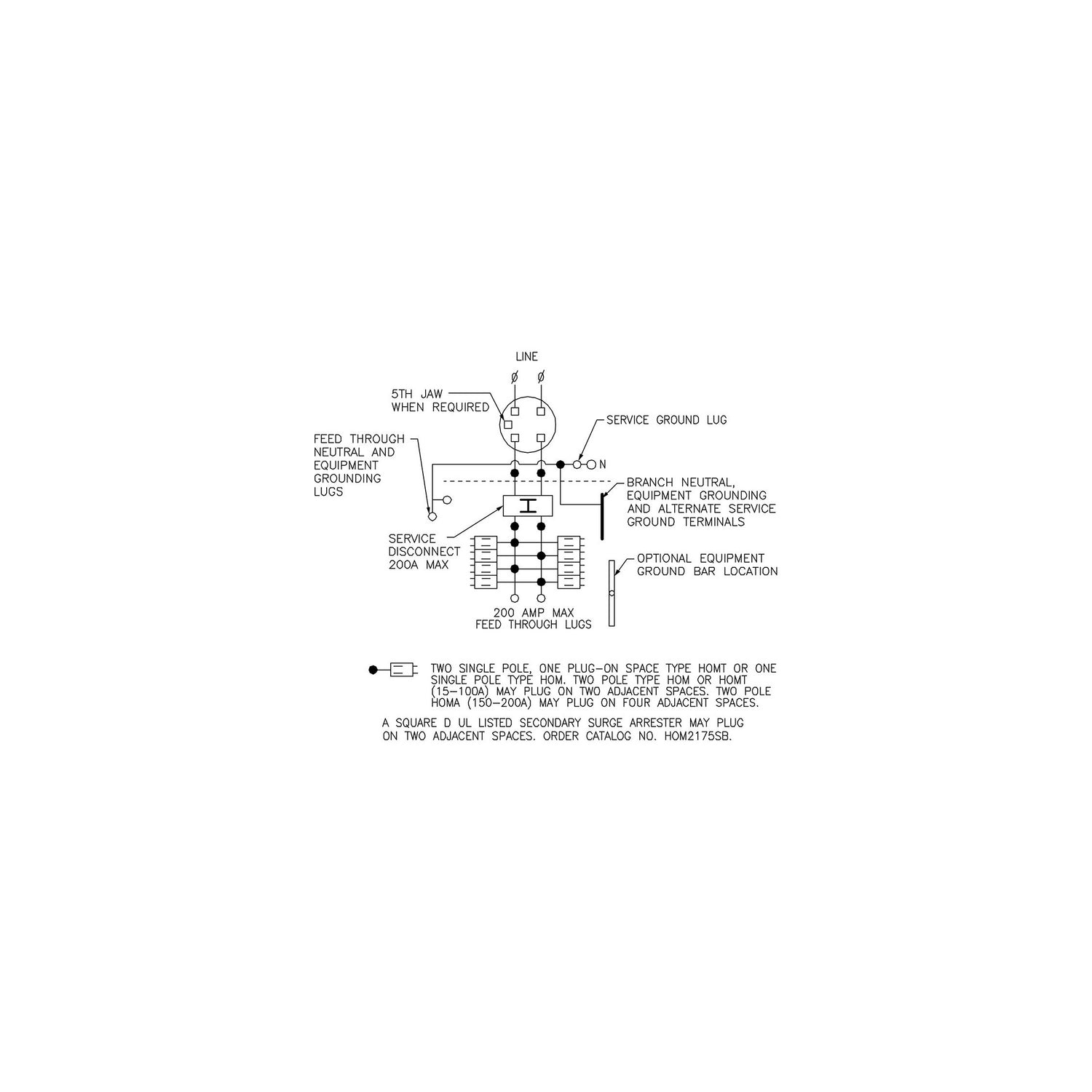

Spaces: 8 Spaces
-
Circuits: 16 Circuits
-
Tandem Breakers: 8 Maximum
-
Main Breaker Rating: 200 Amps (factory installed)
-
Bus Rating: 200 Amps
-
Enclosure: NEMA 3R (Rainproof, Outdoor Rated)
-

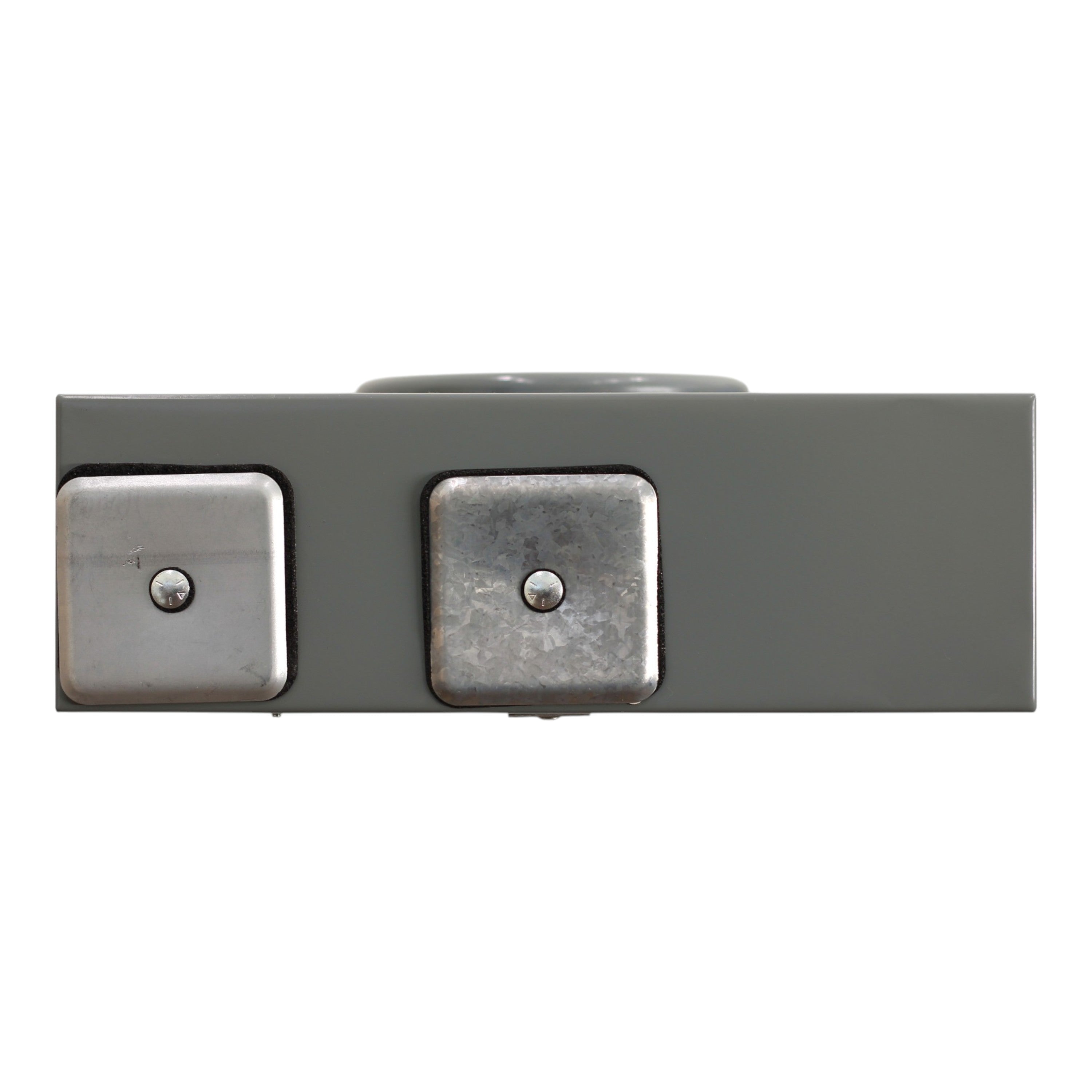

Hub Type: A
-
Wire Size (Line Side): AWG 6–350 kcmil Al/Cu
-
Wire Size (Service Ground): AWG 12–AWG 2/0 Al/Cu
-
Tightening Torque: Main lugs: 250 lb-in; Service ground: 50 lb-in; Branch lugs: 20–35 lb-in (varies by wire size)
-

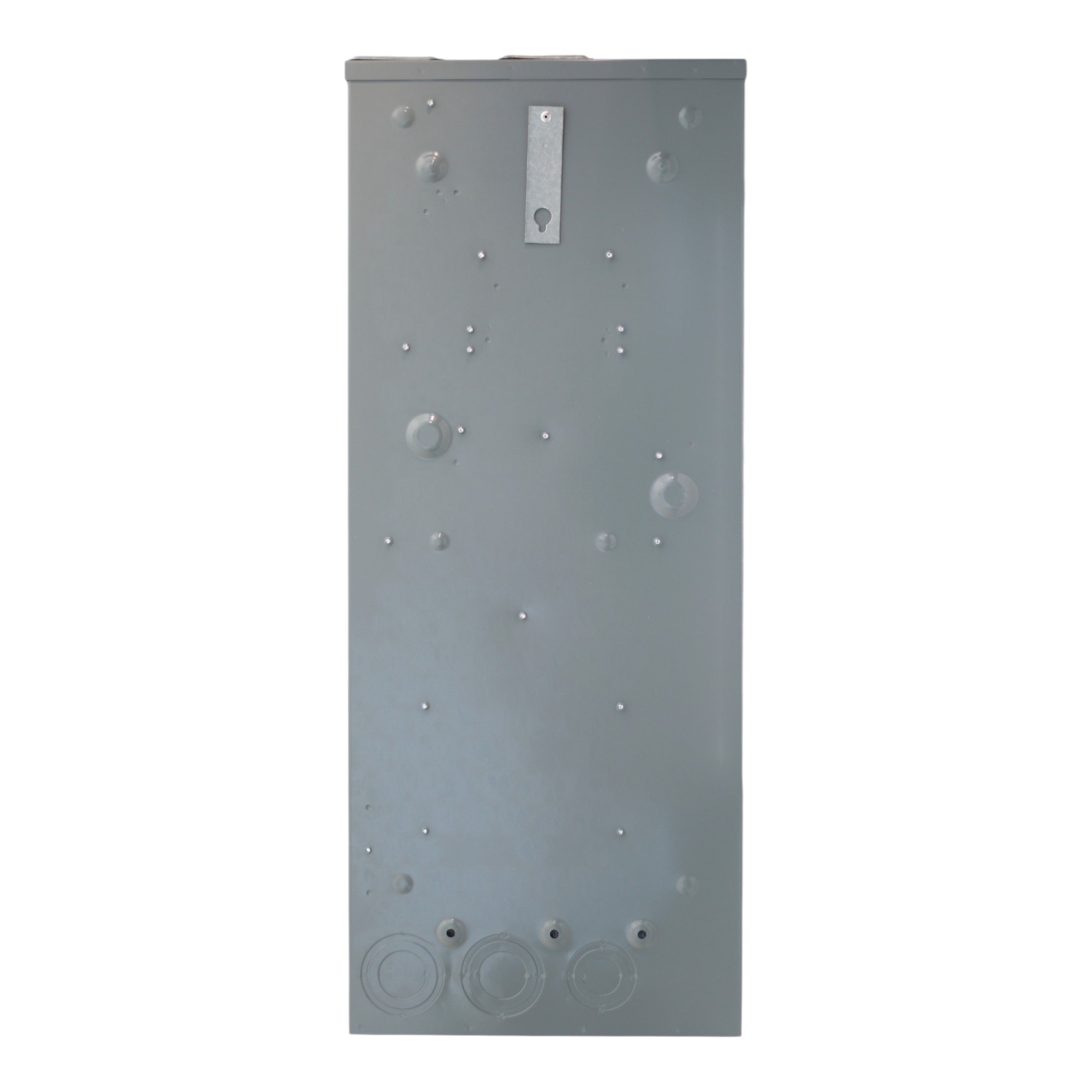

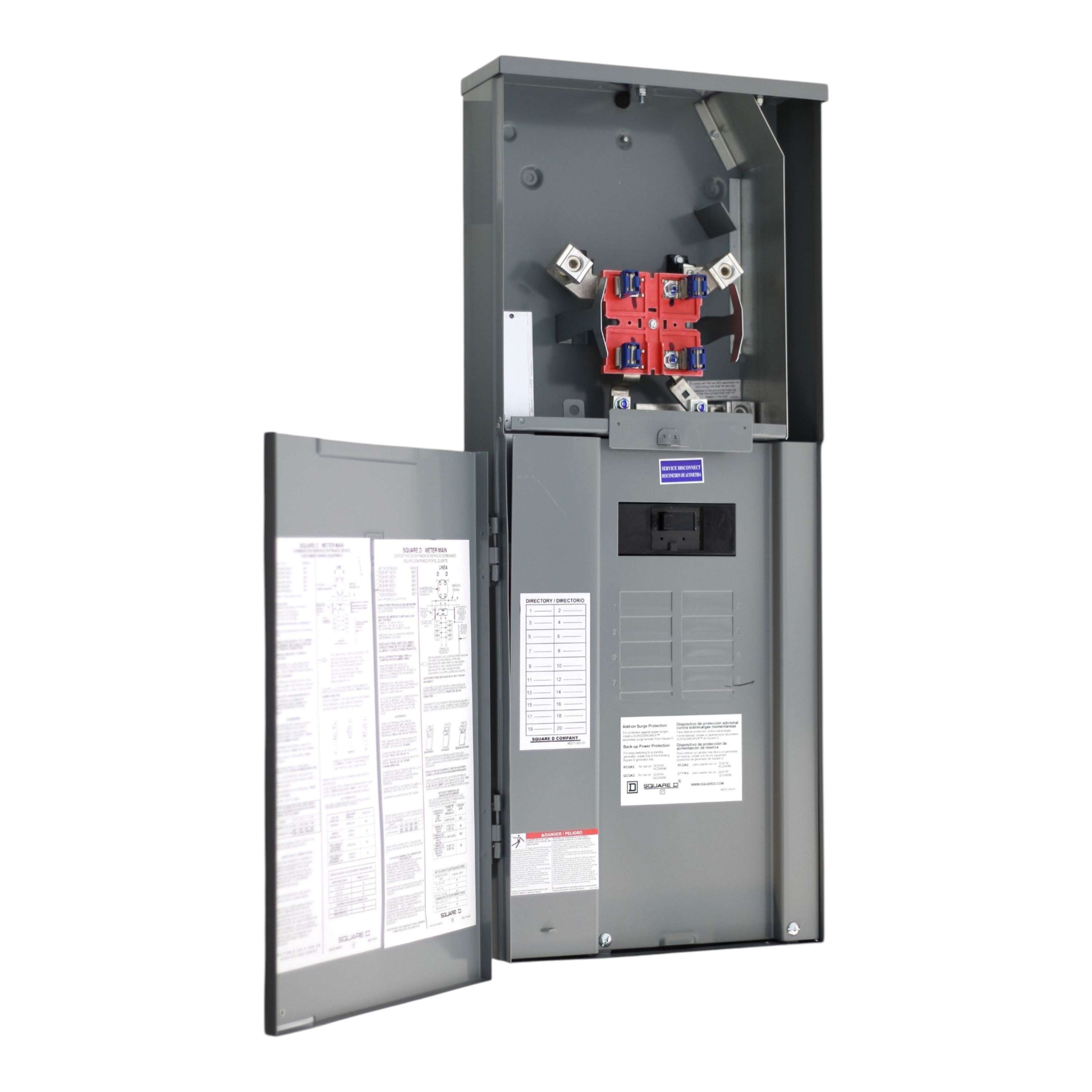

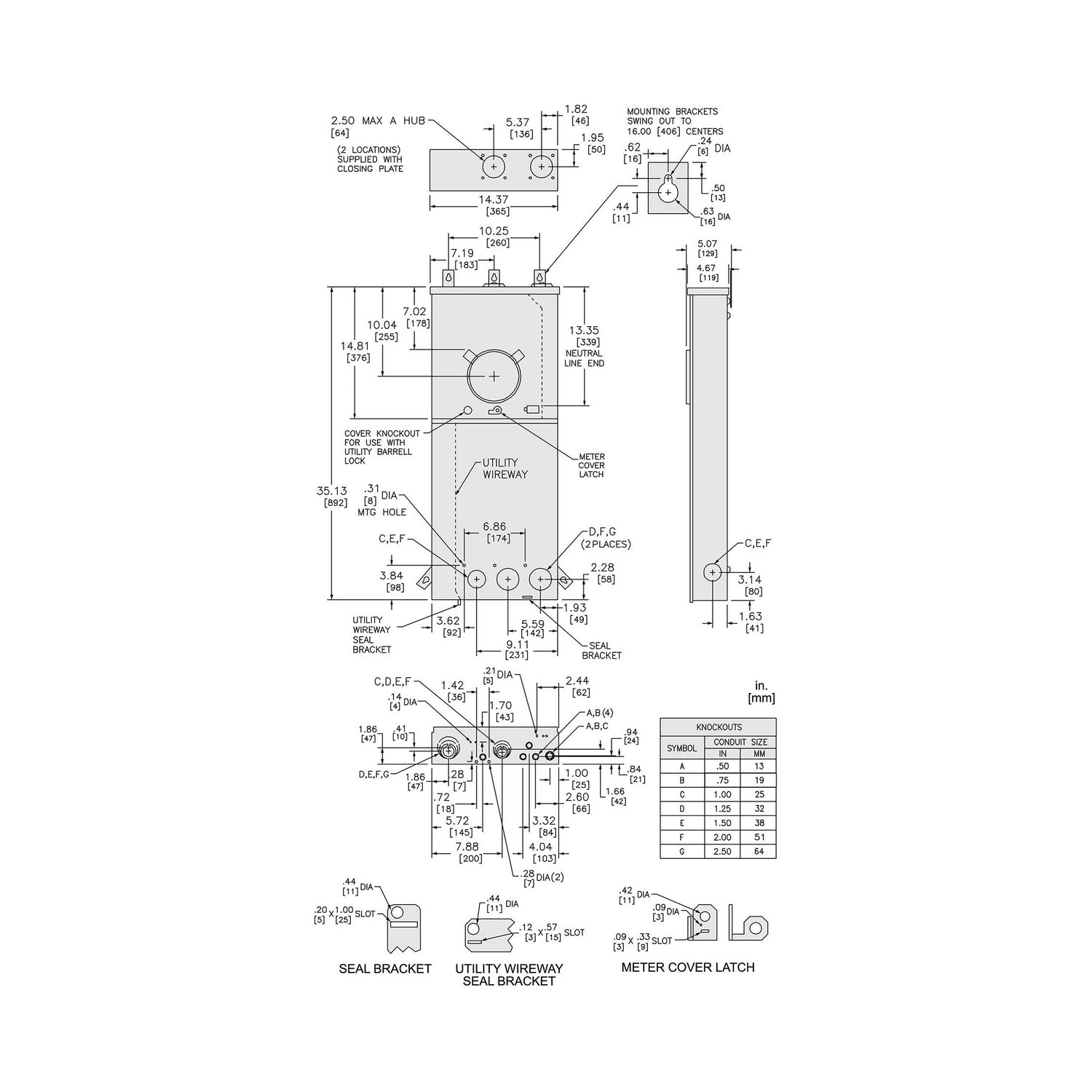

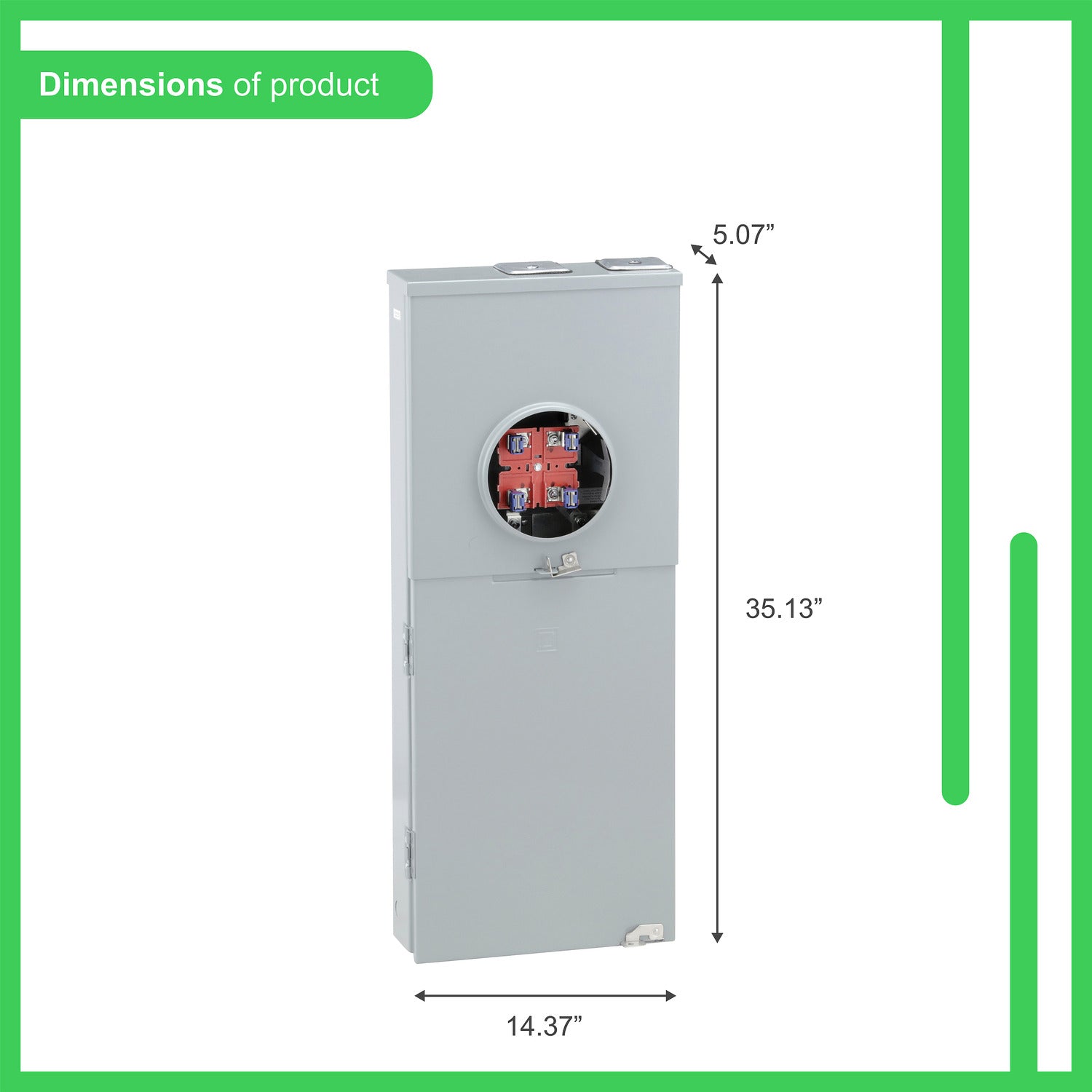

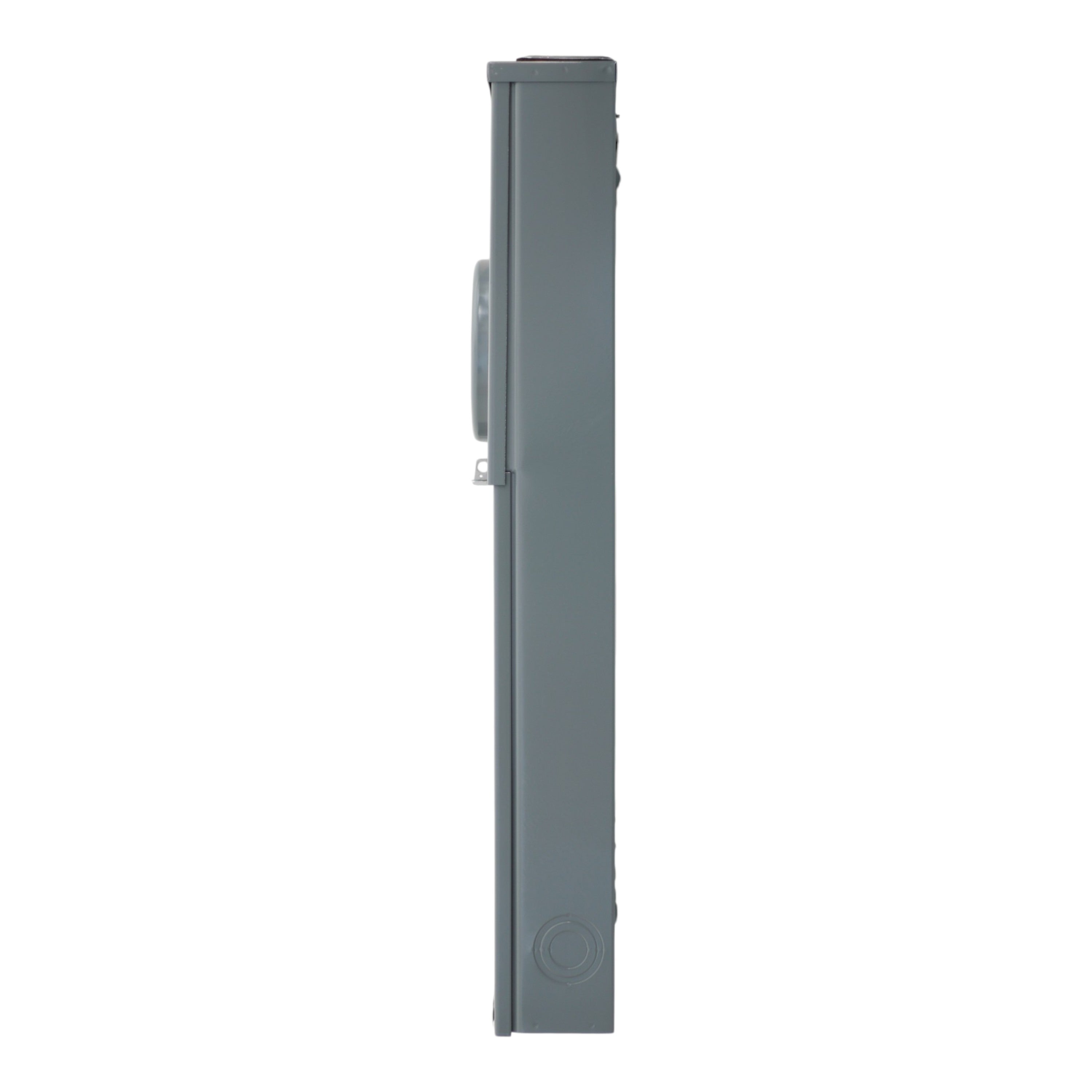

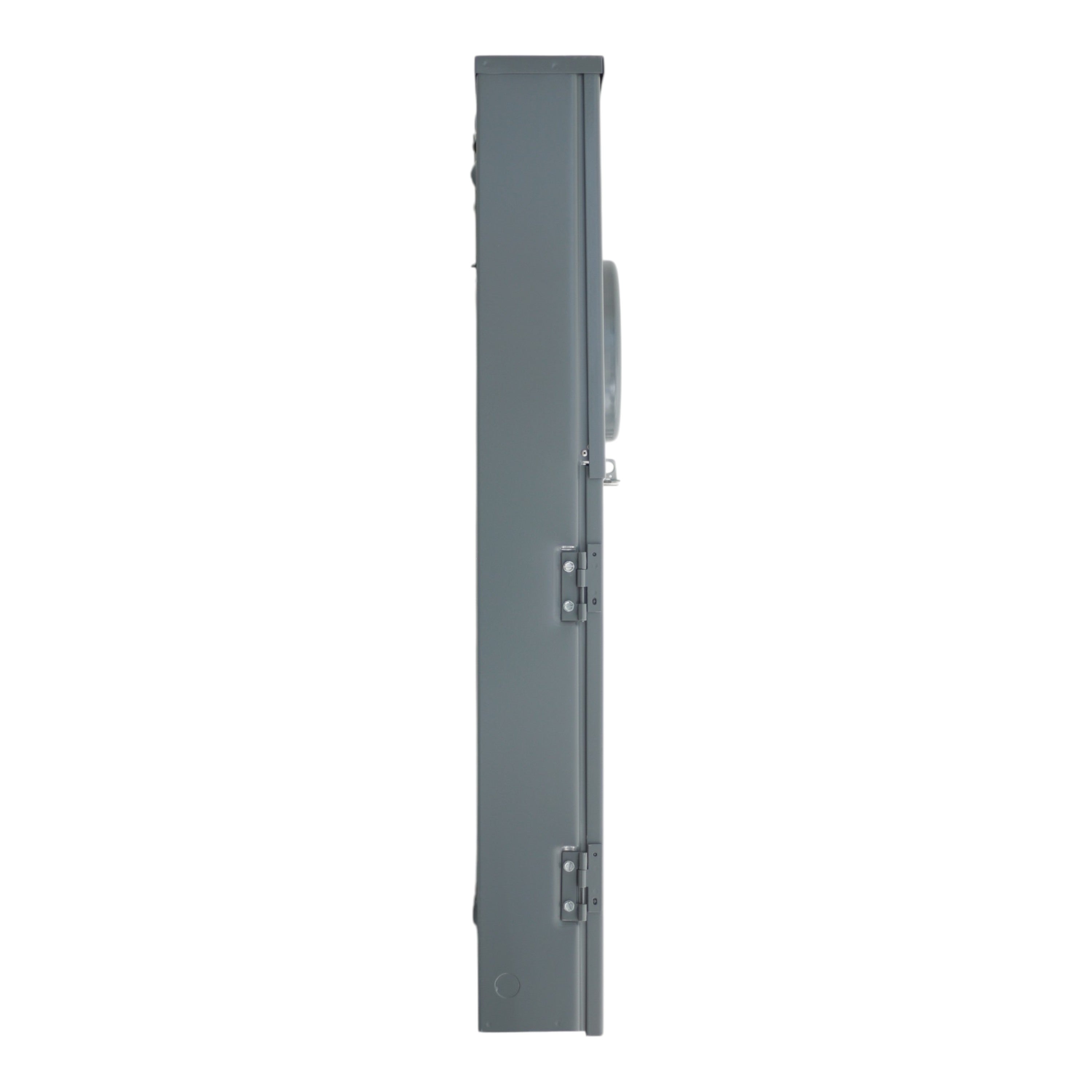

Dimensions: Height: 35.13 in; Width: 14.37 in; Depth: 5.07 in
-
Weight: 43.65 lbs
-
Certifications: UL Listed (File No. E6294), CSA Approved, ANSI C12.7, NEMA PB-1, EUSERC Approved, Federal Specification W-P-115C
This Square D RC816F200C is a 200 Amp Homeline ringless meter main CSED for surface mount residential service entrance applications. Supporting 120/240V, 1-phase, OH/UG feed, 8 spaces and 16 circuits with a 22kA short-circuit rating, it is UL Listed and EUSERC Approved.
