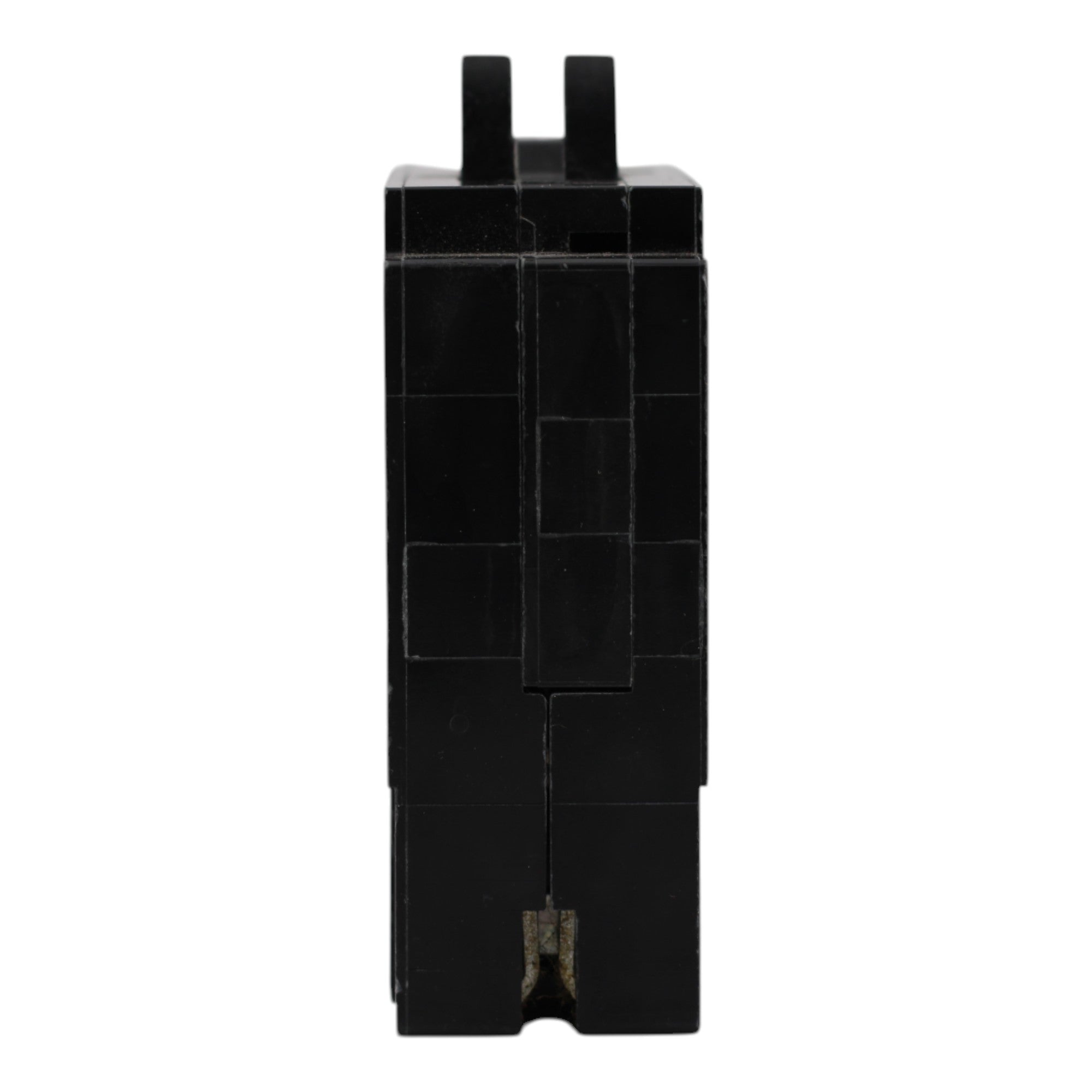

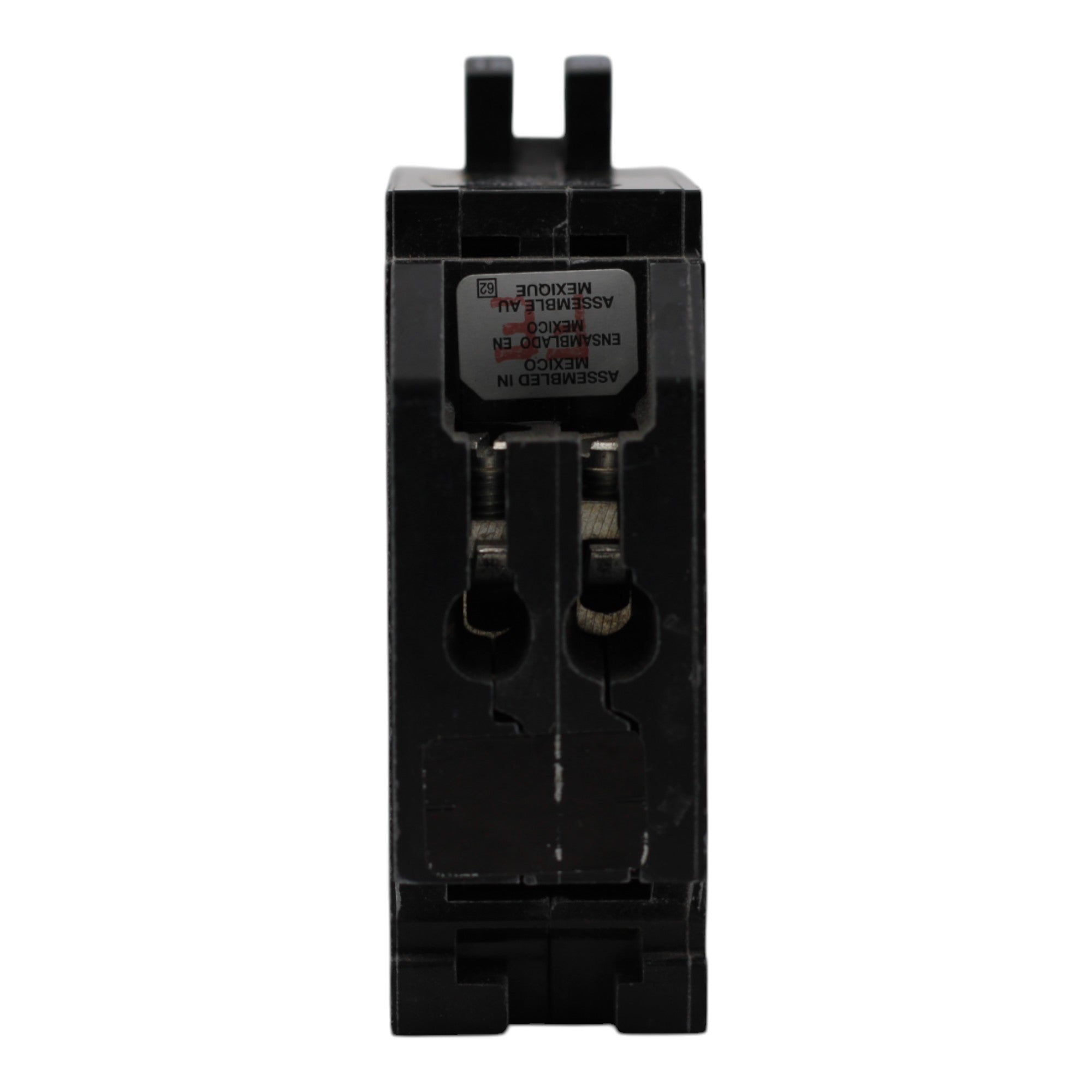

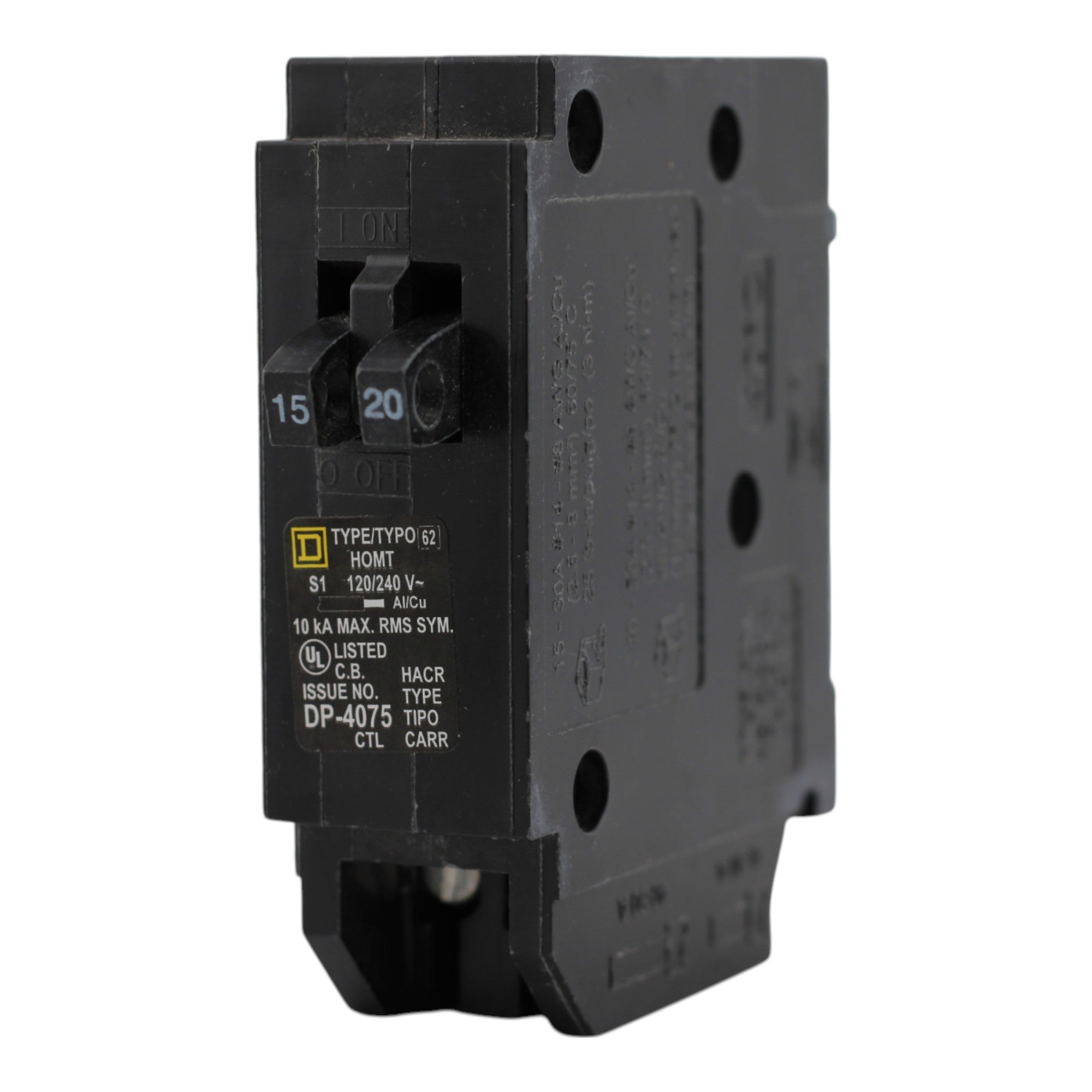

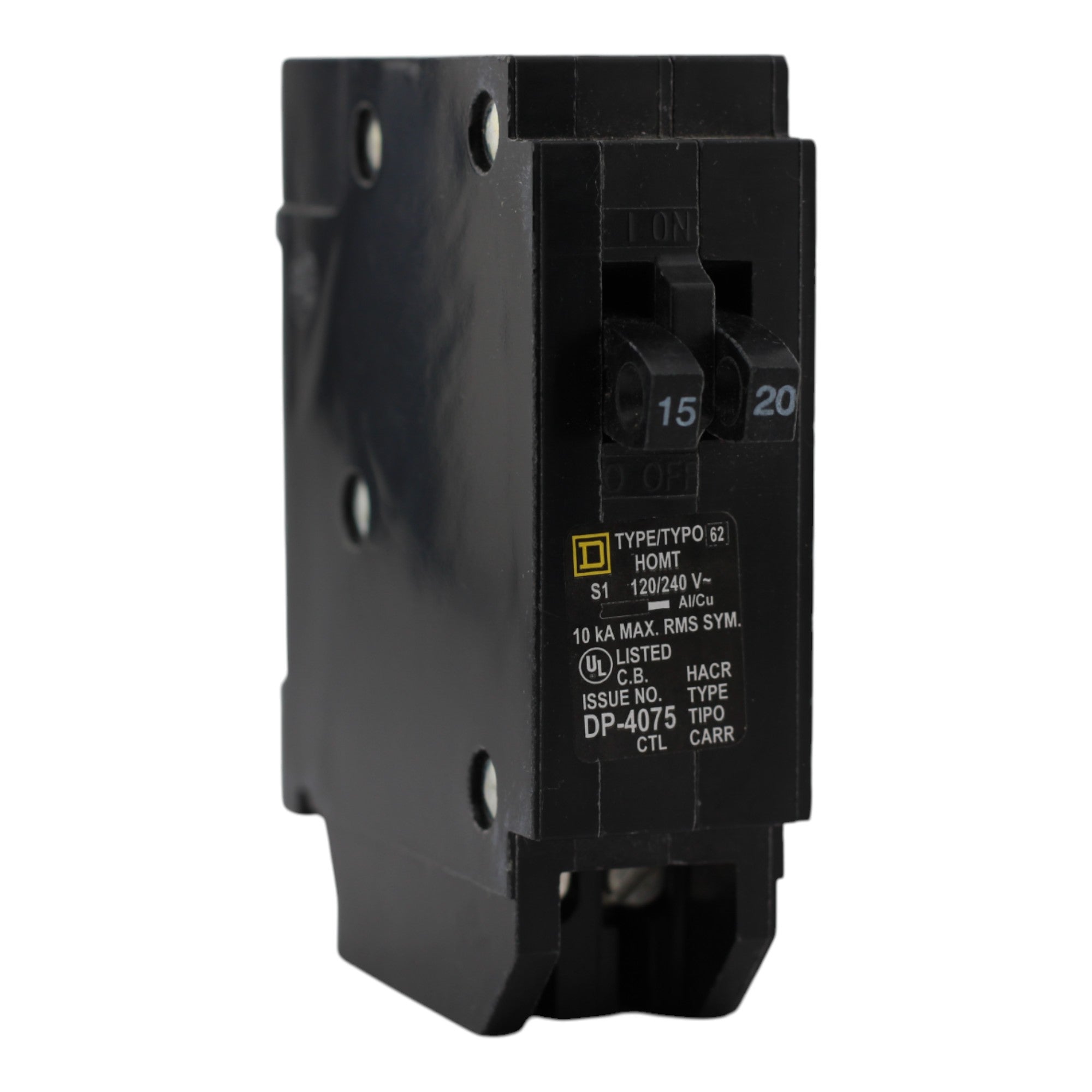

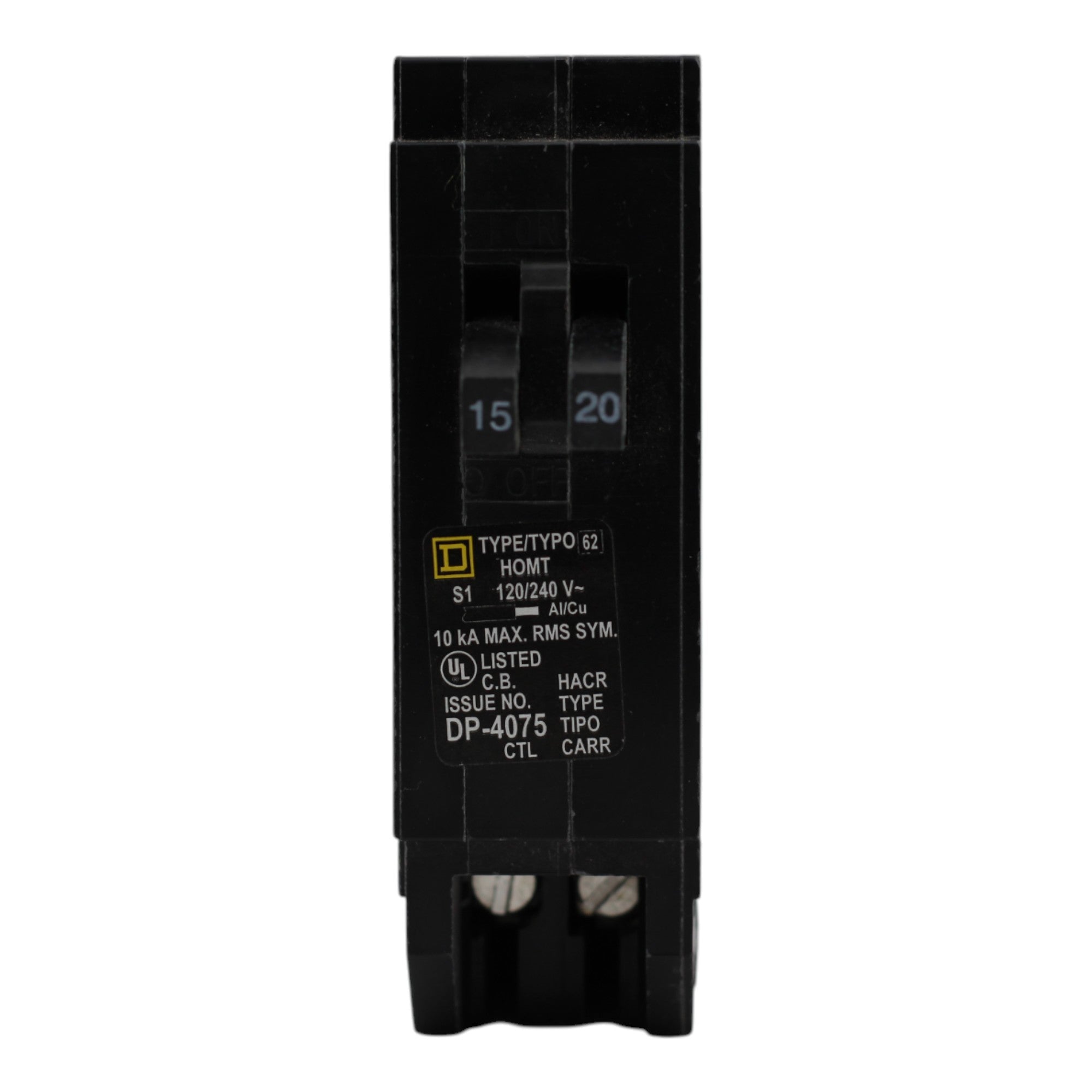

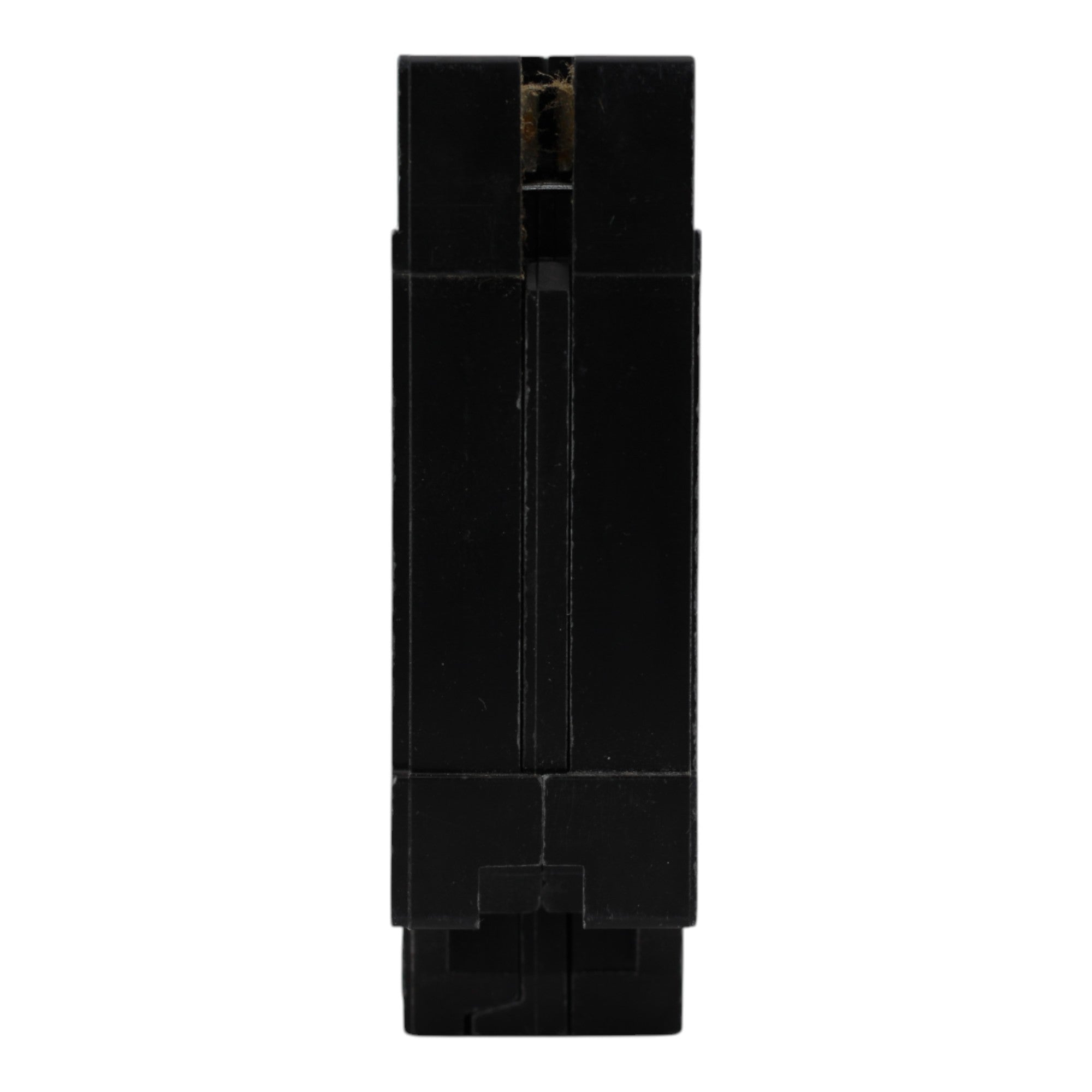

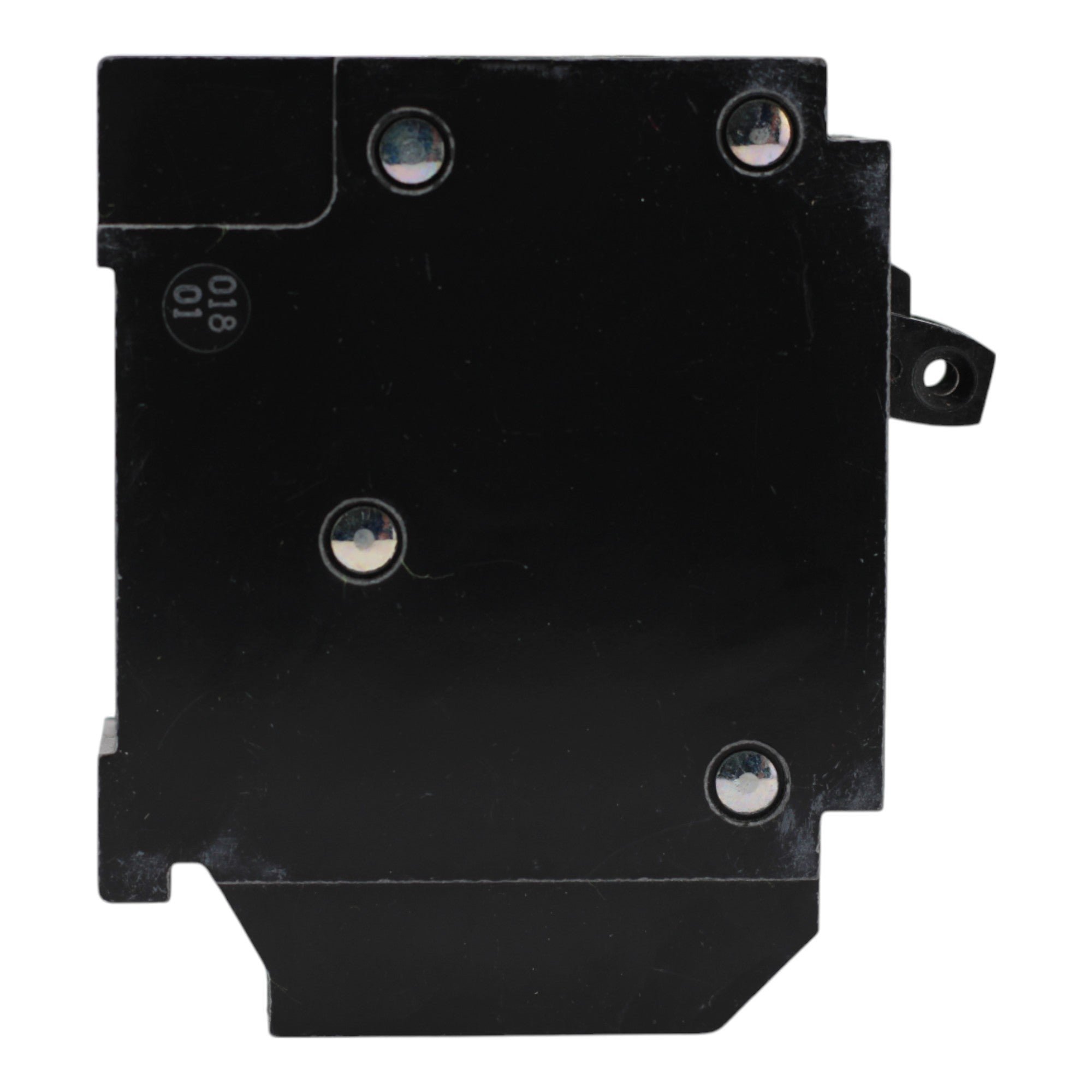

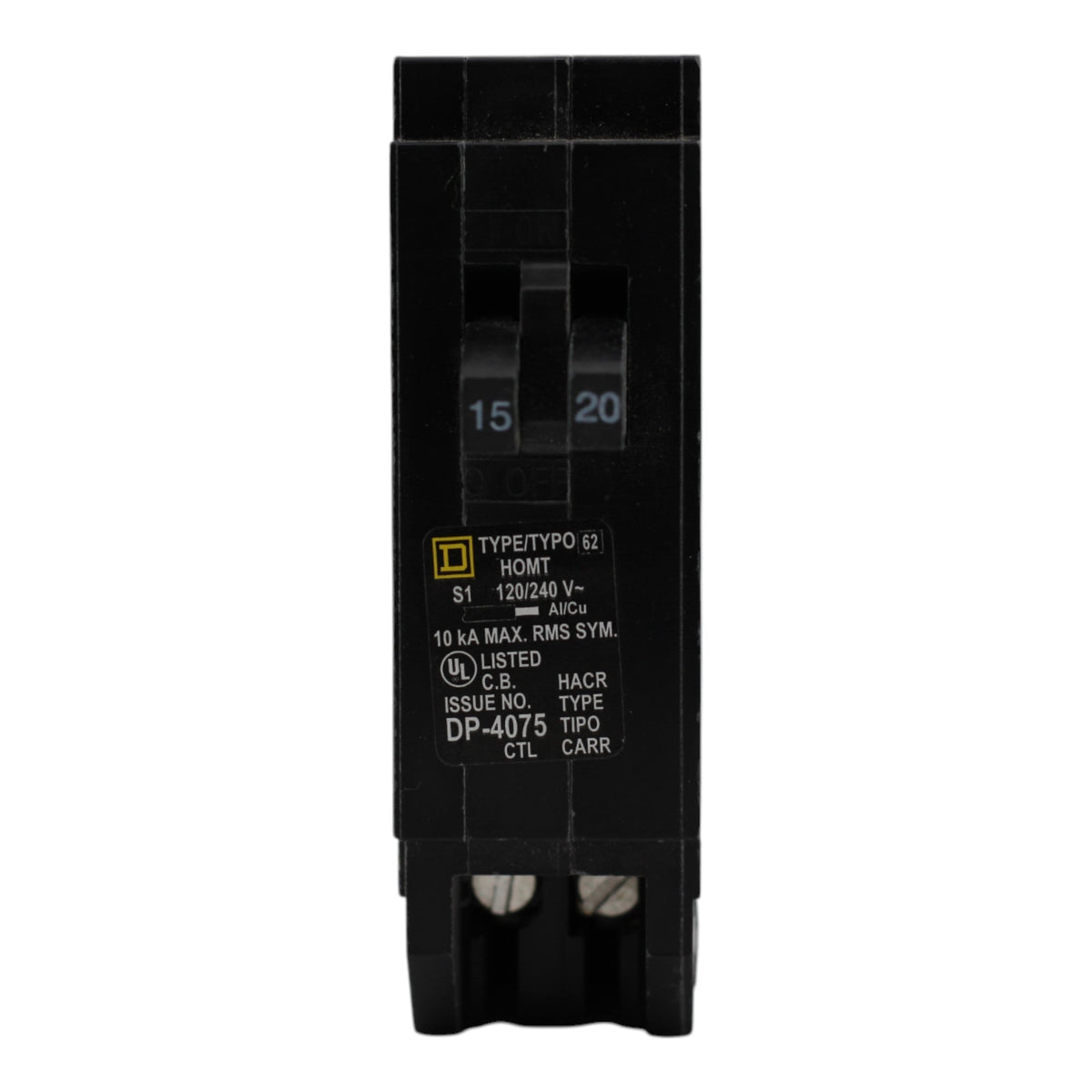

Square D HOMT1520: Homeline tandem circuit breaker with 15A and 20A single-pole breakers in one space, 10kA interrupt rating, plug-in design, HACR rated for residential applications, UL listed.
Product Specifications
-
Manufacturer: Schneider Electric
-
Brand: Square D
-
UPC: 785901065418
-
Model Number: HOMT1520
-
Type: Homeline Tandem Circuit Breaker
-
Application: Residential
-
Voltage Rating: 120/240V AC
-
Amperage Rating: 15A/20A (One 15A and one 20A pole)
-
Number of Poles: Two 1-Pole breakers
-
Interrupt Rating: 10 kA
-
Trip Type: Thermal Magnetic
-
Number of Panel Spaces: 1
-
Mounting Type: Plug-in
-
Circuit Breaker Type: Tandem
-

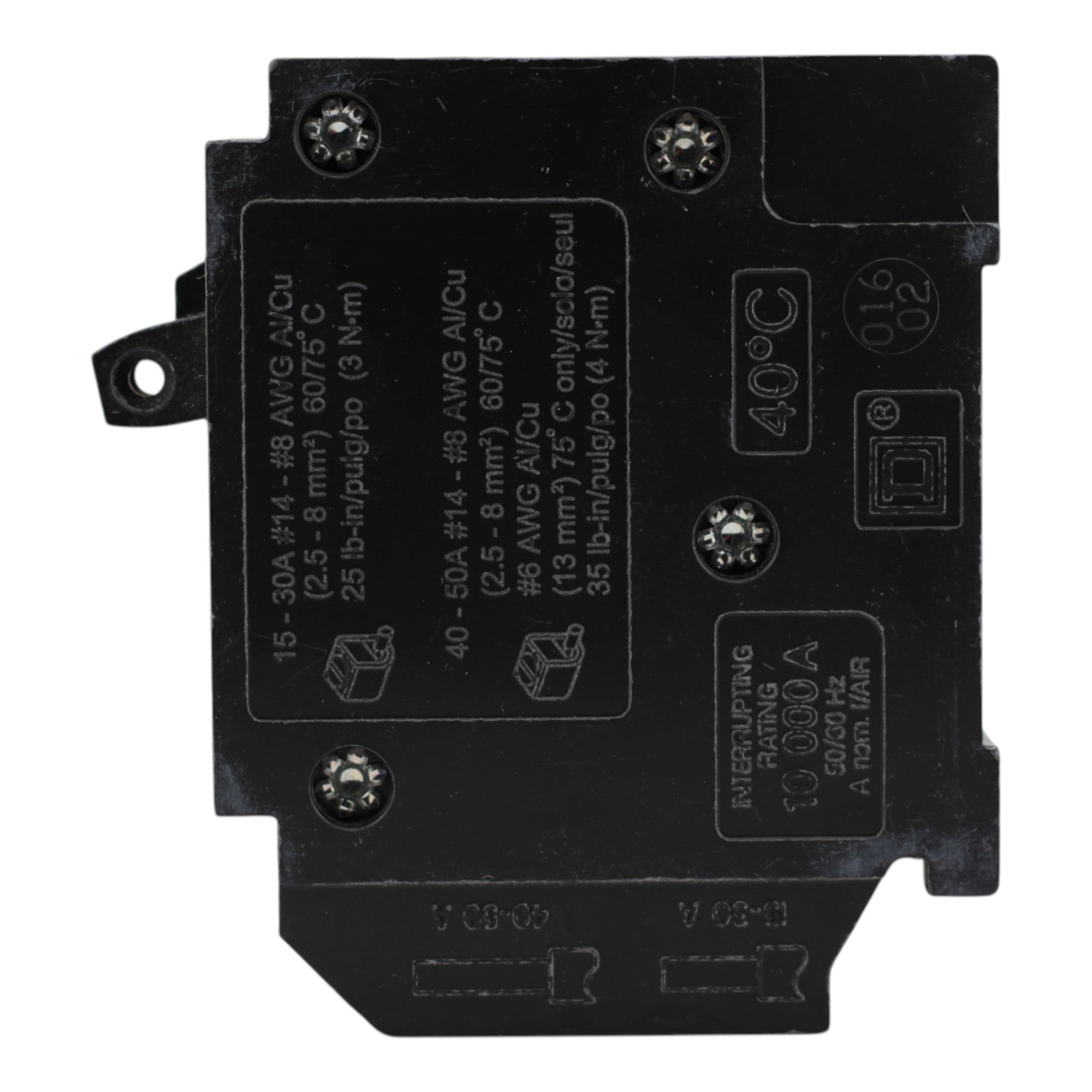

Wire Size: AWG 12 to AWG 8 (aluminum)
-
Tightening Torque: 35.4 lbf.in (4.0 N.m)
-
Dimensions: Height: 3.13 in; Width: 1 in; Depth: 2.98 in
-
Weight: 6.880 oz (0.43 lb)
-
Ratings: HACR (Heating, Air Conditioning, Refrigeration)
-
Features: Individual switching and tripping action for each pole
-
Electrical Connection: Box lugs
-
Ambient Operating Temperature: 104°F (40°C)
-
Certification: UL Listed
