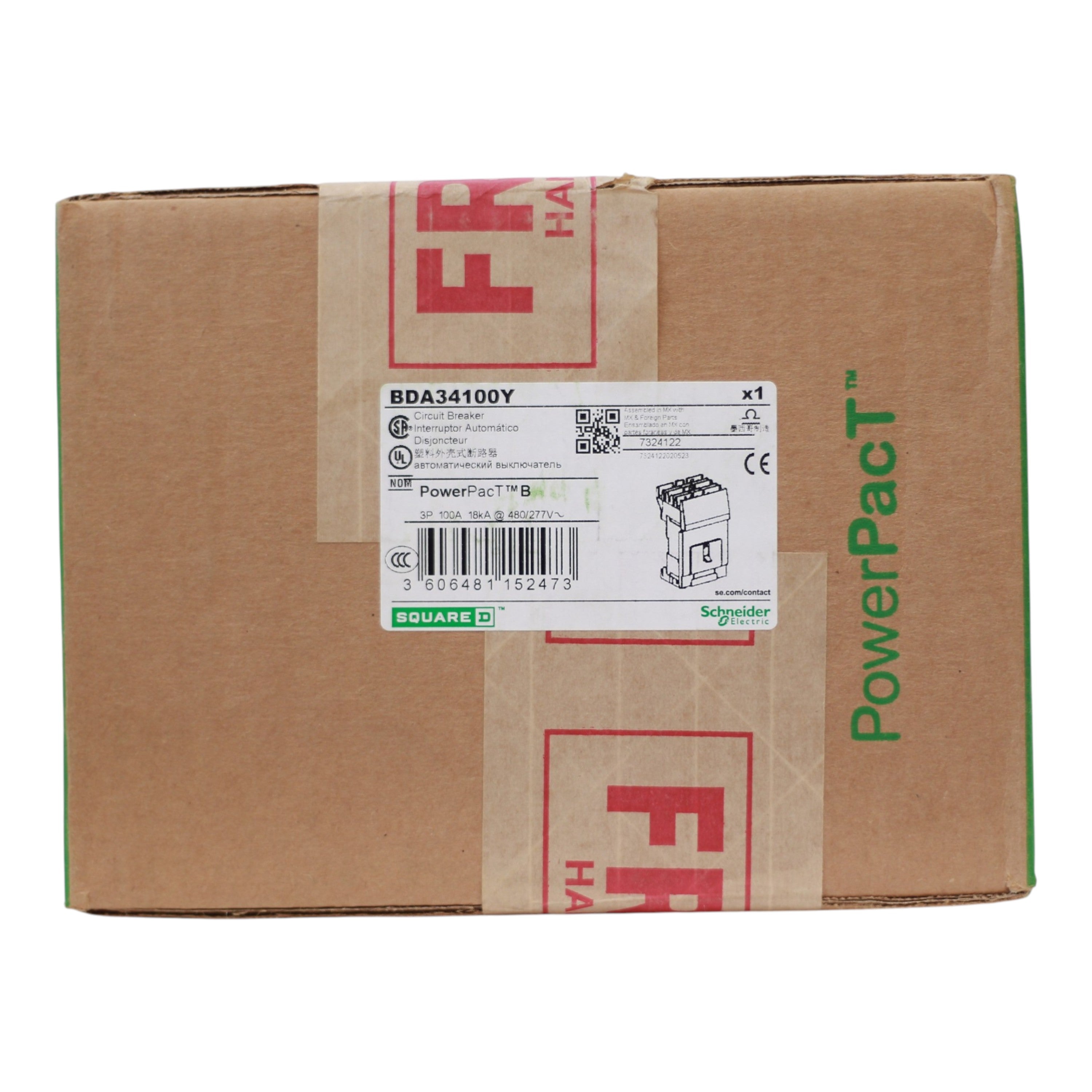

Square D PowerPacT B, BDA34100Y, 100A, 3P, 480Y/277V, I-Line, Thermal Magnetic, Circuit Breaker - Image 3
Square D PowerPacT B, BDA34100Y, 100A, 3P, 480Y/277V, I-Line, Thermal Magnetic, Circuit Breaker - Image 4
Square D PowerPacT B, BDA34100Y, 100A, 3P, 480Y/277V, I-Line, Thermal Magnetic, Circuit Breaker - Image 5
Square D PowerPacT B, BDA34100Y, 100A, 3P, 480Y/277V, I-Line, Thermal Magnetic, Circuit Breaker - Image 6
Square D PowerPacT B, BDA34100Y, 100A, 3P, 480Y/277V, I-Line, Thermal Magnetic, Circuit Breaker - Image 7
Square D PowerPacT B, BDA34100Y, 100A, 3P, 480Y/277V, I-Line, Thermal Magnetic, Circuit Breaker - Image 8

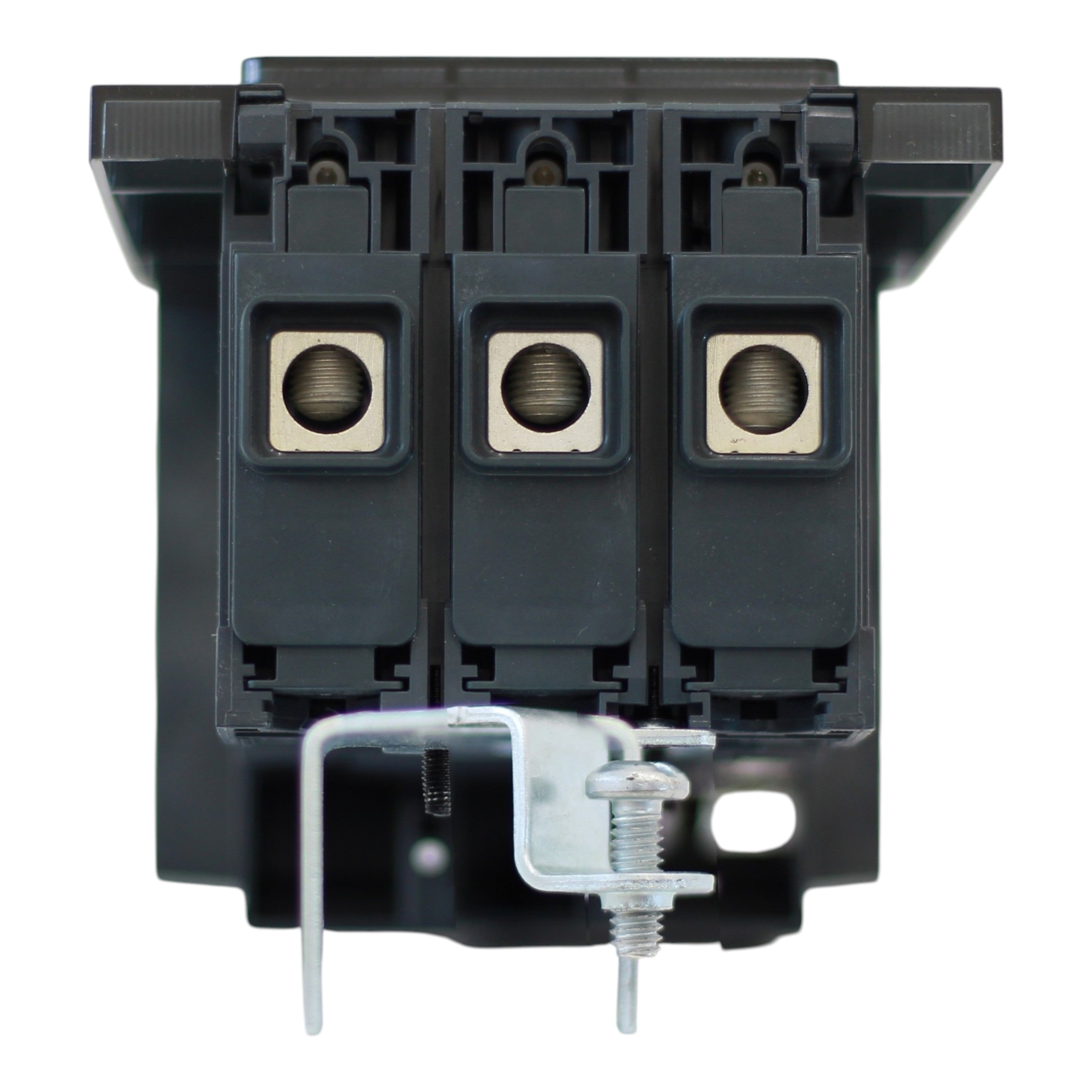

Square D PowerPacT B, BDA34100Y, 100A, 3P, 480Y/277V, I-Line, Thermal Magnetic, Circuit Breaker - Image 9
Square D PowerPacT B, BDA34100Y, 100A, 3P, 480Y/277V, I-Line, Thermal Magnetic, Circuit Breaker - Image 10

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Square D

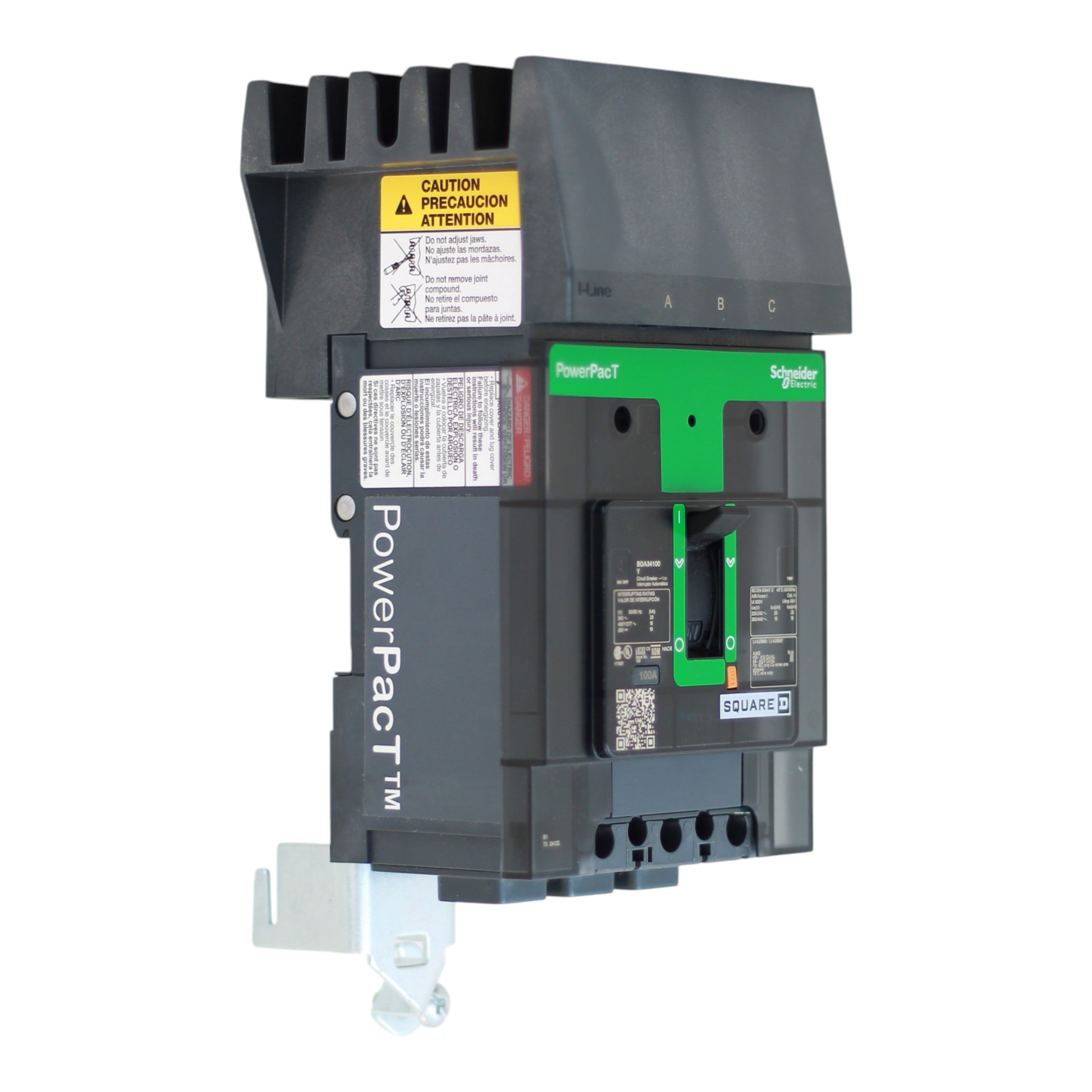

Square D PowerPacT B, BDA34100Y, 100A, 3P, 480Y/277V, I-Line, Thermal Magnetic, Circuit Breaker

SKU: BDA34100Y
(0)
$395.00
-50% $785.00 $395.00
Out of stock
Condition

Square D BDA34100Y: 100 Amp, 3-Pole, Thermal Magnetic Molded Case Circuit Breaker, 480Y/277V, 18kA, I-Line, UL Listed, CSA, HACR Rated.

  • Manufacturer: Schneider Electric
  • Brand: Square D
  • Product Range: PowerPacT B (for I-Line loadcenters and commercial/industrial distribution panels)
  • GTIN: 3606481152473
  • Model Number: BDA34100Y
  • Breaker Type: Thermal Magnetic Molded Case Circuit Breaker (MCCB)
  • Amperage: 100 Amps
  • Poles: 3-Pole
  • Voltage: 480Y/277 Volts AC
  • Interrupt Rating: 18 kAIC at 480Y/277V AC
  • Continuous Current Rating: 80%
  • Mounting Mode: I-Line Plug-In
  • Connections Terminals: I-Line connection (line side); Mechanical Lugs (load side)
  • Wire Size: #14–2/0 AWG Cu/Al
  • Tightening Torque: 31.9–38.9 lb-in (AWG 14–10); 44.3–54.9 lb-in (AWG 8–2/0)

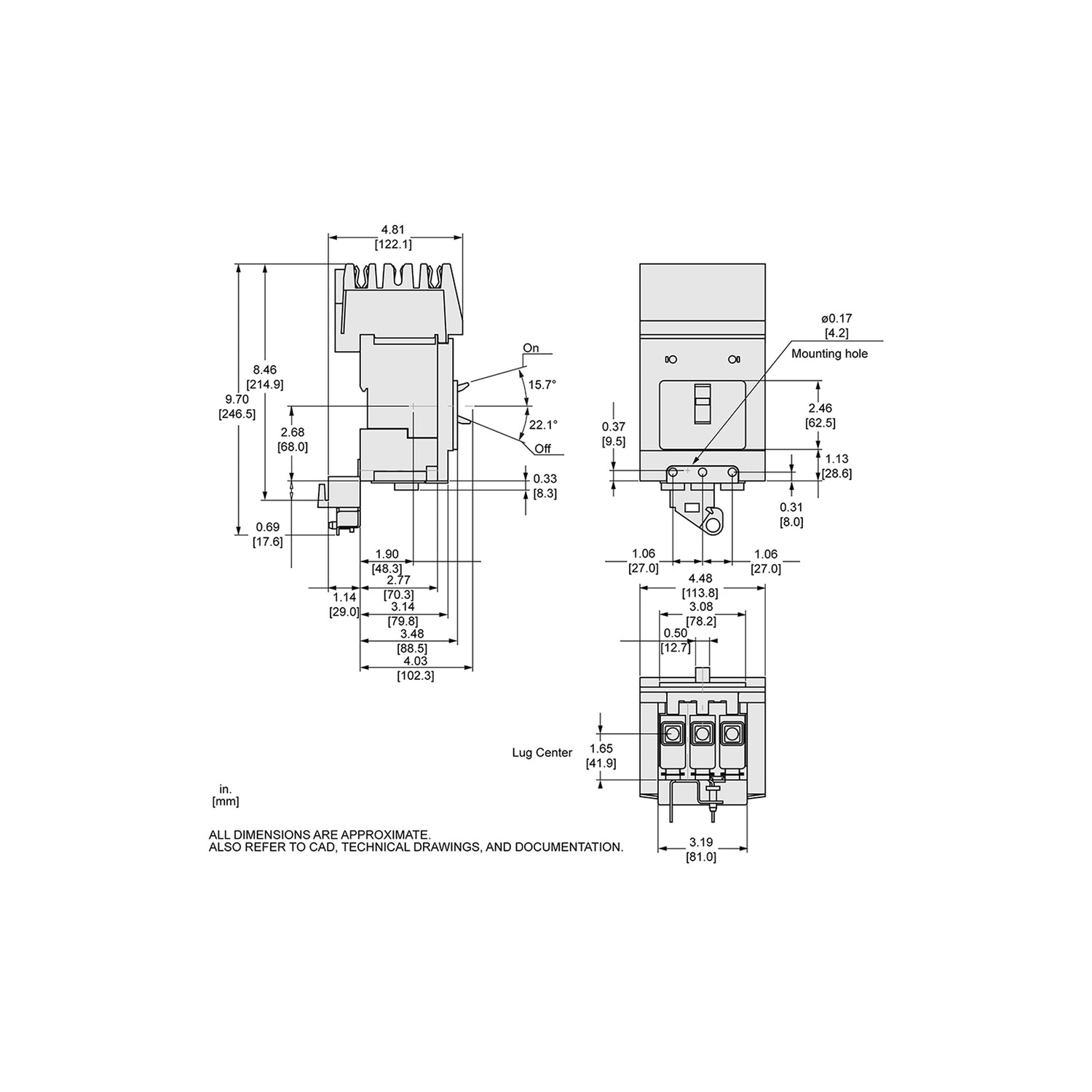

  • Dimensions: Height: 5.4 in; Width: 3.2 in; Depth: 3.5 in
  • Weight: 2.899 lbs
  • Certifications: UL Listed, HACR Rated, CSA

This Square D BDA34100Y thermal magnetic molded case circuit breaker delivers dependable 100 Amp, 3-Pole protection for 480Y/277V circuits in PowerPacT B I-Line loadcenters. Designed for I-Line plug-in installation with 18kA interrupt rating, it supports commercial and industrial distribution applications.
