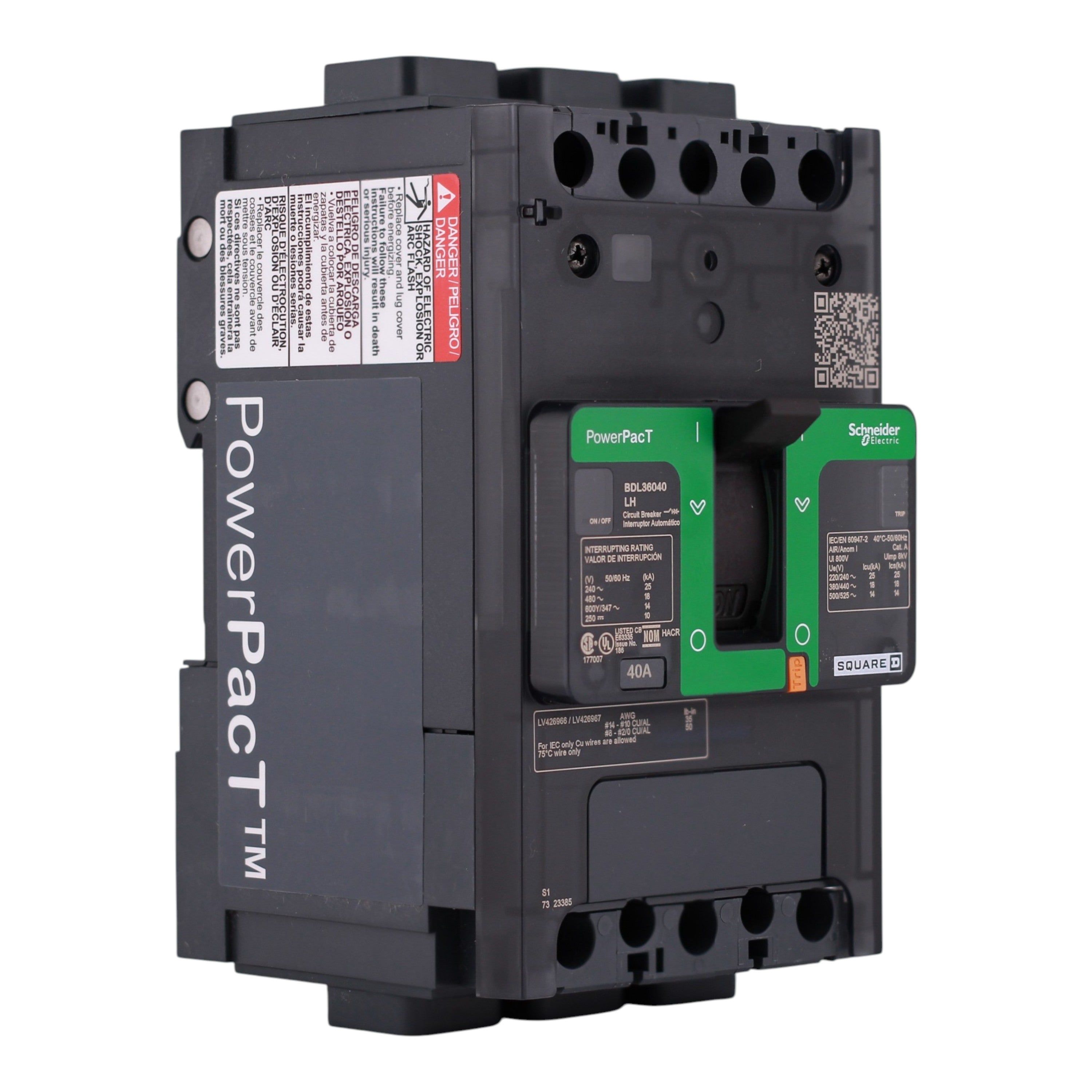

Square D PowerPacT B, BDL36040LH, 40A, 3P, 600Y/347VAC, Aluminum Lugs, Circuit Breaker

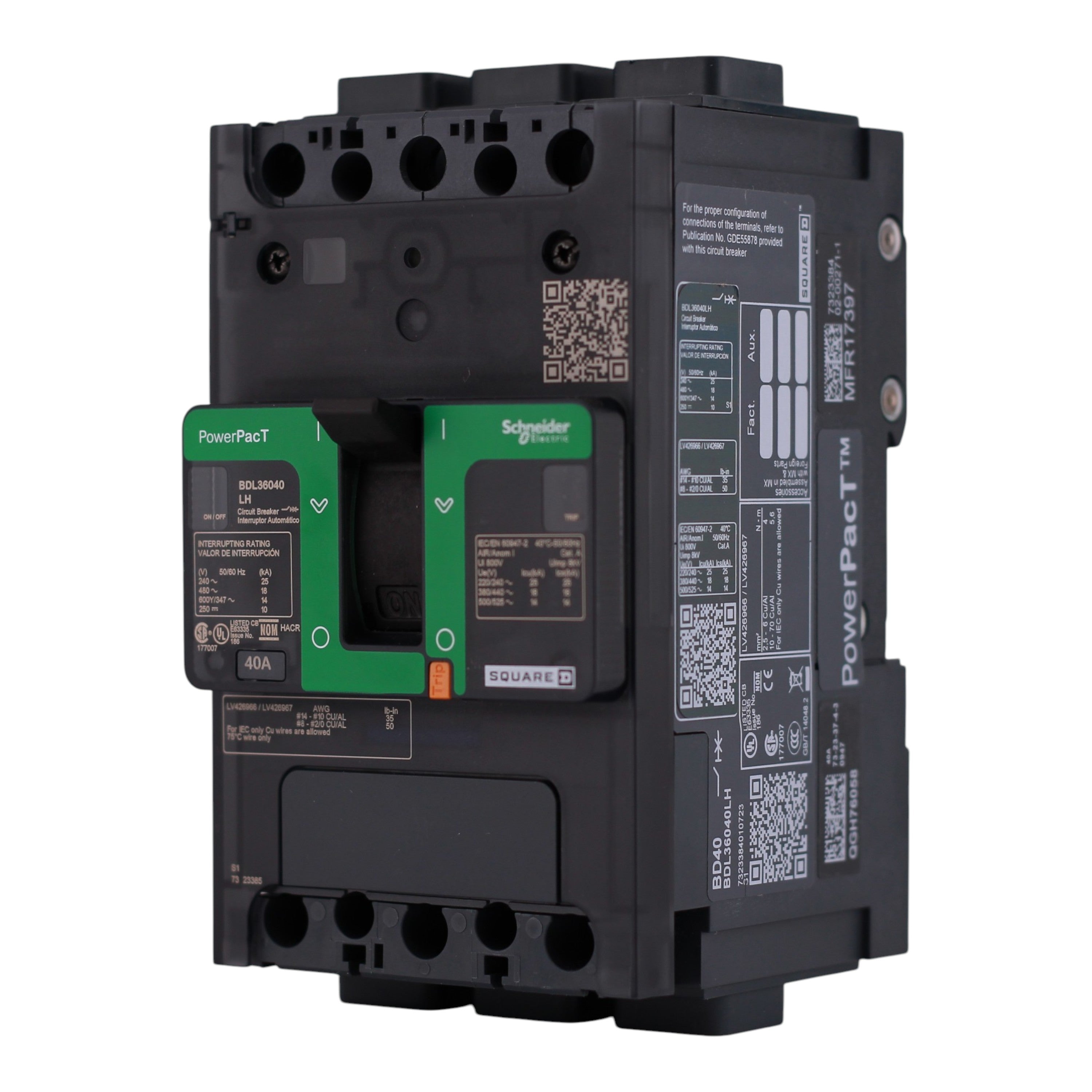

Square D PowerPacT B, BDL36040LH, 40A, 3P, 600Y/347VAC, Aluminum Lugs, Circuit Breaker - Image 2

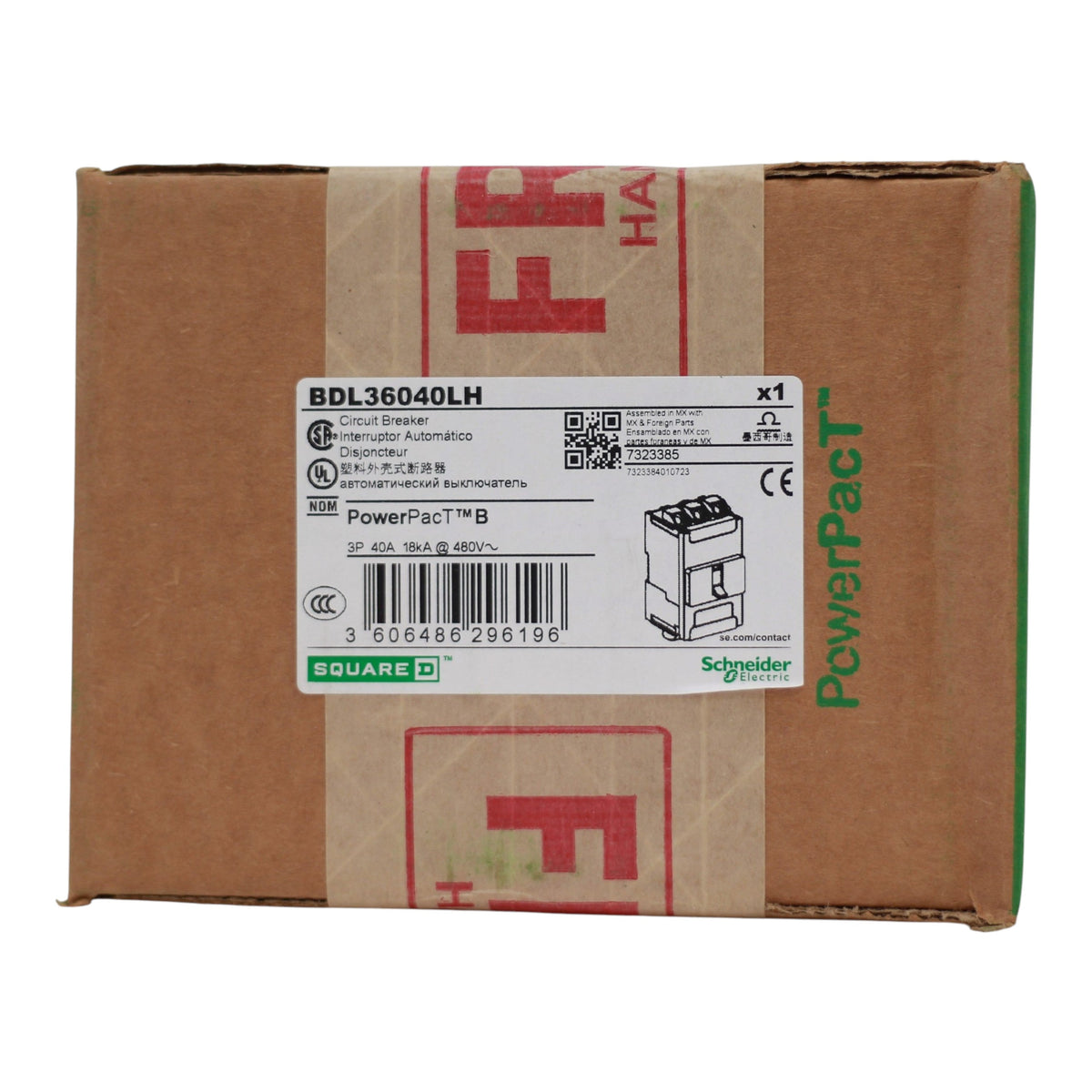

Square D PowerPacT B, BDL36040LH, 40A, 3P, 600Y/347VAC, Aluminum Lugs, Circuit Breaker - Image 3
Square D PowerPacT B, BDL36040LH, 40A, 3P, 600Y/347VAC, Aluminum Lugs, Circuit Breaker - Image 4

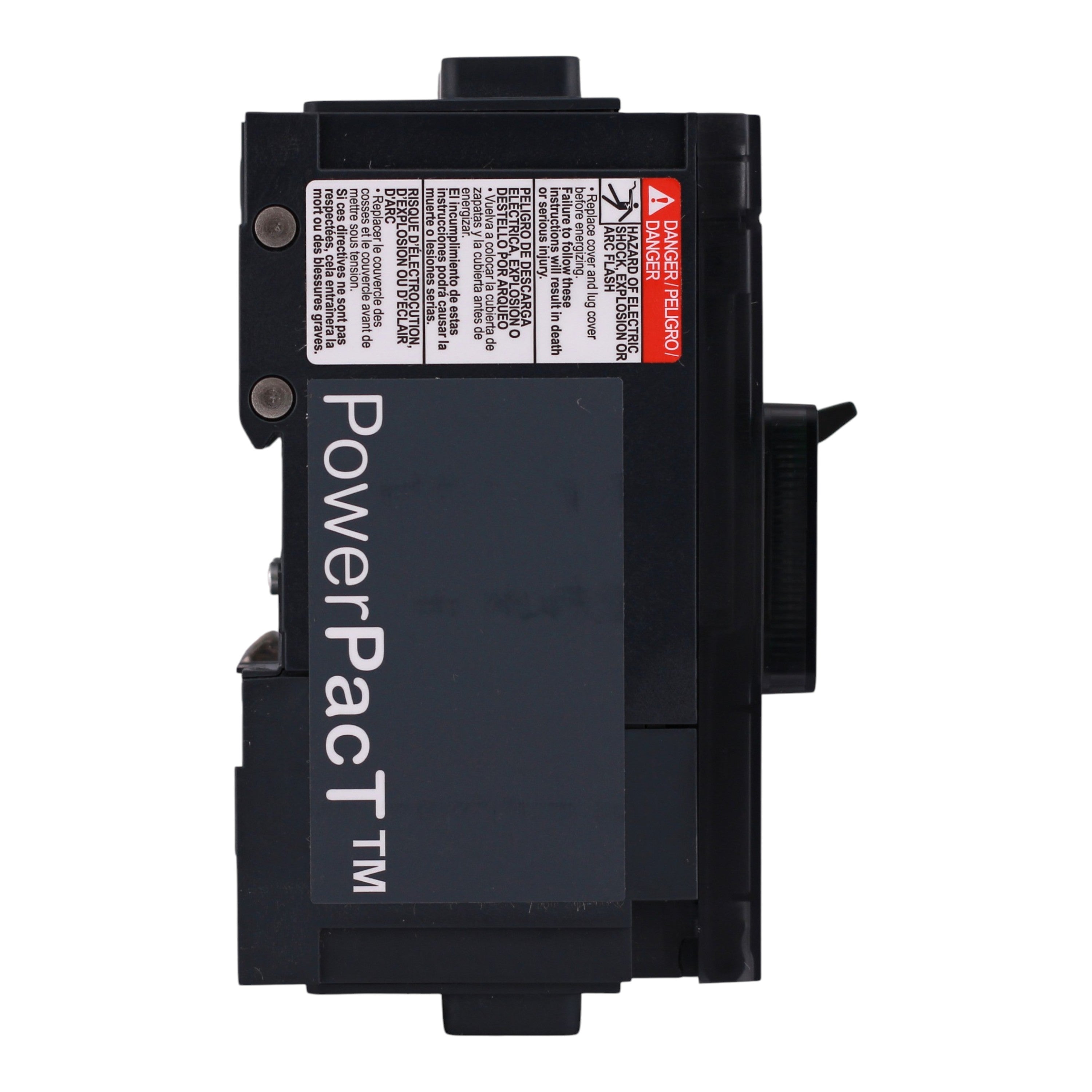

Square D PowerPacT B, BDL36040LH, 40A, 3P, 600Y/347VAC, Aluminum Lugs, Circuit Breaker - Image 5

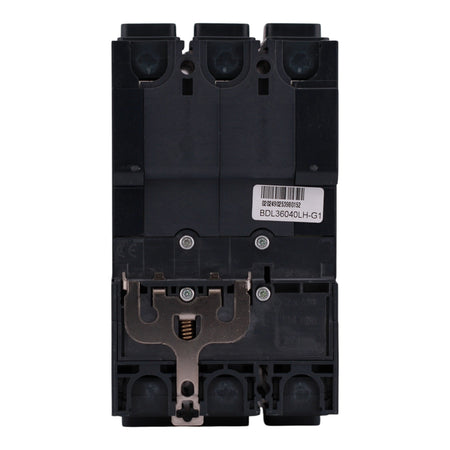

Square D PowerPacT B, BDL36040LH, 40A, 3P, 600Y/347VAC, Aluminum Lugs, Circuit Breaker - Image 6

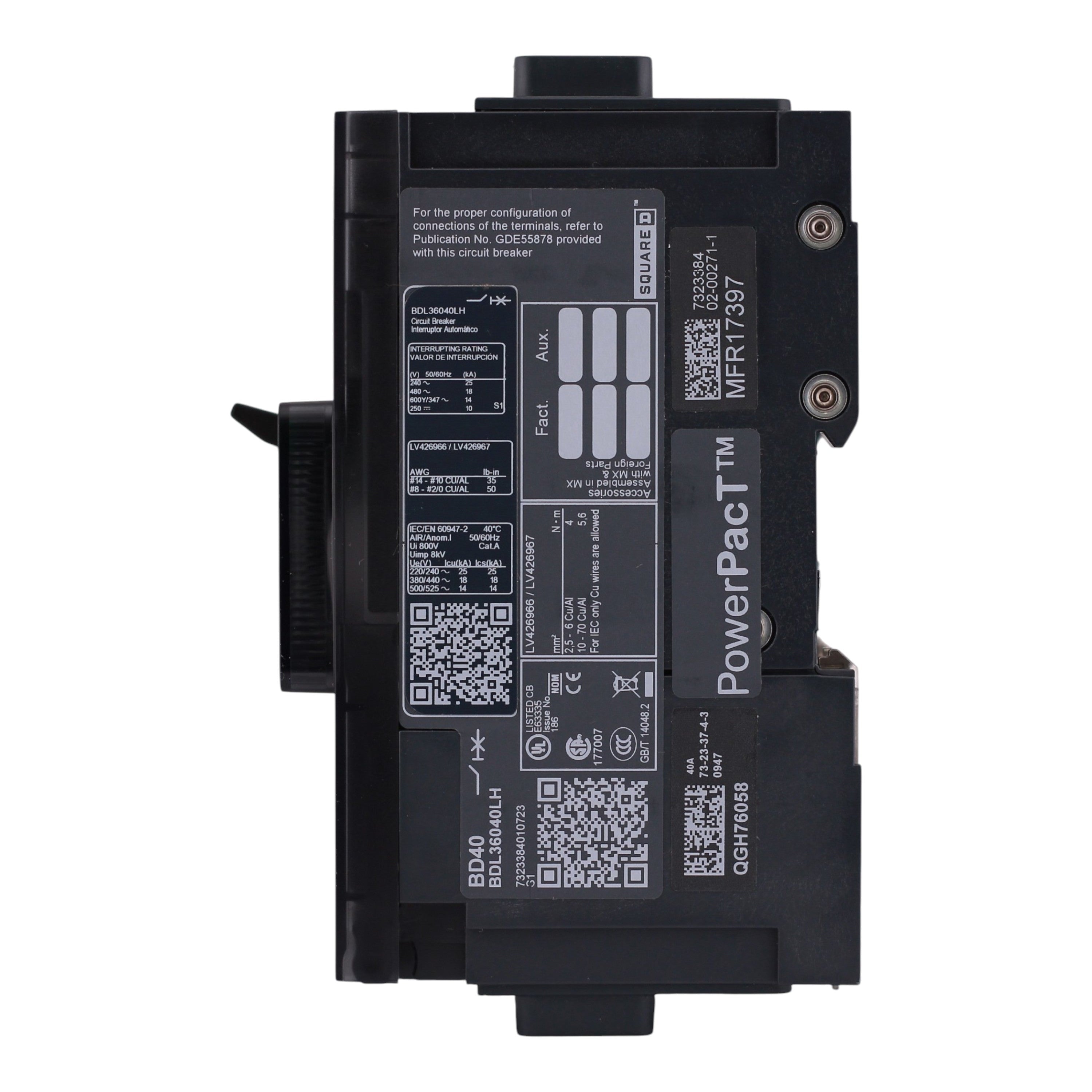

Square D PowerPacT B, BDL36040LH, 40A, 3P, 600Y/347VAC, Aluminum Lugs, Circuit Breaker - Image 7

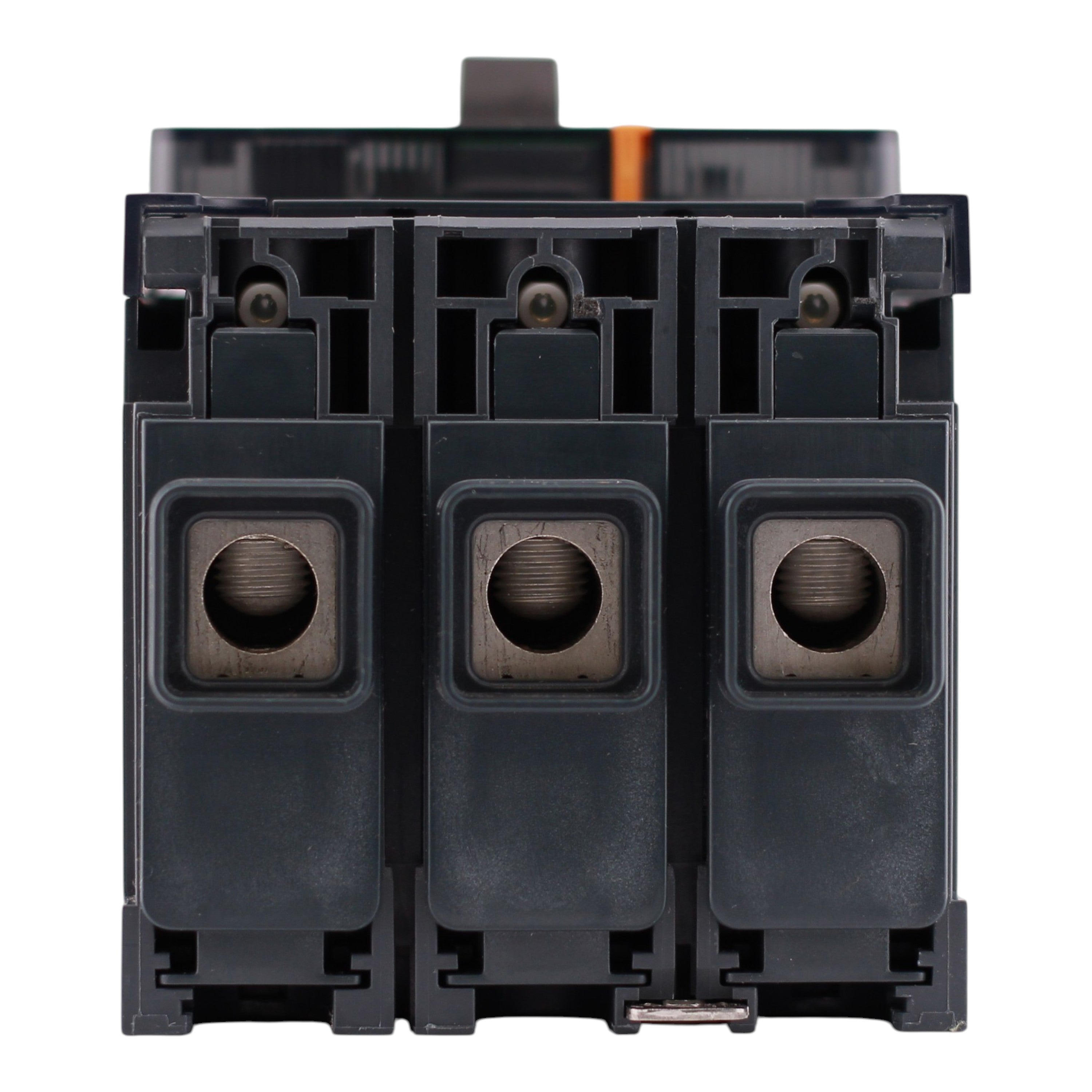

Square D PowerPacT B, BDL36040LH, 40A, 3P, 600Y/347VAC, Aluminum Lugs, Circuit Breaker - Image 8
Square D PowerPacT B, BDL36040LH, 40A, 3P, 600Y/347VAC, Aluminum Lugs, Circuit Breaker - Image 9

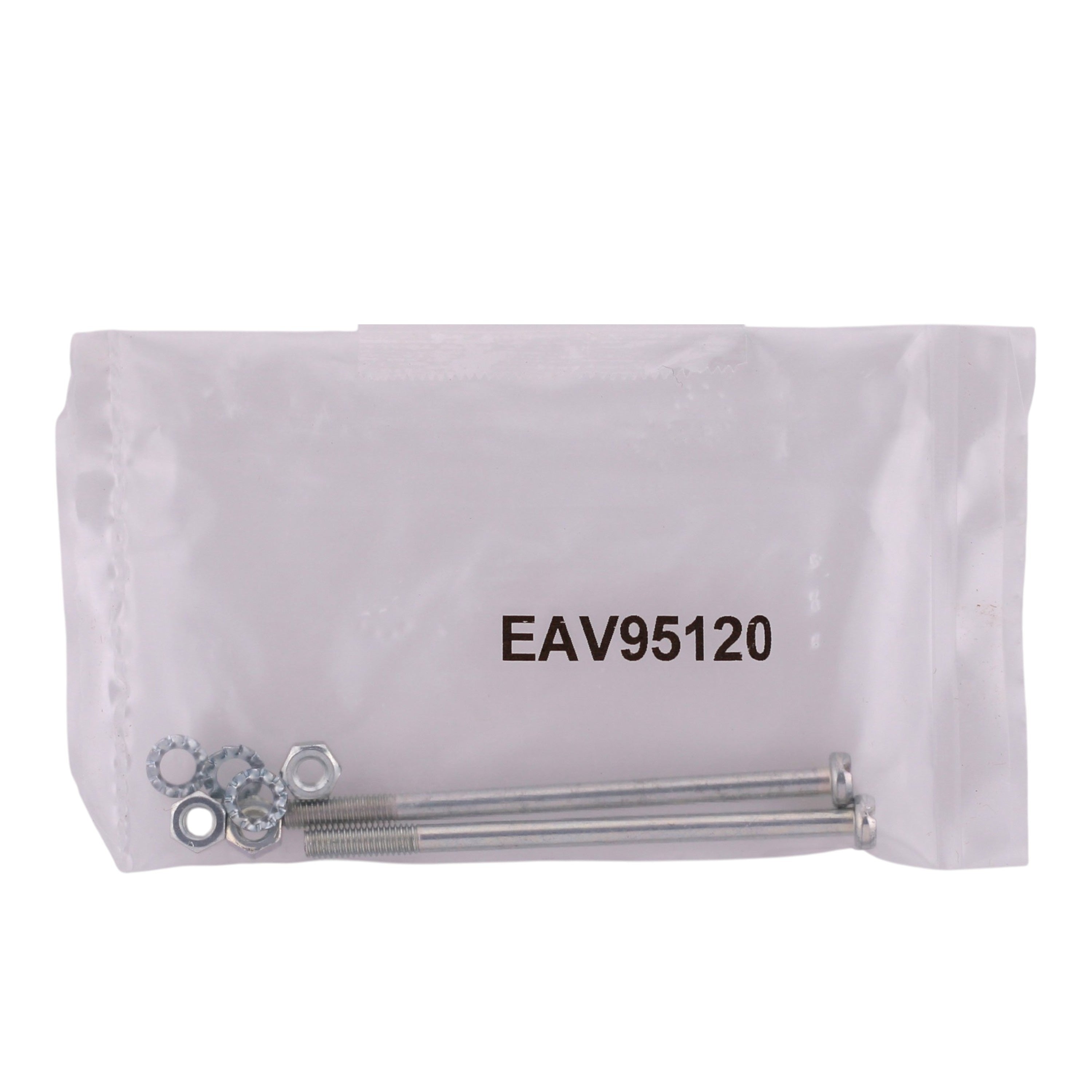

Square D PowerPacT B, BDL36040LH, 40A, 3P, 600Y/347VAC, Aluminum Lugs, Circuit Breaker - Image 10

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Square D

Square D PowerPacT B, BDL36040LH, 40A, 3P, 600Y/347VAC, Aluminum Lugs, Circuit Breaker

Out of stock
SKU: BDL36040LH UPC: 3606486296196
(0)
$160.00
-75% $635.00 $160.00
Out of stock
Condition

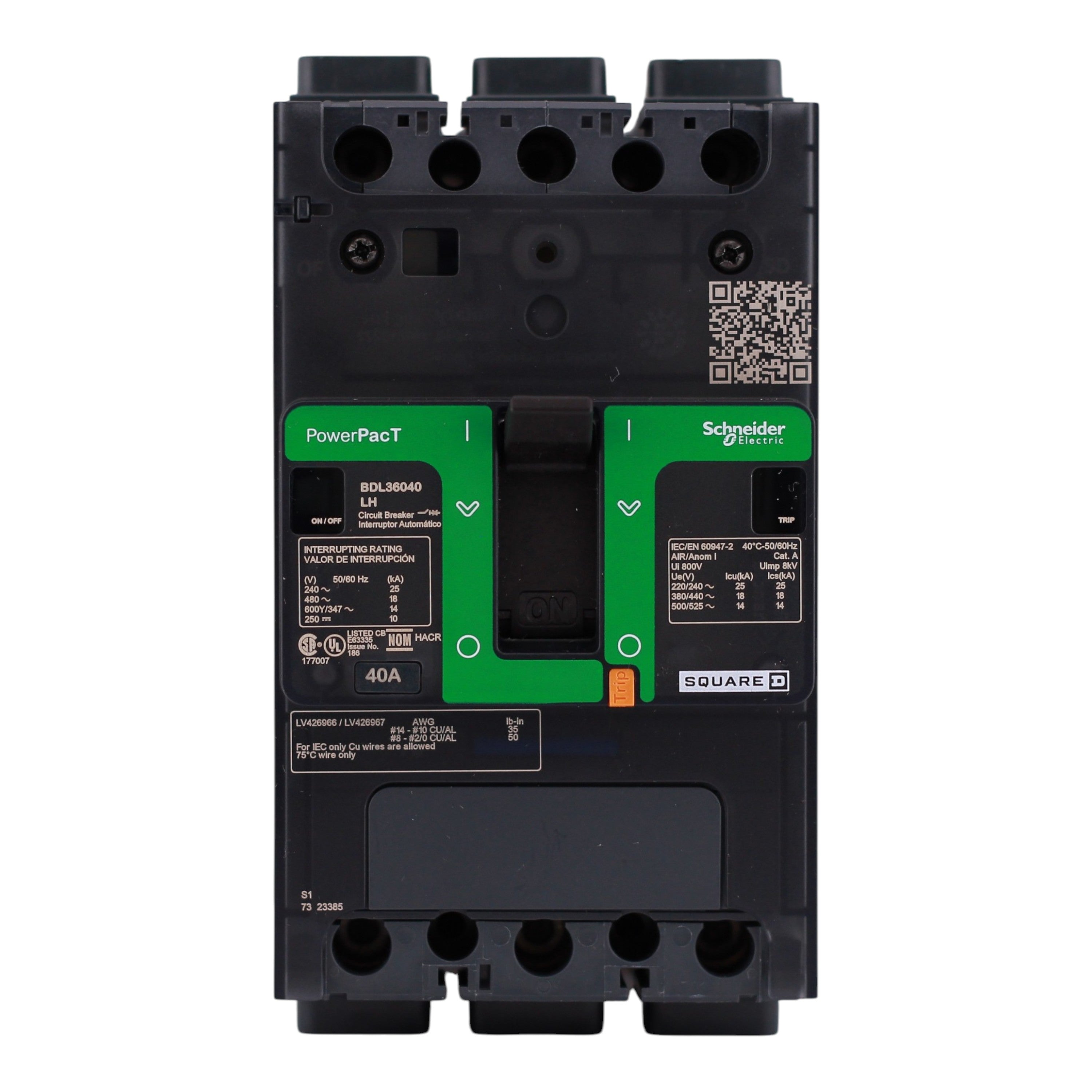

Square D BDL36040LH: 40 Amp, 3-Pole, thermal magnetic molded case circuit breaker, 600Y/347VAC, 14kA interrupt rating, aluminum lugs on line and load, UL listed.

  • Manufacturer: Schneider Electric
  • Brand: Square D
  • Product Range: PowerPacT B-Frame (for molded case circuit breaker applications in industrial and commercial panels)
  • UPC: 3606486296196
  • Model Number: BDL36040LH
  • Breaker Type: Thermal Magnetic Molded Case Circuit Breaker (MCCB)
  • Amperage: 40 Amps
  • Poles: 3-Pole
  • Voltage: 600Y/347 Volts AC or 525 Volts AC
  • Interrupt Rating: 14 kAIC at 600Y/347V AC, 18 kAIC at 480V AC, 25 kAIC at 240V AC

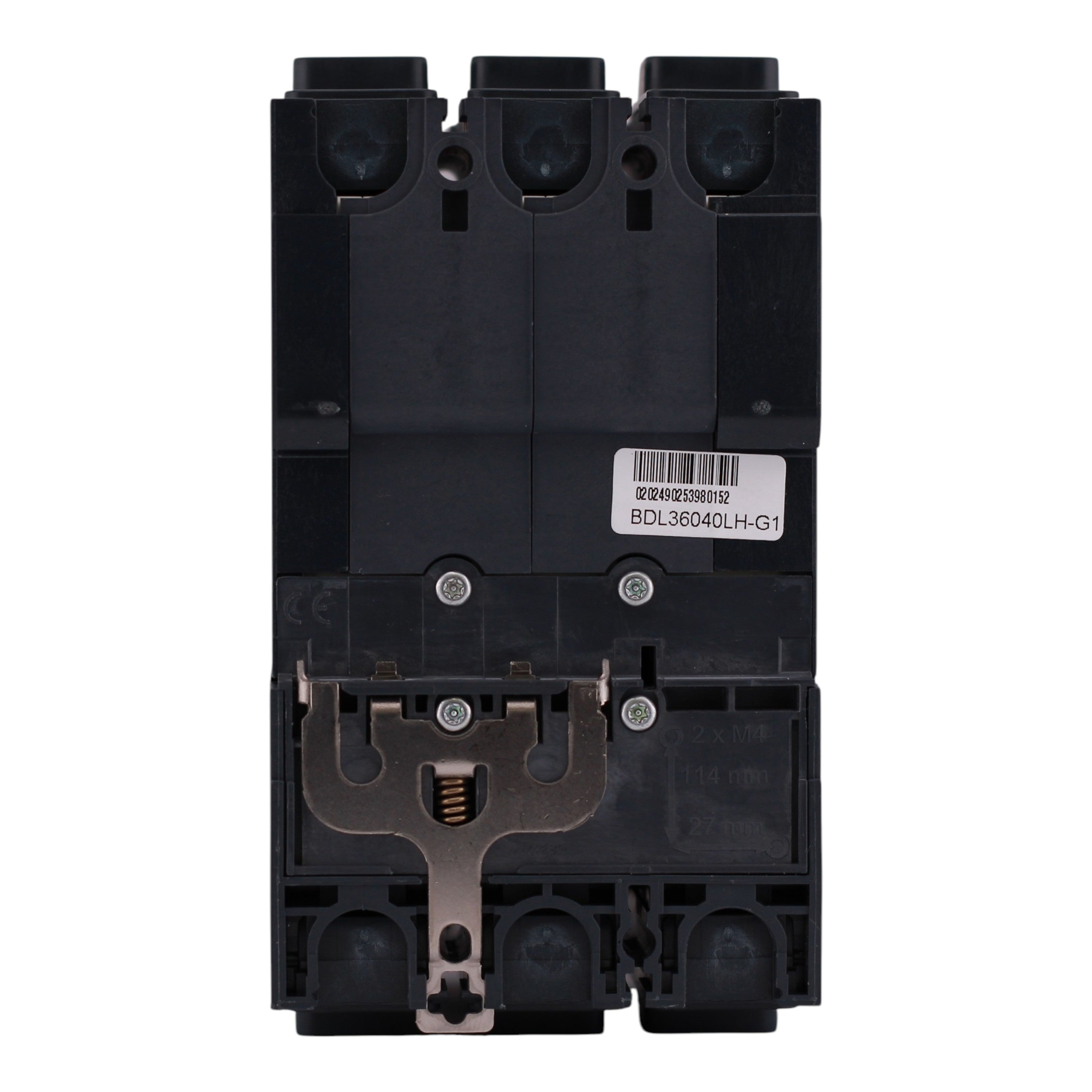

  • Mounting Mode: Unit Mount (DIN Rail or Back Pan with screws)

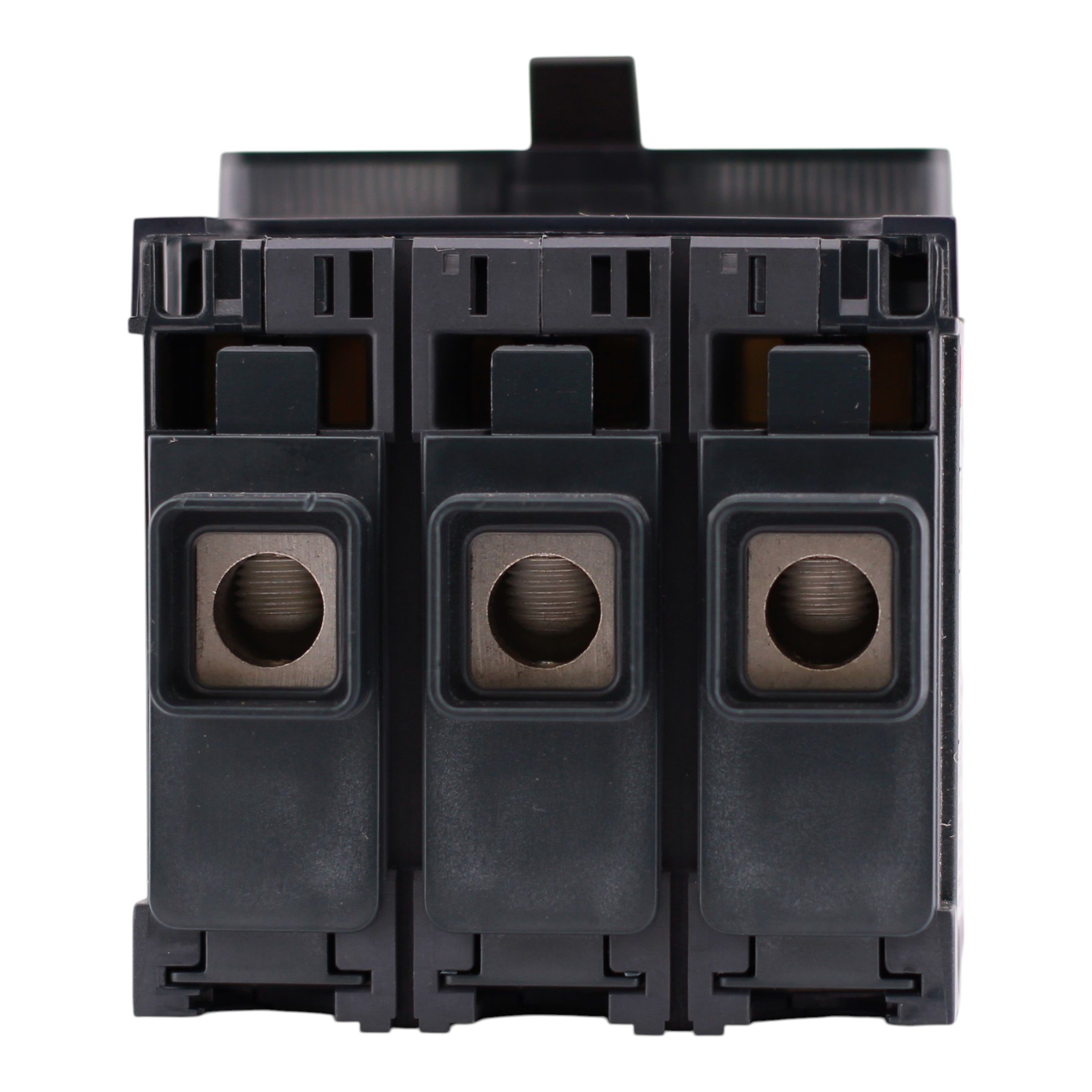

  • Connections Terminals: Aluminum Lugs (line and load ends)
  • Wire Size: #14-3/0 AWG rigid or stranded copper/aluminum, #6-2/0 AWG fine stranded copper/aluminum
  • Tightening Torque: 44.3 lb-in for #14-4 AWG, 79.7 lb-in for #3-3/0 AWG
  • Dimensions: Height: 5.4 in; Width: 3.2 in; Depth: 3.1 in
  • Weight: 2.368 lbs
  • Certifications: UL 489 Listed, CSA C22.2 No. 5, CE Marked, IEC 60947-2, HACR Rated

This Square D BDL36040LH thermal magnetic molded case circuit breaker delivers dependable 40 Amp, 3-Pole protection for 600Y/347V AC circuits in PowerPacT B-Frame industrial and commercial applications. Designed for unit mount installation with 14kA interrupt rating and aluminum lug connections, it supports industrial and commercial electrical systems.
