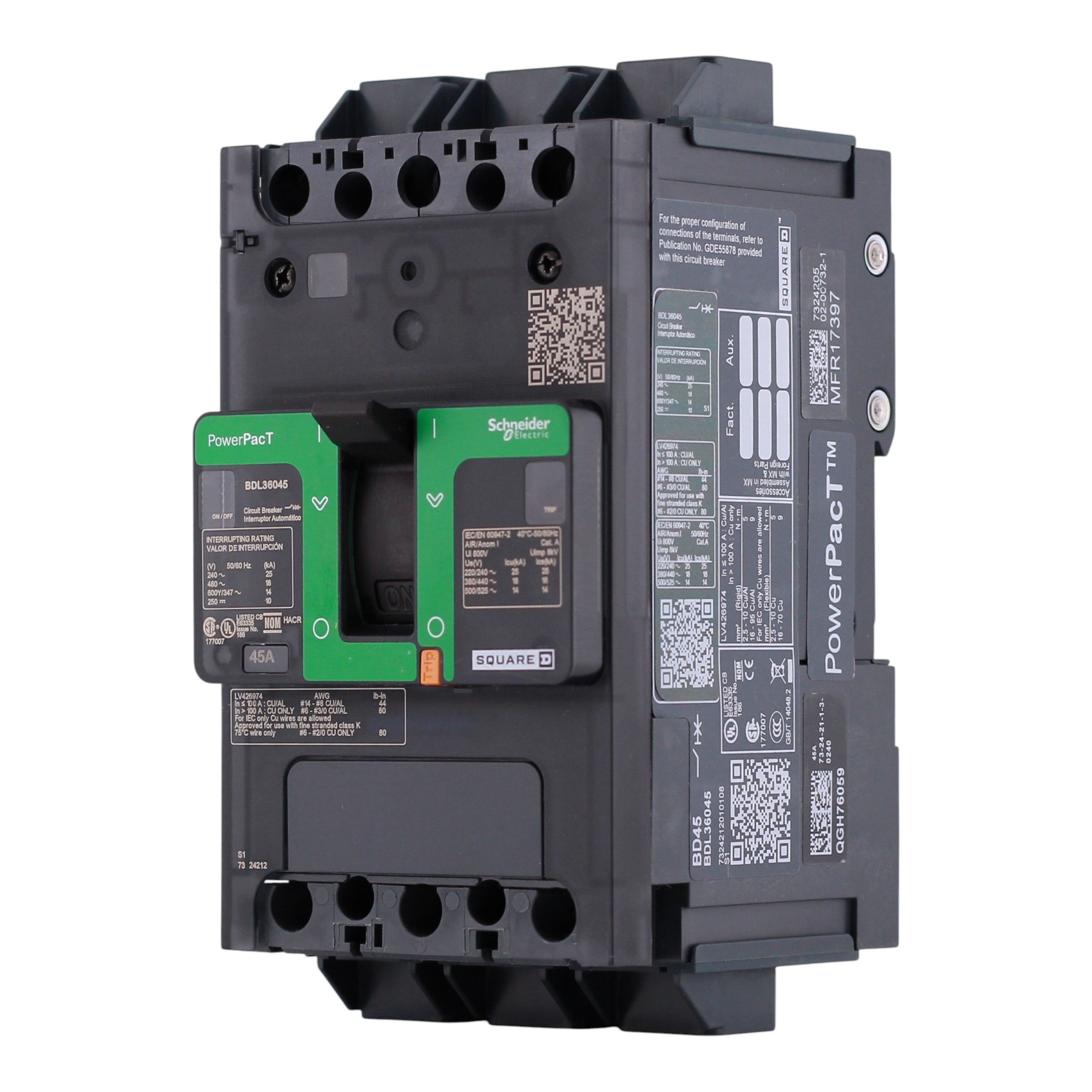

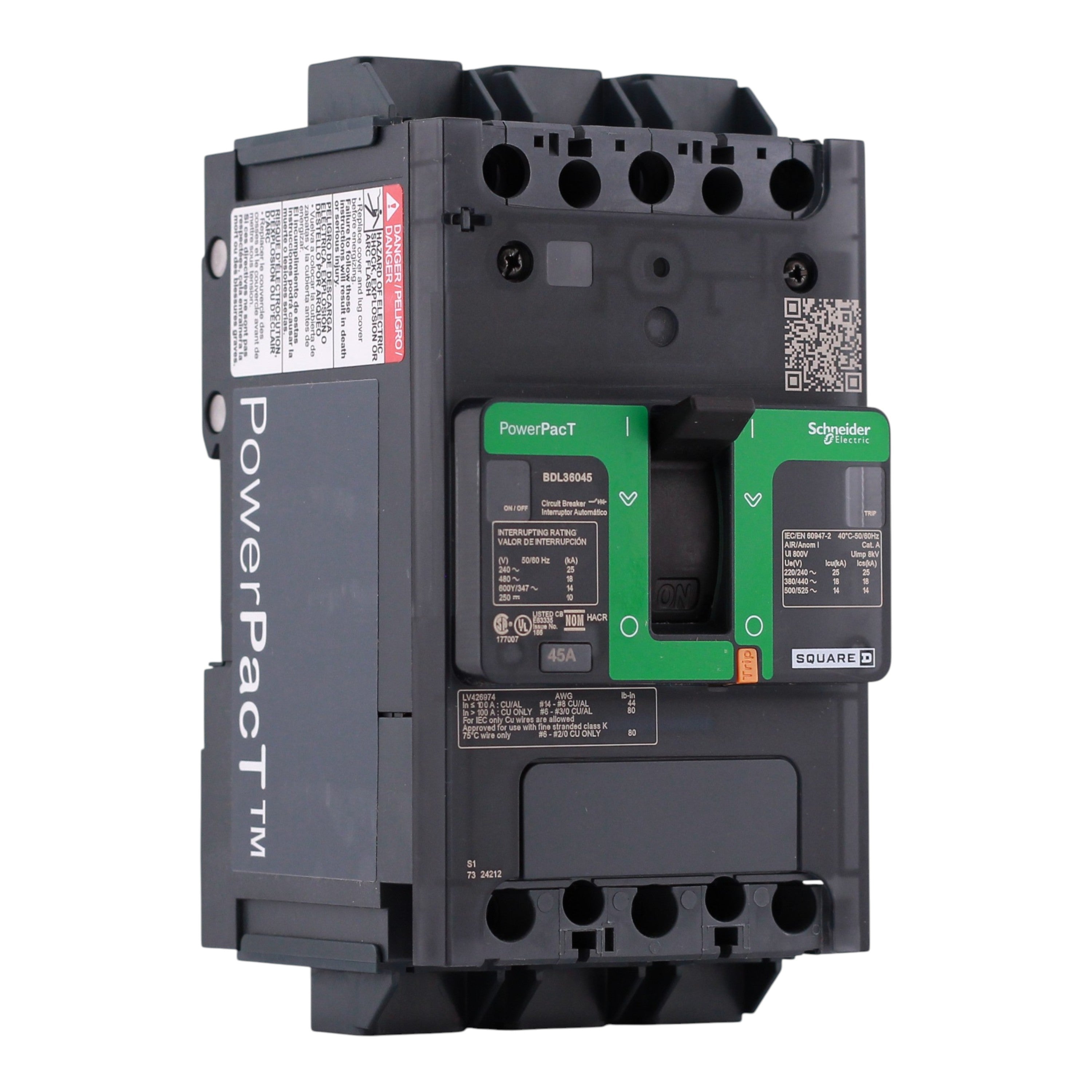

Square D BDL36045: 45 Amp, 3-Pole, PowerPacT B-Frame Molded Case Circuit Breaker, 600Y/347VAC, 14kA, Unit Mount, Thermal Magnetic, 80%, UL Listed.
-
Manufacturer: Schneider Electric
-
Brand: Square D
-
Product Range: PowerPacT B-Frame (for unit mount back pan and DIN rail applications)
-
UPC: 3606481153098
-
Model Number: BDL36045
-
Breaker Type: Thermal Magnetic Molded Case Circuit Breaker (MCCB)
-
Trip Functions: LI — Long-Time and Instantaneous
-
Amperage: 45 Amps
-
Continuous Current Rating: 80%
-
Poles: 3-Pole
-
Voltage: 600Y/347 Volts AC
-
Interrupt Rating: 14 kAIC @ 600Y/347VAC; 18 kAIC @ 480VAC; 25 kAIC @ 240VAC; 10 kAIC @ 250V DC
-
Frame Size: B-Frame, 125A
-

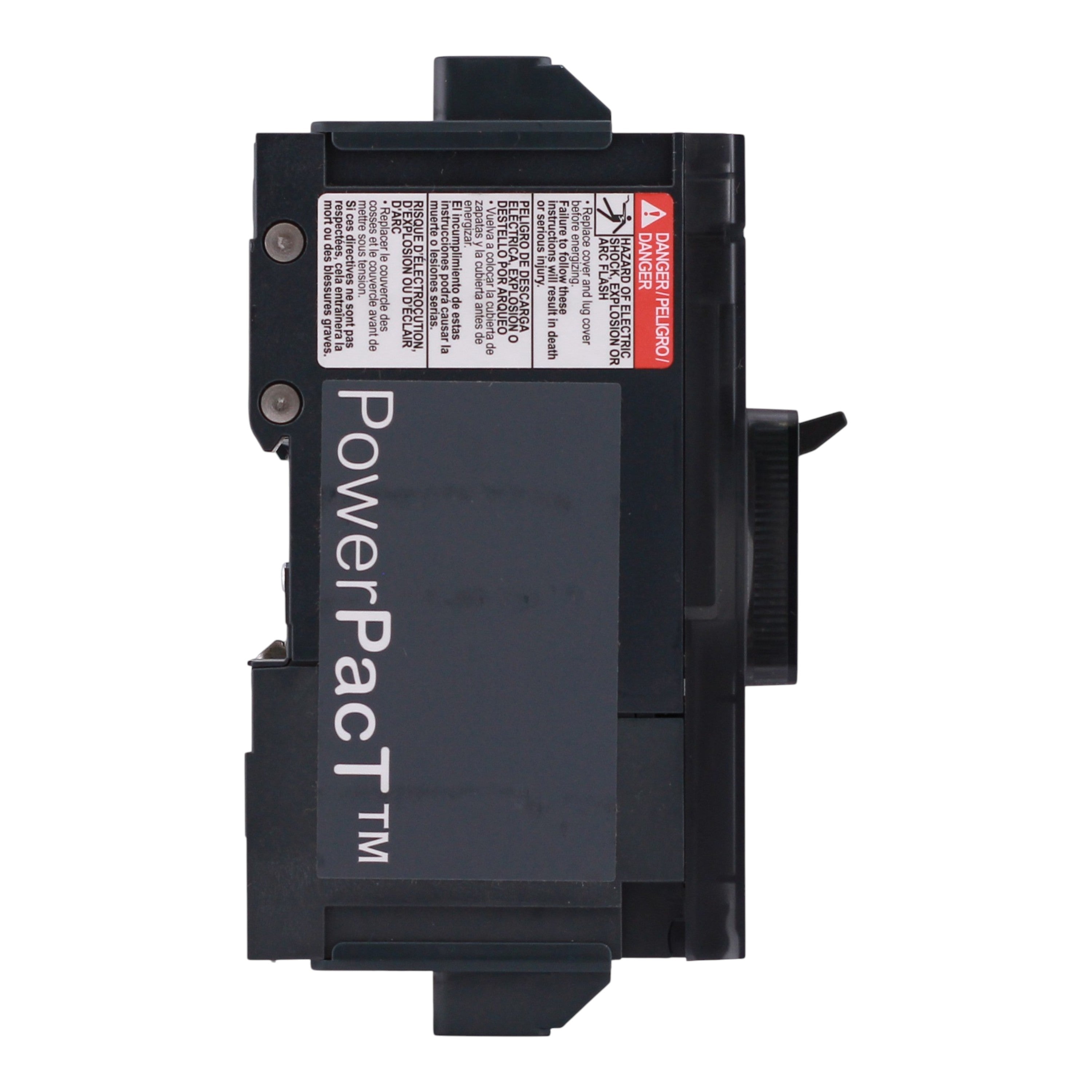

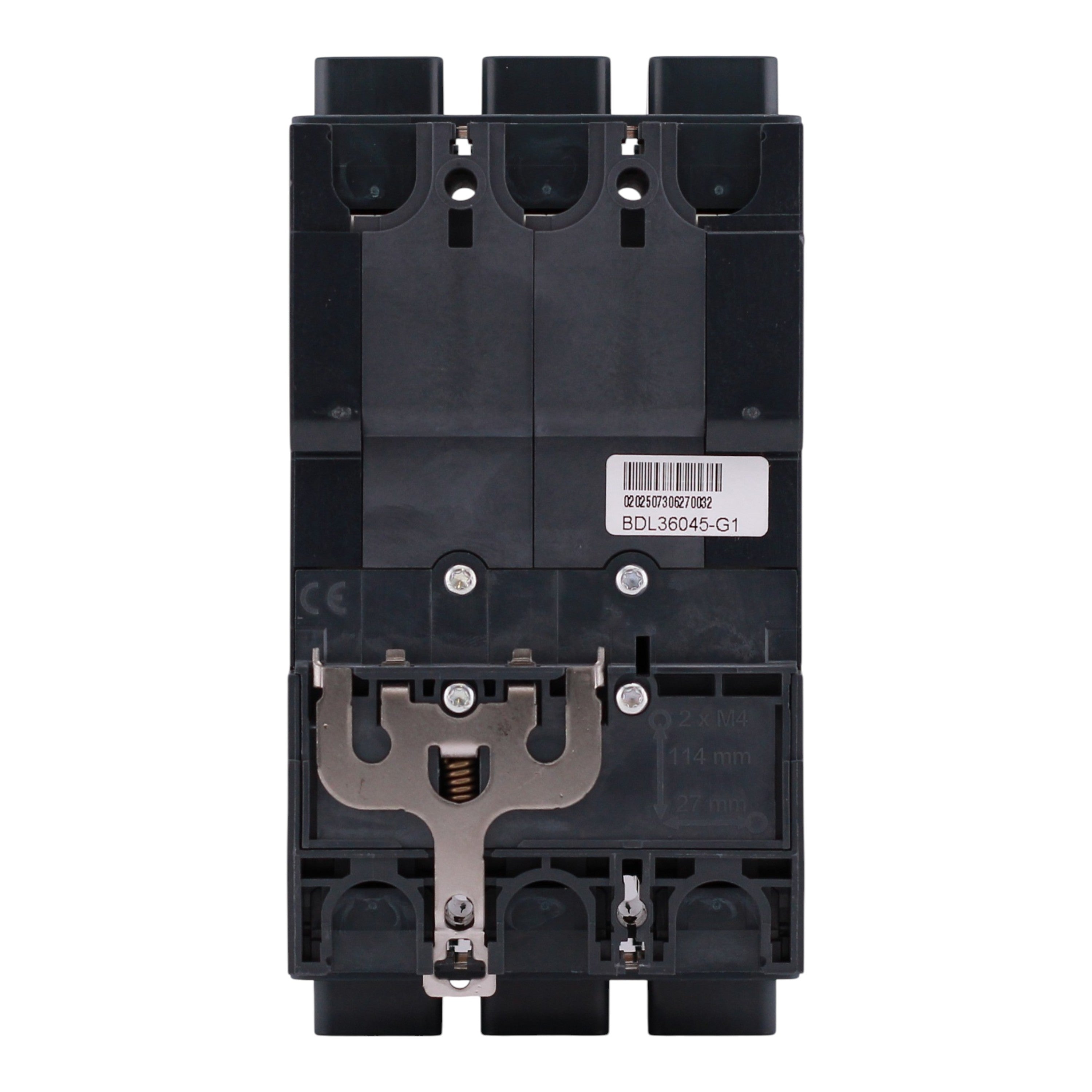

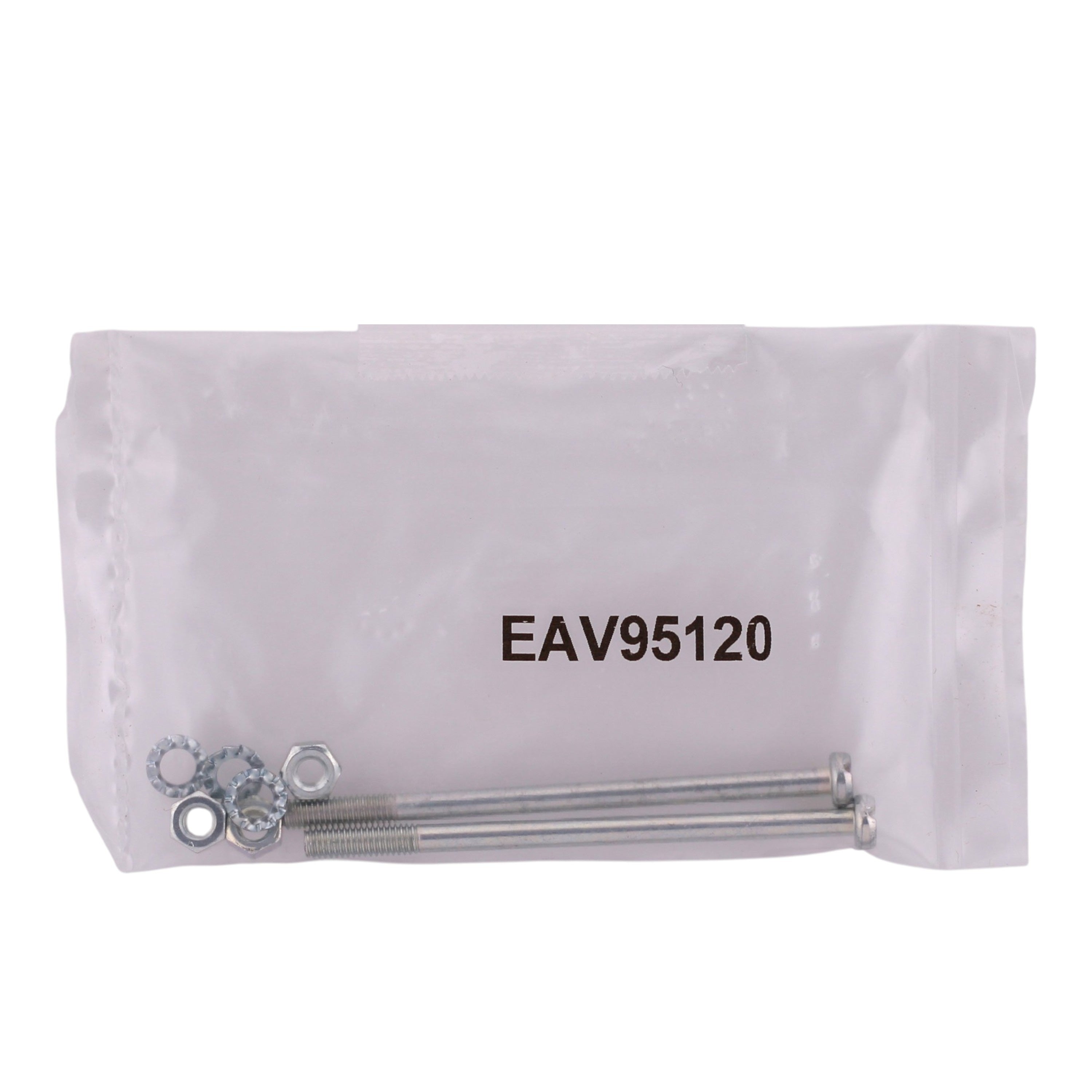

Mounting Mode: Unit mount — back pan (by screws) or DIN rail (35×15mm symmetrical)
-

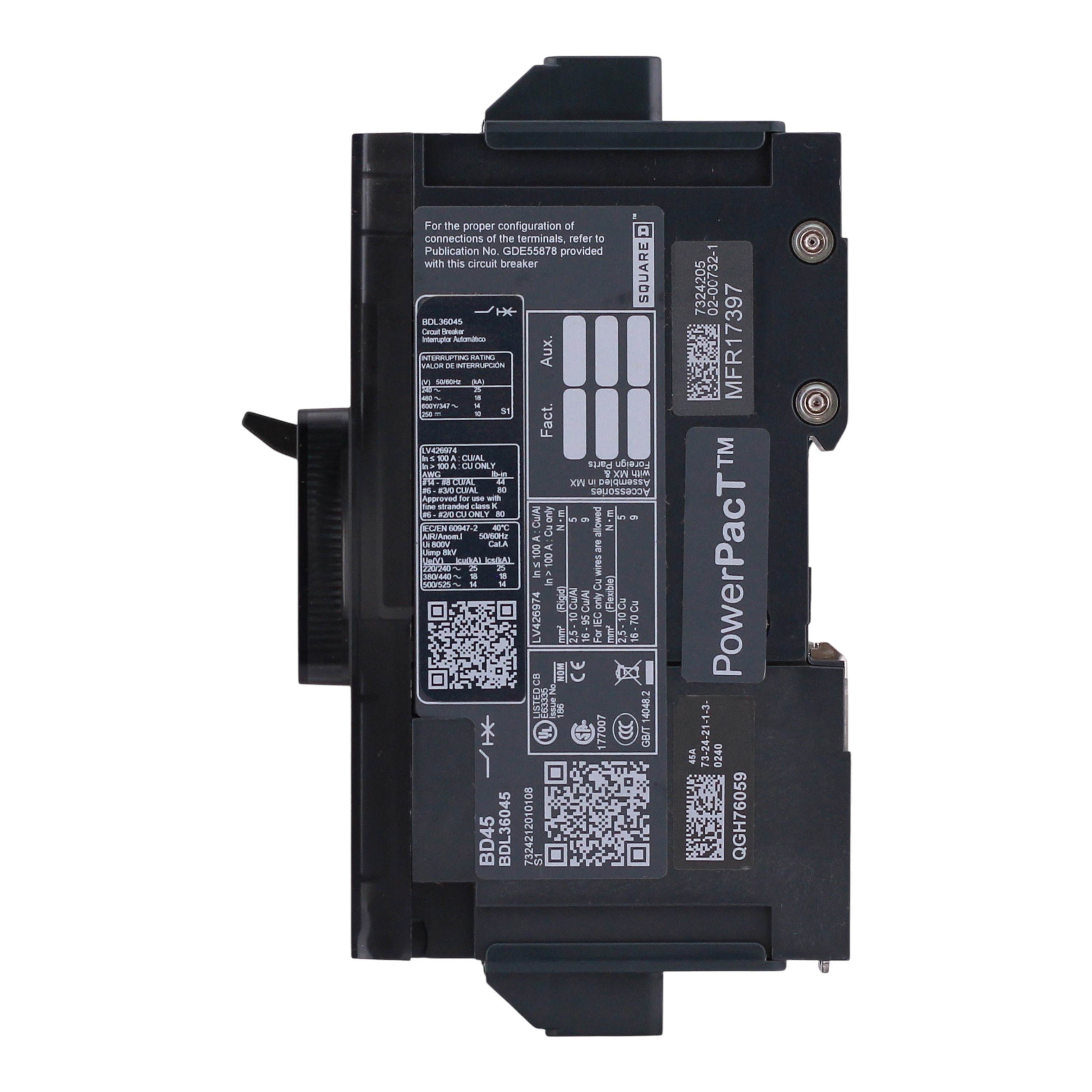

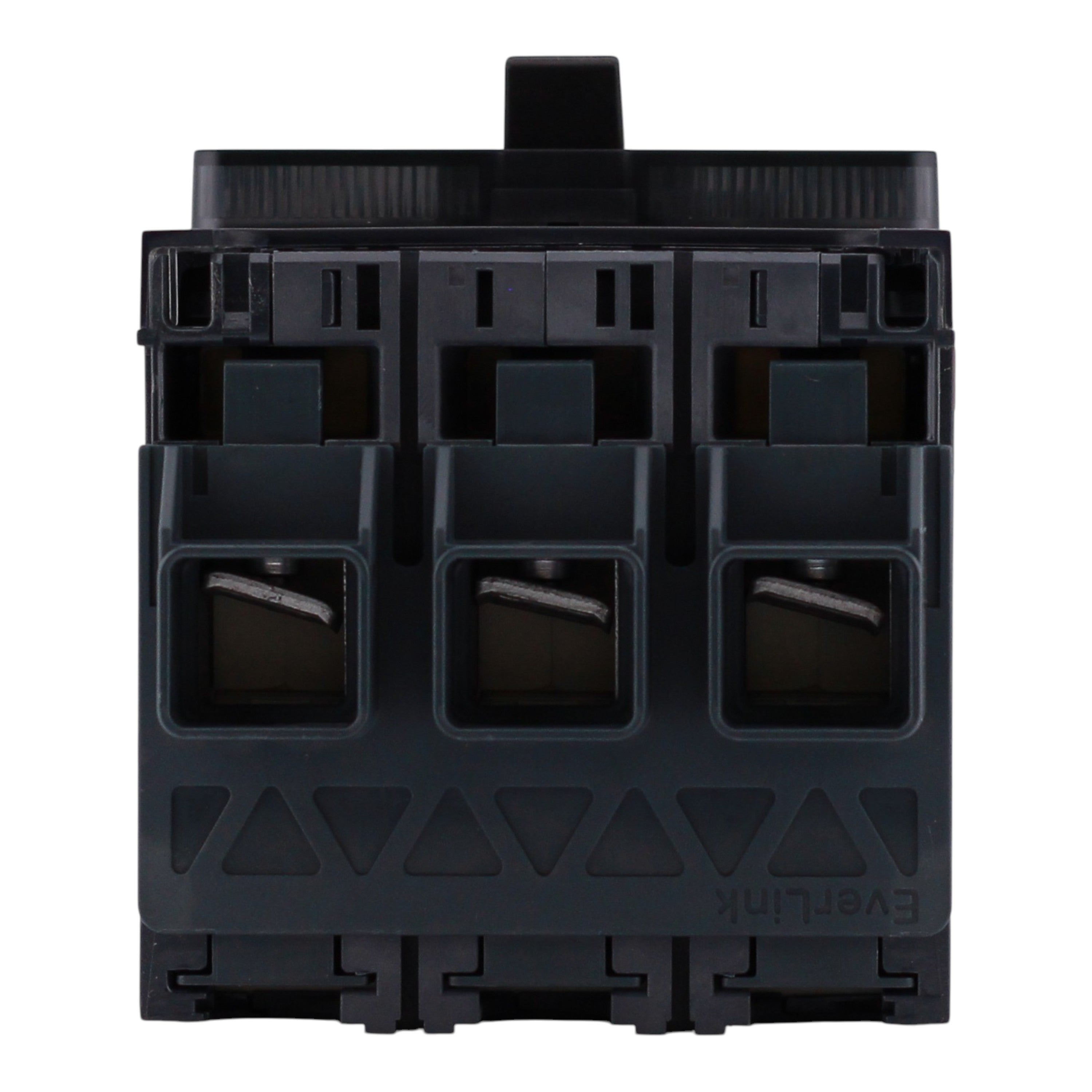

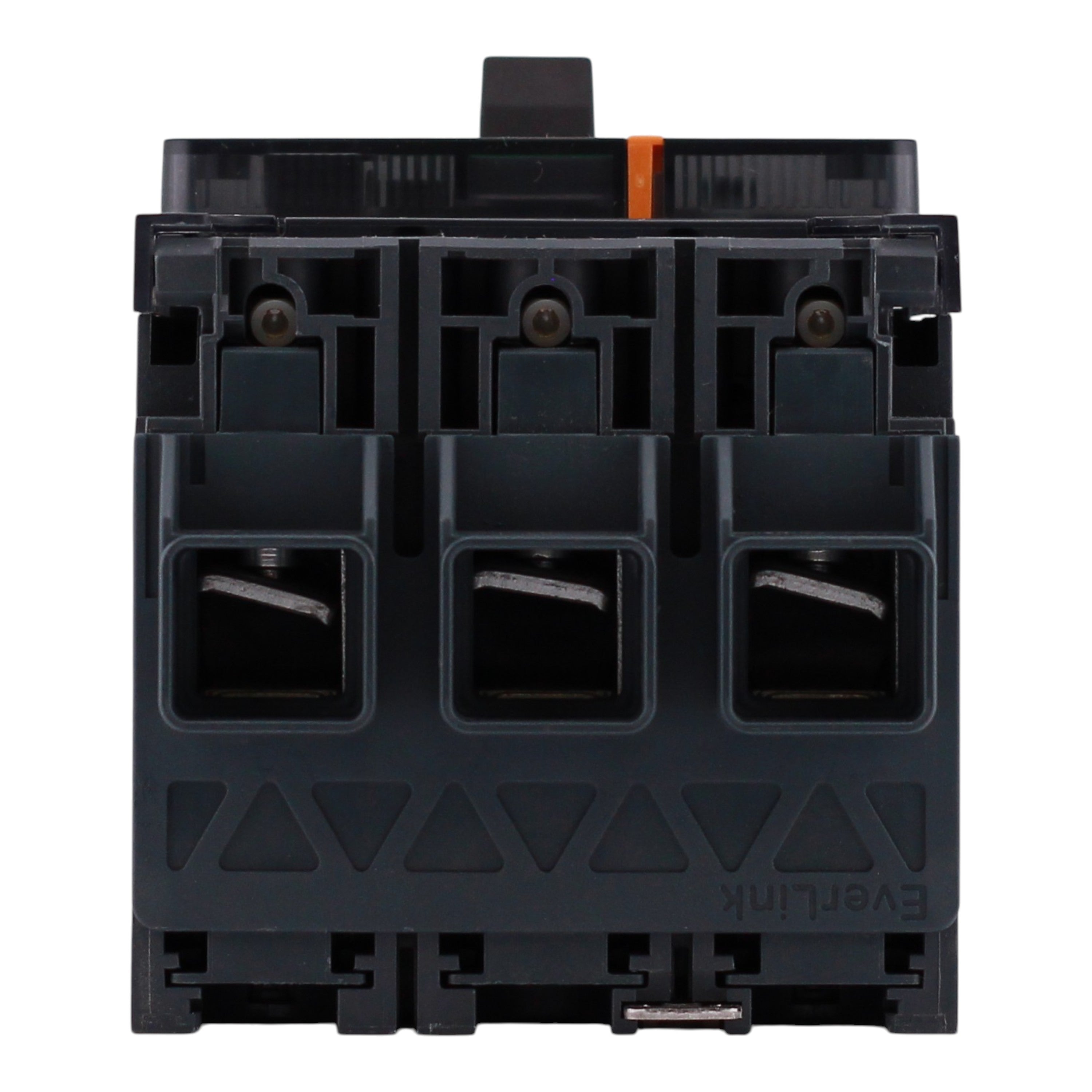

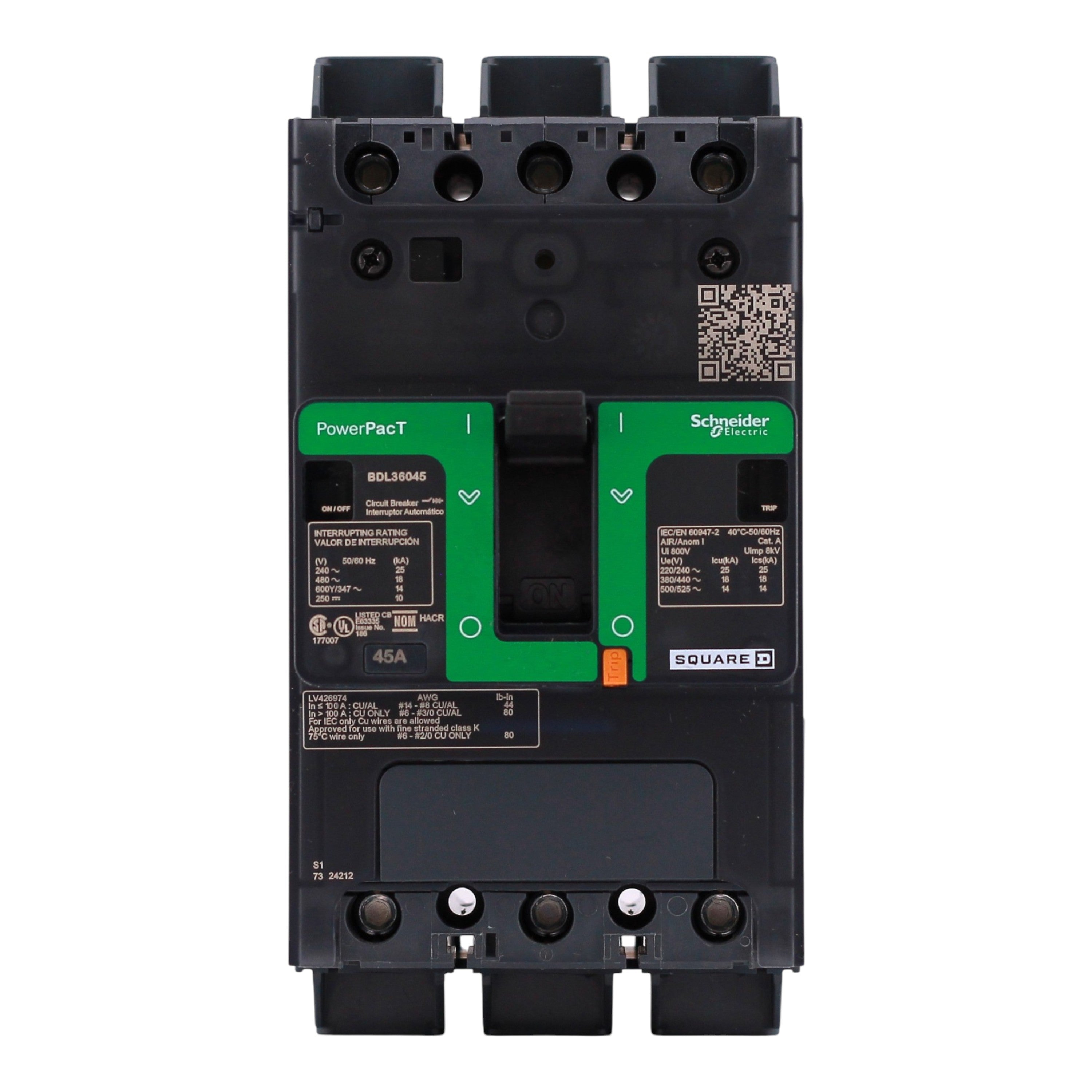

Connections / Terminals: EverLink lugs, line and load
-
Wire Size: #14–3/0 AWG Cu/Al (rigid or stranded); #6–2/0 AWG Cu/Al (fine stranded)
-
Tightening Torque: 44.3 lb-in (#14–4 AWG); 79.7 lb-in (#3–3/0 AWG)
-
Dimensions: Height: 5.4 in; Width: 3.2 in; Depth: 3.1 in
-
Weight: 2.368 lbs
-
Certifications: UL 489, CSA C22.2 No. 5, NEMA AB1, IEC/EN 60947-2, NOM, NMX J-266, CCC, EAC, CE Marked, HACR Rated
This Square D BDL36045 PowerPacT B thermal magnetic molded case circuit breaker delivers dependable 45 Amp, 3-Pole protection for 600Y/347VAC, 3-phase circuits in unit mount back pan and DIN rail applications. With patented EverLink lugs on both termination ends to reduce cable loosening over time, 14kAIC interrupt capacity at 600Y/347VAC, dual-break rotating contacts, and an 80% continuous current rating, it supports commercial and industrial distribution applications.
