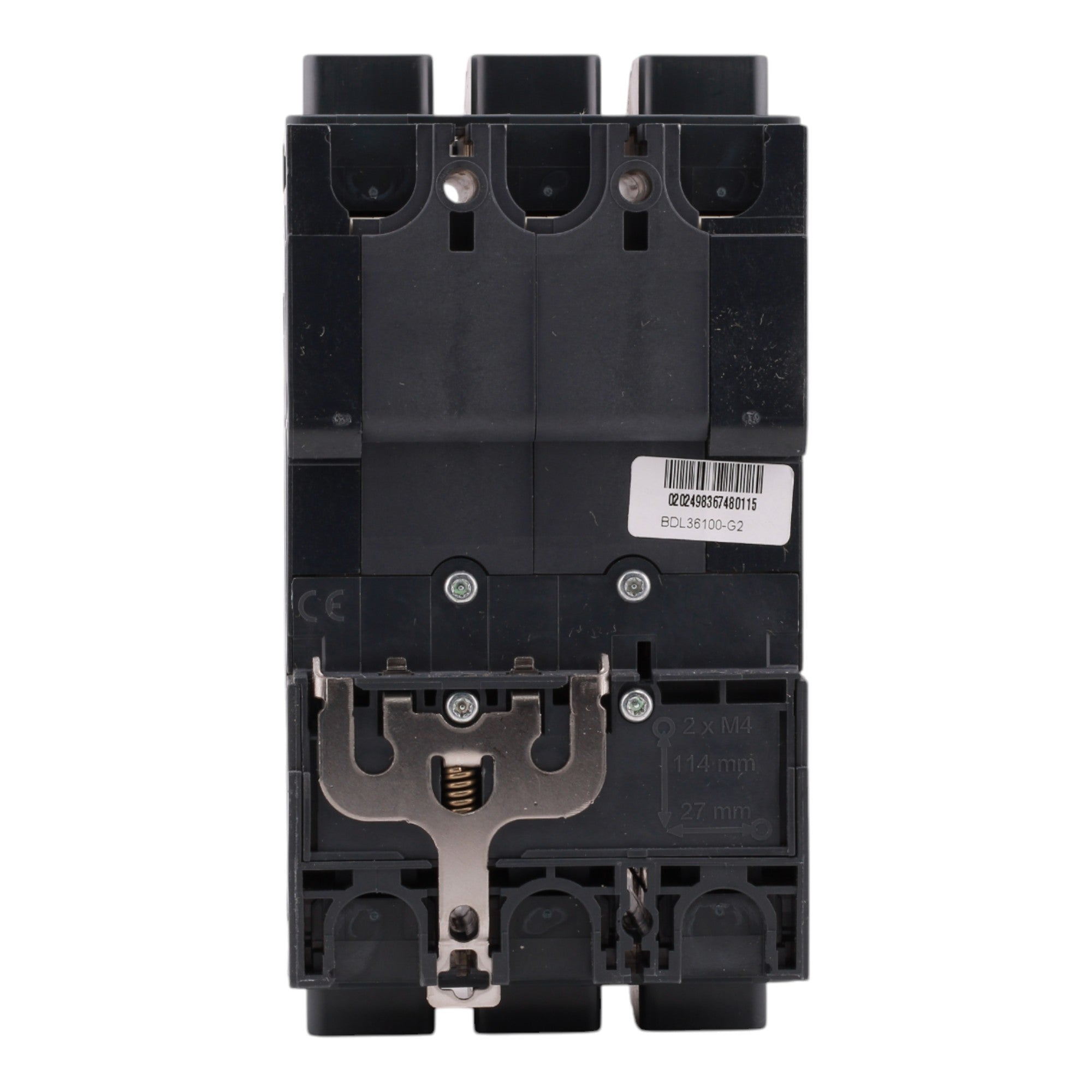

Square D PowerPacT B BDL36100 100A 3P 600Y/347V Circuit Breaker - Image 5
Square D PowerPacT B BDL36100 100A 3P 600Y/347V Circuit Breaker - Image 6
Square D PowerPacT B BDL36100 100A 3P 600Y/347V Circuit Breaker - Image 7
Square D PowerPacT B BDL36100 100A 3P 600Y/347V Circuit Breaker - Image 8
Square D PowerPacT B BDL36100 100A 3P 600Y/347V Circuit Breaker - Image 9

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Square D

Square D PowerPacT B BDL36100 100A 3P 600Y/347V Circuit Breaker

Out of stock
SKU: BDL36100 UPC: 3606481153227
(0)
$292.00
-19% $360.00 $292.00
Out of stock
Condition

Schneider Electric BDL36100: 100 Amp 3-Pole thermal-magnetic circuit breaker, 600Y/347V, 14kA interrupt rating, EverLink lugs, 80% rated, DIN rail or screw mount, UL listed.

BDL36100 specifications

  • Manufacturer: Schneider Electric
  • Brand: PowerPacT
  • Range: PowerPacT B Series
  • UPC: 3606481153227
  • Model Number: BDL36100
  • Breaker Type: Thermal-Magnetic Molded Case Circuit Breaker
  • Amperage: 100 Amps
  • Poles: 3-Pole
  • Voltage: 600Y/347 Volts AC
  • Interrupt Rating: 14kA at 600Y/347V AC
  • Mounting Mode: Clip-on 35 x 15 mm symmetrical DIN rail or by screws
  • Connection Terminals: EverLink lugs (line and load)
  • Wire Size: AWG 14 to AWG 3/0 (rigid or stranded aluminum/copper), AWG 6 to AWG 2/0 (fine stranded aluminum/copper)
  • Tightening Torque: 44.3 lbf.in (5 N.m) for AWG 14-4, 79.7 lbf.in (9 N.m) for AWG 3-3/0
  • Dimensions: Height: 5.4 in; Width: 3.2 in; Depth: 3.1 in
  • Weight: 2.368 lbs
  • Certifications: UL, CSA, IEC, CCC, EAC, NOM, CE marked
