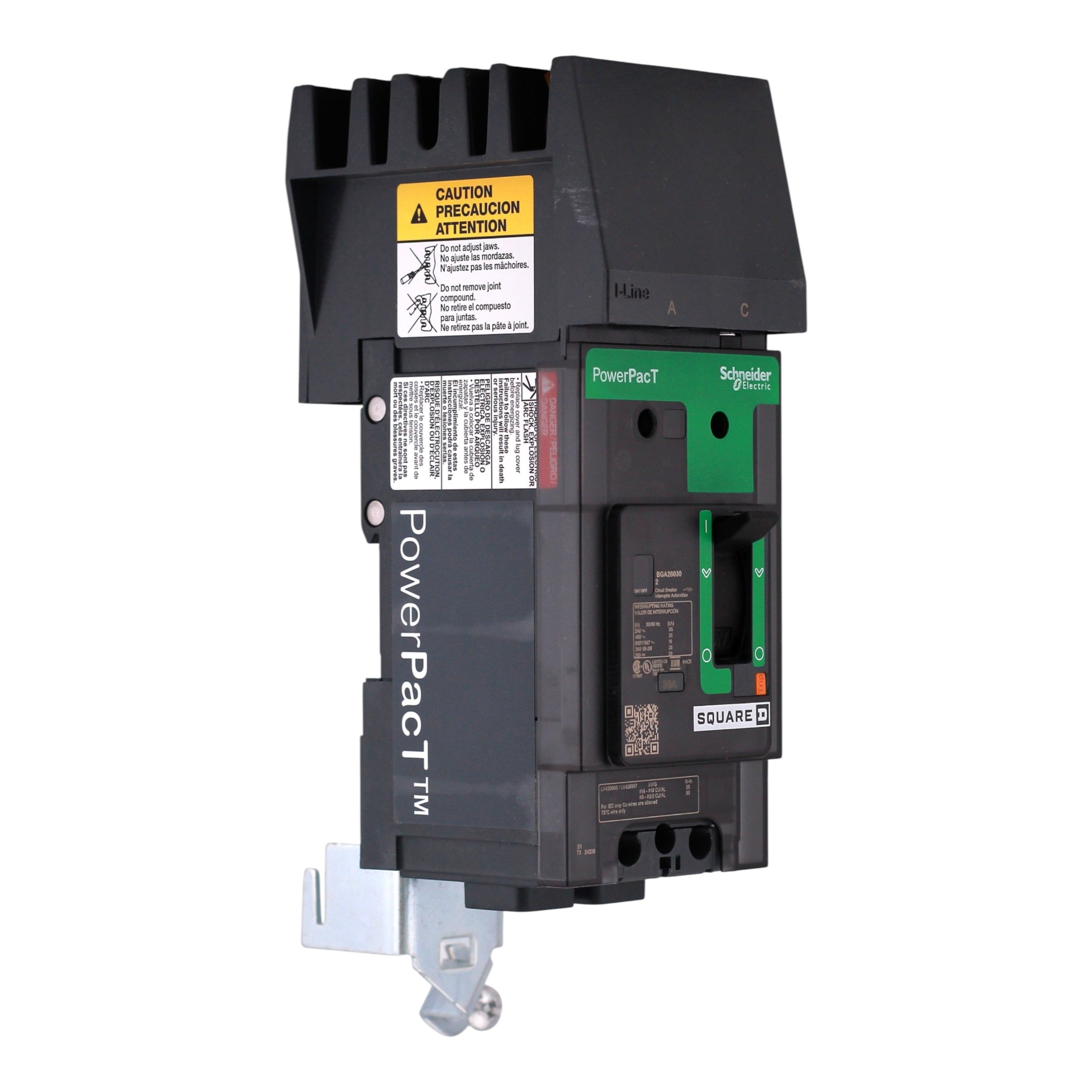

Square D PowerPacT B, BGA260302, 30A, 2P, 600Y/347VAC, Thermal Magnetic, I-Line, Circuit Breaker

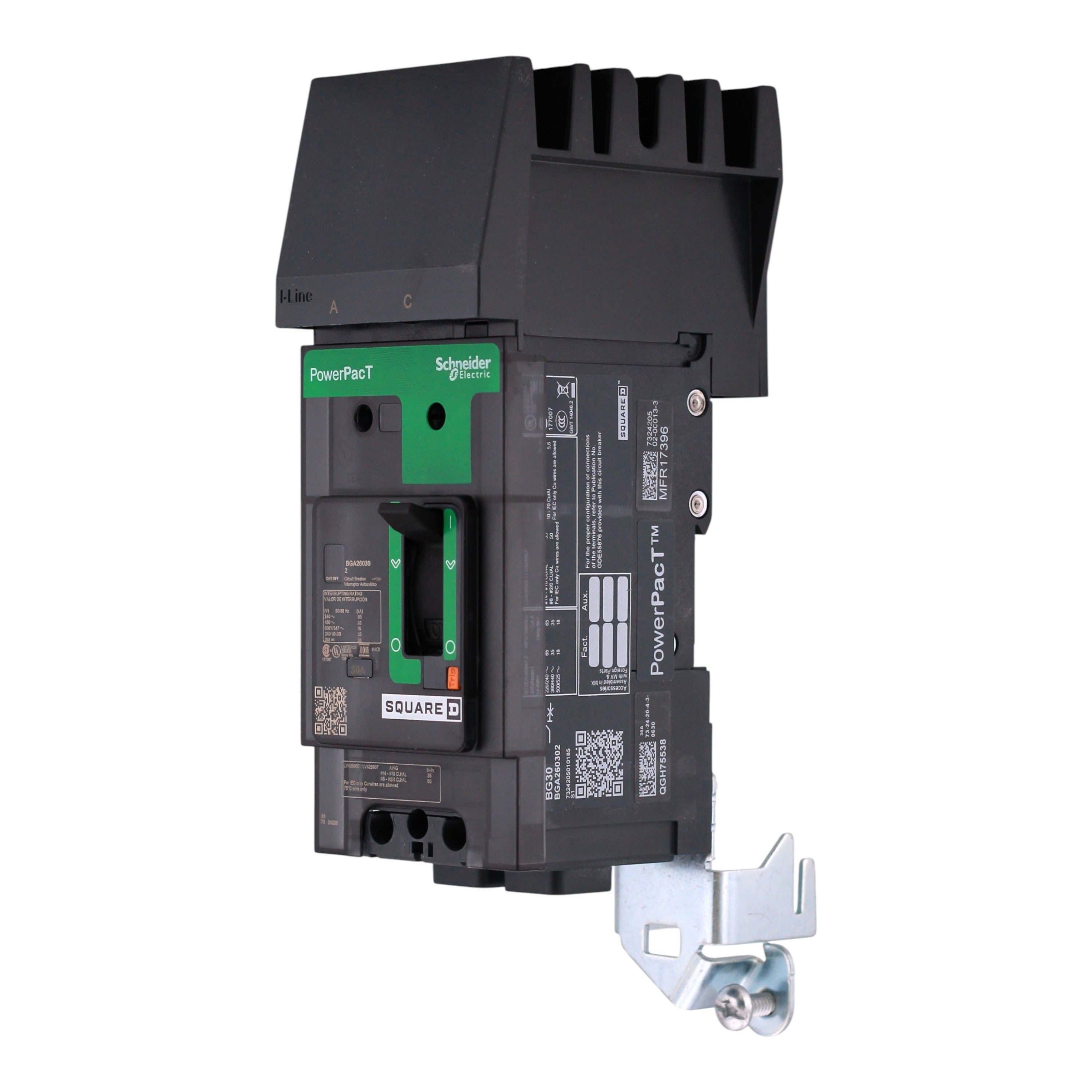

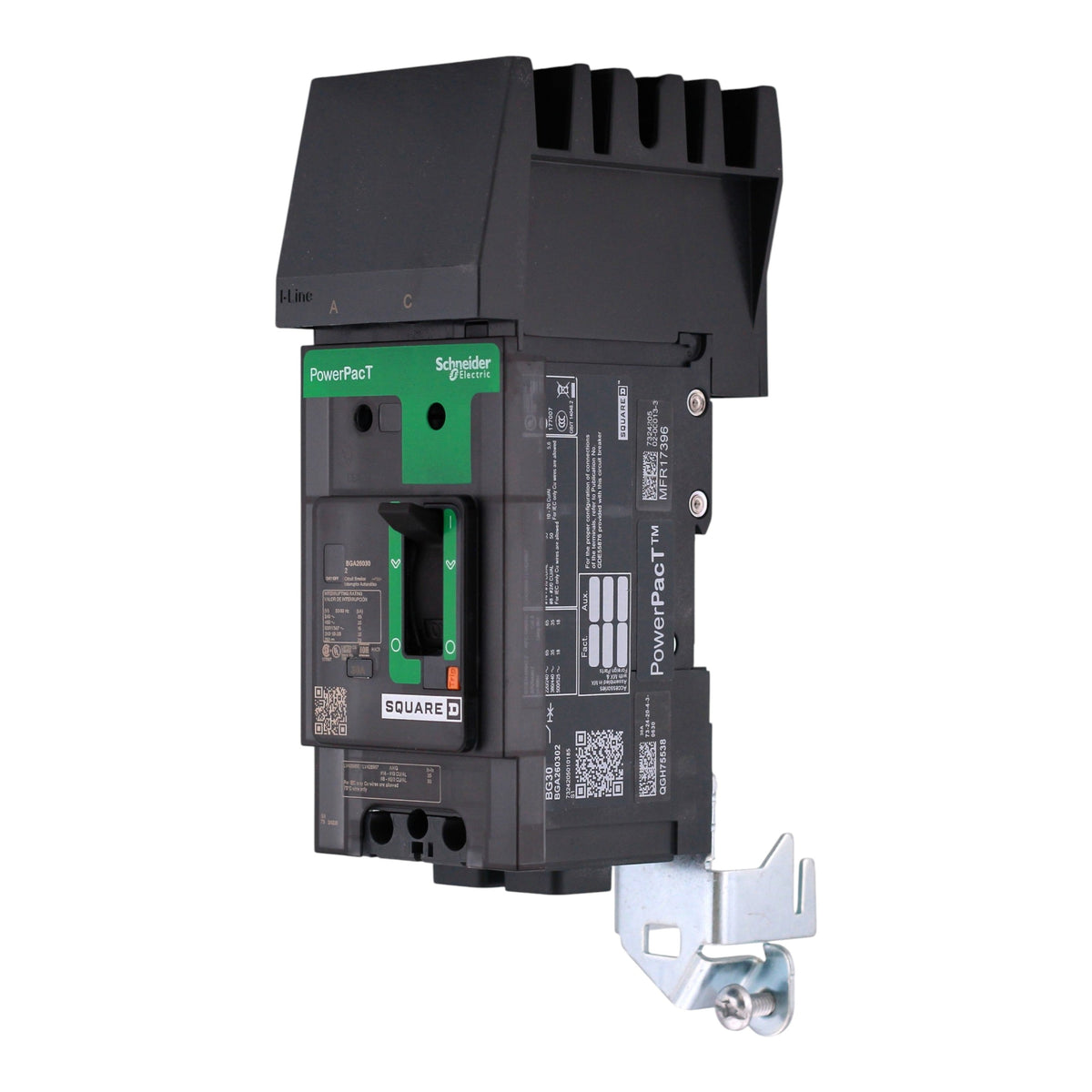

Square D PowerPacT B, BGA260302, 30A, 2P, 600Y/347VAC, Thermal Magnetic, I-Line, Circuit Breaker - Image 2
Square D PowerPacT B, BGA260302, 30A, 2P, 600Y/347VAC, Thermal Magnetic, I-Line, Circuit Breaker - Image 3

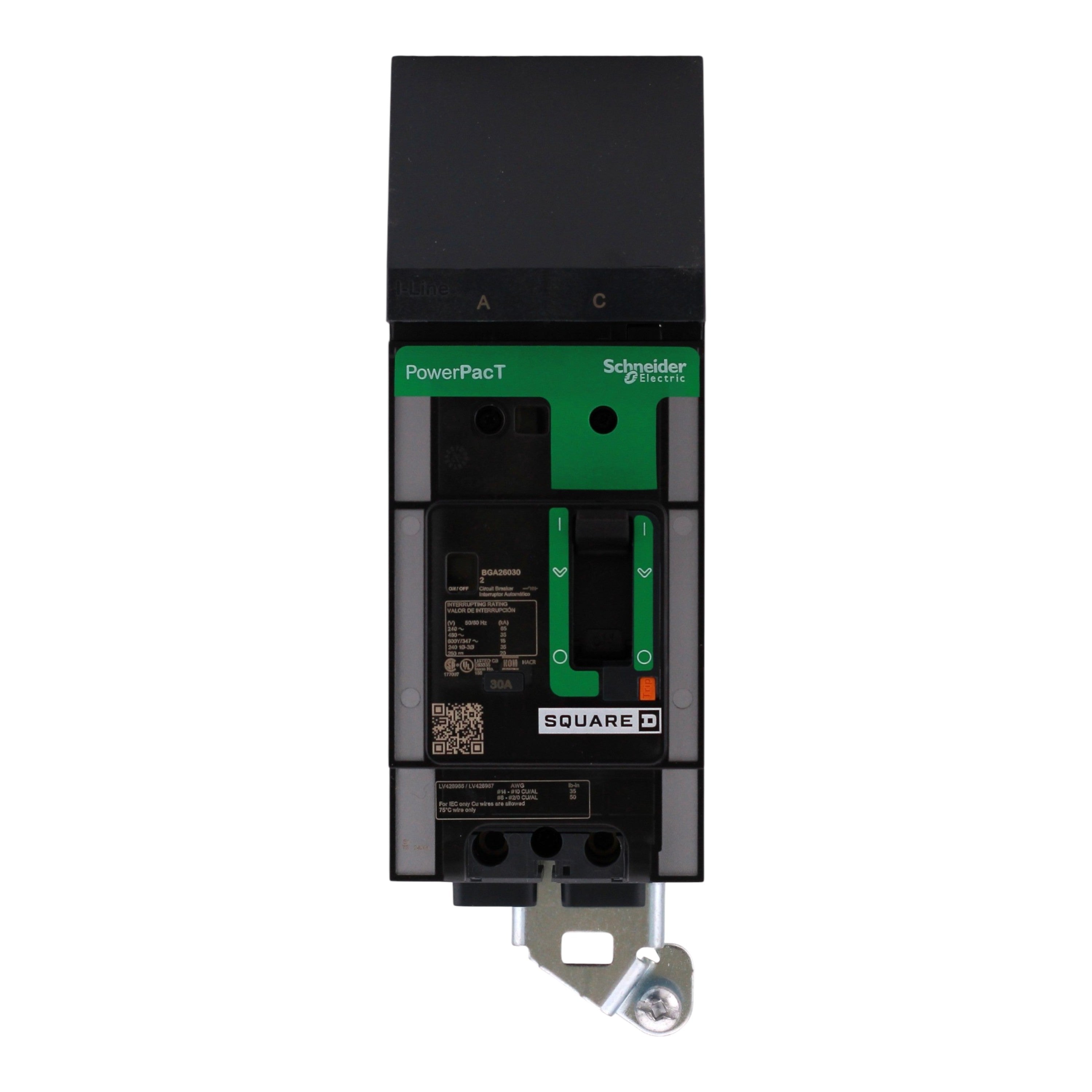

Square D PowerPacT B, BGA260302, 30A, 2P, 600Y/347VAC, Thermal Magnetic, I-Line, Circuit Breaker - Image 4
Square D PowerPacT B, BGA260302, 30A, 2P, 600Y/347VAC, Thermal Magnetic, I-Line, Circuit Breaker - Image 5

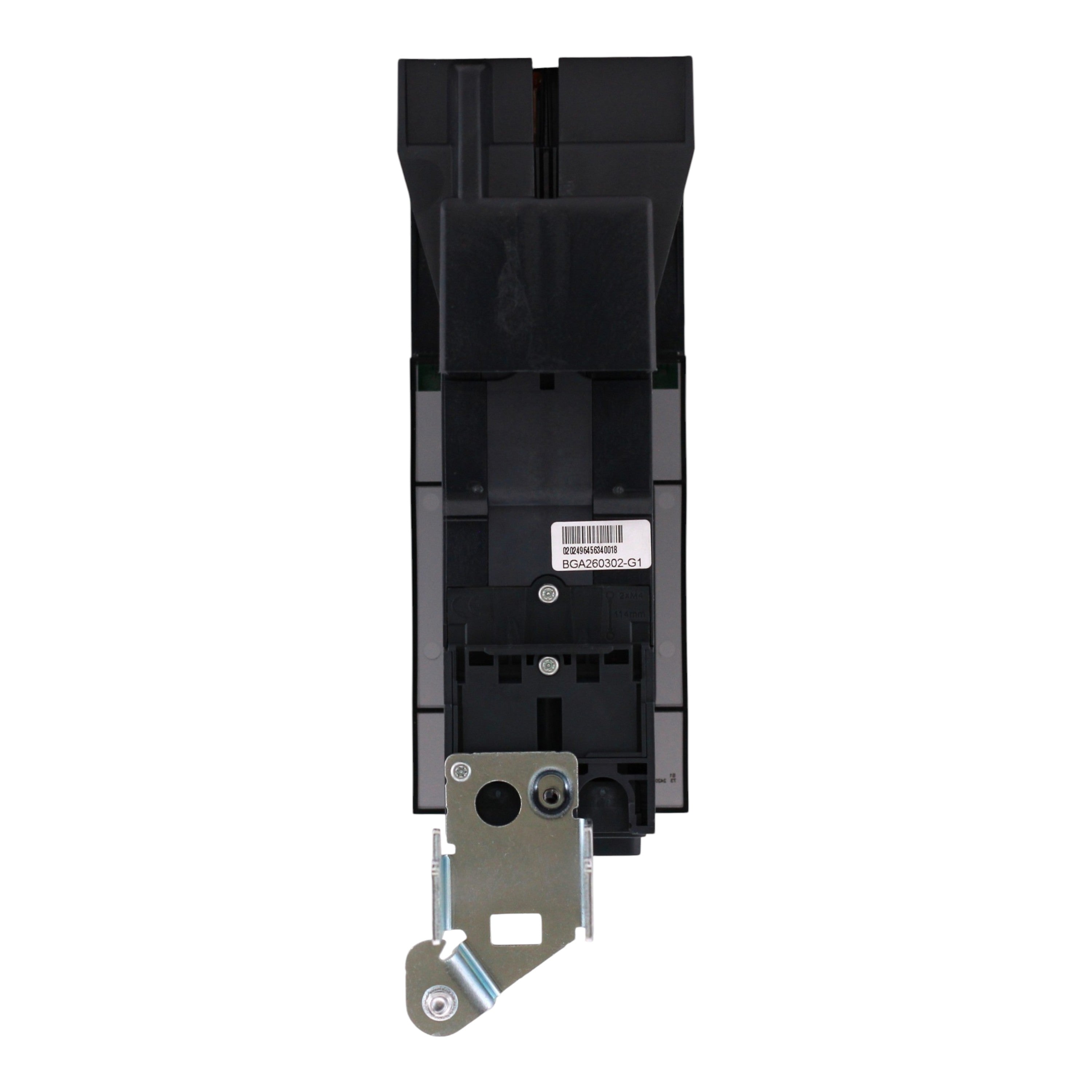

Square D PowerPacT B, BGA260302, 30A, 2P, 600Y/347VAC, Thermal Magnetic, I-Line, Circuit Breaker - Image 6

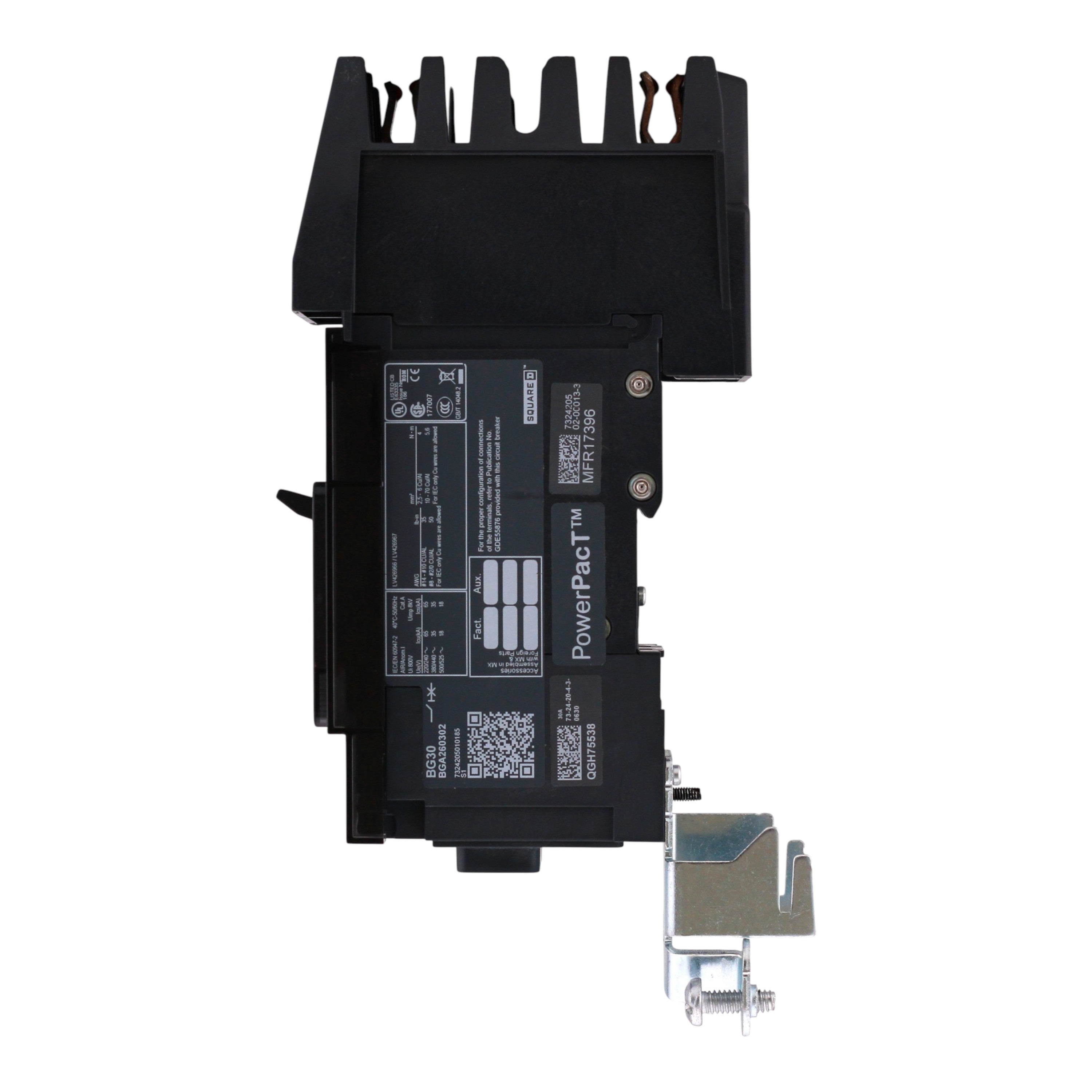

Square D PowerPacT B, BGA260302, 30A, 2P, 600Y/347VAC, Thermal Magnetic, I-Line, Circuit Breaker - Image 7

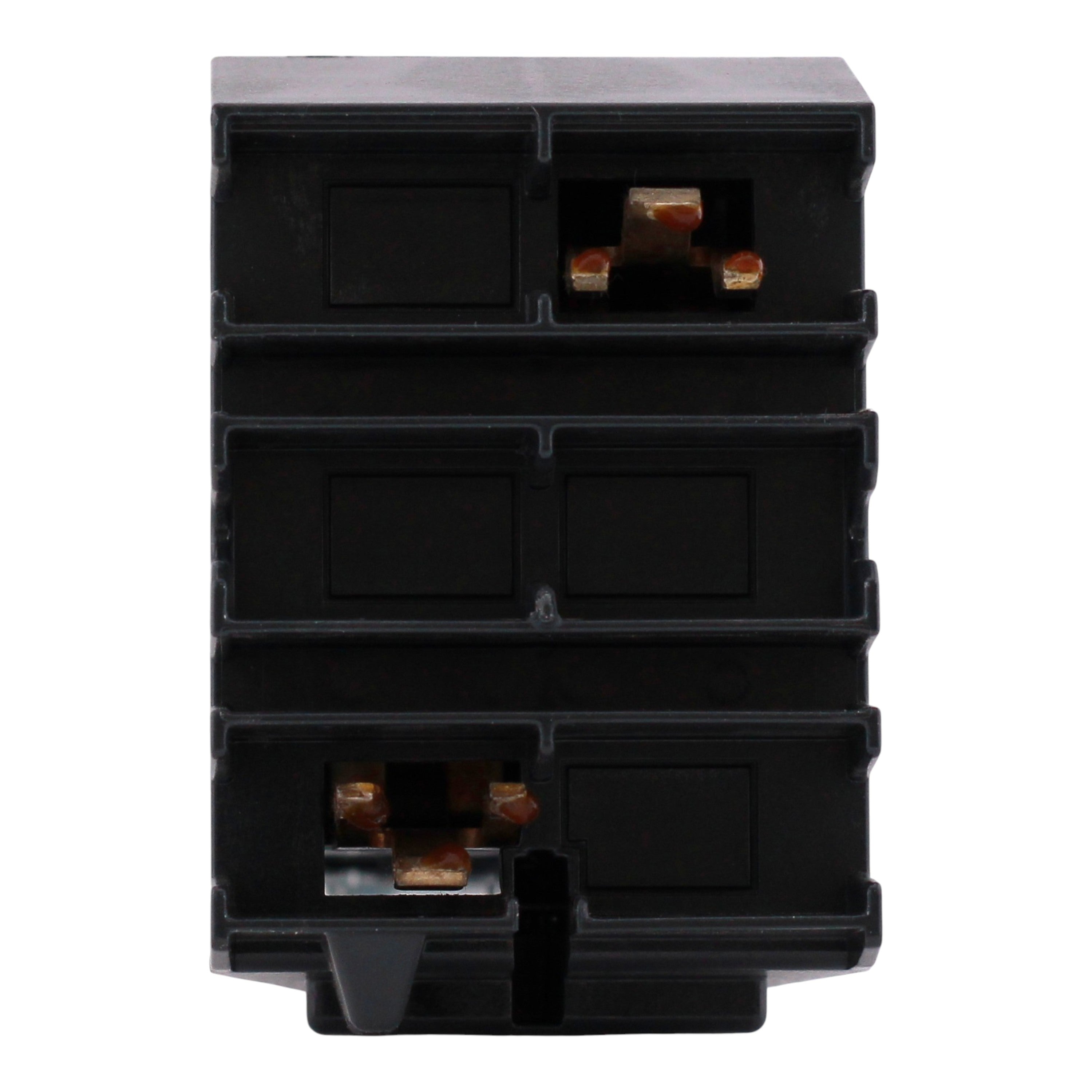

Square D PowerPacT B, BGA260302, 30A, 2P, 600Y/347VAC, Thermal Magnetic, I-Line, Circuit Breaker - Image 8

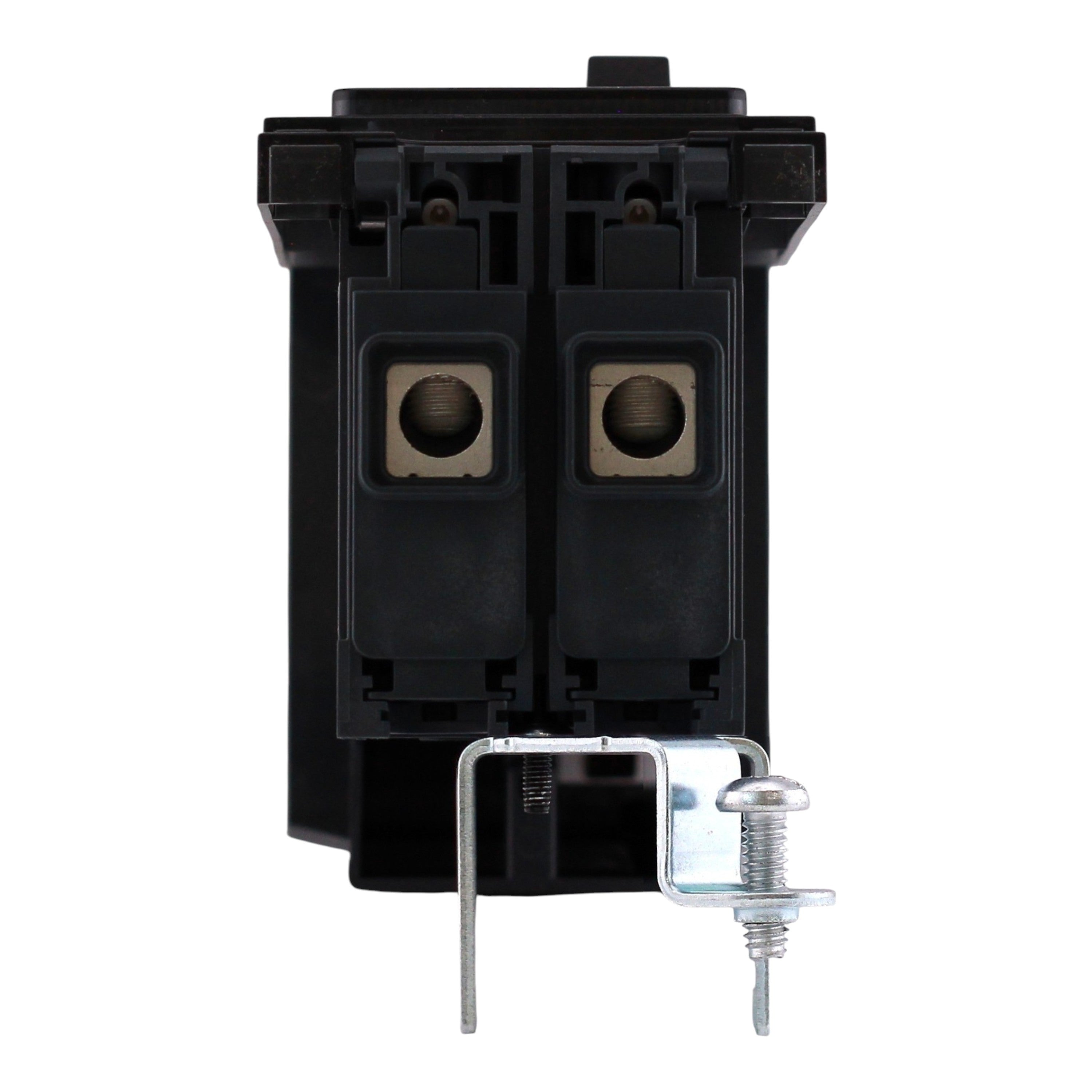

Square D PowerPacT B, BGA260302, 30A, 2P, 600Y/347VAC, Thermal Magnetic, I-Line, Circuit Breaker - Image 9
Square D PowerPacT B, BGA260302, 30A, 2P, 600Y/347VAC, Thermal Magnetic, I-Line, Circuit Breaker
Square D PowerPacT B, BGA260302, 30A, 2P, 600Y/347VAC, Thermal Magnetic, I-Line, Circuit Breaker - Image 2

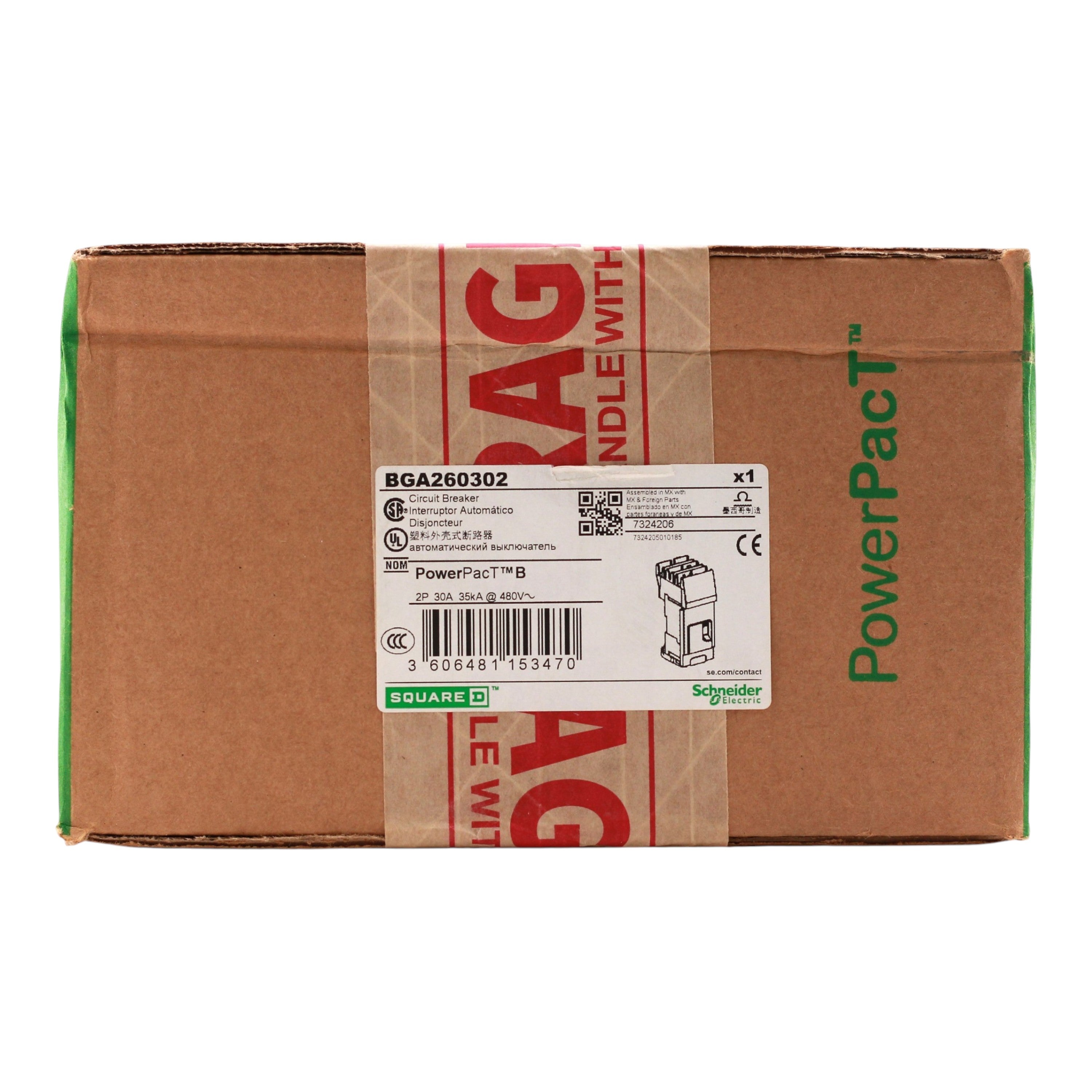

Square D PowerPacT B, BGA260302, 30A, 2P, 600Y/347VAC, Thermal Magnetic, I-Line, Circuit Breaker - Image 3
Square D PowerPacT B, BGA260302, 30A, 2P, 600Y/347VAC, Thermal Magnetic, I-Line, Circuit Breaker - Image 4

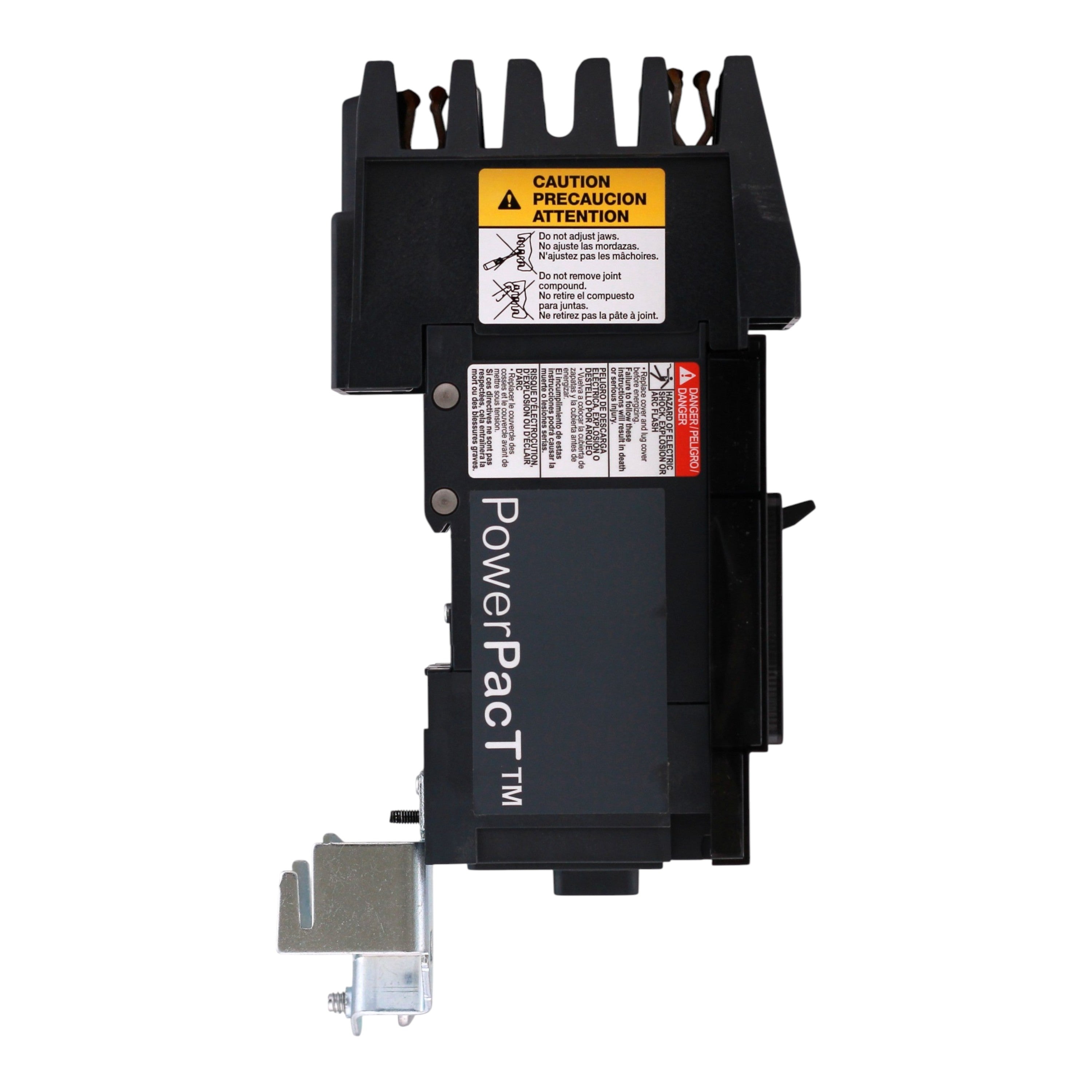

Square D PowerPacT B, BGA260302, 30A, 2P, 600Y/347VAC, Thermal Magnetic, I-Line, Circuit Breaker - Image 5
Square D PowerPacT B, BGA260302, 30A, 2P, 600Y/347VAC, Thermal Magnetic, I-Line, Circuit Breaker - Image 6
Square D PowerPacT B, BGA260302, 30A, 2P, 600Y/347VAC, Thermal Magnetic, I-Line, Circuit Breaker - Image 7
Square D PowerPacT B, BGA260302, 30A, 2P, 600Y/347VAC, Thermal Magnetic, I-Line, Circuit Breaker - Image 8
Square D PowerPacT B, BGA260302, 30A, 2P, 600Y/347VAC, Thermal Magnetic, I-Line, Circuit Breaker - Image 9

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Square D

Square D PowerPacT B, BGA260302, 30A, 2P, 600Y/347VAC, Thermal Magnetic, I-Line, Circuit Breaker

SKU: BGA260302
(0)
$280.00
-33% $419.99 $280.00
Out of stock
Condition

Square D BGA260302: 30 Amp, 2-Pole, PowerPacT B thermal magnetic circuit breaker, 600Y/347VAC, 18kA, I-Line, 80% rated, UL listed, CSA.

  • Manufacturer: Schneider Electric
  • Brand: Square D
  • Product Range: PowerPacT B (for I-Line and unit mount commercial/industrial loadcenters and panelboards)
  • UPC: 3606481153470
  • Model Number: BGA260302
  • Breaker Type: Thermal Magnetic Molded Case Circuit Breaker
  • Amperage: 30 Amps
  • Poles: 2-Pole
  • Voltage: 600Y/347 Volts AC
  • Interrupt Rating: 18 kAIC @ 600Y/347VAC; 35 kAIC @ 480VAC; 65 kAIC @ 240VAC
  • Continuous Current Rating: 80%
  • Mounting Mode: I-Line plug-on (line side); mechanical lugs (load side)
  • Wire Size: #14–2/0 AWG Cu/Al
  • Tightening Torque: 31.9–38.9 lb-in (#14–10 AWG); 44.3–54.9 lb-in (#8–2/0 AWG)
  • Dimensions: Height: 5.4 in; Width: 2.1 in; Depth: 3.5 in
  • Weight: 2.099 lbs
  • Certifications: UL Listed, CSA, HACR Rated

This Square D BGA260302 PowerPacT B thermal magnetic circuit breaker delivers dependable 30 Amp, 2-Pole protection for 600Y/347VAC circuits in I-Line commercial and industrial panelboards. With an 18kAIC interrupt rating and 80% continuous current rating, it supports reliable distribution in demanding applications.
