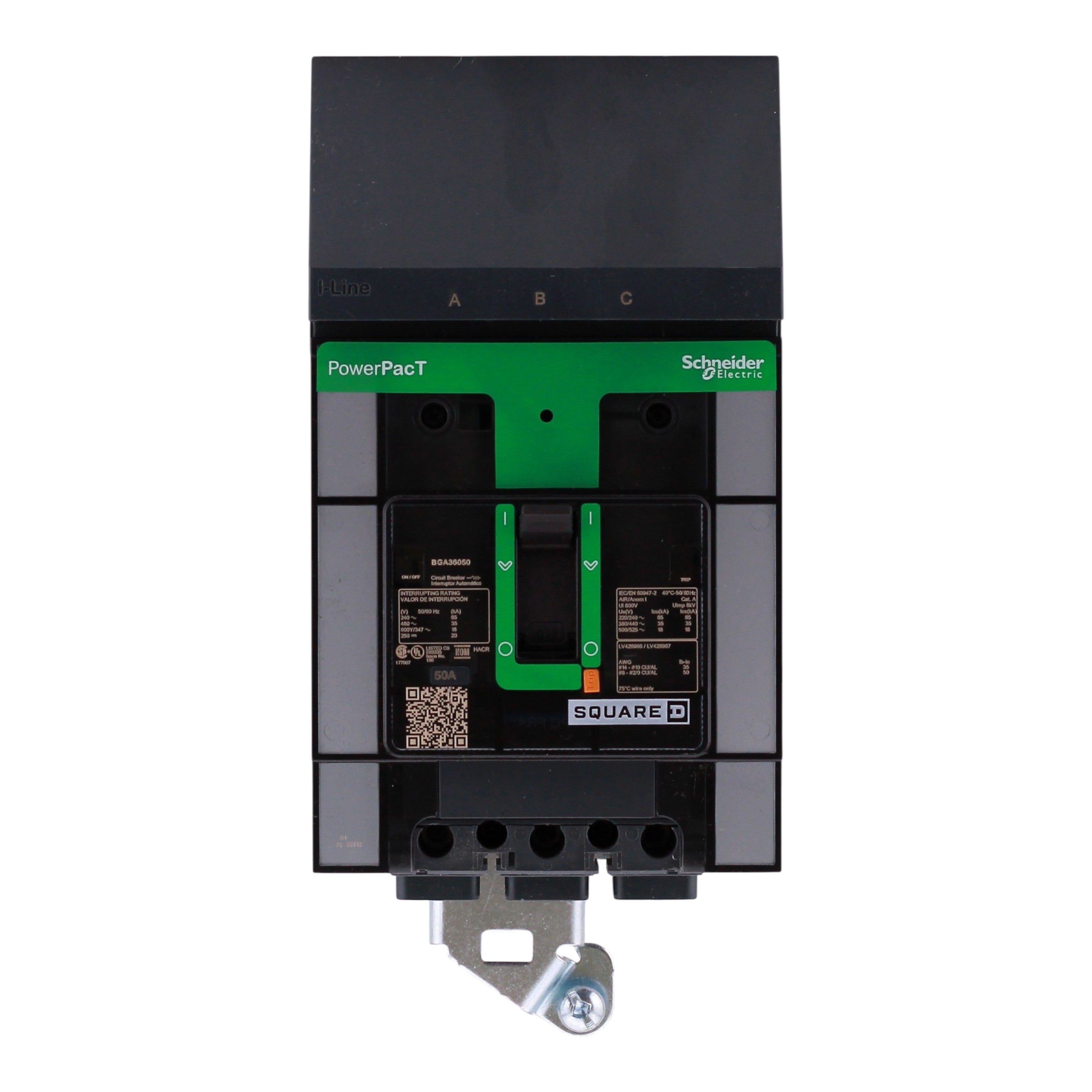

Square D PowerPacT B, BGA36050, 50A, 3P, 600Y/347VAC, 18kA, I-Line, Thermal Magnetic, Circuit Breaker - Image 4

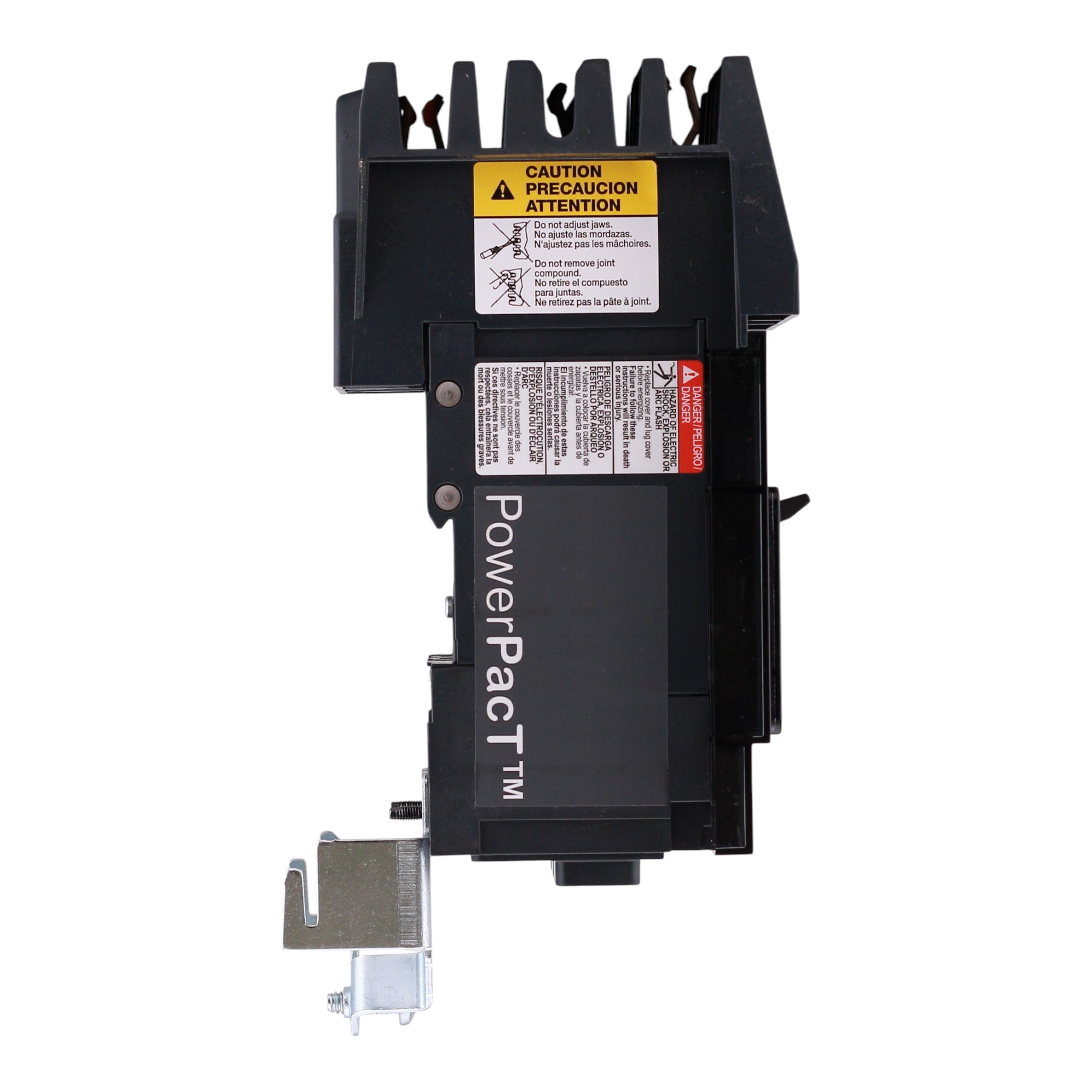

Square D PowerPacT B, BGA36050, 50A, 3P, 600Y/347VAC, 18kA, I-Line, Thermal Magnetic, Circuit Breaker - Image 5

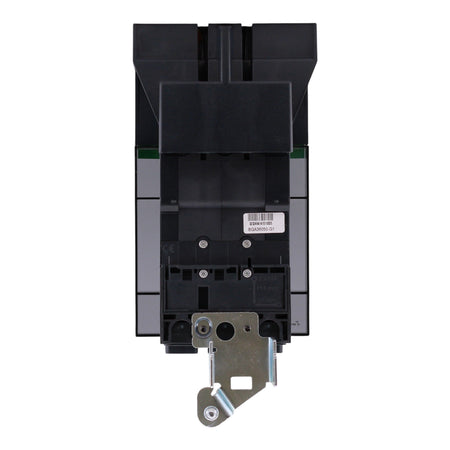

Square D PowerPacT B, BGA36050, 50A, 3P, 600Y/347VAC, 18kA, I-Line, Thermal Magnetic, Circuit Breaker - Image 6
Square D PowerPacT B, BGA36050, 50A, 3P, 600Y/347VAC, 18kA, I-Line, Thermal Magnetic, Circuit Breaker - Image 7
Square D PowerPacT B, BGA36050, 50A, 3P, 600Y/347VAC, 18kA, I-Line, Thermal Magnetic, Circuit Breaker - Image 8
Square D PowerPacT B, BGA36050, 50A, 3P, 600Y/347VAC, 18kA, I-Line, Thermal Magnetic, Circuit Breaker - Image 9

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Square D

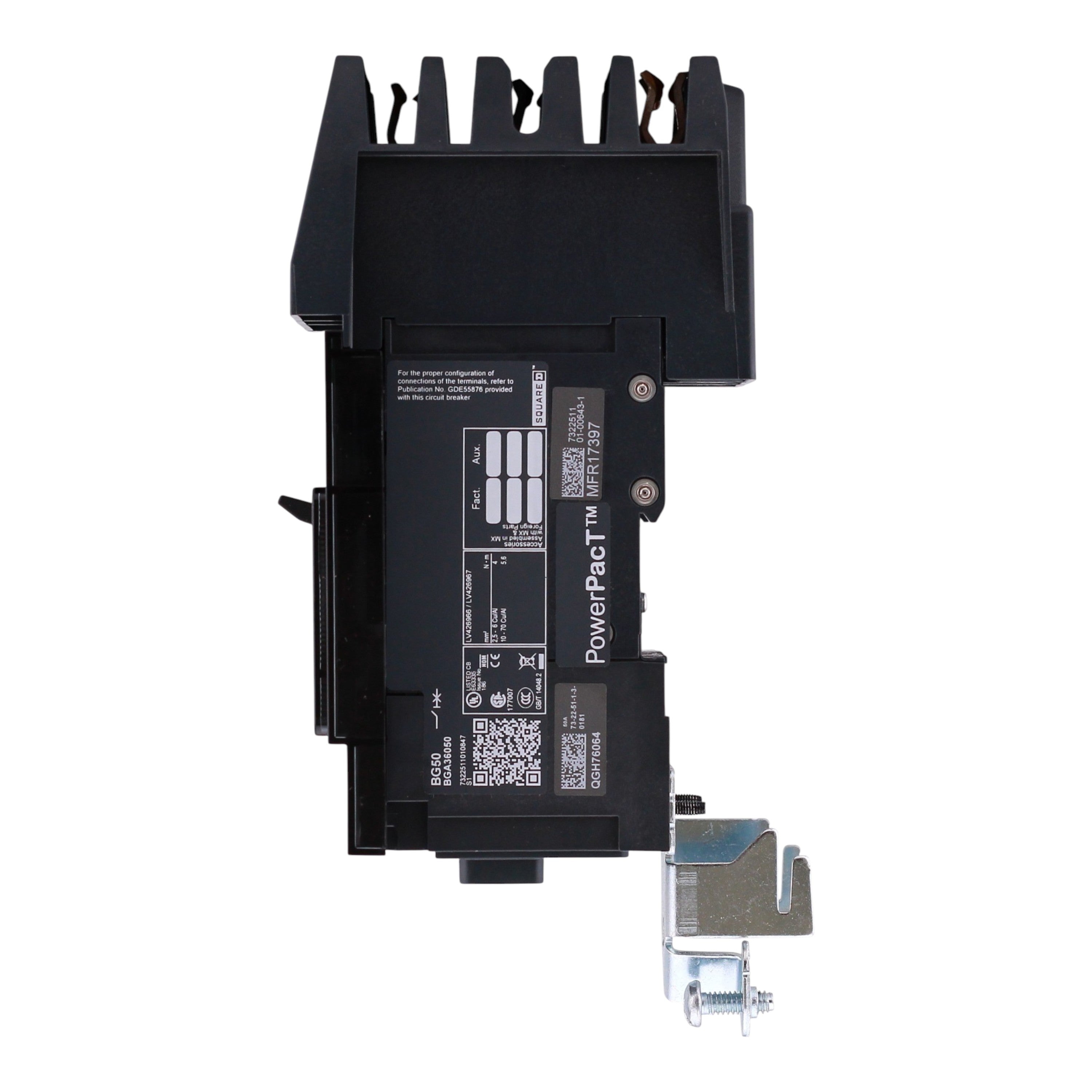

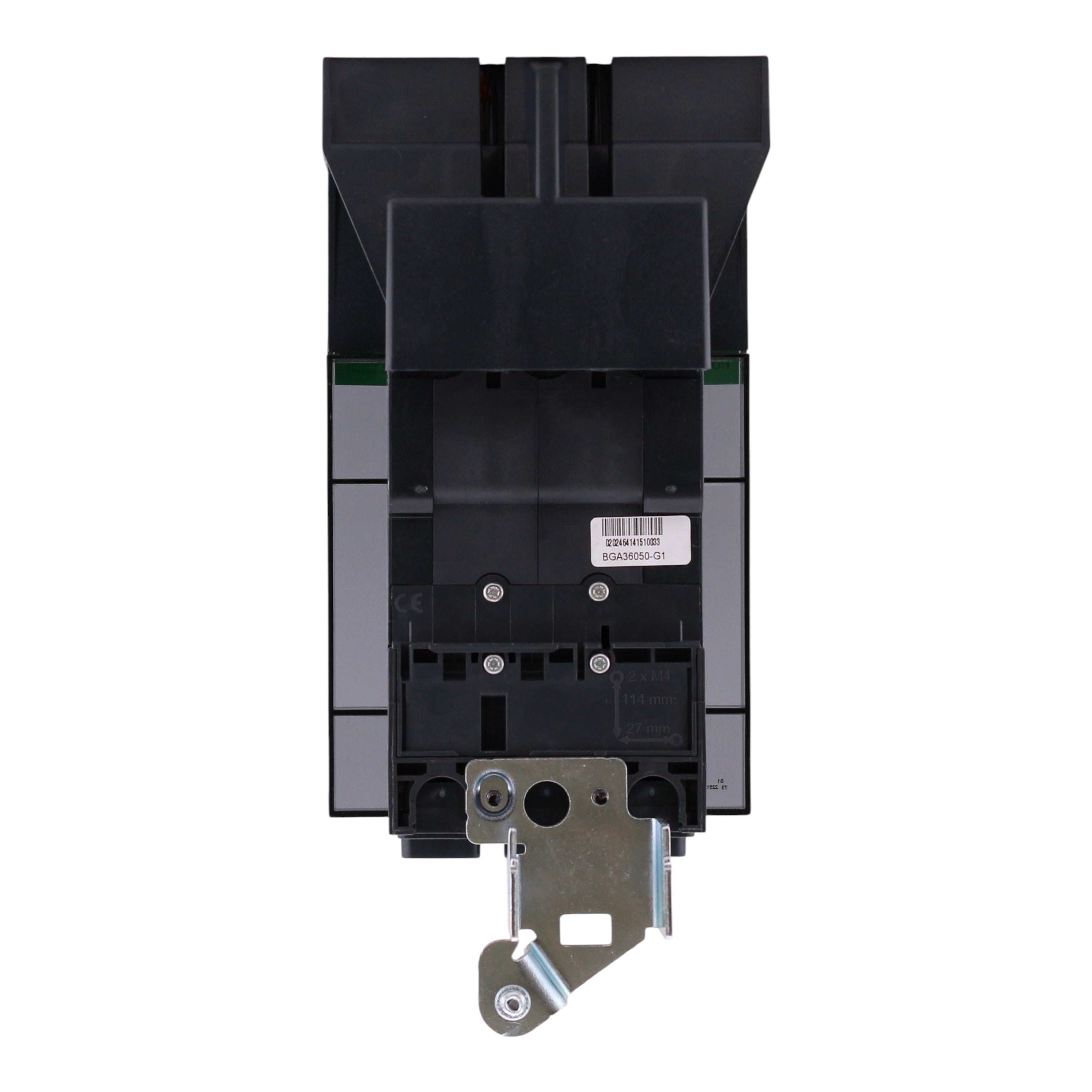

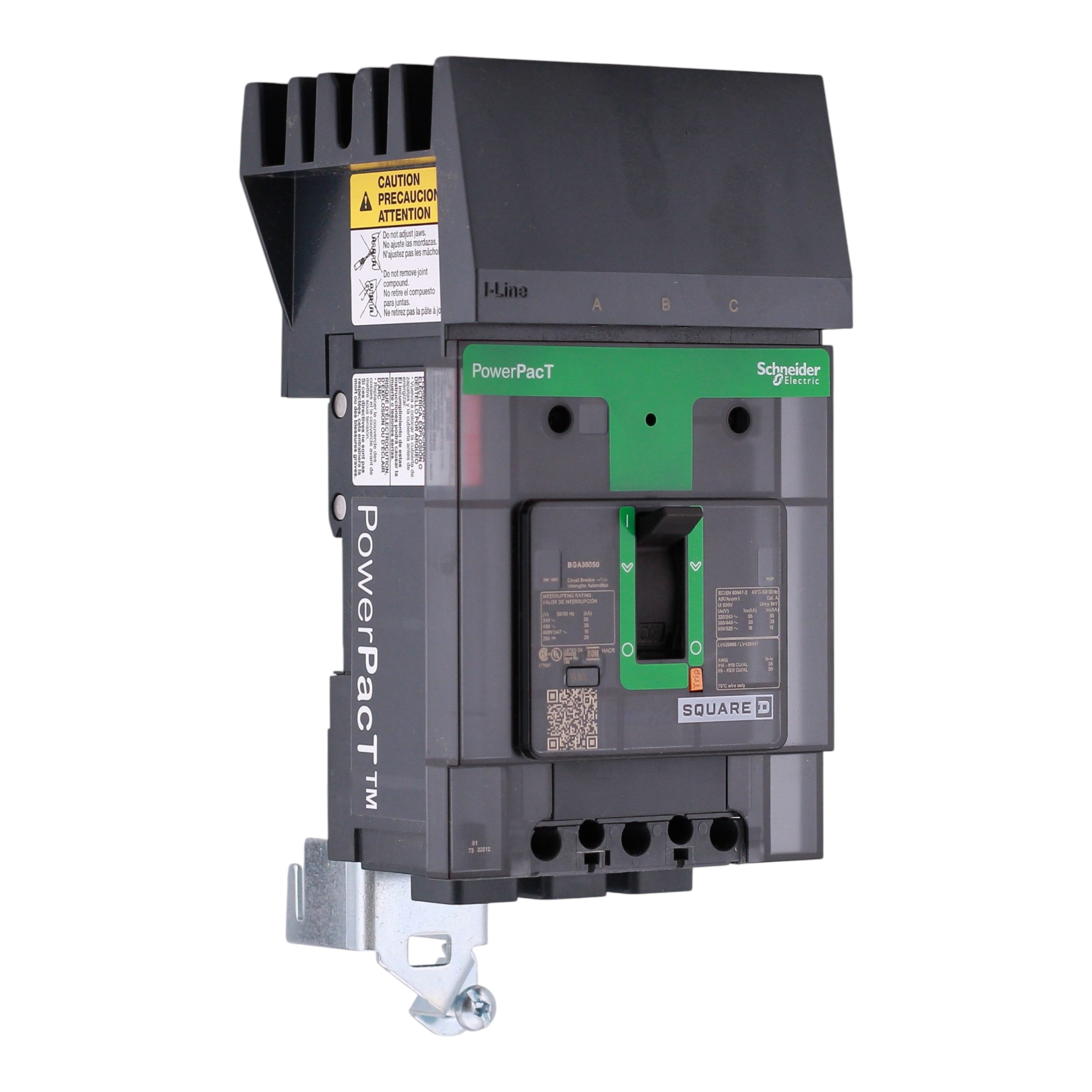

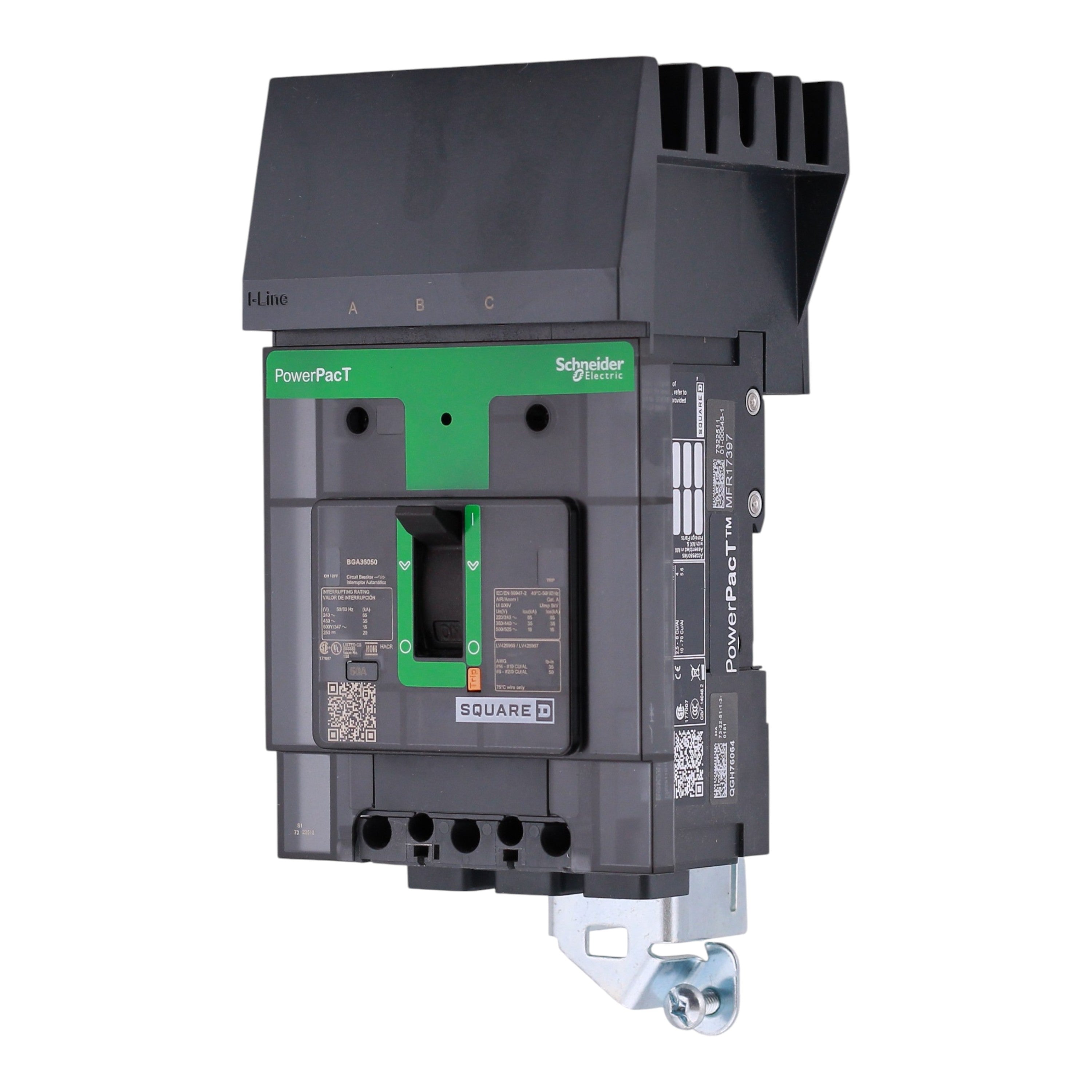

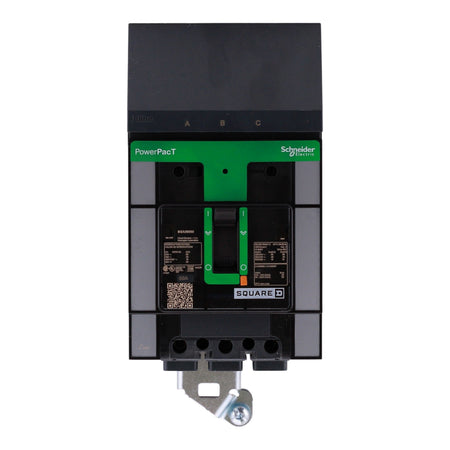

Square D PowerPacT B, BGA36050, 50A, 3P, 600Y/347VAC, 18kA, I-Line, Thermal Magnetic, Circuit Breaker

Out of stock
SKU: BGA36050 UPC: 3606481153784
(0)
$370.00
-55% $829.00 $370.00
Out of stock
Condition

Square D BGA36050: 50 Amp, 3-Pole, PowerPacT B-Frame Molded Case Circuit Breaker, 600Y/347VAC, 18kA, I-Line, Thermal Magnetic, 80%, UL Listed.

  • Manufacturer: Schneider Electric
  • Brand: Square D
  • Product Range: PowerPacT B-Frame (for I-Line panelboards and switchboards)
  • UPC: 3606481153784
  • Model Number: BGA36050
  • Breaker Type: Thermal Magnetic Molded Case Circuit Breaker (MCCB)
  • Trip Functions: LI — Long-Time and Instantaneous
  • Amperage: 50 Amps
  • Continuous Current Rating: 80%
  • Poles: 3-Pole
  • Voltage: 600Y/347 Volts AC
  • Interrupt Rating: 18 kAIC @ 600Y/347VAC; 35 kAIC @ 480VAC; 65 kAIC @ 240VAC; 20 kAIC @ 250V DC
  • Frame Size: B-Frame, 125A

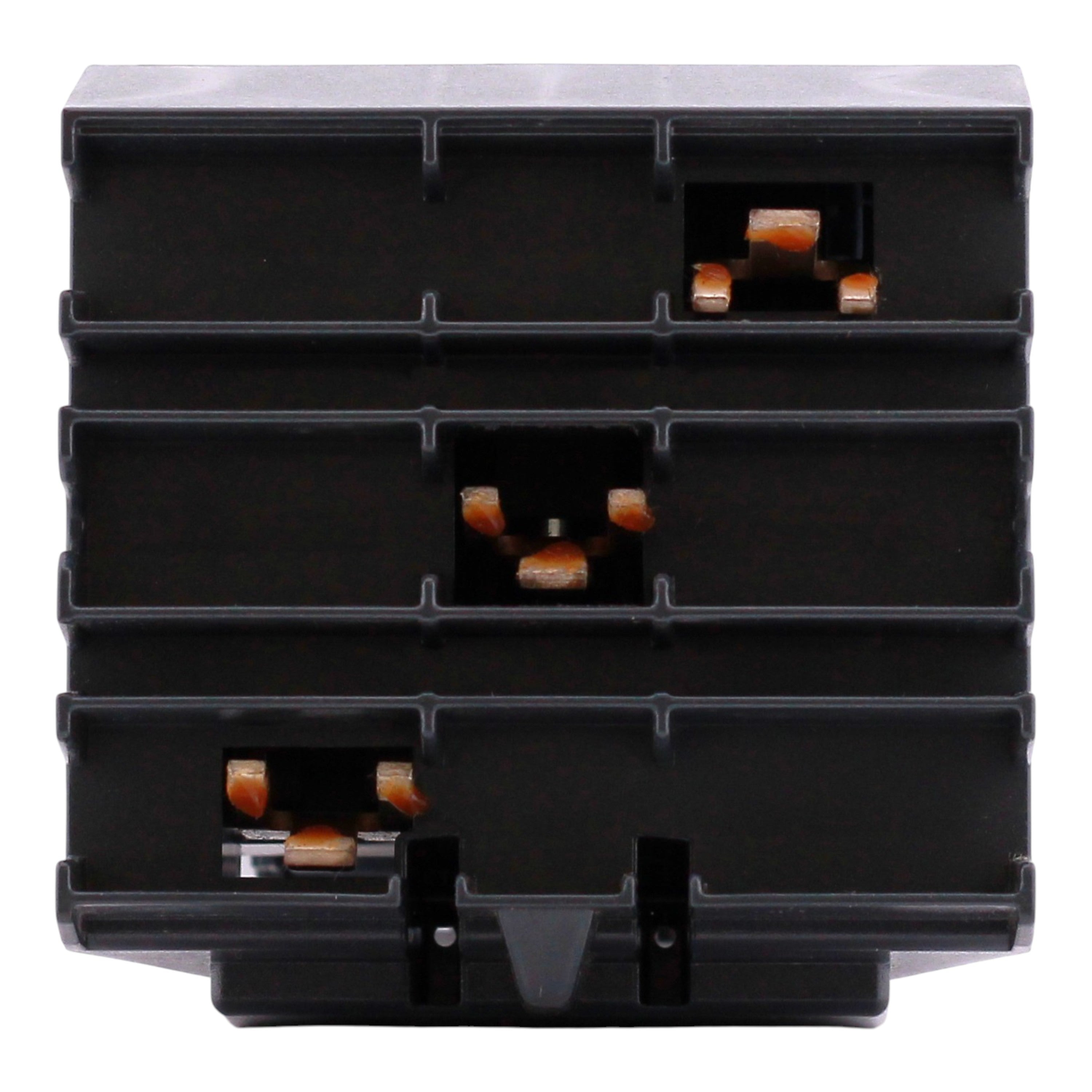

  • Mounting Mode: I-Line (plug-in, line side); Mechanical lugs (load side)
  • Phase Connection: ABC

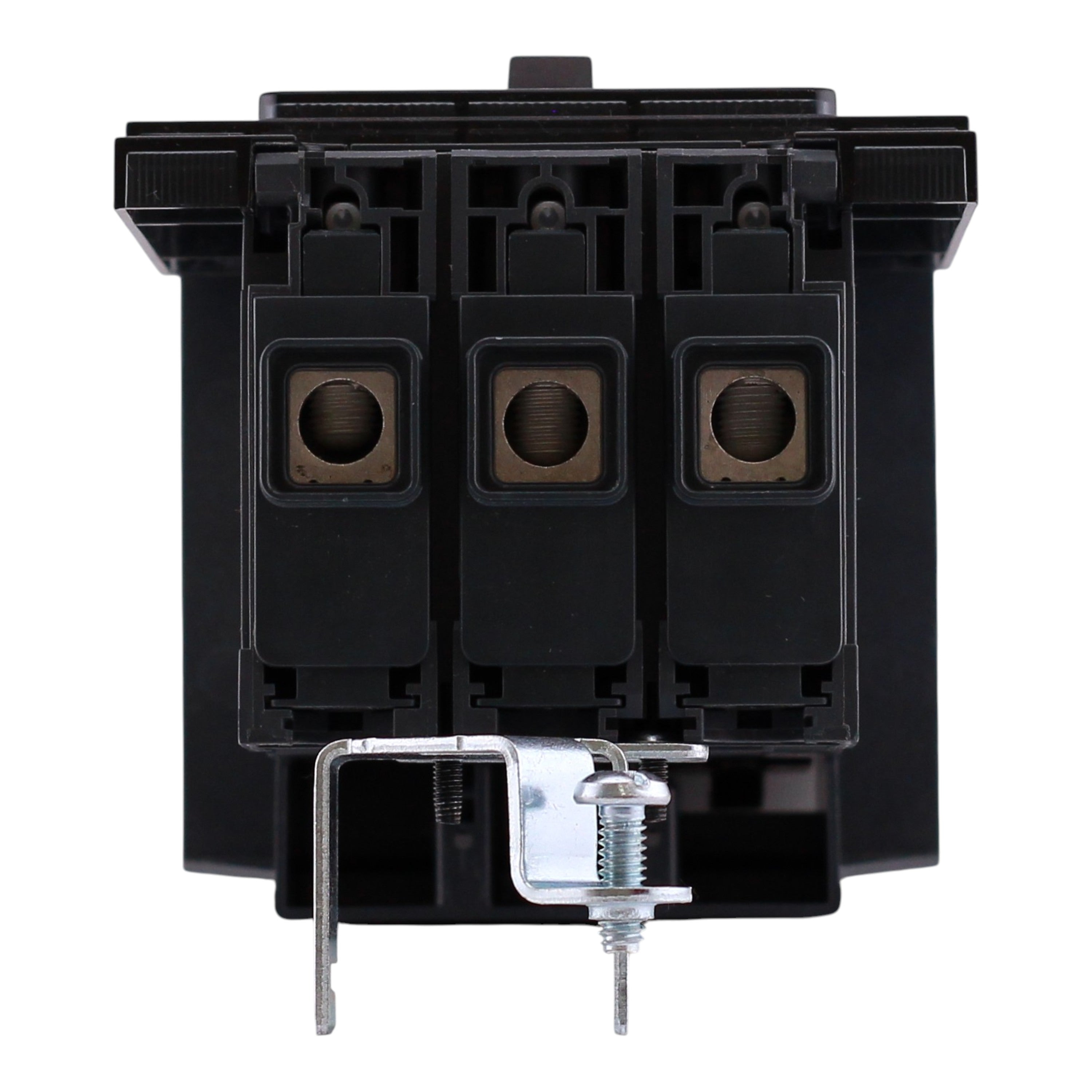

  • Wire Size: #14–2/0 AWG Cu/Al
  • Tightening Torque: 31.9–38.9 lb-in (#14–10 AWG); 44.3–54.9 lb-in (#8–2/0 AWG)
  • Dimensions: Height: 5.4 in; Width: 3.2 in; Depth: 3.5 in
  • Weight: 2.899 lbs
  • Certifications: UL 489, CSA C22.2 No. 5, NEMA AB1, IEC/EN 60947-2, NOM, NMX J-266, CCC, EAC, CE Marked, HACR Rated

This Square D BGA36050 PowerPacT B thermal magnetic molded case circuit breaker delivers dependable 50 Amp, 3-Pole protection for 600Y/347VAC, 3-phase circuits in I-Line panelboards and switchboards. With 18kA interrupt capacity at 600Y/347VAC, dual-break rotating contacts, an integral push-to-trip button, and an 80% continuous current rating, it supports commercial and industrial distribution applications.
