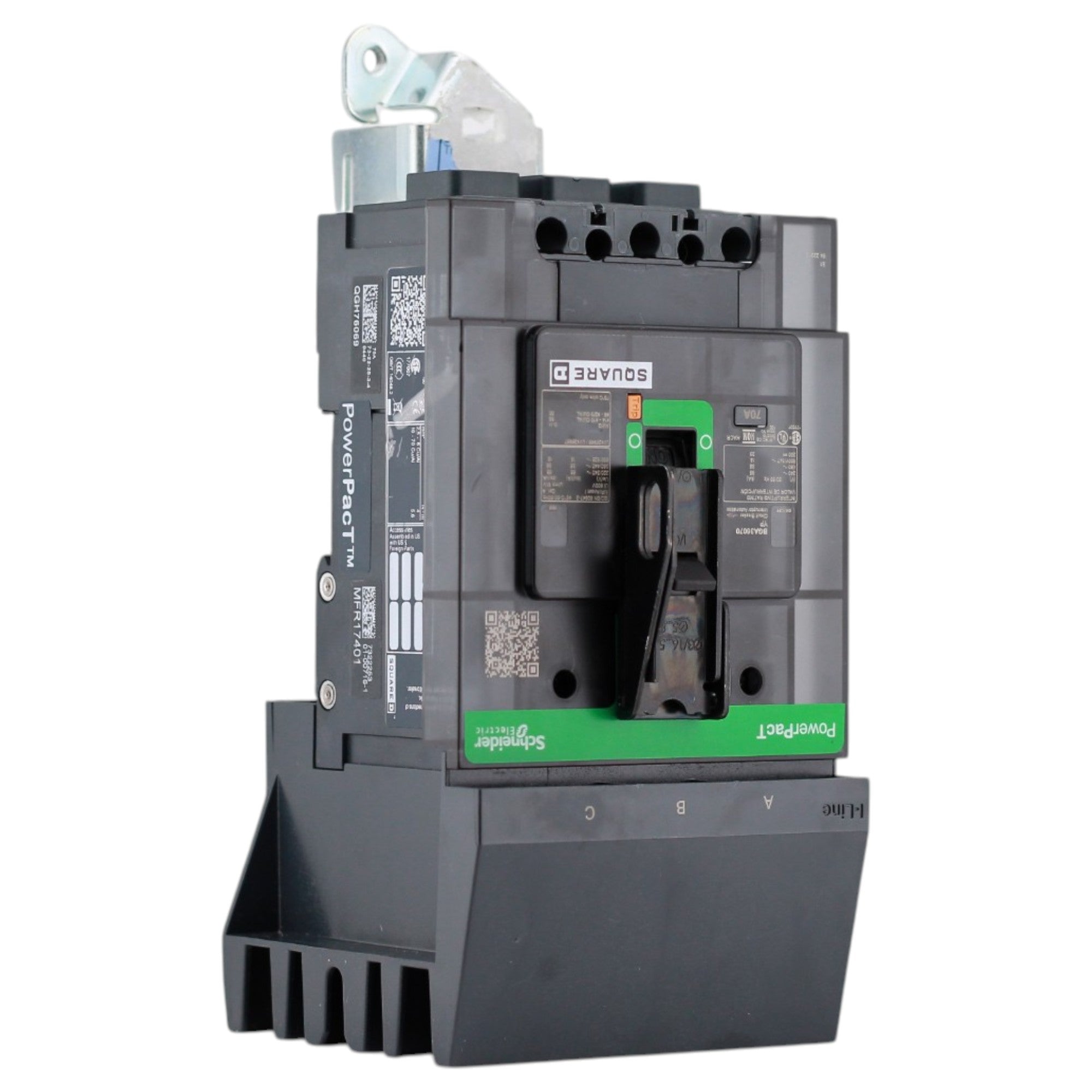

Square D PowerPacT B, BGA36070, 70A, 3P, 600Y/347VAC, 18kA, I-Line, Thermal Magnetic, Circuit Breaker
Square D PowerPacT B, BGA36070, 70A, 3P, 600Y/347VAC, 18kA, I-Line, Thermal Magnetic, Circuit Breaker - Image 2

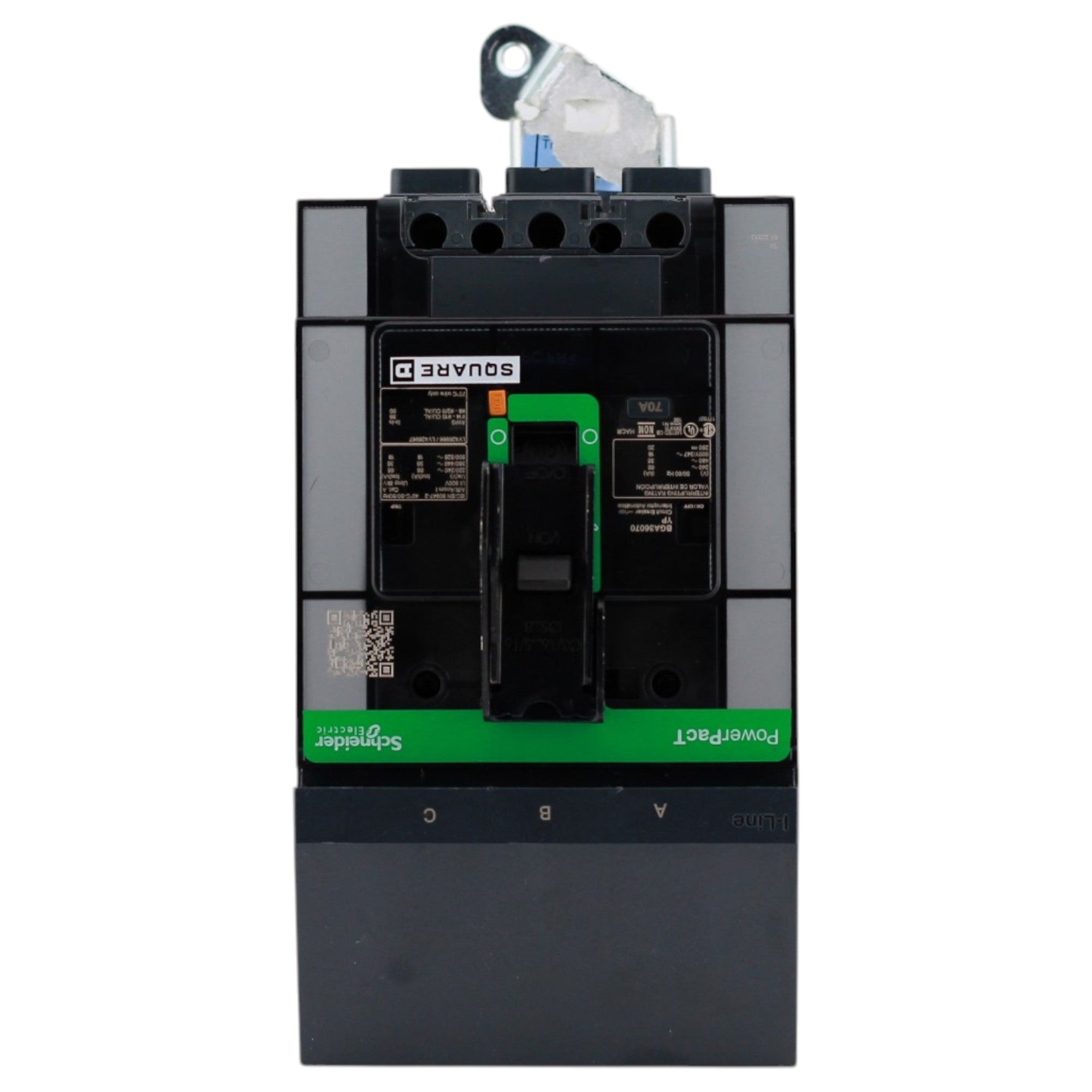

Square D PowerPacT B, BGA36070, 70A, 3P, 600Y/347VAC, 18kA, I-Line, Thermal Magnetic, Circuit Breaker - Image 3

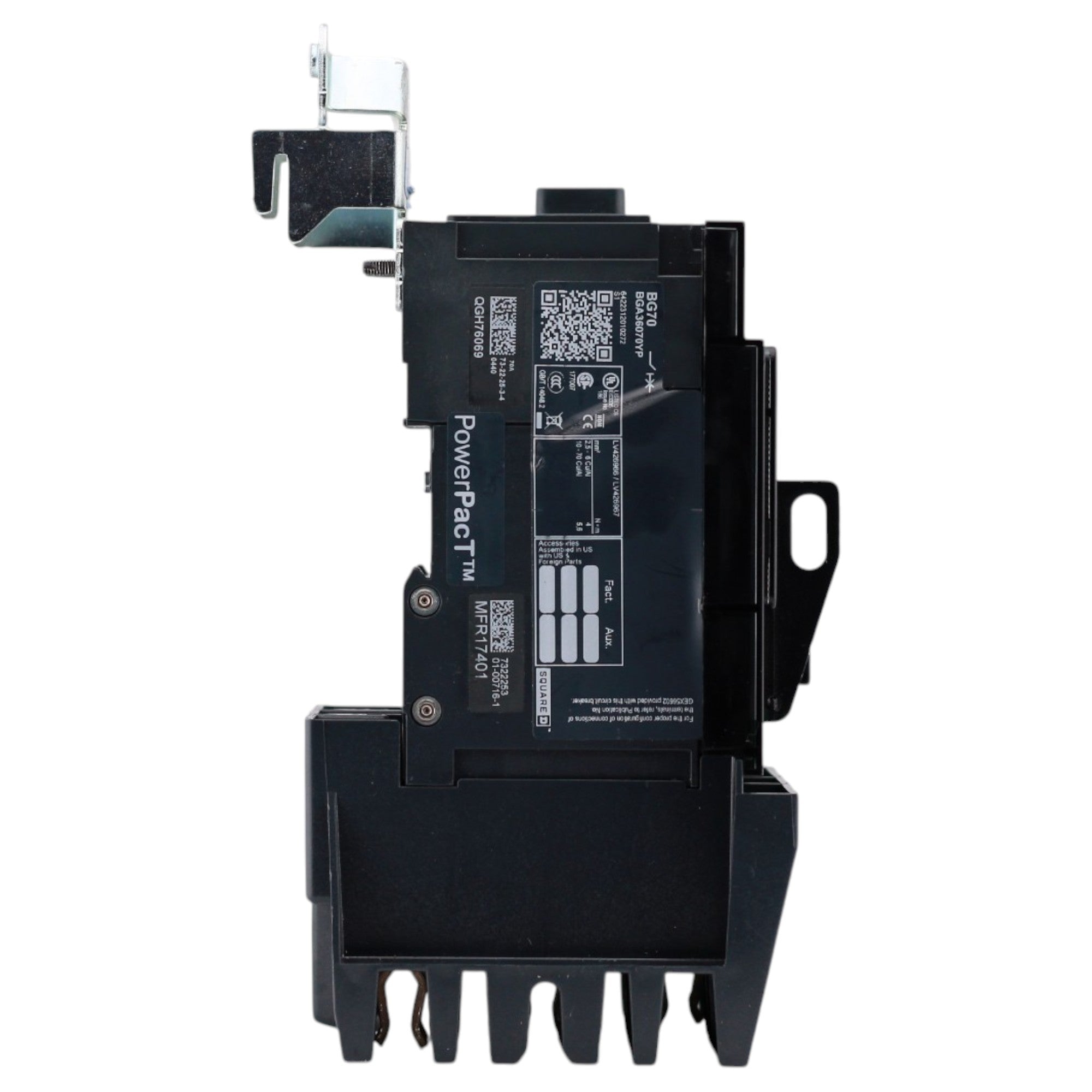

Square D PowerPacT B, BGA36070, 70A, 3P, 600Y/347VAC, 18kA, I-Line, Thermal Magnetic, Circuit Breaker - Image 4

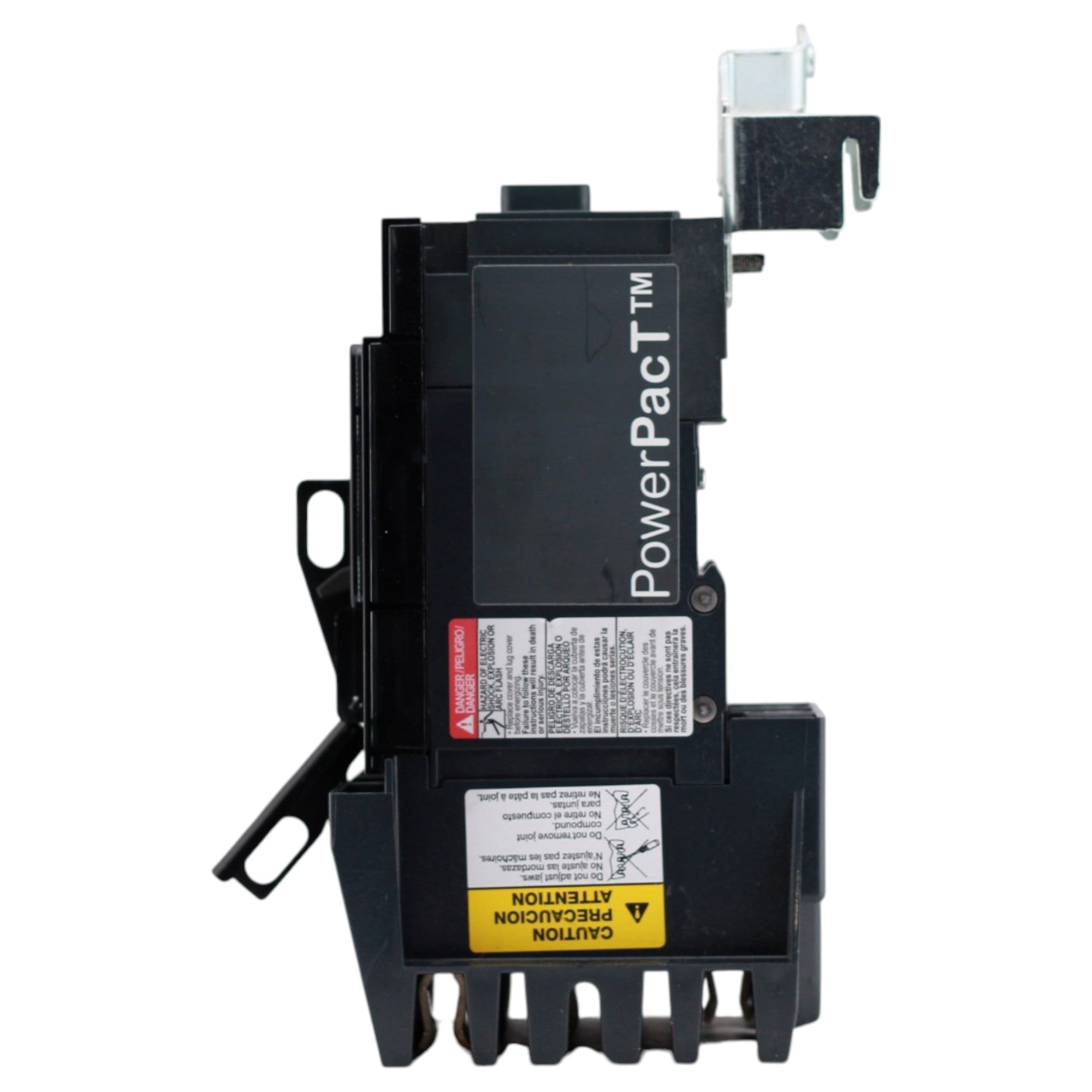

Square D PowerPacT B, BGA36070, 70A, 3P, 600Y/347VAC, 18kA, I-Line, Thermal Magnetic, Circuit Breaker - Image 5

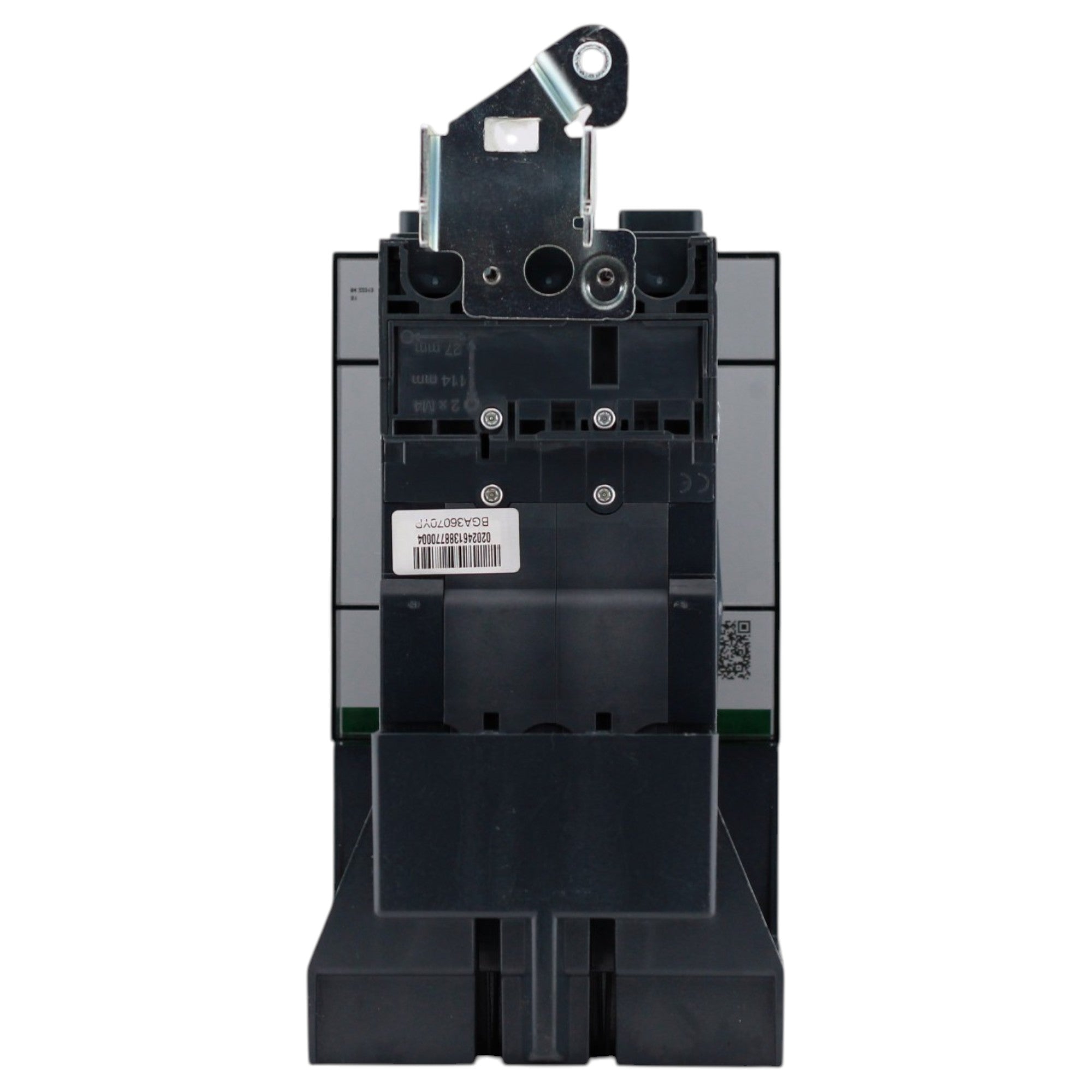

Square D PowerPacT B, BGA36070, 70A, 3P, 600Y/347VAC, 18kA, I-Line, Thermal Magnetic, Circuit Breaker - Image 6

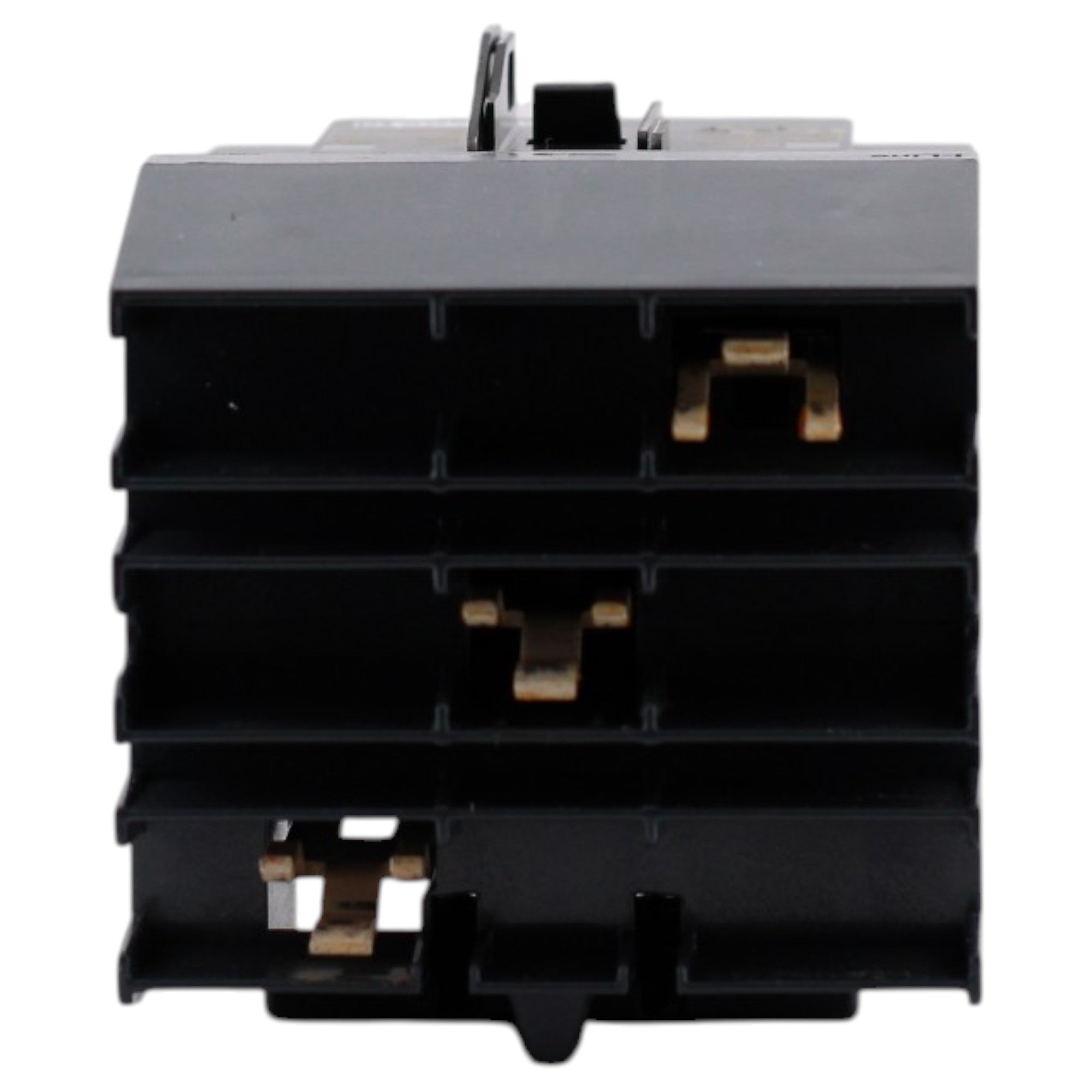

Square D PowerPacT B, BGA36070, 70A, 3P, 600Y/347VAC, 18kA, I-Line, Thermal Magnetic, Circuit Breaker - Image 7

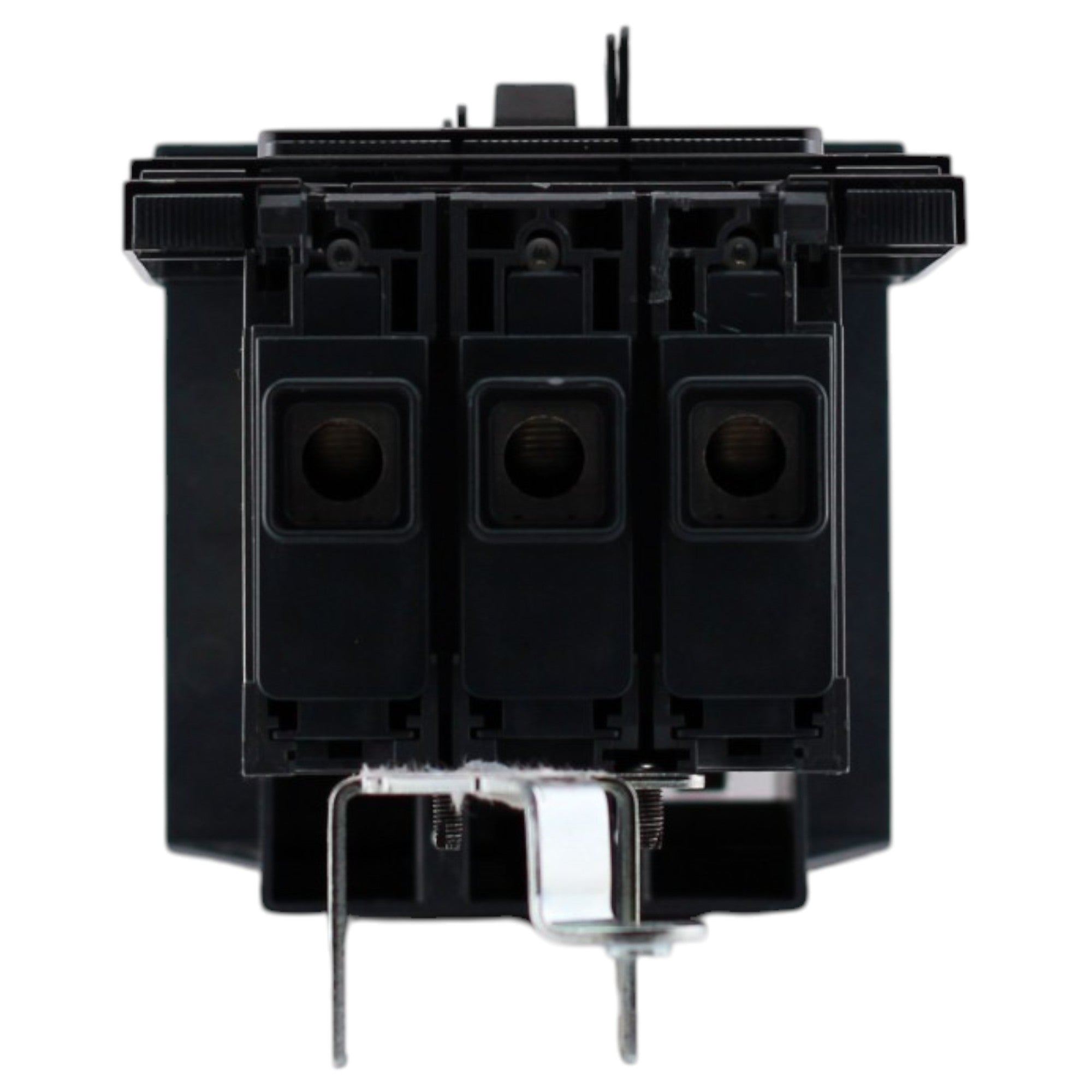

Square D PowerPacT B, BGA36070, 70A, 3P, 600Y/347VAC, 18kA, I-Line, Thermal Magnetic, Circuit Breaker - Image 8

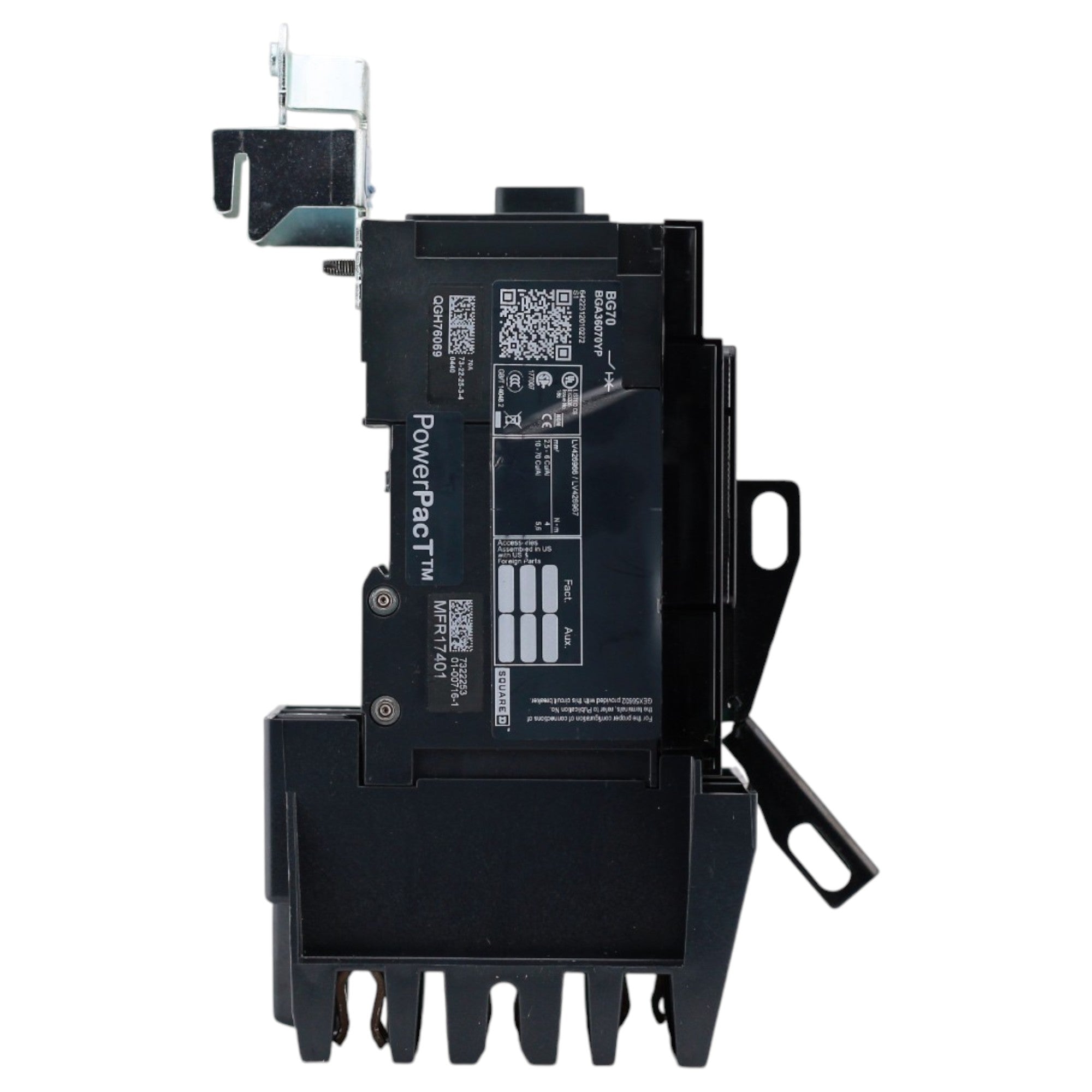

Square D PowerPacT B, BGA36070, 70A, 3P, 600Y/347VAC, 18kA, I-Line, Thermal Magnetic, Circuit Breaker
Square D PowerPacT B, BGA36070, 70A, 3P, 600Y/347VAC, 18kA, I-Line, Thermal Magnetic, Circuit Breaker - Image 2
Square D PowerPacT B, BGA36070, 70A, 3P, 600Y/347VAC, 18kA, I-Line, Thermal Magnetic, Circuit Breaker - Image 3
Square D PowerPacT B, BGA36070, 70A, 3P, 600Y/347VAC, 18kA, I-Line, Thermal Magnetic, Circuit Breaker - Image 4
Square D PowerPacT B, BGA36070, 70A, 3P, 600Y/347VAC, 18kA, I-Line, Thermal Magnetic, Circuit Breaker - Image 5
Square D PowerPacT B, BGA36070, 70A, 3P, 600Y/347VAC, 18kA, I-Line, Thermal Magnetic, Circuit Breaker - Image 6
Square D PowerPacT B, BGA36070, 70A, 3P, 600Y/347VAC, 18kA, I-Line, Thermal Magnetic, Circuit Breaker - Image 7
Square D PowerPacT B, BGA36070, 70A, 3P, 600Y/347VAC, 18kA, I-Line, Thermal Magnetic, Circuit Breaker - Image 8

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Square D

Square D PowerPacT B, BGA36070, 70A, 3P, 600Y/347VAC, 18kA, I-Line, Thermal Magnetic, Circuit Breaker

Out of stock
SKU: BGA36070 UPC: 78590101285
(0)
$350.00
-13% $400.00 $350.00
Out of stock
Condition

Square D BGA36070: 70 Amp, 3-Pole, PowerPacT B Molded Case Circuit Breaker, 600Y/347VAC, 18kA, I-Line, Thermal Magnetic, 80%, UL Listed.

  • Manufacturer: Schneider Electric
  • Brand: Square D
  • Product Range: PowerPacT B-Frame (for I-Line panelboards and switchboards)
  • UPC: 3606481153852
  • Model Number: BGA36070
  • Breaker Type: Thermal Magnetic Molded Case Circuit Breaker (MCCB)
  • Trip Functions: LI — Long-Time and Instantaneous
  • Amperage: 70 Amps
  • Continuous Current Rating: 80%
  • Poles: 3-Pole
  • Phase: 3-Phase
  • Voltage: 600Y/347 Volts AC
  • Interrupt Rating: 18 kAIC @ 600Y/347VAC; 35 kAIC @ 480VAC
  • Frame Size: B-Frame, 125A
  • Mounting Mode: I-Line (plug-in)
  • Phase Connection: ABC
  • Connections / Terminals: Load side mechanical lug terminals
  • Wire Size: #14–2/0 AWG Cu/Al
  • Dimensions: Height: 5.39 in; Width: 3.19 in; Depth: 3.50 in
  • Weight: 2.90 lbs
  • Certifications: UL 489, CSA C22.2 No. 5, NEMA AB1, IEC/EN 60947-2, NOM, NMX J-266

This Square D BGA36070 PowerPacT B thermal magnetic molded case circuit breaker delivers dependable 70 Amp, 3-Pole protection for 600Y/347VAC, 3-phase circuits in I-Line panelboards and switchboards. With 18kA interrupt capacity at 600Y/347VAC and an 80% continuous current rating, it supports commercial and industrial distribution applications.
