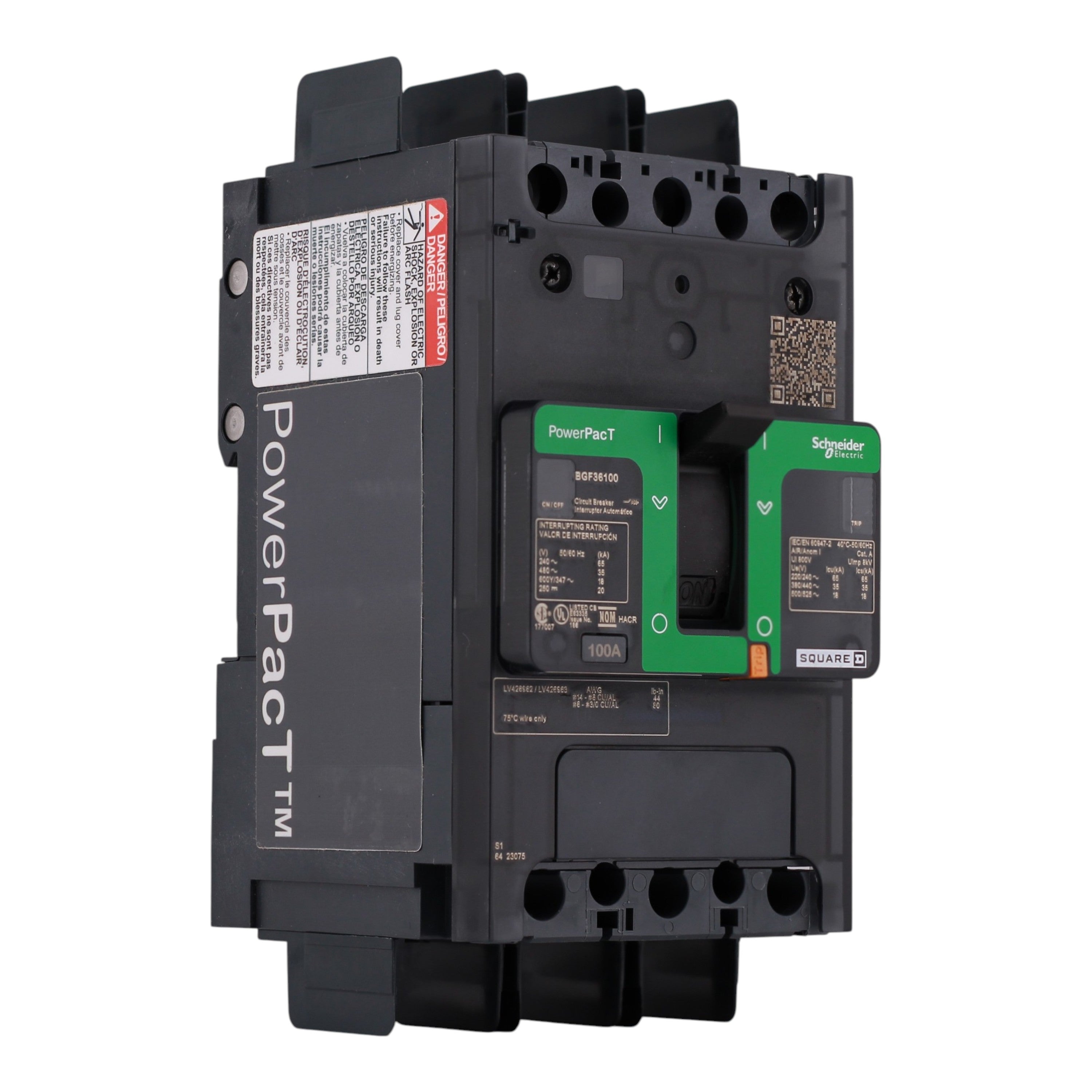

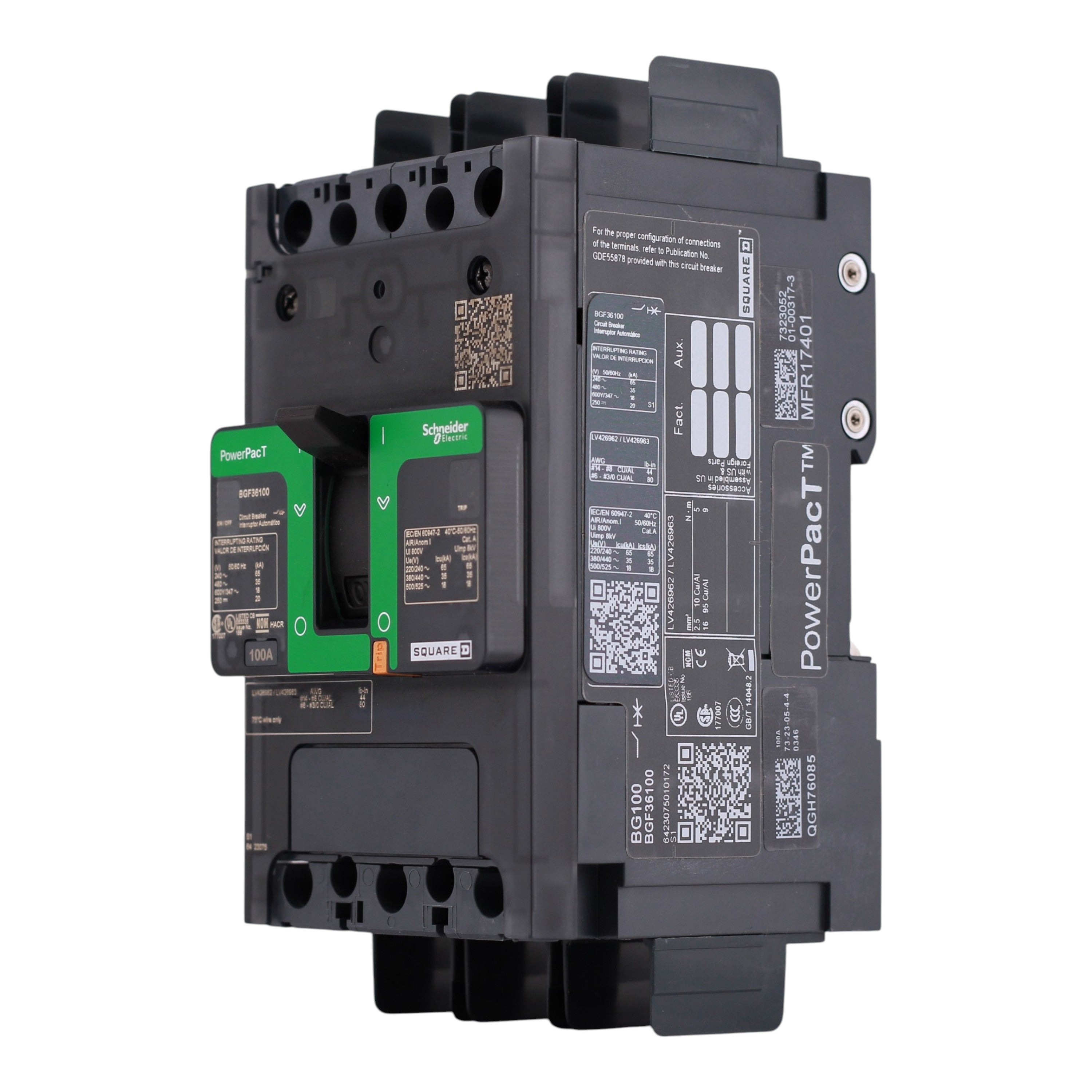

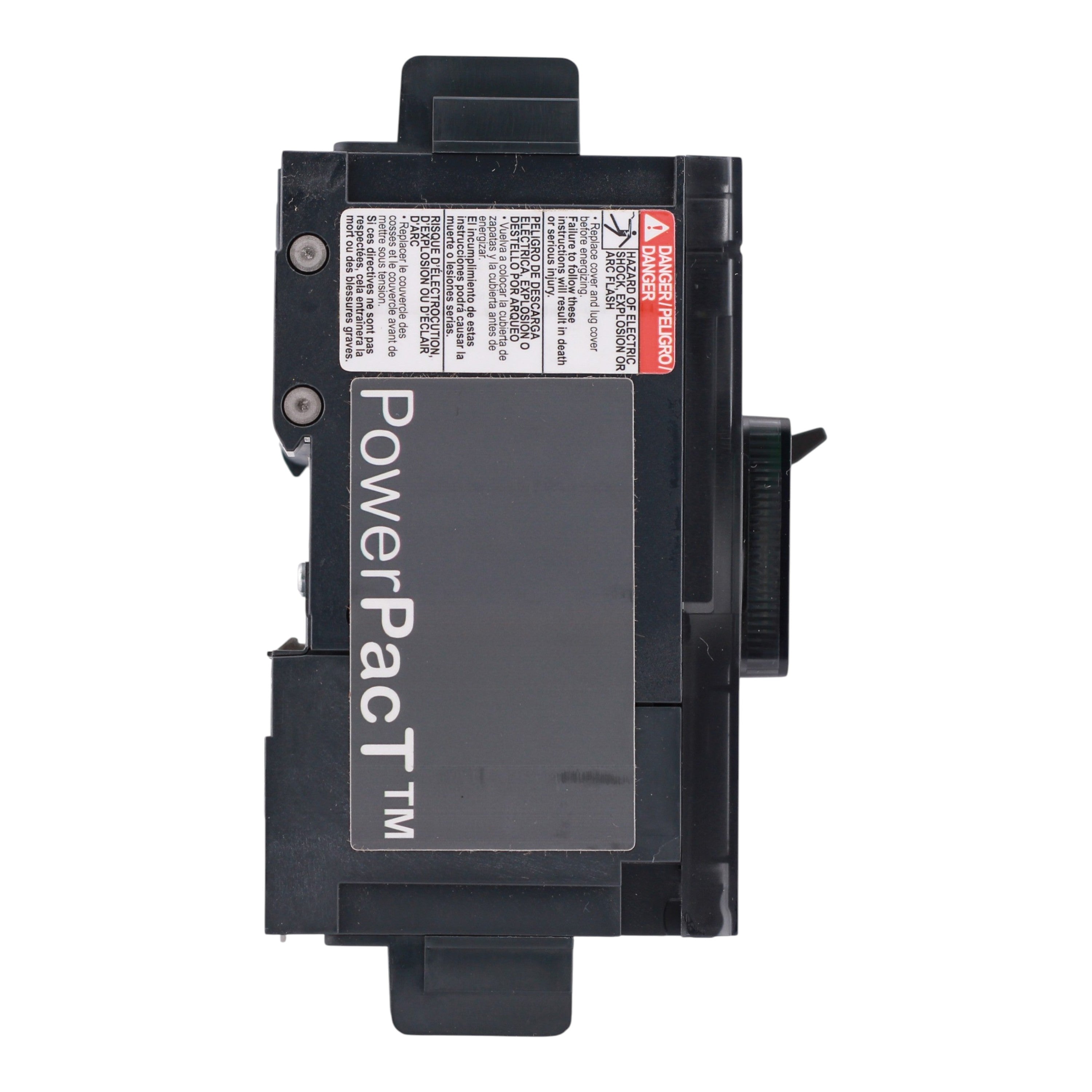

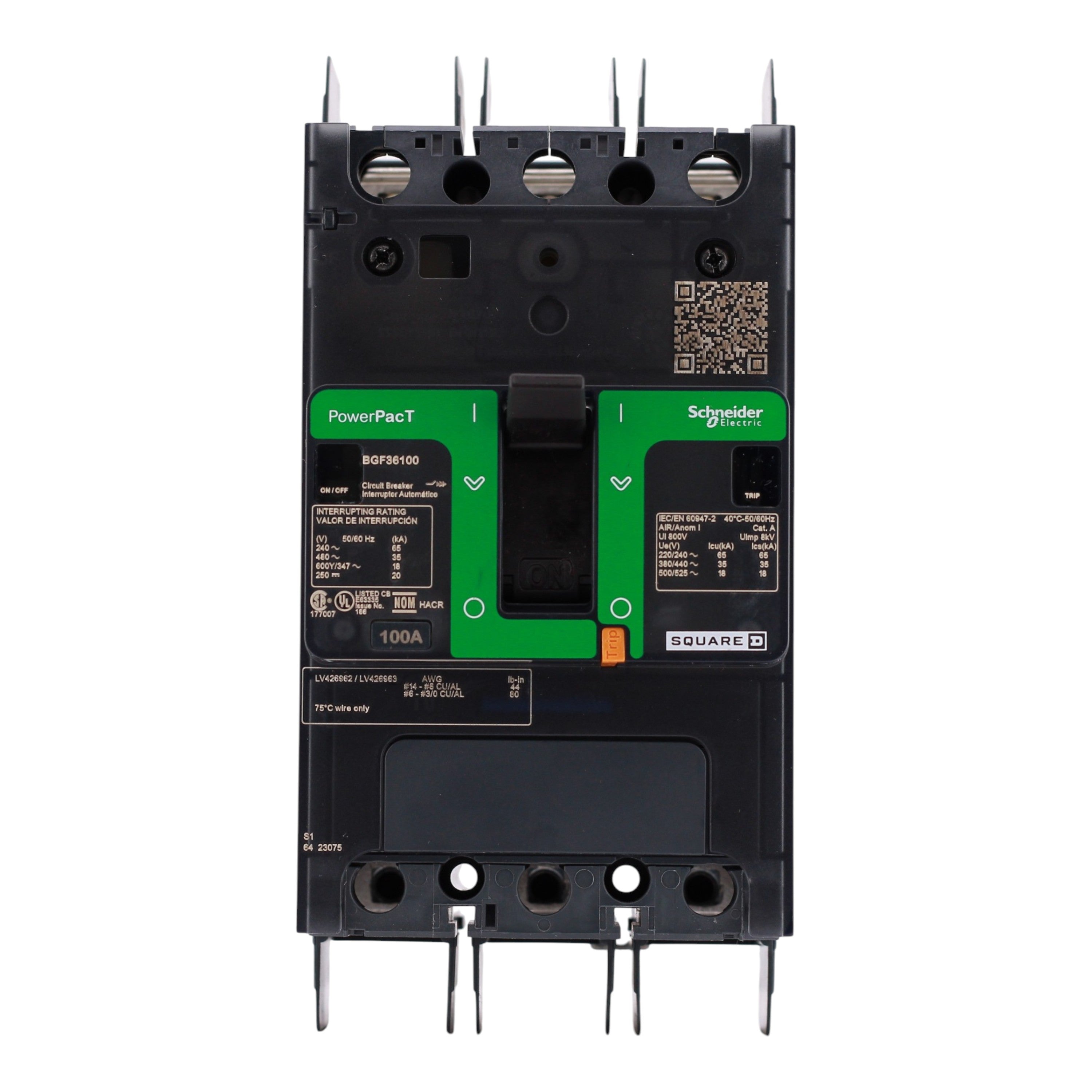

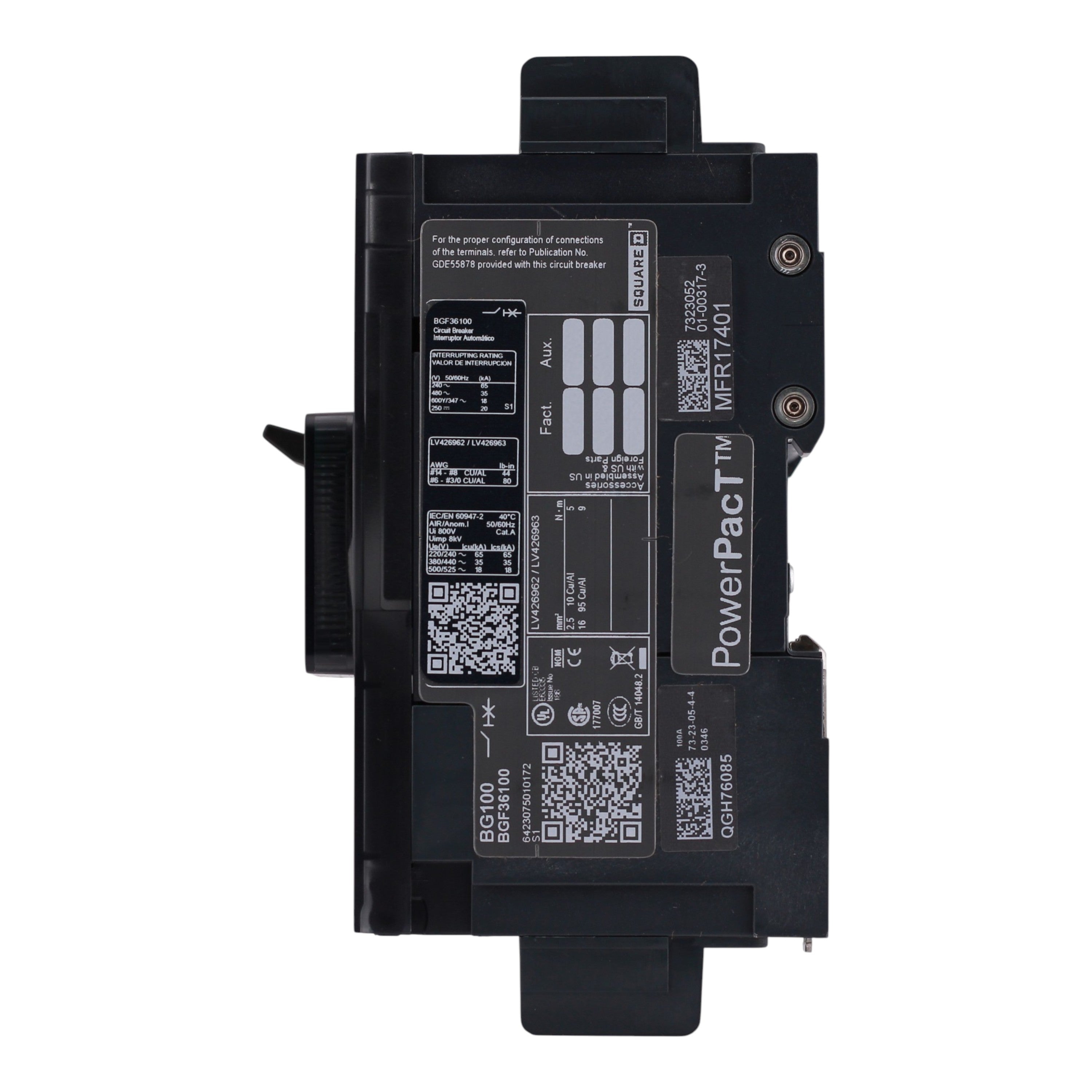

Square D BGF36100: 100 Amp, 3-Pole, thermal magnetic circuit breaker, 600Y/347V, 18kA, unit mount with terminal nuts, DIN rail or screw mounting, UL listed, CSA certified.
-
Manufacturer: Schneider Electric
-
Brand: Square D
-
Product Range: PowerPacT B-Frame (compact molded case circuit breakers for commercial/industrial applications)
-
UPC: 3606481149626
-
Model Number: BGF36100
-
Breaker Type: Standard thermal magnetic circuit breaker
-
Amperage: 100 Amps
-
Poles: 3-Pole
-
Voltage: 600Y/347 Volts AC, 525 Volts AC
-
Interrupt Rating: 18 kAIC at 600Y/347V AC; 65 kAIC at 208Y/120V AC, 240V AC; 35 kAIC at 480/277V AC, 480V AC
-

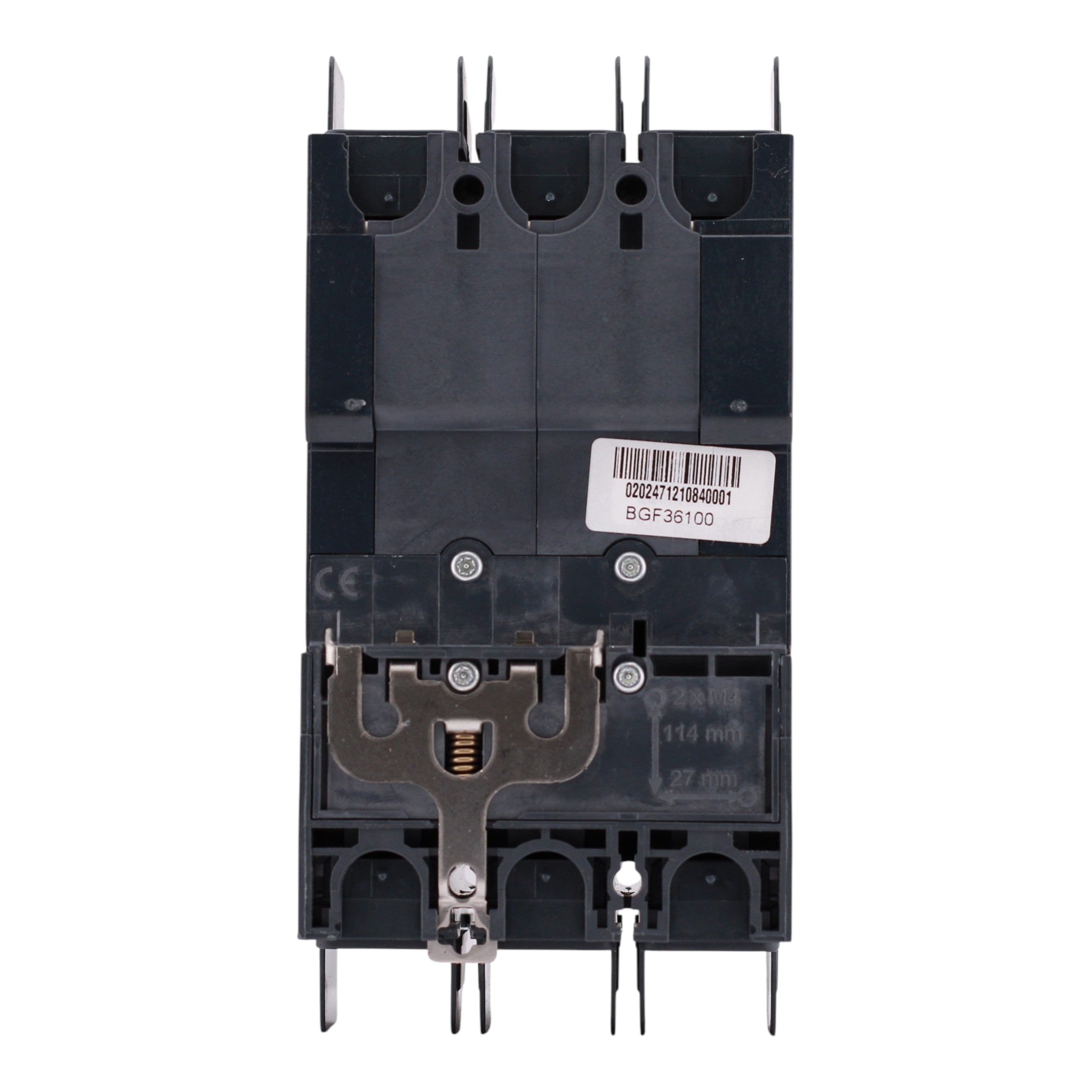

Mounting Mode: Unit mount (DIN rail clip-on 35mm or screw mounting)
-

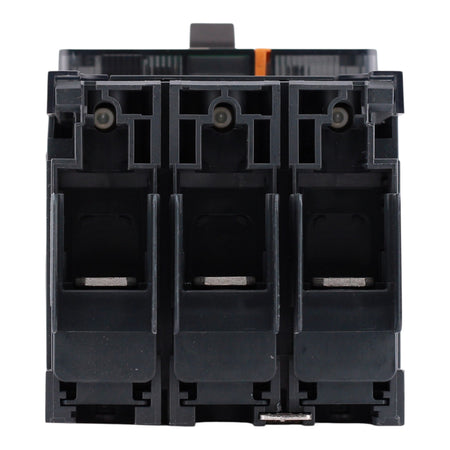

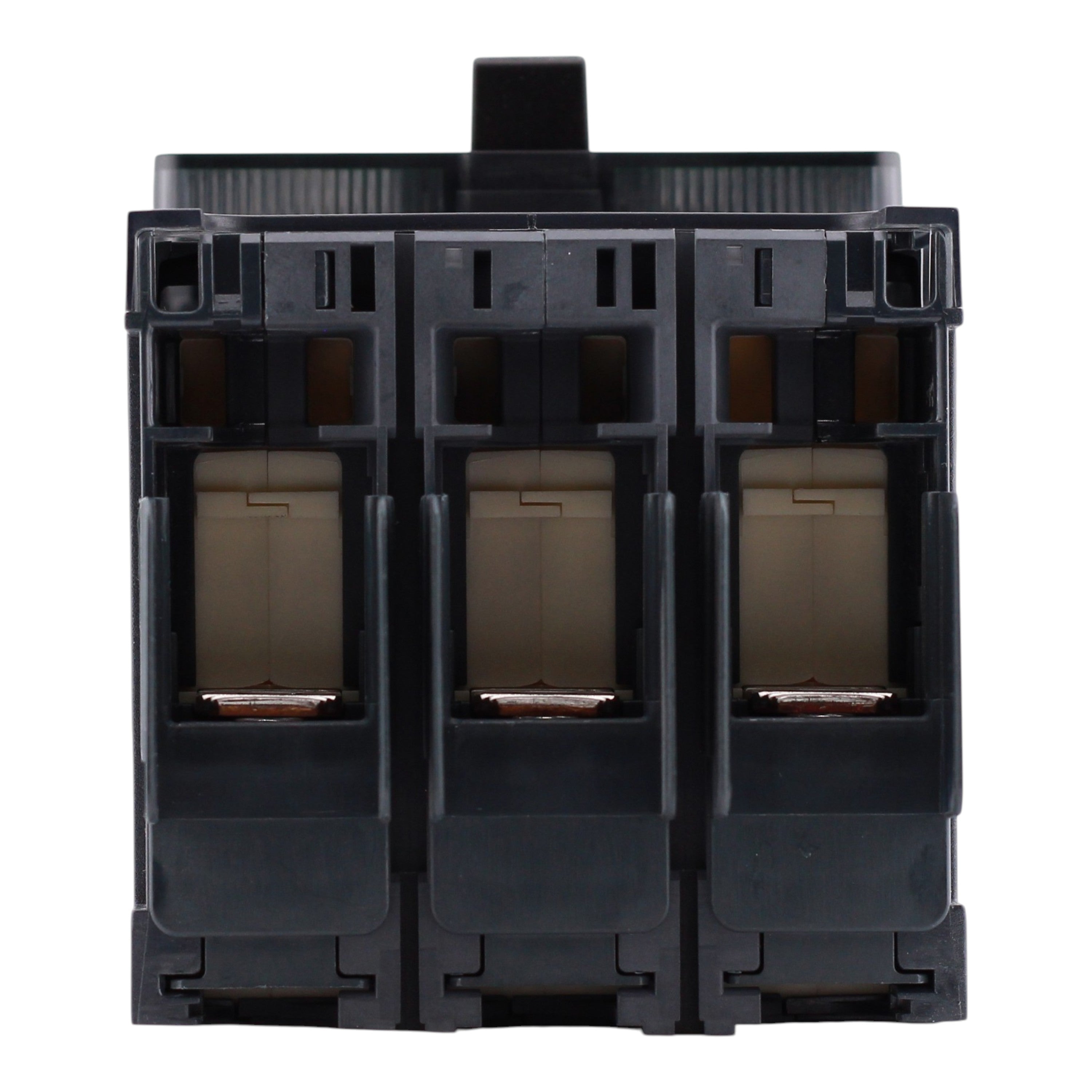

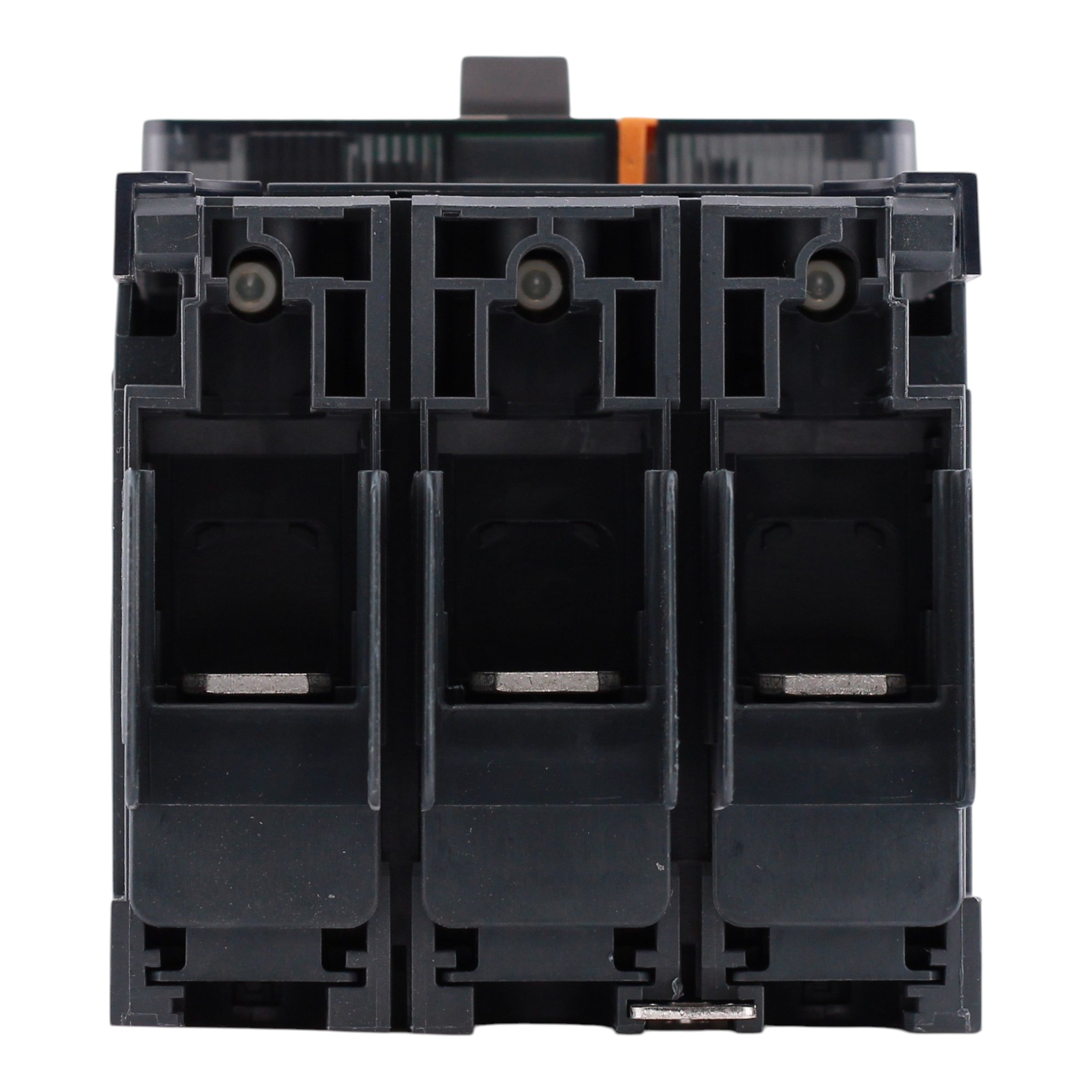

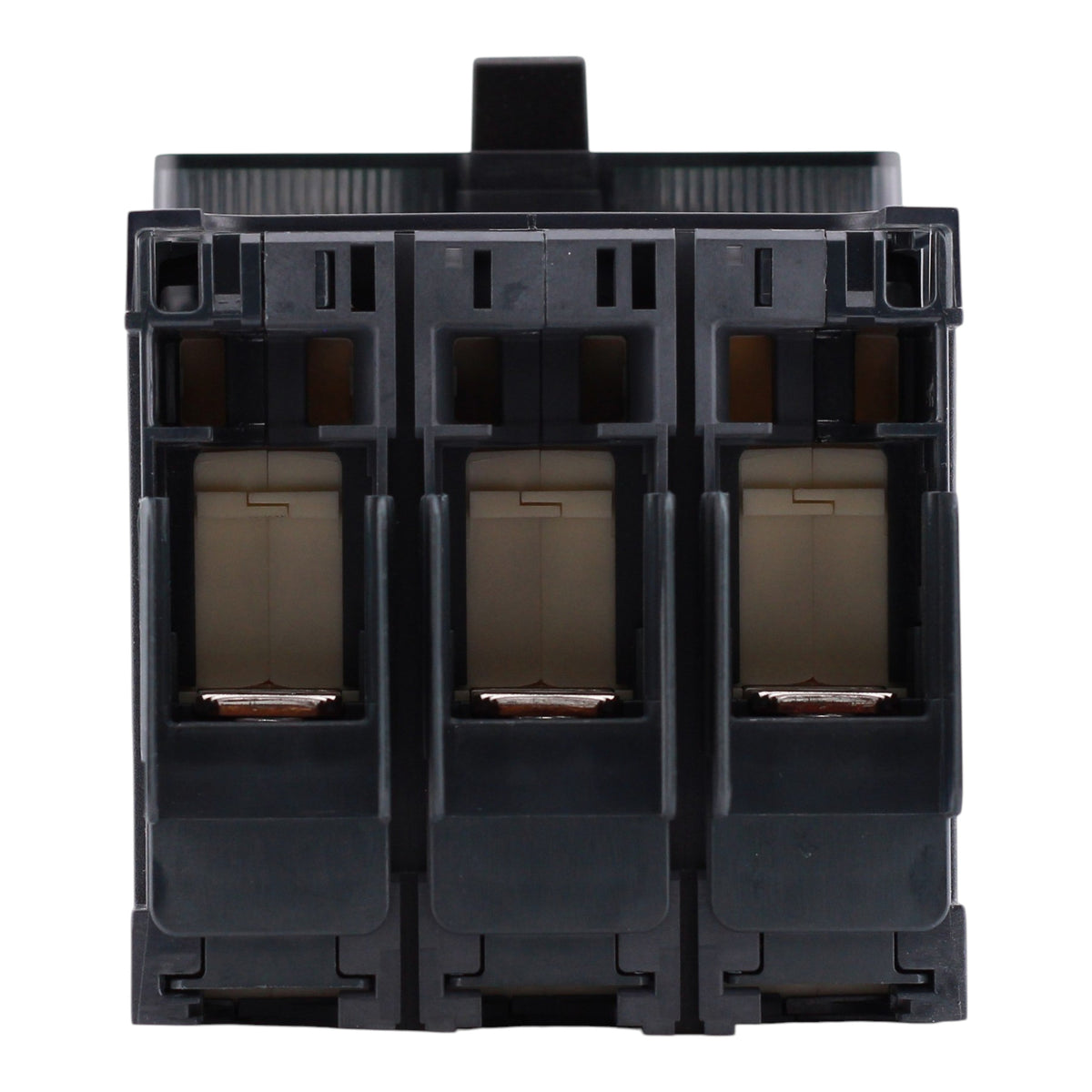

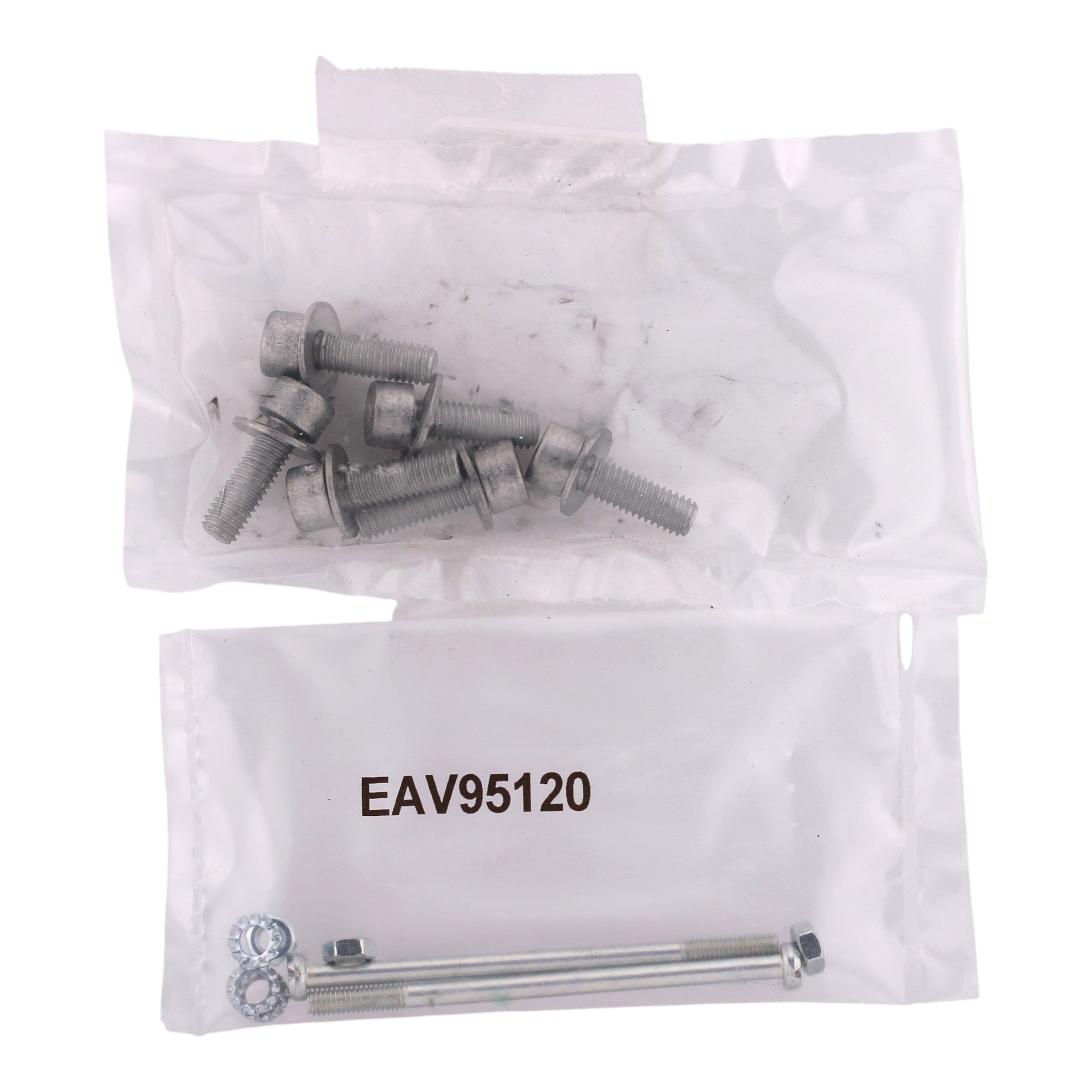

Connections Terminals: Terminal nut (both ends)
-
Wire Size: #14-8 AWG Cu/Al, #6-3/0 AWG Cu/Al
-
Tightening Torque: 44.3 lb-in (#14-4 AWG), 79.7 lb-in (#3-3/0 AWG)
-
Dimensions: Height: 5.4 in; Width: 3.2 in; Depth: 3.1 in
-
Weight: 2.037 lbs
-
Certifications: UL 489 Listed, CSA Certified, IEC Compliant, CE Marked, CCC, NOM, HACR Rated
-
Continuous Current Rating: 80%
-
Trip Unit: TM-D thermal magnetic
This Square D PowerPacT B-Frame BGF36100 unit mount circuit breaker delivers dependable 100 Amp, 3-Pole thermal magnetic protection for 600Y/347V circuits in commercial and industrial applications. Designed for flexible DIN rail or screw mounting with dual-break rotating contacts and 18kA interrupt rating, it supports distribution panels with integrated push-to-trip functionality.
