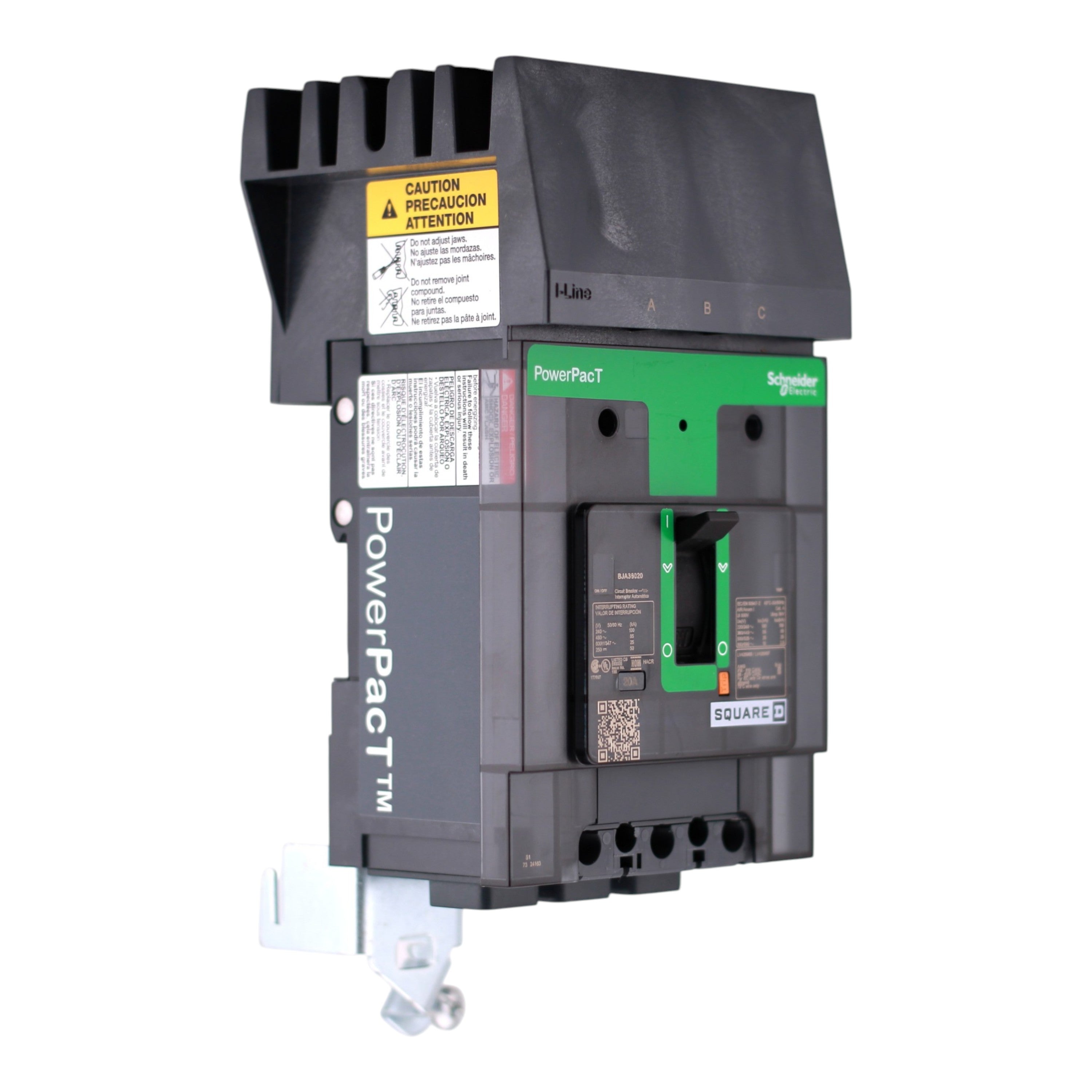

Square D PowerPacT B, BJA36020, 20A, 3P, 600Y/347V, 25kA, I-Line, Circuit Breaker

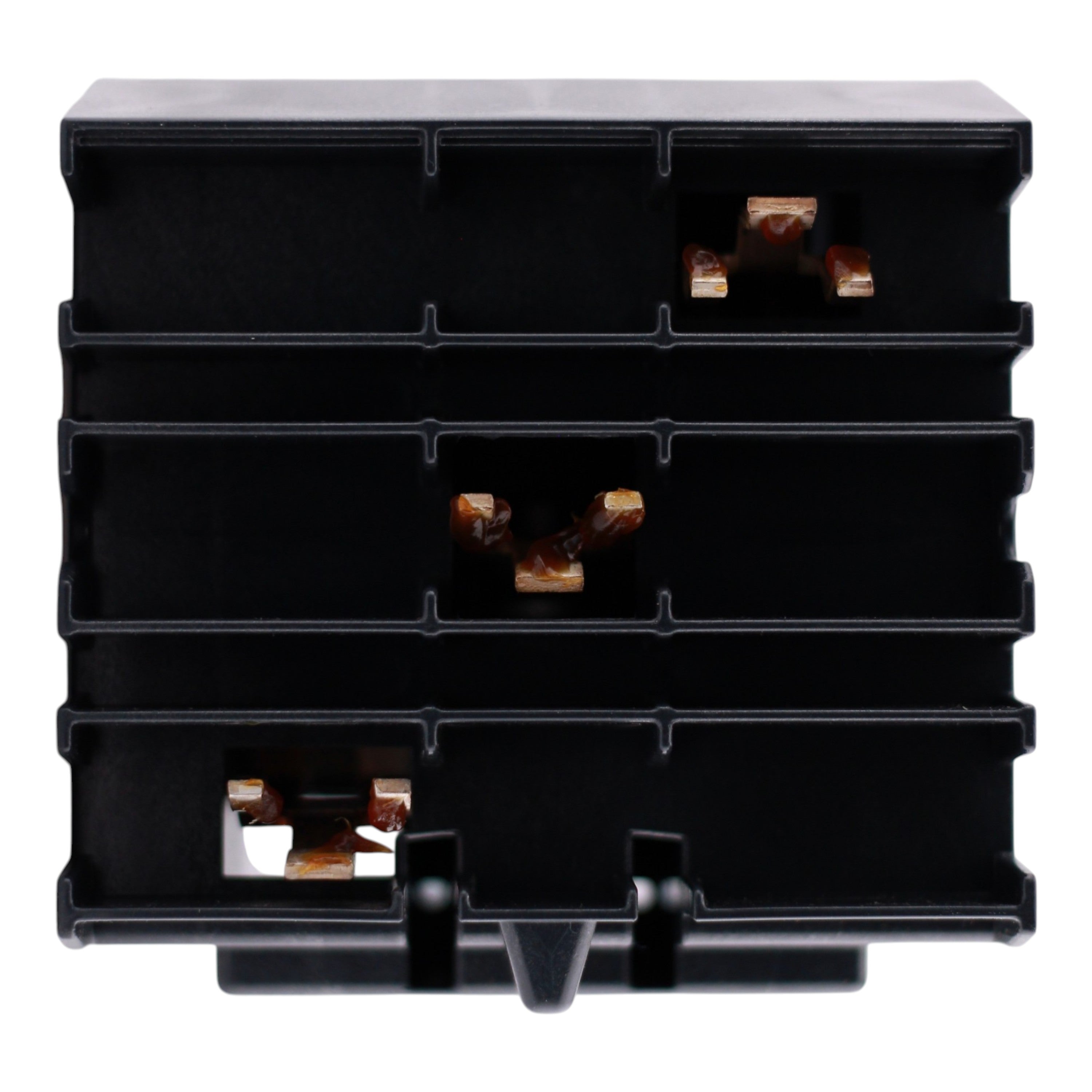

Square D PowerPacT B, BJA36020, 20A, 3P, 600Y/347V, 25kA, I-Line, Circuit Breaker - Image 2

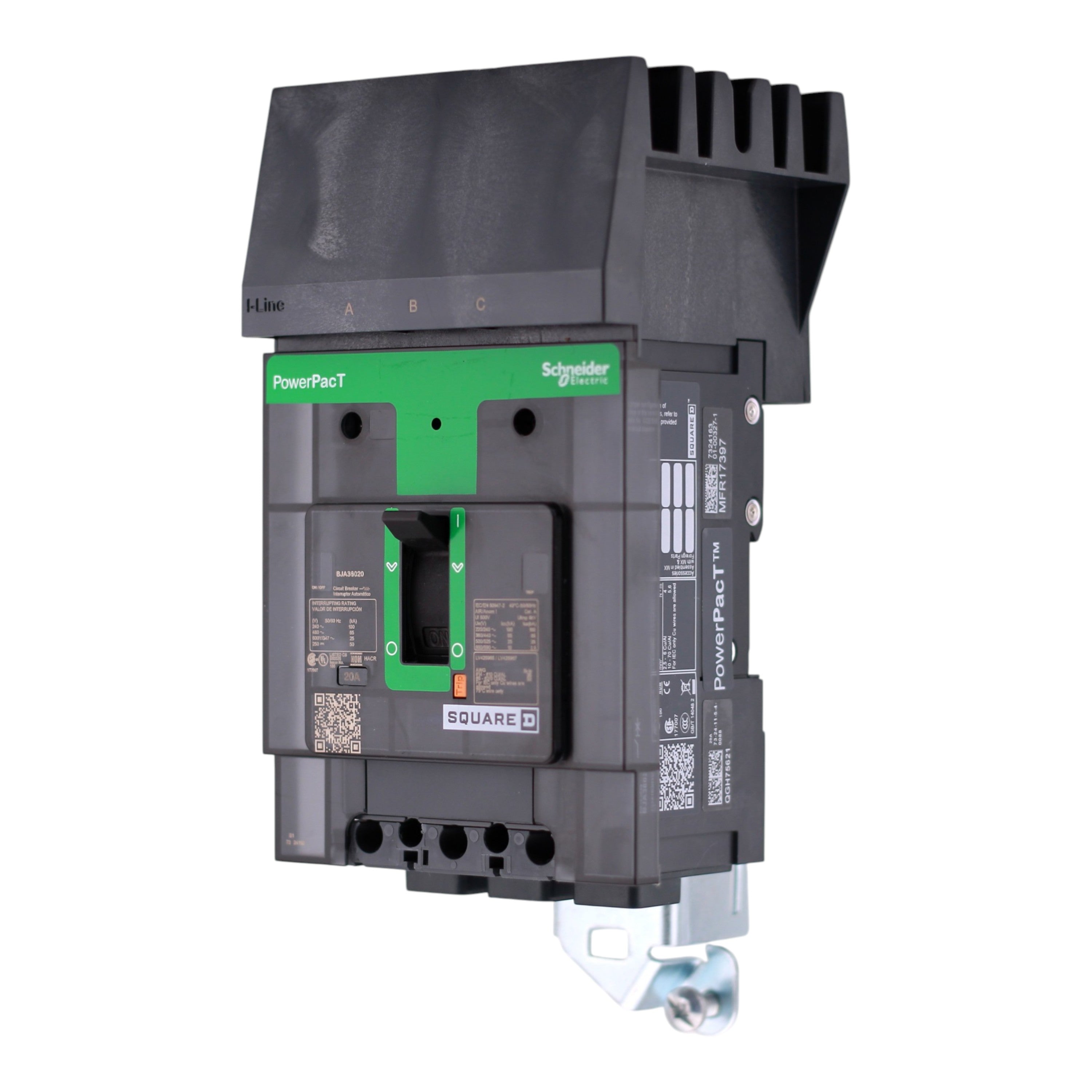

Square D PowerPacT B, BJA36020, 20A, 3P, 600Y/347V, 25kA, I-Line, Circuit Breaker - Image 3

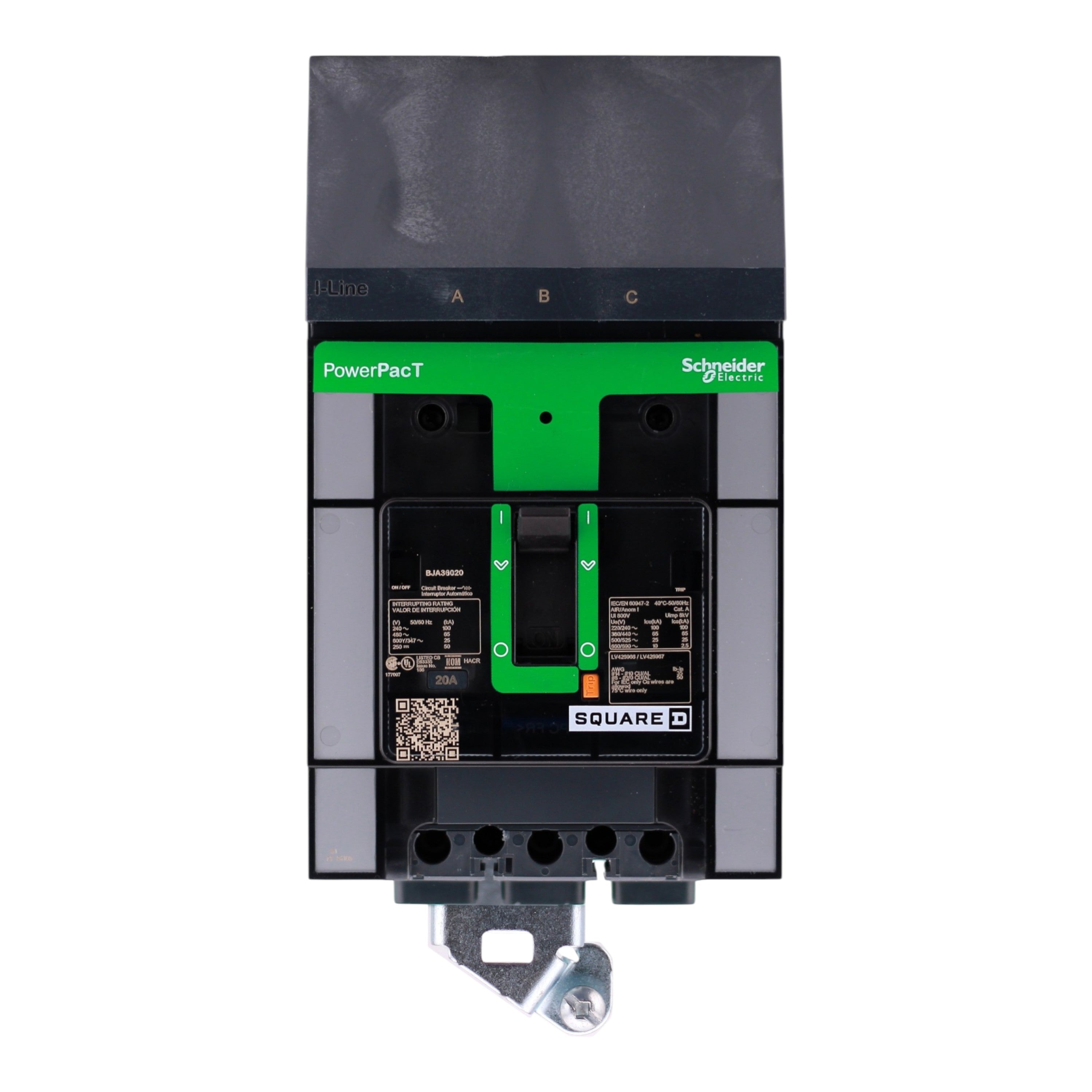

Square D PowerPacT B, BJA36020, 20A, 3P, 600Y/347V, 25kA, I-Line, Circuit Breaker - Image 4

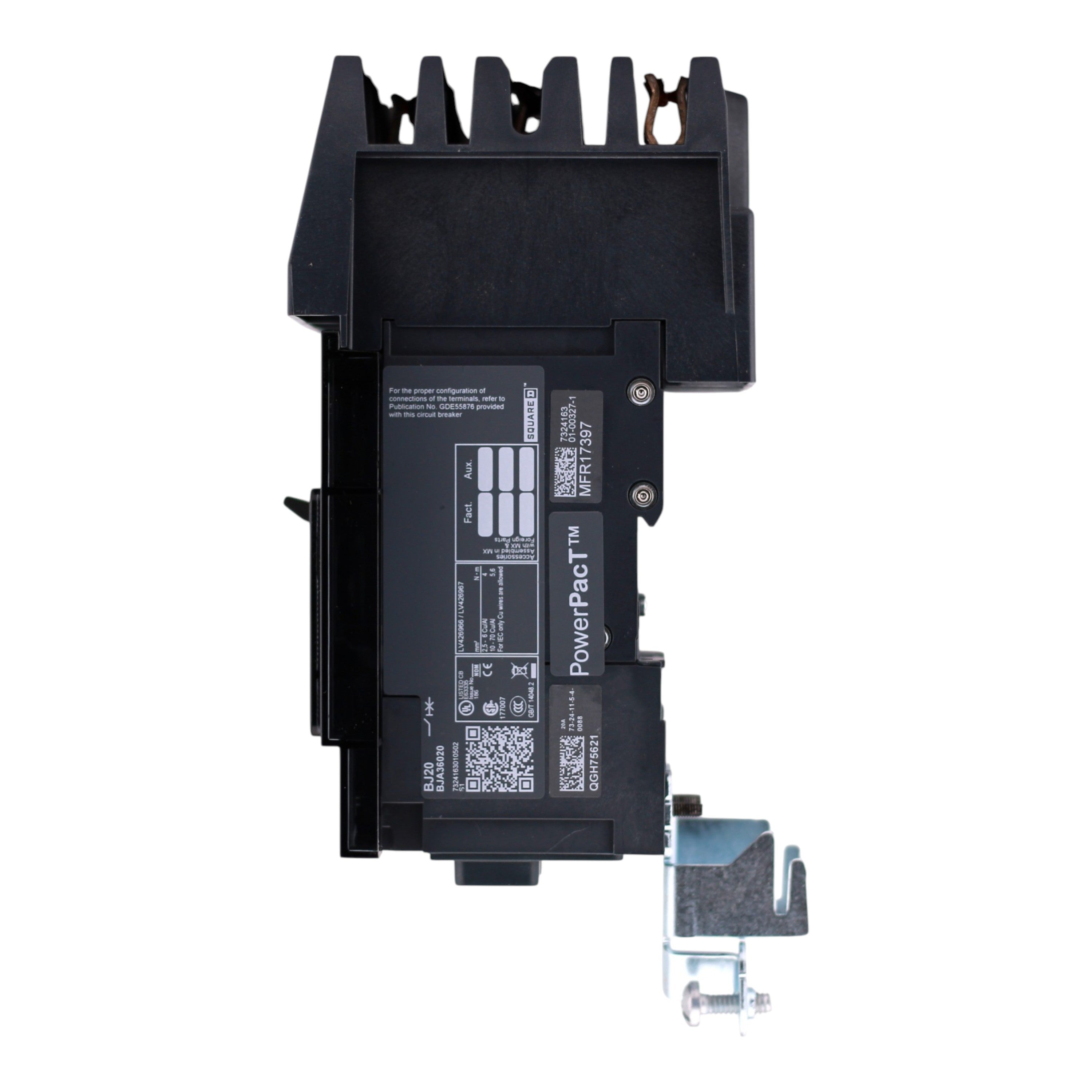

Square D PowerPacT B, BJA36020, 20A, 3P, 600Y/347V, 25kA, I-Line, Circuit Breaker - Image 5

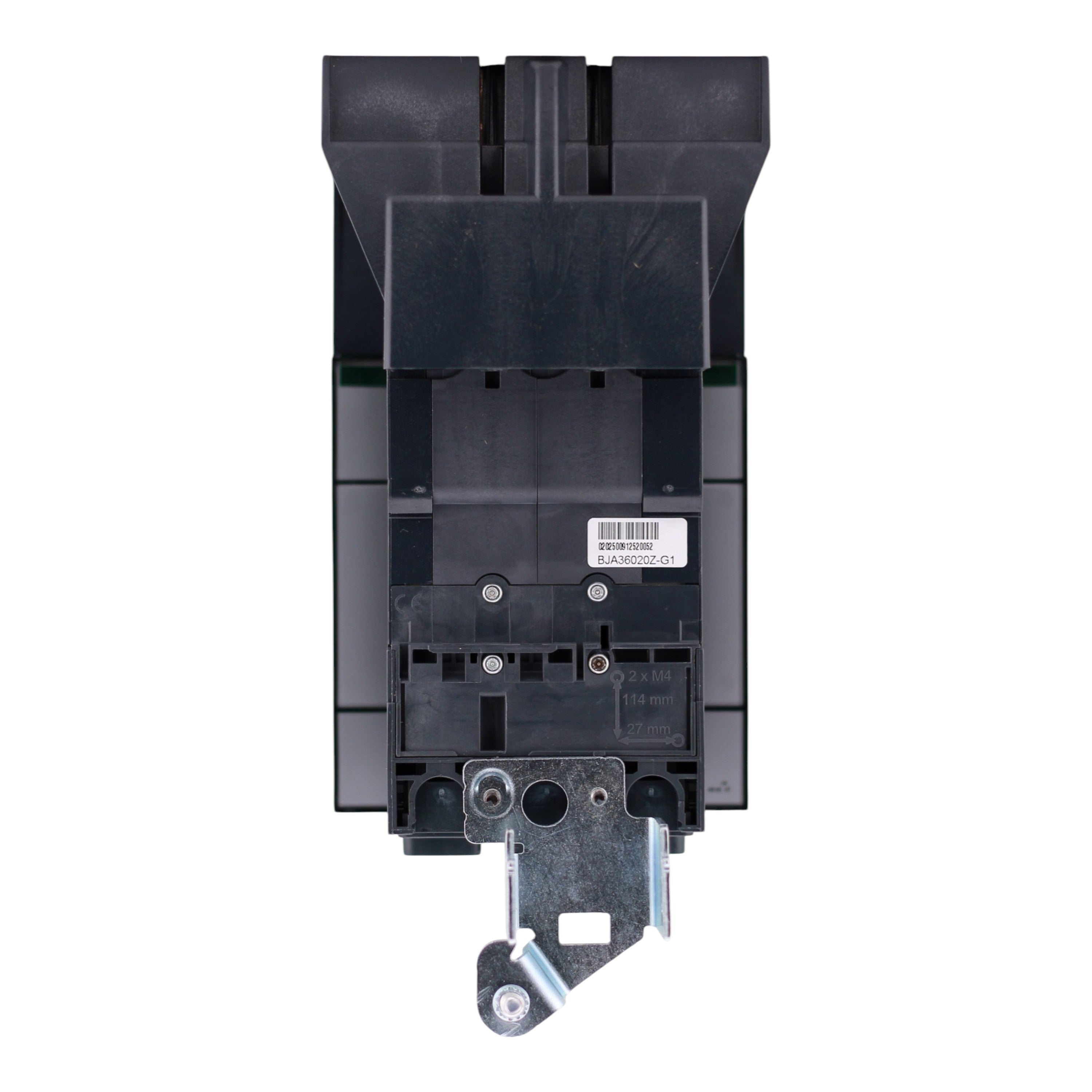

Square D PowerPacT B, BJA36020, 20A, 3P, 600Y/347V, 25kA, I-Line, Circuit Breaker - Image 6

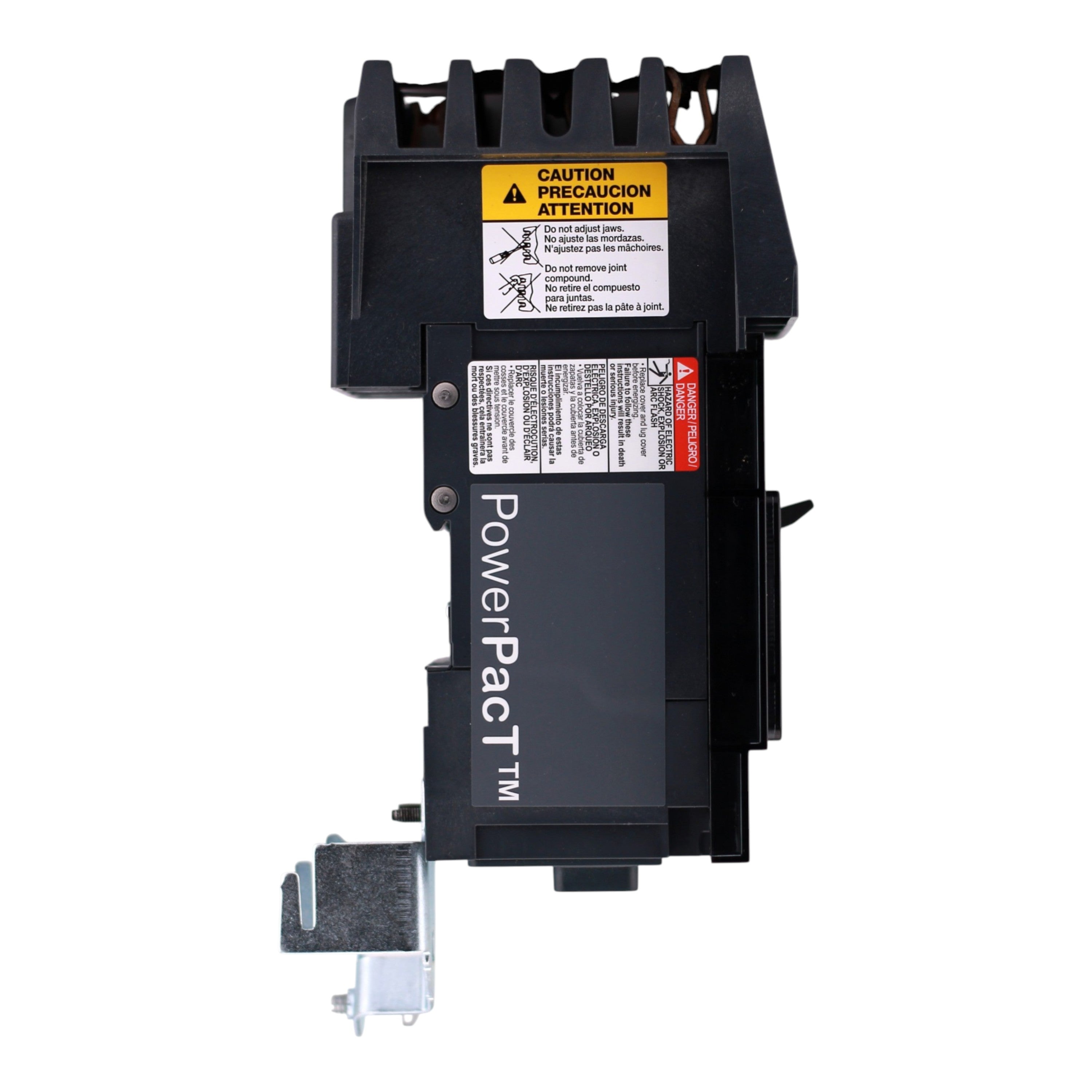

Square D PowerPacT B, BJA36020, 20A, 3P, 600Y/347V, 25kA, I-Line, Circuit Breaker - Image 7

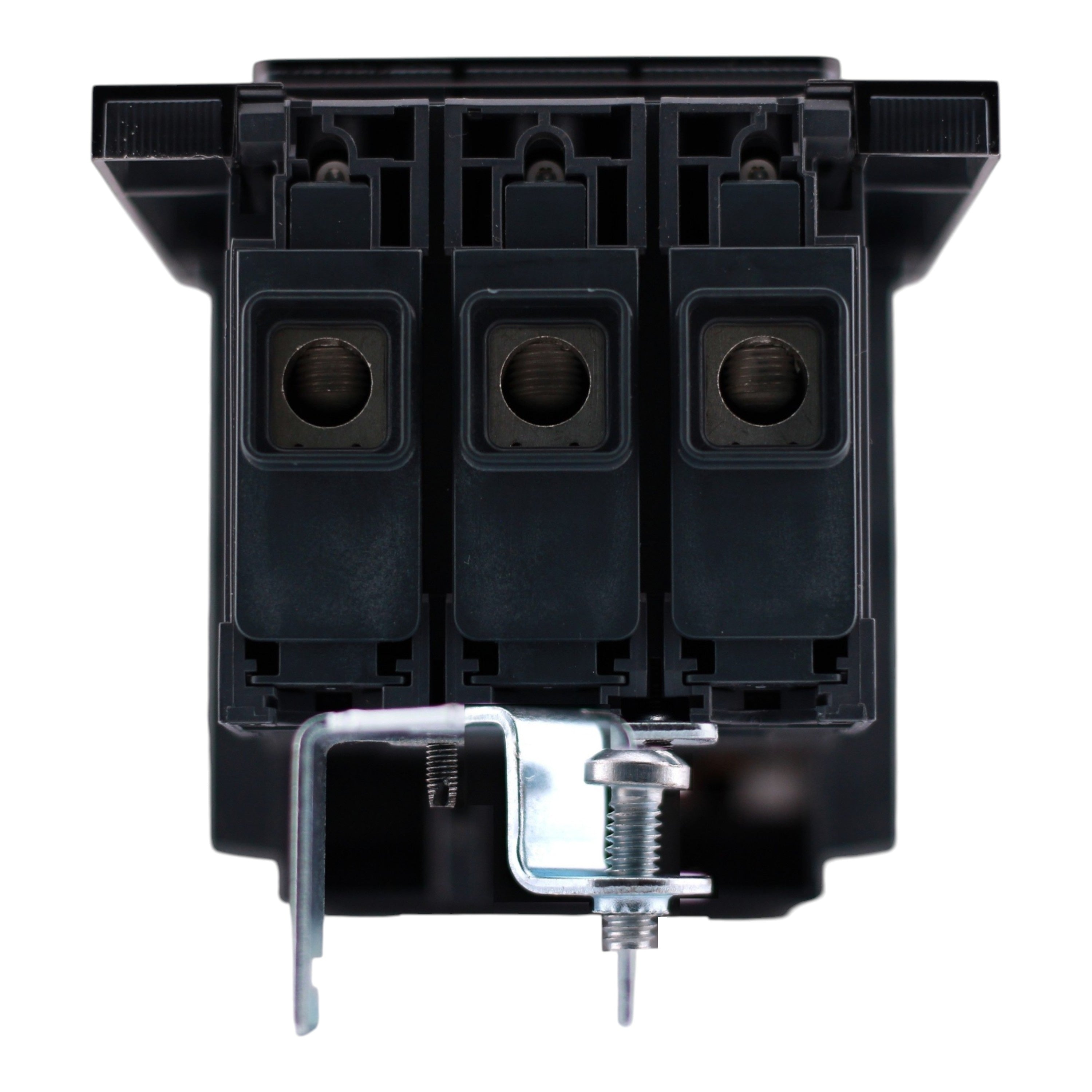

Square D PowerPacT B, BJA36020, 20A, 3P, 600Y/347V, 25kA, I-Line, Circuit Breaker - Image 8
Square D PowerPacT B, BJA36020, 20A, 3P, 600Y/347V, 25kA, I-Line, Circuit Breaker
Square D PowerPacT B, BJA36020, 20A, 3P, 600Y/347V, 25kA, I-Line, Circuit Breaker - Image 2
Square D PowerPacT B, BJA36020, 20A, 3P, 600Y/347V, 25kA, I-Line, Circuit Breaker - Image 3
Square D PowerPacT B, BJA36020, 20A, 3P, 600Y/347V, 25kA, I-Line, Circuit Breaker - Image 4
Square D PowerPacT B, BJA36020, 20A, 3P, 600Y/347V, 25kA, I-Line, Circuit Breaker - Image 5
Square D PowerPacT B, BJA36020, 20A, 3P, 600Y/347V, 25kA, I-Line, Circuit Breaker - Image 6
Square D PowerPacT B, BJA36020, 20A, 3P, 600Y/347V, 25kA, I-Line, Circuit Breaker - Image 7
Square D PowerPacT B, BJA36020, 20A, 3P, 600Y/347V, 25kA, I-Line, Circuit Breaker - Image 8

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Square D

Square D PowerPacT B, BJA36020, 20A, 3P, 600Y/347V, 25kA, I-Line, Circuit Breaker

Out of stock
SKU: BJA36020 UPC: 606481154241
(0)
$325.00
-62% $845.00 $325.00
Out of stock
Condition

Square D BJA36020: 20 Amp, 3-Pole, PowerPacT B Thermal Magnetic Circuit Breaker, 600Y/347V, 25kA, I-Line, 80%, HACR, UL 489, CSA listed.

  • Manufacturer: Schneider Electric
  • Brand: Square D (Schneider Electric)
  • Product Range: PowerPacT B-Frame (for I-Line panelboards and distribution equipment)
  • UPC: 606481154248
  • Model Number: BJA36020
  • Breaker Type: Thermal Magnetic Molded Case Circuit Breaker
  • Amperage: 20 Amps
  • Poles: 3-Pole
  • Voltage: 600Y/347 Volts AC (rated); also rated 480/277V AC, 240V AC, 208Y/120V AC
  • Interrupt Rating: 25 kAIC @ 600Y/347V; 65 kAIC @ 480/277V; 100 kAIC @ 240V and 208Y/120V (UL 489)
  • Mounting Mode: I-Line (plug-on jaw, line side); mechanical lugs, load side
  • Trip Type: Non-Interchangeable (LI — Long-Time and Instantaneous)
  • Continuous Current Rating: 80%
  • Wire Size: #14–2/0 AWG Cu/Al
  • Tightening Torque: 31.9–38.9 lb-in (#14–10 AWG); 44.3–54.9 lb-in (#8–2/0 AWG)
  • Dimensions: Height: 5.4 in; Width: 3.2 in; Depth: 3.5 in
  • Weight: 2.899 lbs
  • Certifications: UL 489, CSA C22.2 No. 5, IEC 60947-2, NOM, CCC, CE Marked, HACR Rated

This Square D BJA36020 I-Line thermal magnetic circuit breaker delivers dependable 20 Amp, 3-Pole protection for 600Y/347V circuits in PowerPacT B-Frame I-Line panelboards. With multi-voltage interrupt ratings up to 100 kAIC, 80% continuous current rating, and a broad wire range, it supports commercial and industrial distribution applications.
