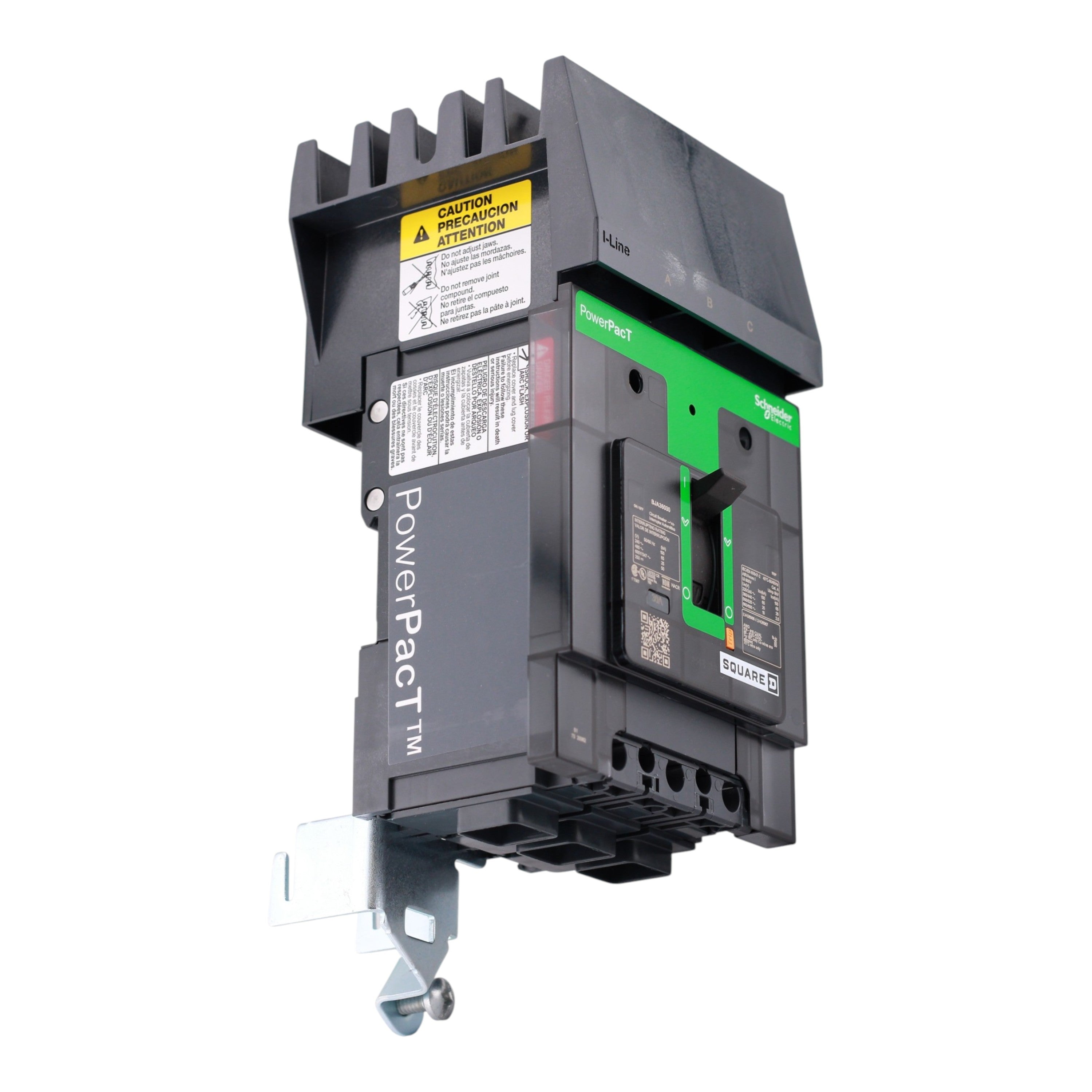

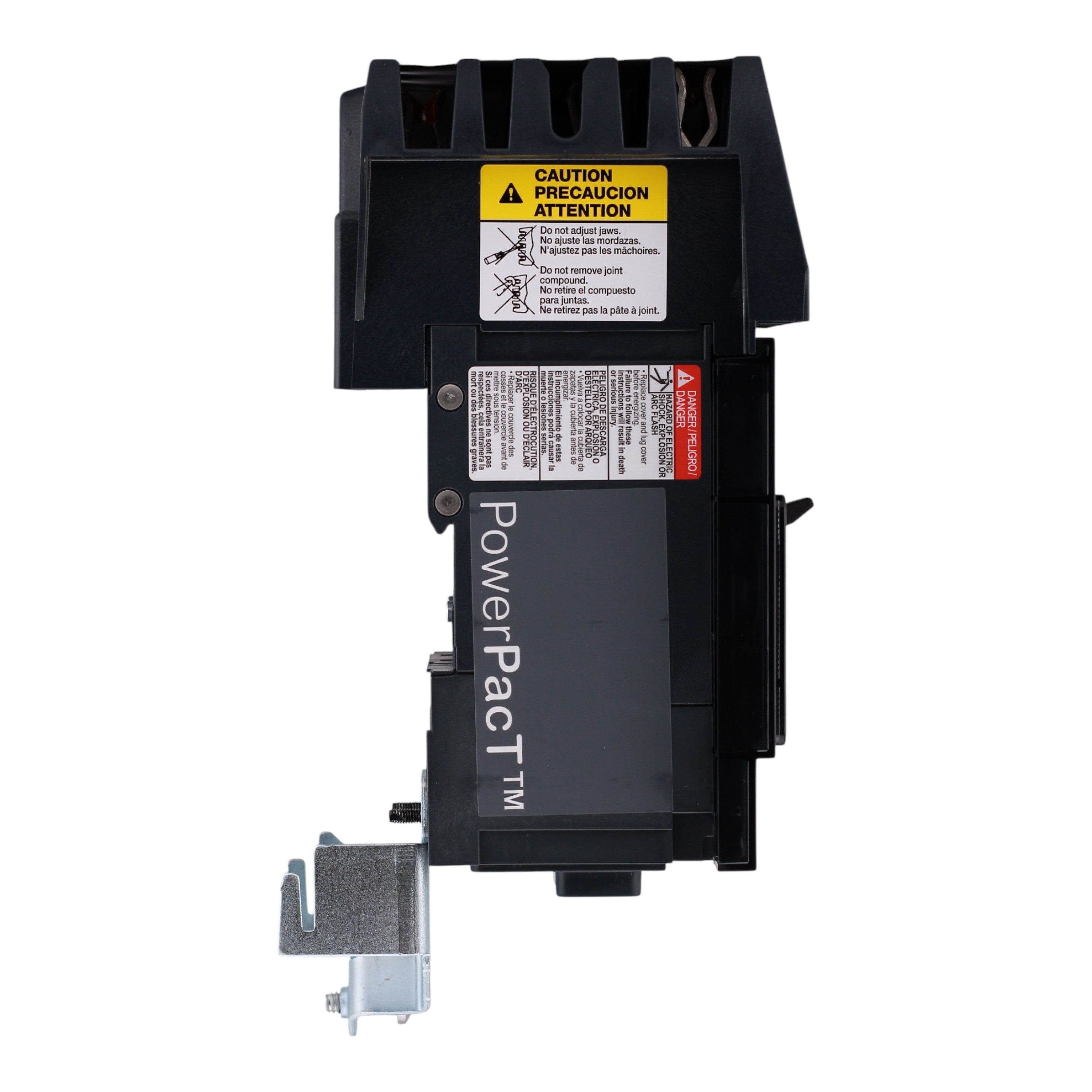

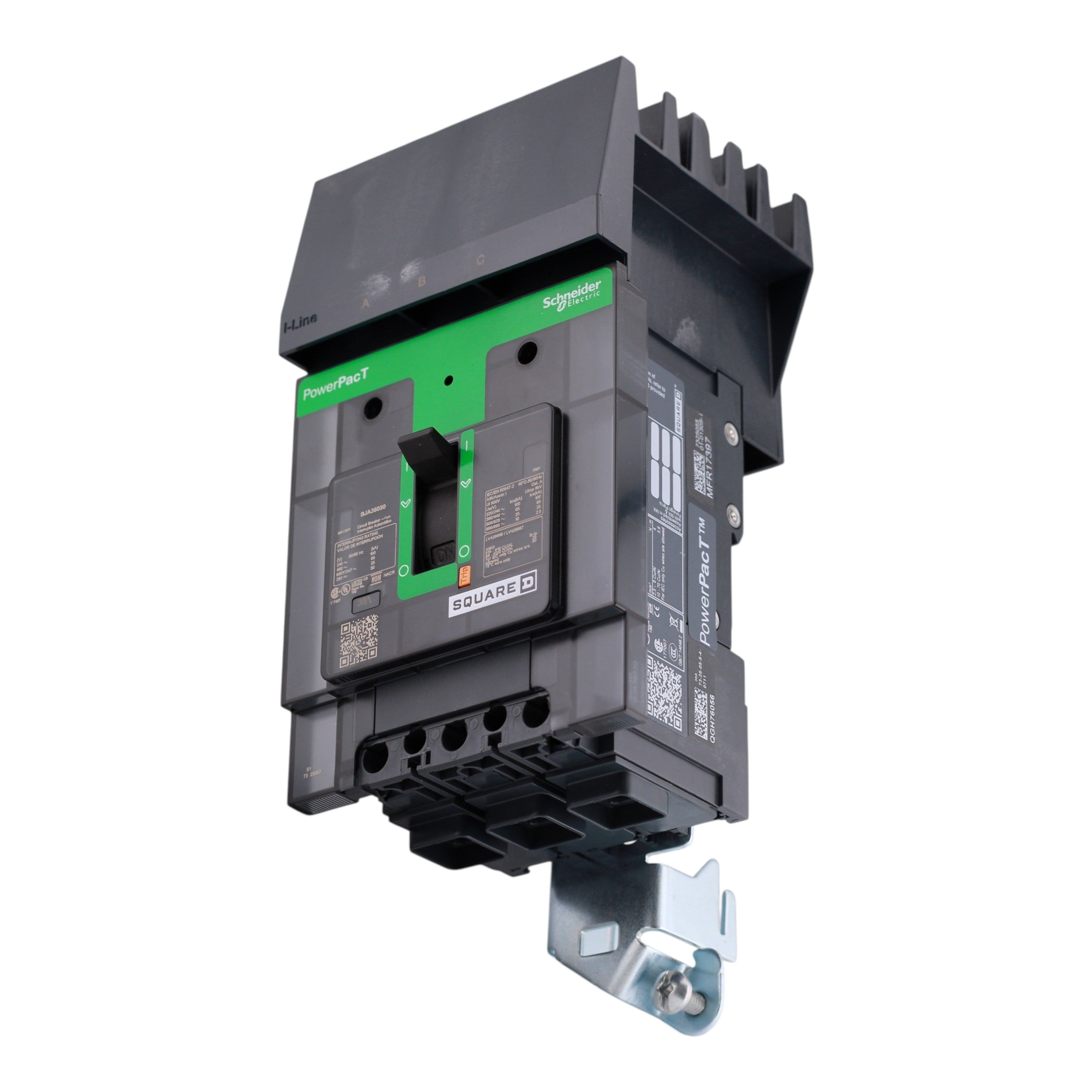

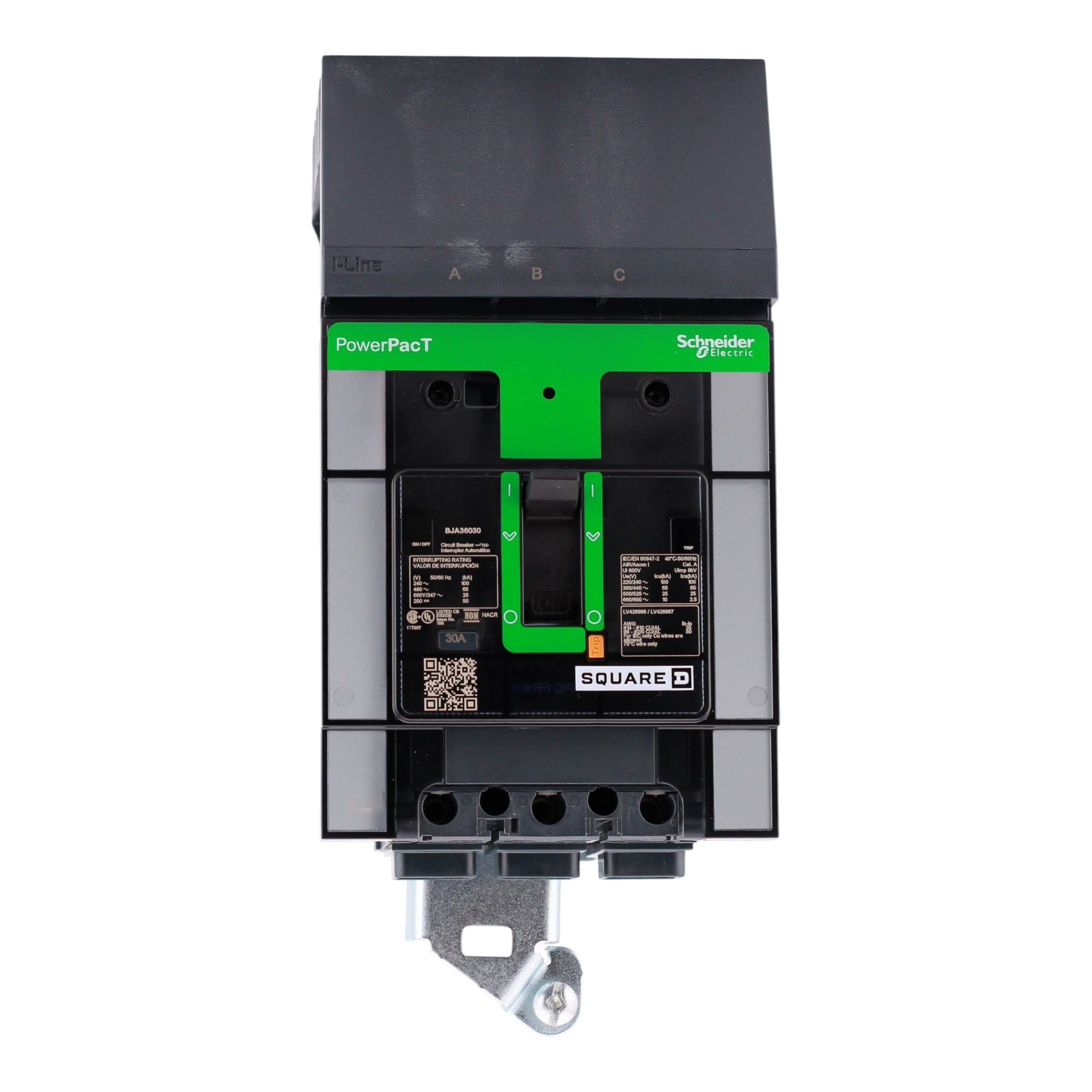

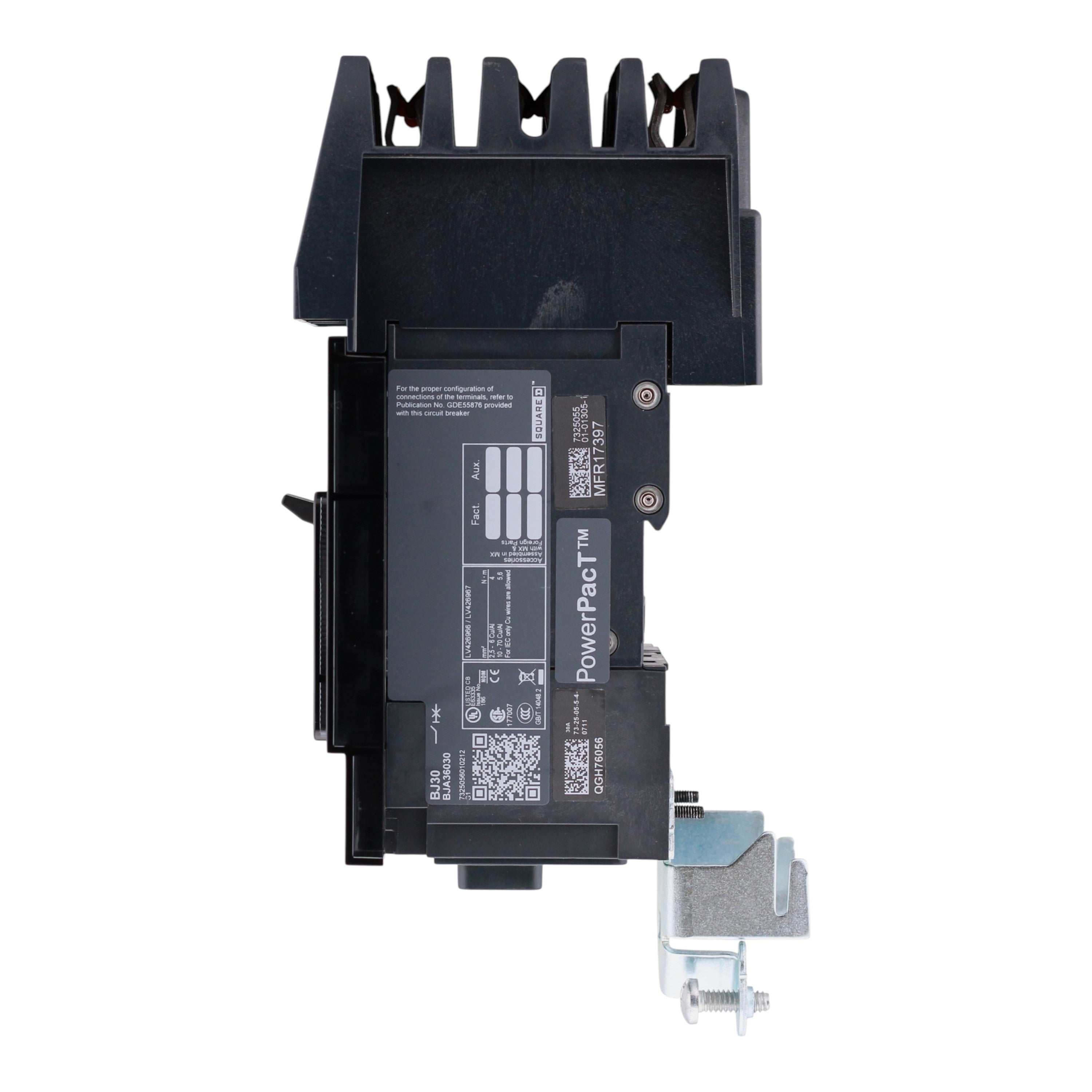

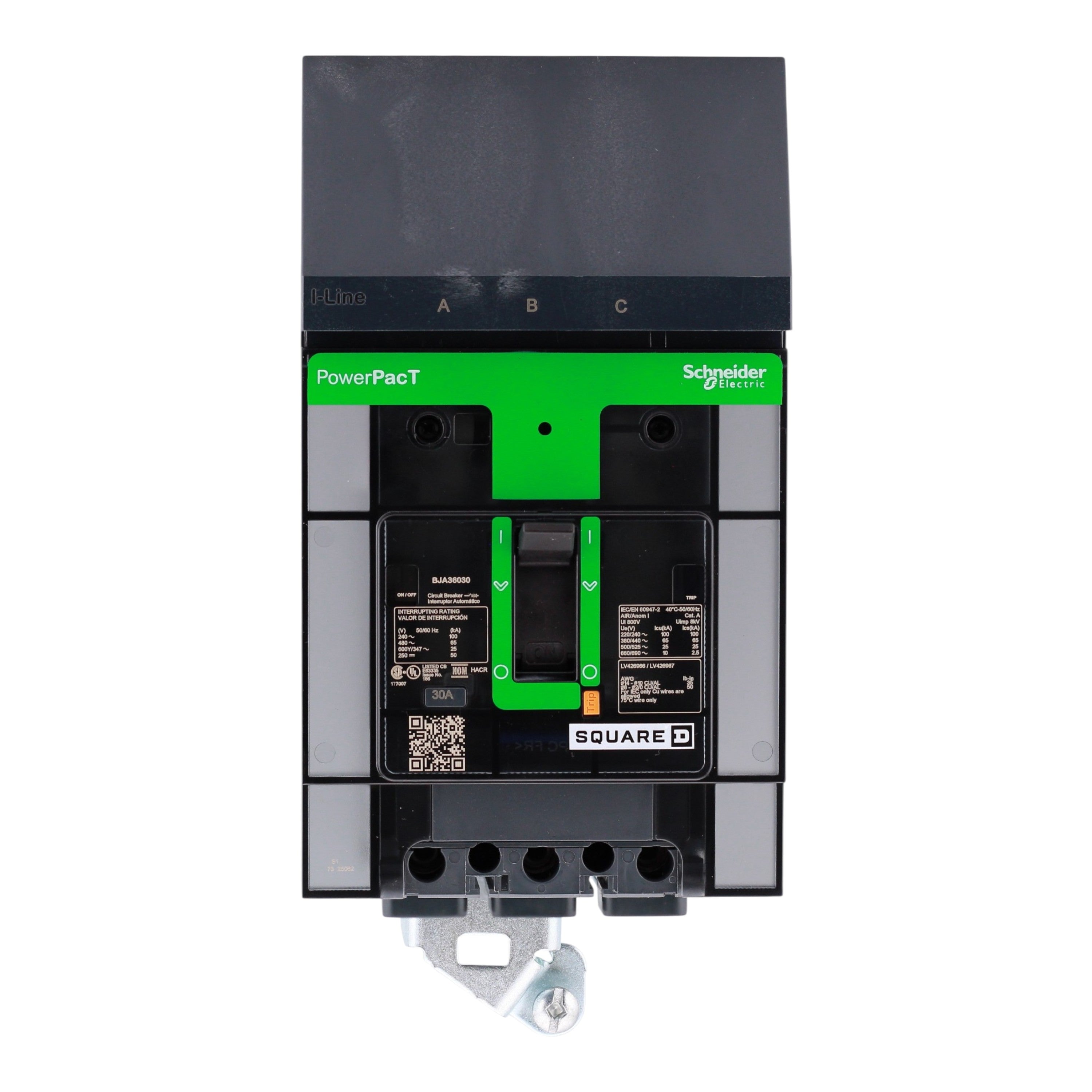

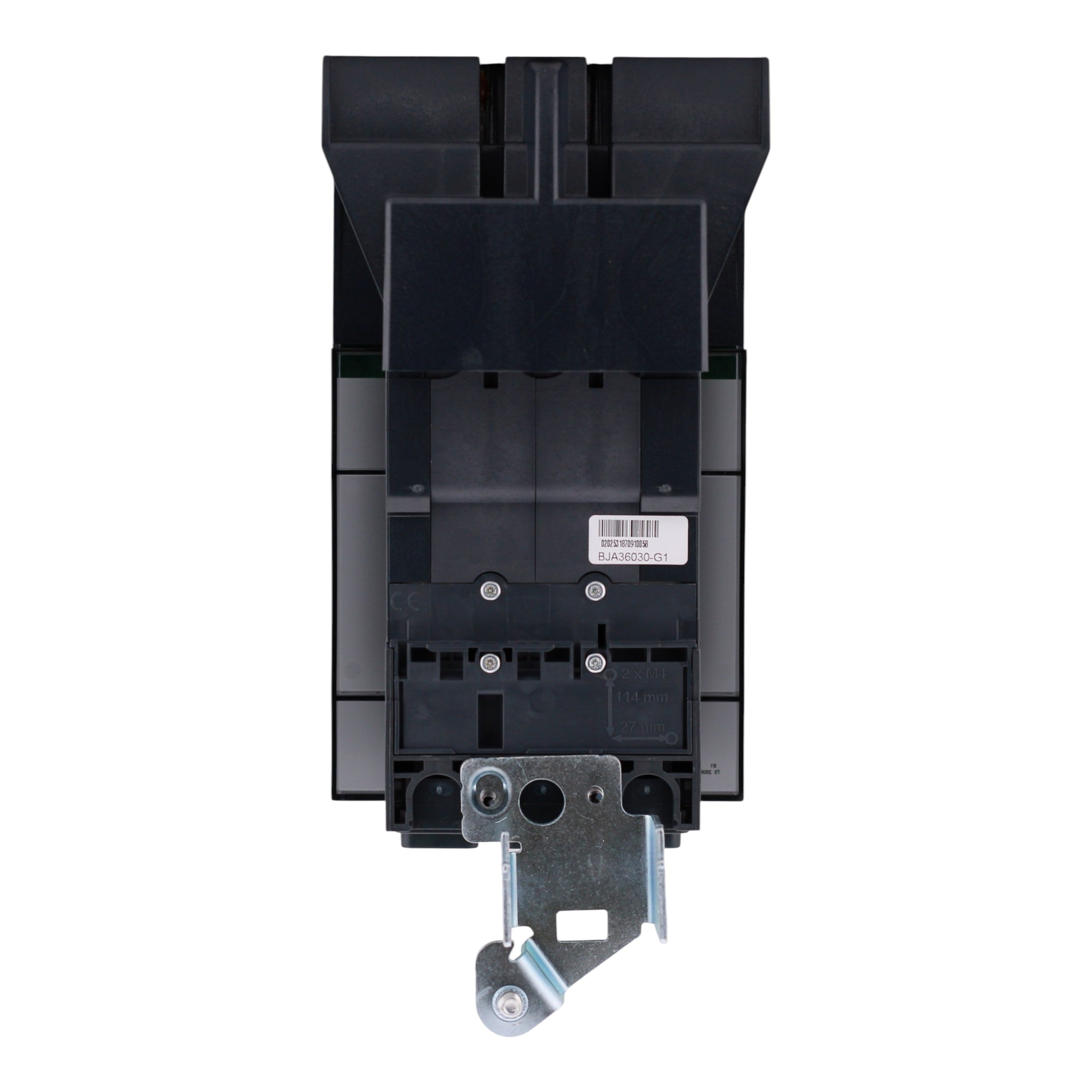

Square D BJA36030: 30 Amp, 3-Pole, thermal magnetic circuit breaker, 600Y/347V, 25kA, I-Line connection with mechanical lugs, ABC phase, UL listed, CSA certified.
-
Manufacturer: Schneider Electric
-
Brand: Square D
-
Product Range: PowerPacT B-Frame (compact molded case circuit breakers for commercial/industrial I-Line panelboards)
-
UPC: 3606481154309
-
Model Number: BJA36030
-
Breaker Type: Standard thermal magnetic circuit breaker
-
Amperage: 30 Amps
-
Poles: 3-Pole
-
Voltage: 600Y/347 Volts AC, 690 Volts AC
-
Interrupt Rating: 25 kAIC at 600Y/347V AC; 100 kAIC at 208Y/120V AC, 240V AC; 65 kAIC at 480/277V AC, 480V AC
-
Mounting Mode: I-Line
-

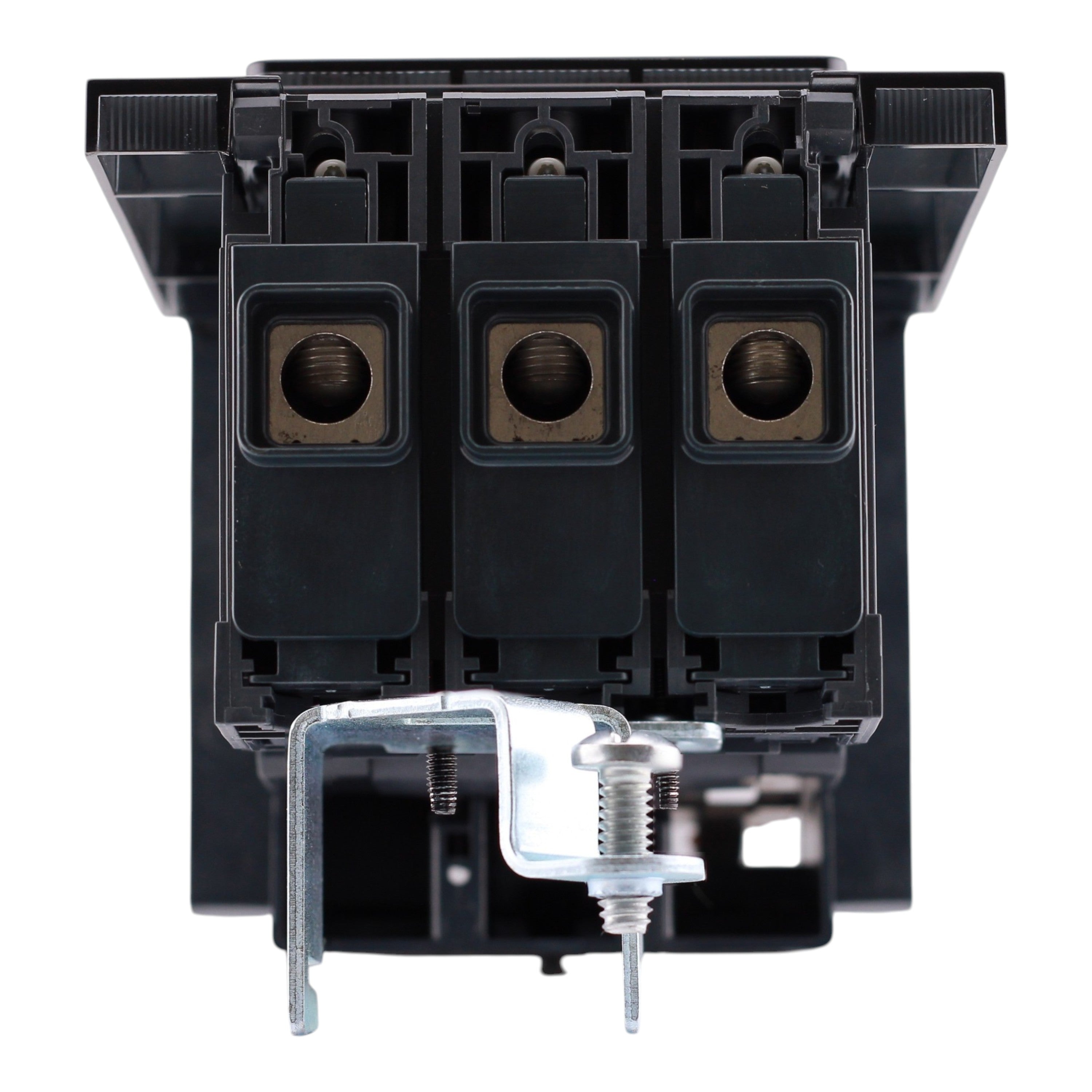

Connections Terminals: I-Line connection (line side), mechanical lugs (load side)
-
Wire Size: #14-2/0 AWG Cu/Al
-
Tightening Torque: 31.9-38.9 lb-in (#14-10 AWG), 44.3-54.9 lb-in (#8-2/0 AWG)
-
Dimensions: Height: 5.4 in; Width: 3.2 in; Depth: 3.5 in; Mounting Height: 4.5 in
-
Weight: 2.899 lbs
-
Certifications: UL 489 Listed, CSA Certified, IEC Compliant, CE Marked, CCC, NOM, HACR Rated
-
Continuous Current Rating: 80%
-
Phase Connection: ABC

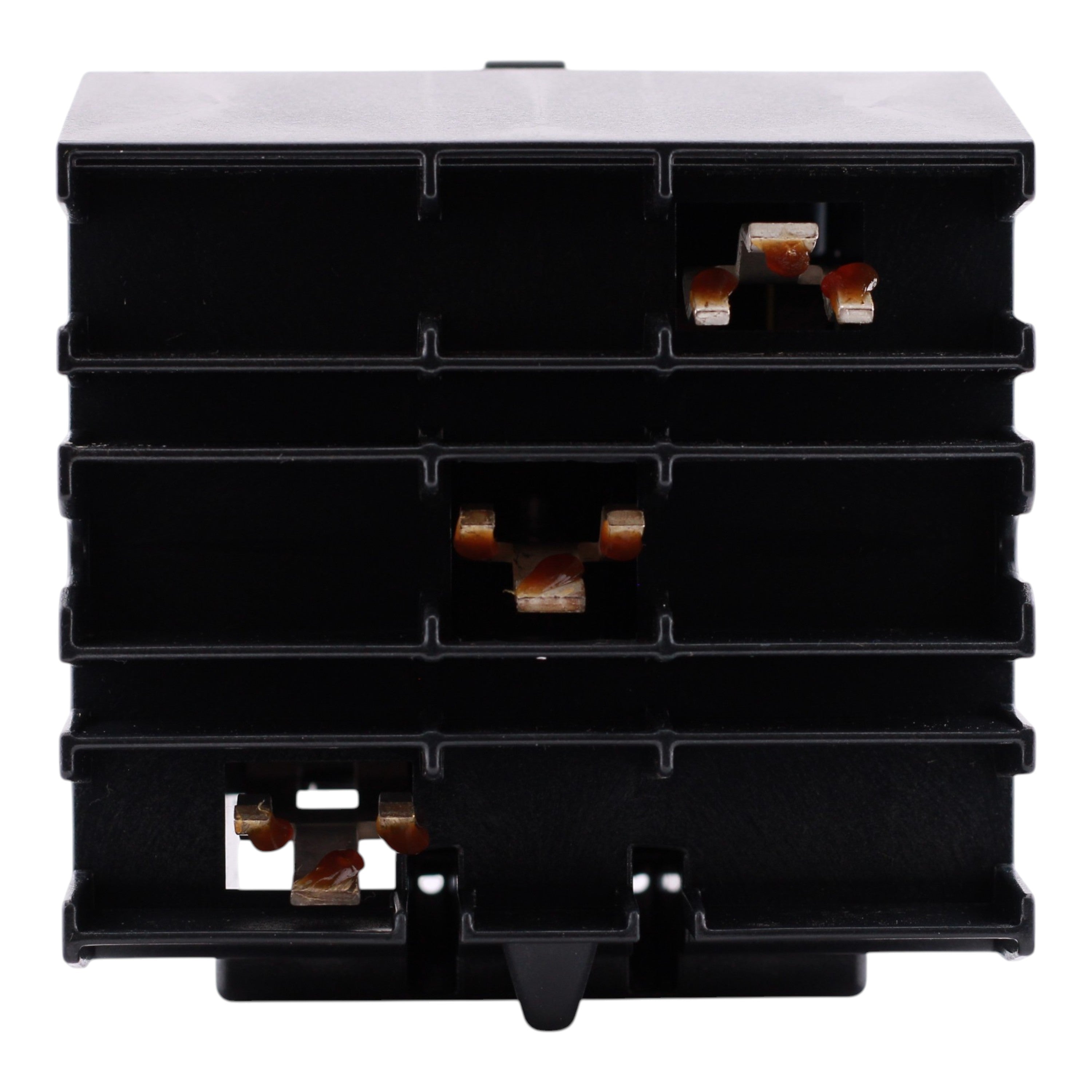

This Square D PowerPacT B-Frame BJA36030 I-Line circuit breaker delivers dependable 30 Amp, 3-Pole thermal magnetic protection for 600Y/347V circuits in commercial and industrial I-Line panelboards. Designed with shrouded I-Line plug-on jaw connections, dual-break rotating contacts, and 25kA interrupt rating, it supports distribution applications with integrated push-to-trip functionality and ABC phase configuration.
