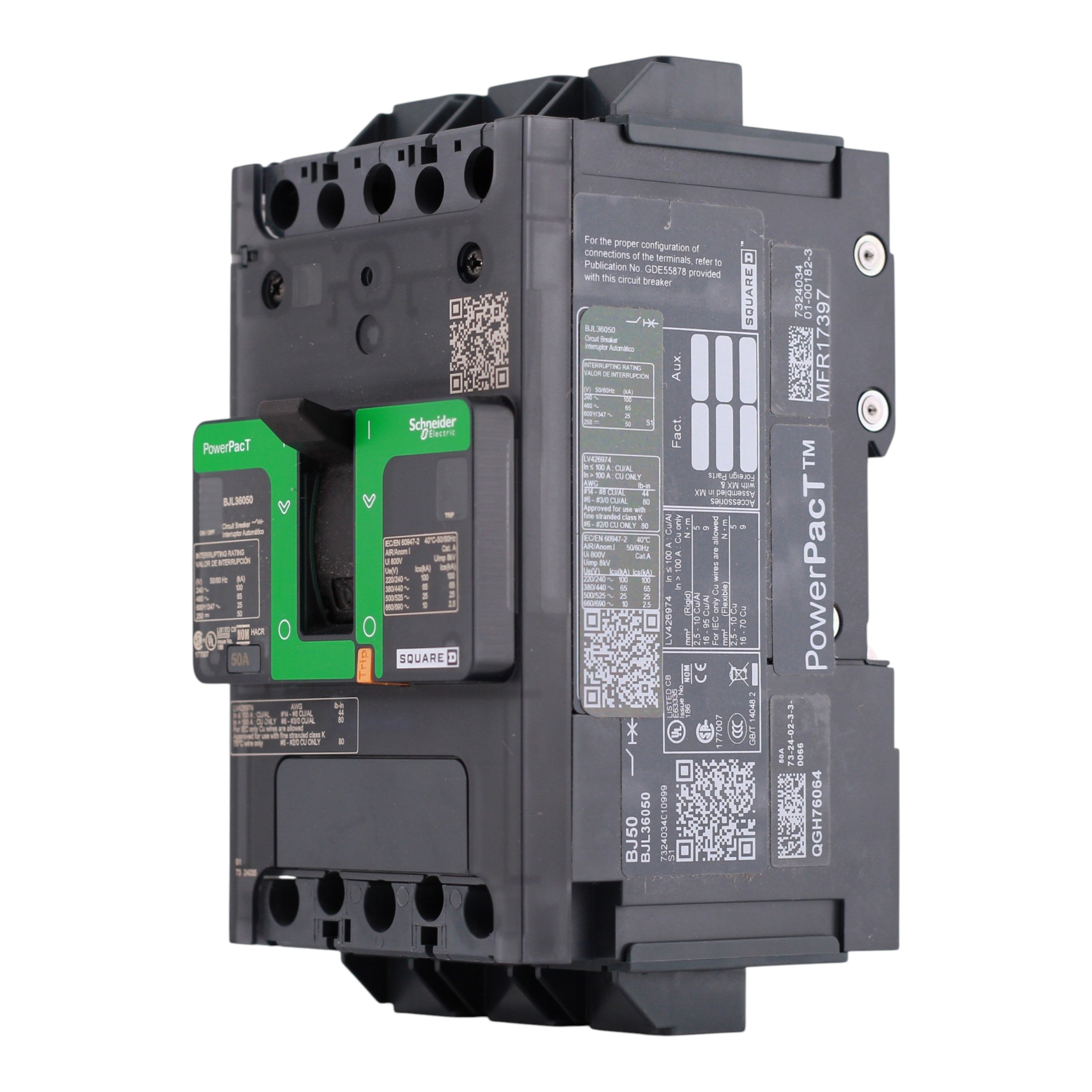

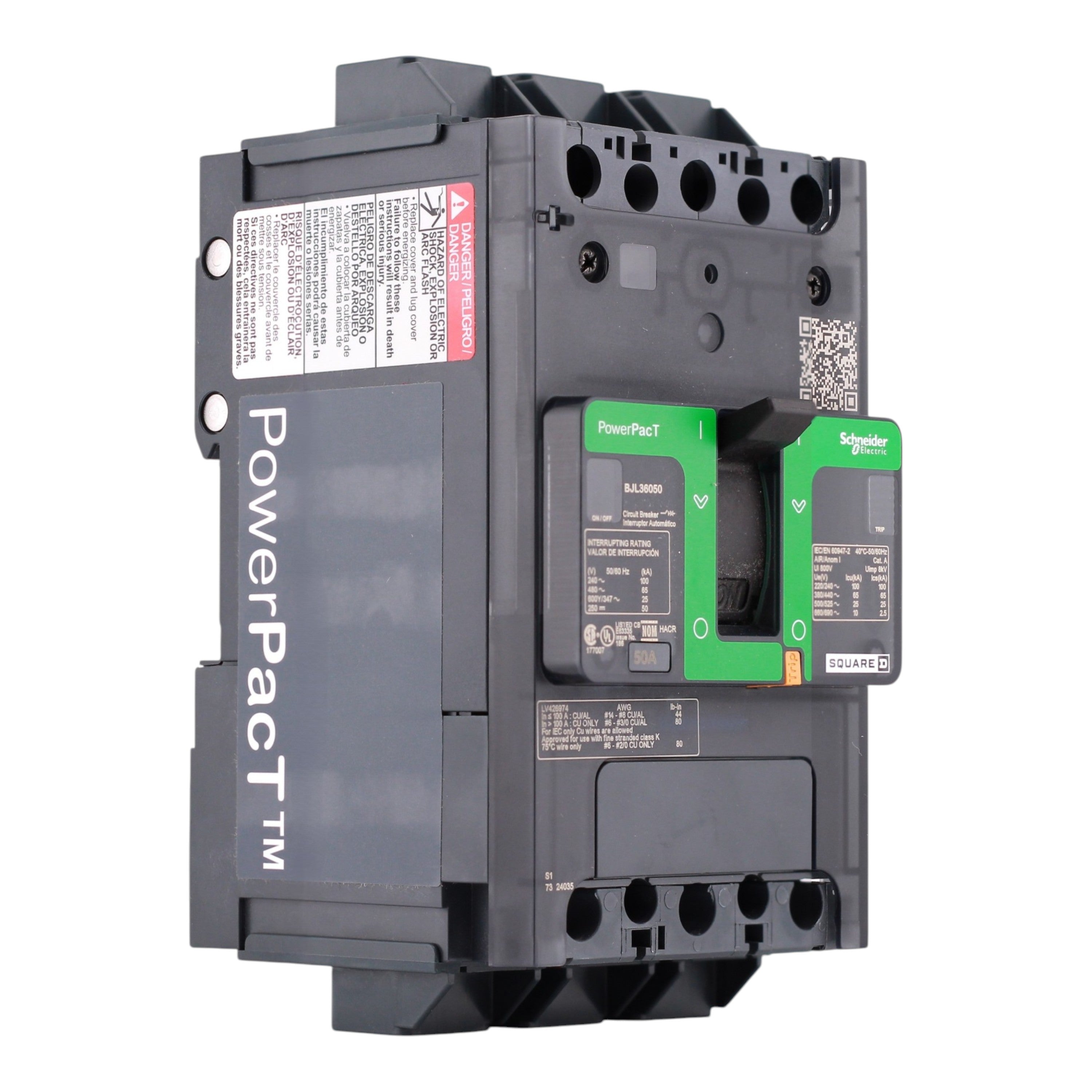

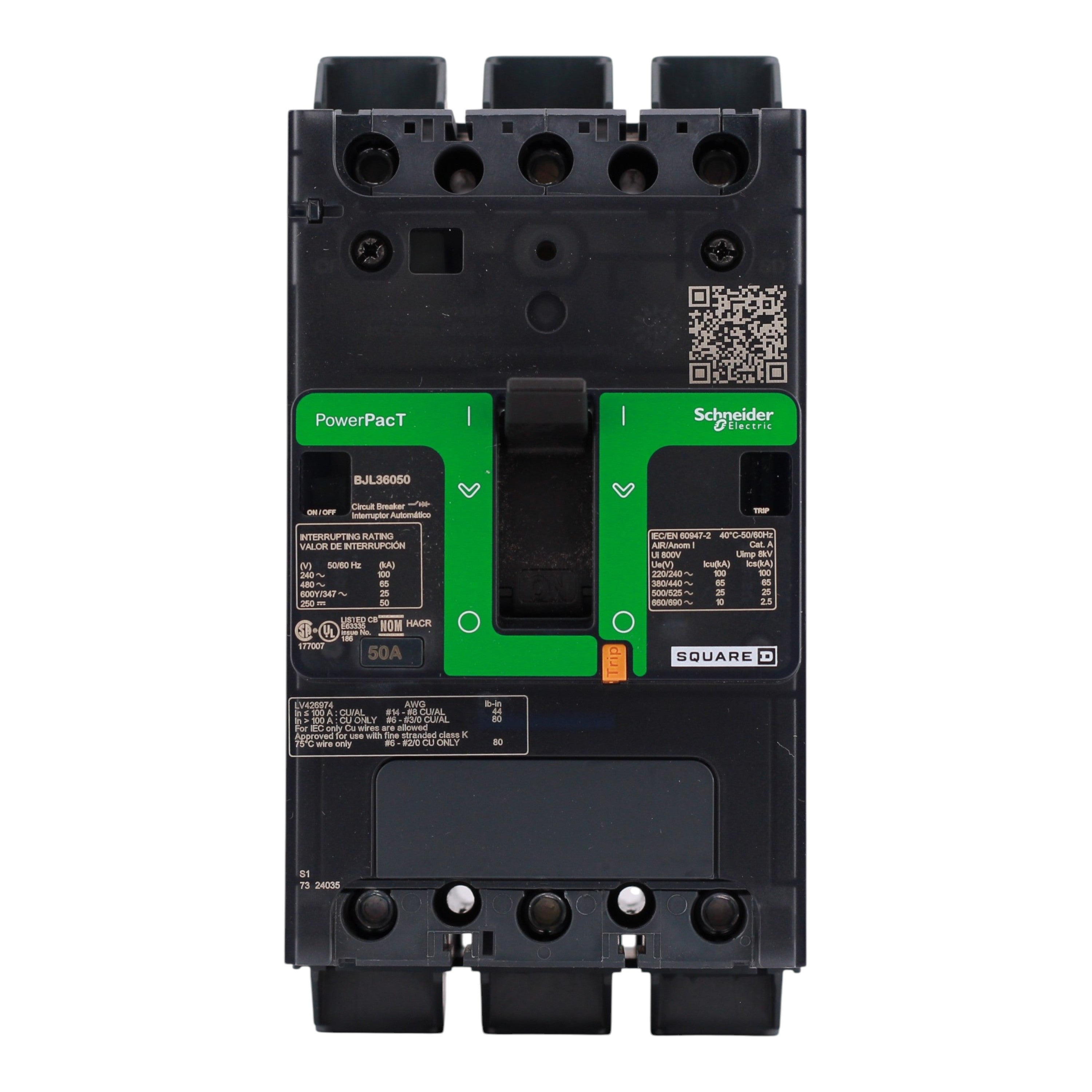

Square D BJL36050: 50 Amp, 3-Pole, thermal magnetic circuit breaker, 600Y/347V, 25kA, EverLink lugs, DIN rail or screw mounting, UL listed, CSA certified.
-
Manufacturer: Schneider Electric
-
Brand: Square D
-
Product Range: PowerPacT B-Frame (compact molded case circuit breakers for commercial/industrial applications)
-
UPC: 3606481186027
-
Model Number: BJL36050
-
Breaker Type: Standard thermal magnetic circuit breaker
-
Amperage: 50 Amps
-
Poles: 3-Pole
-
Voltage: 600Y/347 Volts AC, 690 Volts AC
-
Interrupt Rating: 25 kAIC at 600Y/347V AC; 100 kAIC at 208Y/120V AC, 240V AC; 65 kAIC at 480/277V AC, 480V AC
-

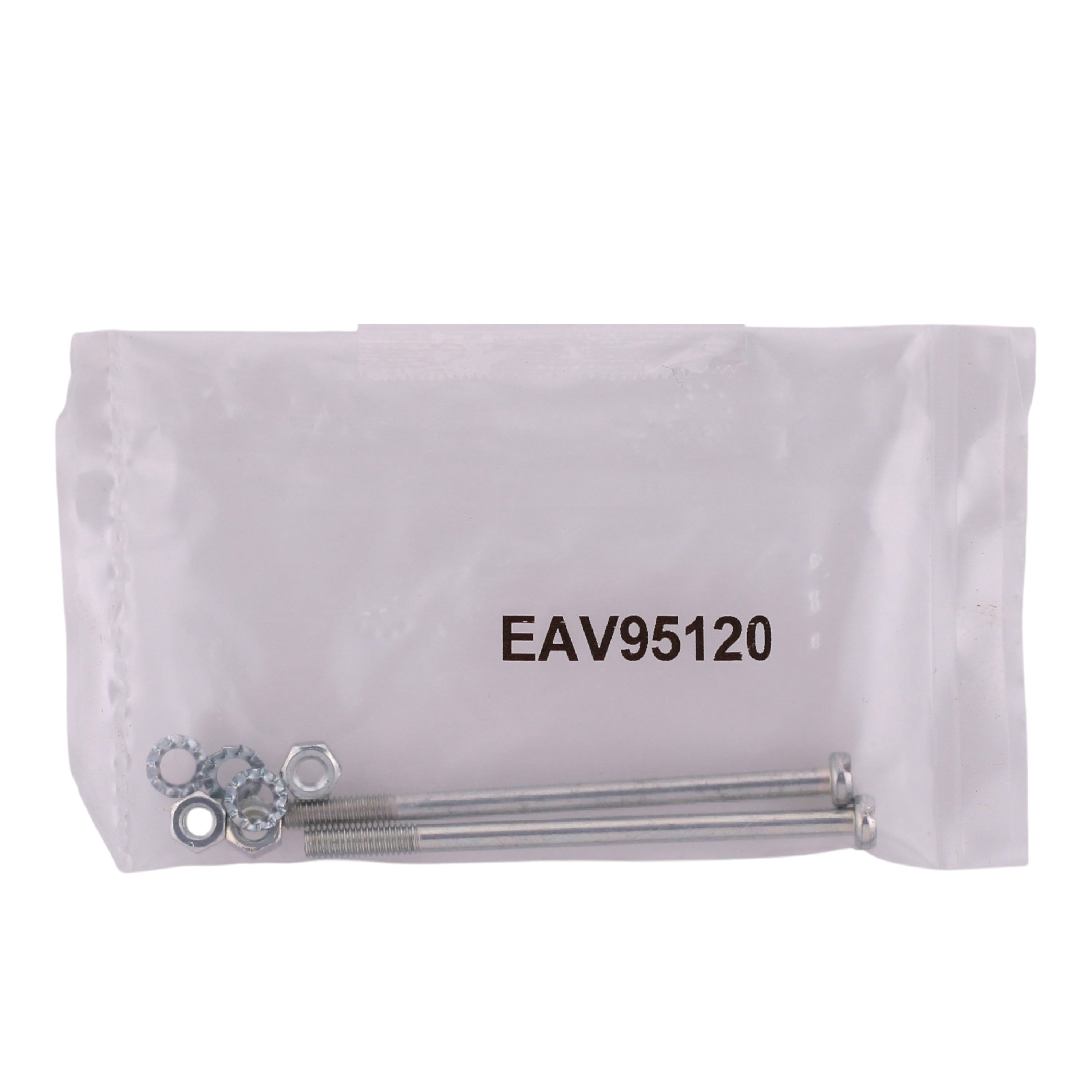

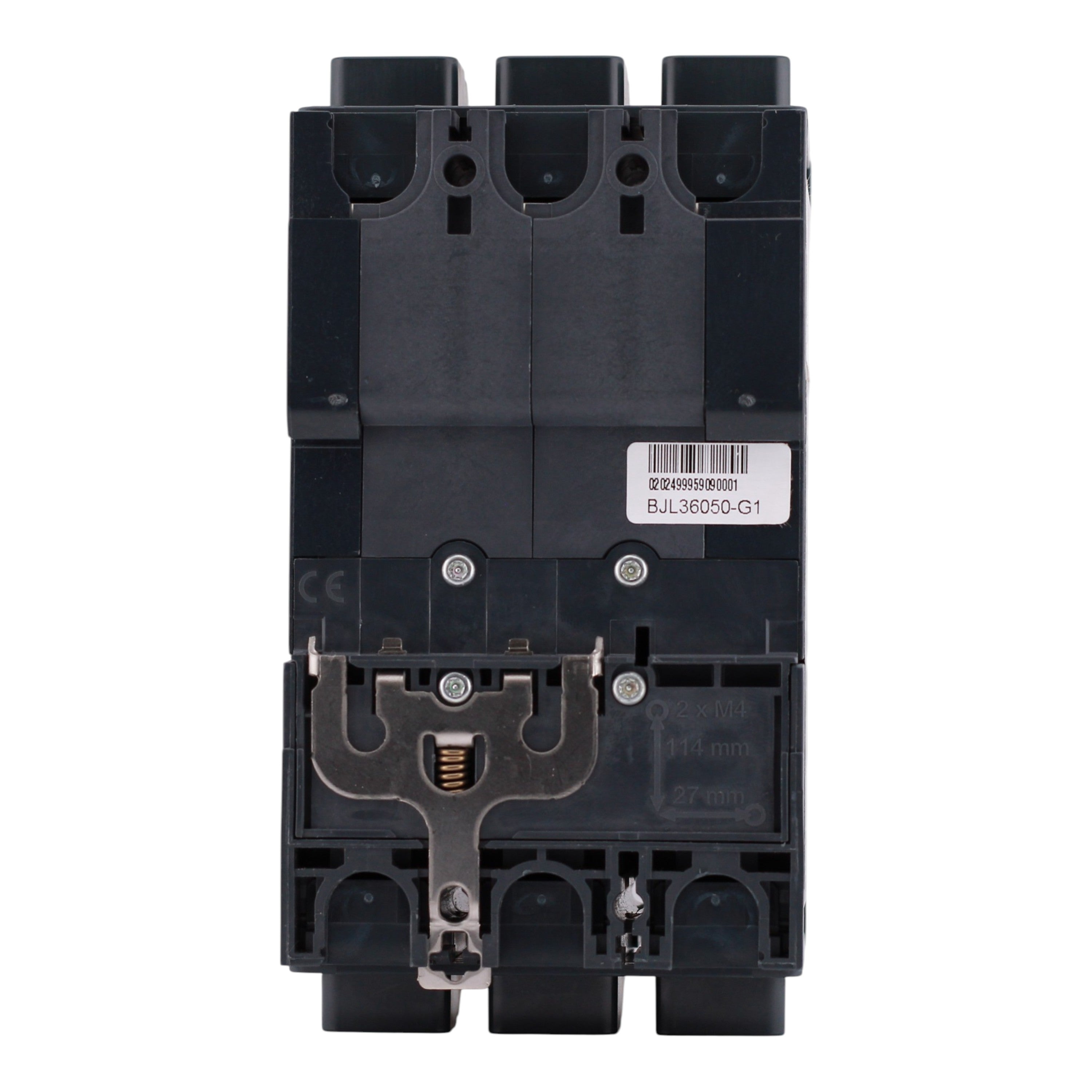

Mounting Mode: Unit mount (DIN rail clip-on 35mm or screw mounting)
-

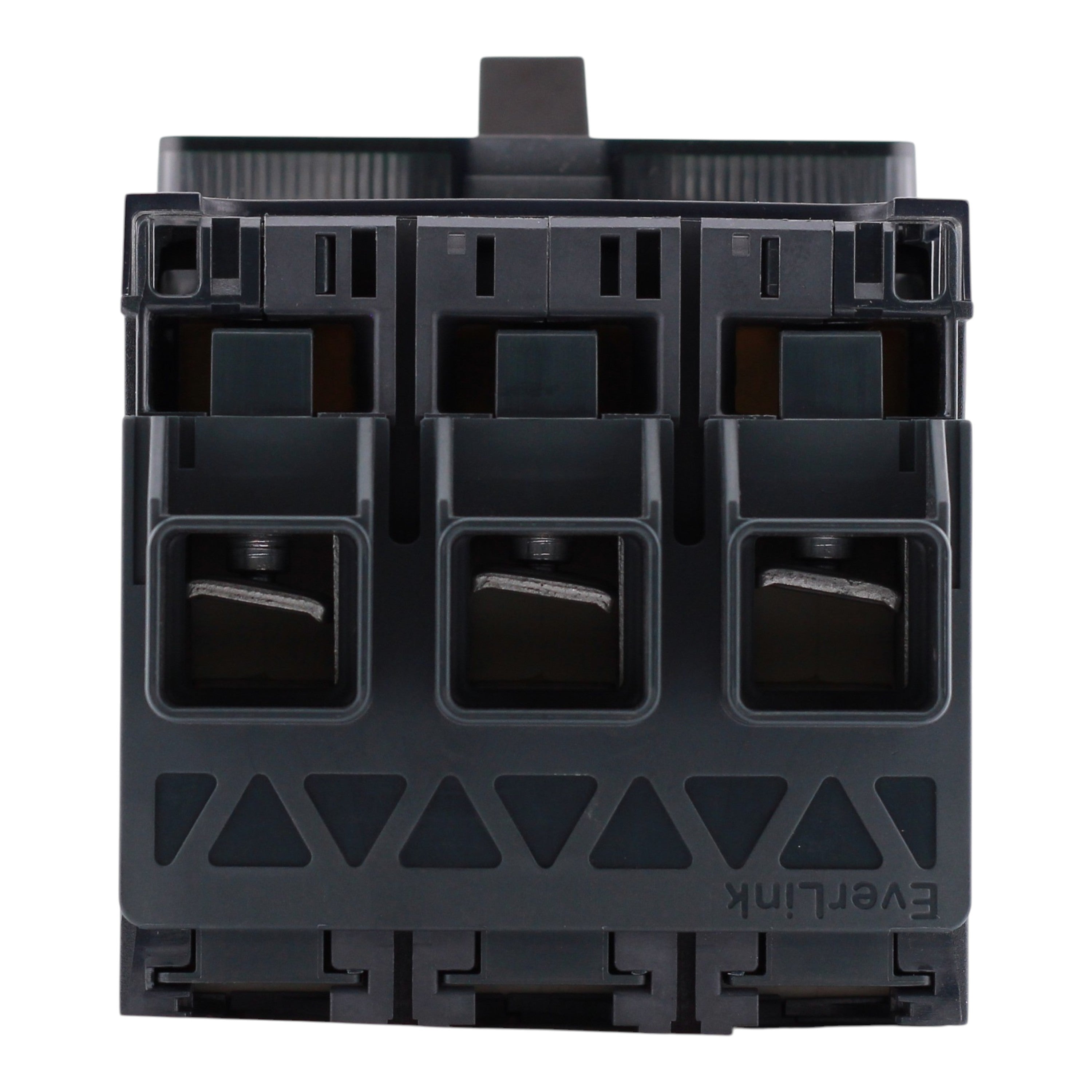

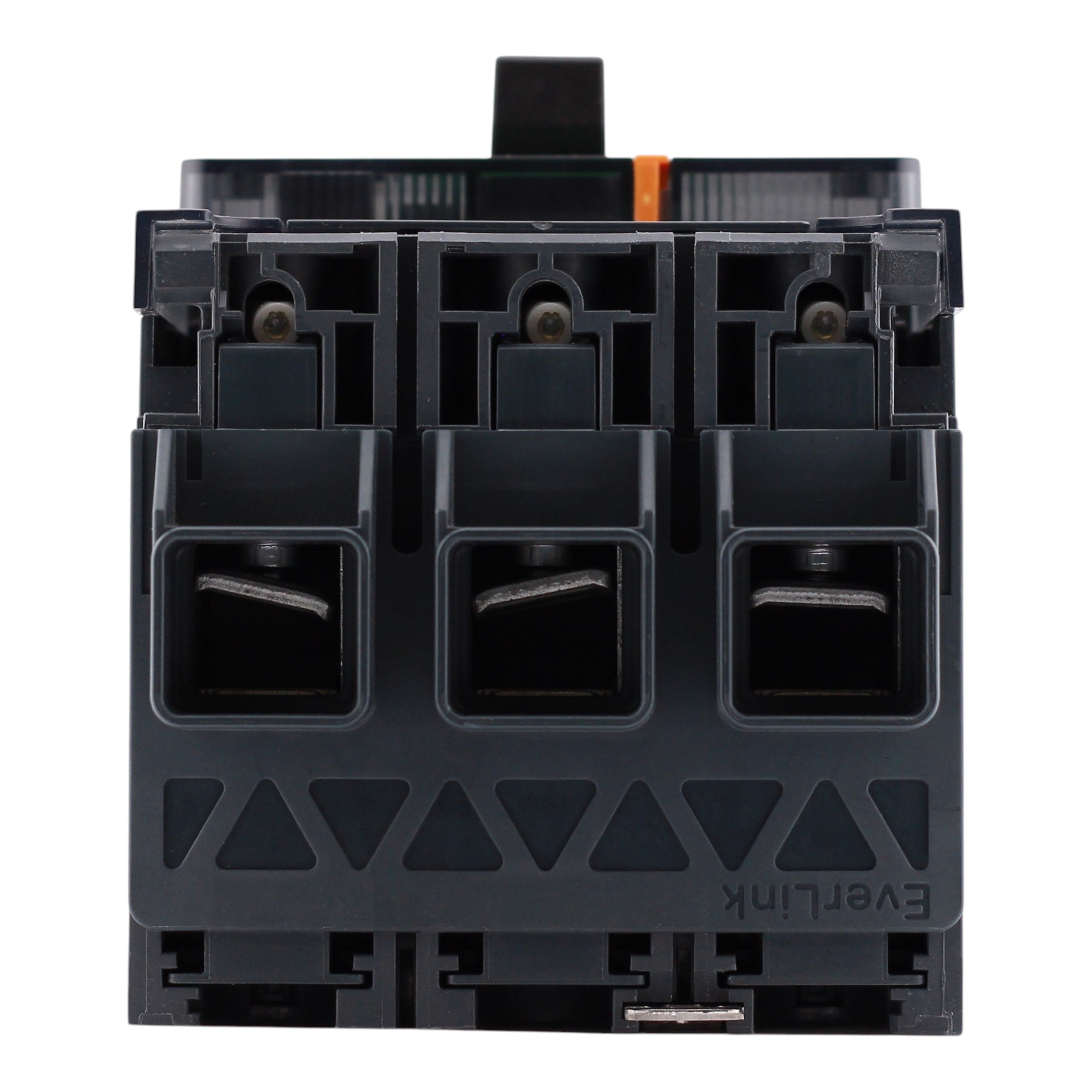

Connections Terminals: EverLink lugs (line and load)
-
Wire Size: #14-3/0 AWG Cu/Al rigid or stranded, #6-2/0 AWG Cu/Al fine stranded
-
Tightening Torque: 44.3 lb-in (#14-4 AWG), 79.7 lb-in (#3-3/0 AWG)
-
Dimensions: Height: 5.4 in; Width: 3.2 in; Depth: 3.1 in
-
Weight: 2.368 lbs
-
Certifications: UL 489 Listed, CSA Certified, IEC Compliant, CE Marked, CCC, NOM, HACR Rated
-
Continuous Current Rating: 80%
-
Product Status: Non-stock (not normally stocked in distribution facility)
This Square D PowerPacT B-Frame BJL36050 unit mount circuit breaker delivers dependable 50 Amp, 3-Pole thermal magnetic protection for 600Y/347V circuits in commercial and industrial applications. Designed with patented EverLink lugs to reduce cable loosening, flexible DIN rail or screw mounting, dual-break rotating contacts, and 25kA interrupt rating, it supports distribution panels with integrated push-to-trip functionality.
