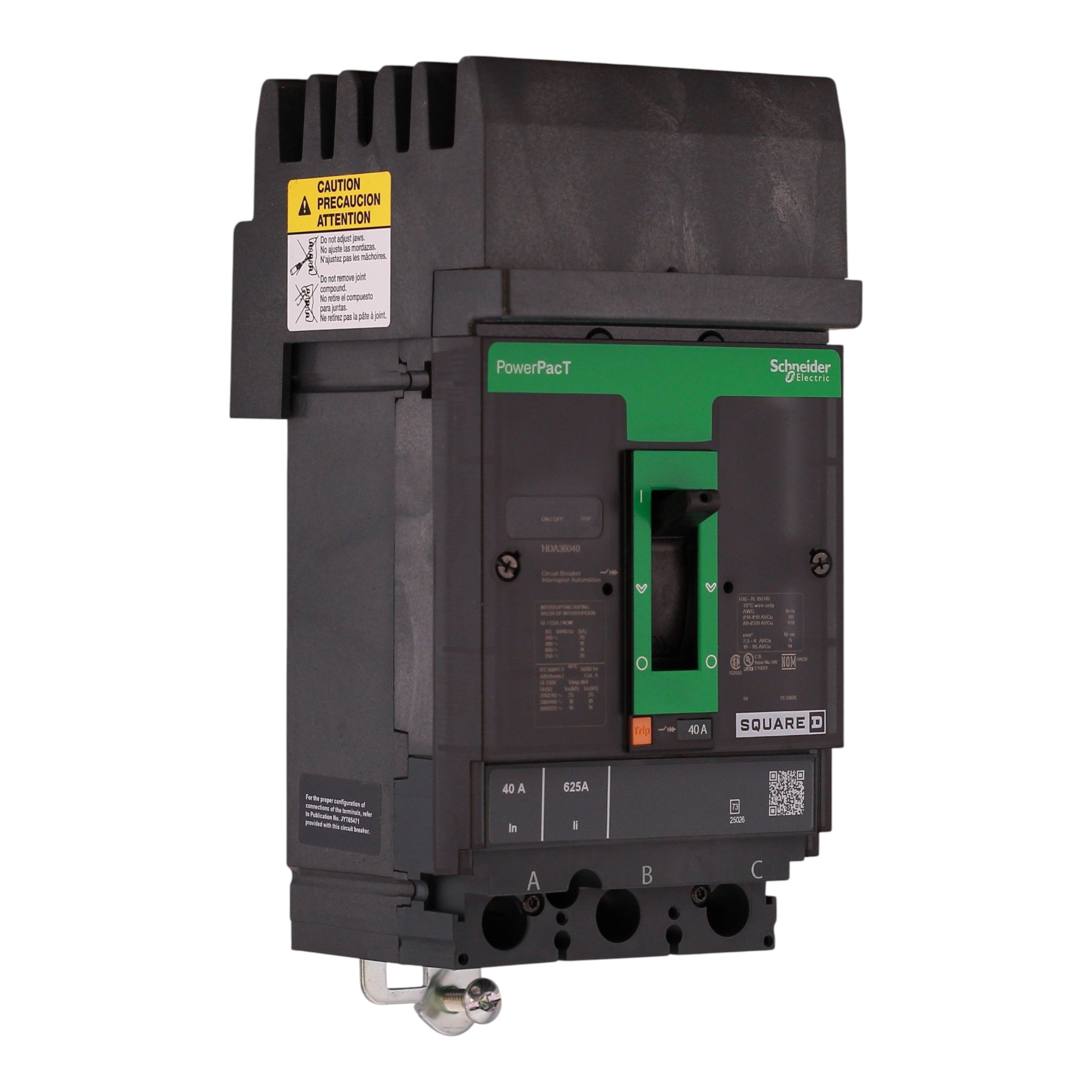

Square D PowerPacT H, HDA36040, 40A, 3P, 600VAC, 14kA, I-Line, Thermal Magnetic, Circuit Breaker

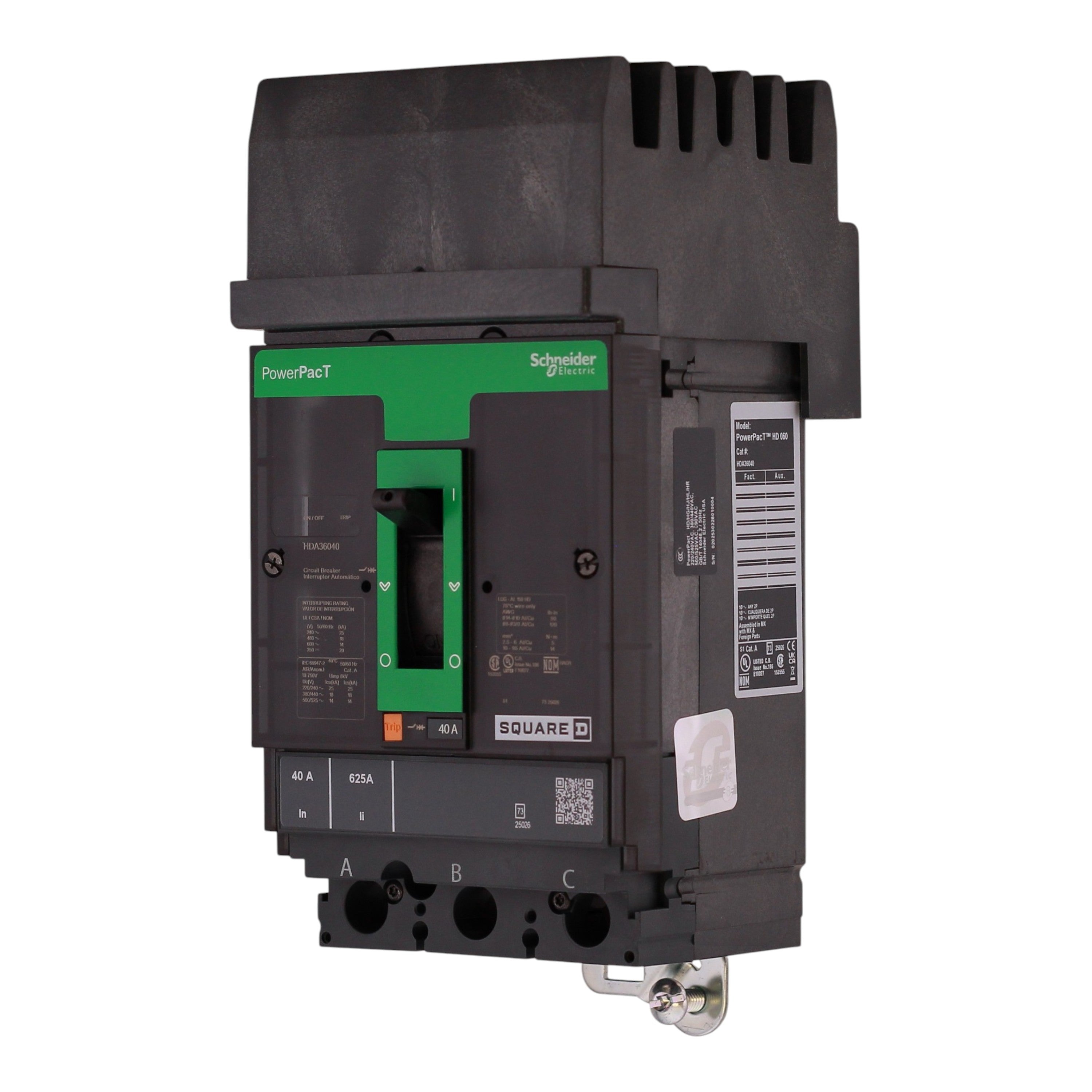

Square D PowerPacT H, HDA36040, 40A, 3P, 600VAC, 14kA, I-Line, Thermal Magnetic, Circuit Breaker - Image 2

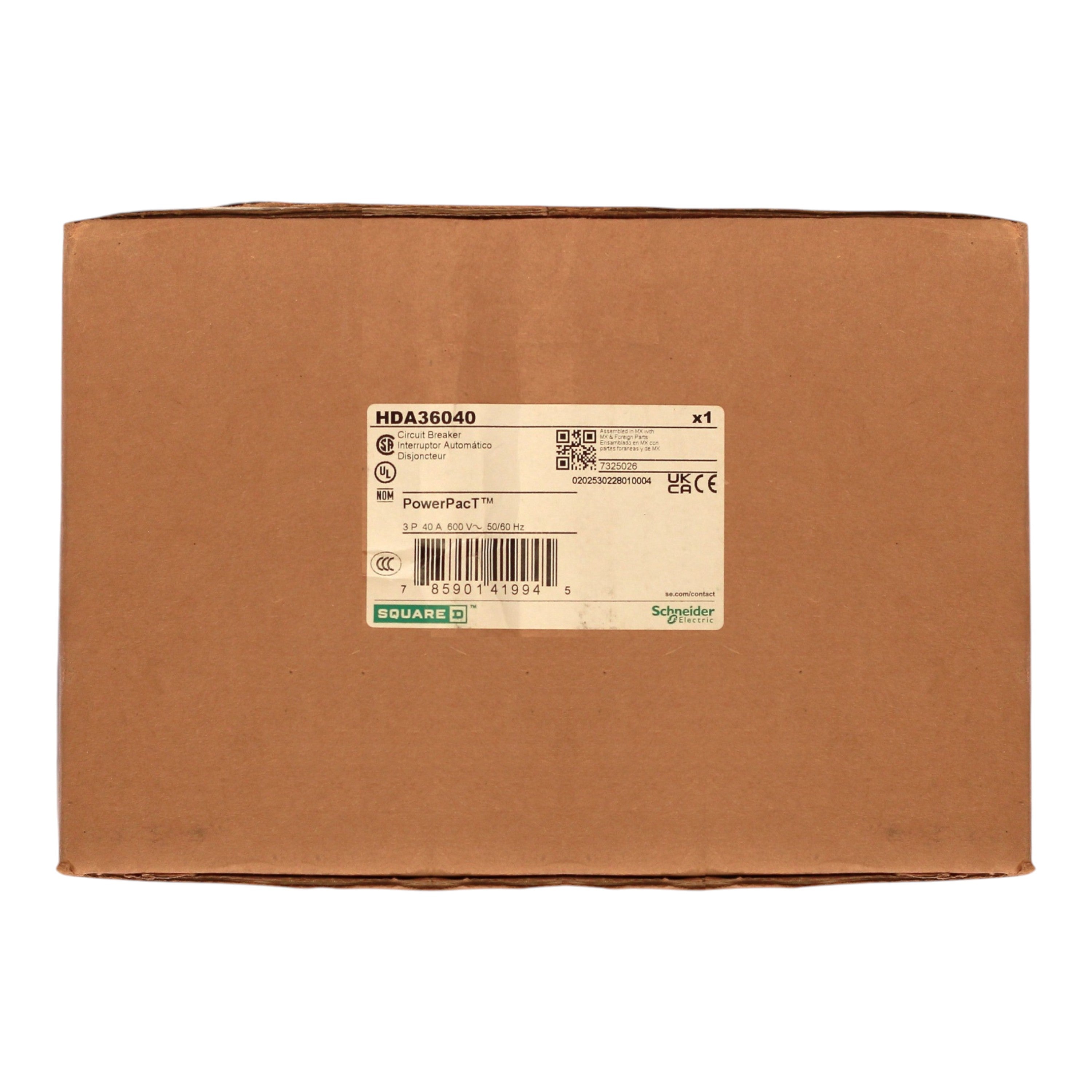

Square D PowerPacT H, HDA36040, 40A, 3P, 600VAC, 14kA, I-Line, Thermal Magnetic, Circuit Breaker - Image 3
Square D PowerPacT H, HDA36040, 40A, 3P, 600VAC, 14kA, I-Line, Thermal Magnetic, Circuit Breaker - Image 4

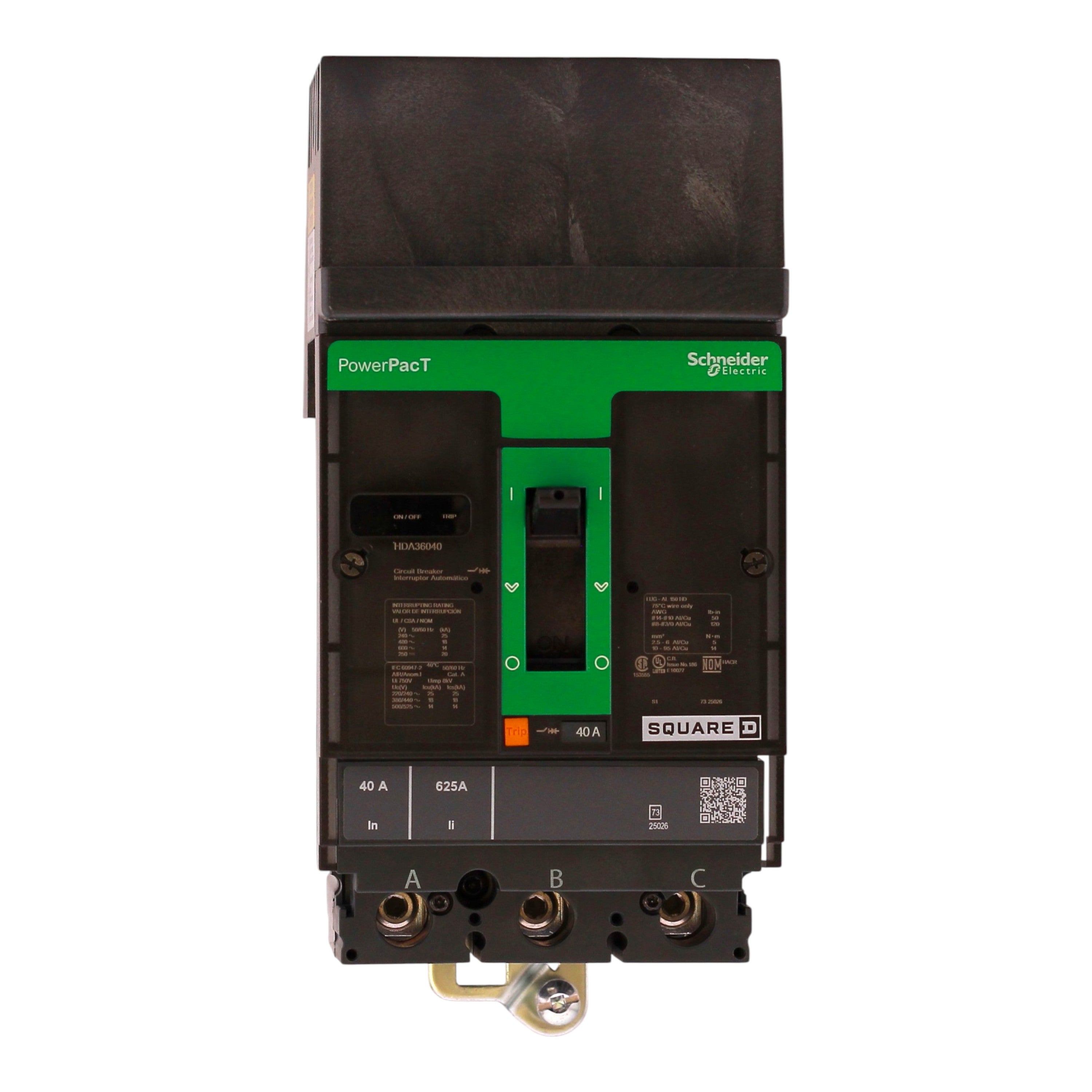

Square D PowerPacT H, HDA36040, 40A, 3P, 600VAC, 14kA, I-Line, Thermal Magnetic, Circuit Breaker - Image 5

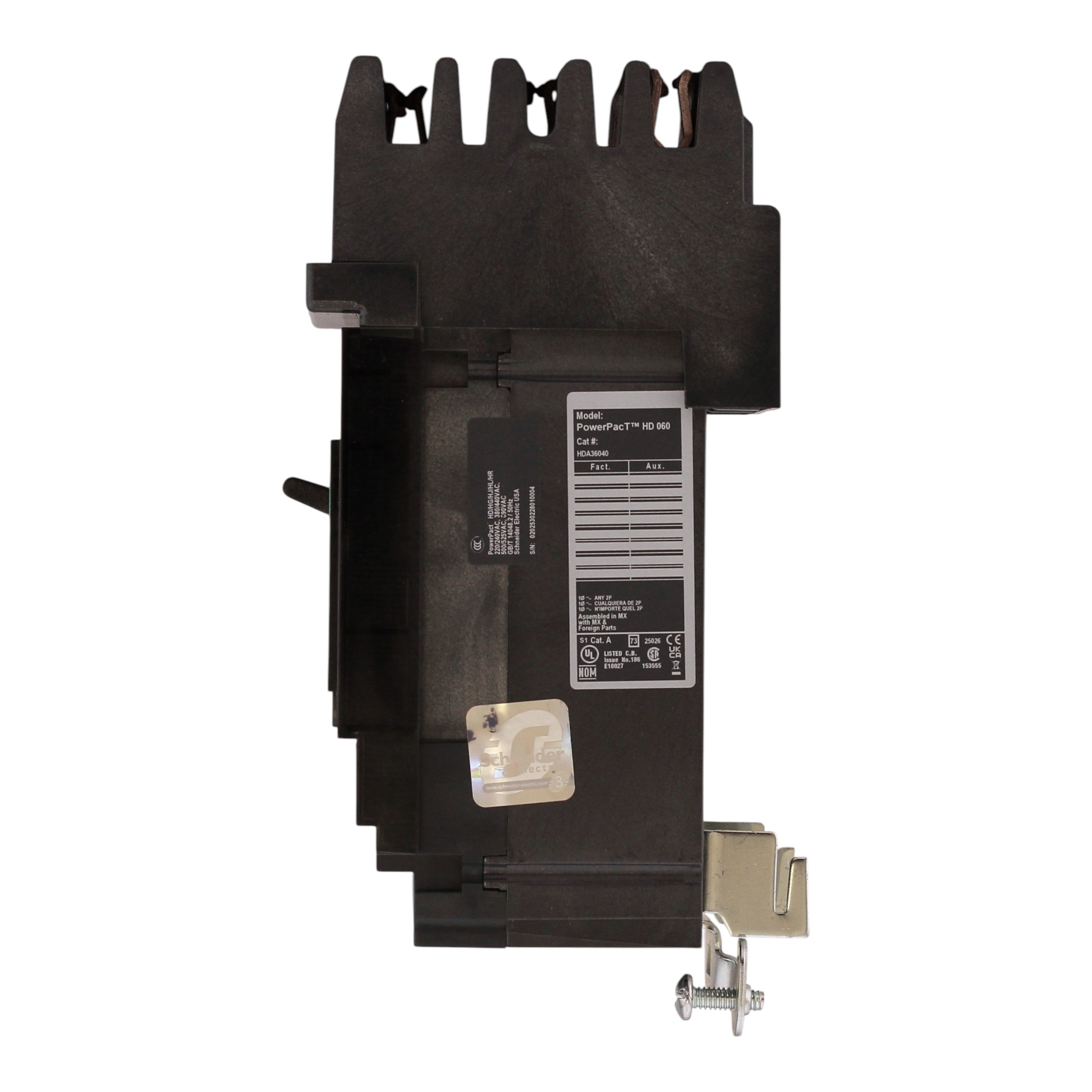

Square D PowerPacT H, HDA36040, 40A, 3P, 600VAC, 14kA, I-Line, Thermal Magnetic, Circuit Breaker - Image 6

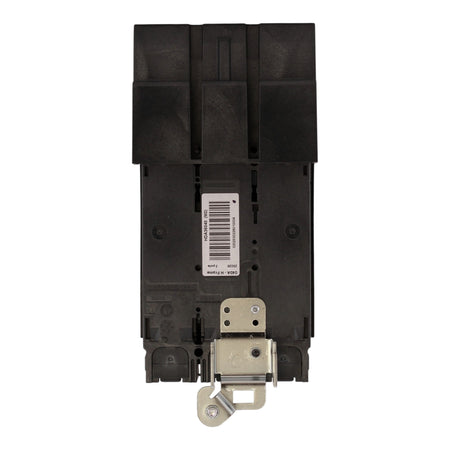

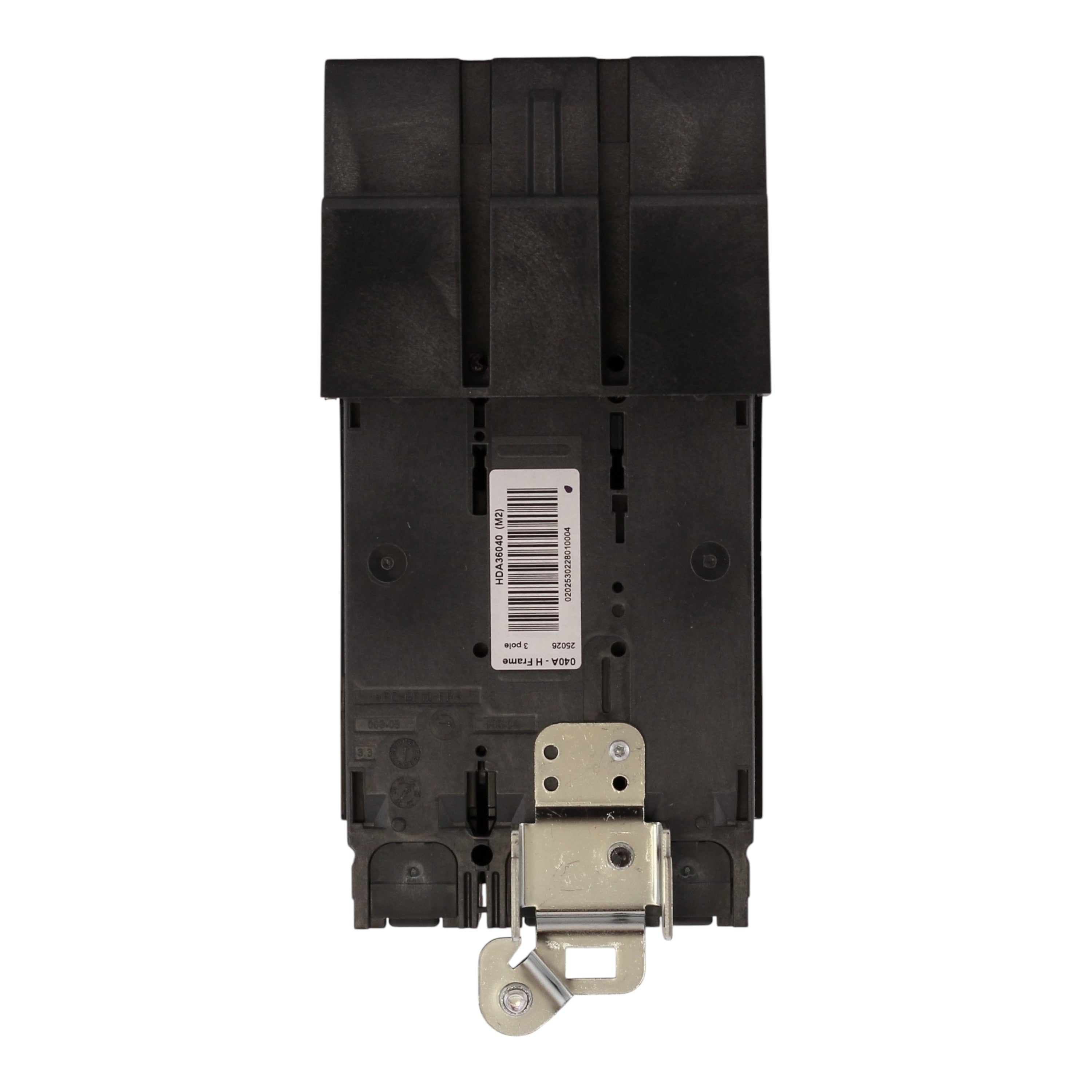

Square D PowerPacT H, HDA36040, 40A, 3P, 600VAC, 14kA, I-Line, Thermal Magnetic, Circuit Breaker - Image 7

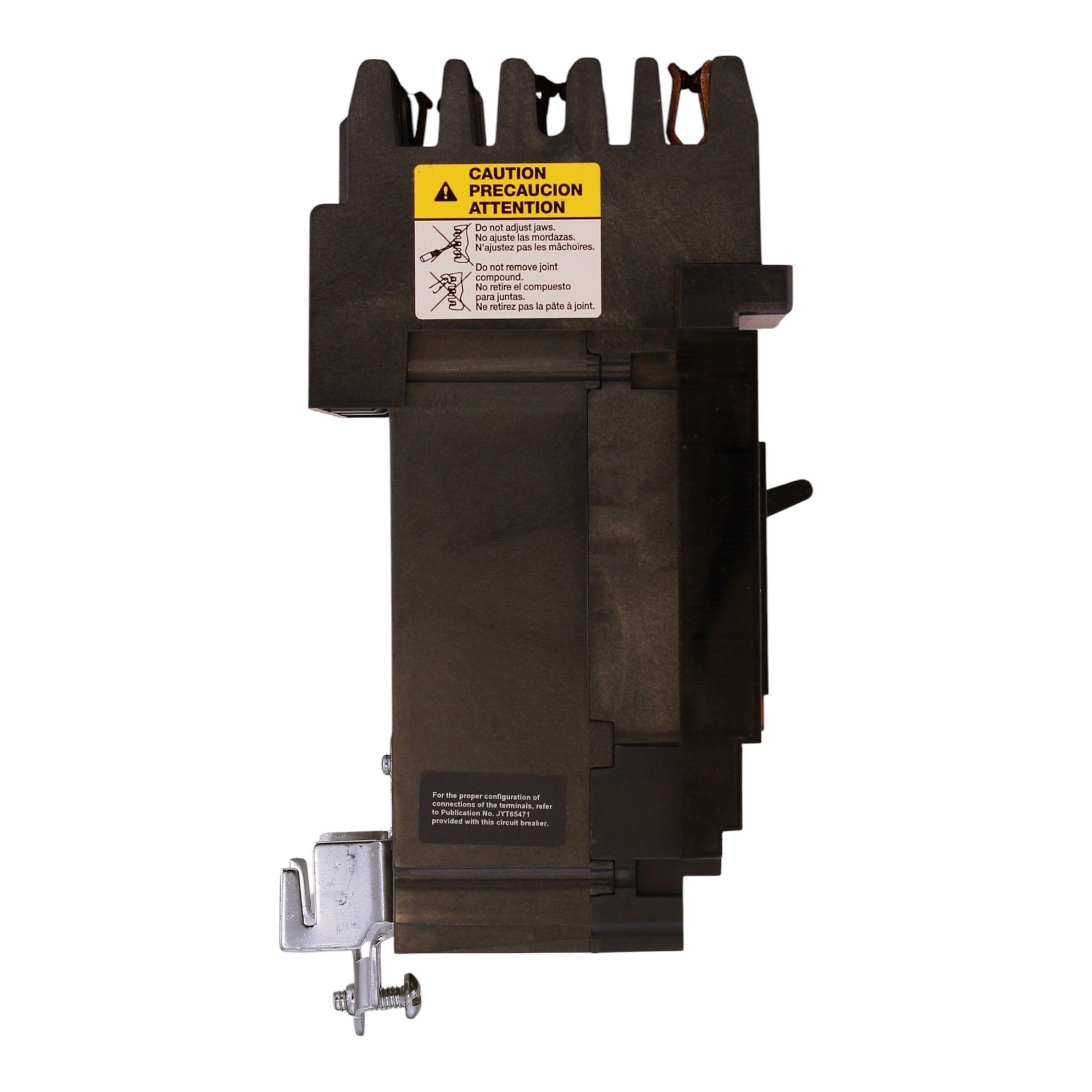

Square D PowerPacT H, HDA36040, 40A, 3P, 600VAC, 14kA, I-Line, Thermal Magnetic, Circuit Breaker - Image 8

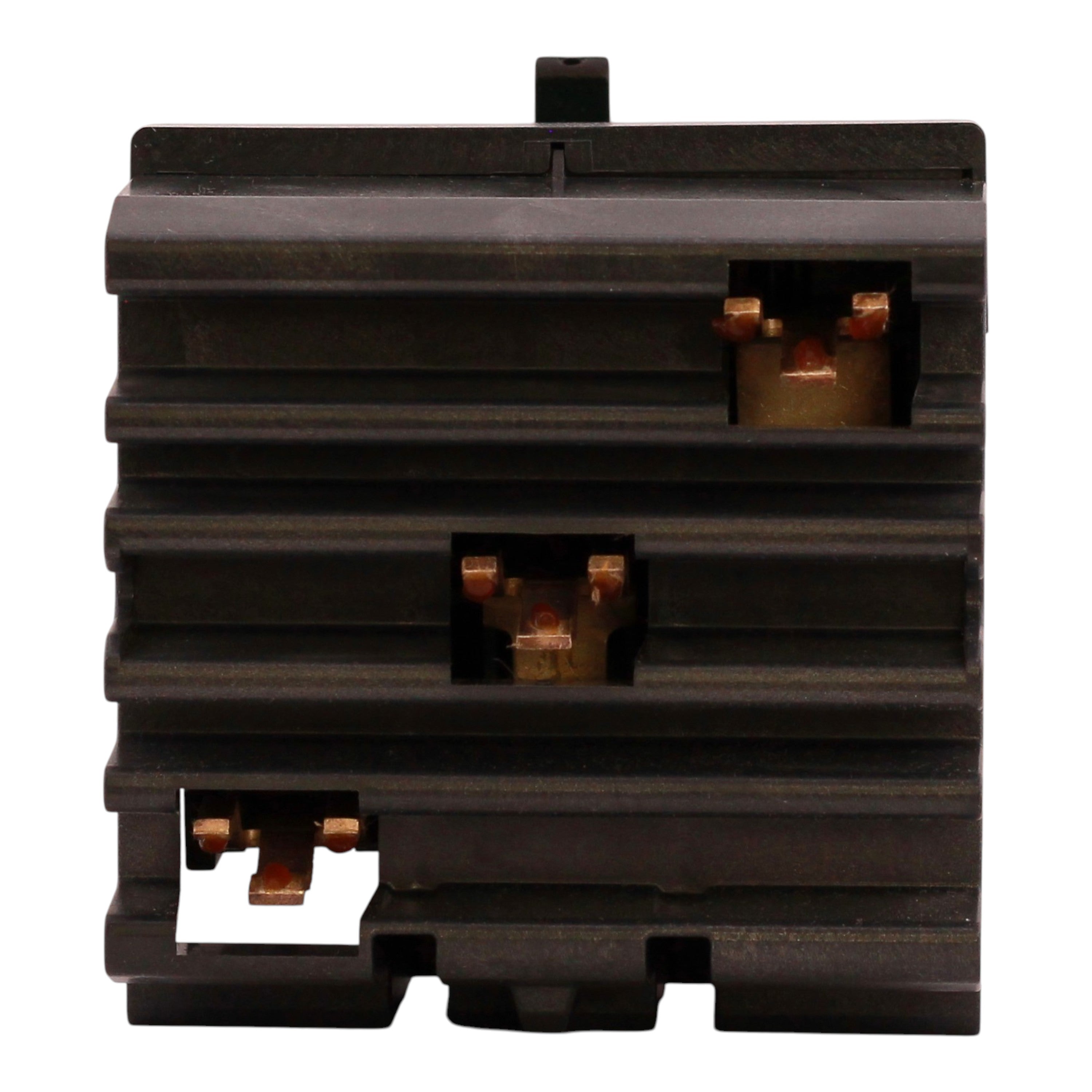

Square D PowerPacT H, HDA36040, 40A, 3P, 600VAC, 14kA, I-Line, Thermal Magnetic, Circuit Breaker - Image 9

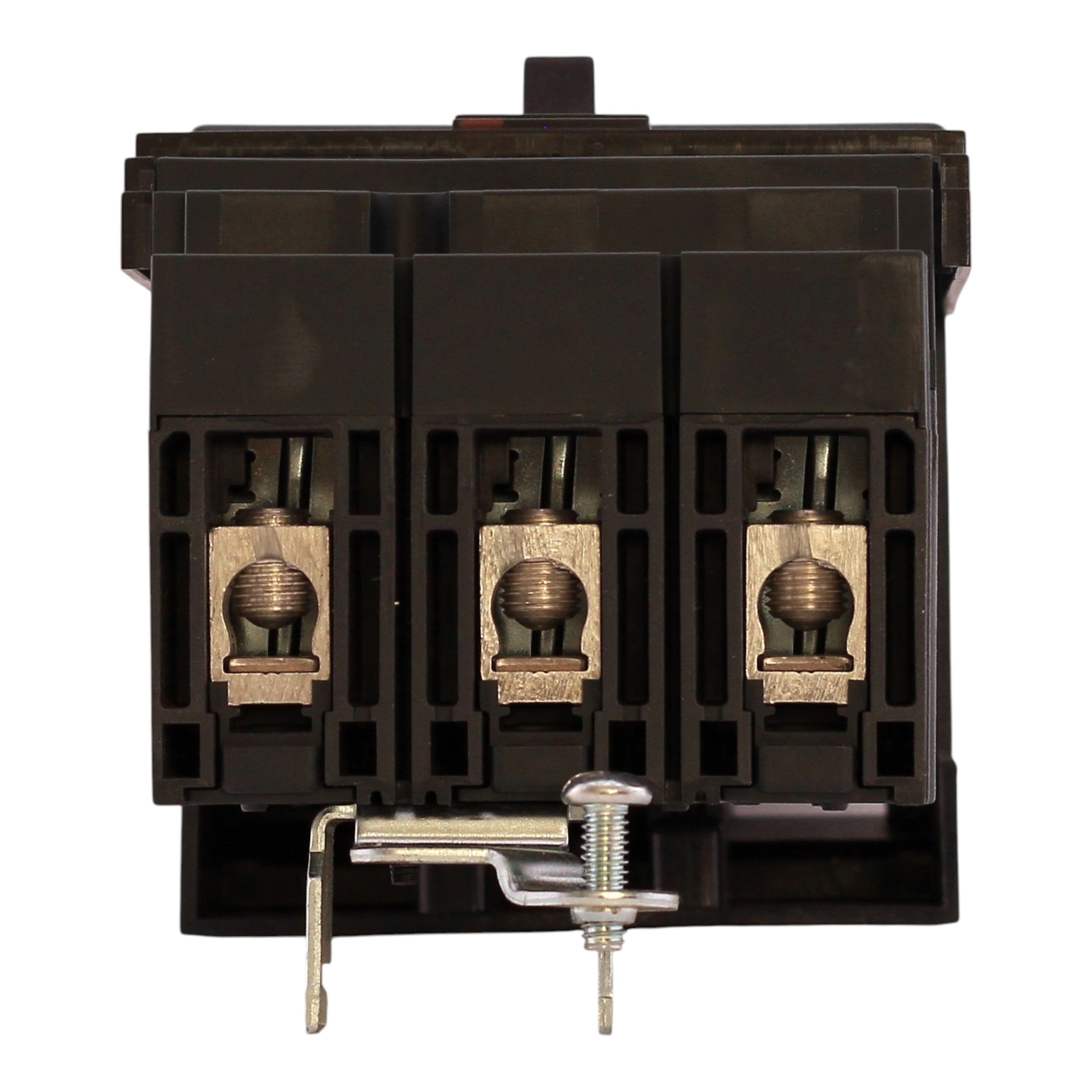

Square D PowerPacT H, HDA36040, 40A, 3P, 600VAC, 14kA, I-Line, Thermal Magnetic, Circuit Breaker - Image 10

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Square D

Square D PowerPacT H, HDA36040, 40A, 3P, 600VAC, 14kA, I-Line, Thermal Magnetic, Circuit Breaker

Out of stock
SKU: HDA36040 UPC: 785901419945
(0)
$515.00
-25% $686.00 $515.00
Out of stock
Condition

Square D HDA36040: 40 Amp, 3-Pole, PowerPacT H-Frame Molded Case Circuit Breaker, 600VAC, 14kA, I-Line, Thermal Magnetic, 80%, UL Listed.

  • Manufacturer: Schneider Electric
  • Brand: Square D
  • Product Range: PowerPacT H-Frame (for I-Line panelboards and switchboards)
  • UPC: 785901419945
  • Model Number: HDA36040
  • Breaker Type: Thermal Magnetic Molded Case Circuit Breaker (MCCB)
  • Trip Functions: LI — Long-Time and Instantaneous
  • Magnetic Tripping Current: 850A
  • Amperage: 40 Amps
  • Continuous Current Rating: 80%
  • Poles: 3-Pole
  • Voltage: 600 Volts AC (690V AC IEC)
  • Interrupt Rating: 14 kAIC @ 600VAC; 18 kAIC @ 480VAC; 25 kAIC @ 240VAC; 20 kAIC @ 250V DC
  • Frame Size: H-Frame
  • Mounting Mode: I-Line (plug-in, line side); Mechanical lugs (load side)
  • Terminal Identifier: AL150HD
  • Phase Connection: ABC
  • Wire Size: #14–3/0 AWG Cu/Al
  • Tightening Torque: 44.3 lb-in (#14–10 AWG); 123.9 lb-in (#8–3/0 AWG)
  • Dimensions: Height: 6.4 in; Width: 4.09 in; Depth: 3.4 in
  • Weight: 4.9 lbs
  • Certifications: UL 489, CSA, NEMA, NOM, IEC 60947-2, CE Marked, HACR Rated

This Square D HDA36040 PowerPacT H-Frame thermal magnetic molded case circuit breaker delivers dependable 40 Amp, 3-Pole protection for 600VAC, 3-phase circuits in I-Line panelboards and switchboards. With 14kAIC interrupt capacity at 600VAC, dual-break rotating contacts, an integral push-to-trip button, and an 80% continuous current rating, it supports commercial and industrial distribution applications.
