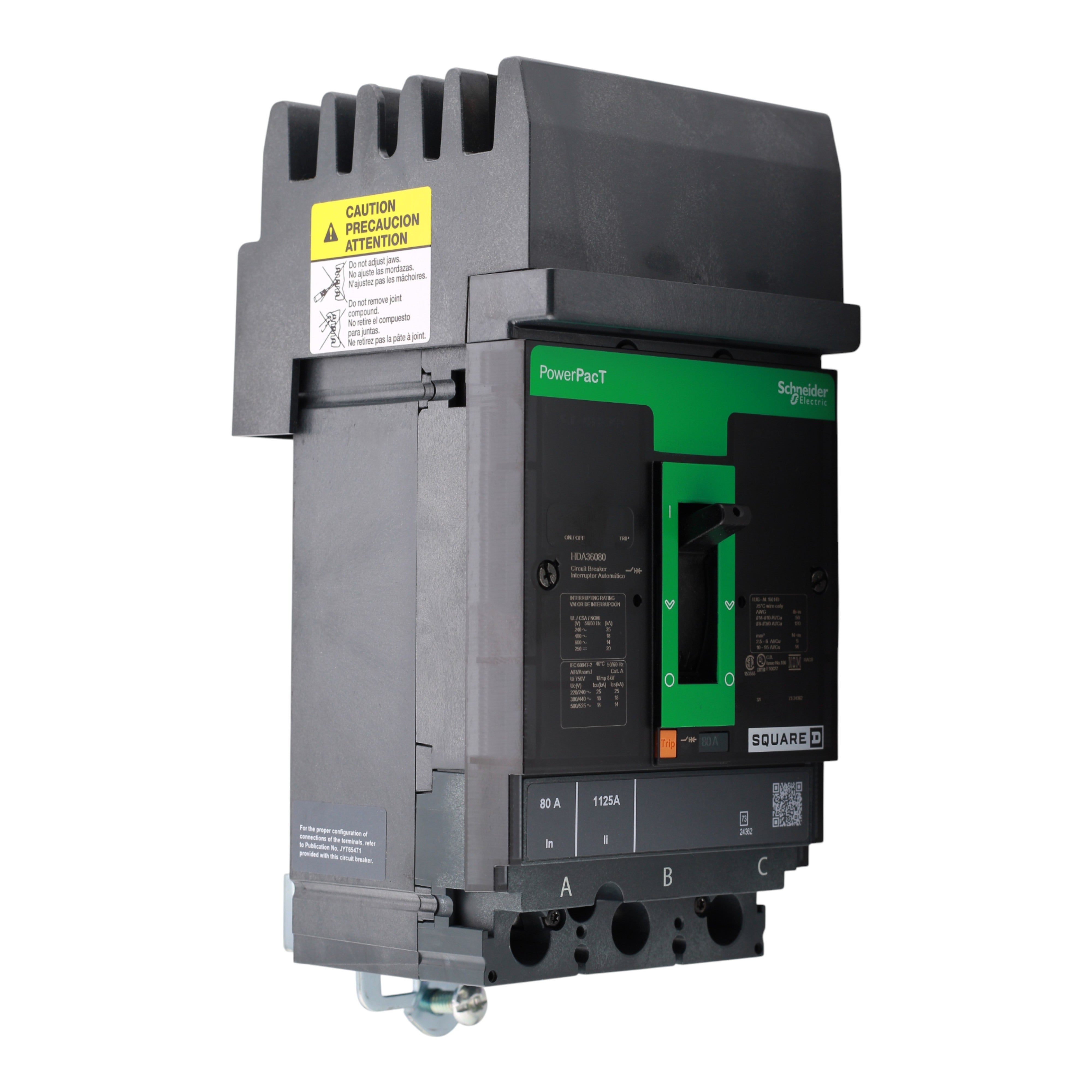

Square D PowerPacT HDA36080 80A 3P 600V Thermal-Magnetic I-Line Circuit Breaker

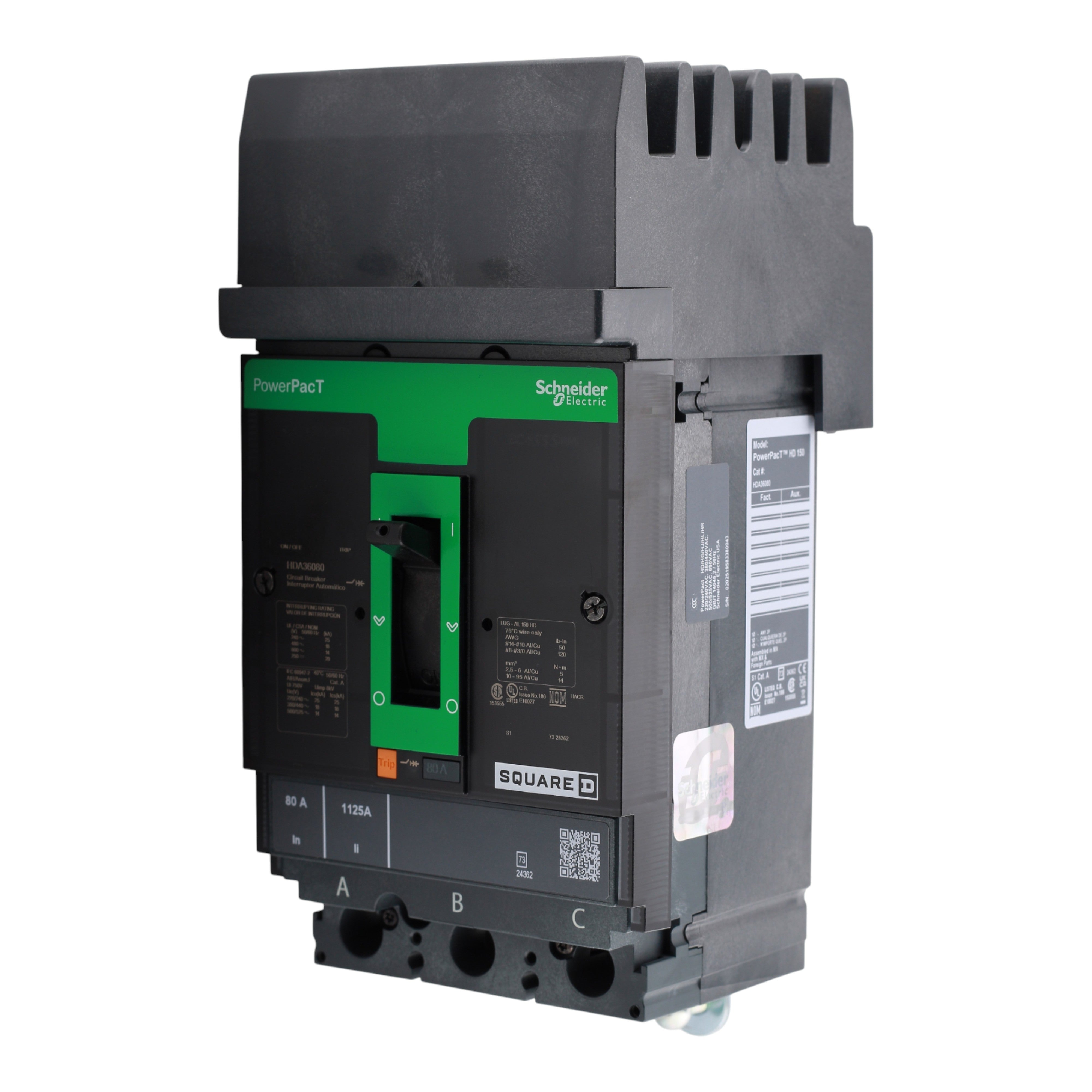

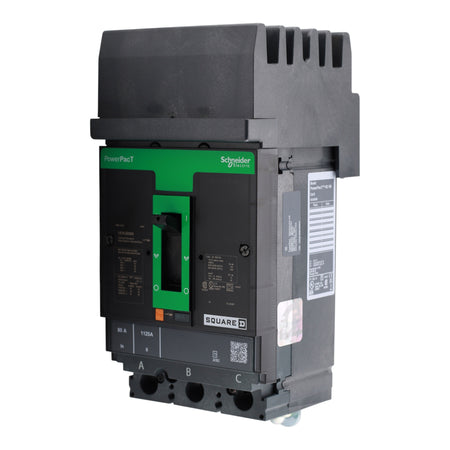

Square D PowerPacT HDA36080 80A 3P 600V Thermal-Magnetic I-Line Circuit Breaker - Image 2

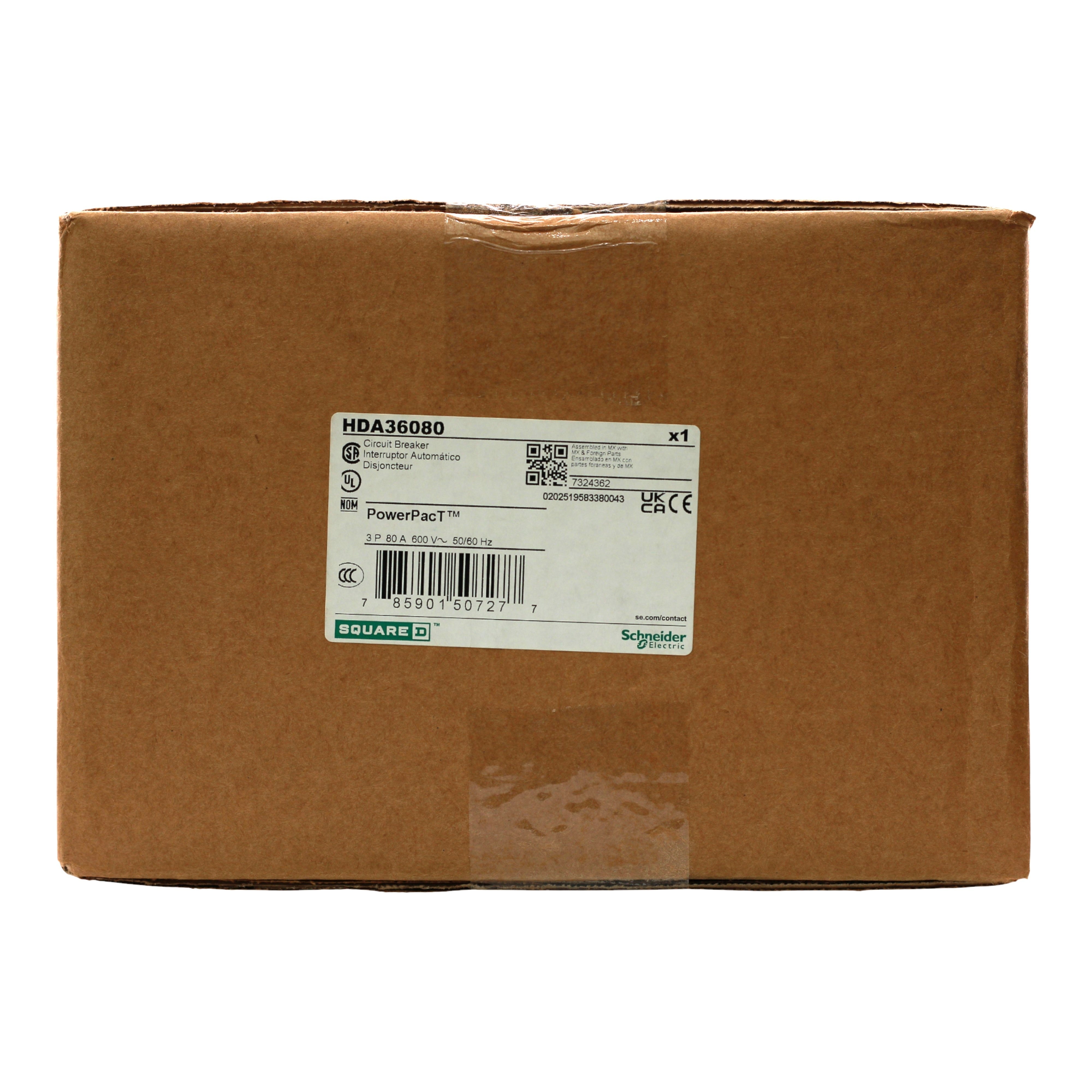

Square D PowerPacT HDA36080 80A 3P 600V Thermal-Magnetic I-Line Circuit Breaker - Image 3
Square D PowerPacT HDA36080 80A 3P 600V Thermal-Magnetic I-Line Circuit Breaker - Image 4
Square D PowerPacT HDA36080 80A 3P 600V Thermal-Magnetic I-Line Circuit Breaker - Image 5

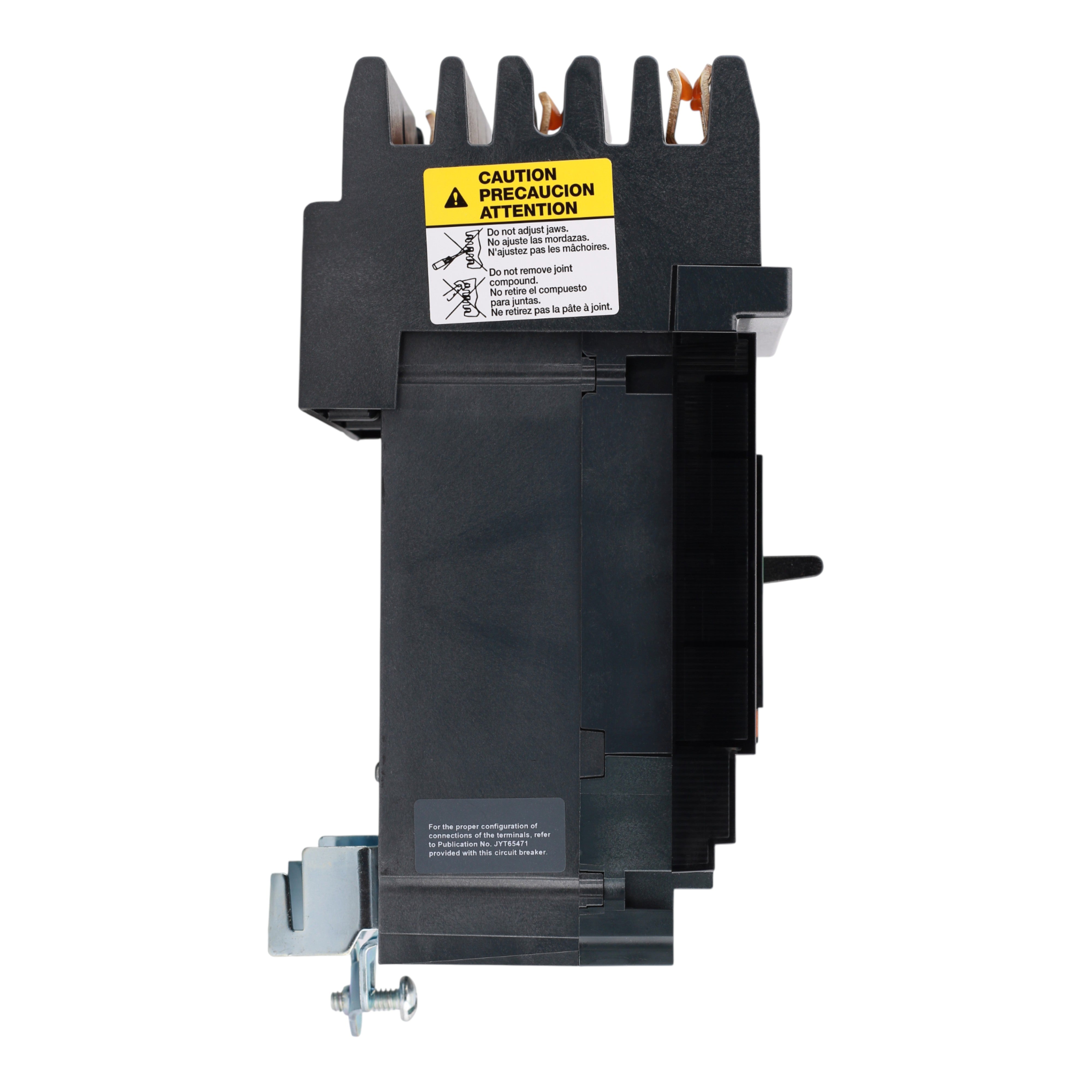

Square D PowerPacT HDA36080 80A 3P 600V Thermal-Magnetic I-Line Circuit Breaker - Image 6
Square D PowerPacT HDA36080 80A 3P 600V Thermal-Magnetic I-Line Circuit Breaker - Image 7

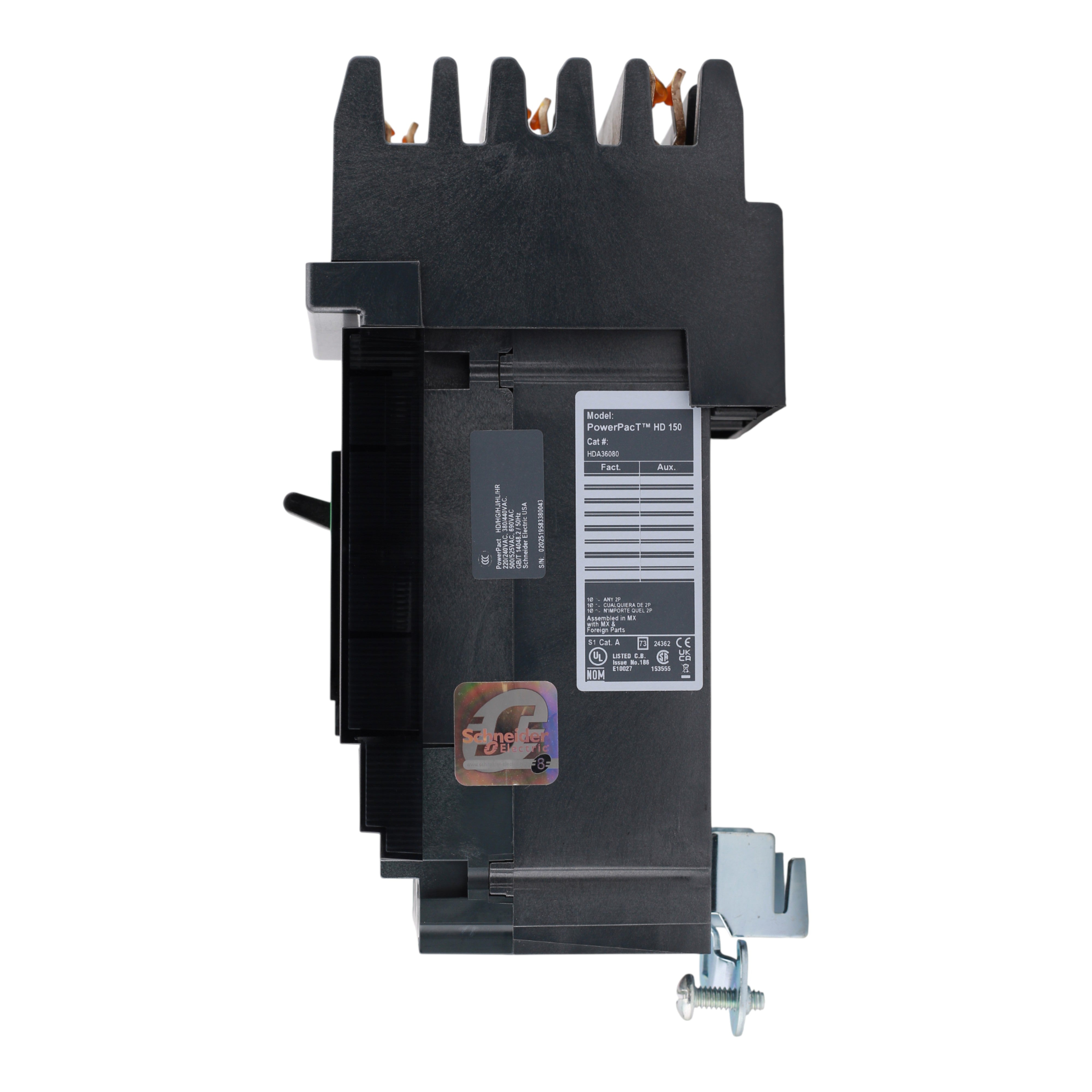

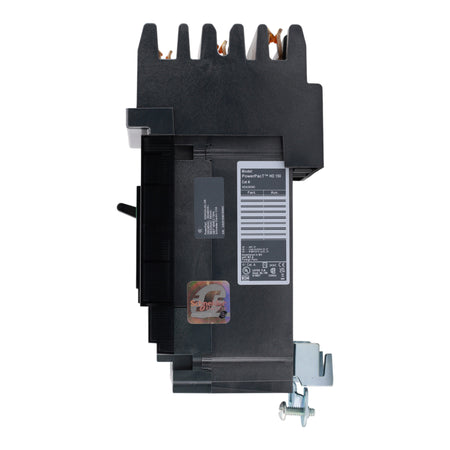

Square D PowerPacT HDA36080 80A 3P 600V Thermal-Magnetic I-Line Circuit Breaker - Image 8
Square D PowerPacT HDA36080 80A 3P 600V Thermal-Magnetic I-Line Circuit Breaker - Image 9
Square D PowerPacT HDA36080 80A 3P 600V Thermal-Magnetic I-Line Circuit Breaker - Image 10
Square D PowerPacT HDA36080 80A 3P 600V Thermal-Magnetic I-Line Circuit Breaker
Square D PowerPacT HDA36080 80A 3P 600V Thermal-Magnetic I-Line Circuit Breaker - Image 2
Square D PowerPacT HDA36080 80A 3P 600V Thermal-Magnetic I-Line Circuit Breaker - Image 3
Square D PowerPacT HDA36080 80A 3P 600V Thermal-Magnetic I-Line Circuit Breaker - Image 4
Square D PowerPacT HDA36080 80A 3P 600V Thermal-Magnetic I-Line Circuit Breaker - Image 5
Square D PowerPacT HDA36080 80A 3P 600V Thermal-Magnetic I-Line Circuit Breaker - Image 6
Square D PowerPacT HDA36080 80A 3P 600V Thermal-Magnetic I-Line Circuit Breaker - Image 7
Square D PowerPacT HDA36080 80A 3P 600V Thermal-Magnetic I-Line Circuit Breaker - Image 8
Square D PowerPacT HDA36080 80A 3P 600V Thermal-Magnetic I-Line Circuit Breaker - Image 9
Square D PowerPacT HDA36080 80A 3P 600V Thermal-Magnetic I-Line Circuit Breaker - Image 10

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Square D

Square D PowerPacT HDA36080 80A 3P 600V Thermal-Magnetic I-Line Circuit Breaker

Out of stock
SKU: HDA36080 UPC: 785901507277
(0)
$440.00
Out of stock
Condition

Square D HDA36080: 80 Amp 3-Pole Thermal-Magnetic Circuit Breaker, 600V, 14kA, I-Line, UL Listed, CSA Certified.

  • Manufacturer: Schneider Electric
  • Brand: Square D
  • Product Range: PowerPacT H (for PowerPacT H-Frame compatible systems)
  • UPC: 785901507277
  • Model Number: HDA36080
  • Breaker Type: Thermal-Magnetic
  • Amperage: 80 Amps
  • Poles: 3-Pole
  • Voltage: 600 Volts AC
  • Interrupt Rating: 14 kAIC
  • Mounting Mode: I-Line
  • Connections Terminals: I-Line connection (line), Lugs (load)
  • Wire Size: AWG 14...AWG 3/0 Cu/Al
  • Tightening Torque: 44.3 lb-in (AWG 14...AWG 10), 123.9 lb-in (AWG 8...AWG 3/0)
  • Dimensions: Height: 6.4 in; Width: 4.09 in; Depth: 3.4 in
  • Weight: 4.9 lbs
  • Certifications: UL Listed, CSA Certified, NOM, IEC 60947-2, HACR Rated

This Square D HDA36080 I-Line circuit breaker provides reliable 80A, 3-pole thermal-magnetic protection for 600V circuits in PowerPacT H-Frame compatible systems. With a 14kA interrupt rating, it ensures robust protection against overloads and short circuits, ideal for commercial and industrial applications.

There is a $15 charge for delivery under $250 orders. Additional charges will be imposed by our couriers for delivery to remote areas, a surcharge may be levied to cover carriage to these areas.

Warranty Coverage

We stand behind every product we sell. Coverage depends on the condition of the item at time of purchase:

  • New: 12-month warranty
  • New Open Box: 10-month warranty
  • Reconditioned: 90-day warranty

Warranty coverage begins on the date of delivery and covers manufacturing and functional defects under normal use. It does not cover damage from misuse, improper installation, or unauthorized repair. To make a warranty claim, contact us at support@breakersmart.com with your order number and a description of the issue.
