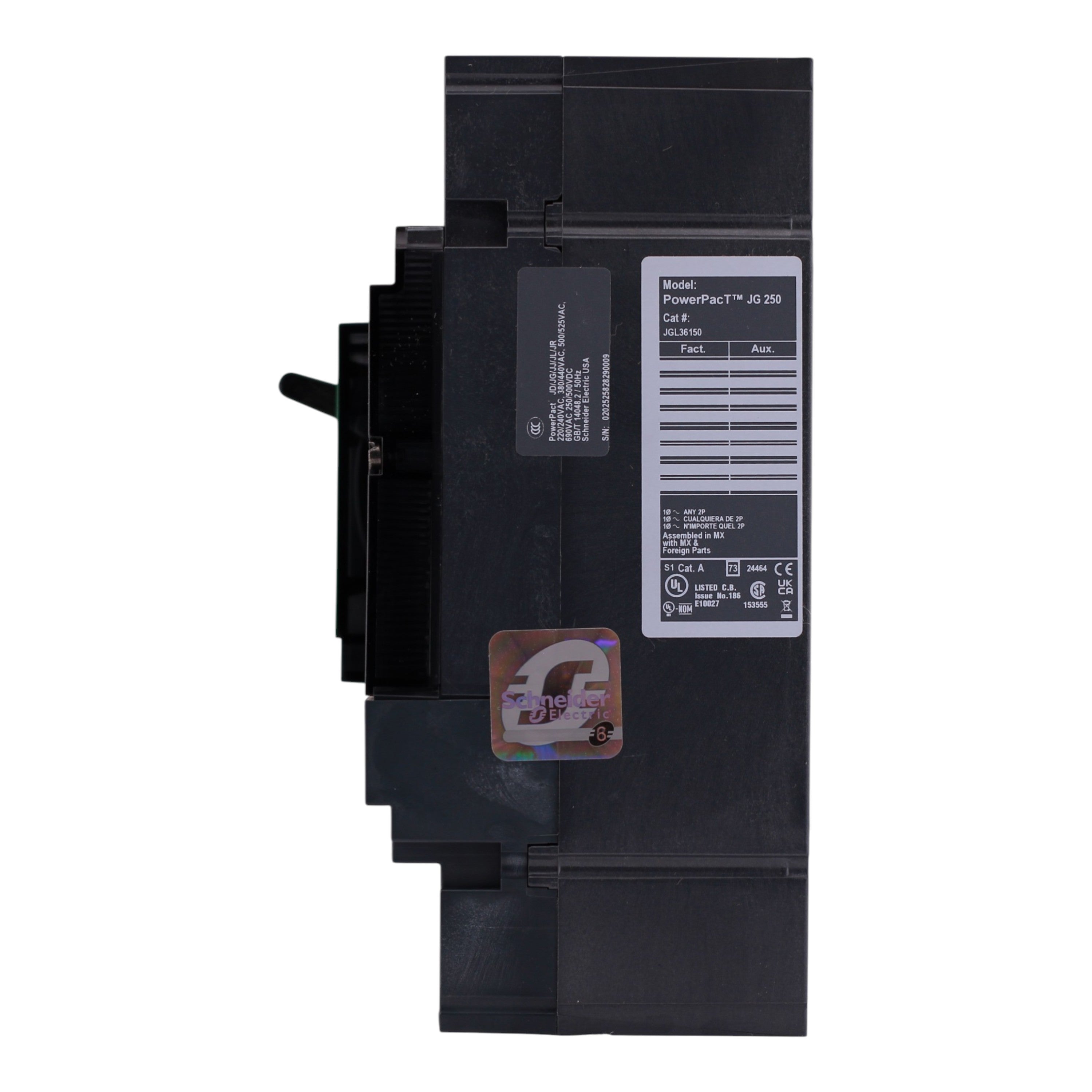

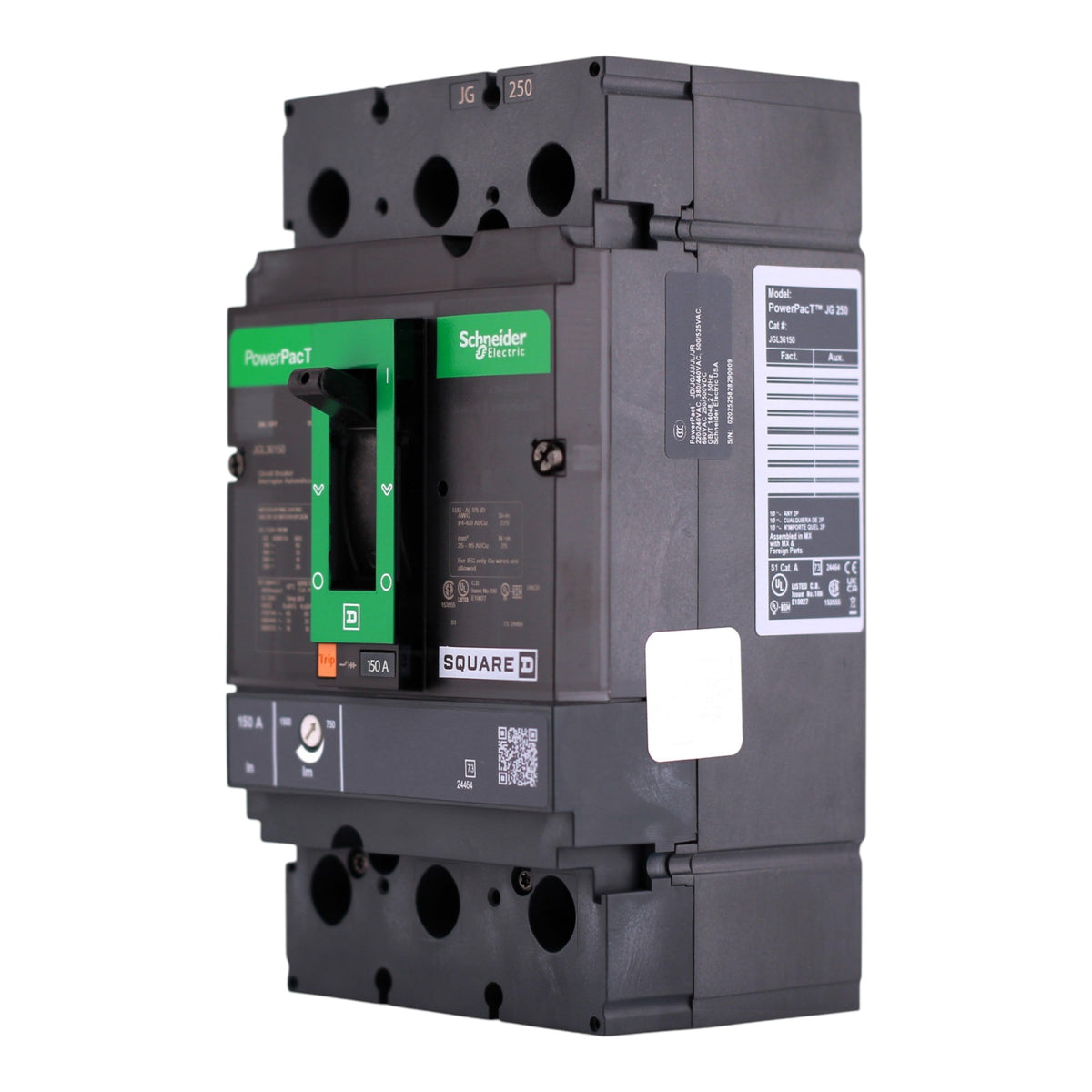

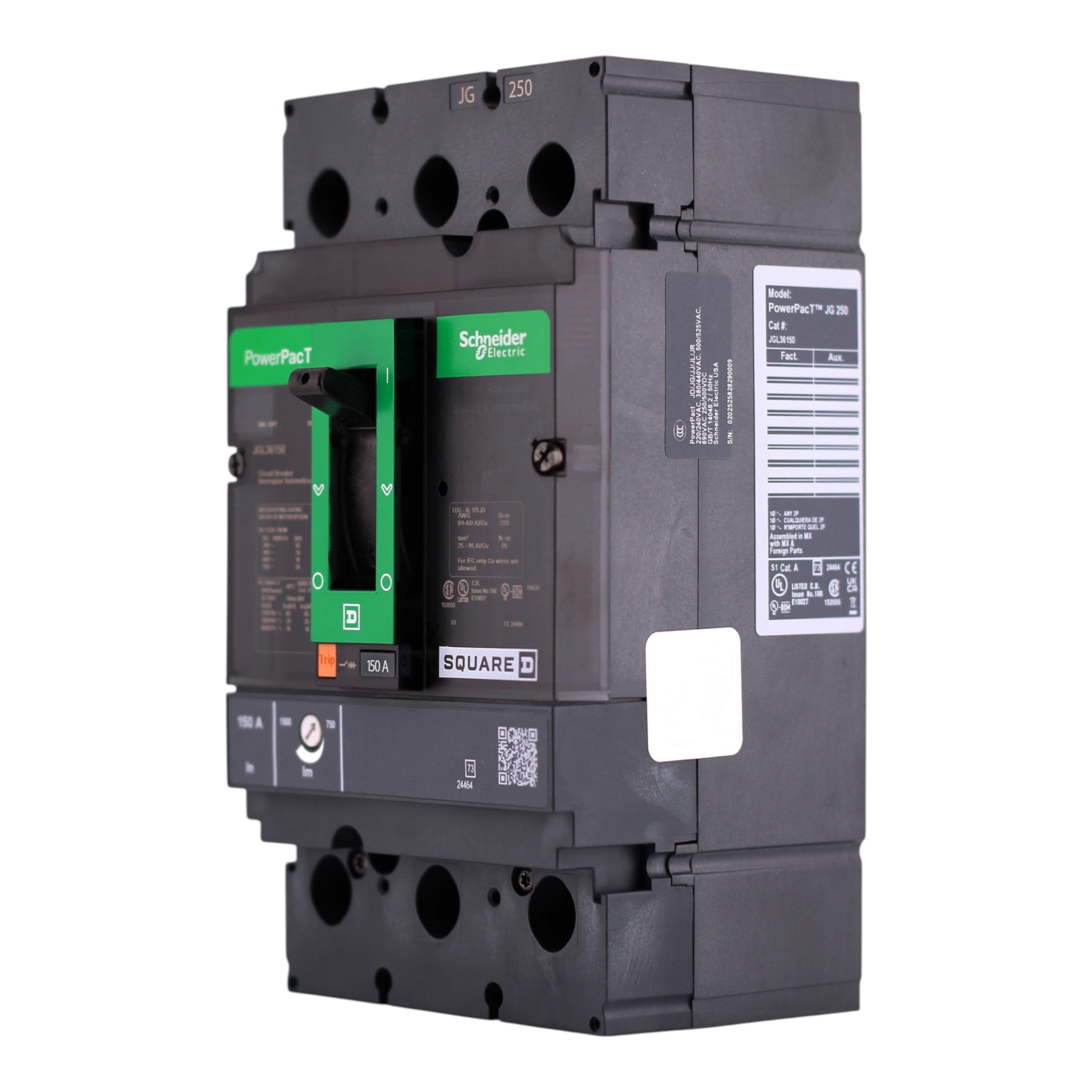

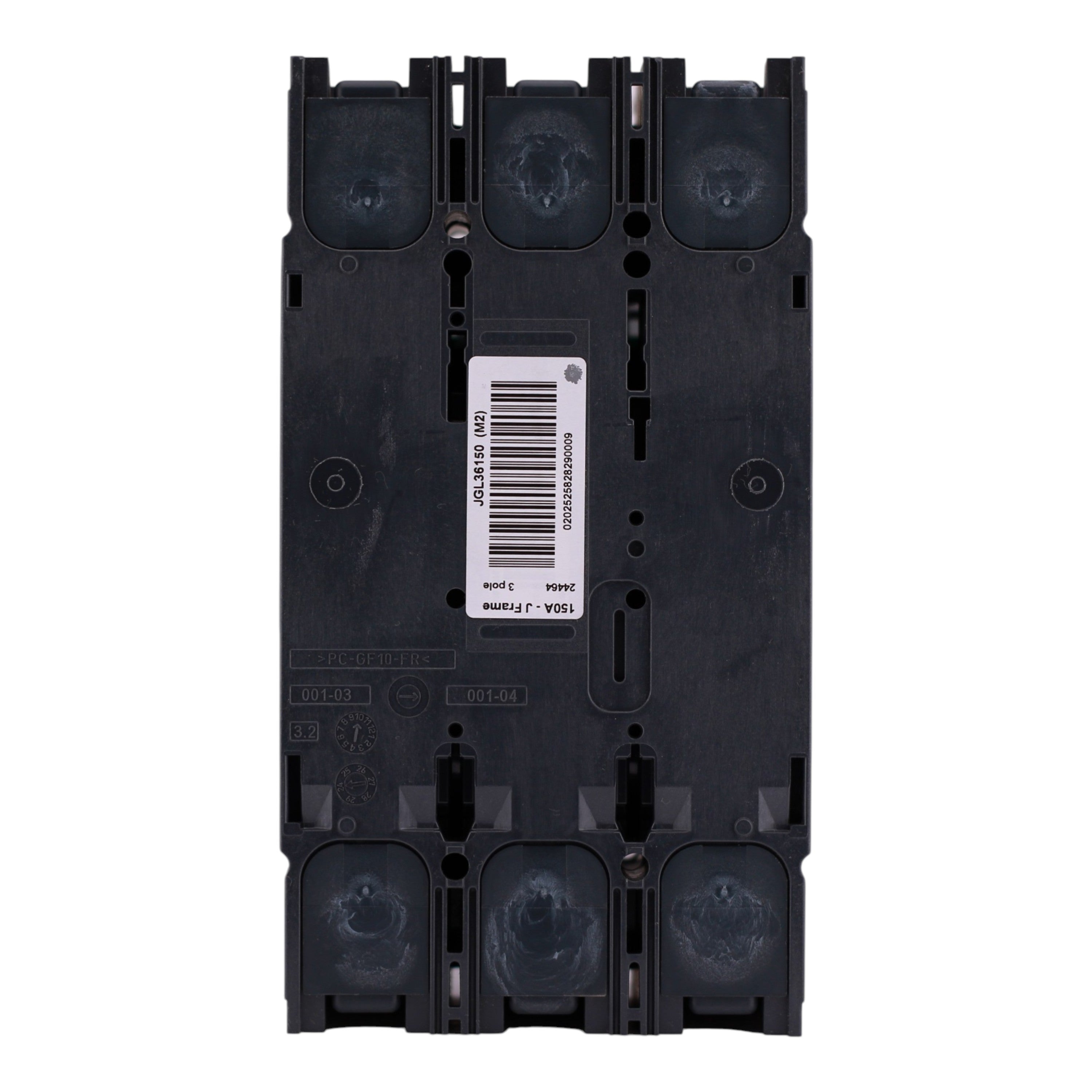

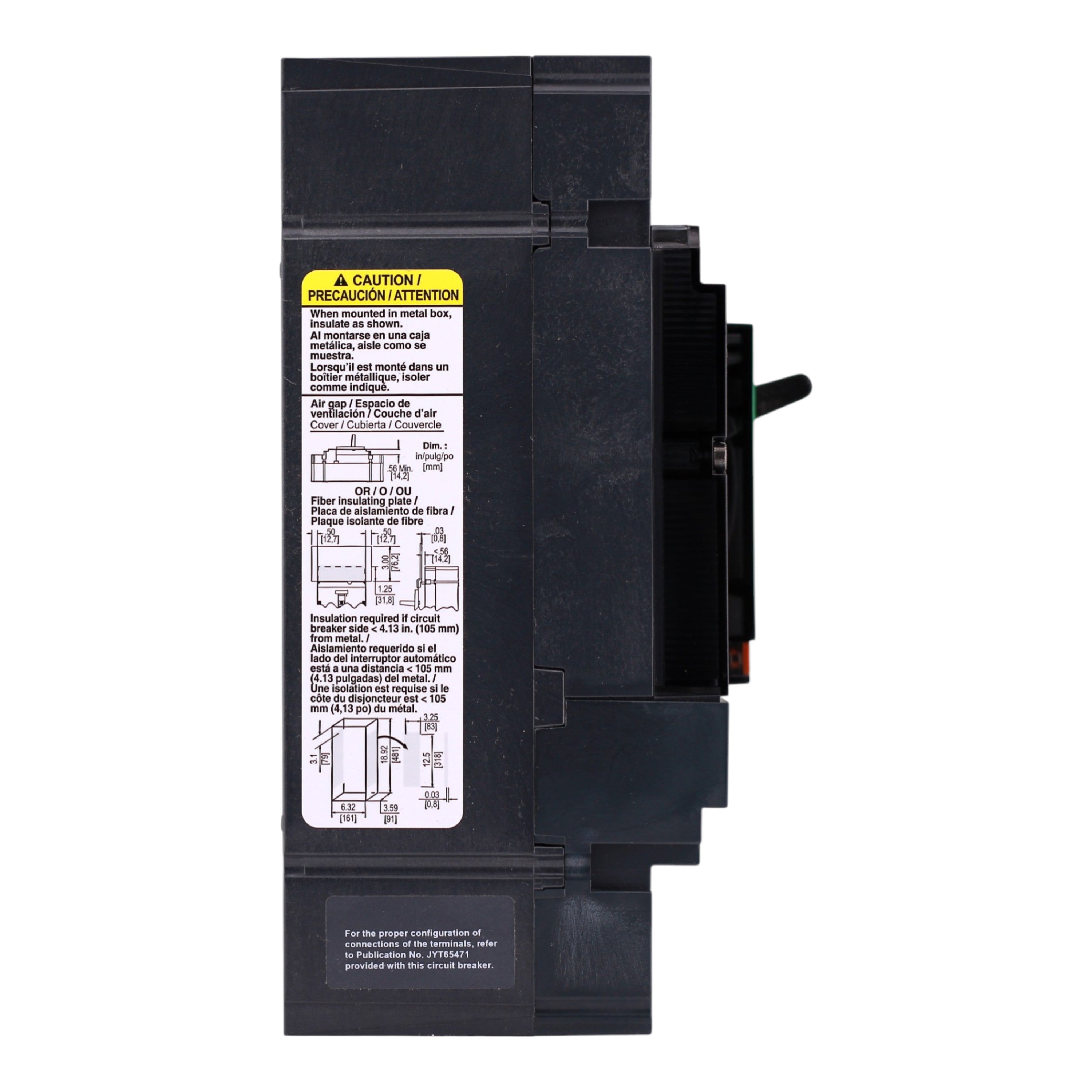

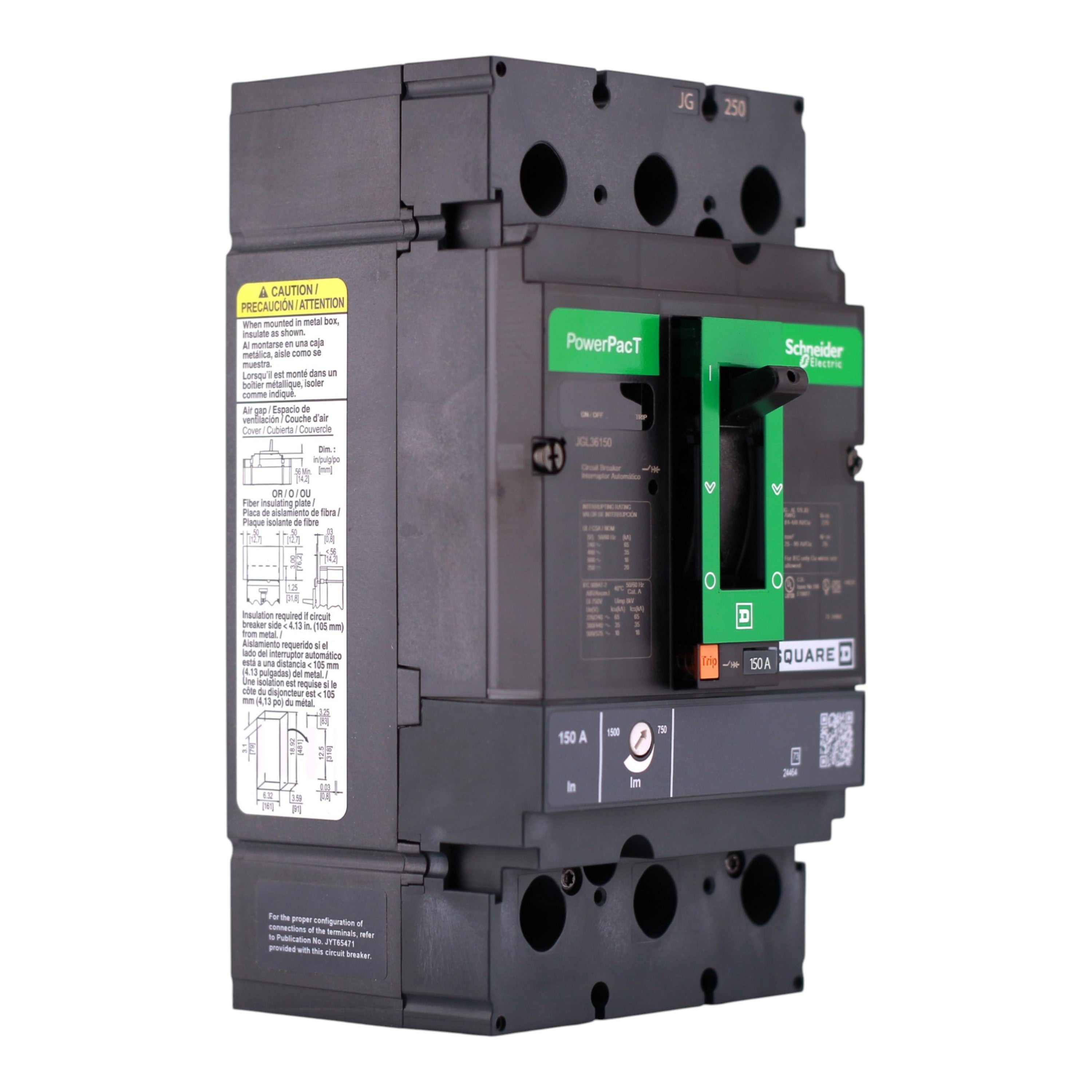

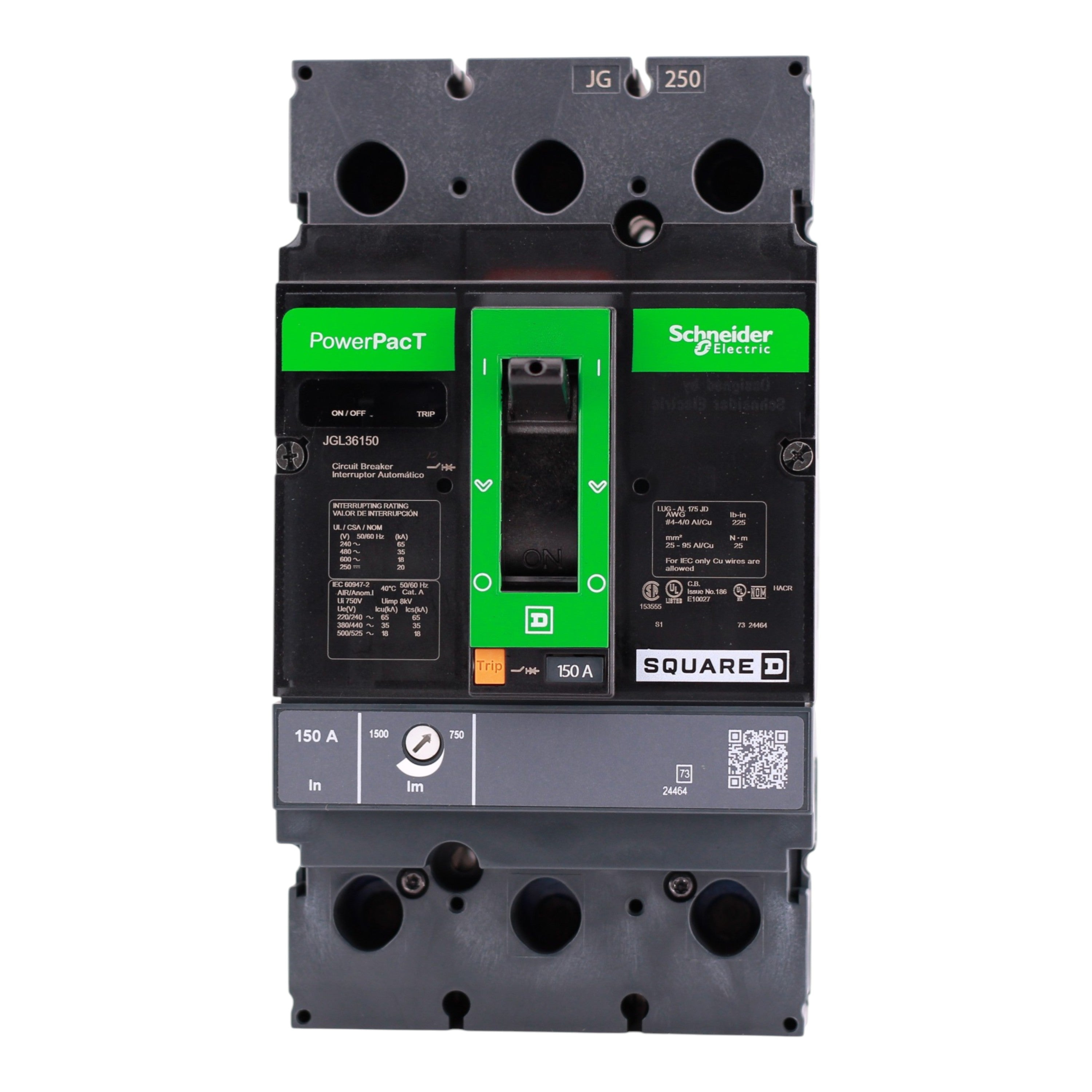

Square D PowerPacT J, JGL36150, 150A, 3P, 600V, 18kA, Lug-Lug, Circuit Breaker

Square D JGL36150: 150 Amp, 3-Pole, PowerPacT J Thermal Magnetic Circuit Breaker, 600V AC, 18kA, lug-lug, 80%, HACR, UL 489, CSA listed.

• Manufacturer: Schneider Electric
• Brand: Square D (Schneider Electric)
• Product Range: PowerPacT J-Frame (for unit mount distribution and industrial panel applications)
• UPC: 785901883739
• Model Number: JGL36150
• Breaker Type: Thermal Magnetic Molded Case Circuit Breaker
• Amperage: 150 Amps
• Poles: 3-Pole
• Voltage: 600 Volts AC (rated)
• Interrupt Rating: 18 kAIC @ 600V AC; 35 kAIC @ 480V AC; 65 kAIC @ 240V AC (UL 489)

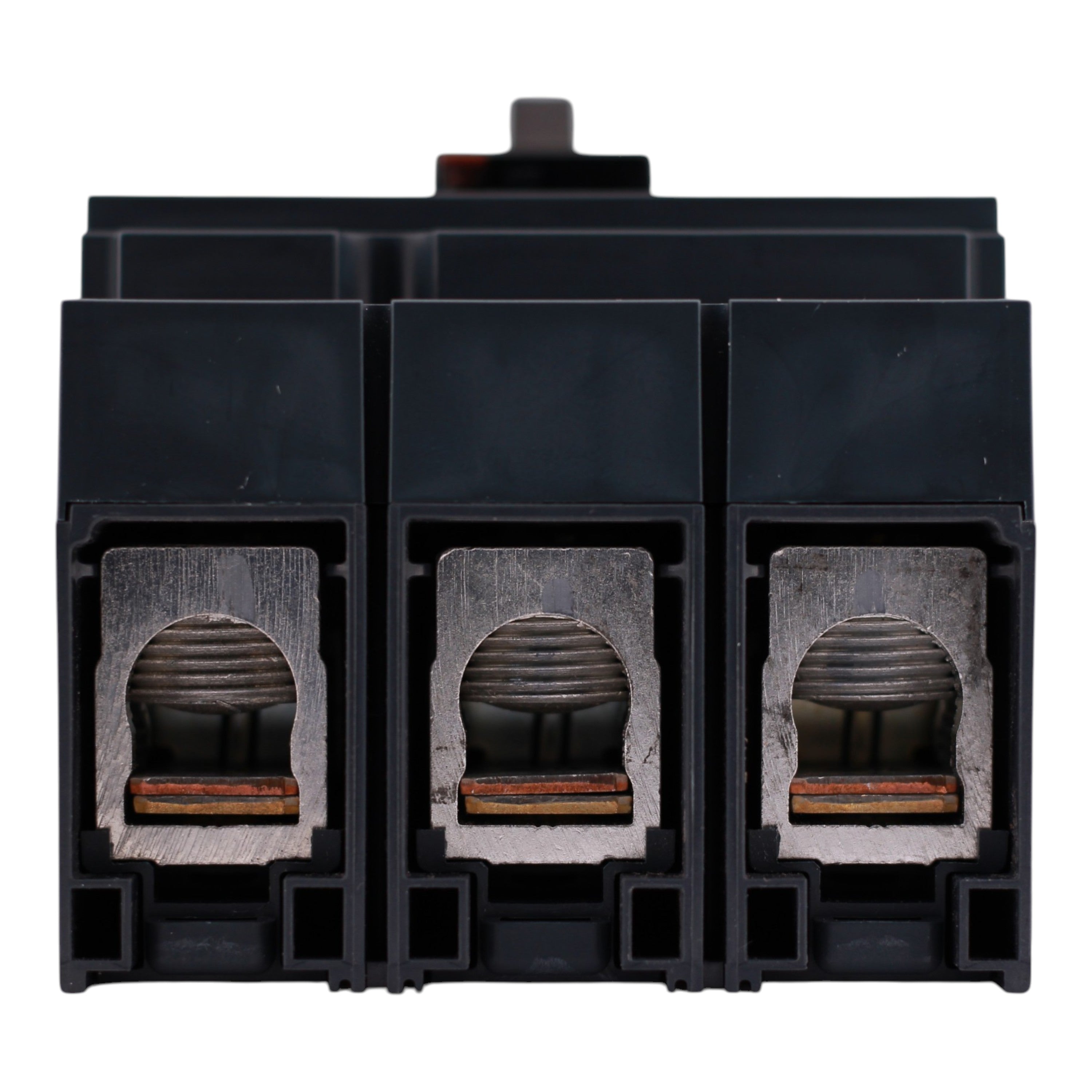

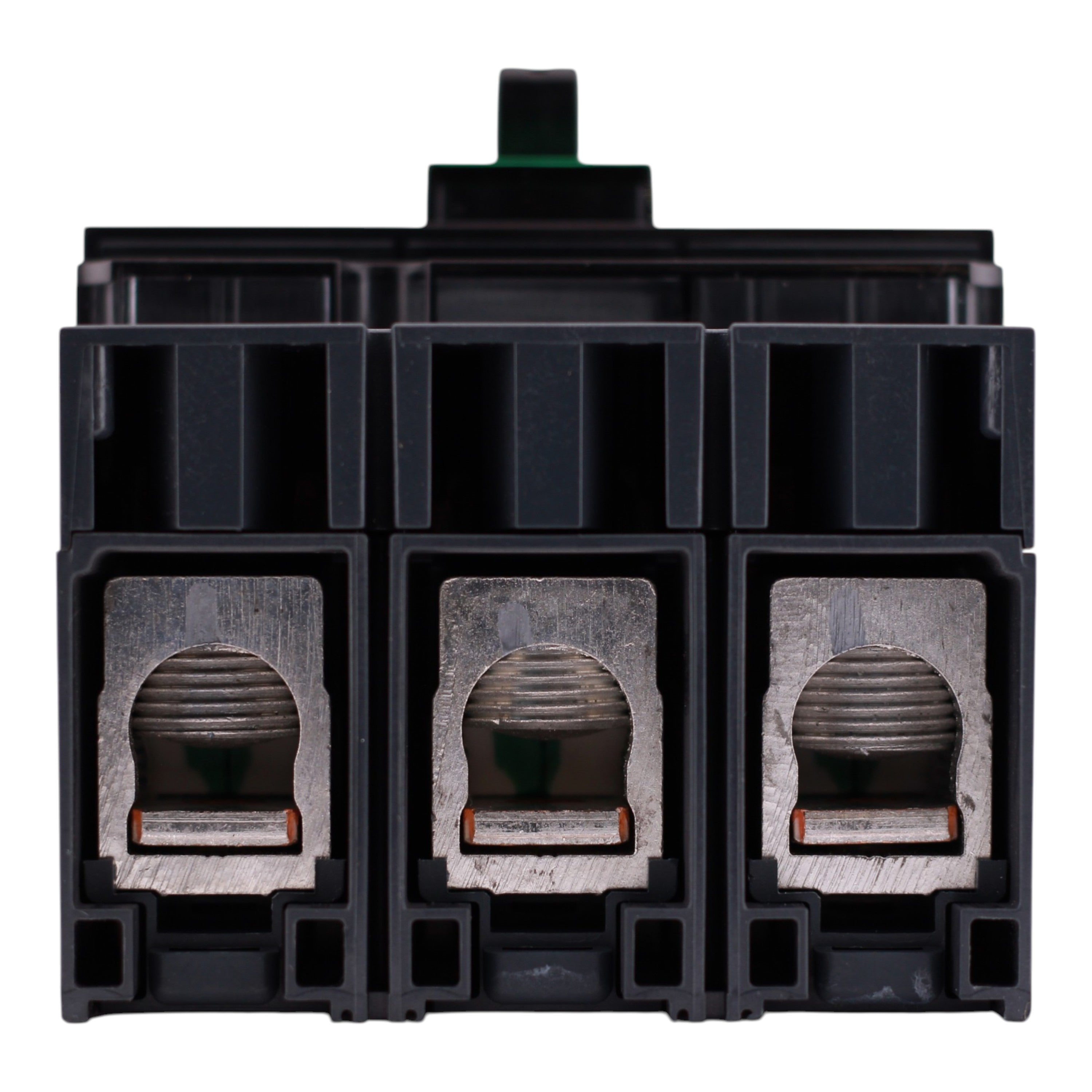

• Mounting Mode: Unit mount with lugs (line and load sides)
• Terminal Identifier: AL175JD
• Trip Type: Thermal-Magnetic, Non-Interchangeable (LI — Long-Time and Instantaneous)
• Continuous Current Rating: 80%
• Wire Size: #4–4/0 AWG Cu/Al
• Tightening Torque: 221.3 lb-in (#4–4/0 AWG)
• Dimensions: Height: 7.5 in; Width: 4.09 in; Depth: 3.4 in
• Weight: 5.3 lbs
• Certifications: UL 489, CSA, IEC 60947-2, NOM, CE Marked, HACR Rated

This Square D JGL36150 lug-lug thermal magnetic circuit breaker delivers dependable 150 Amp, 3-Pole protection for 600V AC circuits in PowerPacT J-Frame unit mount distribution applications. With multi-voltage interrupt ratings up to 65 kAIC, 80% continuous current rating, and #4–4/0 AWG Cu/Al wire range, it supports commercial and industrial distribution systems.
