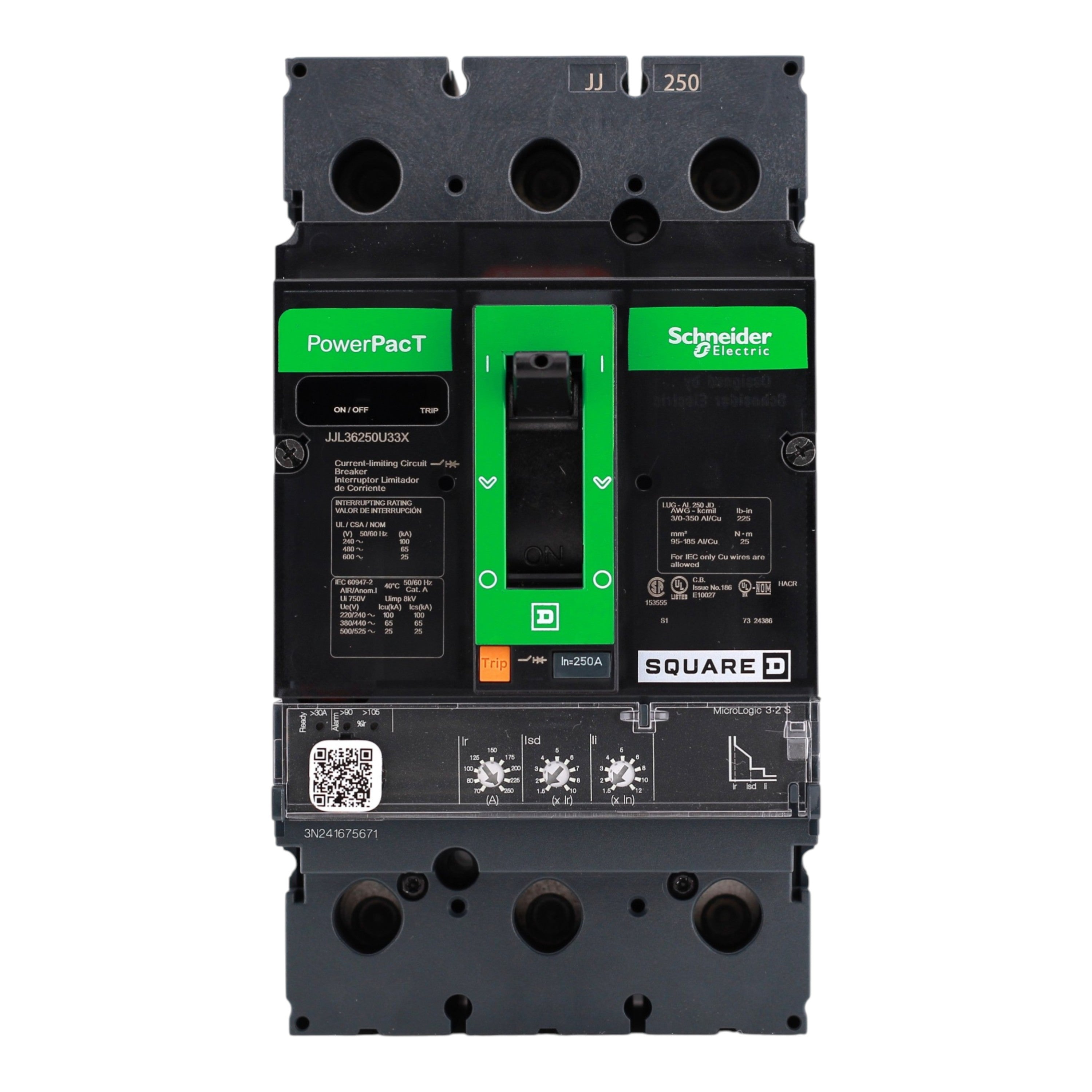

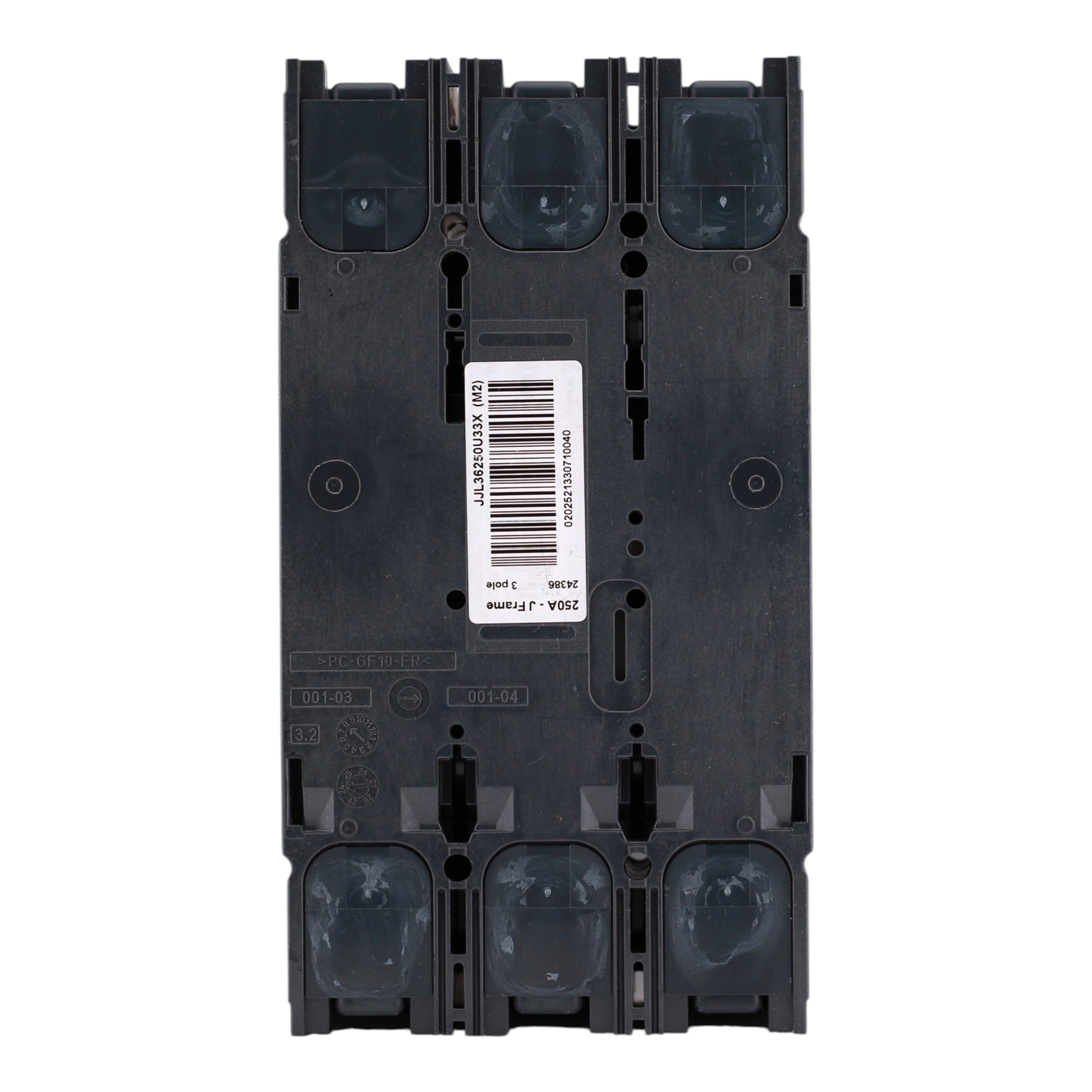

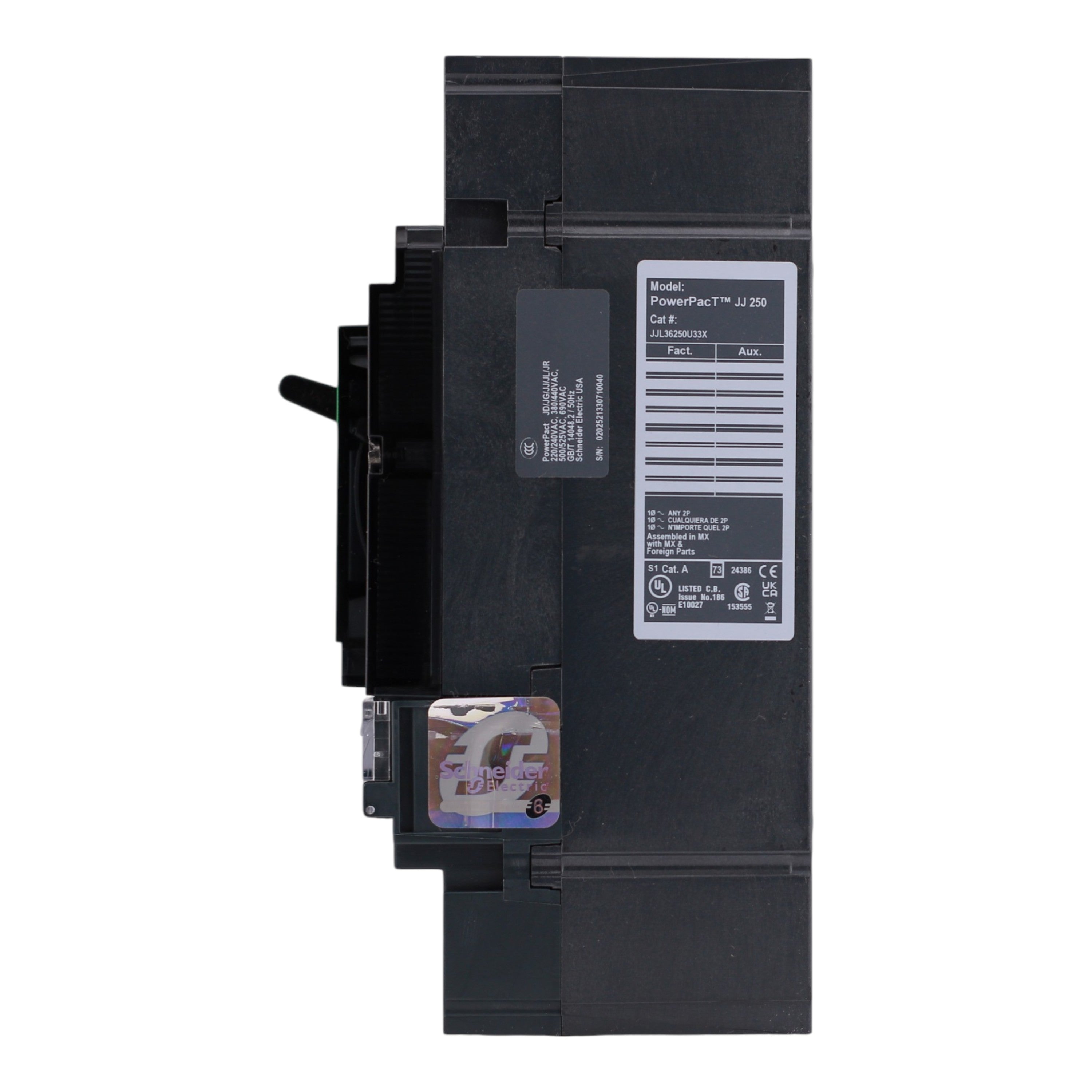

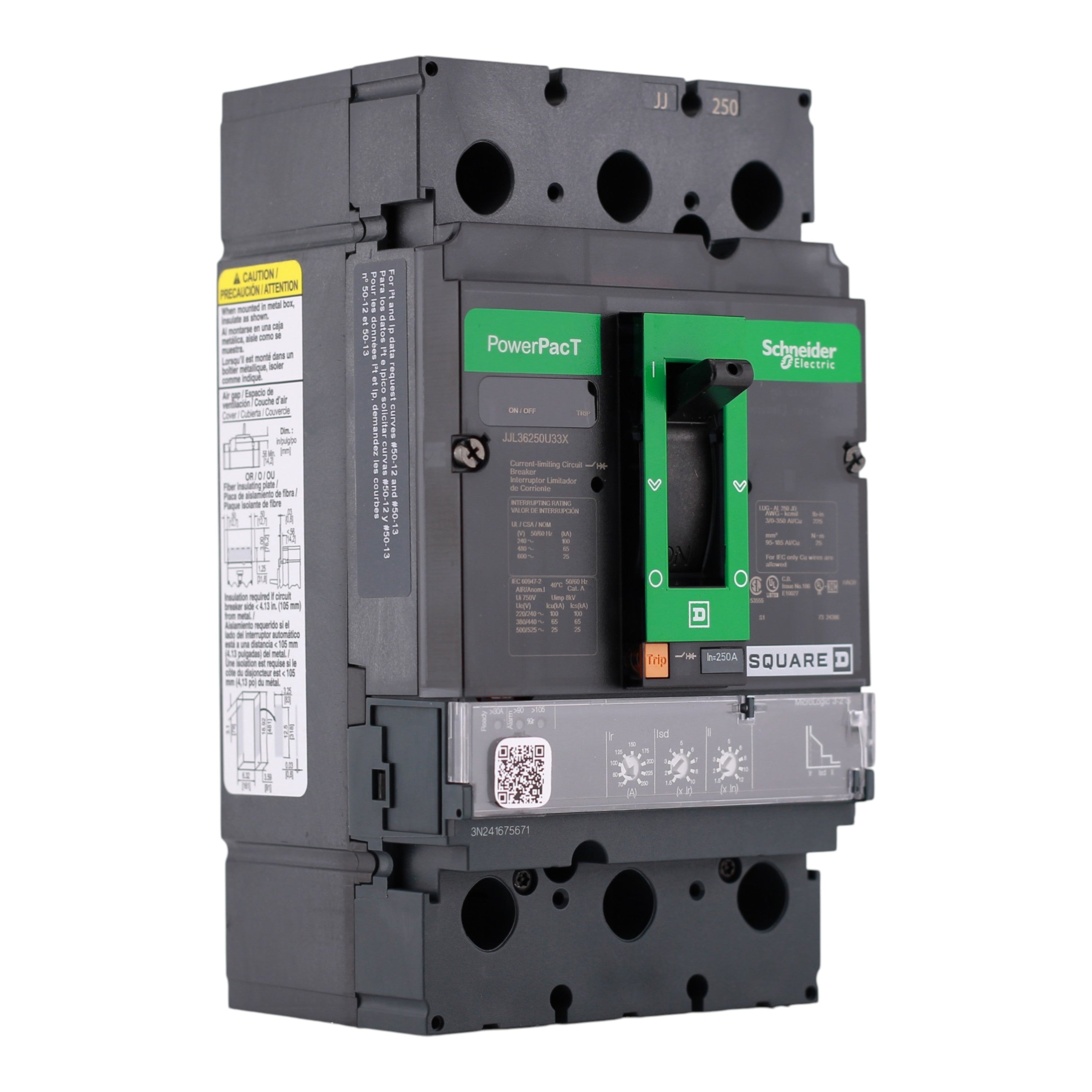

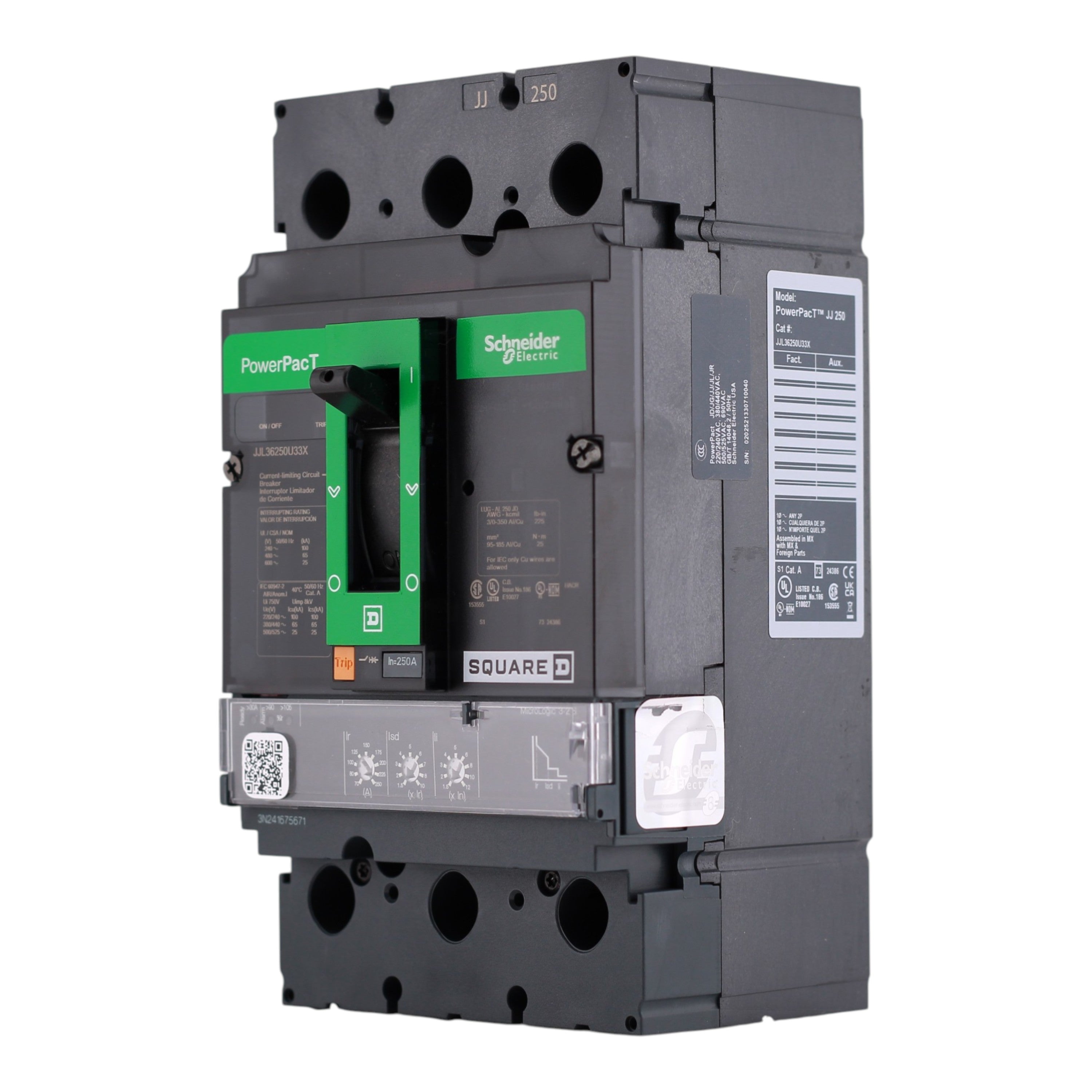

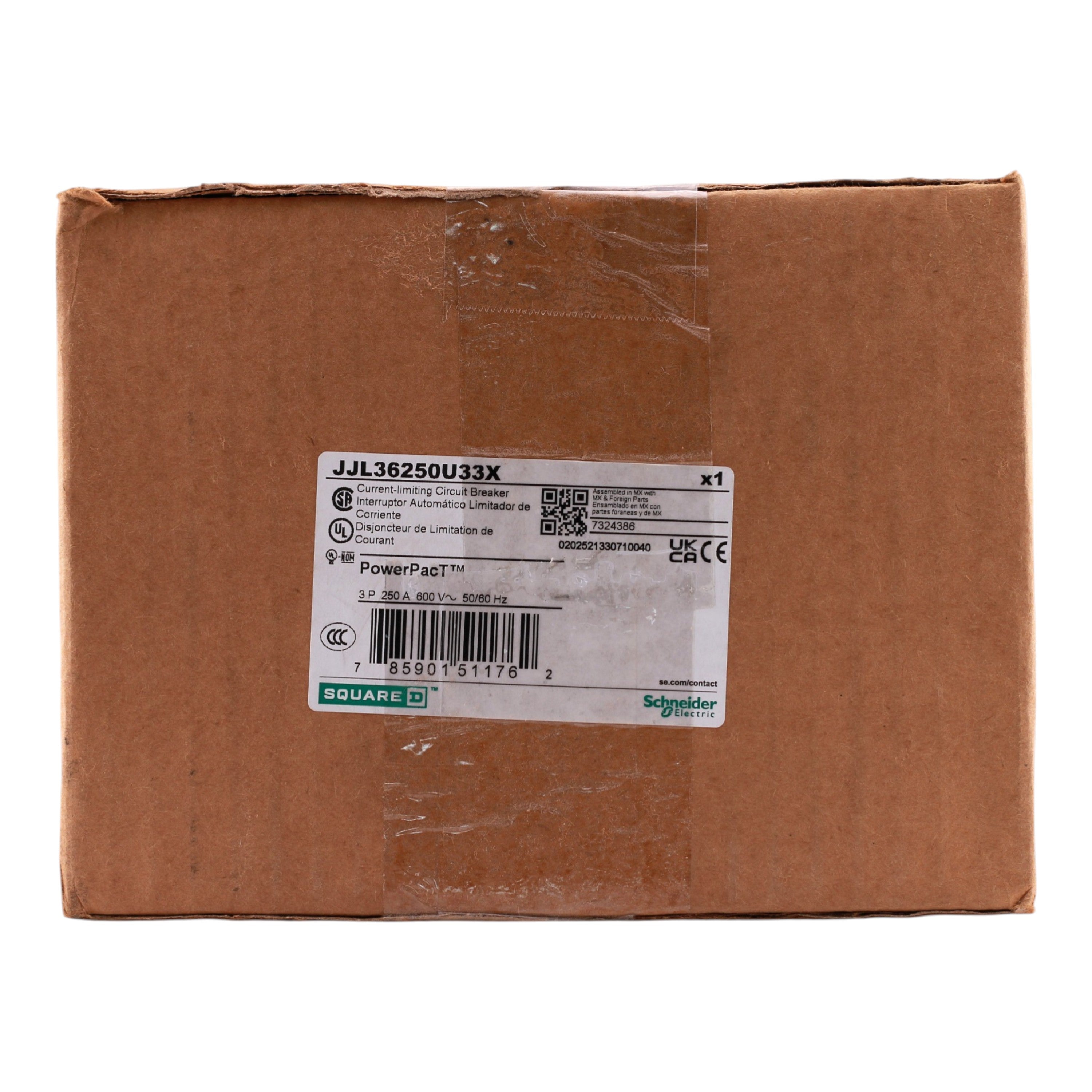

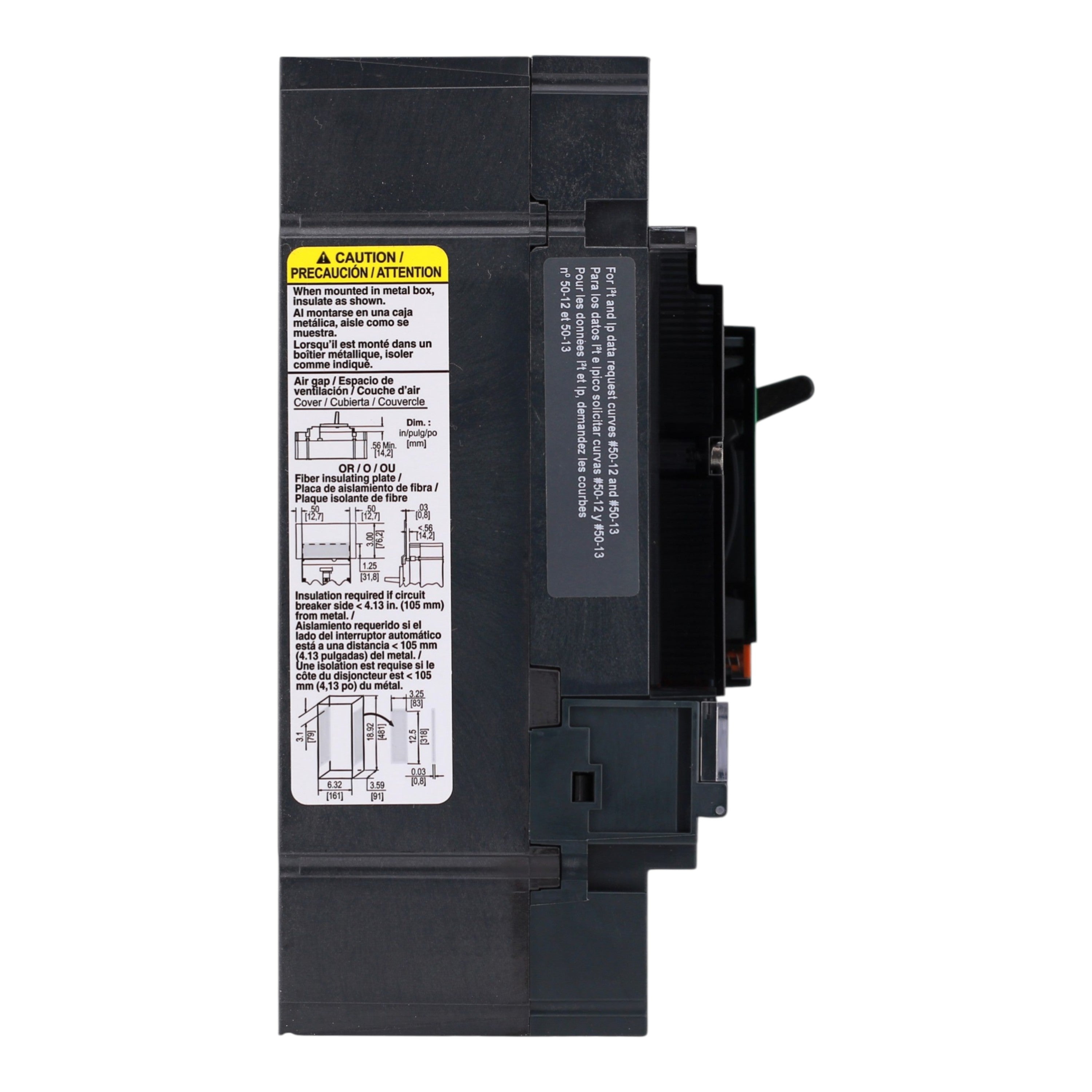

Square D PowerPacT J, JJL36250U33X, 250A, 3P, 600V, MCCB

Square D JJL36250U33X: 250 Amp, 3-Pole, PowerPacT J Molded Case Circuit Breaker, 600VAC, 25kA, MicroLogic 3.2S Electronic Trip, UL Listed.

SPECIFICATIONS

• Manufacturer: Schneider Electric
• Brand: Square D
• Product Range: PowerPacT J-Frame (for commercial and industrial power distribution)
• UPC: 785901511762
• Model Number: JJL36250U33X
• Breaker Type: Molded Case Circuit Breaker (MCCB), Electronic Trip, MicroLogic 3.2S LSI (Long-Time, Short-Time, Instantaneous)
• Amperage: 250 Amps (80% Continuous Current Rating)
• Poles: 3-Pole
• Voltage: 600 Volts AC
• Interrupt Rating: 25 kAIC @ 600VAC; 65 kAIC @ 480VAC; 100 kAIC @ 240VAC
• Mounting Mode: Unit Mount

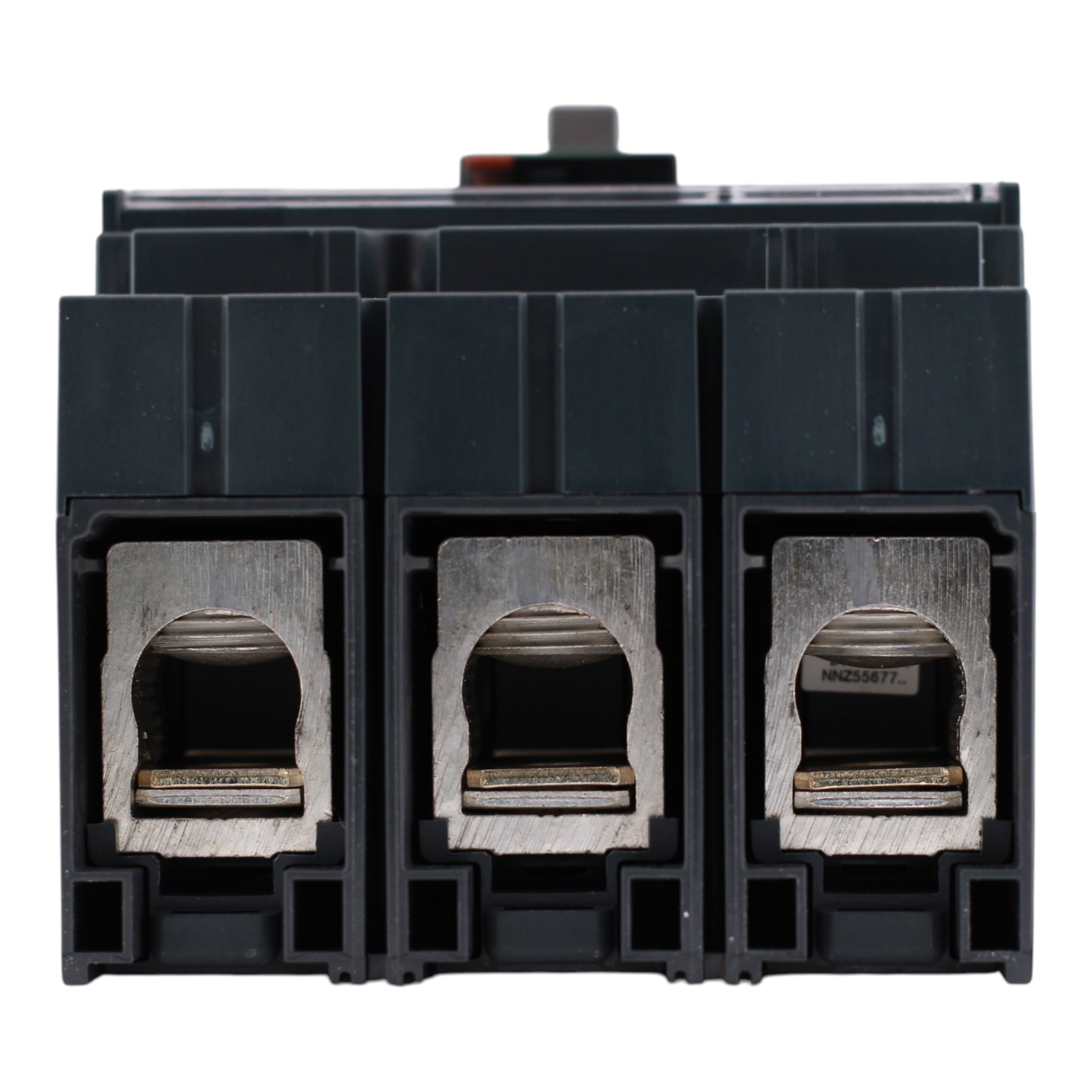

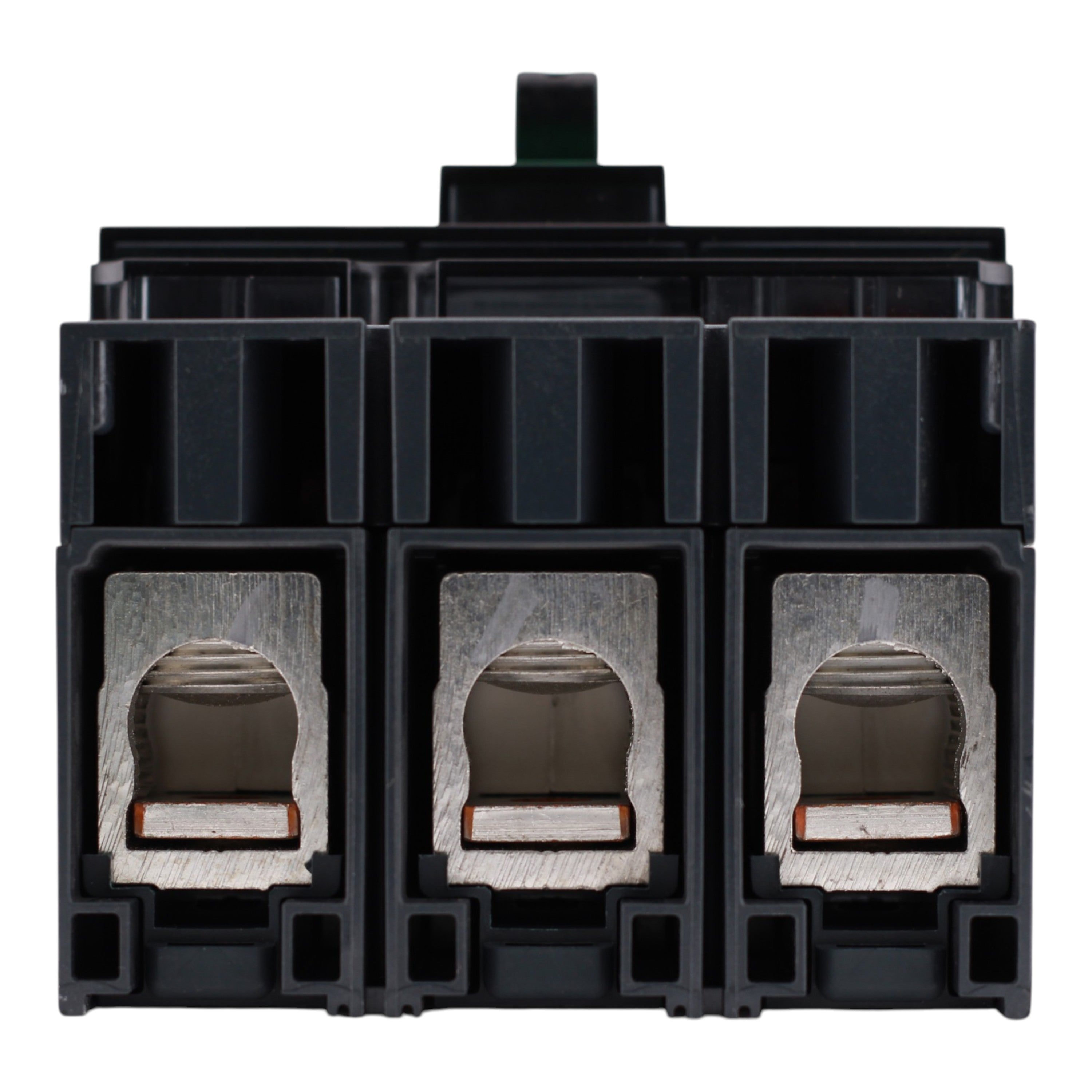

• Connections/Terminals: Lugs, Line and Load Side
• Wire Size: AWG 3/0–350 kcmil Al/Cu
• Tightening Torque: 221.3 lb-in
• Dimensions: Height: 7.5 in; Width: 4.09 in; Depth: 3.4 in
• Weight: 5.3 lbs
• Certifications: UL Listed, CSA, HACR Rated

This Square D JJL36250U33X PowerPacT J-Frame molded case circuit breaker delivers 250 Amp, 3-Pole protection for 600VAC circuits. With MicroLogic 3.2S electronic trip (LSI) and 25kAIC interrupt rating, it suits commercial and industrial power distribution applications.
