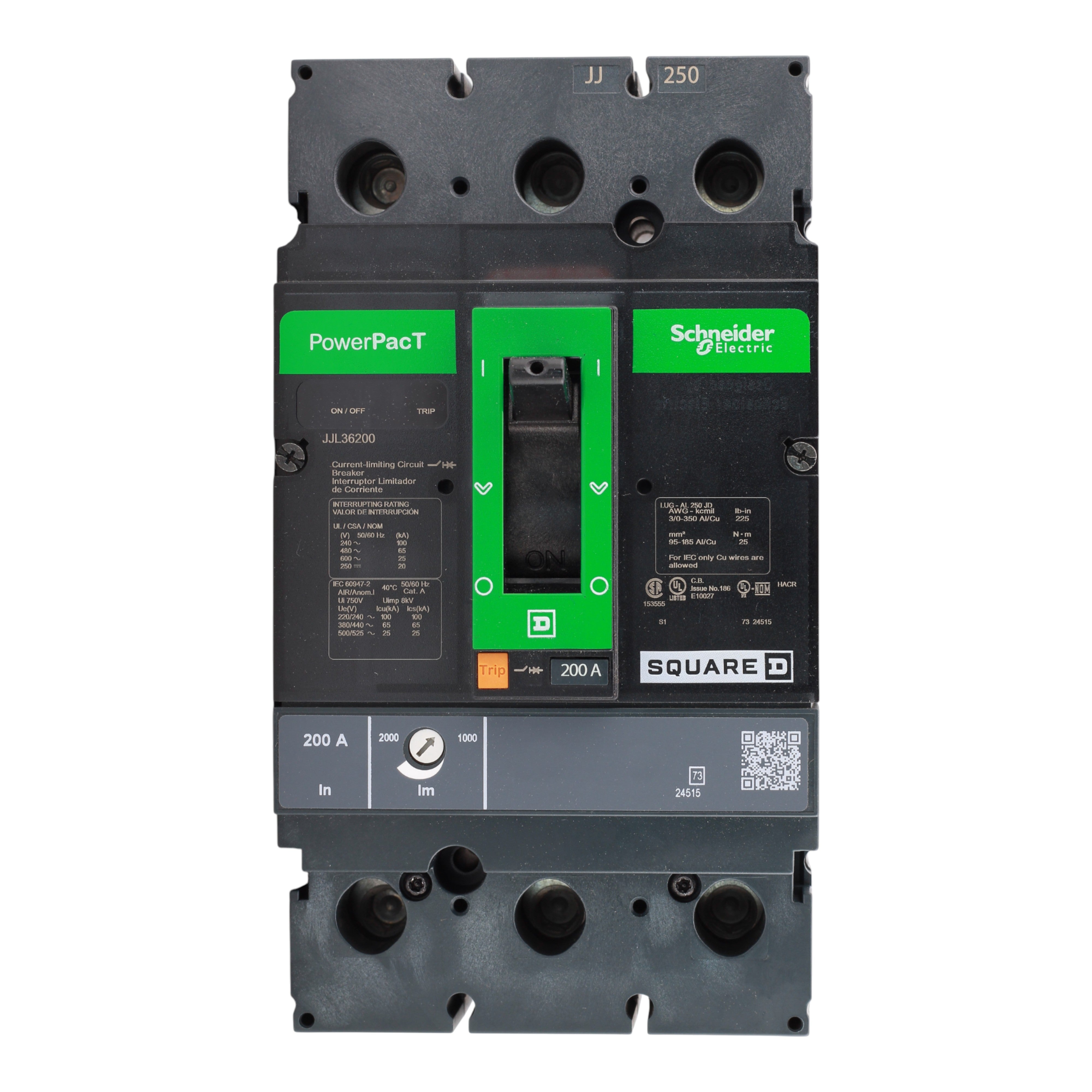

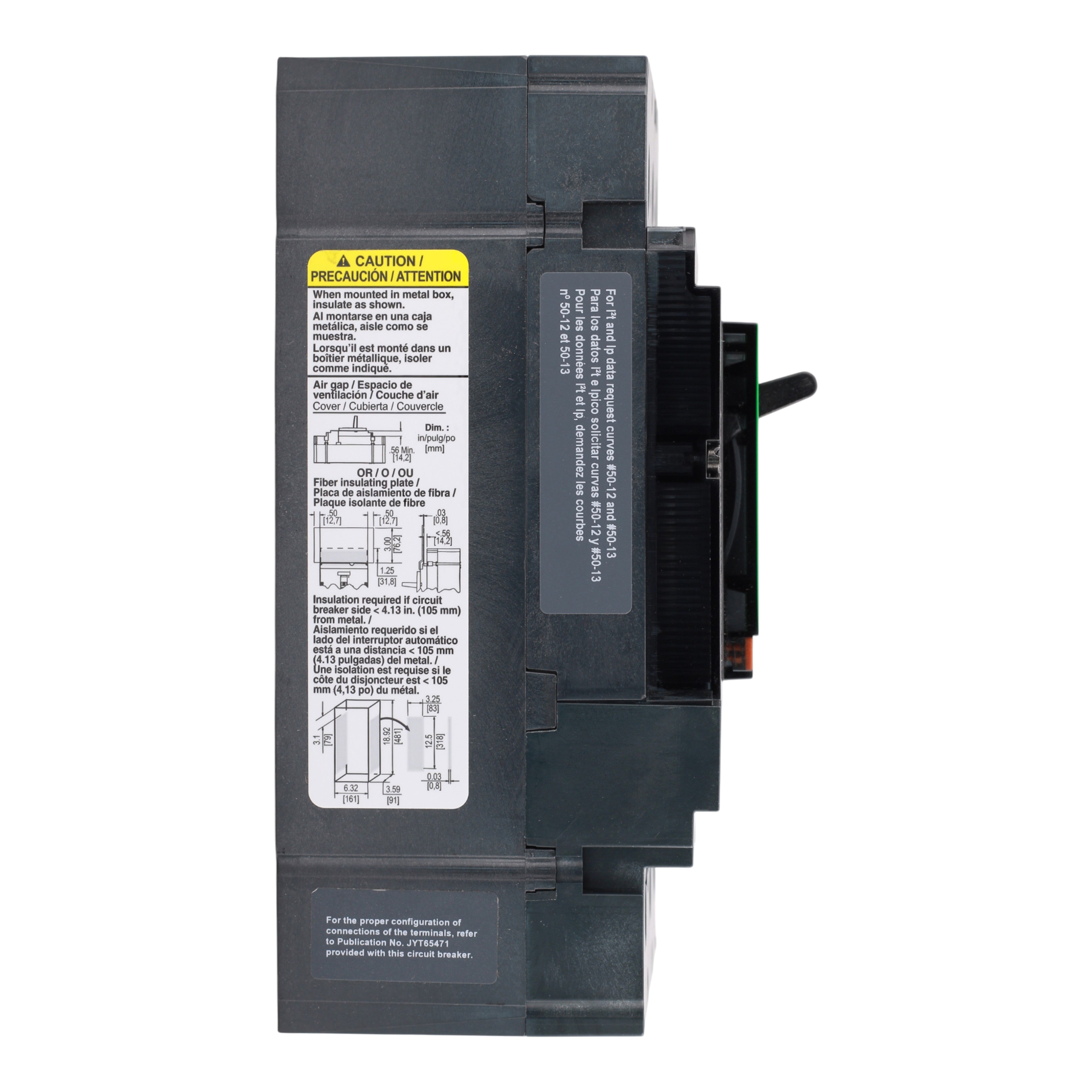

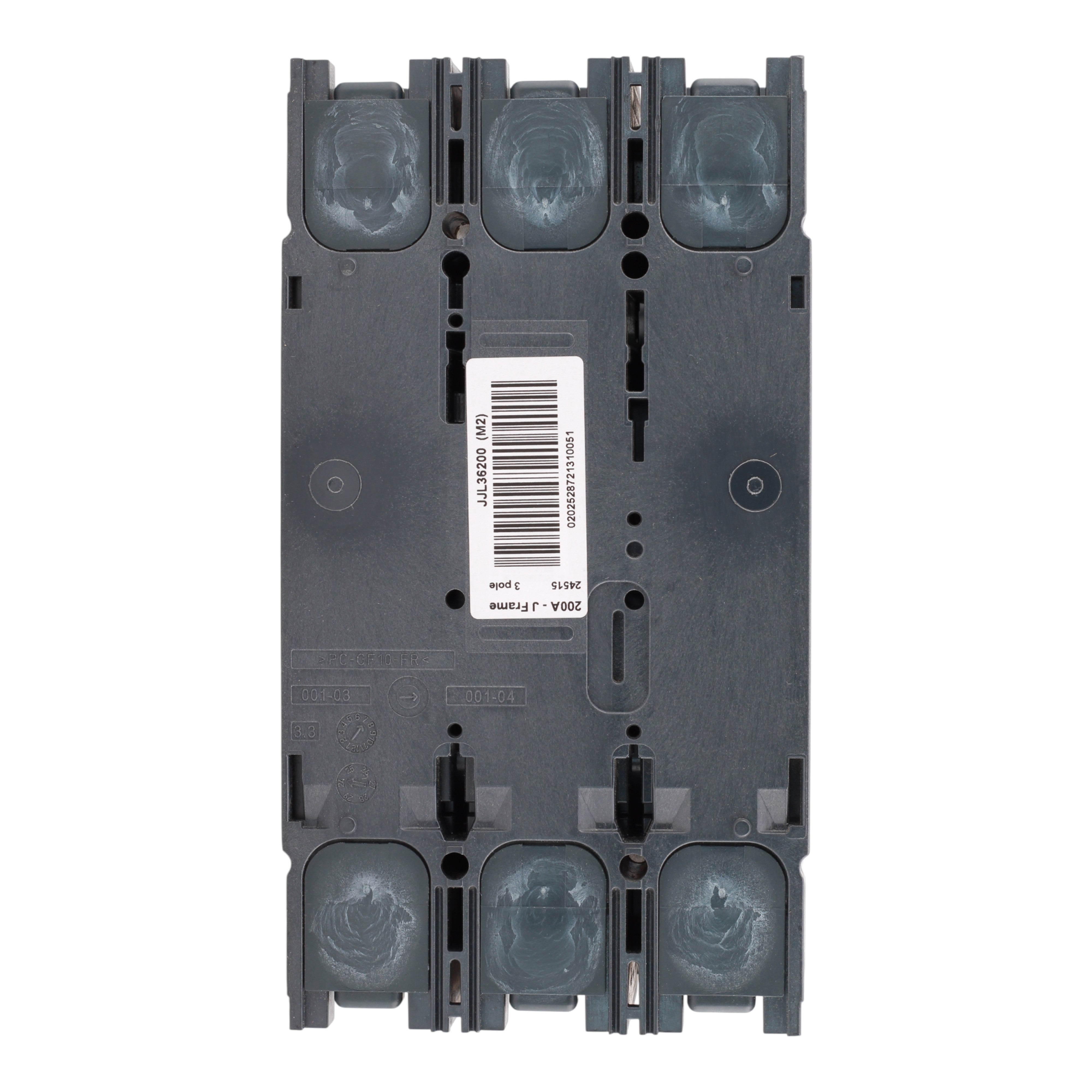

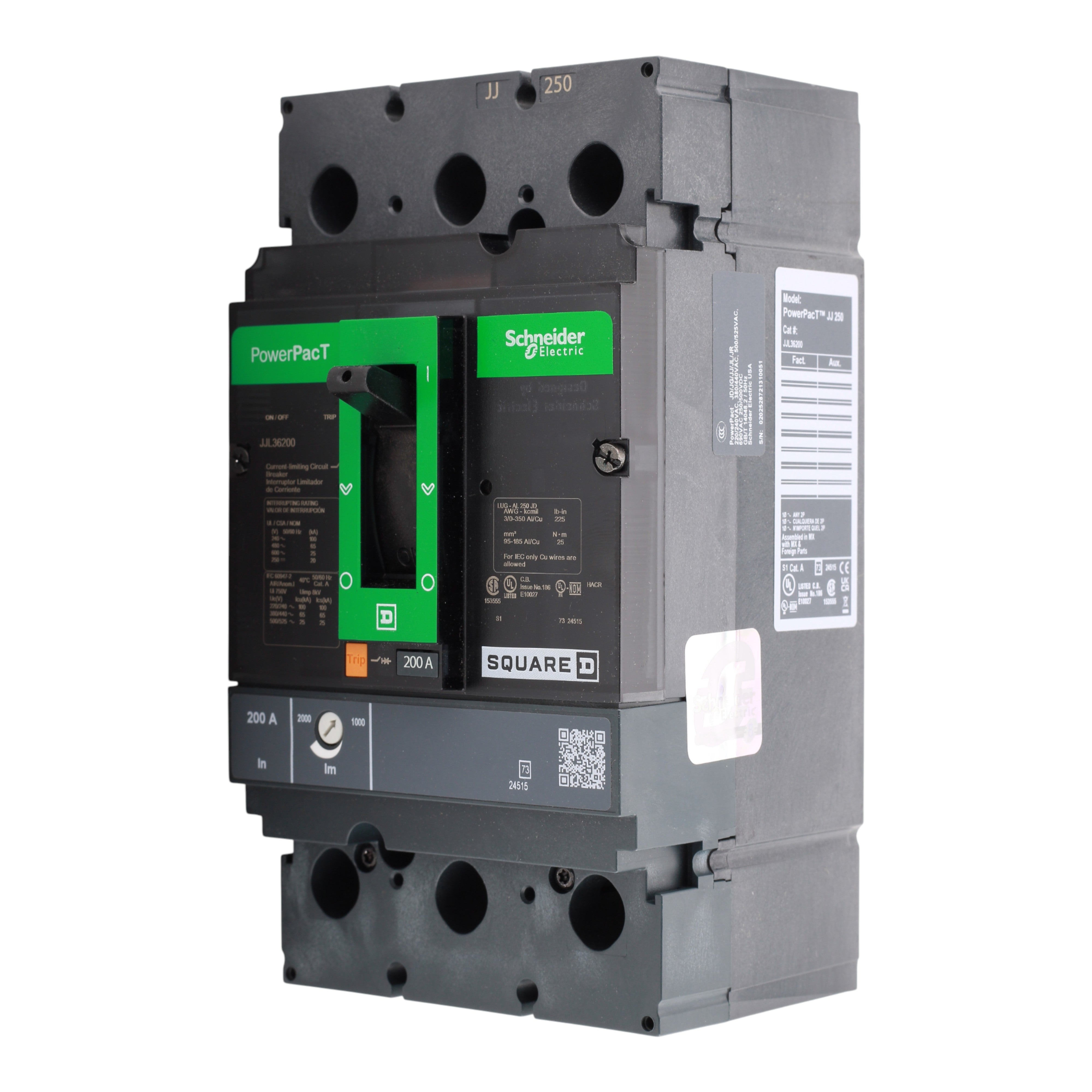

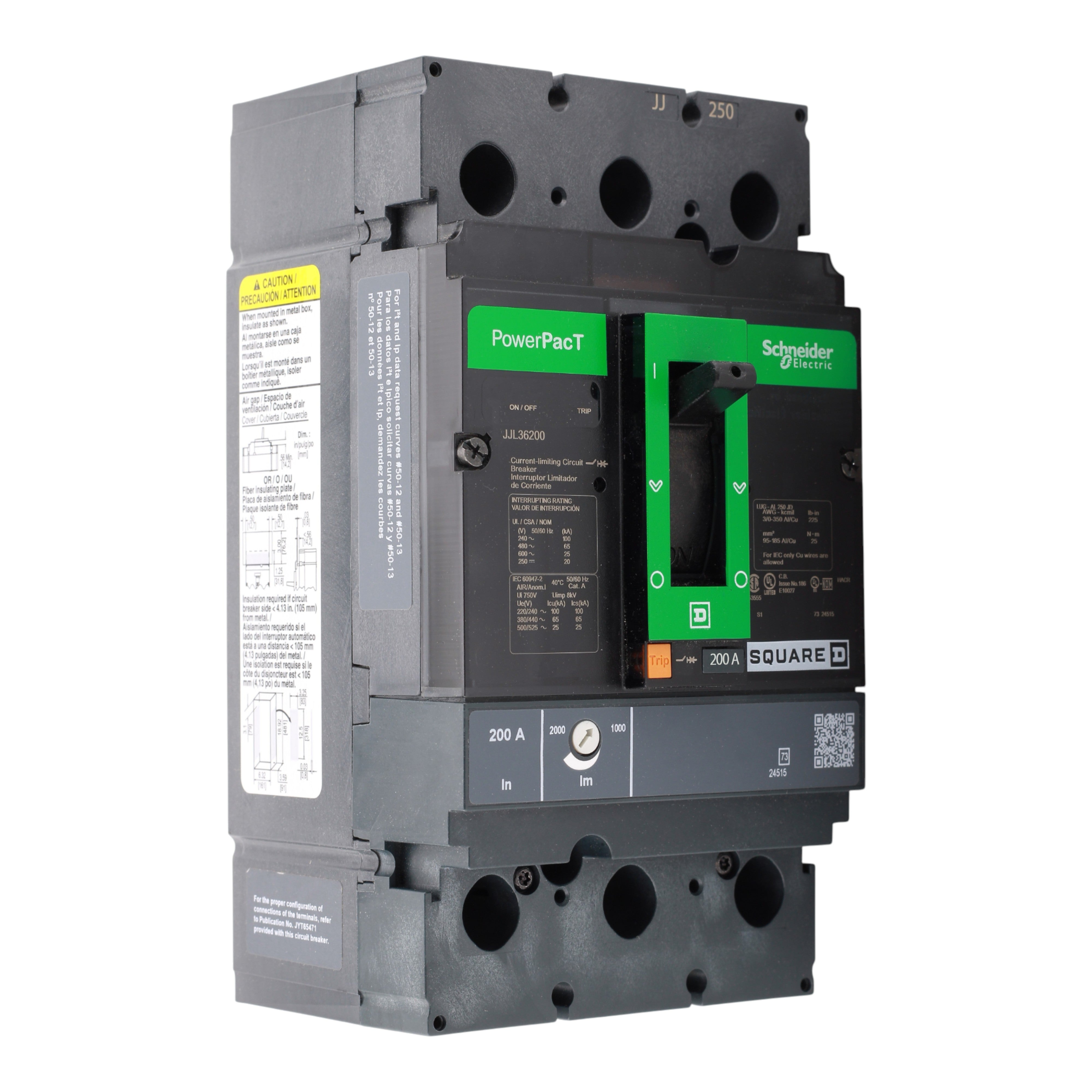

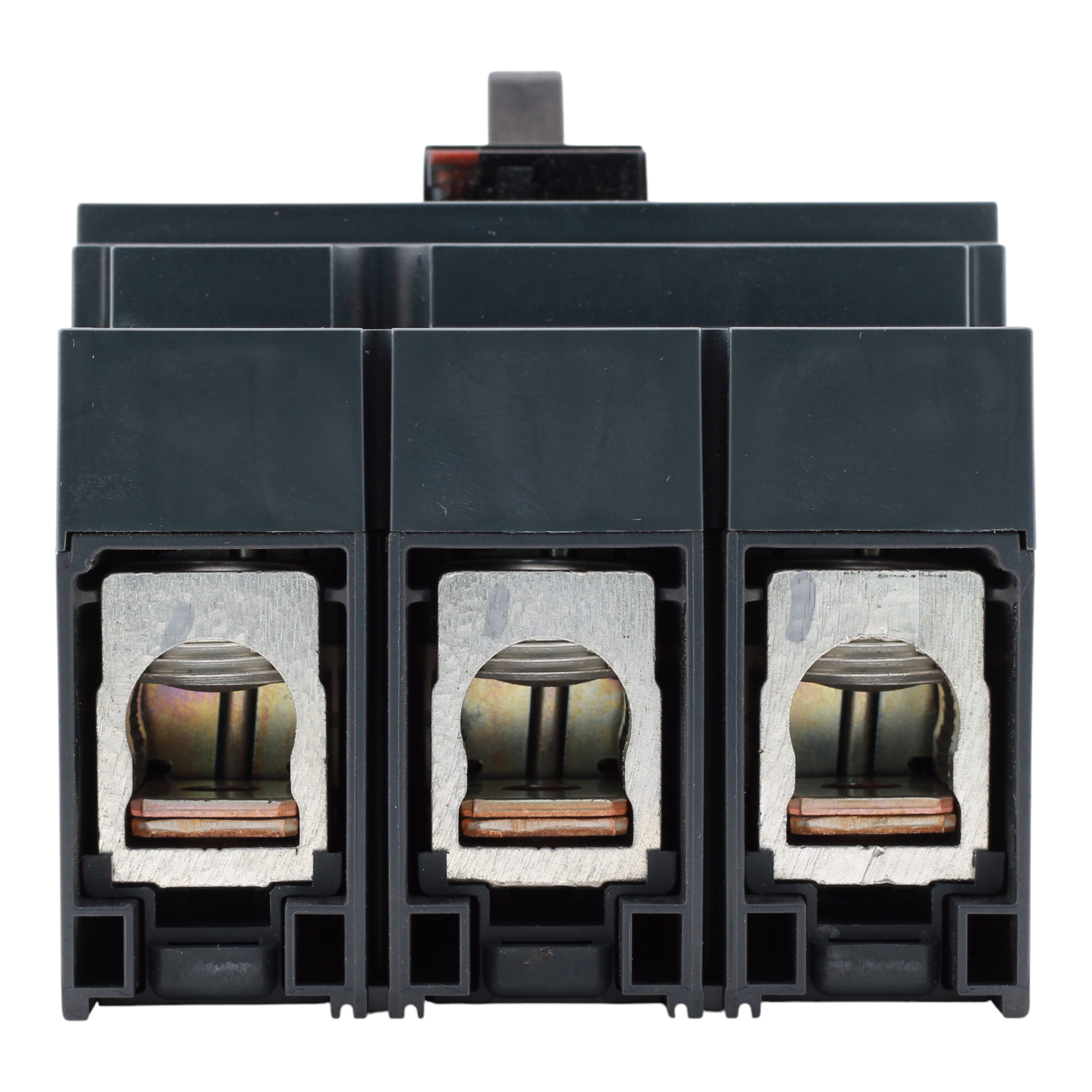

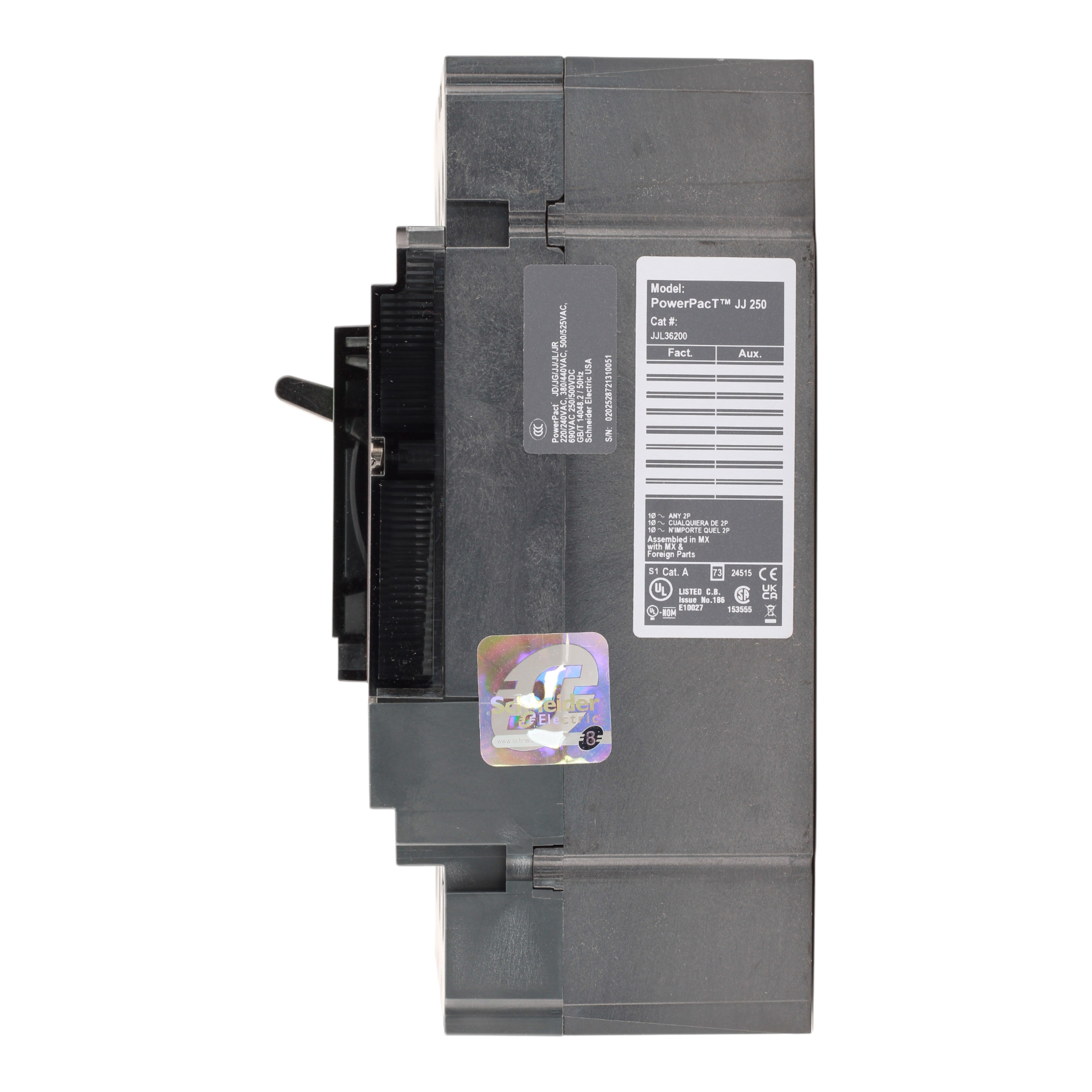

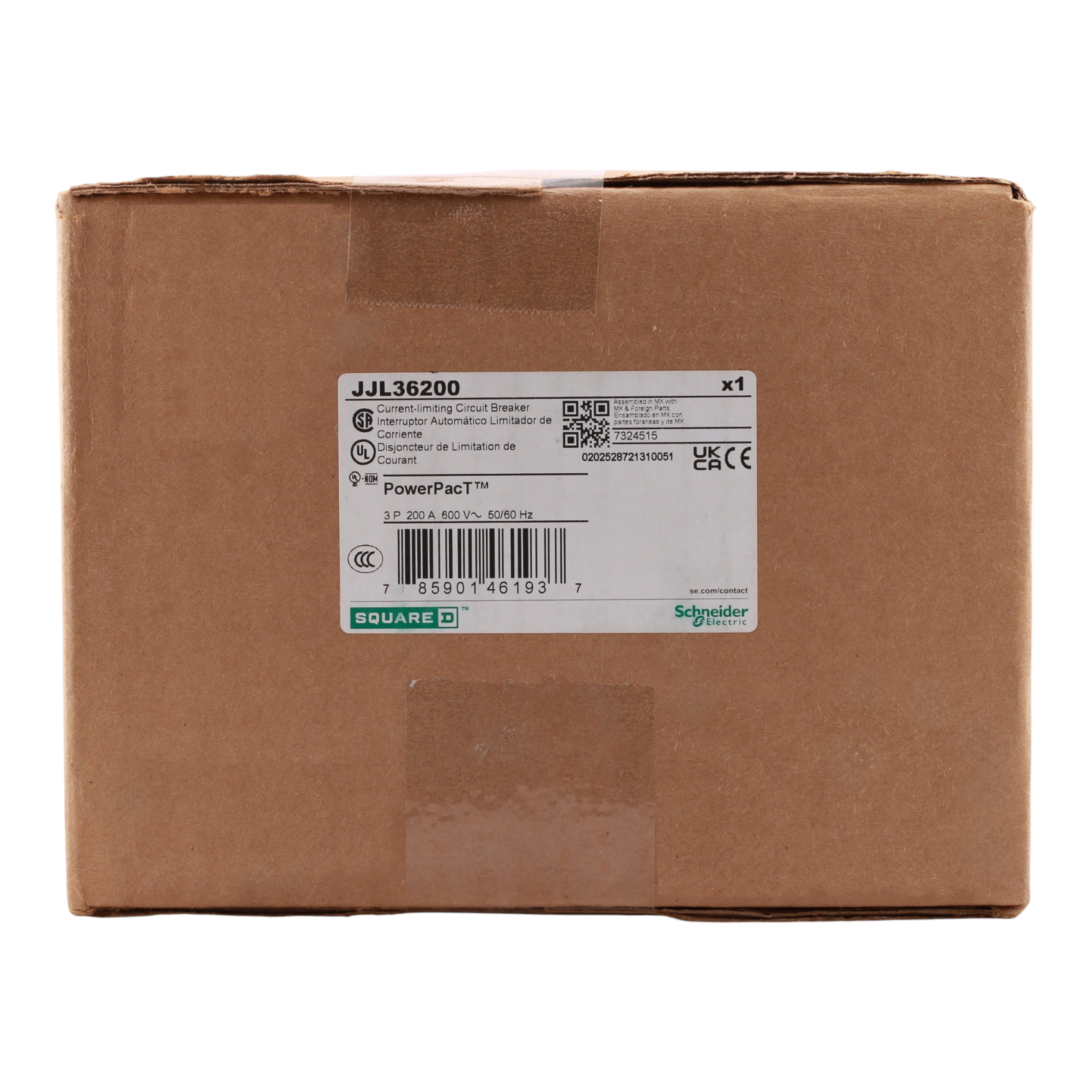

Square D PowerPacT JJL36200 200A 3P 600V Thermal-Magnetic Circuit Breaker

Square D JJL36200: 200 Amp 3-Pole Thermal-Magnetic Circuit Breaker, 600V, 25kA, lugs, UL listed, CSA, NOM, IEC, CE.

• Manufacturer: Schneider Electric
• Brand: Square D
• Product Range: PowerPacT J-Frame (for PowerPacT J-Frame compatible panels and equipment)
• UPC: 785901461937
• Model Number: JJL36200
• Breaker Type: Thermal-Magnetic
• Amperage: 200 Amps
• Poles: 3-Pole
• Voltage: 600 Volts AC
• Interrupt Rating: 25 kAIC at 600V AC
• Mounting Mode: Unit mount lug

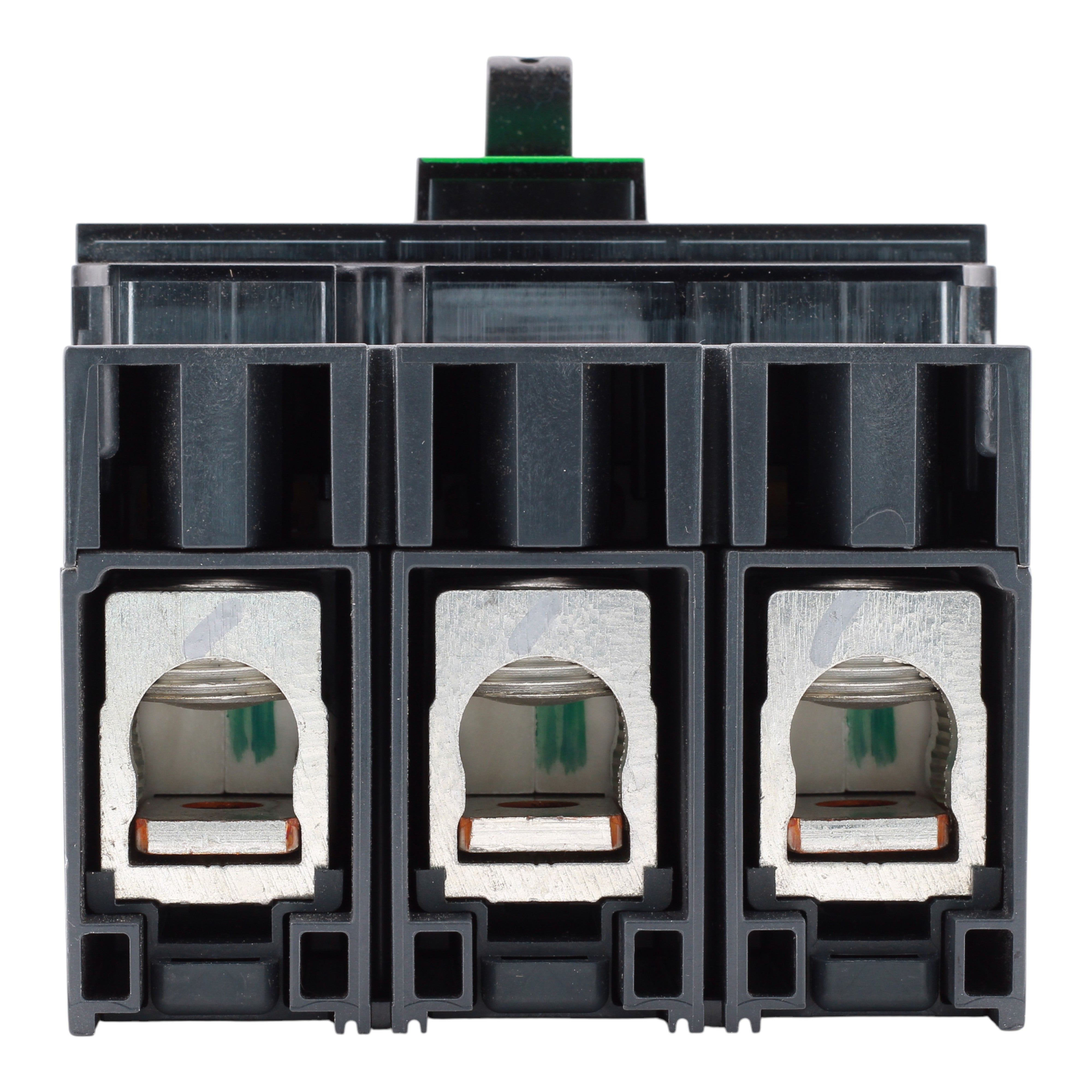

• Connections Terminals: Lugs, line and load
• Wire Size: AWG 3/0...350 kcmil (Cu/Al)
• Tightening Torque: 221.3 lb-in
• Dimensions: Height: 7.5 in; Width: 4.09 in; Depth: 3.4 in
• Weight: 5.3 lbs
• Certifications: UL Listed, CSA, NOM, IEC 60947-2, CE, HACR Rated

This Schneider Electric PowerPacT JJL36200 circuit breaker provides reliable 200A, 3-pole thermal-magnetic protection for 600V circuits in PowerPacT J-Frame compatible panels. With a 25kA interrupting capacity, it ensures robust overload and short-circuit protection for industrial and commercial applications.
