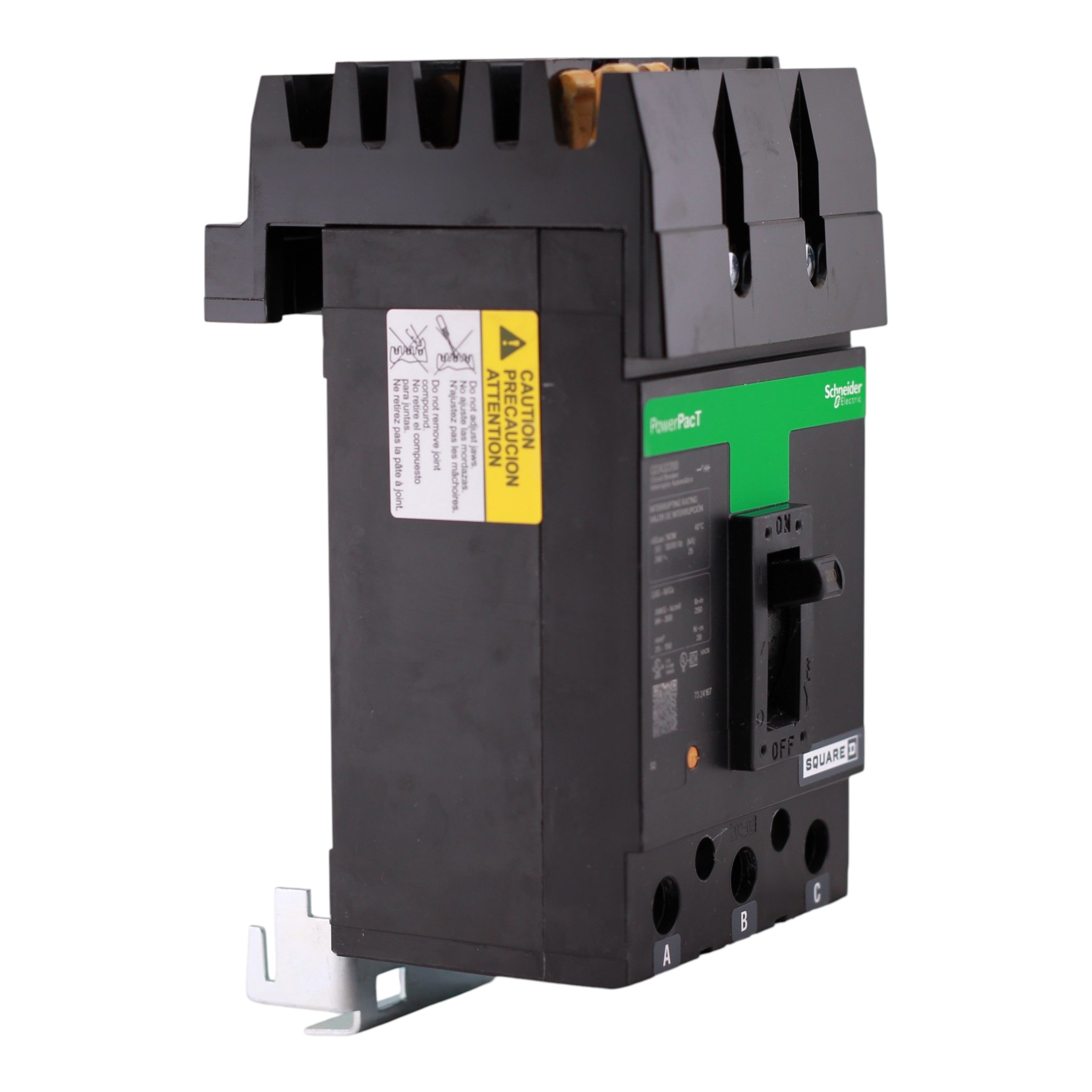

Square D PowerPacT Q, QDA32200, 200A, 3P, 240VAC, I-Line, Thermal Magnetic, Circuit Breaker

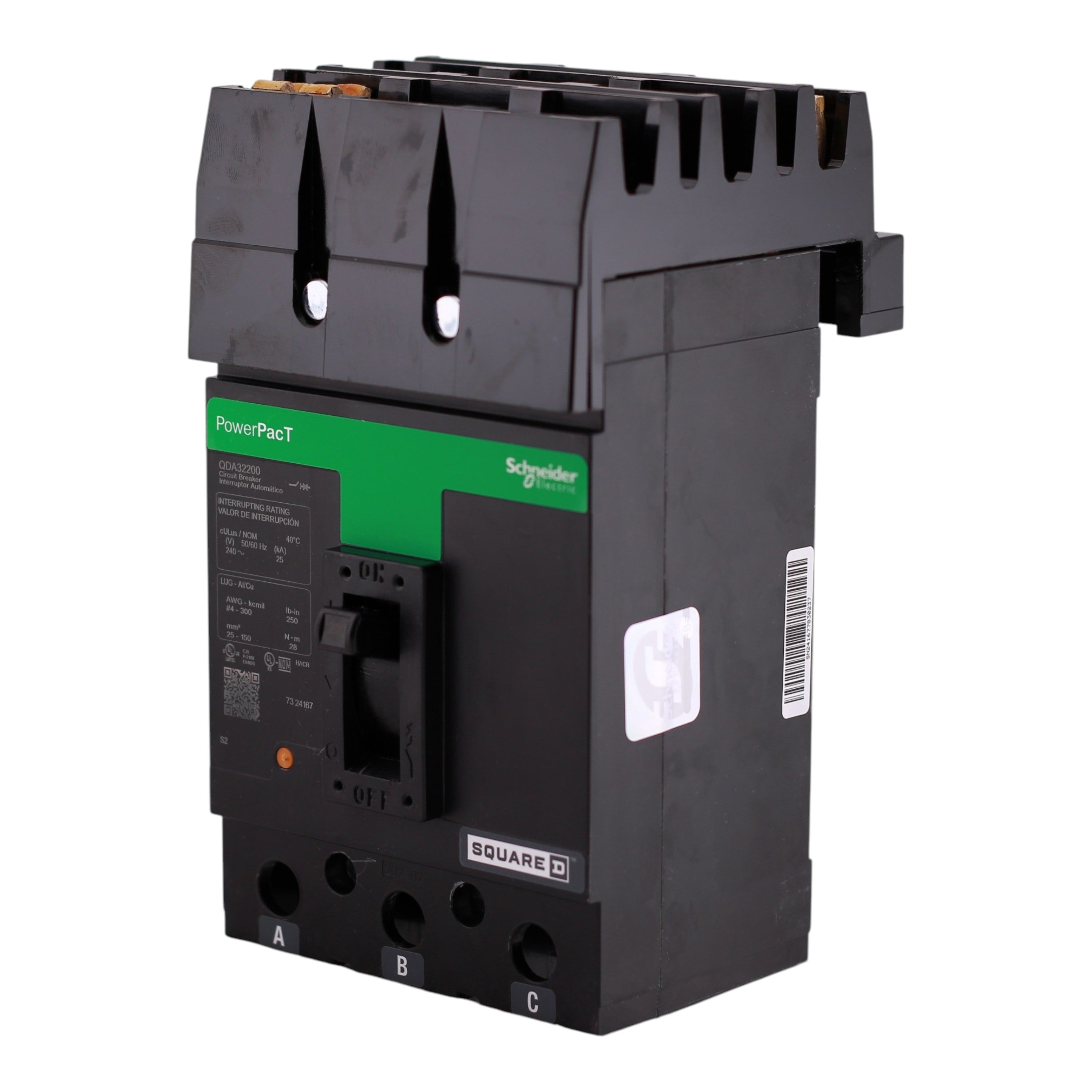

Square D PowerPacT Q, QDA32200, 200A, 3P, 240VAC, I-Line, Thermal Magnetic, Circuit Breaker - Image 2

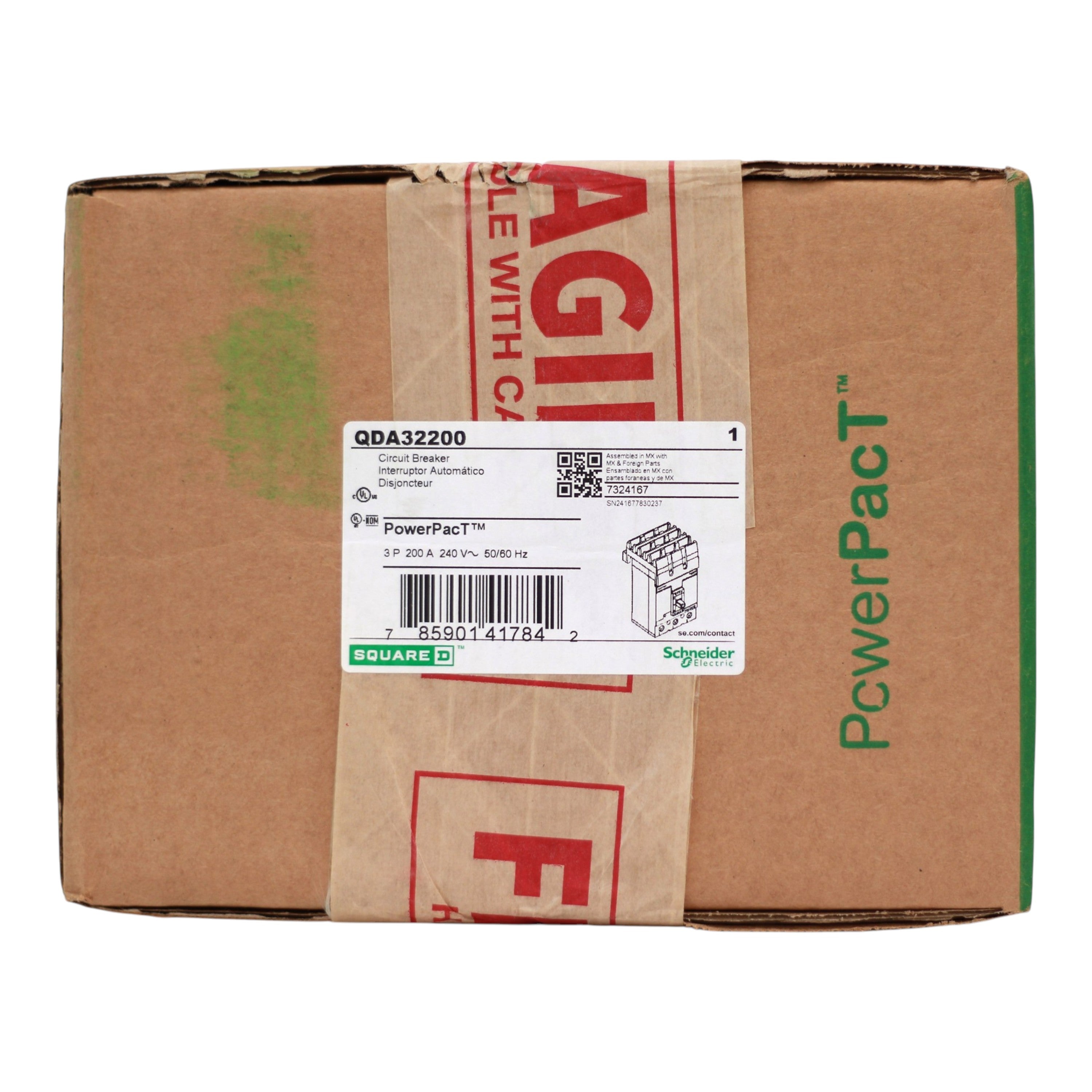

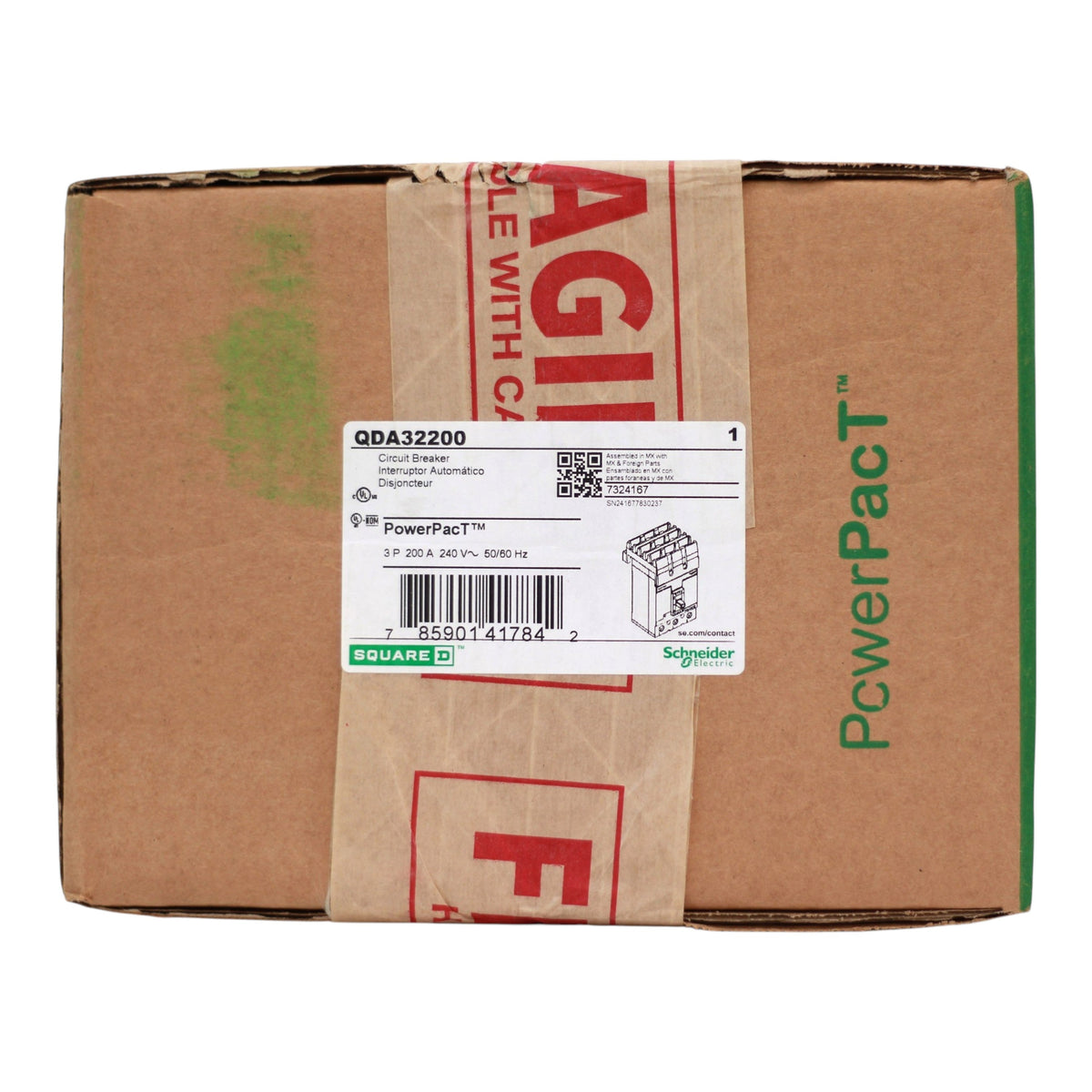

Square D PowerPacT Q, QDA32200, 200A, 3P, 240VAC, I-Line, Thermal Magnetic, Circuit Breaker - Image 3

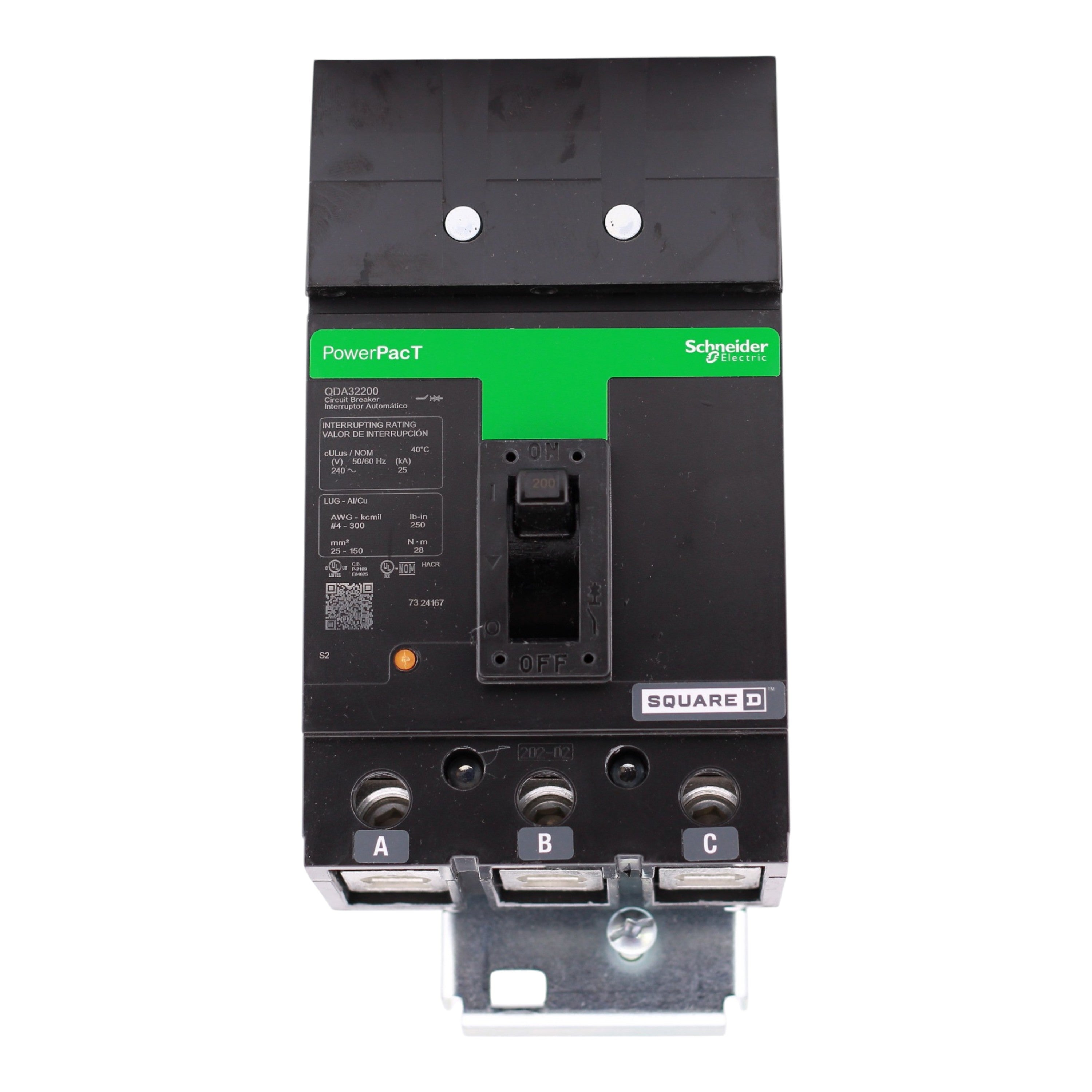

Square D PowerPacT Q, QDA32200, 200A, 3P, 240VAC, I-Line, Thermal Magnetic, Circuit Breaker - Image 4

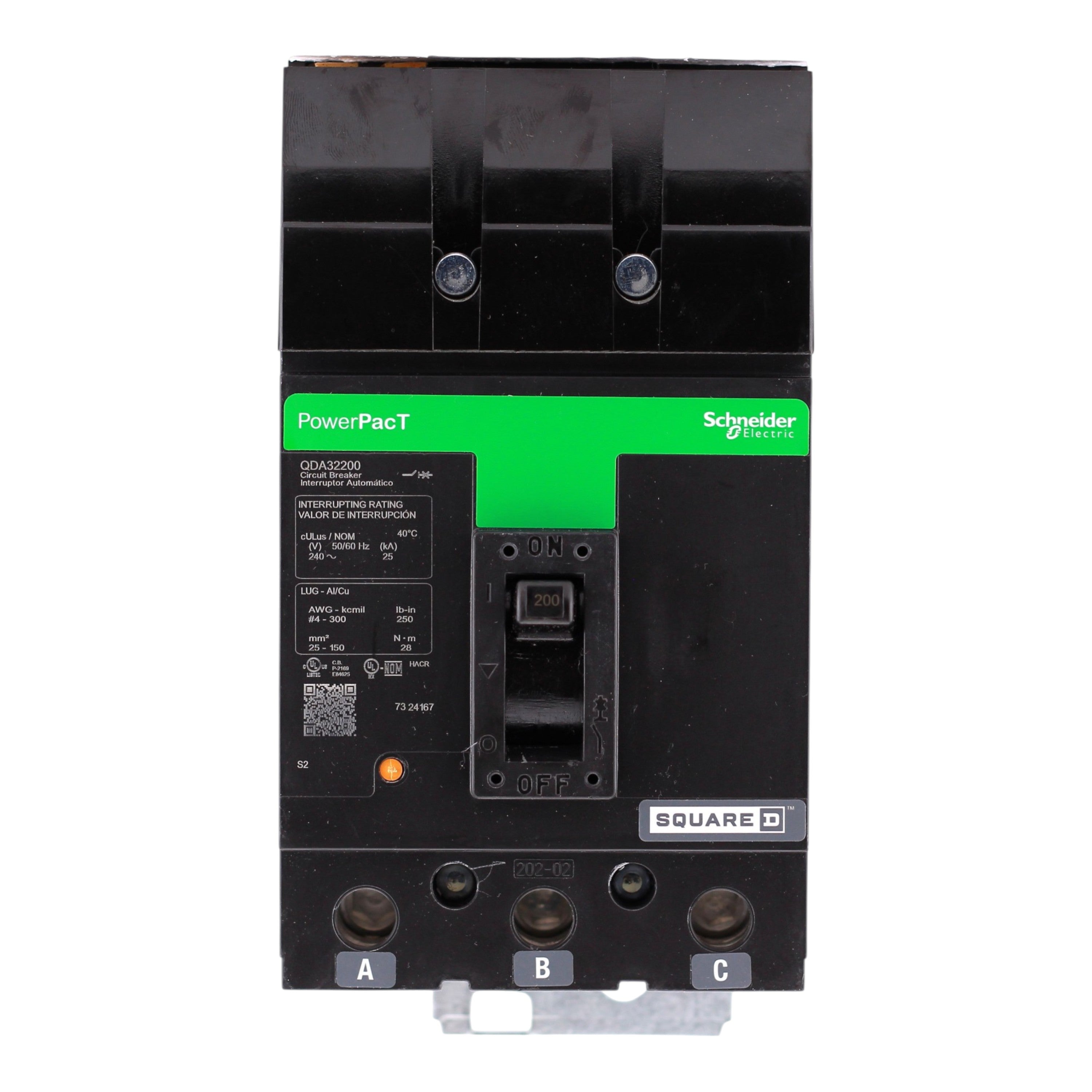

Square D PowerPacT Q, QDA32200, 200A, 3P, 240VAC, I-Line, Thermal Magnetic, Circuit Breaker - Image 5

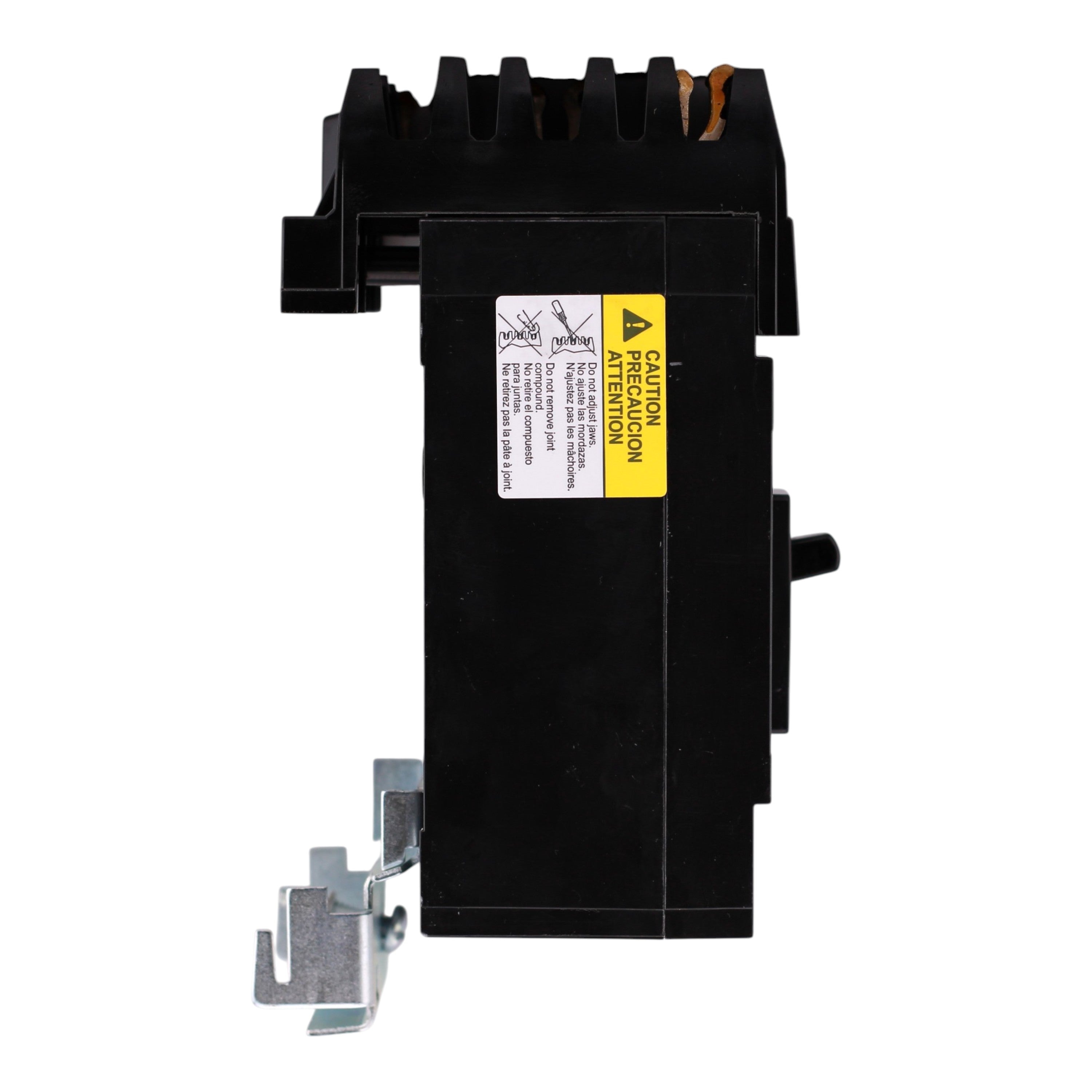

Square D PowerPacT Q, QDA32200, 200A, 3P, 240VAC, I-Line, Thermal Magnetic, Circuit Breaker - Image 6

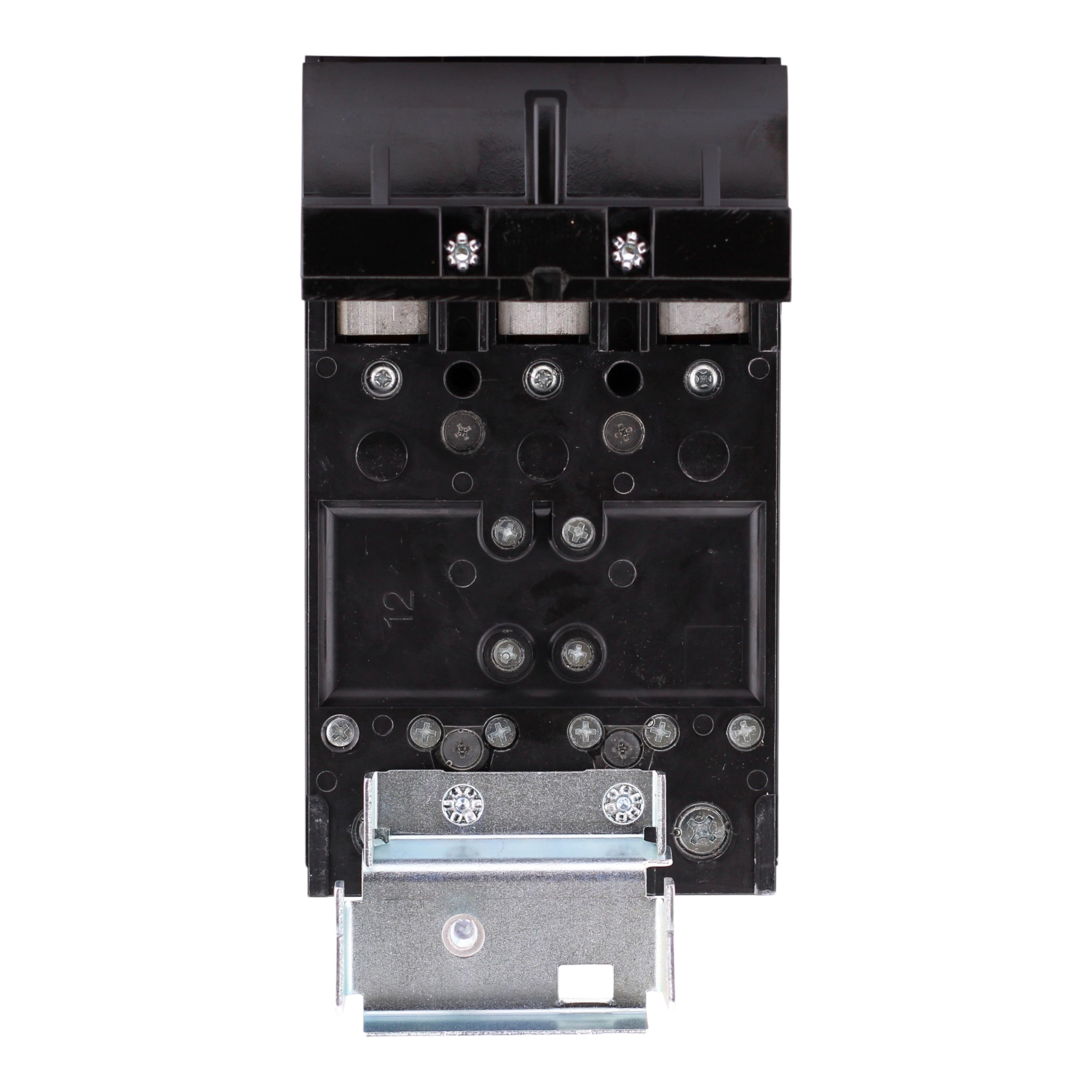

Square D PowerPacT Q, QDA32200, 200A, 3P, 240VAC, I-Line, Thermal Magnetic, Circuit Breaker - Image 7

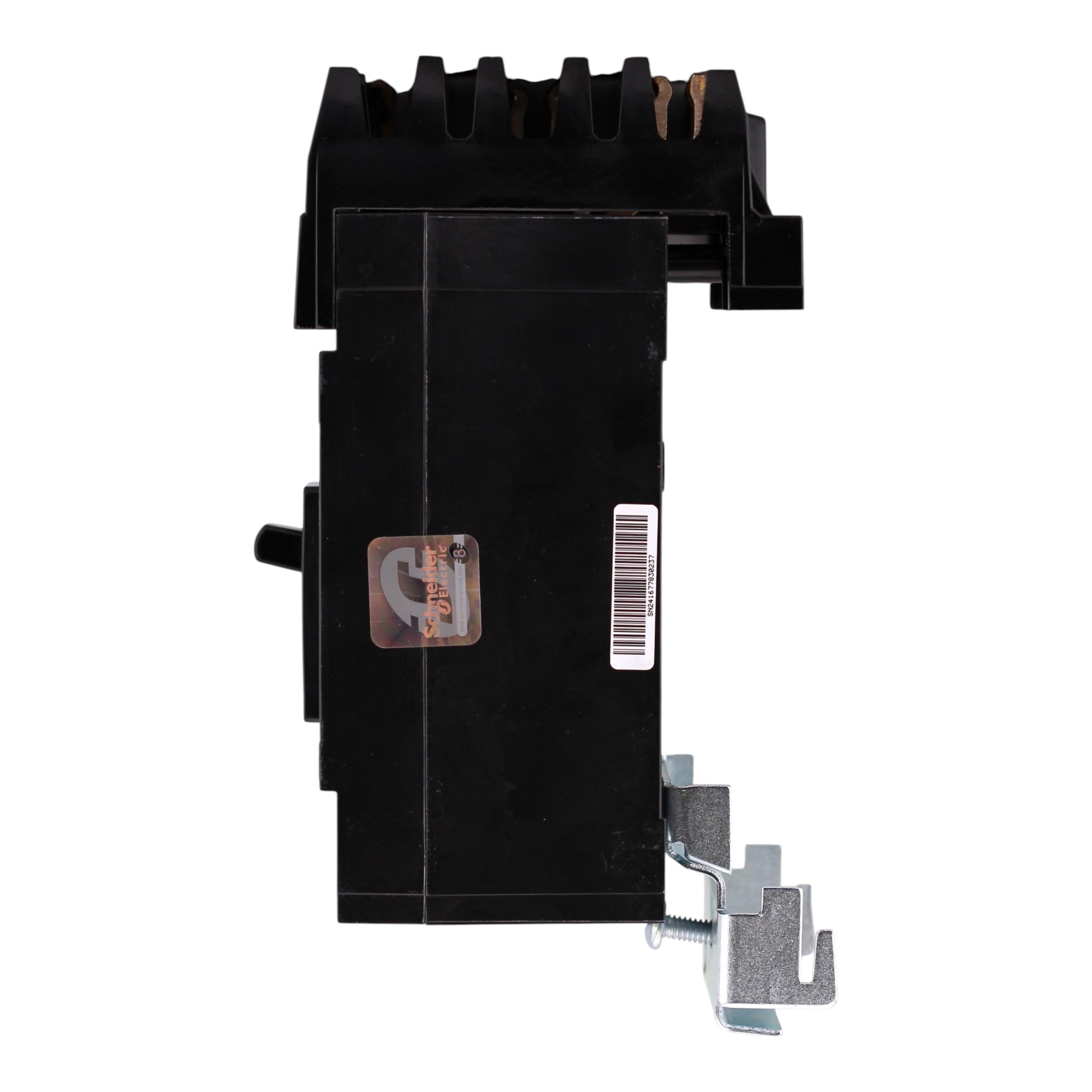

Square D PowerPacT Q, QDA32200, 200A, 3P, 240VAC, I-Line, Thermal Magnetic, Circuit Breaker - Image 8

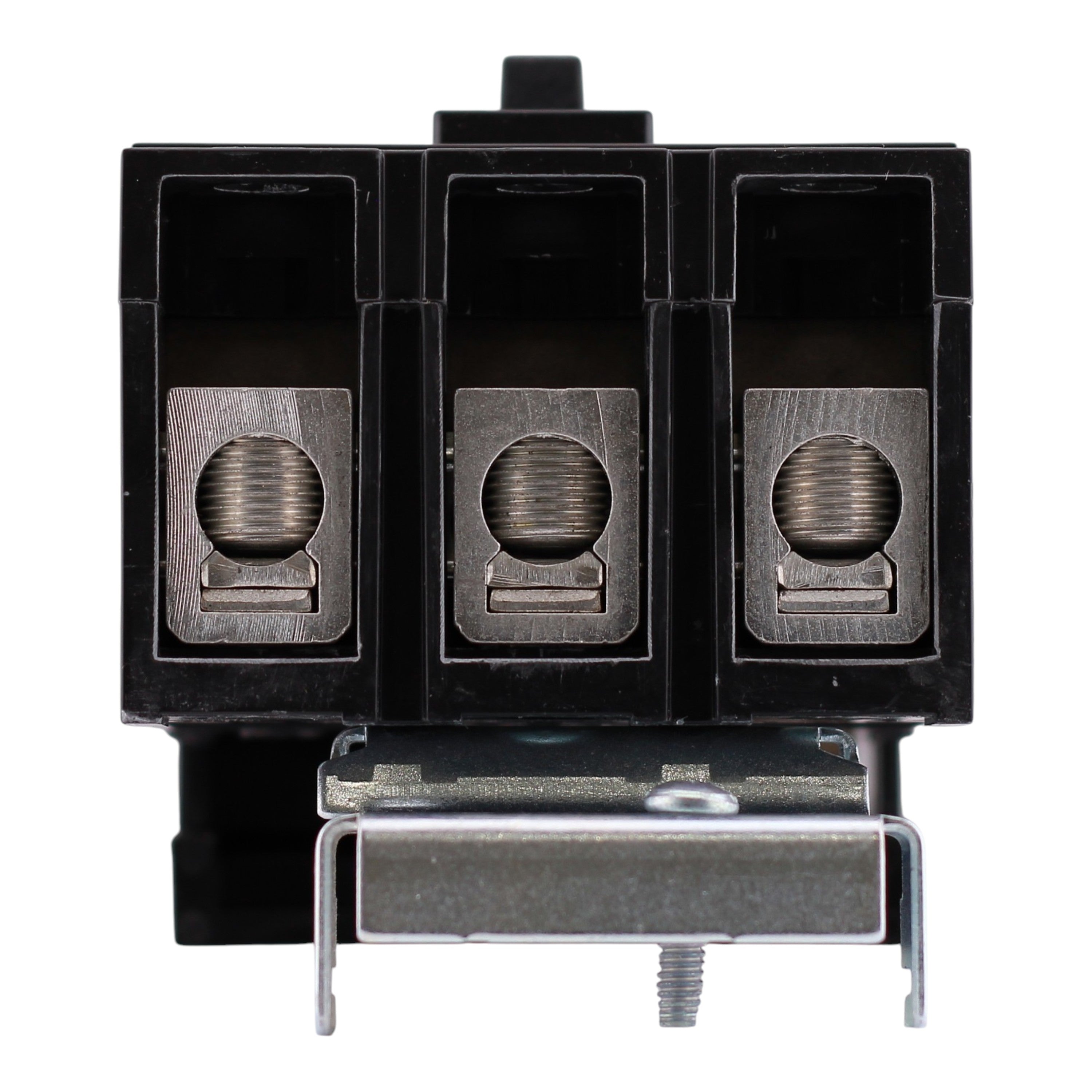

Square D PowerPacT Q, QDA32200, 200A, 3P, 240VAC, I-Line, Thermal Magnetic, Circuit Breaker - Image 9

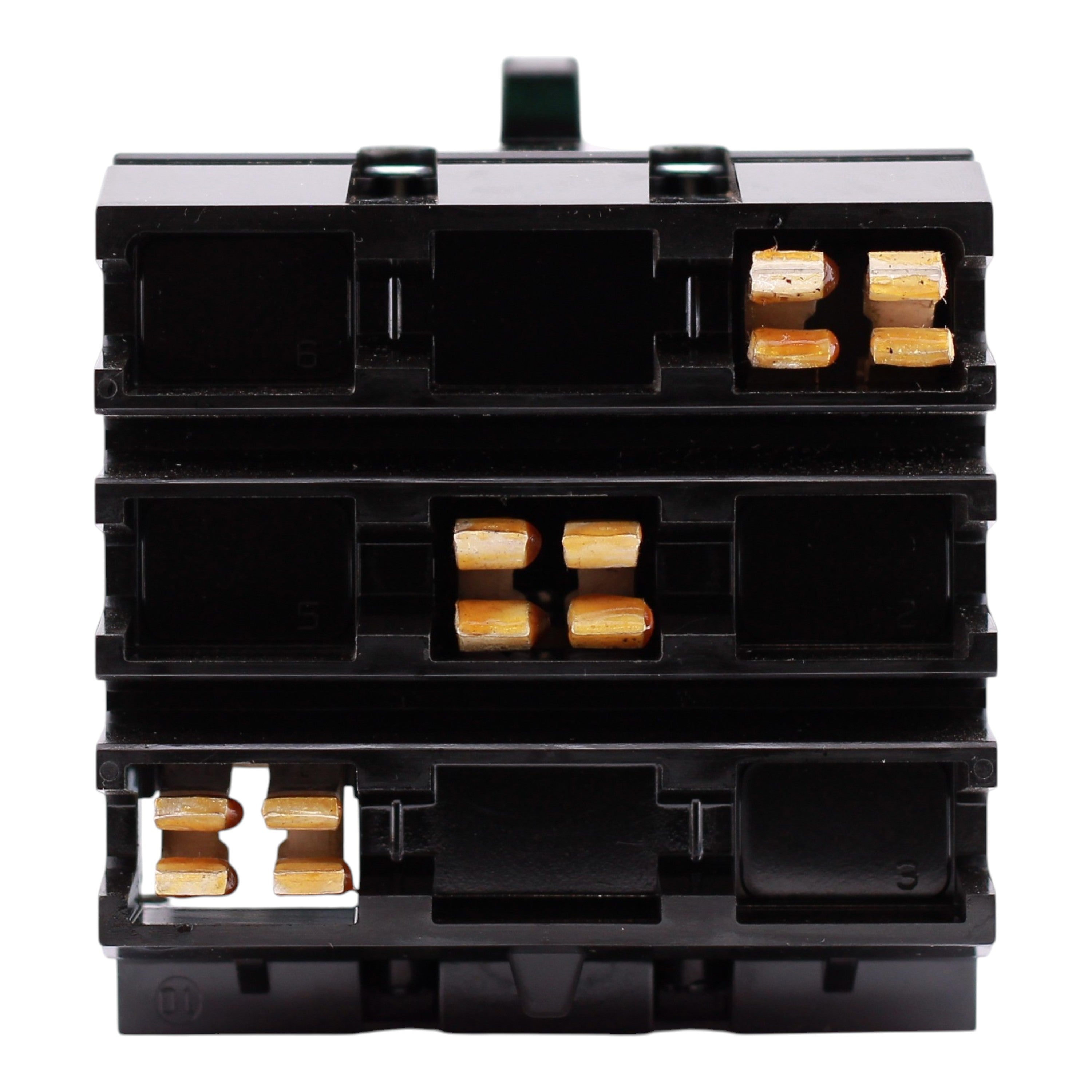

Square D PowerPacT Q, QDA32200, 200A, 3P, 240VAC, I-Line, Thermal Magnetic, Circuit Breaker - Image 10

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Square D

Square D PowerPacT Q, QDA32200, 200A, 3P, 240VAC, I-Line, Thermal Magnetic, Circuit Breaker

Out of stock
SKU: QDA32200 UPC: 785901417842
(0)
$595.00
-42% $1,031.00 $595.00
Out of stock
Condition

Square D QDA32200: 200 Amp, 3-Pole, thermal magnetic molded case circuit breaker, 240V AC, 25kA interrupt rating, I-Line mounting, ABC phase, UL listed.

  • Manufacturer: Schneider Electric
  • Brand: Square D
  • Product Range: PowerPacT Q-Frame (for molded case circuit breaker applications in panelboards and switchboards)
  • UPC: 785901417842
  • Model Number: QDA32200
  • Breaker Type: Thermal Magnetic Molded Case Circuit Breaker (MCCB)
  • Amperage: 200 Amps
  • Poles: 3-Pole
  • Voltage: 240 Volts AC or 208Y/120 Volts AC
  • Interrupt Rating: 25 kAIC at 240V AC, 25 kAIC at 208Y/120V AC
  • Mounting Mode: I-Line (bracket mounting)
  • Connections Terminals: I-Line connection (line side), Mechanical Lugs (load side)
  • Wire Size: #4 AWG-300 kcmil copper/aluminum
  • Tightening Torque: 247.8 lb-in for #4 AWG-300 kcmil
  • Dimensions: Height: 6.47 in; Width: 4.5 in; Depth: 3.93 in
  • Weight: 4.9 lbs
  • Phase Connection: ABC
  • Certifications: UL 489 Listed, CSA, IEC Certified, HACR Rated

This Square D QDA32200 thermal magnetic molded case circuit breaker delivers dependable 200 Amp, 3-Pole protection for 240V AC circuits in PowerPacT Q-Frame industrial and commercial applications. Designed for I-Line installation with 25kA interrupt rating and ABC phase connection, it supports panelboards and switchboard electrical systems.
