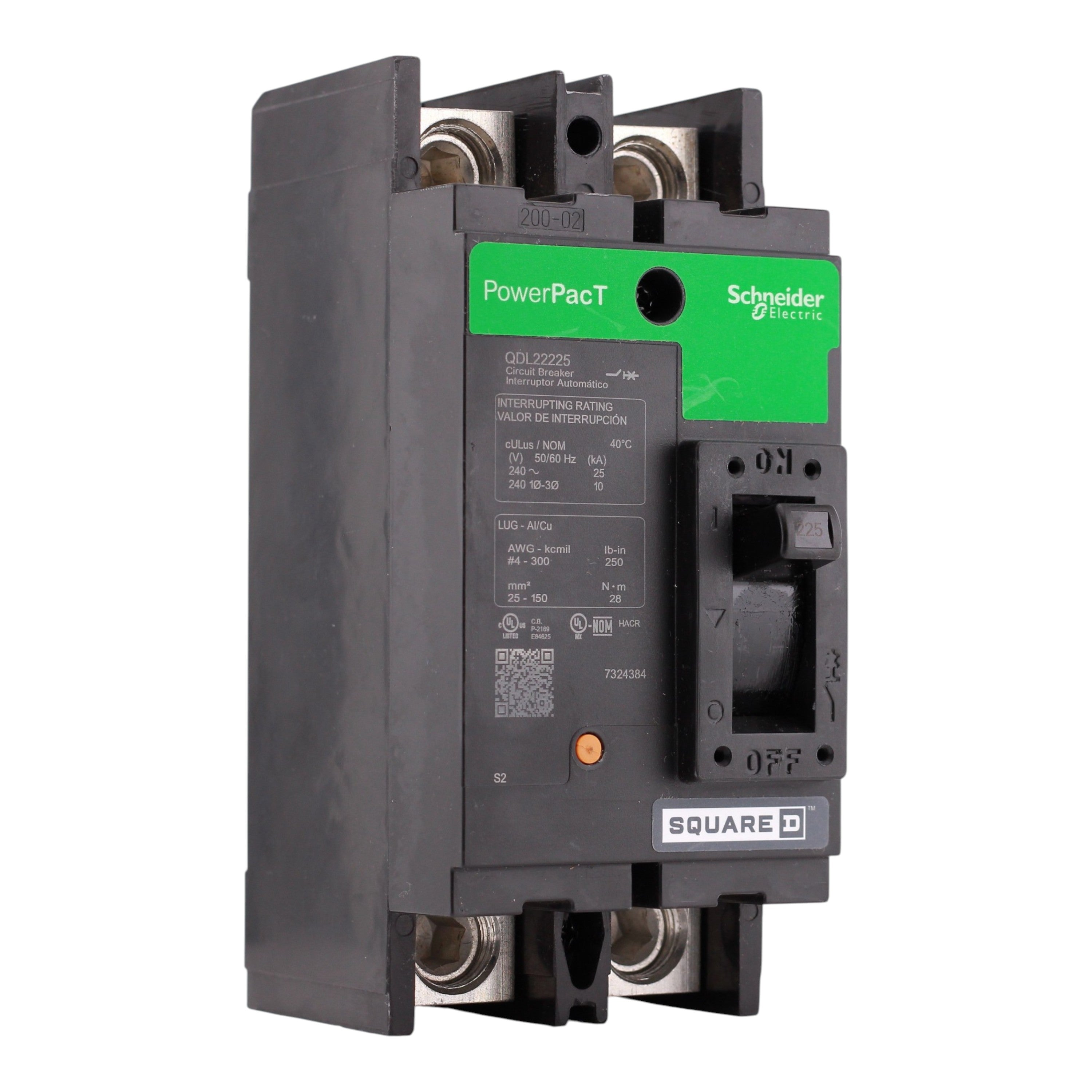

Square D PowerPacT Q, QDL22225, 225A, 2P, 240V, 25kA, Lug, MCCB

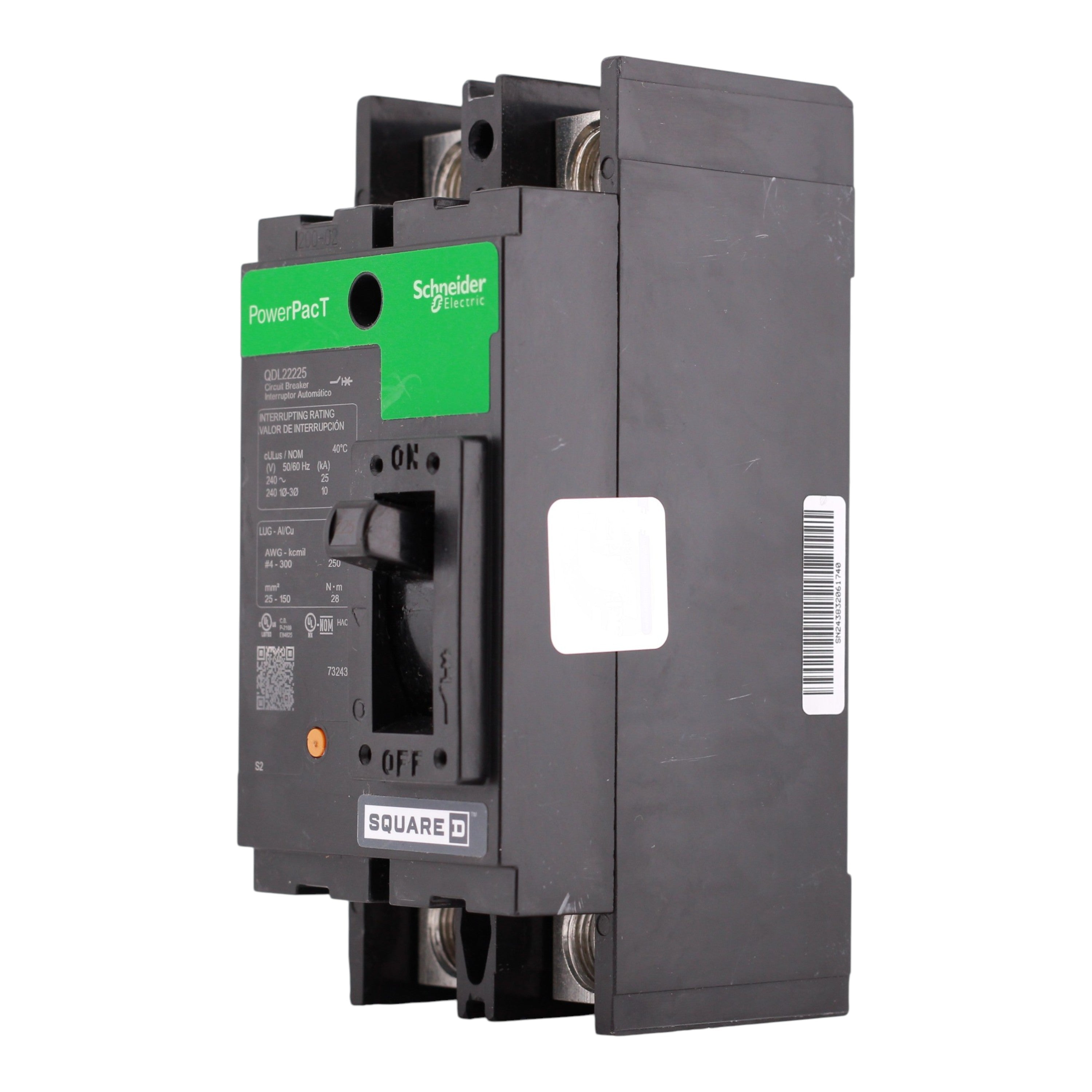

Square D PowerPacT Q, QDL22225, 225A, 2P, 240V, 25kA, Lug, MCCB - Image 2

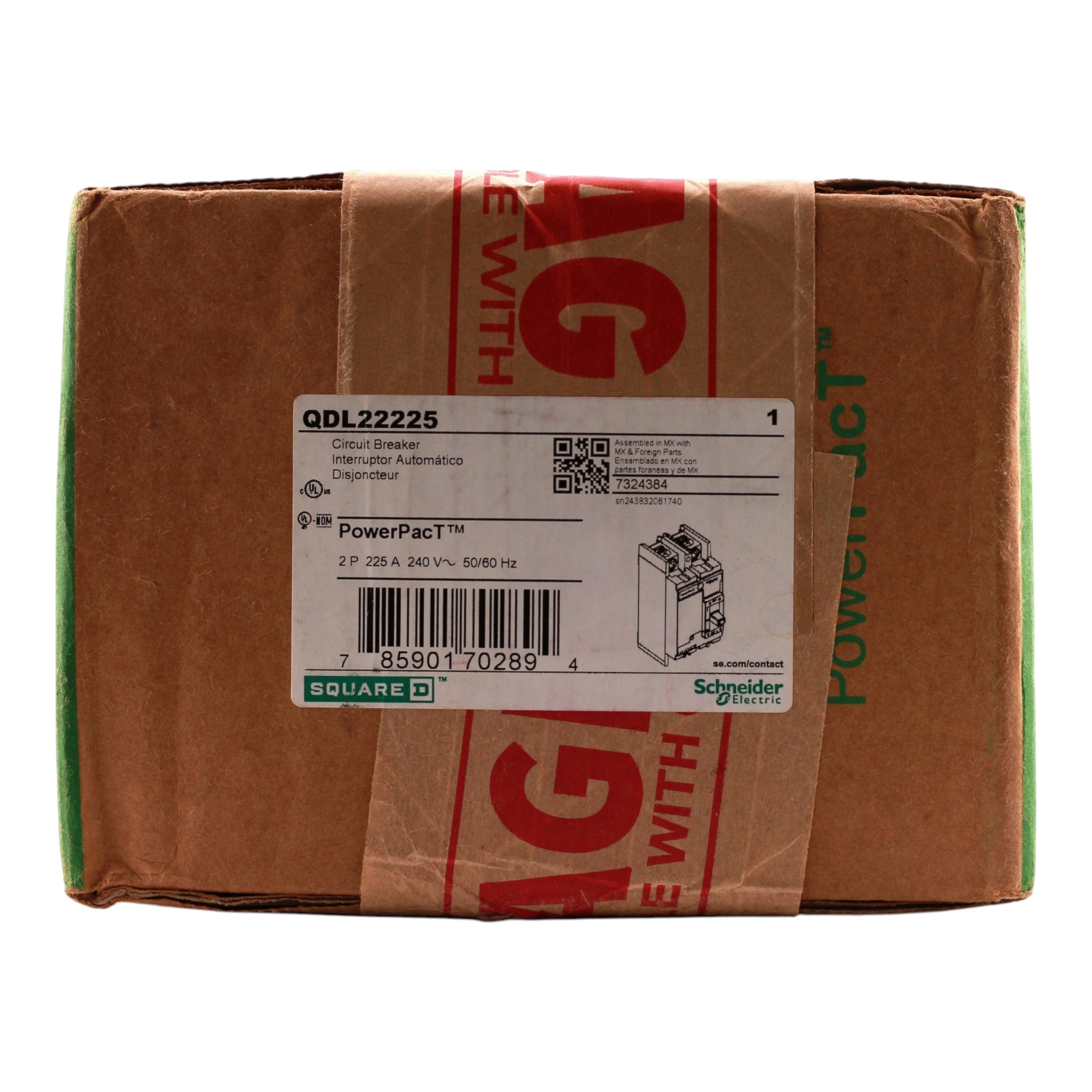

Square D PowerPacT Q, QDL22225, 225A, 2P, 240V, 25kA, Lug, MCCB - Image 3

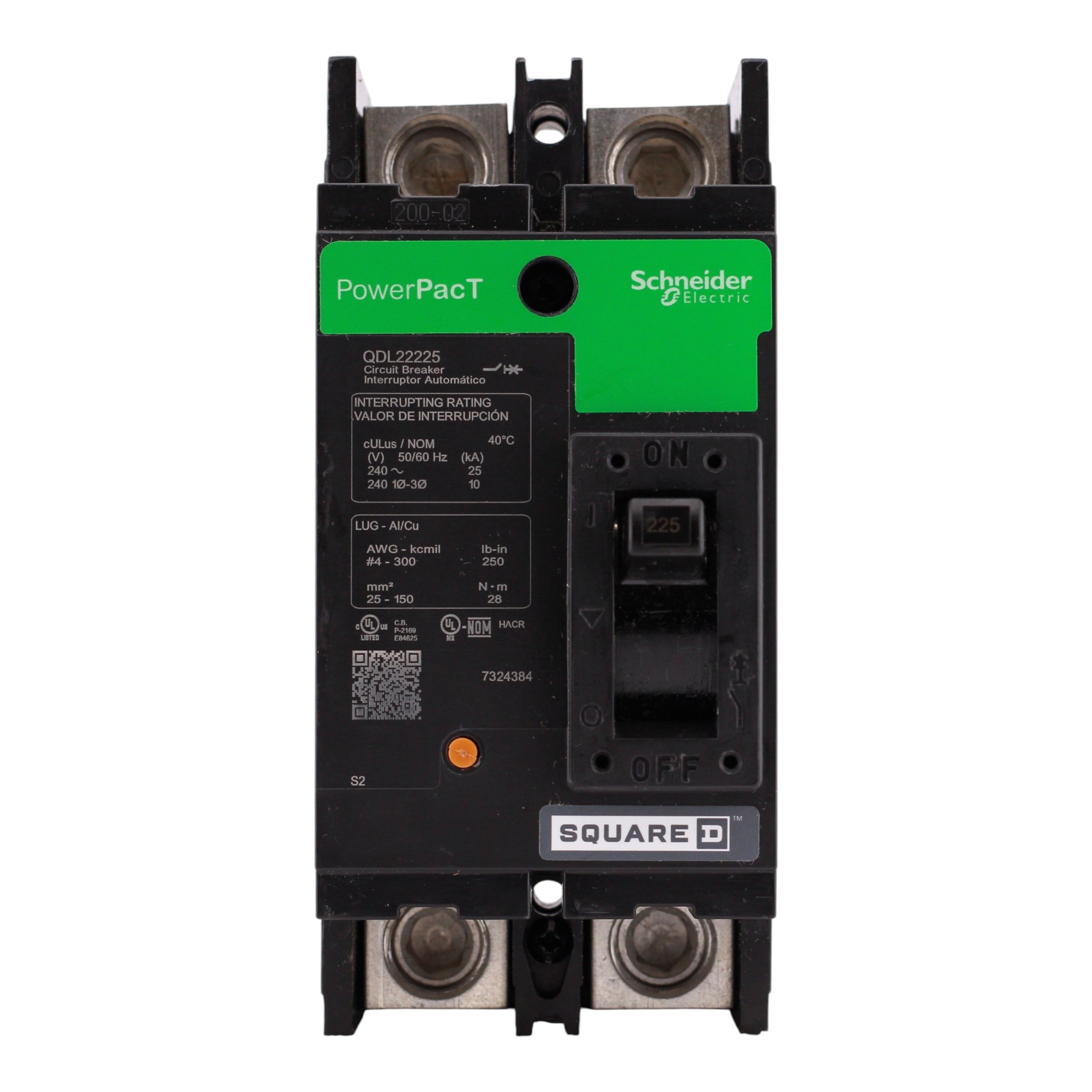

Square D PowerPacT Q, QDL22225, 225A, 2P, 240V, 25kA, Lug, MCCB - Image 4

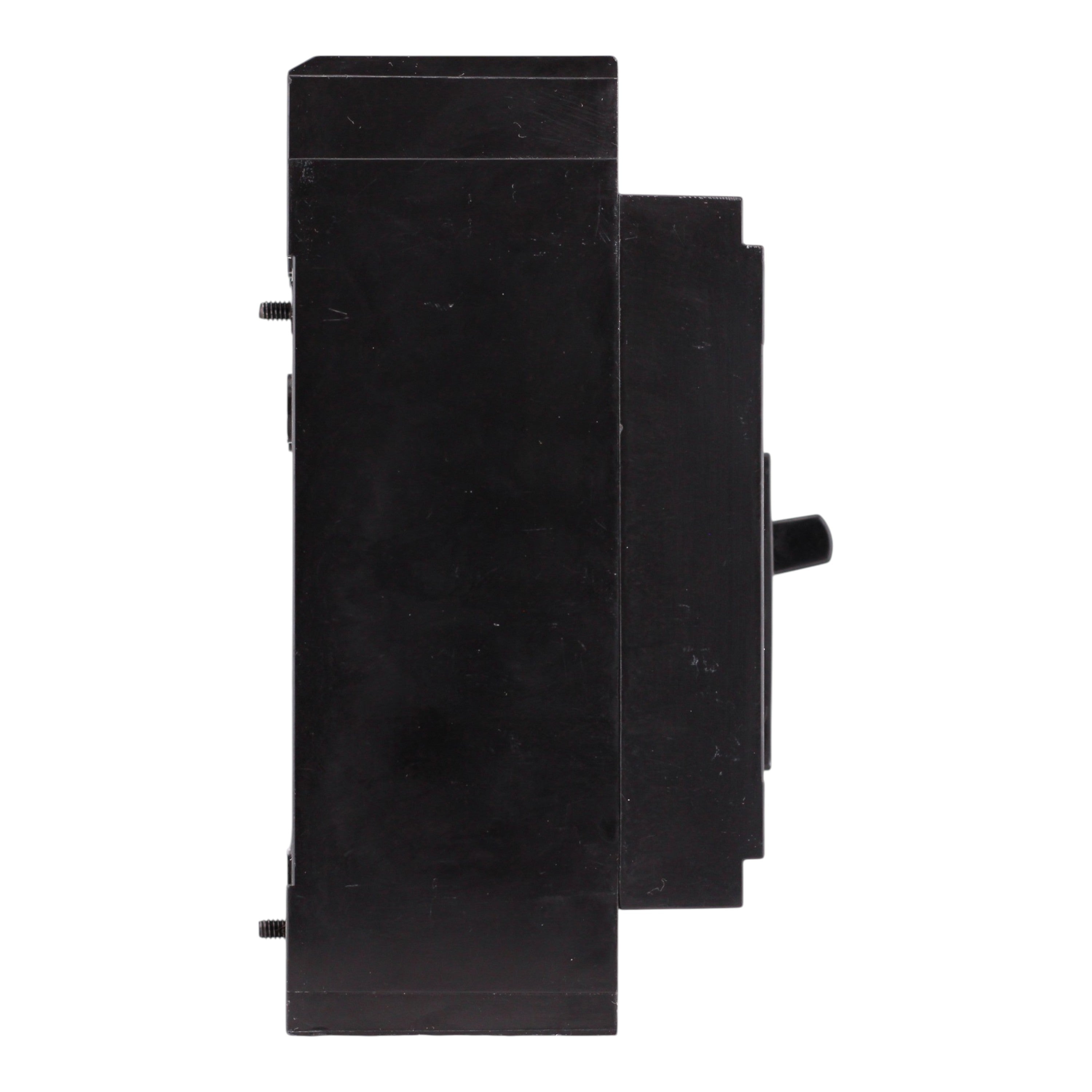

Square D PowerPacT Q, QDL22225, 225A, 2P, 240V, 25kA, Lug, MCCB - Image 5

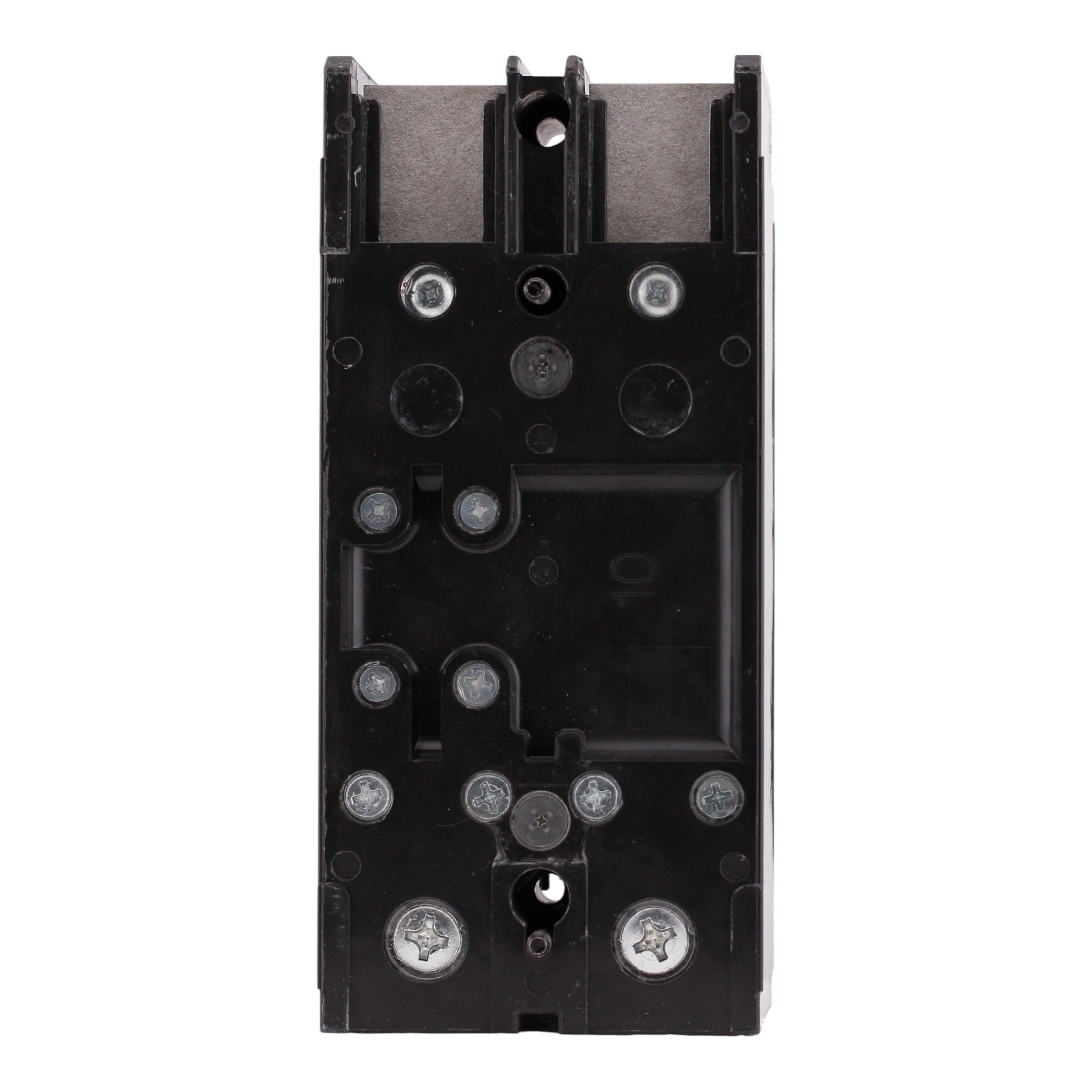

Square D PowerPacT Q, QDL22225, 225A, 2P, 240V, 25kA, Lug, MCCB - Image 6
Square D PowerPacT Q, QDL22225, 225A, 2P, 240V, 25kA, Lug, MCCB - Image 7

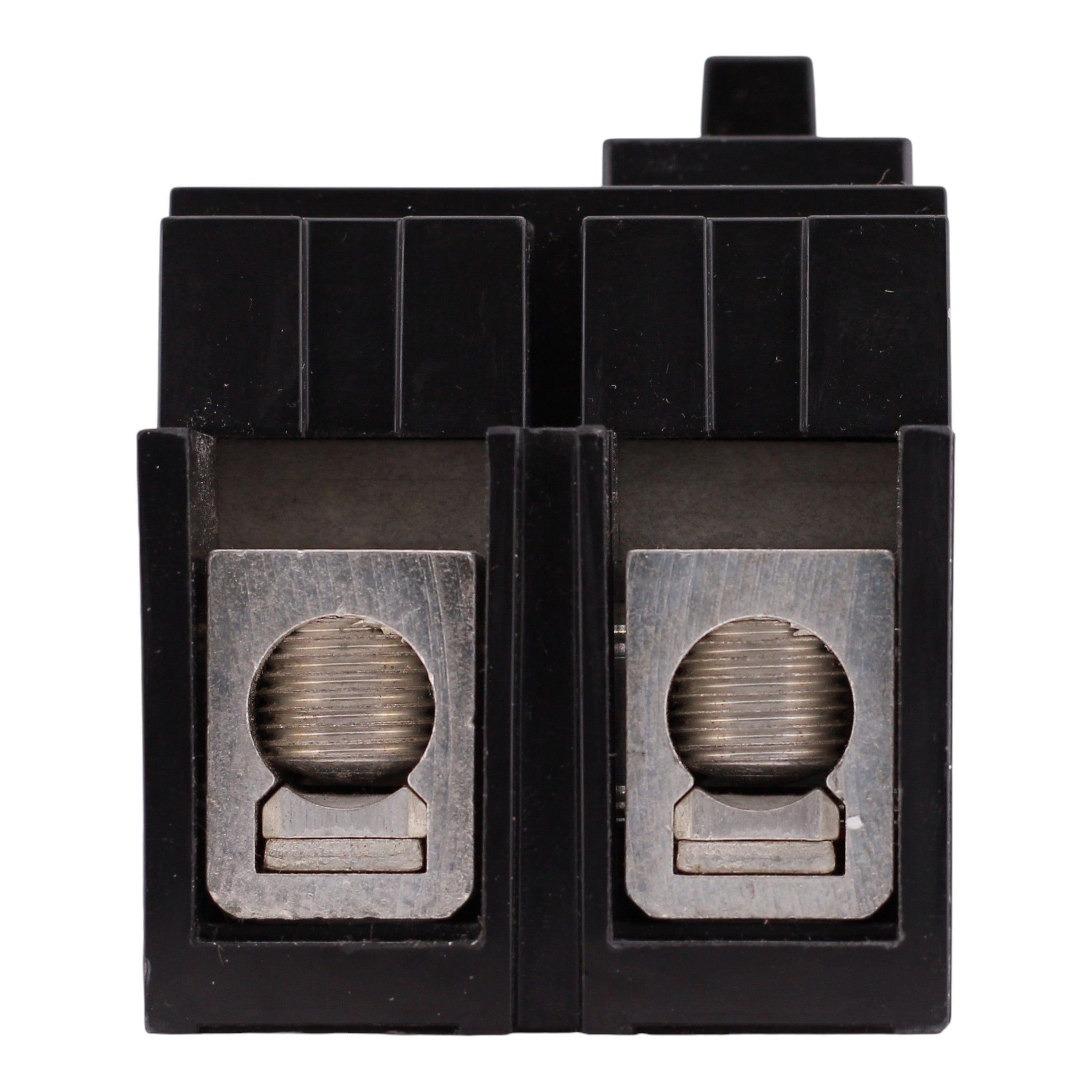

Square D PowerPacT Q, QDL22225, 225A, 2P, 240V, 25kA, Lug, MCCB - Image 8

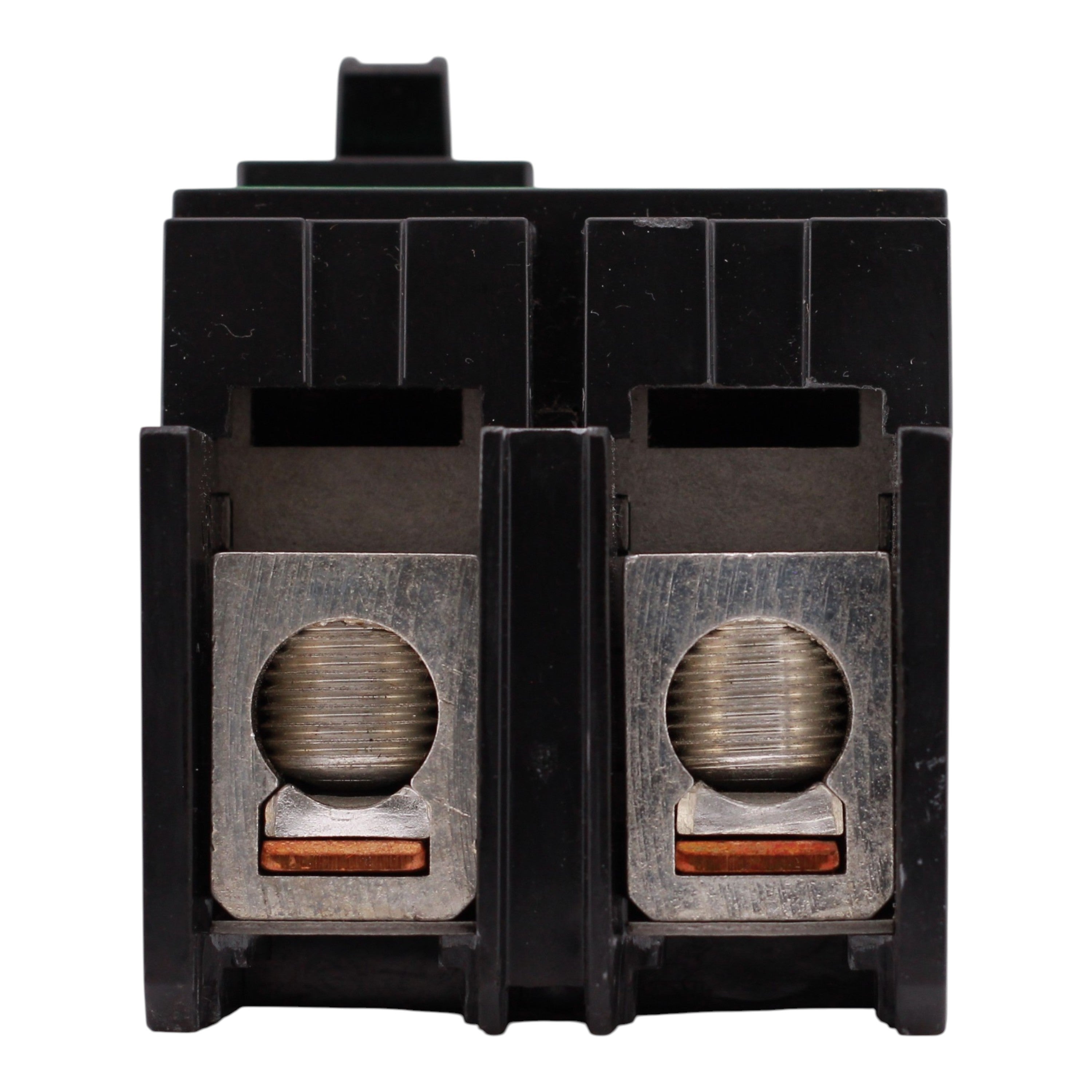

Square D PowerPacT Q, QDL22225, 225A, 2P, 240V, 25kA, Lug, MCCB - Image 9
Square D PowerPacT Q, QDL22225, 225A, 2P, 240V, 25kA, Lug, MCCB
Square D PowerPacT Q, QDL22225, 225A, 2P, 240V, 25kA, Lug, MCCB - Image 2
Square D PowerPacT Q, QDL22225, 225A, 2P, 240V, 25kA, Lug, MCCB - Image 3
Square D PowerPacT Q, QDL22225, 225A, 2P, 240V, 25kA, Lug, MCCB - Image 4
Square D PowerPacT Q, QDL22225, 225A, 2P, 240V, 25kA, Lug, MCCB - Image 5
Square D PowerPacT Q, QDL22225, 225A, 2P, 240V, 25kA, Lug, MCCB - Image 6

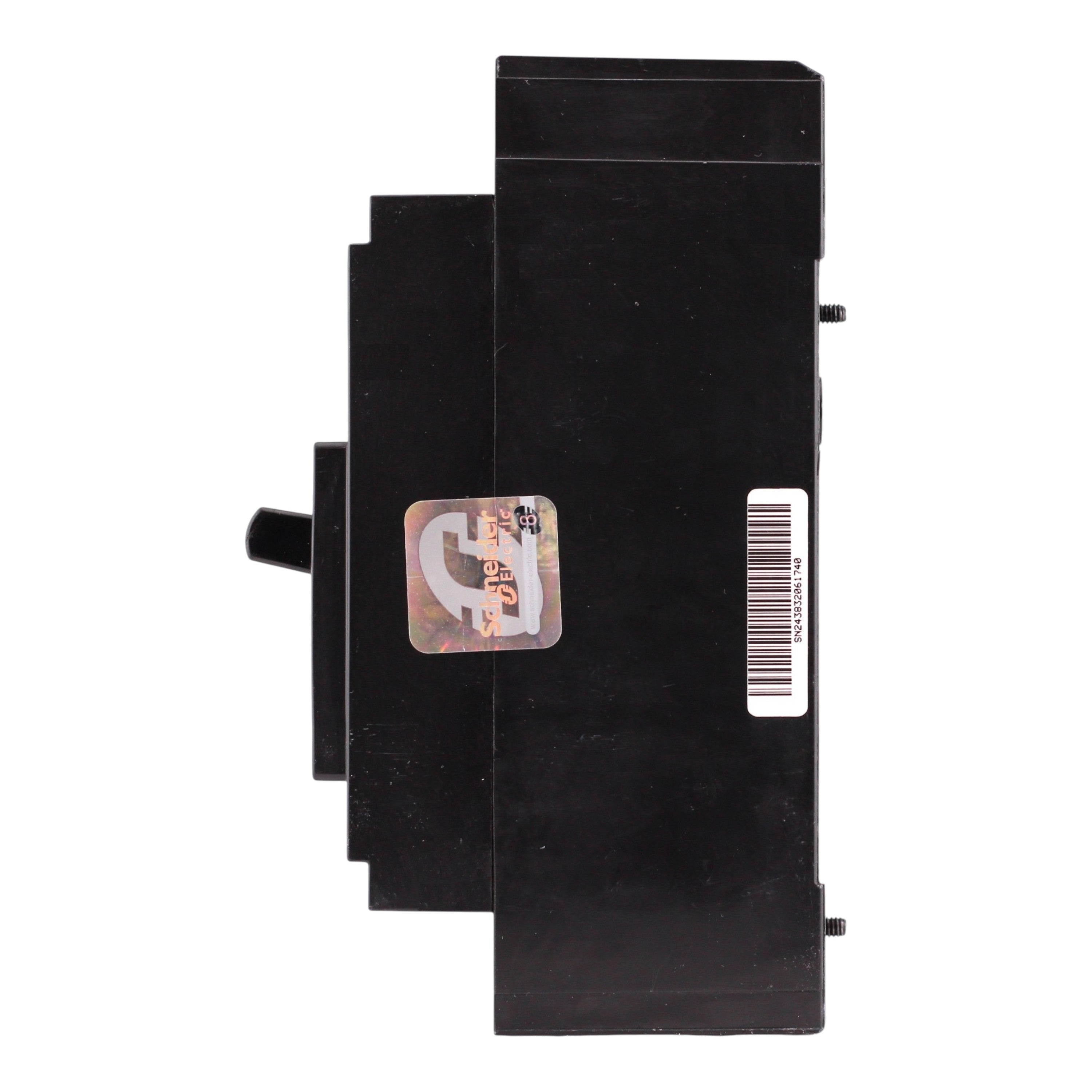

Square D PowerPacT Q, QDL22225, 225A, 2P, 240V, 25kA, Lug, MCCB - Image 7
Square D PowerPacT Q, QDL22225, 225A, 2P, 240V, 25kA, Lug, MCCB - Image 8
Square D PowerPacT Q, QDL22225, 225A, 2P, 240V, 25kA, Lug, MCCB - Image 9

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Square D

Square D PowerPacT Q, QDL22225, 225A, 2P, 240V, 25kA, Lug, MCCB

Out of stock
SKU: QDL22225 UPC: 785901702894
(0)
$285.00
-41% $483.00 $285.00
Out of stock
Condition

Square D QDL22225: 225 Amp, 2-Pole, Thermal Magnetic MCCB, 240V, 25kA, lug-lug, 80% rated, UL 489 listed, CSA certified.

  • Manufacturer: Schneider Electric
  • Brand: Square D
  • Product Range: PowerPacT Q-Frame (Molded Case Circuit Breakers for 240VAC distribution systems)
  • UPC: 785901702894
  • Model Number: QDL22225
  • Breaker Type: Thermal Magnetic Molded Case Circuit Breaker (MCCB)
  • Amperage: 225 Amps
  • Poles: 2-Pole
  • Voltage: 240 Volts AC
  • Interrupt Rating: 25 kAIC @ 240V AC; 25 kAIC @ 120/208V AC
  • Continuous Current Rating: 80%
  • Mounting Mode: Unit mount
  • Electrical Connection: Lug (line and load)
  • Wire Size: #4 AWG – 300 kcmil
  • Tightening Torque: 247.8 lb-in
  • Dimensions: Height: 6.47 in; Width: 3 in; Depth: 3.93 in
  • Weight: 3.470 lbs
  • Certifications: UL 489, HACR Rated, CSA

This Square D QDL22225 PowerPacT Q-Frame thermal magnetic molded case circuit breaker delivers dependable 225 Amp, 2-Pole overcurrent protection for 240V distribution systems. Lug-lug unit mount design with 25kA interrupt rating and 80% continuous rating supports commercial and industrial applications.
