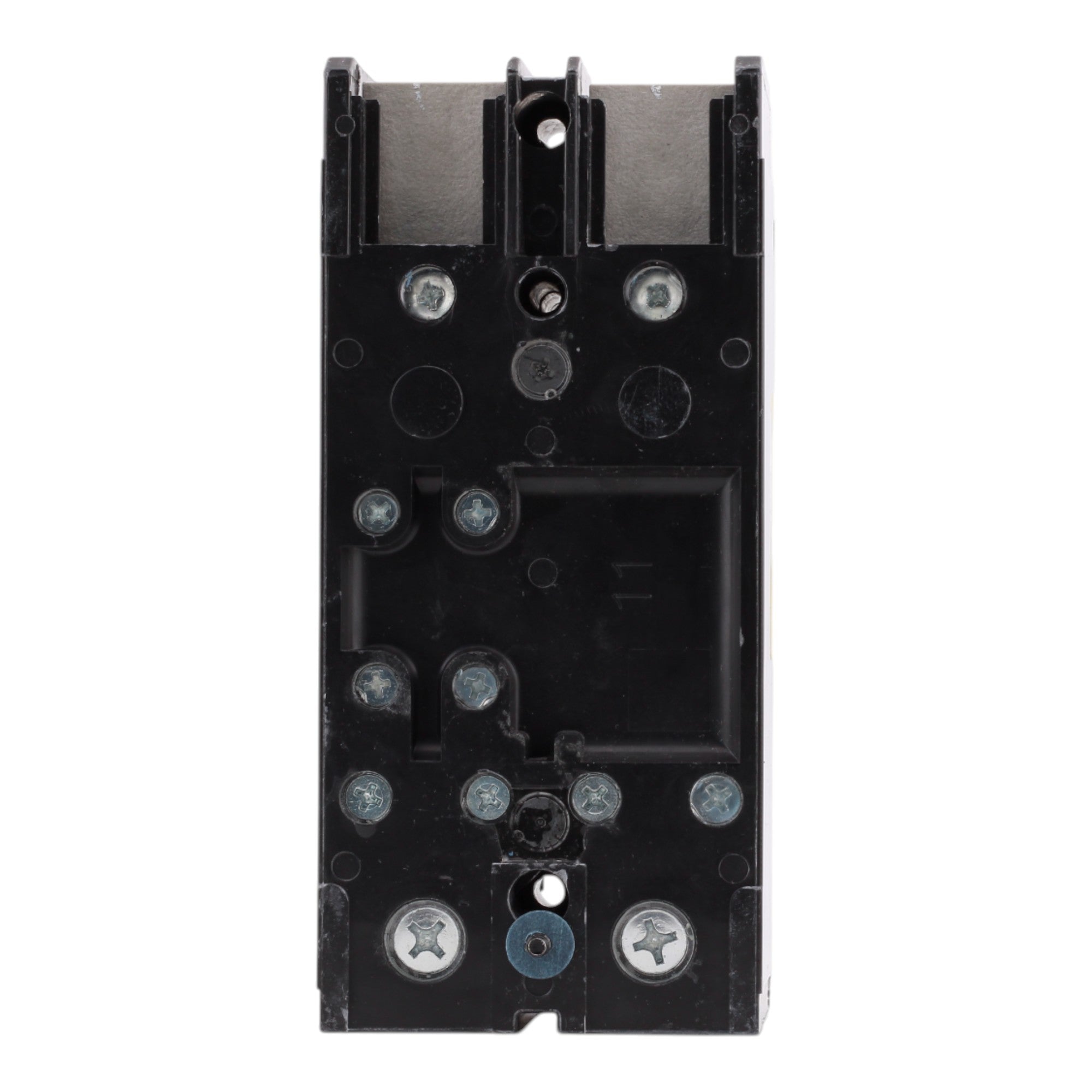

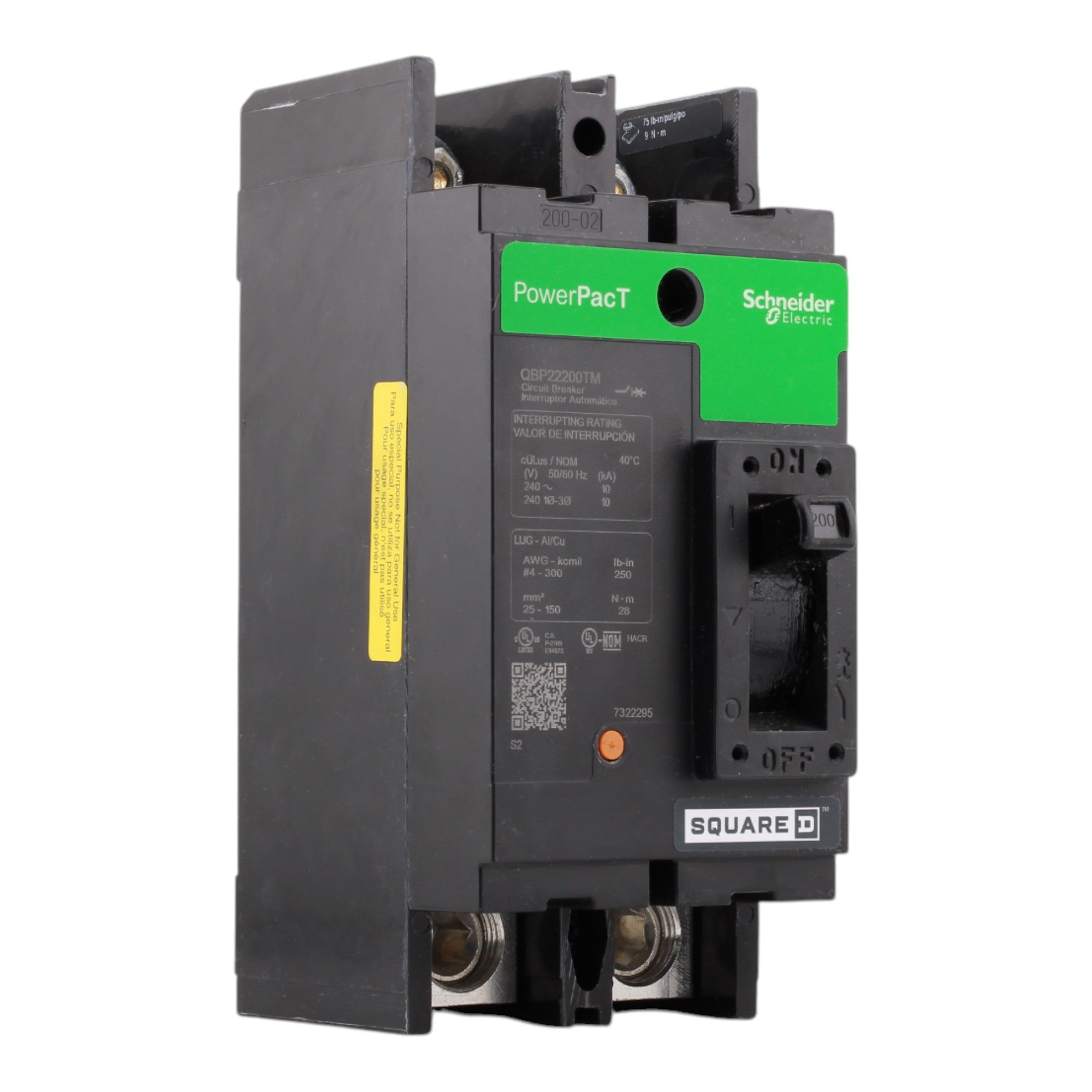

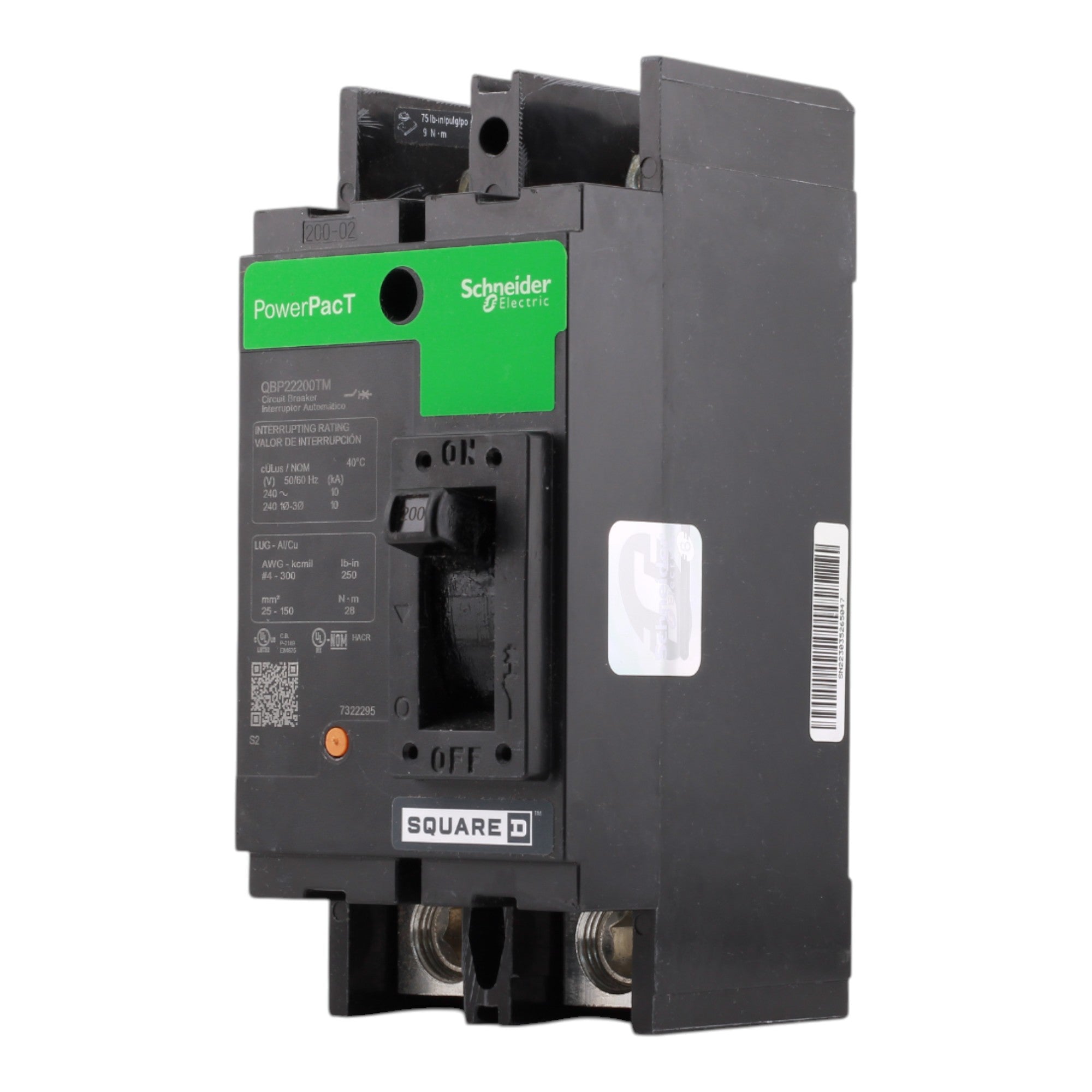

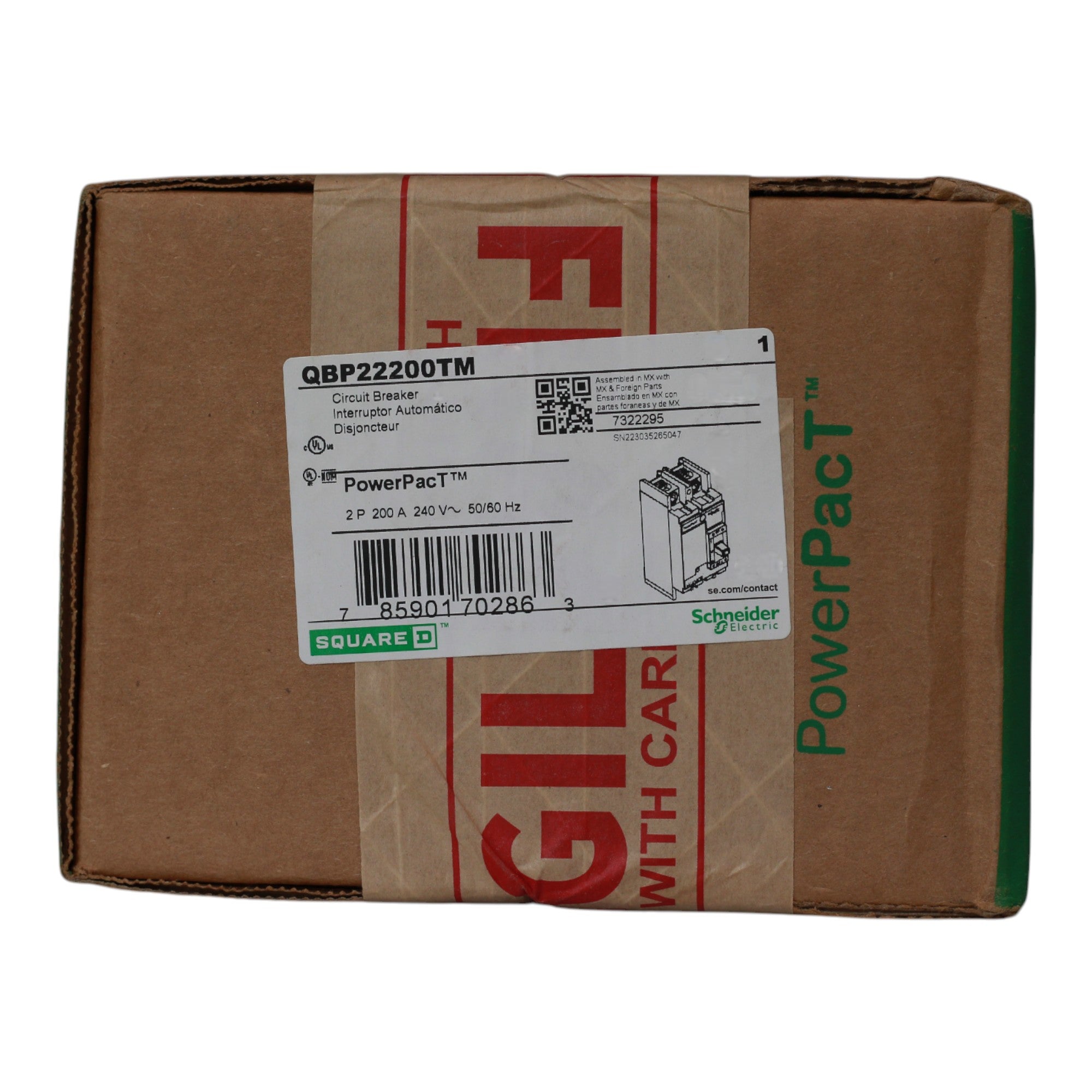

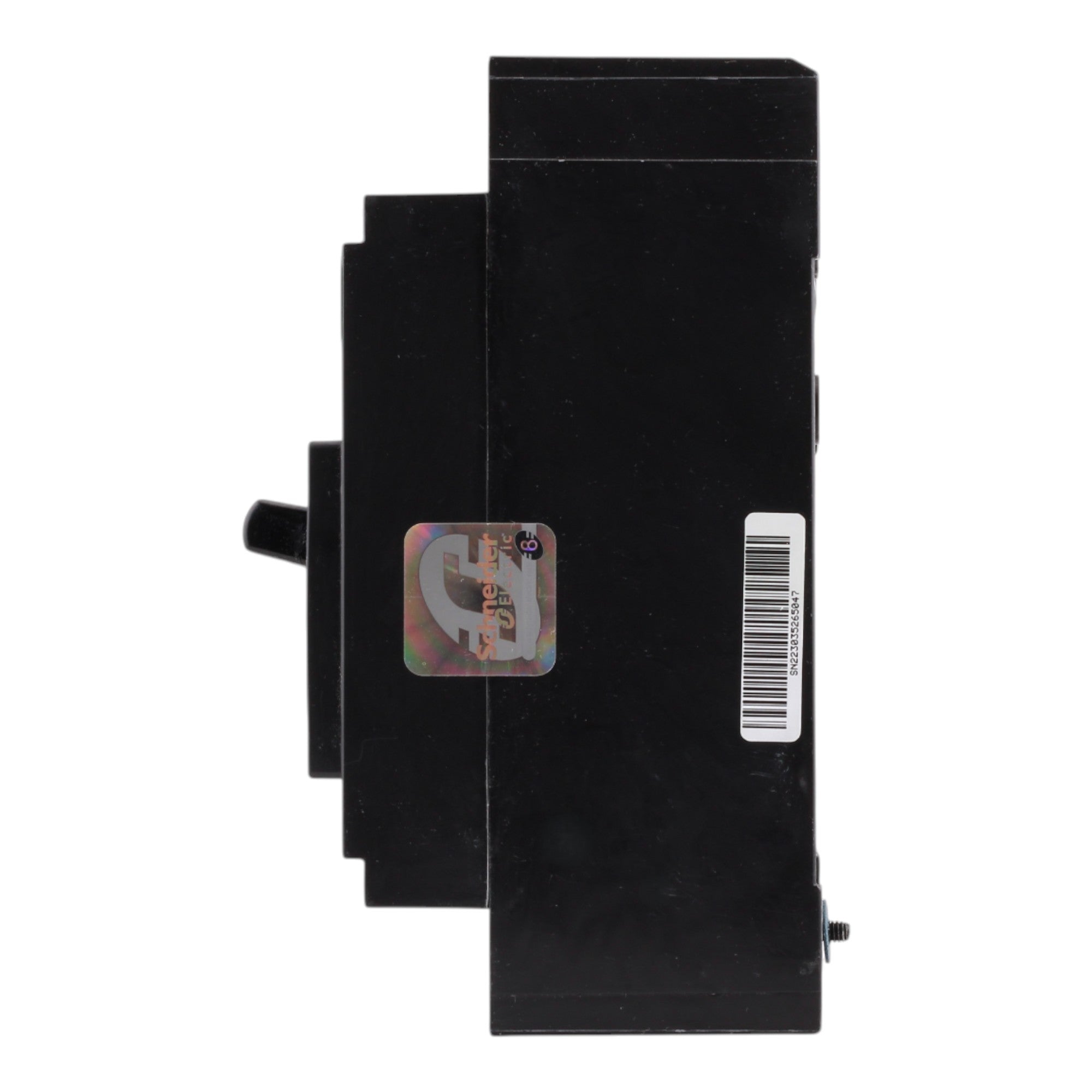

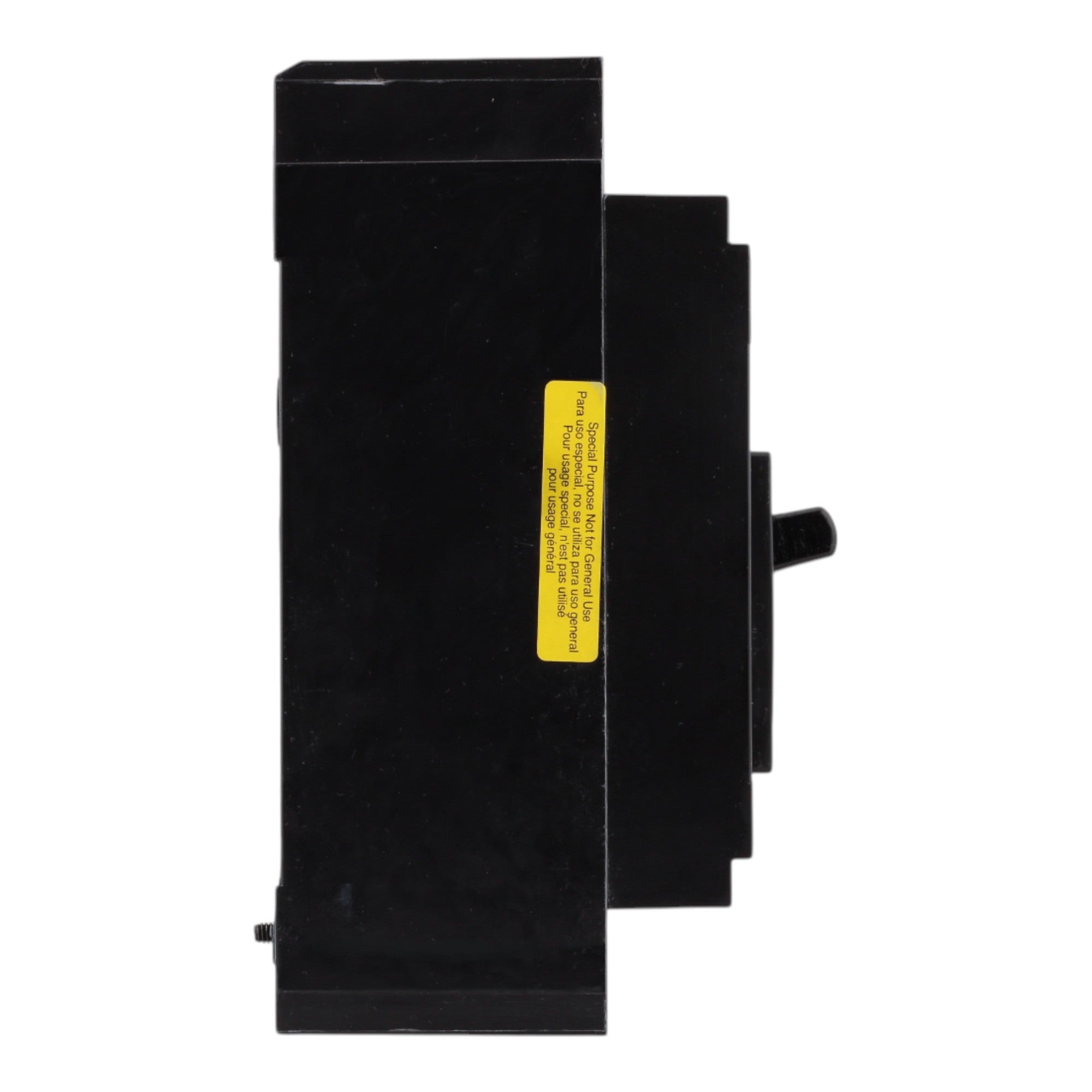

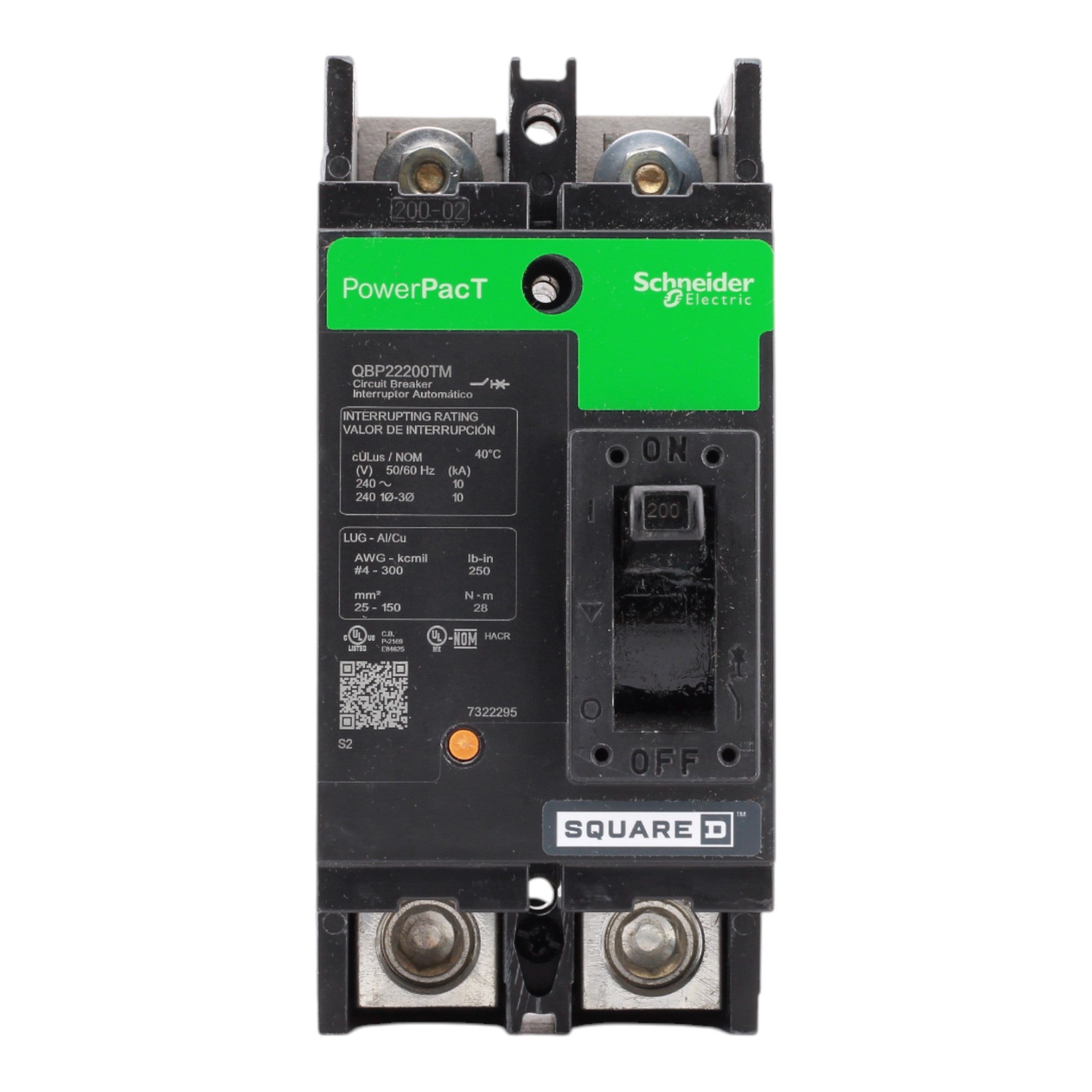

Square D PowerPacT QBP22200TM 200A 2P 240V Thermal-Magnetic Circuit Breaker

QBP22200TM specifications

• Manufacturer: Schneider Electric
• Brand: Square D
• Product Range: PowerPacT Q (for PowerPacT Q loadcenters and equipment)
• UPC: 785901702863
• Model Number: QBP22200TM
• Breaker Type: Thermal-Magnetic
• Amperage: 200 Amps
• Poles: 2-Pole
• Voltage: 240 Volts AC
• Interrupt Rating: 10 kAIC
• Mounting Mode: Unit Mount Lug

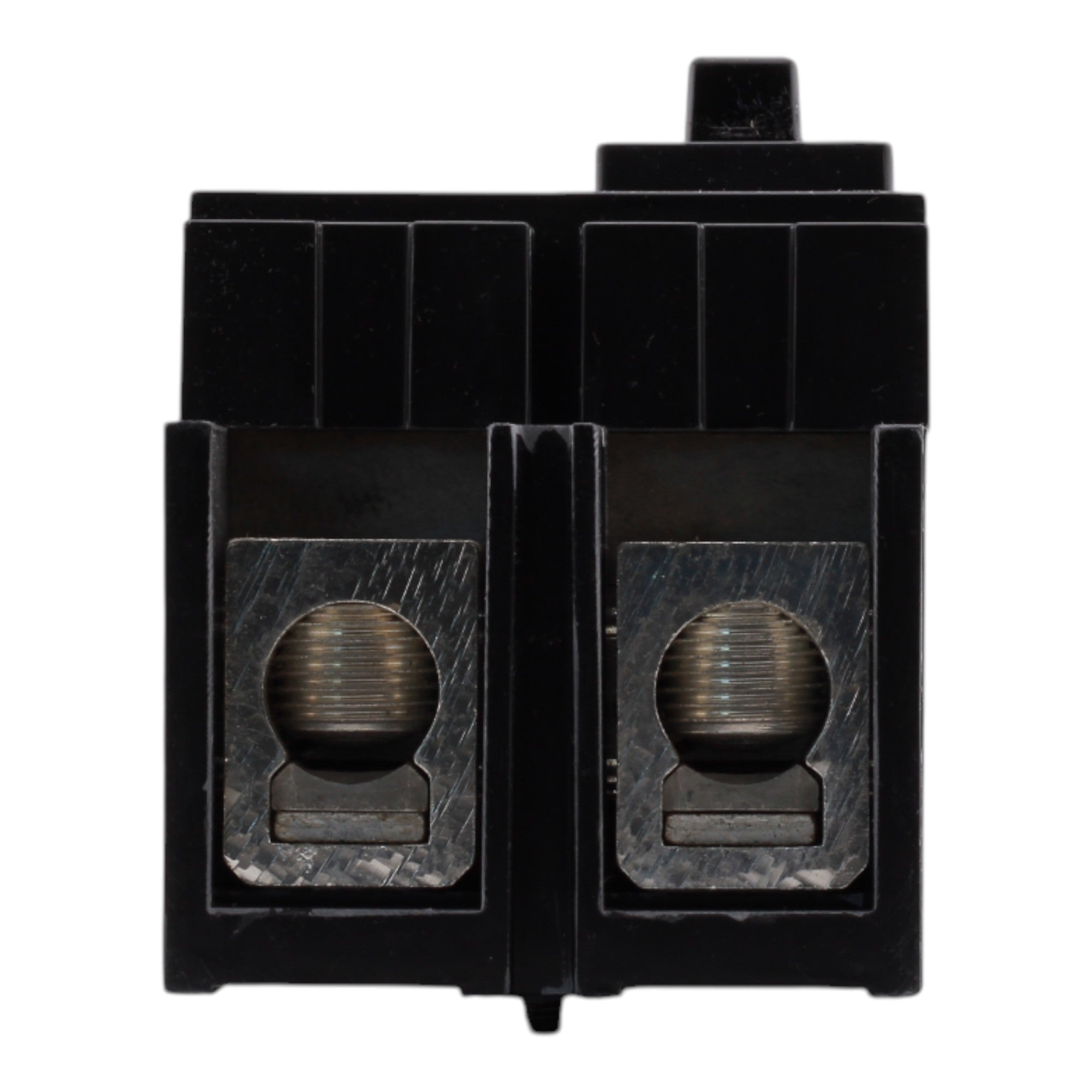

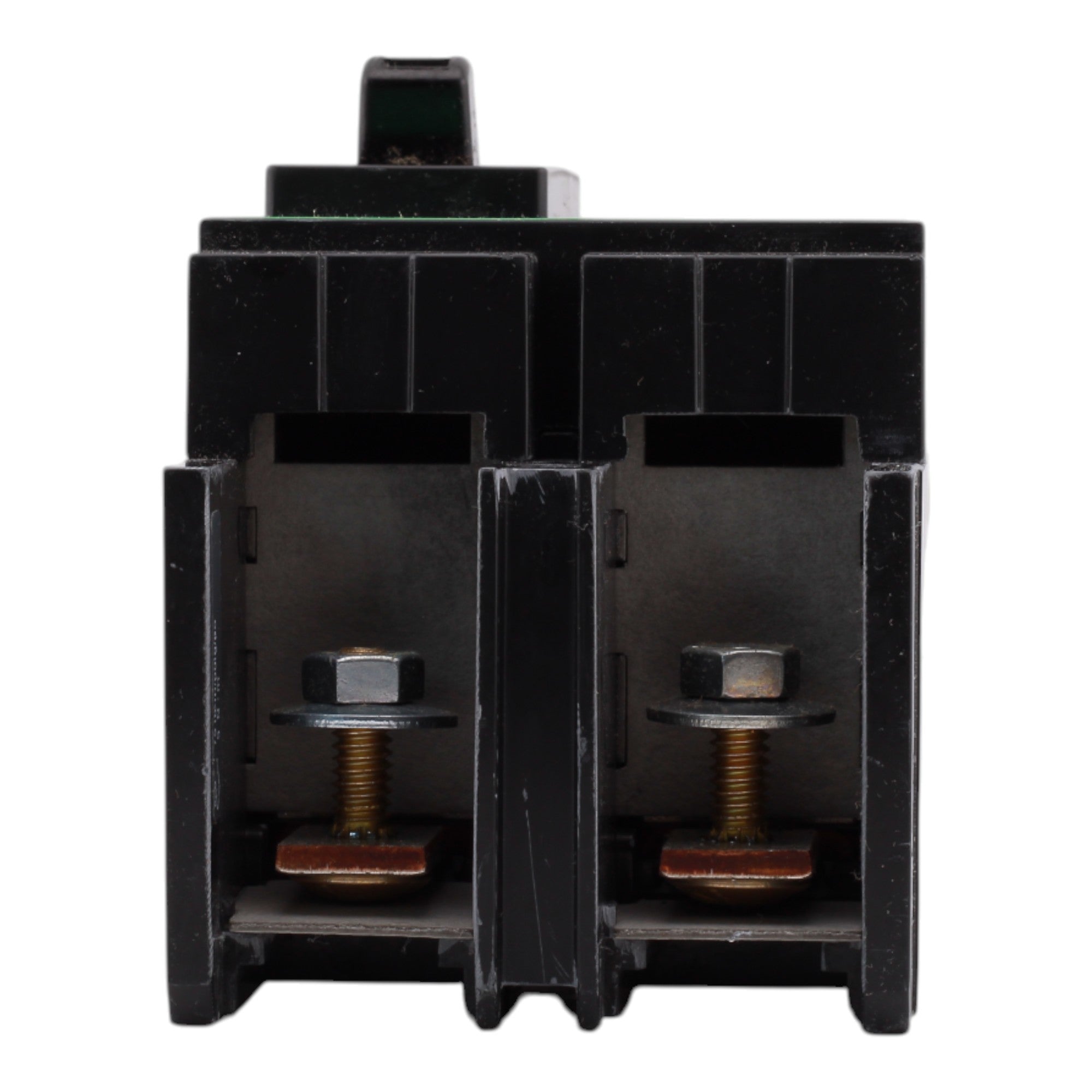

• Connections Terminals: Terminal nut (line), Lugs (load)
• Wire Size: AWG 4 to 300 kcmil Cu/Al
• Tightening Torque: 247.8 lb-in
• Dimensions: Height: 6.47 in; Width: 3.0 in; Depth: 3.93 in
• Weight: 3.28 lbs
• Certifications: UL Listed, CSA Certified, NOM Certified, HACR Rated

This Square D QBP22200TM thermal-magnetic circuit breaker provides reliable 200A, 2-pole protection for 240V circuits in PowerPacT Q loadcenters. With a 10kA interrupting rating and lug connections, it ensures robust overcurrent protection and switching for residential and commercial applications.
