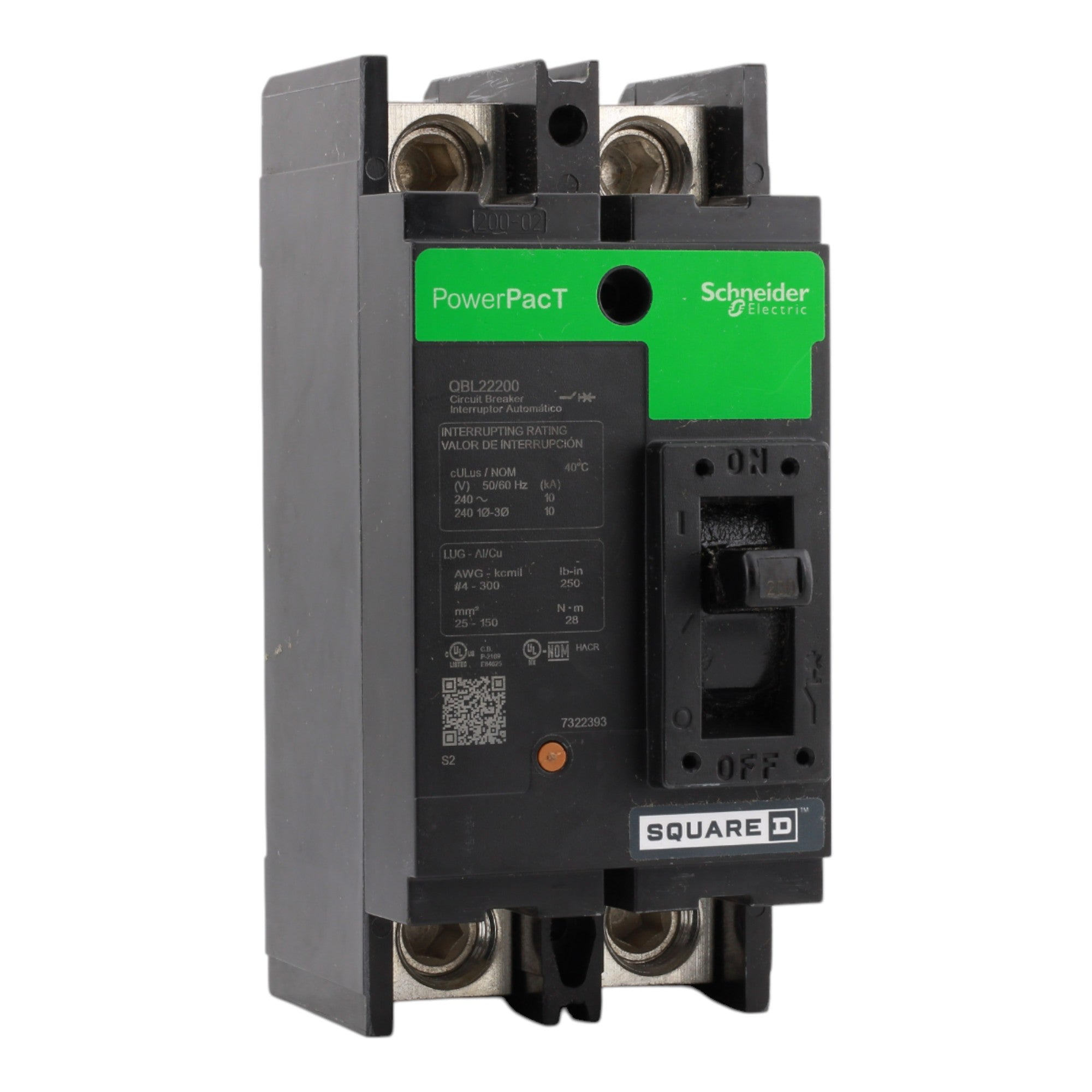

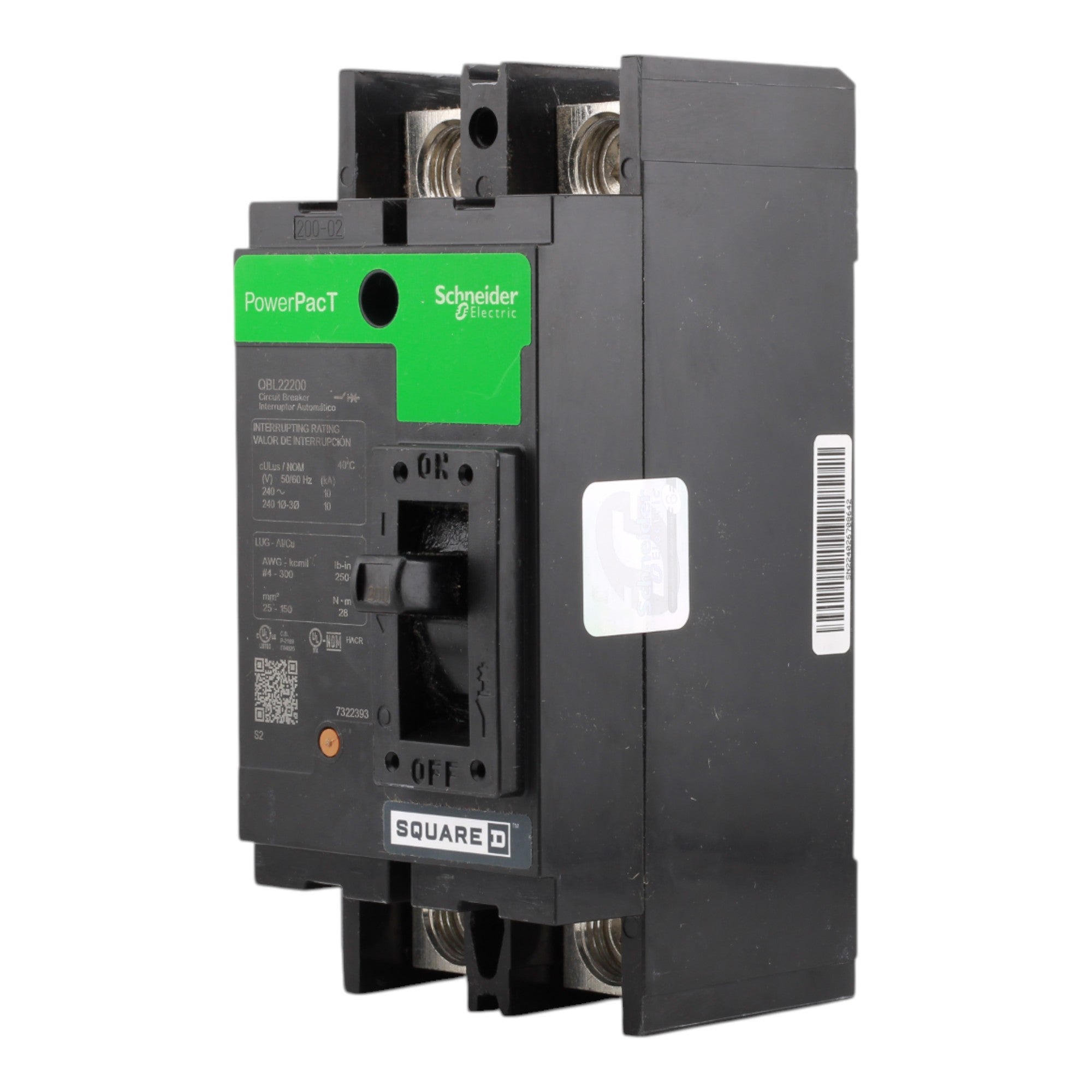

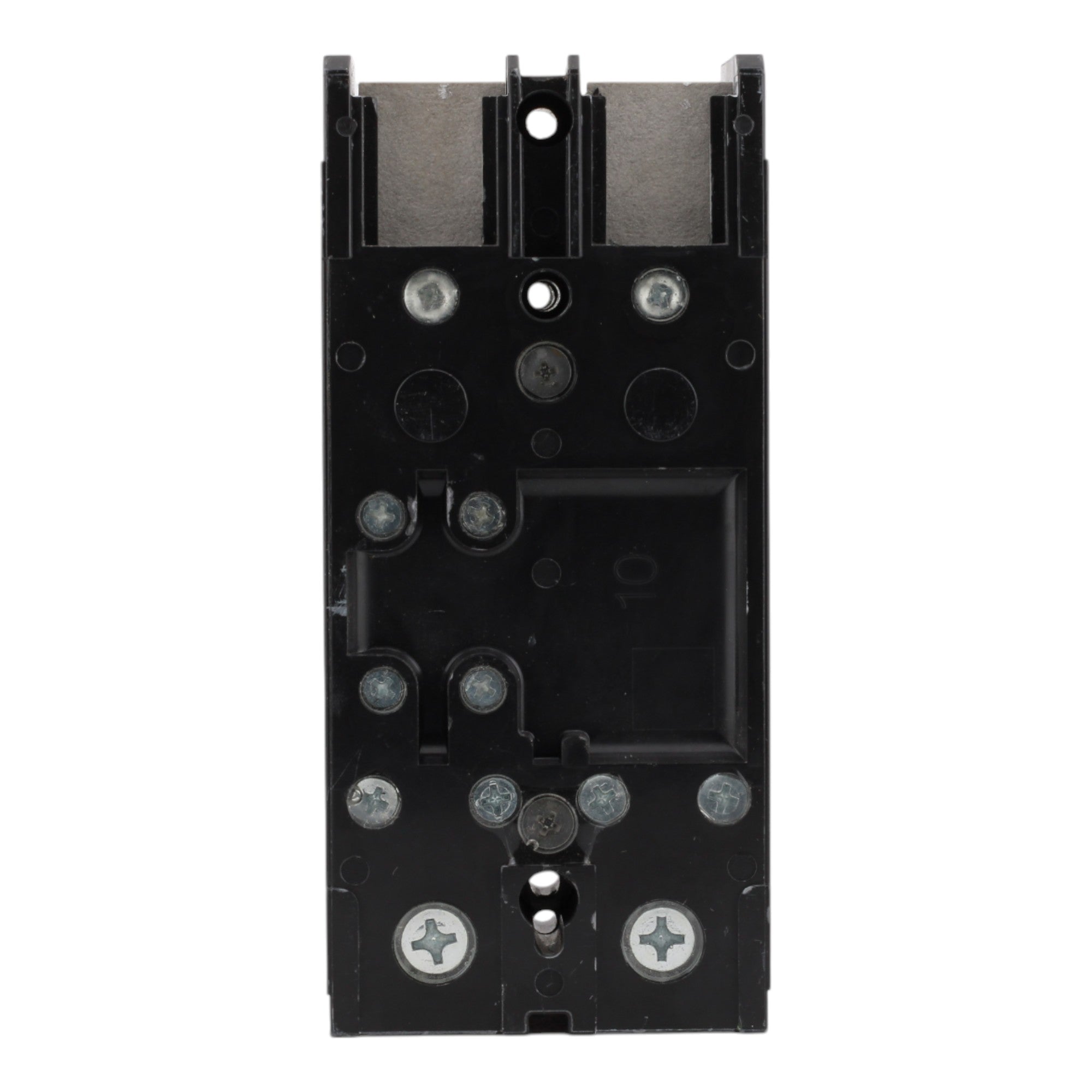

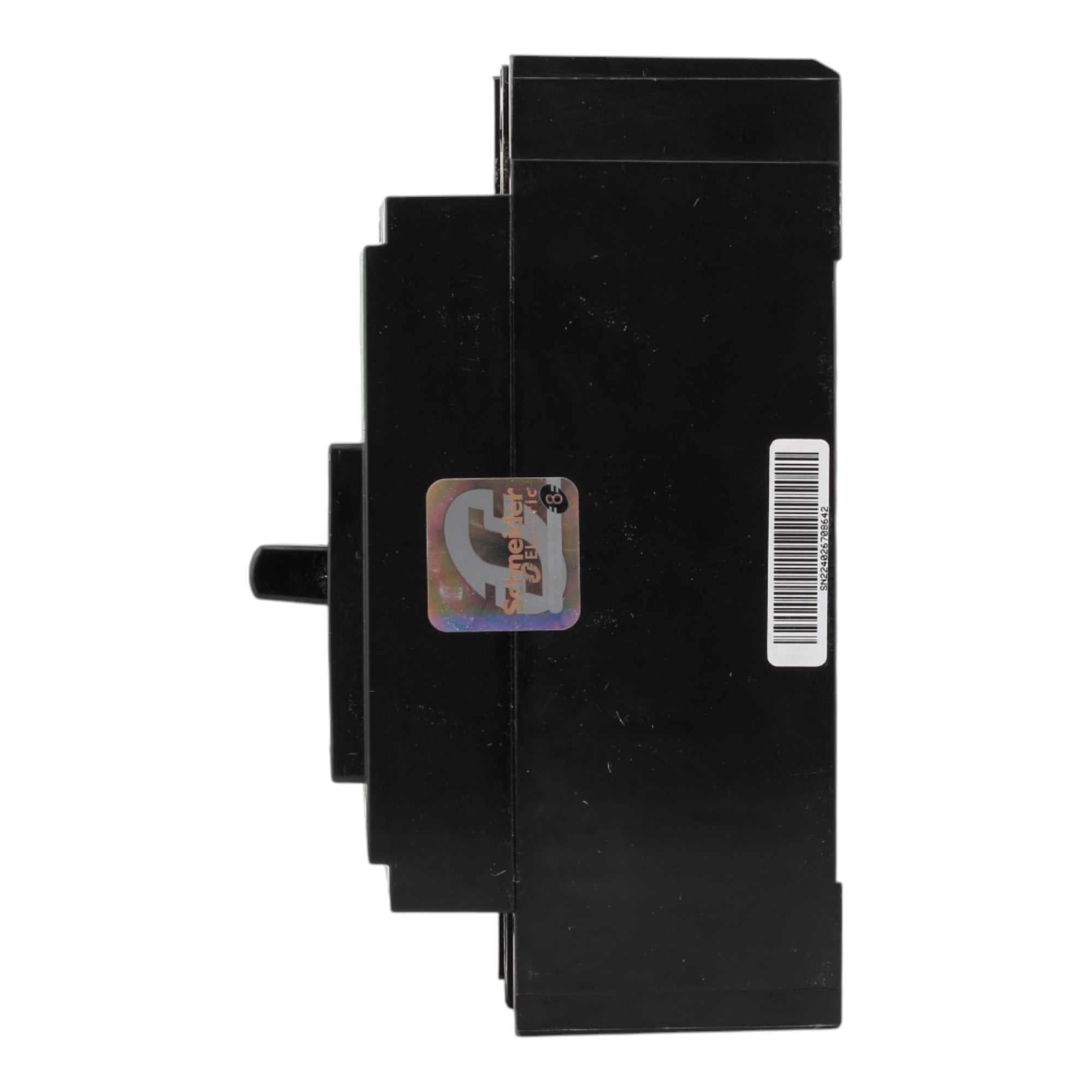

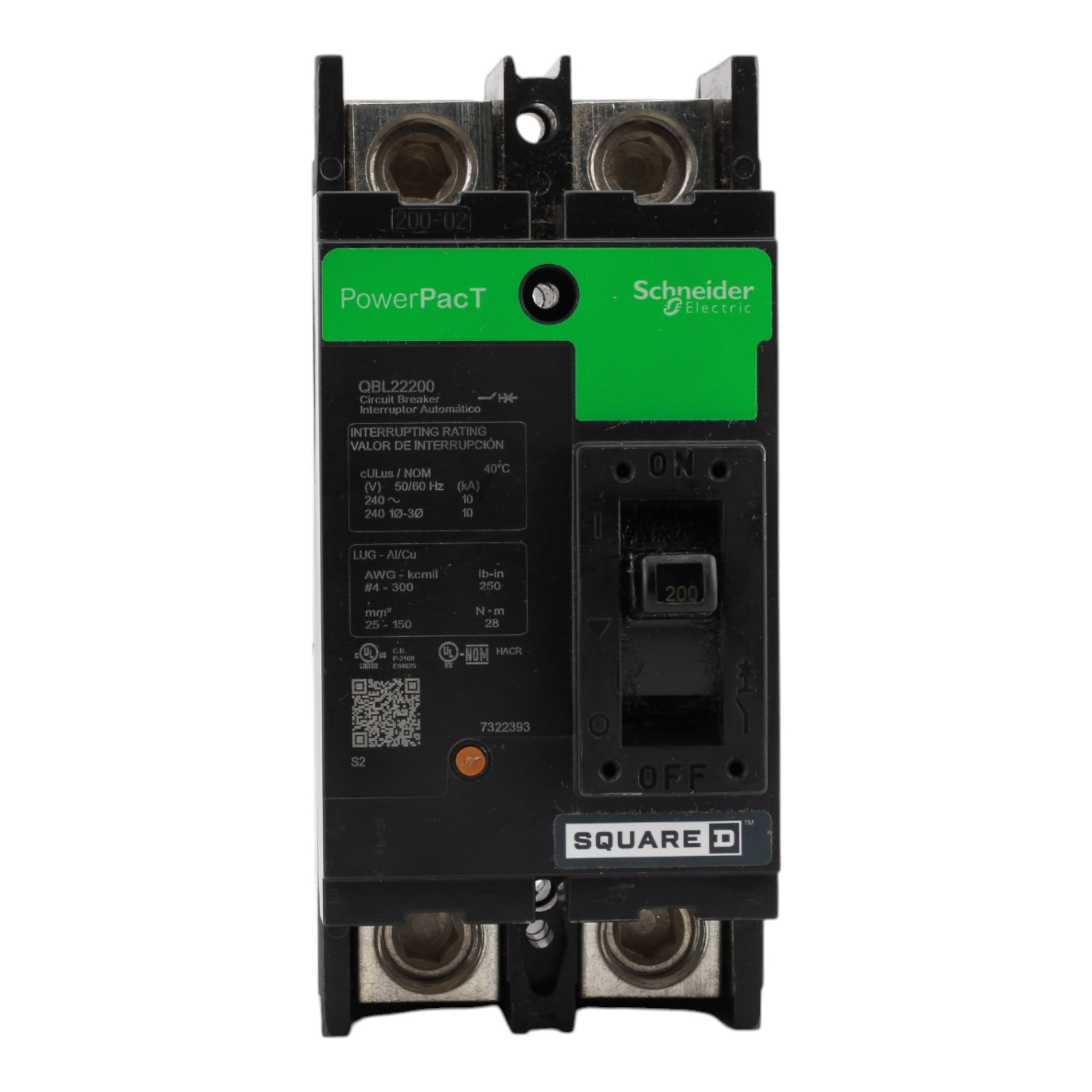

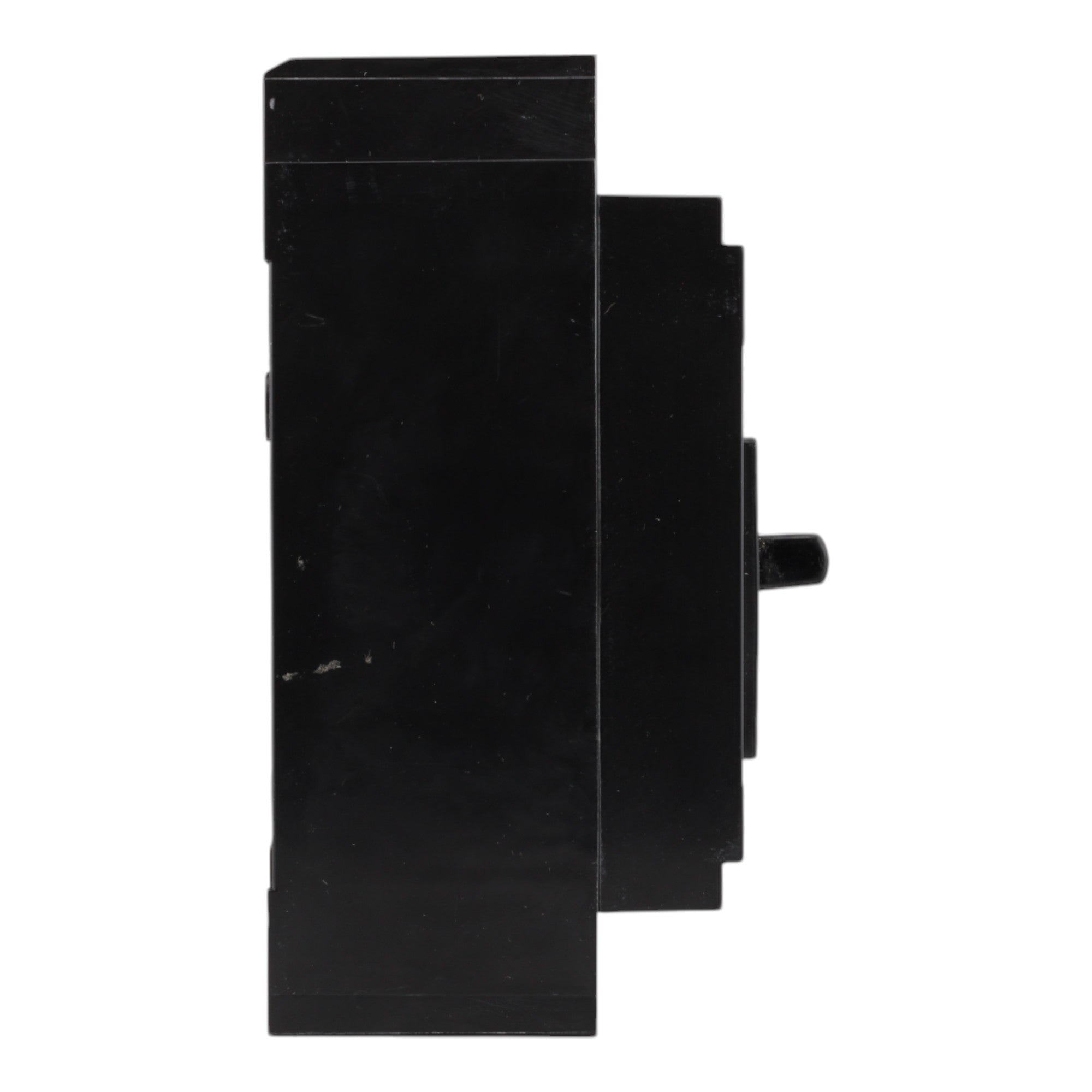

Square D QBL22200: 200A 2P thermal-magnetic circuit breaker, 240VAC, 10kA interrupt rating, 80% continuous current rating, lugs on line/load sides, HACR rated, UL listed."
Product Specifications
Product Identification:
-
Manufacturer: Square D
-
Brand: PowerPacT Q
-
UPC: 785901412632
-
Model Number: QBL22200
Technical Specifications:
-
Circuit Breaker Type: PowerPacT Q-Frame Molded Case Circuit Breaker
-
Number of Poles: 2-Pole
-
Amperage Rating: 200A
-
Voltage Rating: 240VAC, 50/60Hz
-
Interrupt Rating: 10kA at 208Y/120VAC and 240VAC
-
Trip Unit Technology: Thermal-magnetic
-
Magnetic Tripping Current: 2400A
-
Magnetic Hold Current: 1200A
-
Continuous Current Rating: 80%
-
Mounting Type: Unit mount lug
-

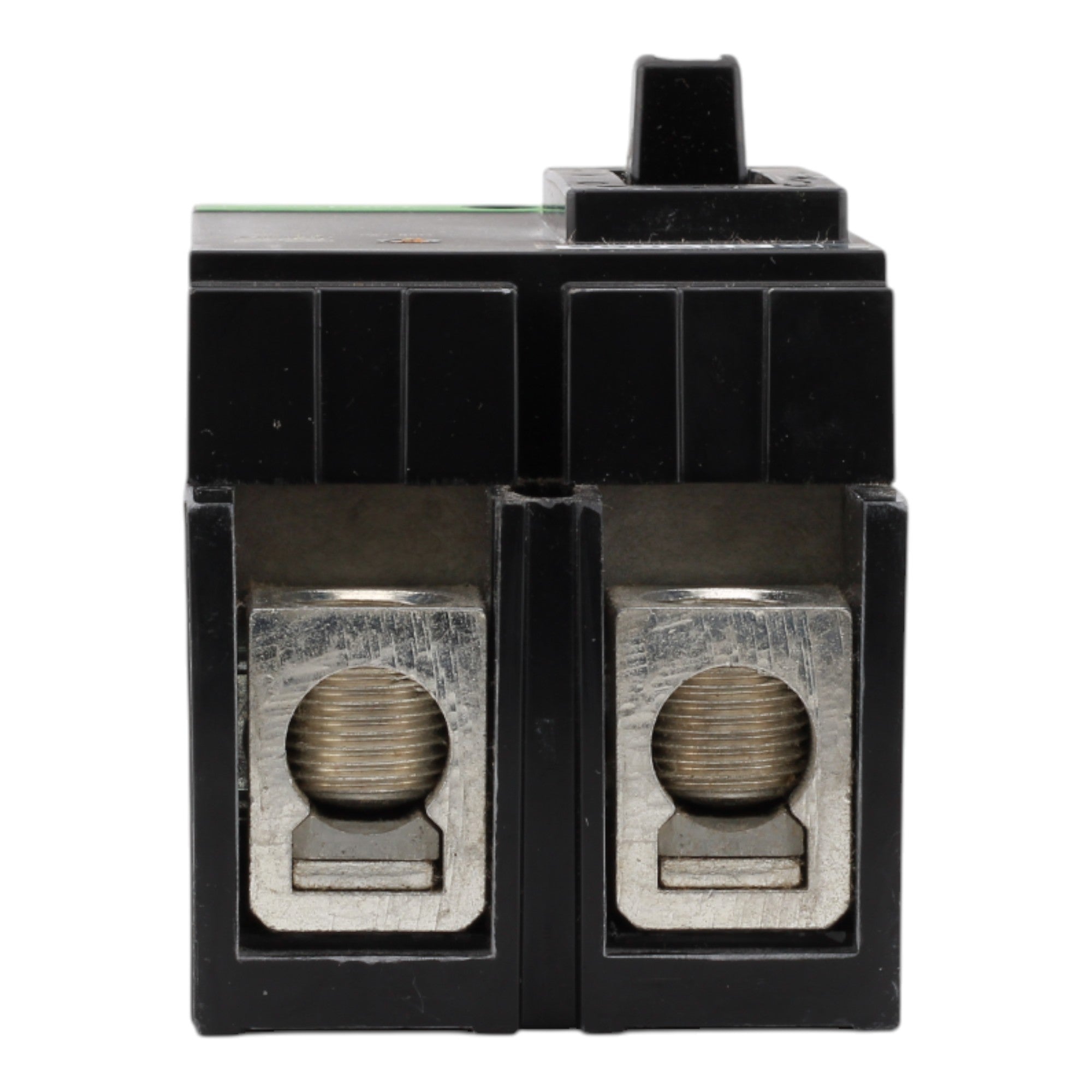

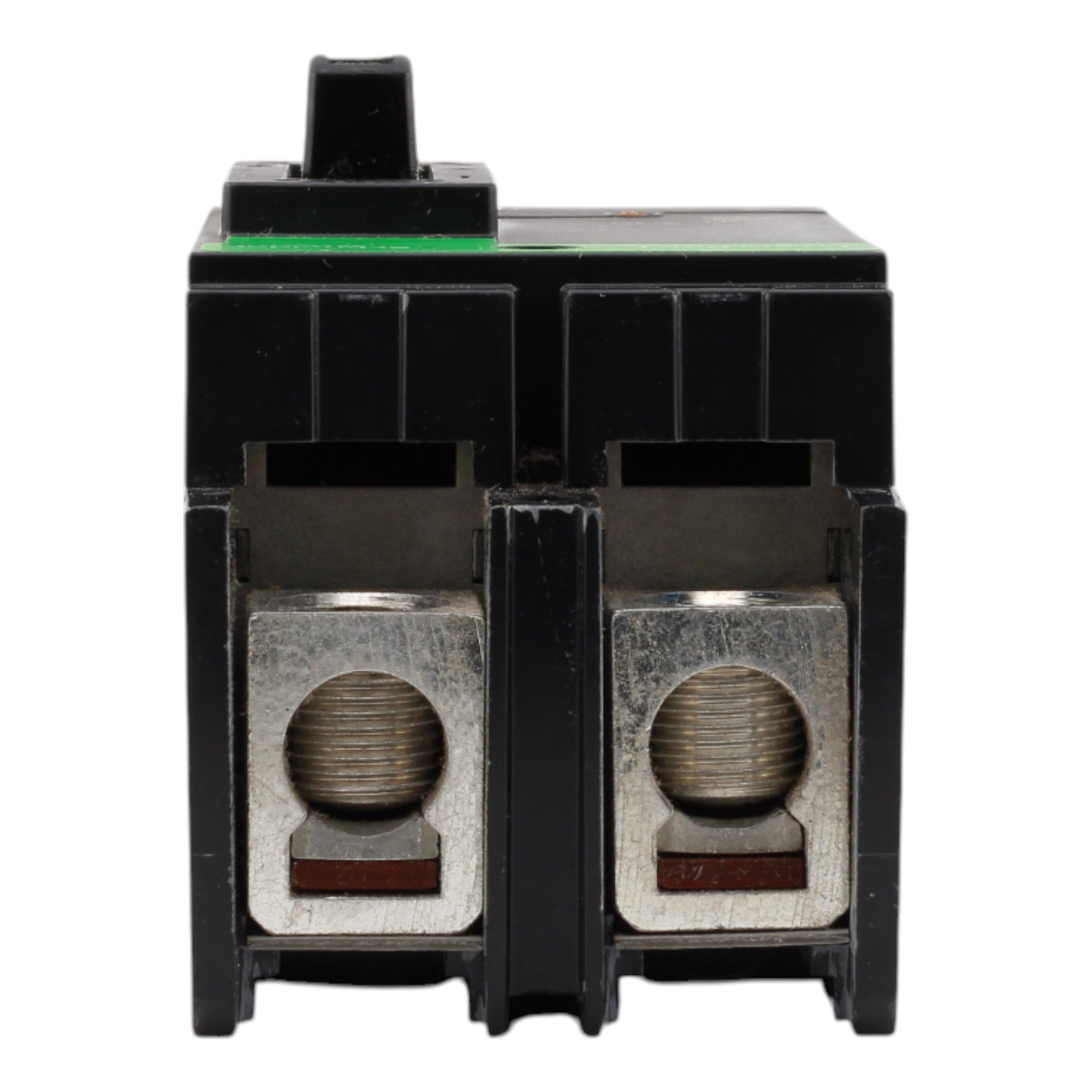

Connection Type: Lugs on line and load sides
-
Tightening Torque: 247.8 lbf.in (28 N.m)
-
Wire Compatibility: 4 AWG-300 kcmil (0.04-0.2 in²)
-
Wire Stripping Length: 0.9 in
-
Local Signaling: Trip indicator (green)
-
Special Features: Push-to-trip button
-
Application Rating: HACR rated
-
Mechanical Durability: 1000 cycles loaded, 5000 cycles no load
-
Certifications: UL, CSA, NOM
Dimensions:
-
Dimensions: Height: 6.47 in; Width: 3 in; Depth: 3.93 in
-
Weight: 3.4 lb
