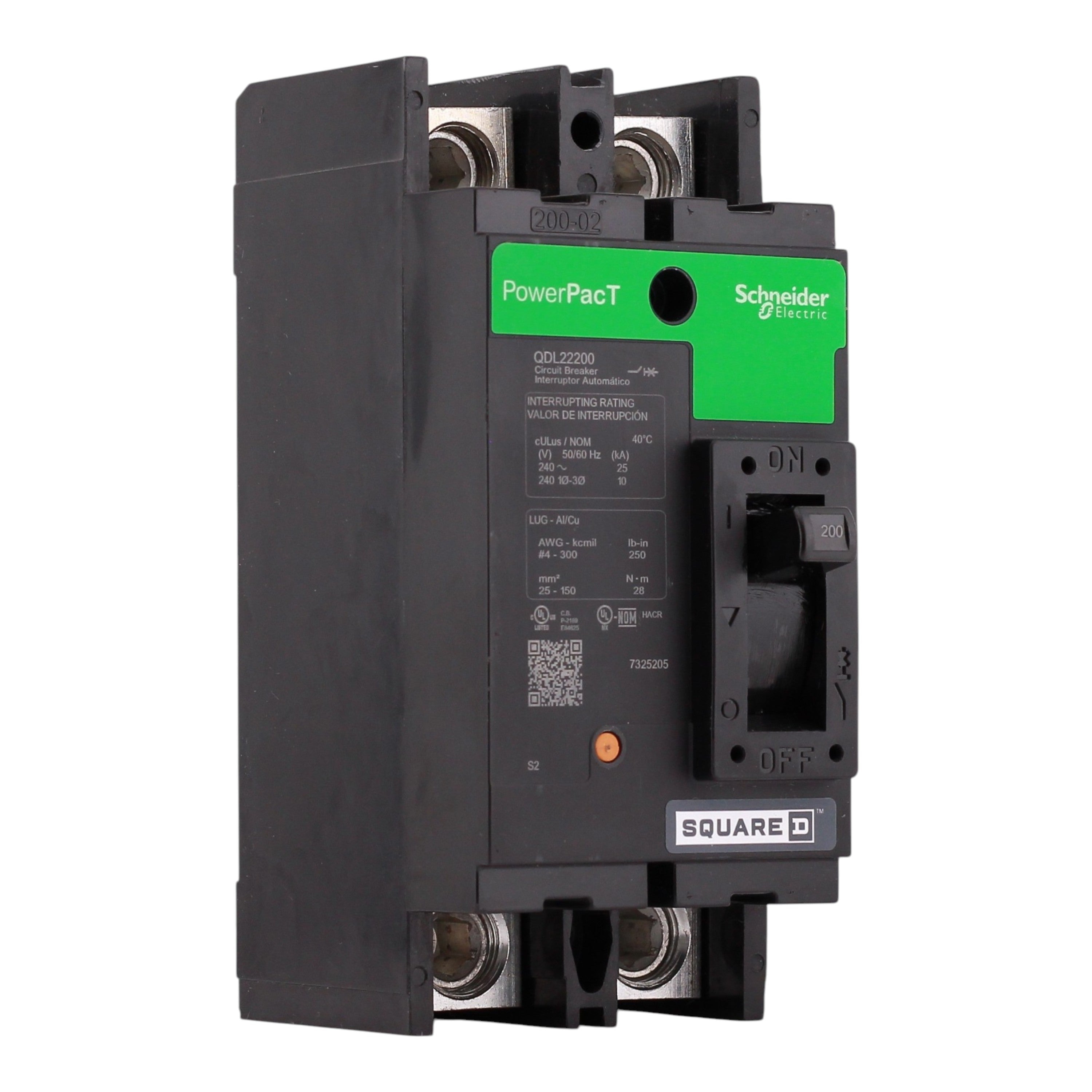

Square D PowerPacT QDL22200 200A 2P 240V Circuit Breaker

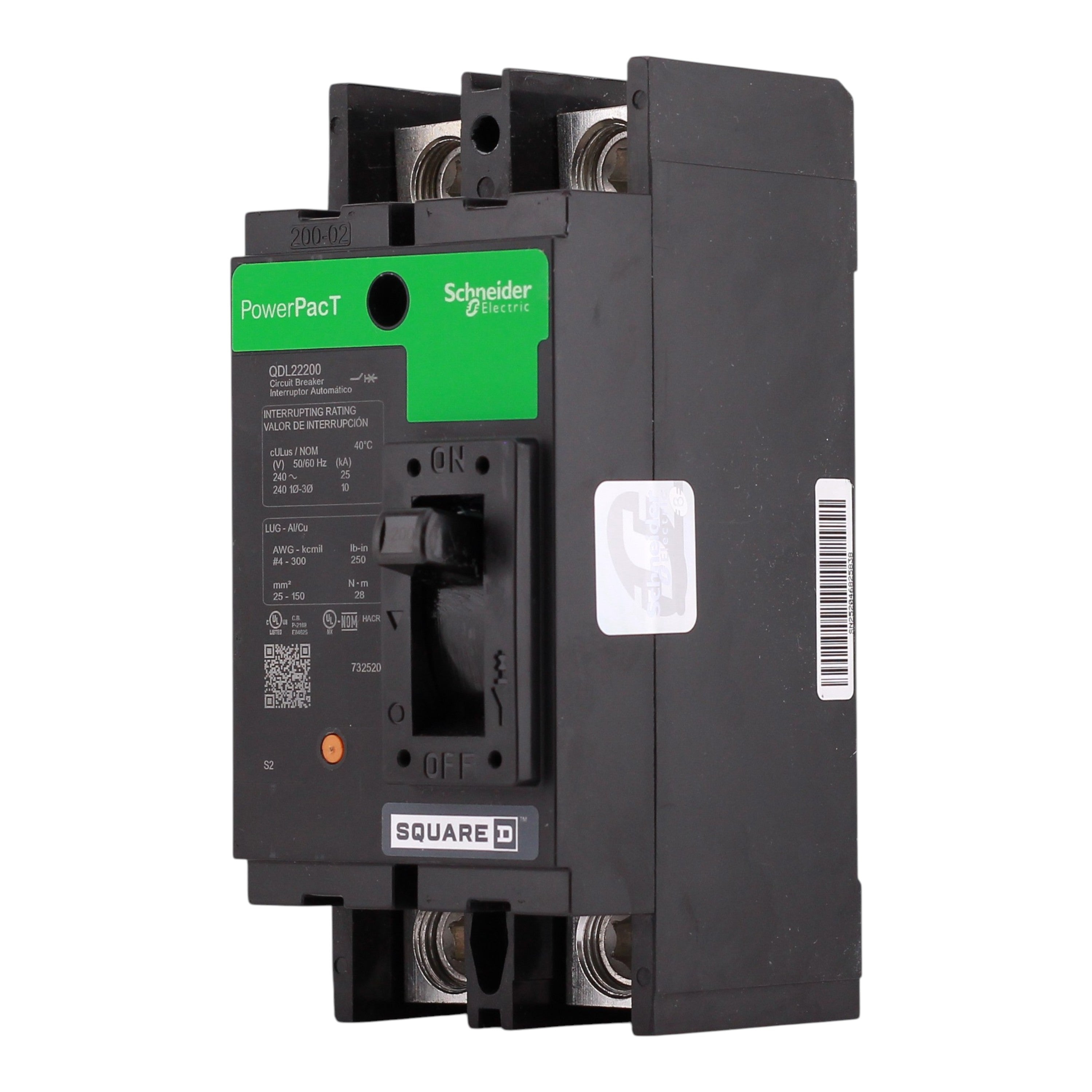

Square D PowerPacT QDL22200 200A 2P 240V Circuit Breaker - Image 2

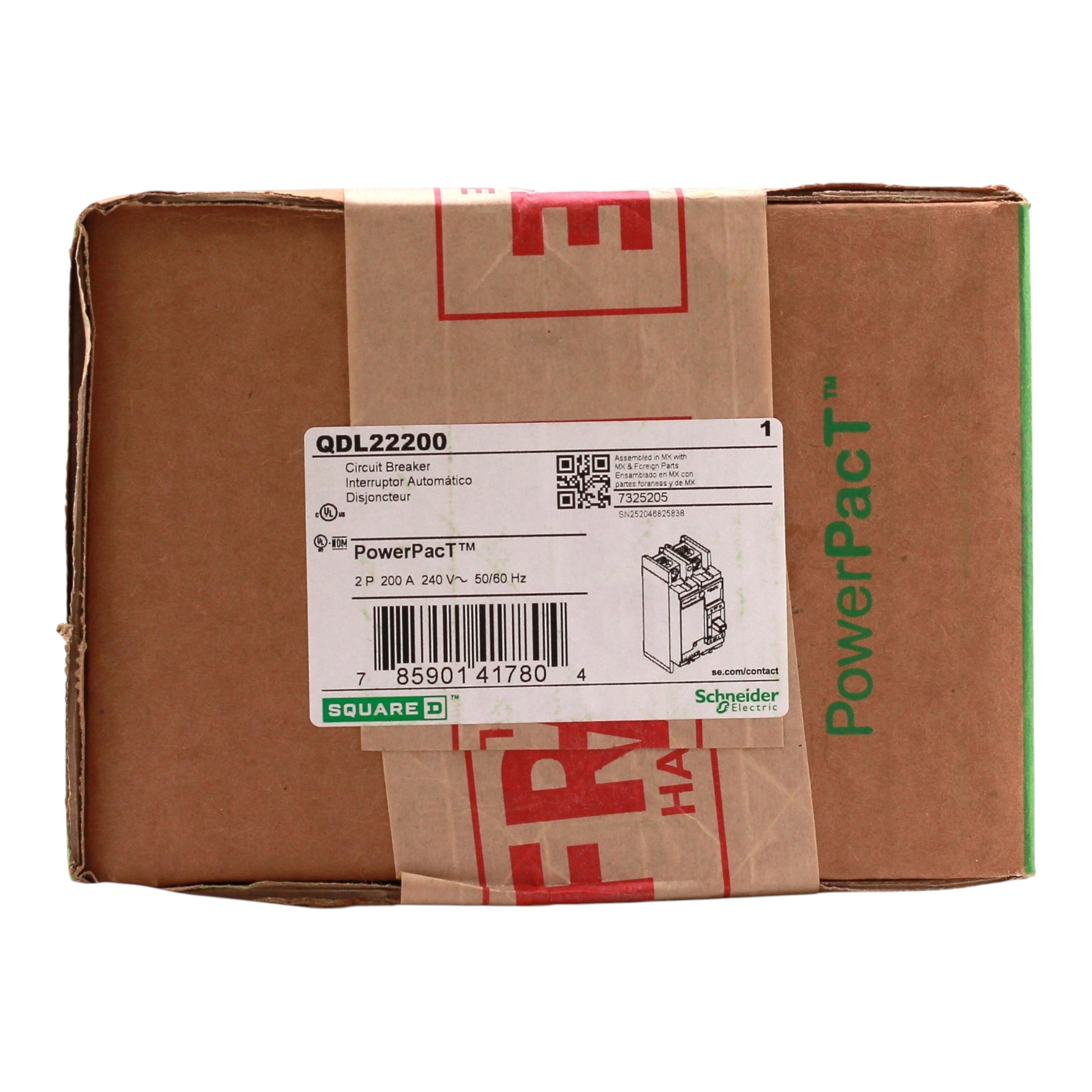

Square D PowerPacT QDL22200 200A 2P 240V Circuit Breaker - Image 3

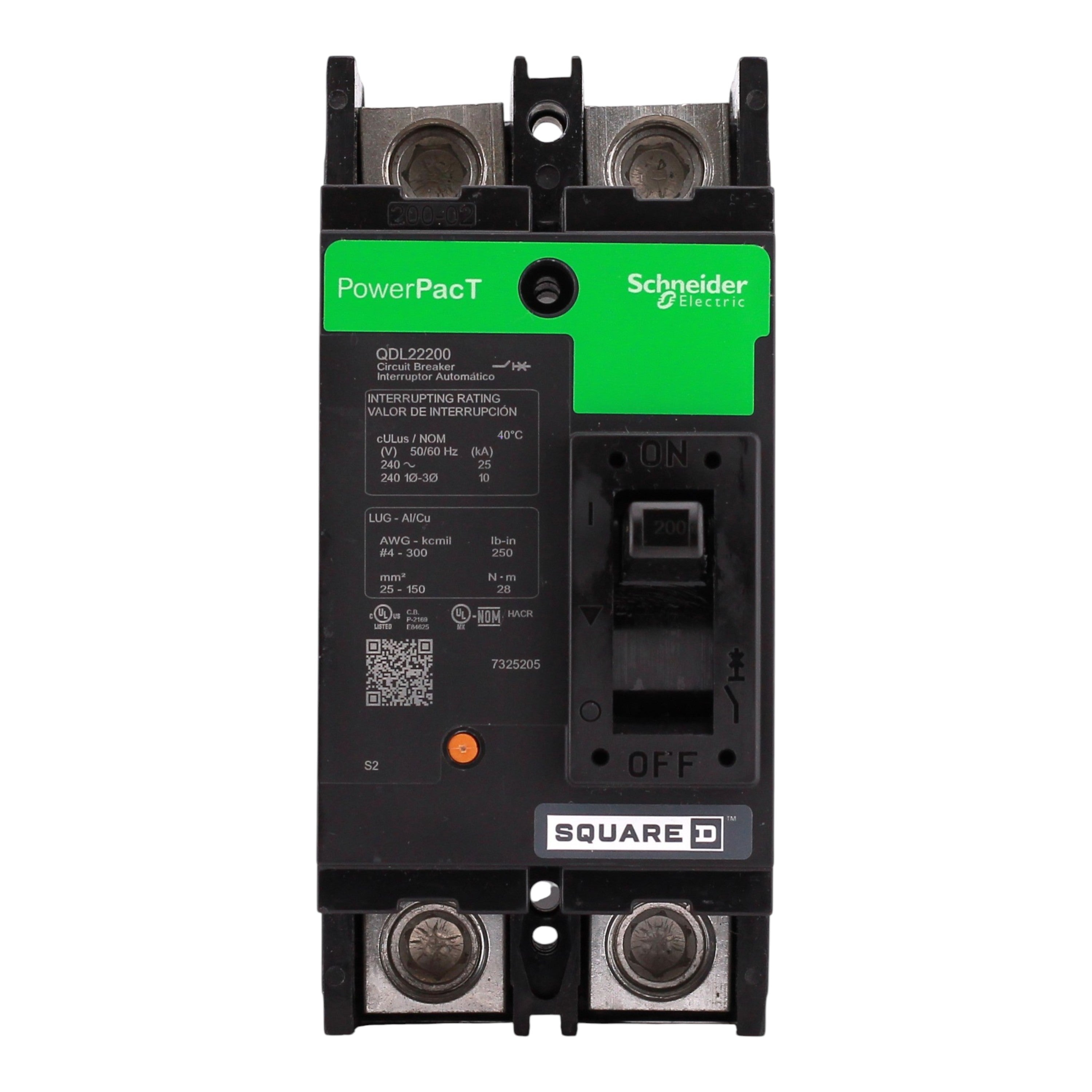

Square D PowerPacT QDL22200 200A 2P 240V Circuit Breaker - Image 4

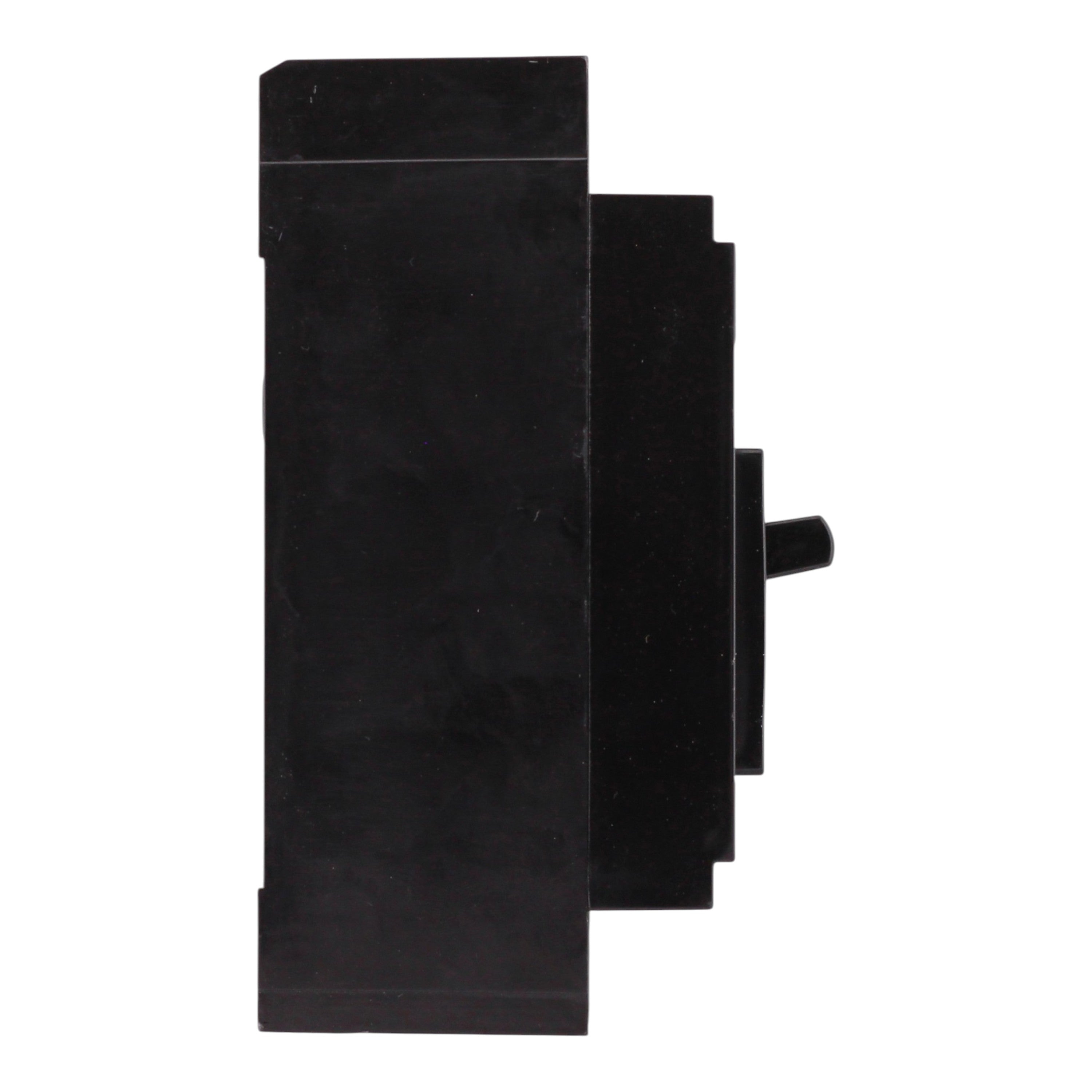

Square D PowerPacT QDL22200 200A 2P 240V Circuit Breaker - Image 5

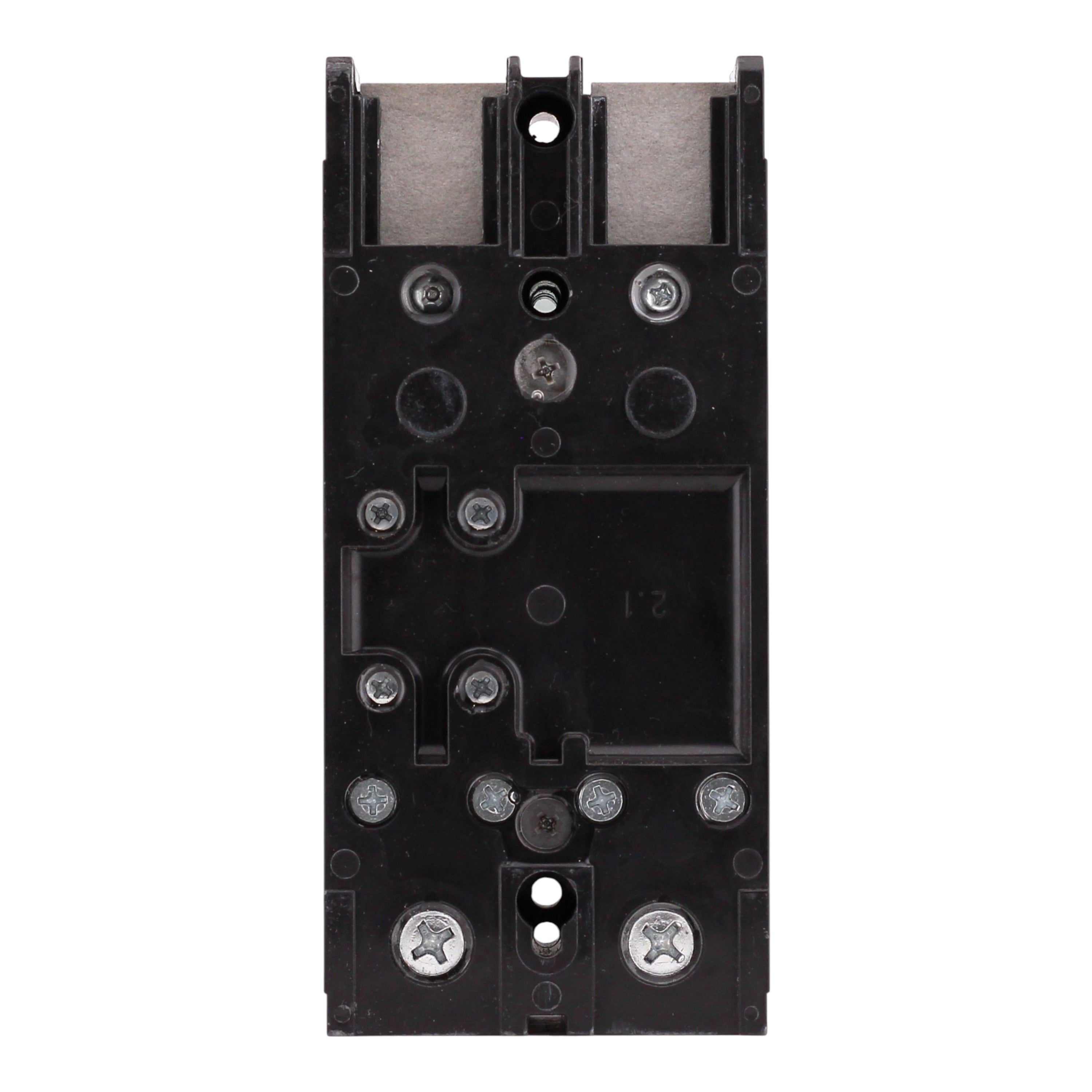

Square D PowerPacT QDL22200 200A 2P 240V Circuit Breaker - Image 6

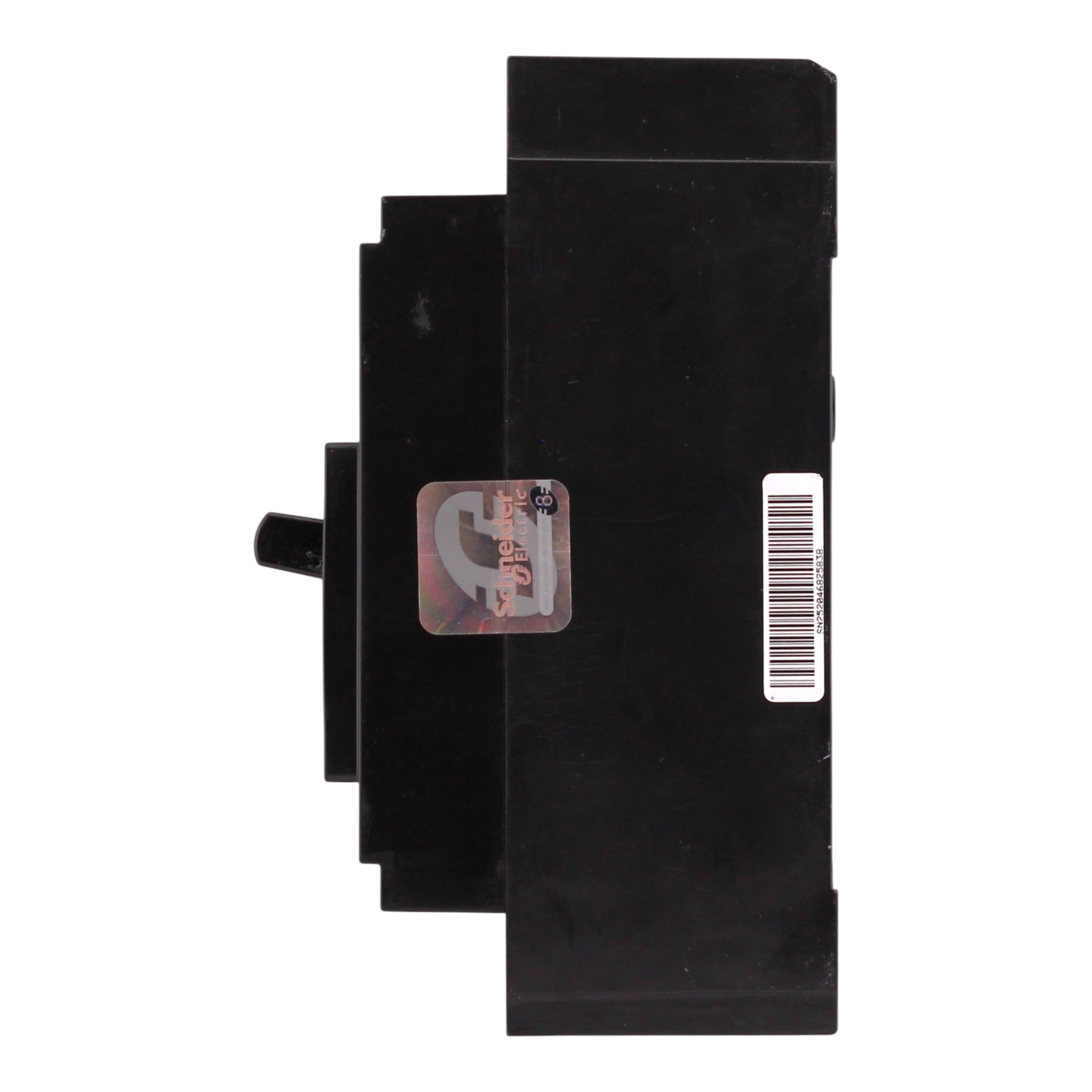

Square D PowerPacT QDL22200 200A 2P 240V Circuit Breaker - Image 7

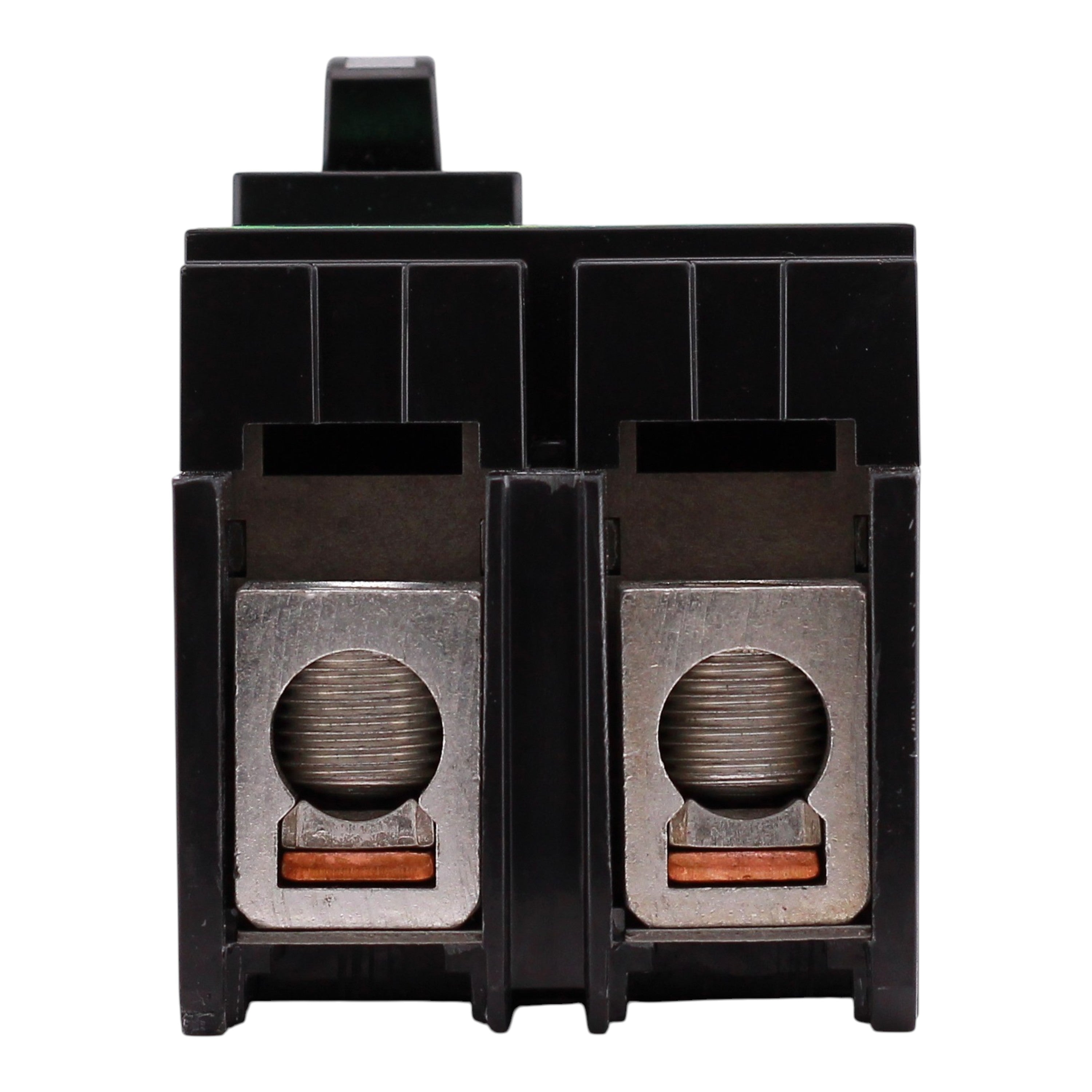

Square D PowerPacT QDL22200 200A 2P 240V Circuit Breaker - Image 8

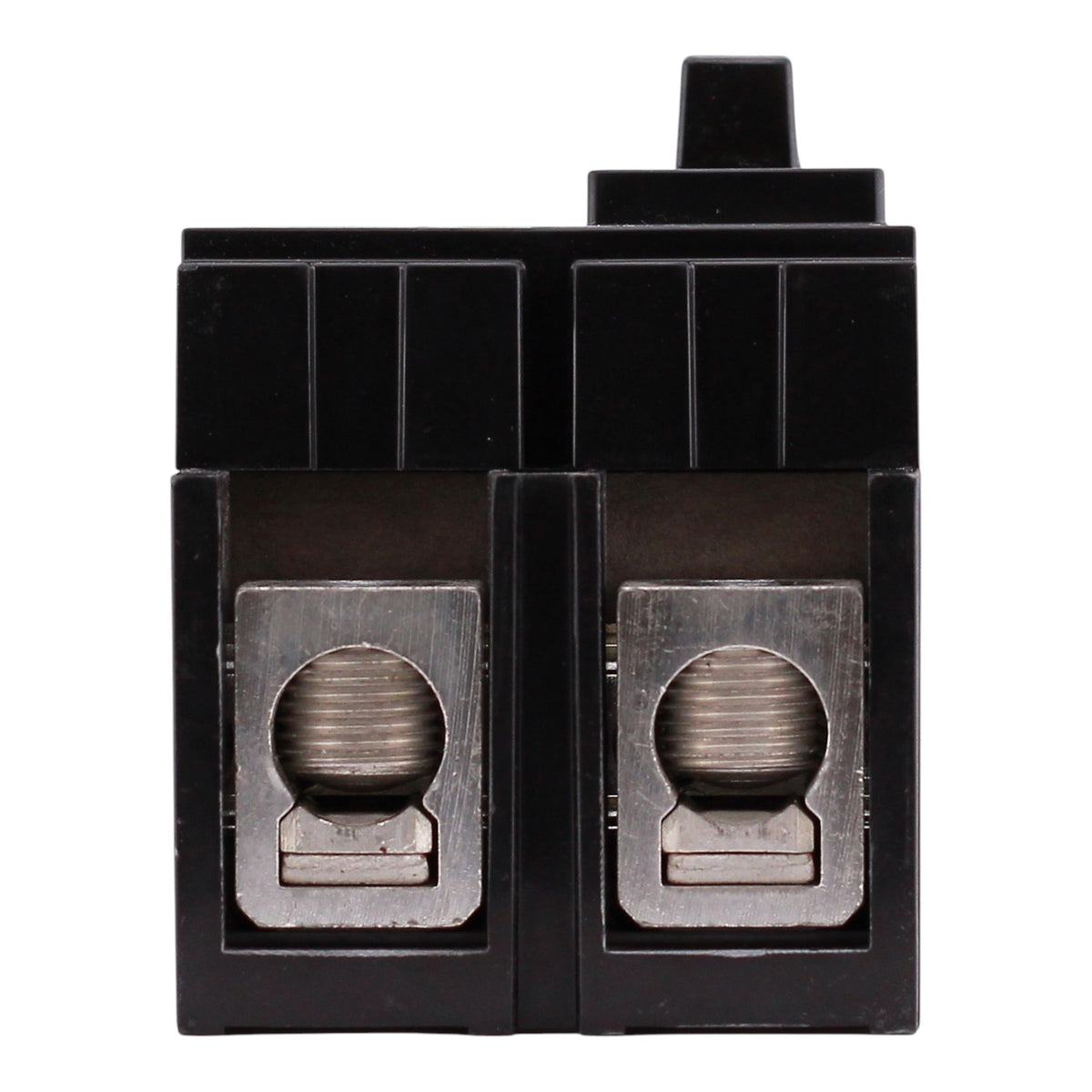

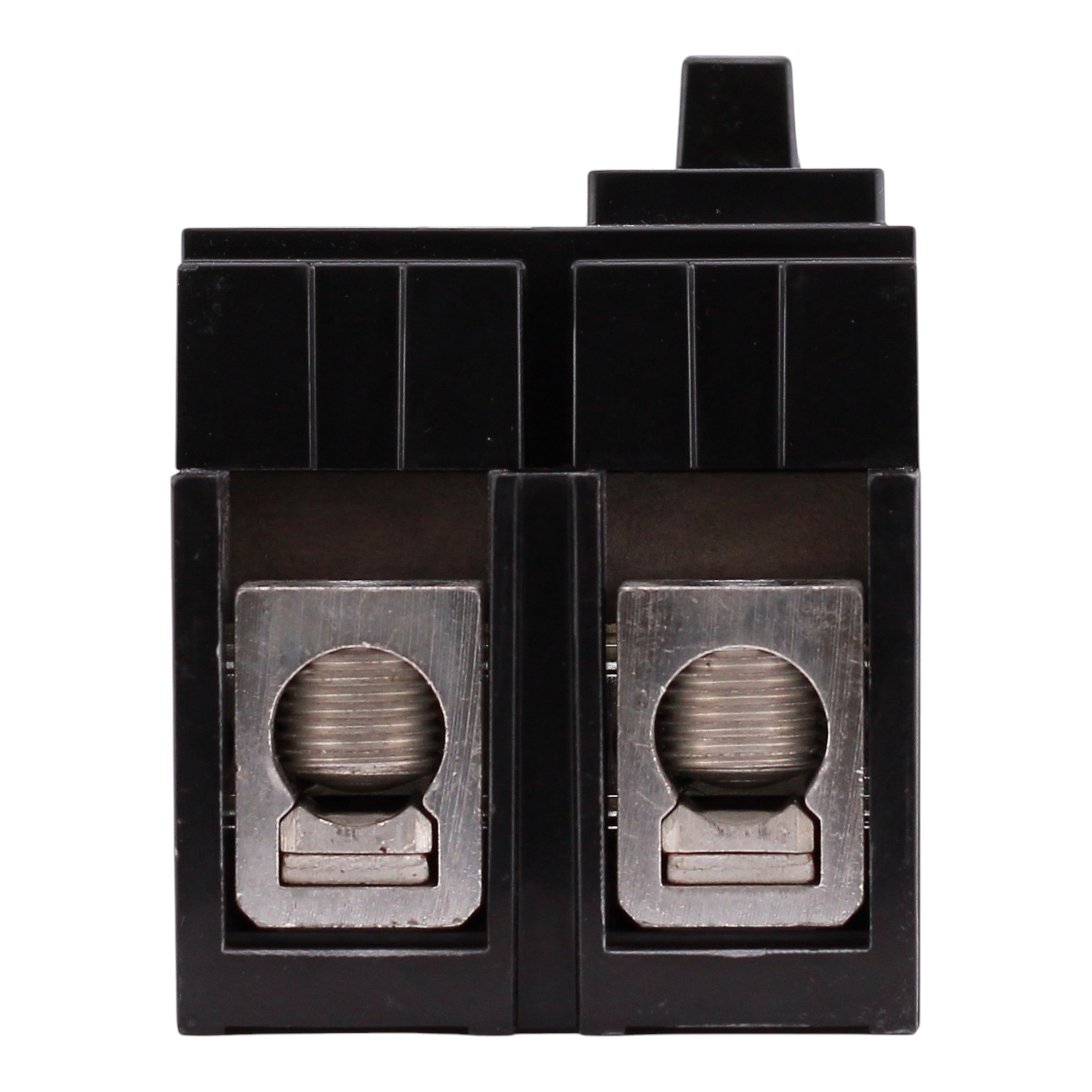

Square D PowerPacT QDL22200 200A 2P 240V Circuit Breaker - Image 9

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Square D

Square D PowerPacT QDL22200 200A 2P 240V Circuit Breaker

Out of stock
SKU: QDL22200 UPC: 785901417804
(0)
$185.00
-29% $260.00 $185.00
Out of stock
Condition

Square D QDL22200: 200 Amp 2-Pole PowerPacT Q thermal-magnetic breaker, 240V, 25kA, lug terminals, UL listed, CSA certified.

  • Manufacturer: Schneider Electric
  • Brand: Square D
  • Product Range: PowerPacT Q (for Square D loadcenters and equipment)
  • UPC: 785901511595
  • Model Number: QDL22200
  • Breaker Type: Thermal-Magnetic
  • Amperage: 200 Amps
  • Poles: 2-Pole
  • Voltage: 240 Volts AC
  • Interrupt Rating: 25 kAIC
  • Mounting Mode: Unit mount
  • Connections Terminals: Lug terminals
  • Wire Size: #4 AWG-300 kcmil
  • Tightening Torque: 250 lb-in
  • Dimensions: Height: 6.47 in; Width: 3.0 in; Depth: 3.93 in
  • Weight: 4.85 lbs
  • Certifications: UL Listed, CSA Certified

This Square D QDL22200 PowerPacT Q circuit breaker provides robust 200A, 2-pole thermal-magnetic protection for 240V AC systems. With a 25kA interrupt rating and lug terminals, it ensures reliable overcurrent protection and switching in Square D loadcenters for commercial and industrial applications.
