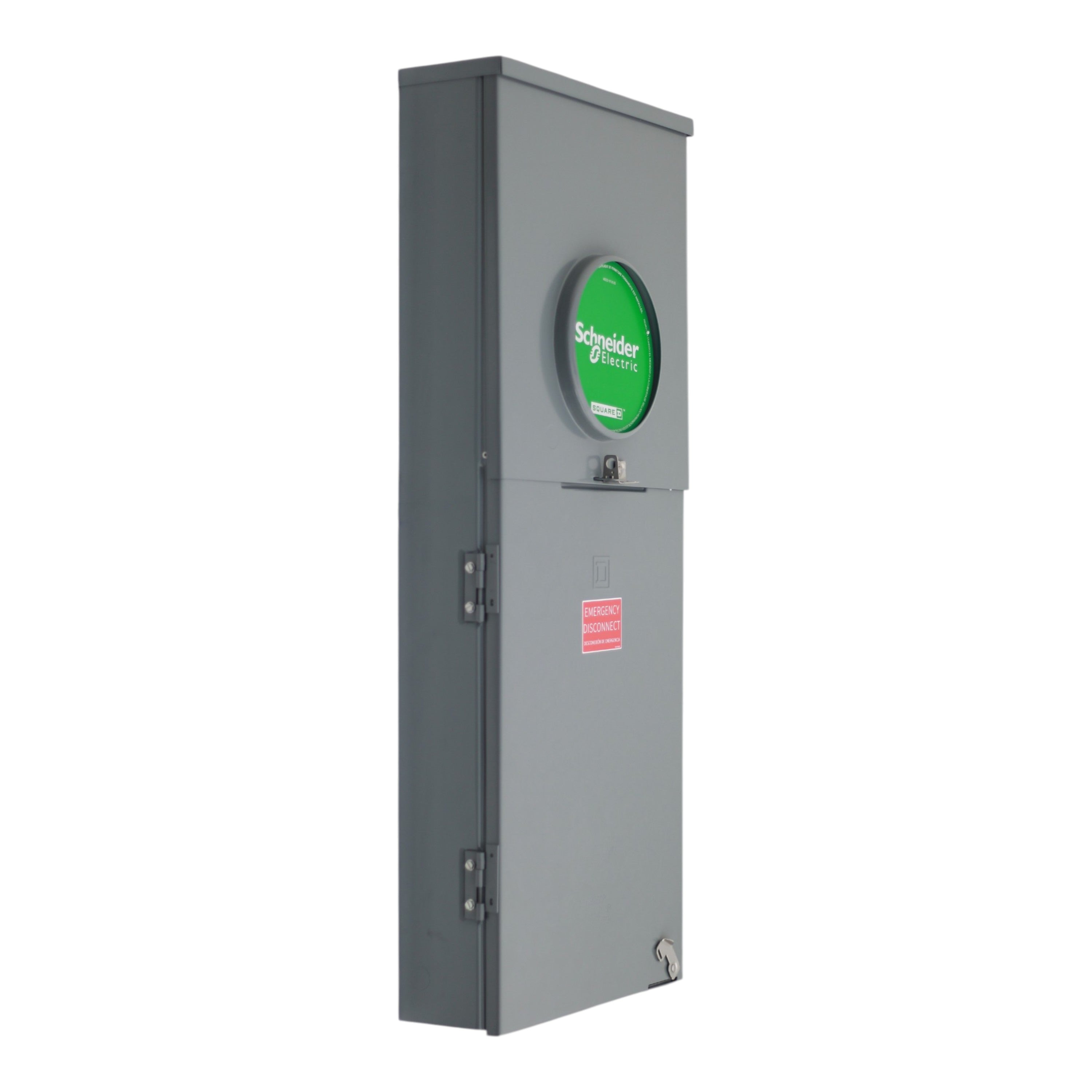

Square D QO, QC816F150C, 150A, 8-Space, Ringless Meter Main, CSED
Square D QO, QC816F150C, 150A, 8-Space, Ringless Meter Main, CSED - Image 2
Square D QO, QC816F150C, 150A, 8-Space, Ringless Meter Main, CSED - Image 3

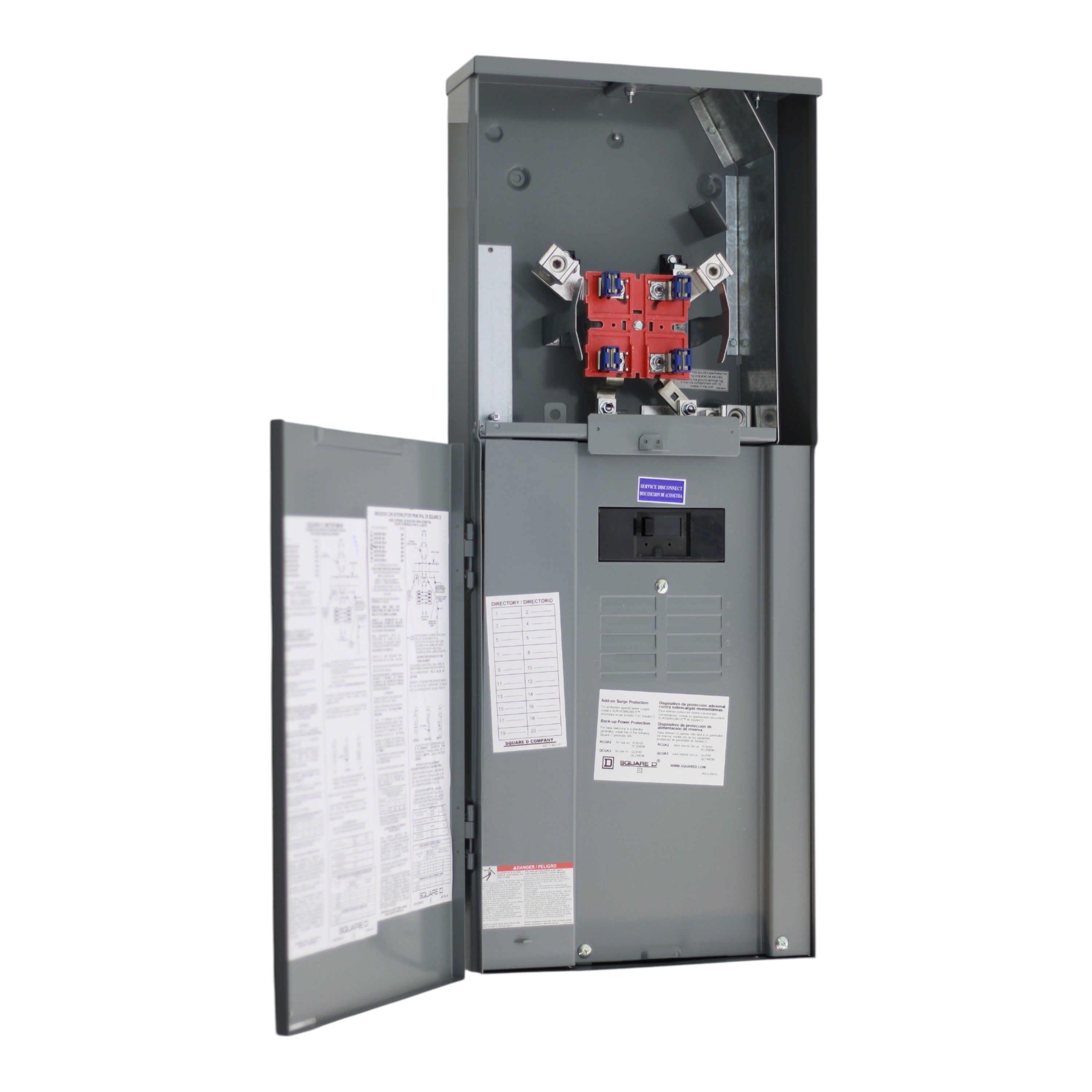

Square D QO, QC816F150C, 150A, 8-Space, Ringless Meter Main, CSED - Image 4
Square D QO, QC816F150C, 150A, 8-Space, Ringless Meter Main, CSED - Image 5
Square D QO, QC816F150C, 150A, 8-Space, Ringless Meter Main, CSED - Image 6

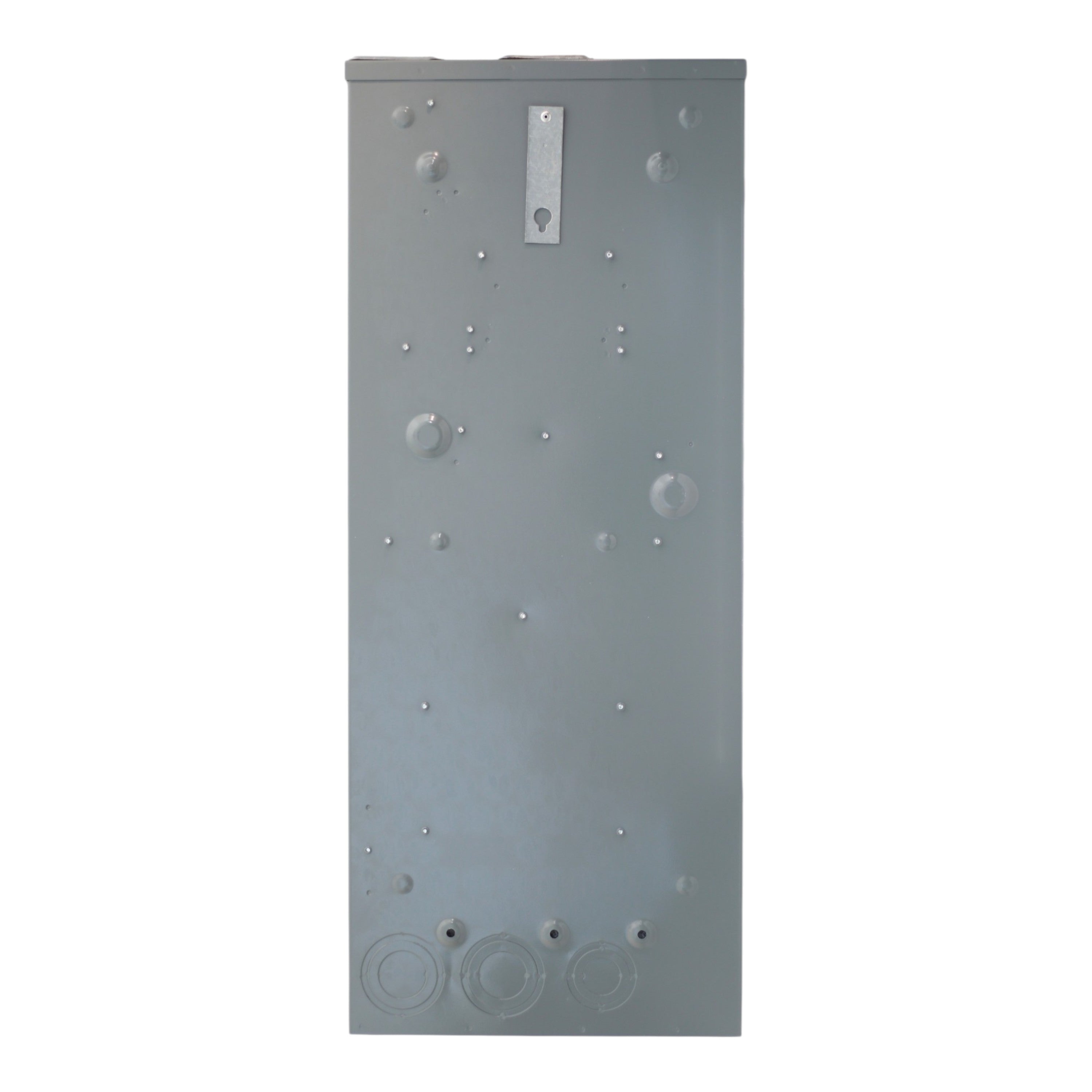

Square D QO, QC816F150C, 150A, 8-Space, Ringless Meter Main, CSED - Image 7

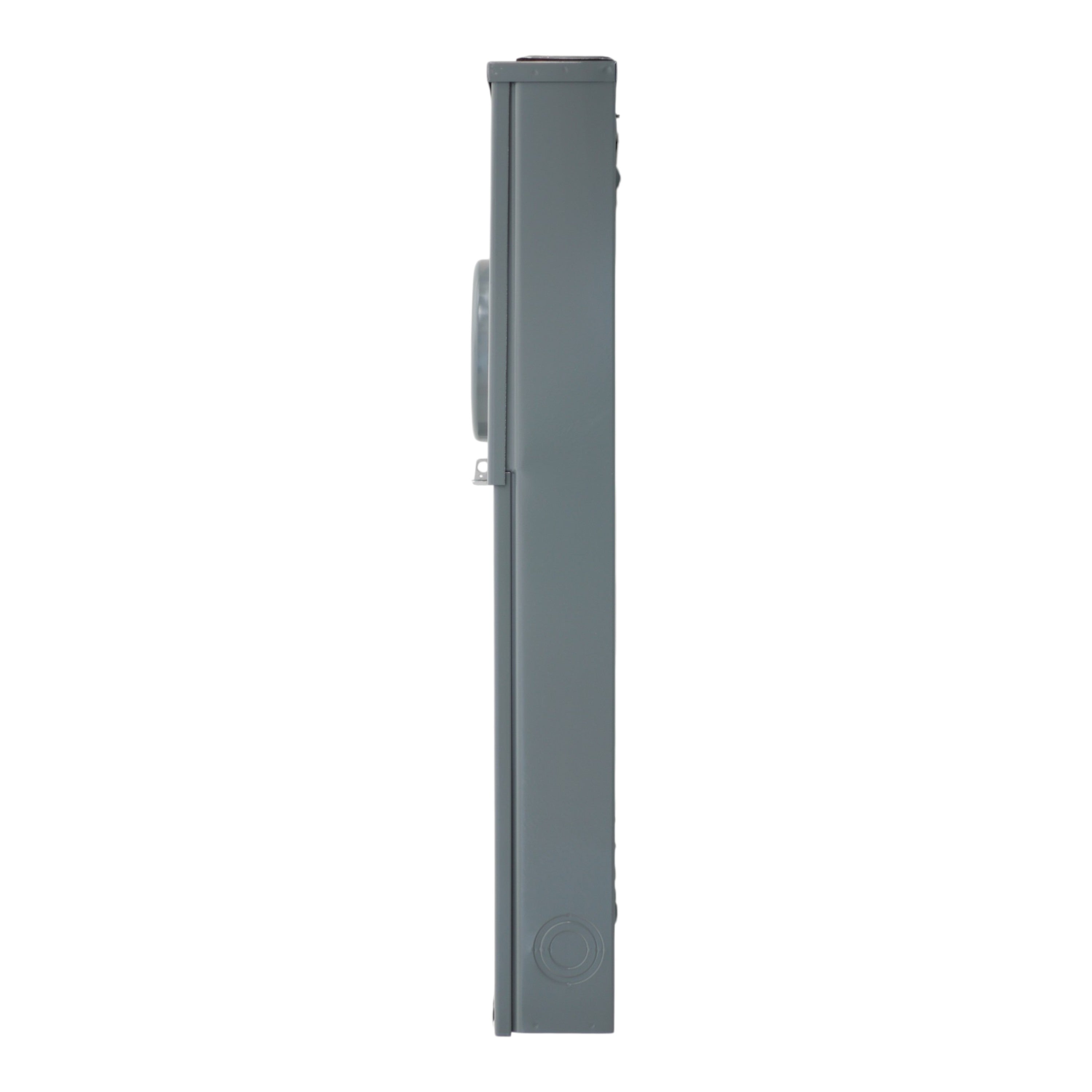

Square D QO, QC816F150C, 150A, 8-Space, Ringless Meter Main, CSED - Image 8
Square D QO, QC816F150C, 150A, 8-Space, Ringless Meter Main, CSED - Image 9

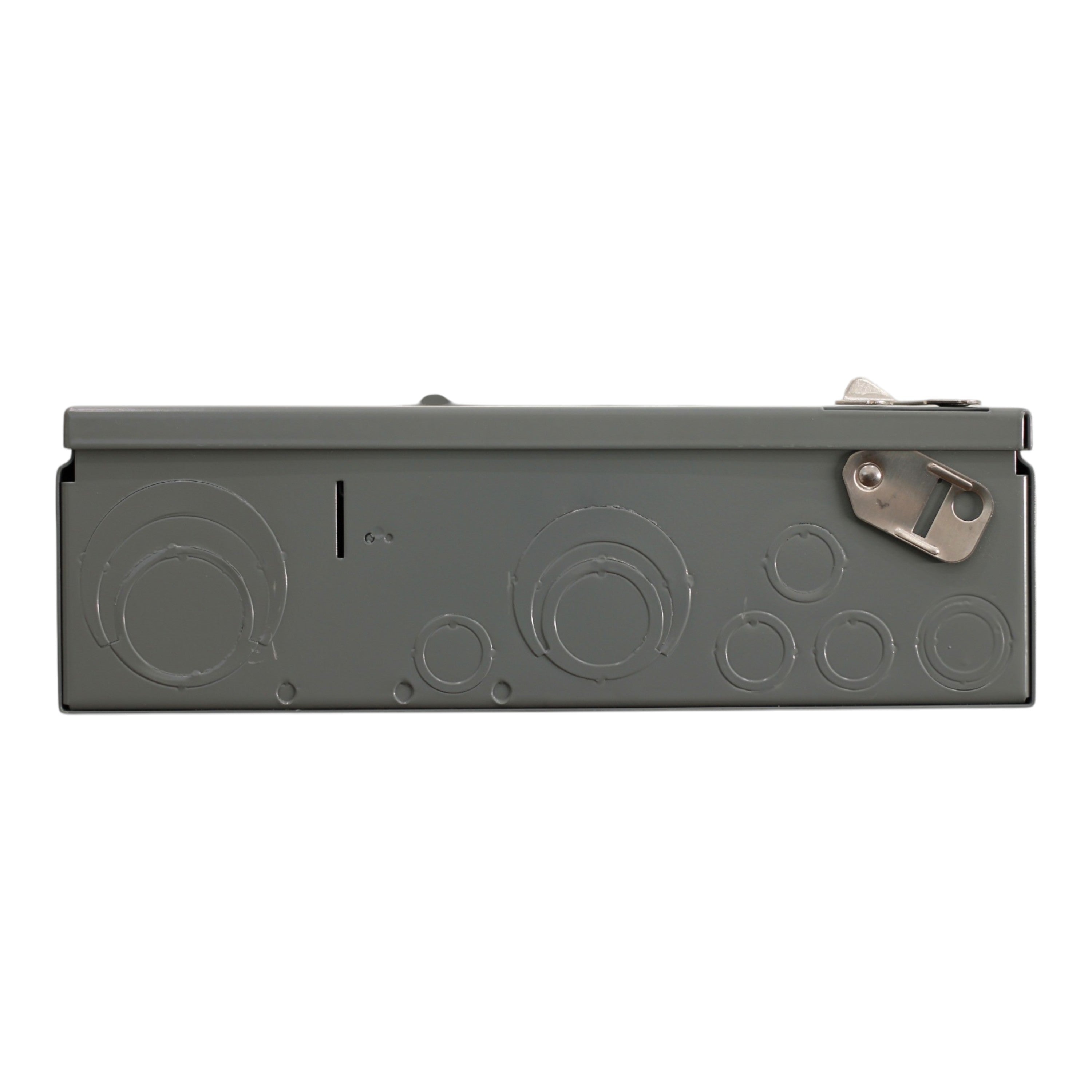

Square D QO, QC816F150C, 150A, 8-Space, Ringless Meter Main, CSED - Image 10
Square D QO, QC816F150C, 150A, 8-Space, Ringless Meter Main, CSED - Image 11
Square D QO, QC816F150C, 150A, 8-Space, Ringless Meter Main, CSED - Image 12
Square D QO, QC816F150C, 150A, 8-Space, Ringless Meter Main, CSED

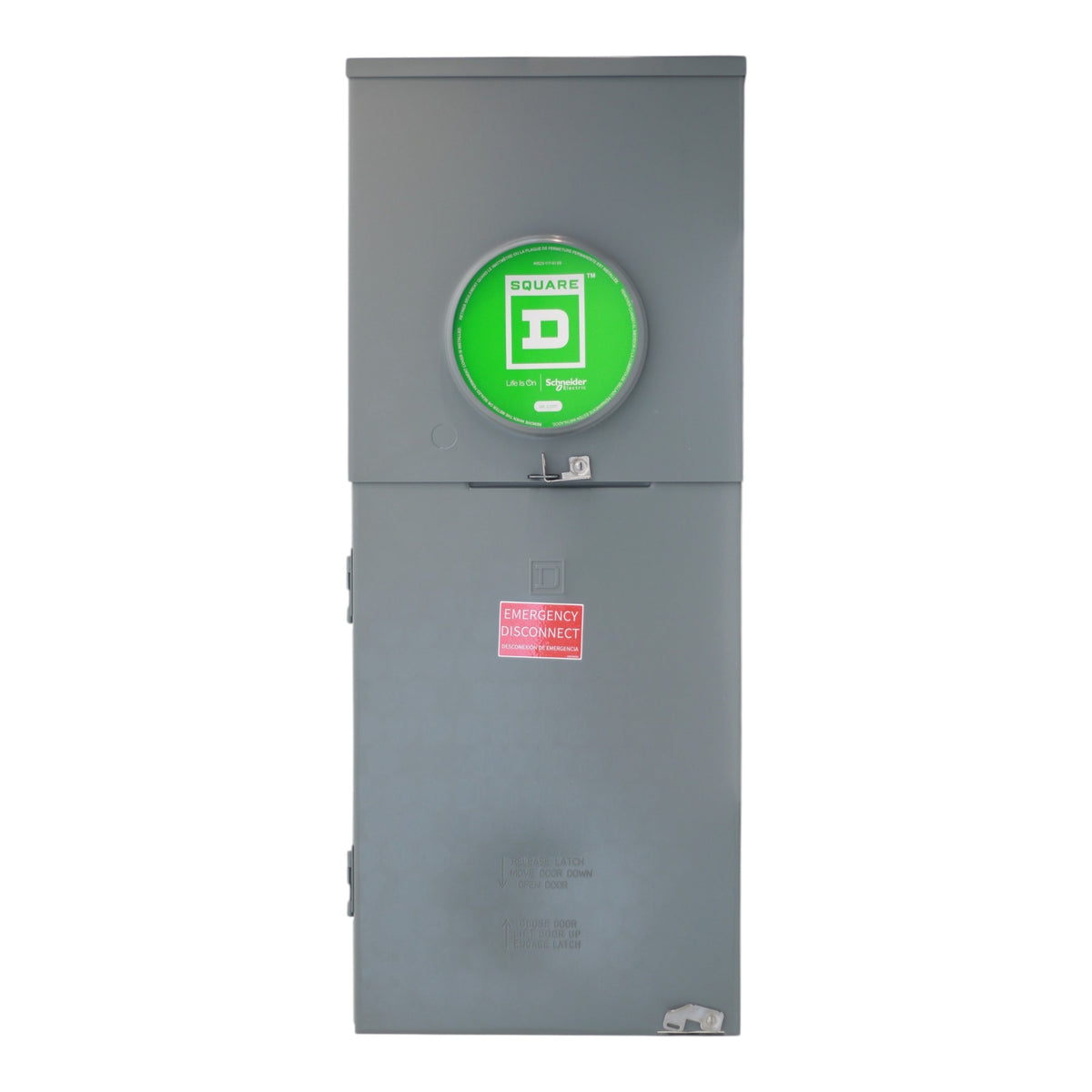

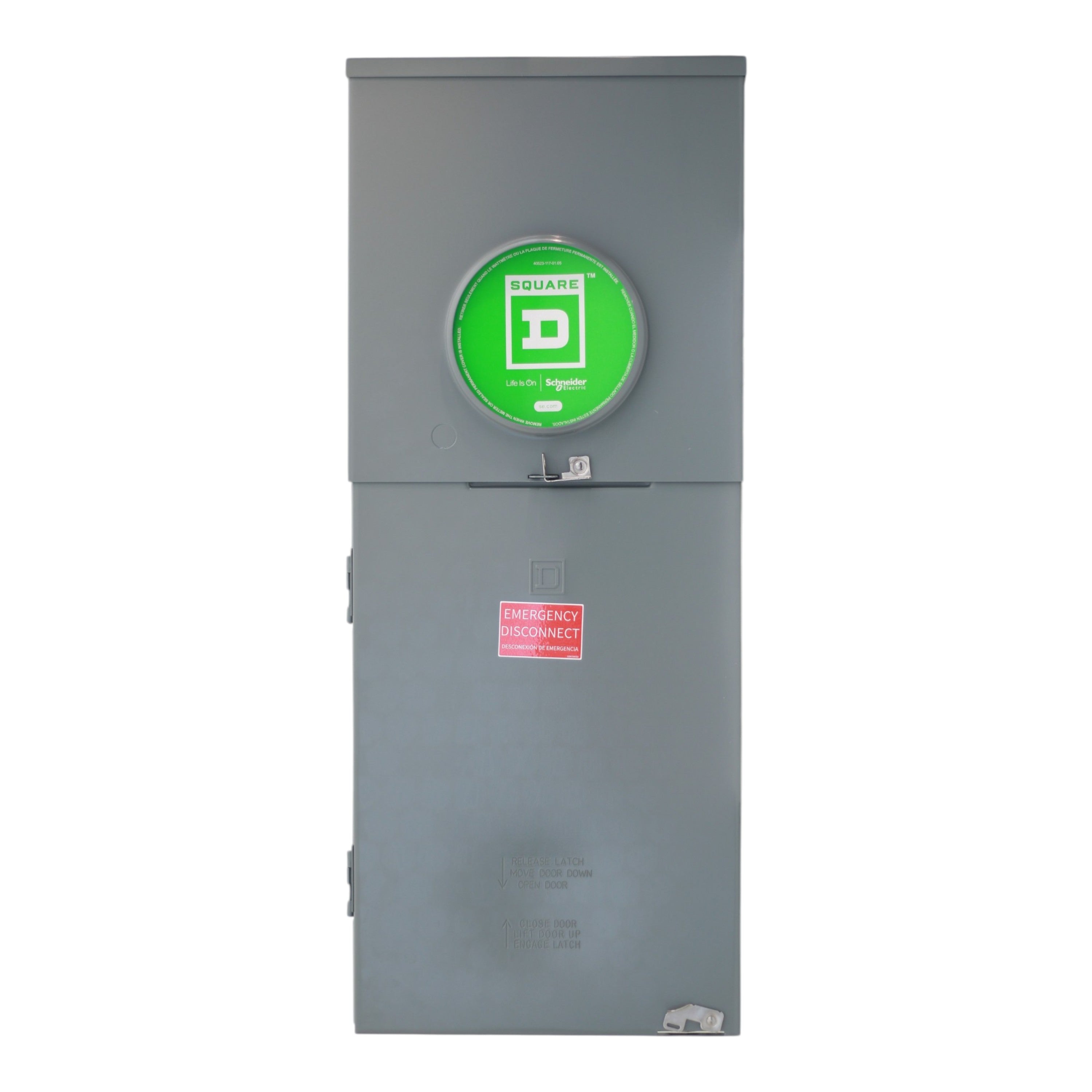

Square D QO, QC816F150C, 150A, 8-Space, Ringless Meter Main, CSED - Image 2

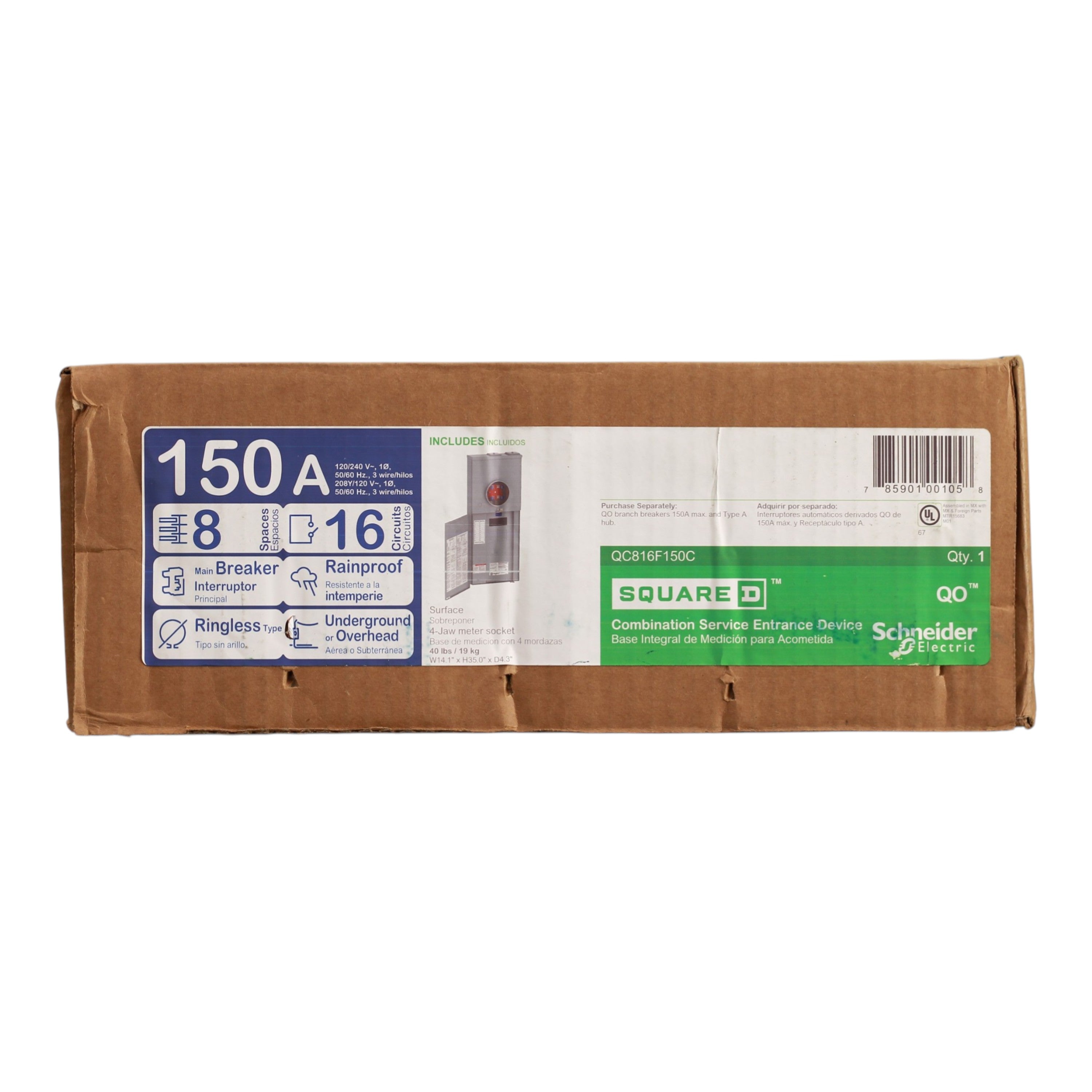

Square D QO, QC816F150C, 150A, 8-Space, Ringless Meter Main, CSED - Image 3
Square D QO, QC816F150C, 150A, 8-Space, Ringless Meter Main, CSED - Image 4

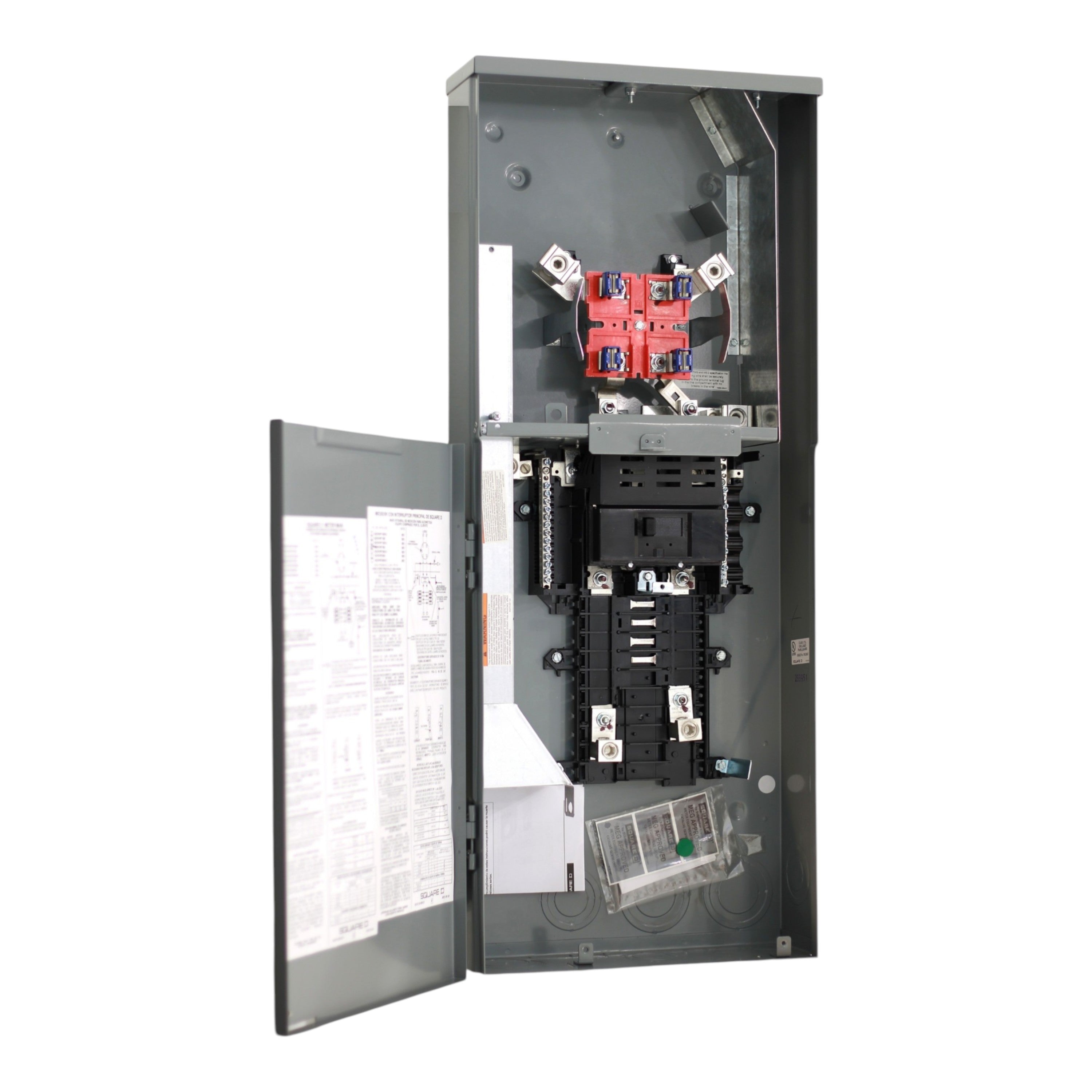

Square D QO, QC816F150C, 150A, 8-Space, Ringless Meter Main, CSED - Image 5

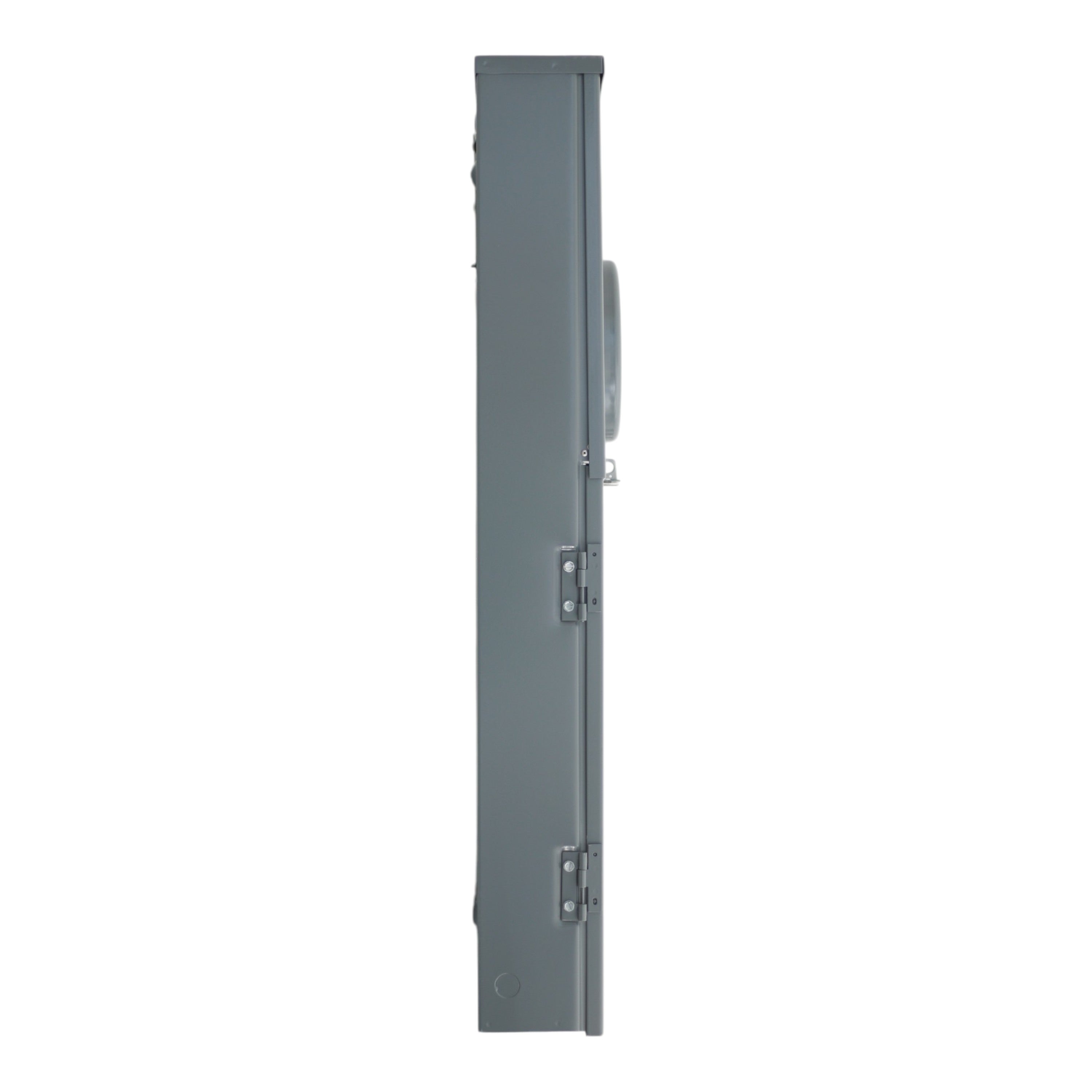

Square D QO, QC816F150C, 150A, 8-Space, Ringless Meter Main, CSED - Image 6
Square D QO, QC816F150C, 150A, 8-Space, Ringless Meter Main, CSED - Image 7
Square D QO, QC816F150C, 150A, 8-Space, Ringless Meter Main, CSED - Image 8

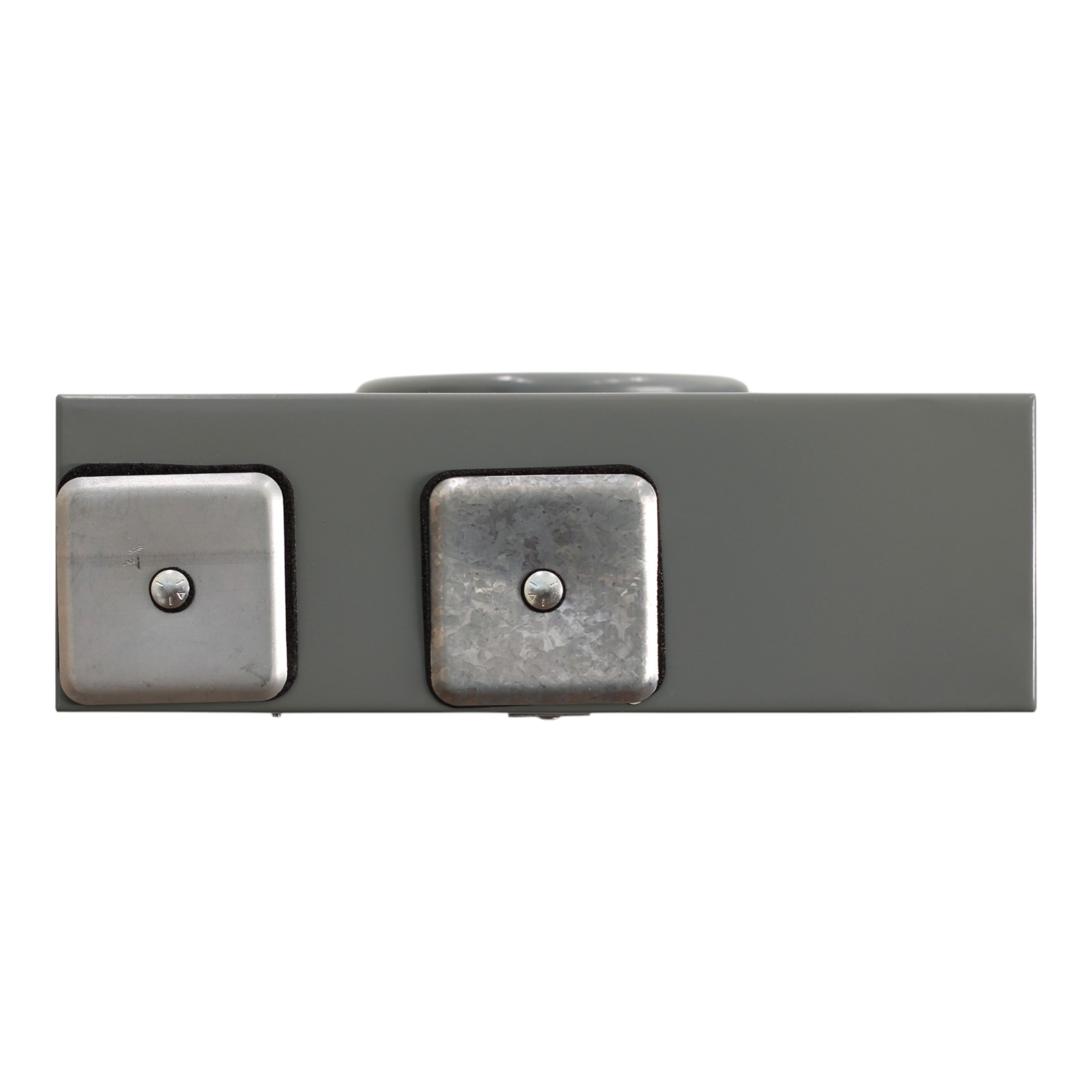

Square D QO, QC816F150C, 150A, 8-Space, Ringless Meter Main, CSED - Image 9
Square D QO, QC816F150C, 150A, 8-Space, Ringless Meter Main, CSED - Image 10

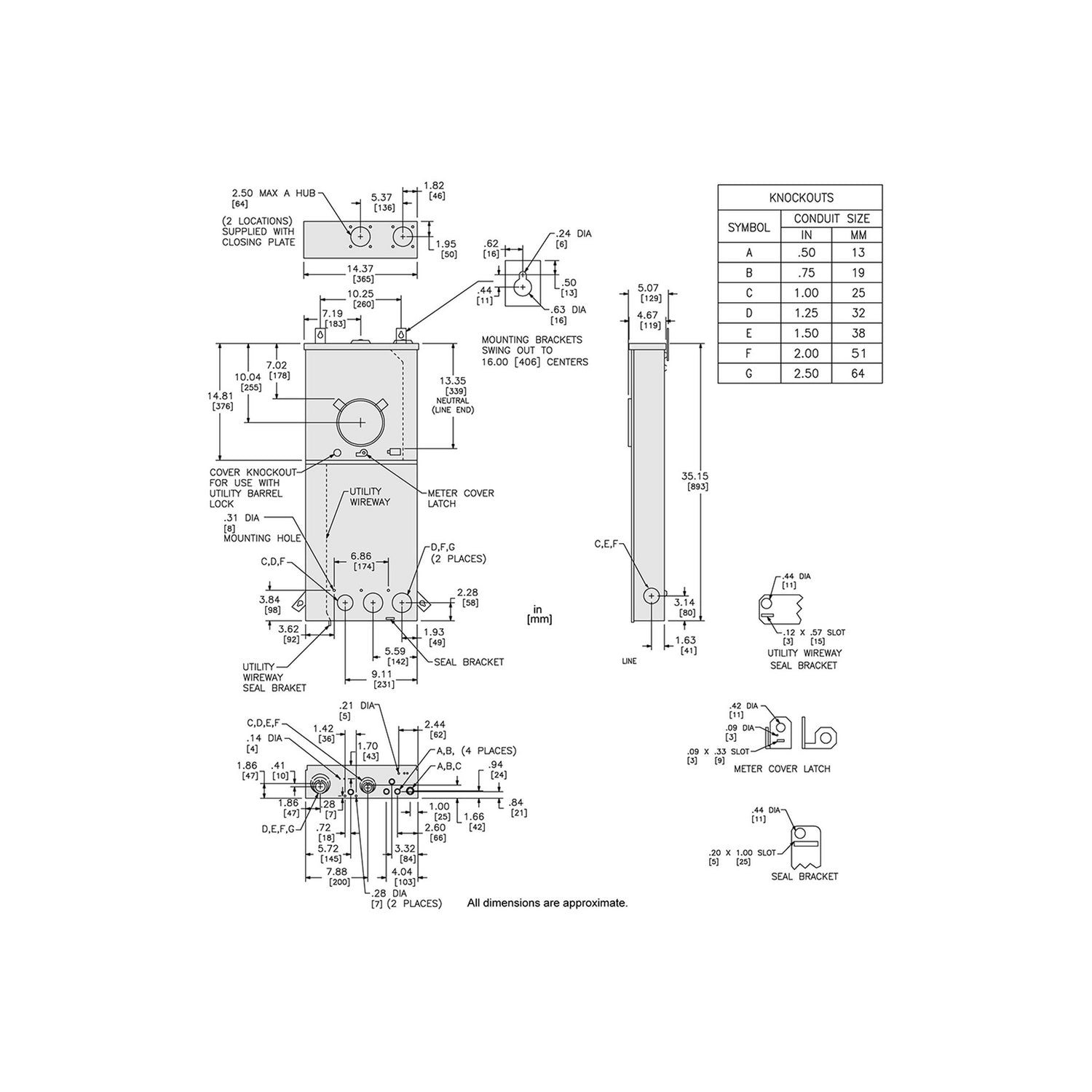

Square D QO, QC816F150C, 150A, 8-Space, Ringless Meter Main, CSED - Image 11

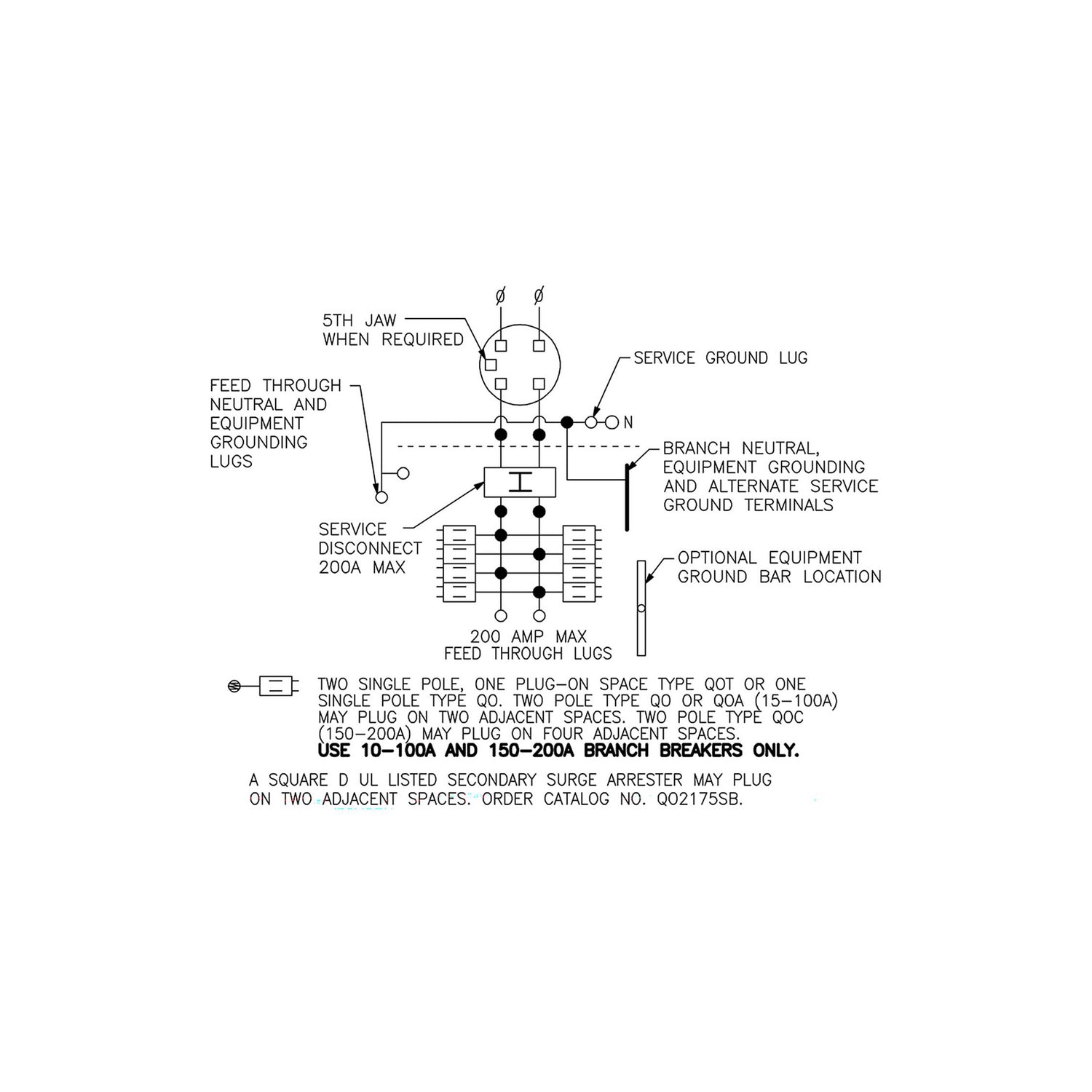

Square D QO, QC816F150C, 150A, 8-Space, Ringless Meter Main, CSED - Image 12

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Square D

Square D QO, QC816F150C, 150A, 8-Space, Ringless Meter Main, CSED

Out of stock
SKU: QC816F150C UPC: 785901001065
(0)
$245.00
-46% $456.00 $245.00
Out of stock
Condition

QC816F150C Square D QO, 150A, 8-Space, Ringless Meter Main, CSED.

QC816F150C specifications

SPECIFICATIONS

  • Manufacturer: Schneider Electric
  • Brand: Square D
  • Product Range: QO (for QO loadcenters and combination service entrance devices)
  • UPC: 785901001058
  • Model Number: QC816F150C
  • Product Type: Combination Service Entrance Device (CSED), Ringless Meter Main
  • Main Breaker Rating: 150 Amps
  • Bus Rating: 200 Amps
  • Phases: 1-Phase, 3-Wire
  • Voltage: 120/240 Volts AC
  • Short Circuit Current Rating (SCCR): 22 kAIC
  • Number of Spaces: 8
  • Number of Circuits: 16 (supports up to 8 tandem breakers)
  • Meter Socket Type: Ringless
  • Bypass: No bypass
  • Mounting Mode: Surface mount (convertible to semi-flush with optional flange kit)
  • Service Feed: Overhead (OH) or Underground (UG)
  • Enclosure Rating: NEMA 3R (Rainproof)
  • Wire Size (Line): #6 AWG – 350 kcmil Al/Cu
  • Wire Size (Service Ground): #12 AWG – 2/0 AWG Al/Cu
  • Tightening Torque: Main lugs 250 lb-in; Service ground 50 lb-in; Branch lugs 20–35 lb-in (varies by wire size)
  • Dimensions: Height: 35.15 in; Width: 14.37 in; Depth: 5.07 in
  • Weight: 43.041 lbs
  • Certifications: UL Listed (UL E-6294)

This Square D QC816F150C QO ringless meter main CSED delivers 150 Amp, 1-phase service entrance in an 8-space, 16-circuit surface mount NEMA 3R enclosure. With 22kA SCCR and feed-thru lugs for OH/UG service, it is UL Listed for residential service entrance applications.
