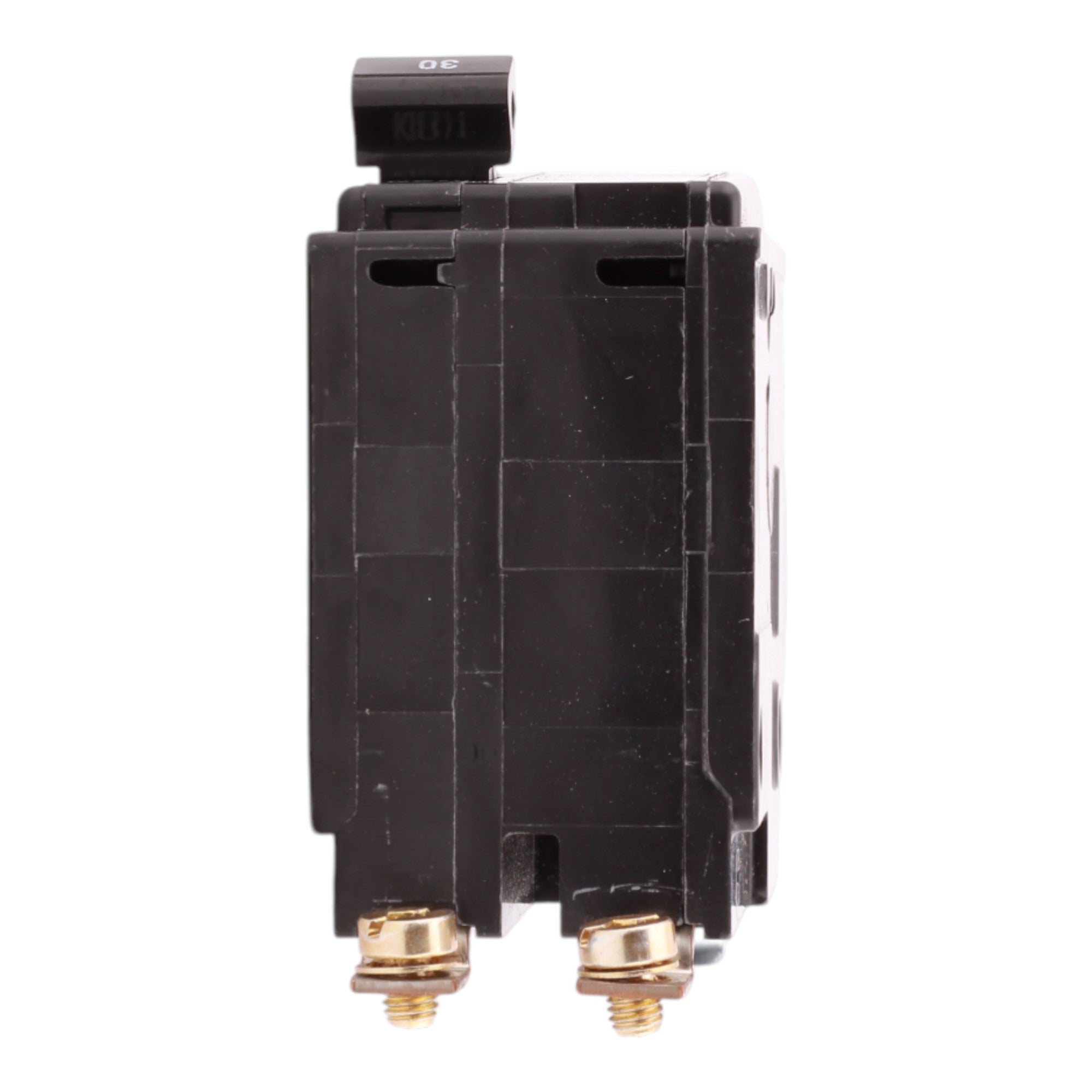

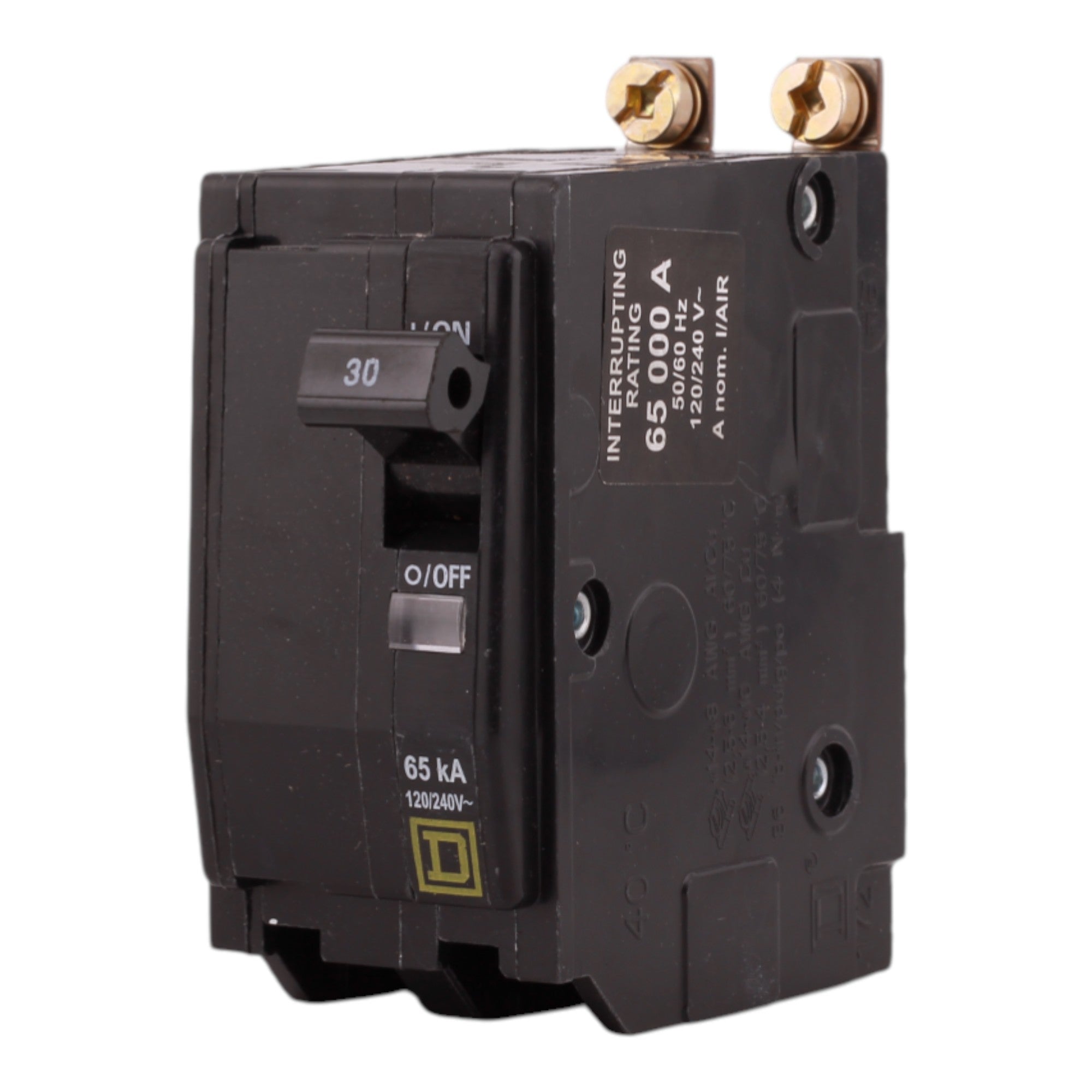

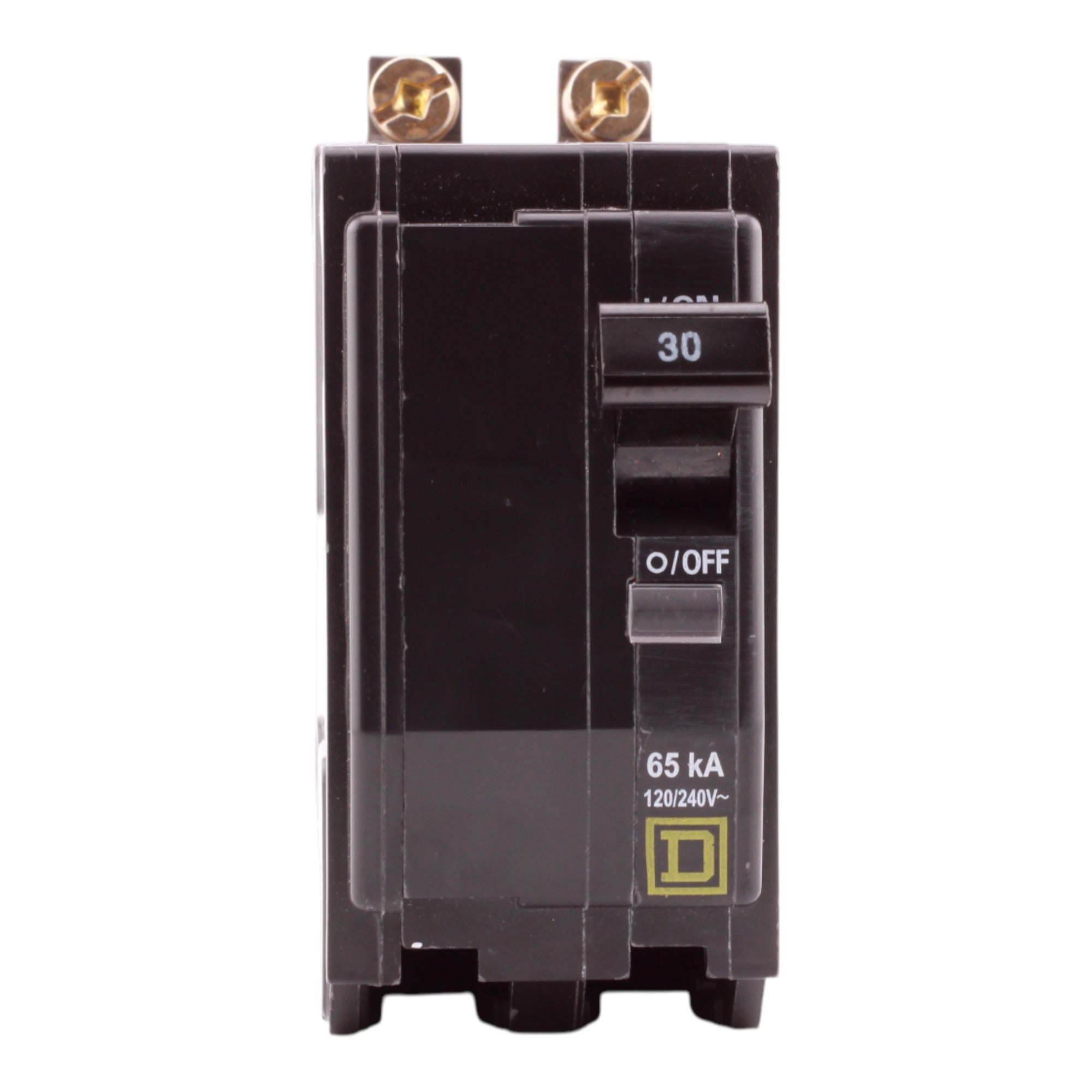

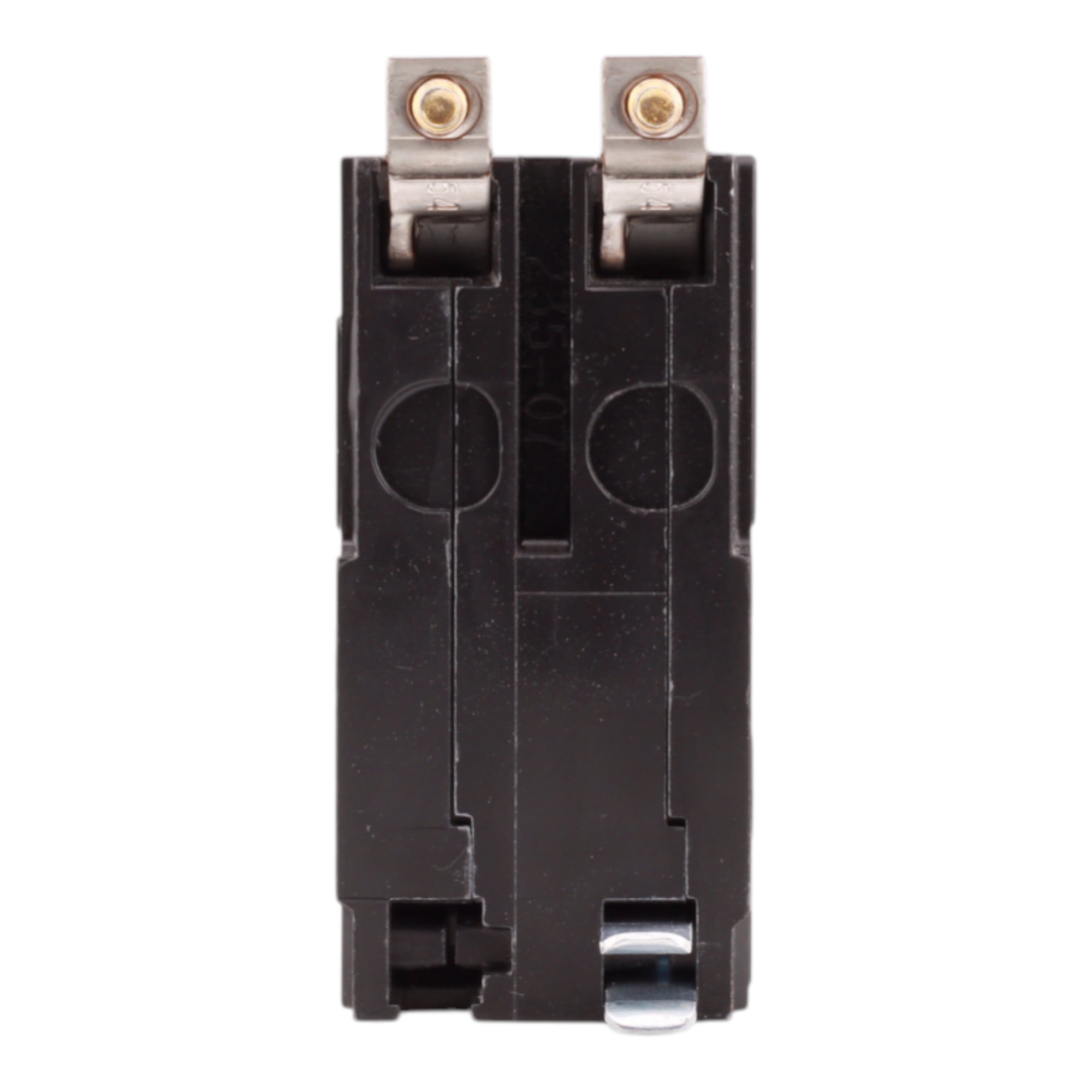

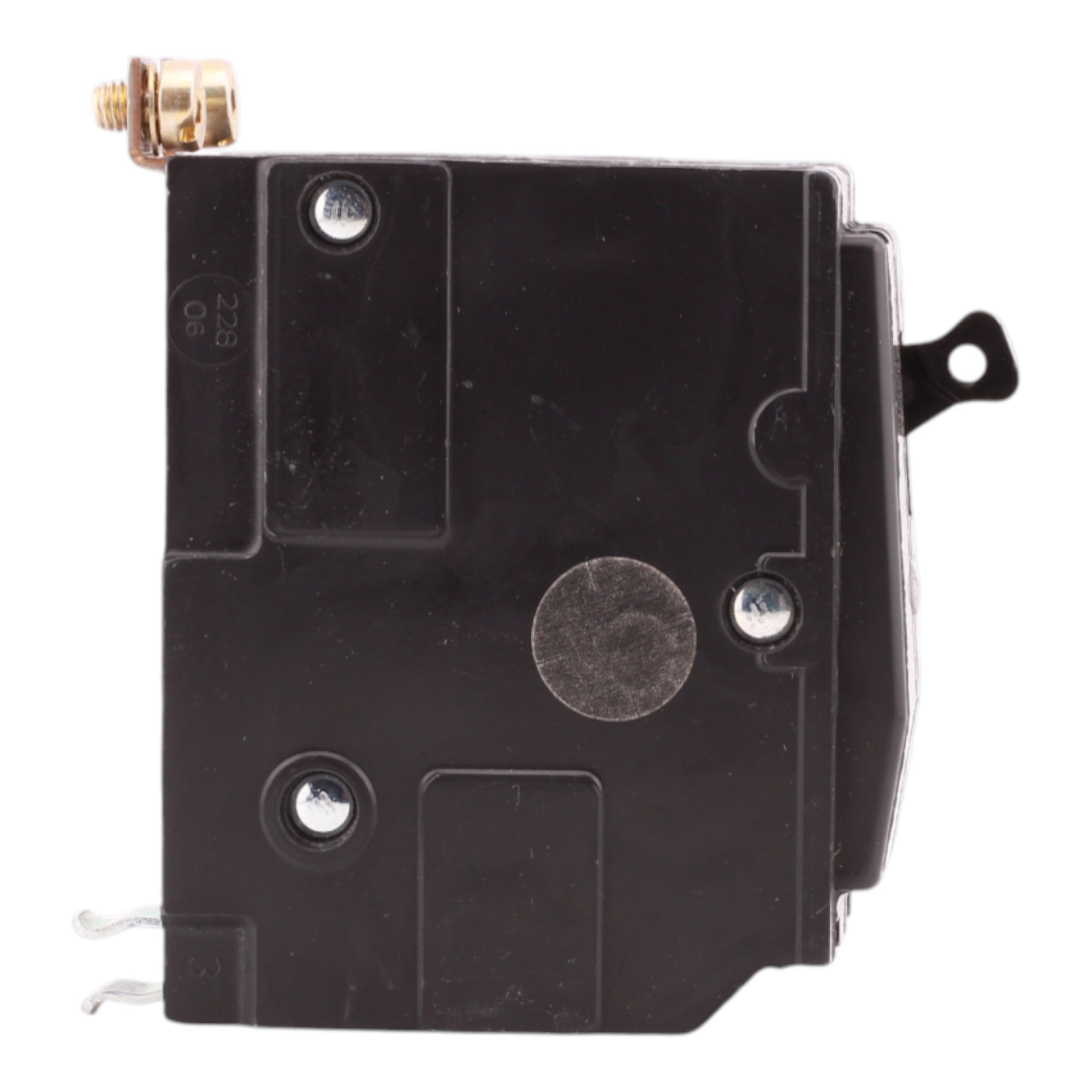

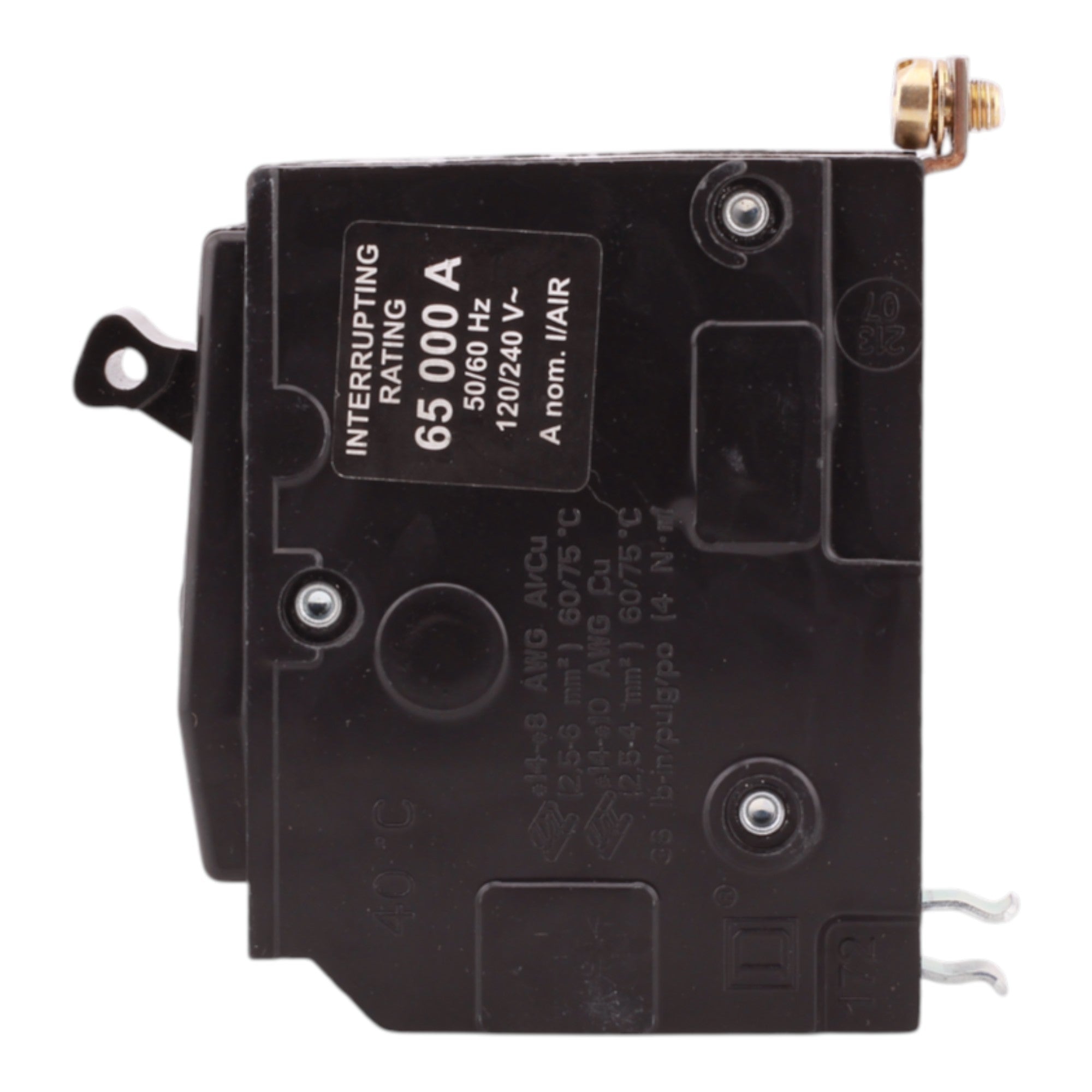

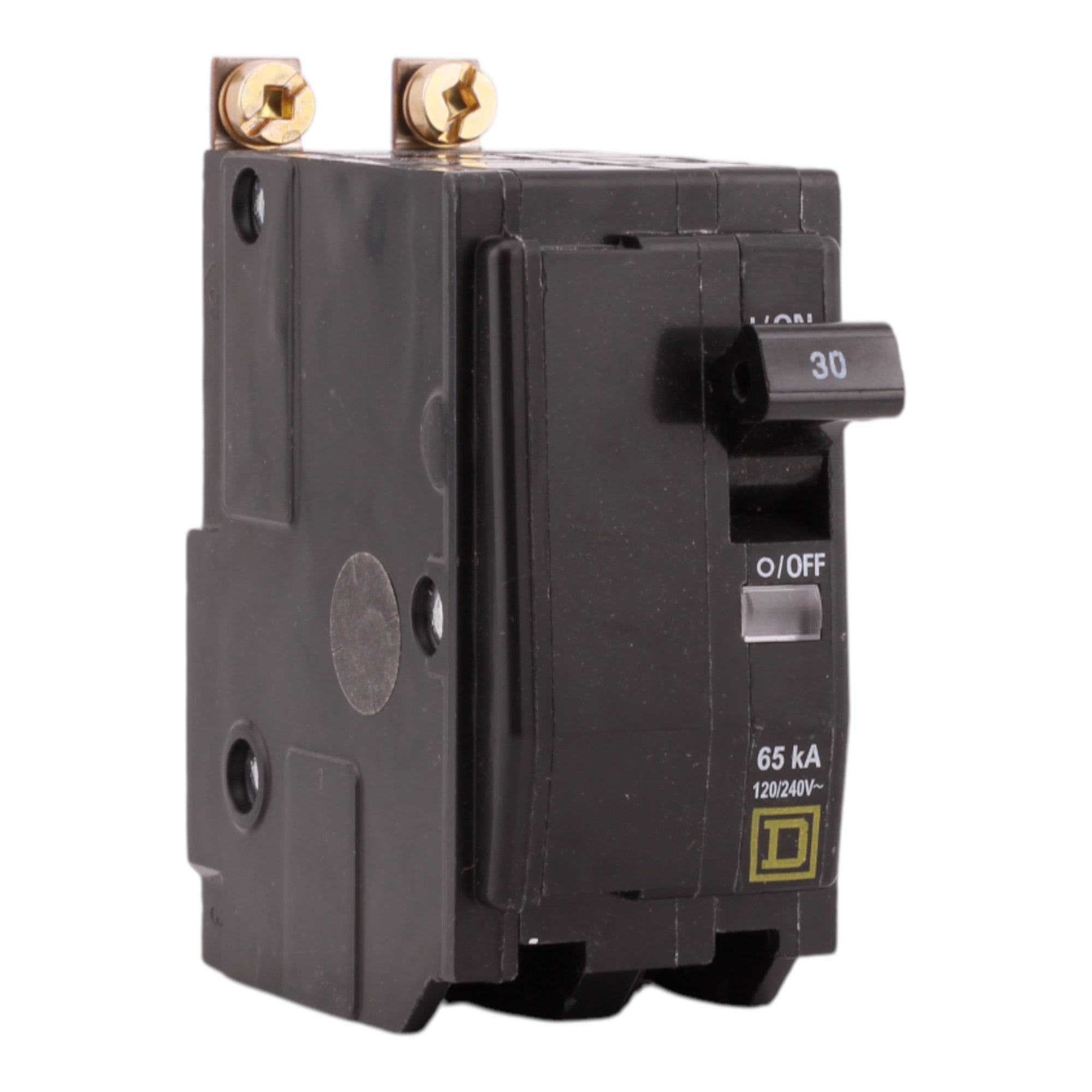

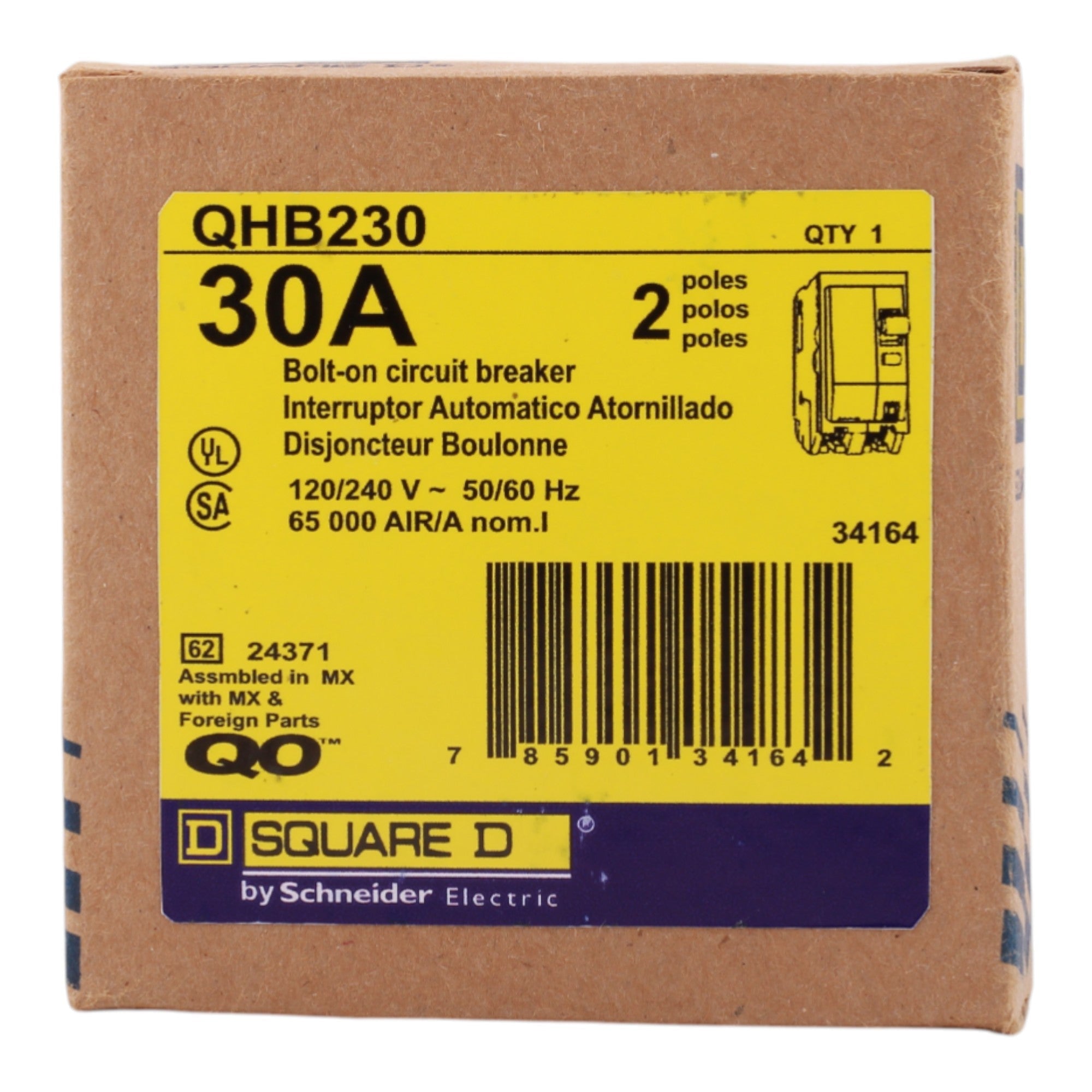

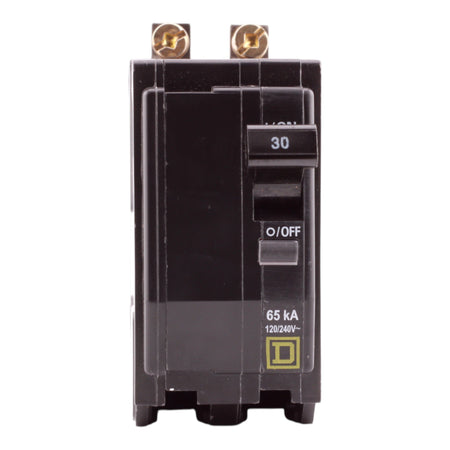

Square D QO QHB230 30A 2P 120/240V Standard Bolt-On Circuit Breaker

Square D QHB230: 30 Amp 2-Pole Standard Circuit Breaker, 120/240V, 65kA, bolt-on, UL listed, CSA certified.

• Manufacturer: Schneider Electric
• Brand: Square D
• Product Range: QO (for Square D QO loadcenters and equipment)
• UPC: 785901341642
• Model Number: QHB230
• Breaker Type: Standard
• Amperage: 30 Amps
• Poles: 2-Pole
• Voltage: 120/240 Volts AC
• Interrupt Rating: 65 kAIC
• Mounting Mode: Bolt-on
• Connections Terminals: Pressure plate
• Wire Size: AWG 14...AWG 8 Cu/Al
• Tightening Torque: 40.7 lb-in
• Dimensions: Height: 3.0 in; Width: 1.5 in; Depth: 2.9 in
• Weight: 0.560 lbs
• Certifications: UL Listed, CSA Certified

This Square D QHB230 bolt-on circuit breaker provides reliable 30A, 2-pole protection for 120/240V circuits in QO loadcenters. With a 65kA interrupt rating, it ensures robust overcurrent protection for residential and commercial applications.
