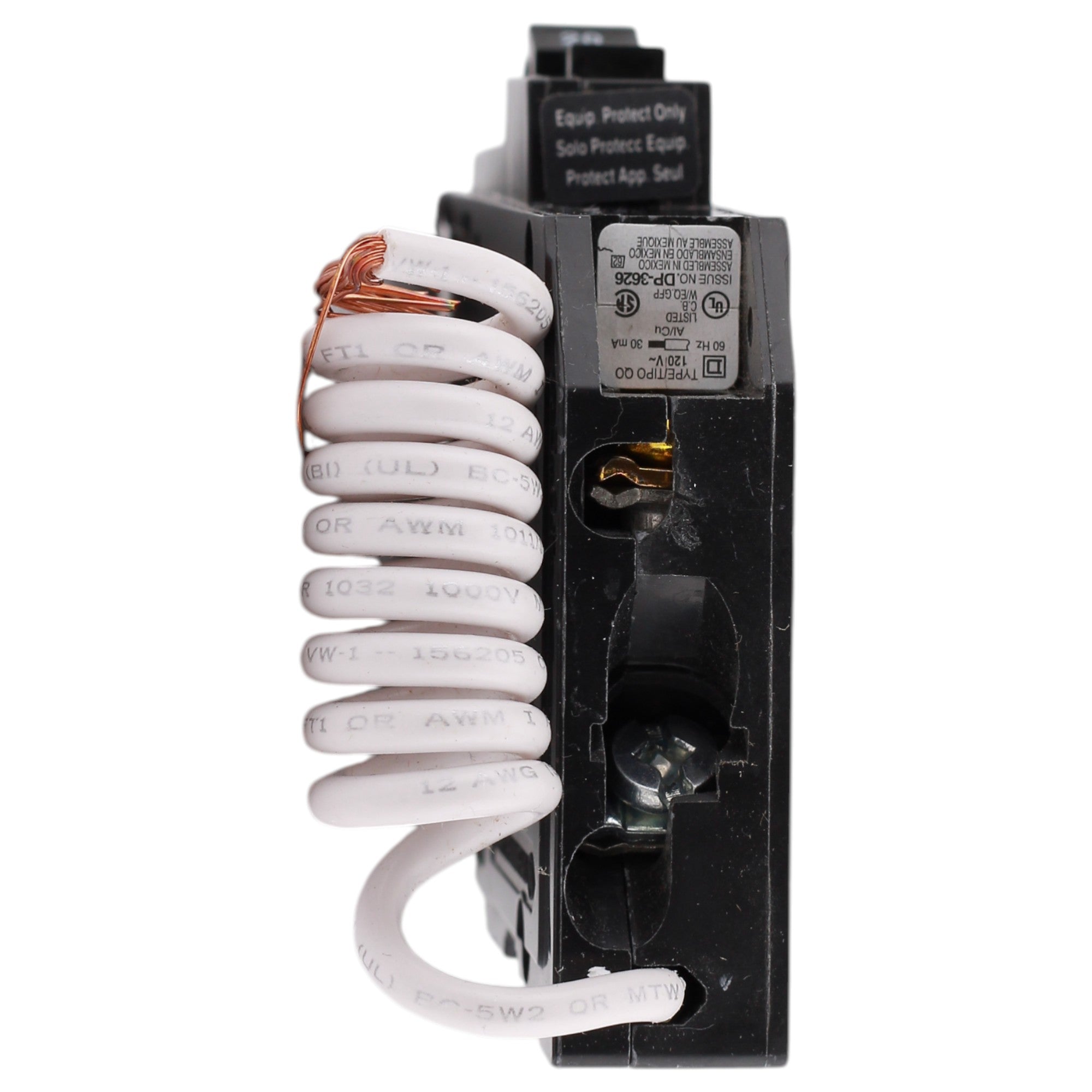

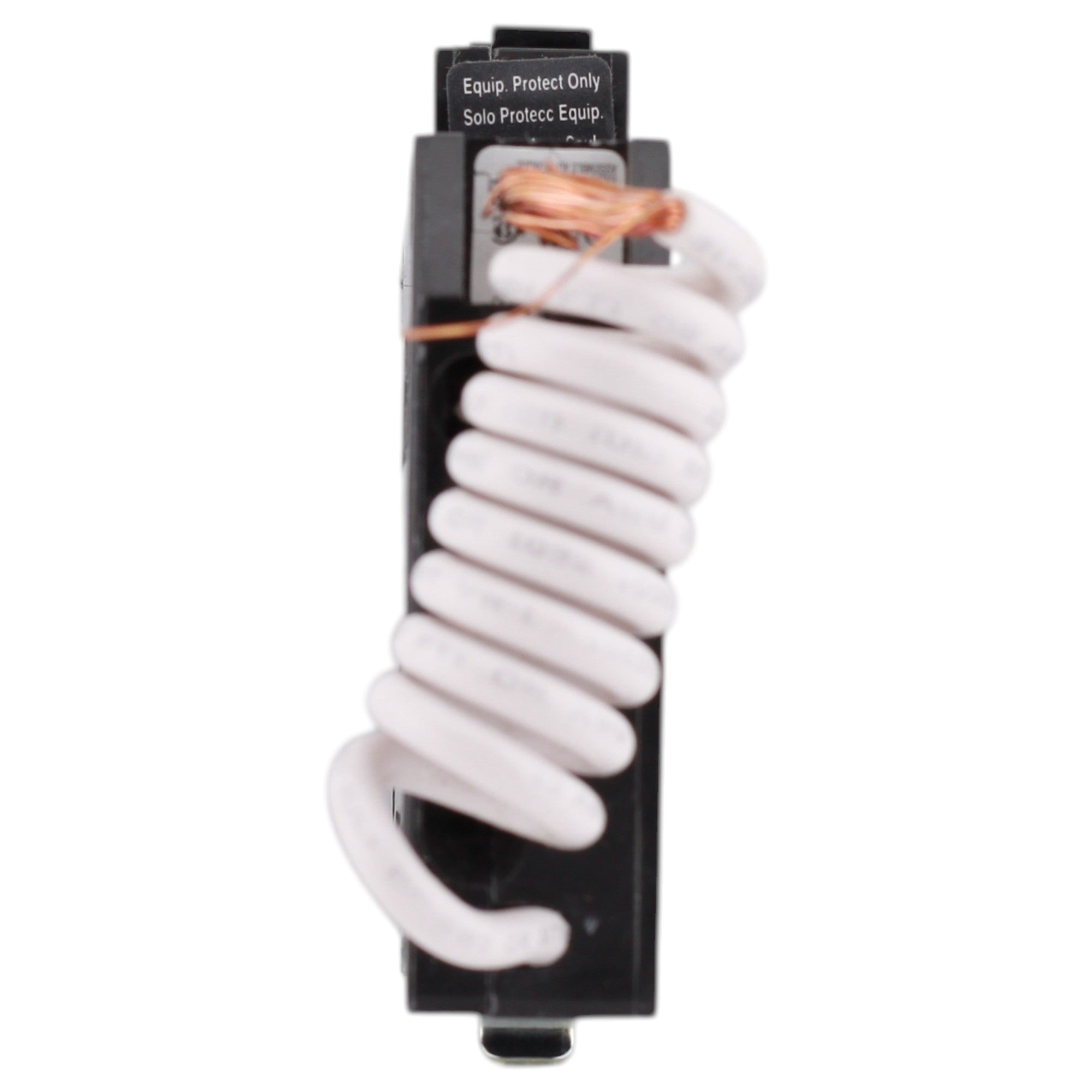

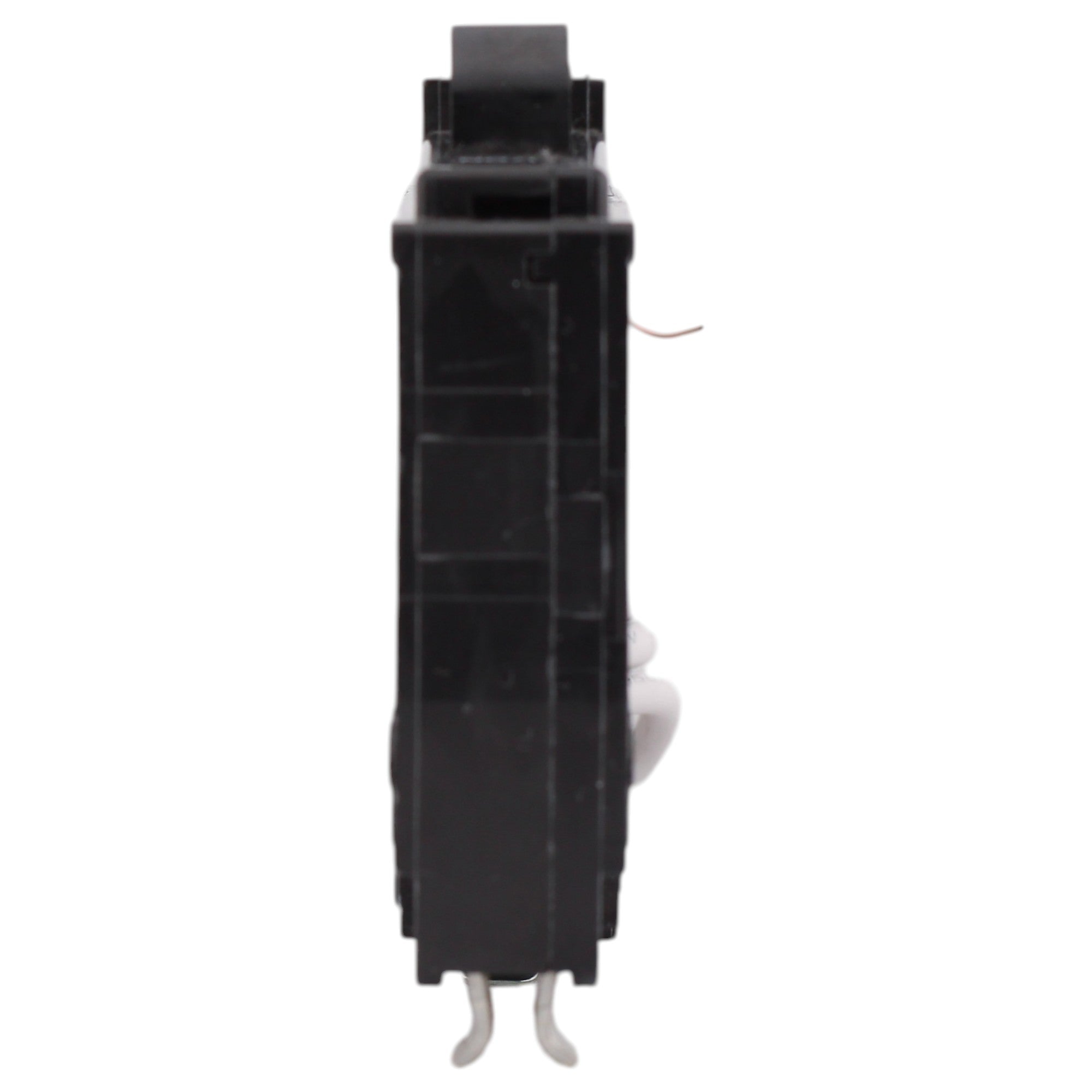

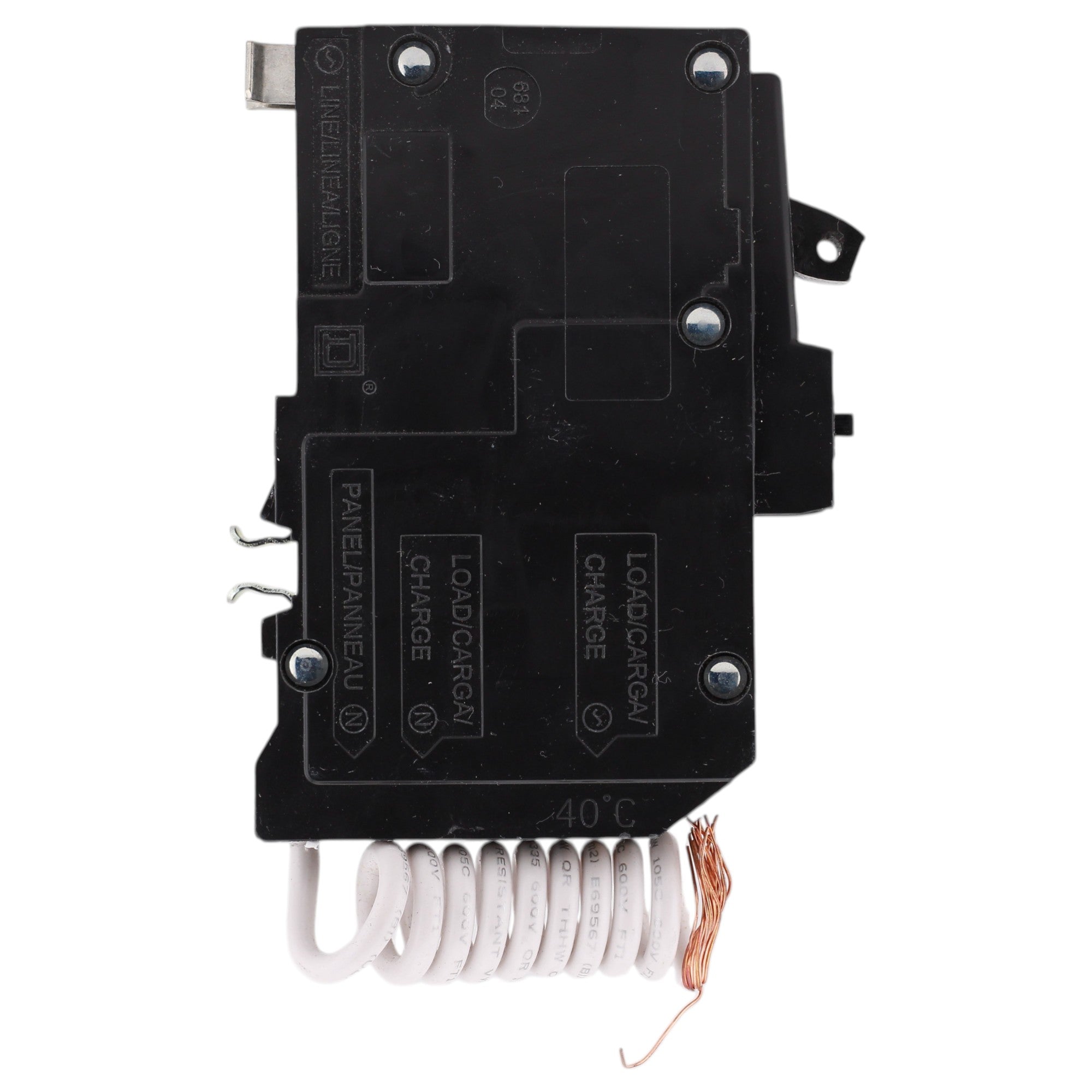

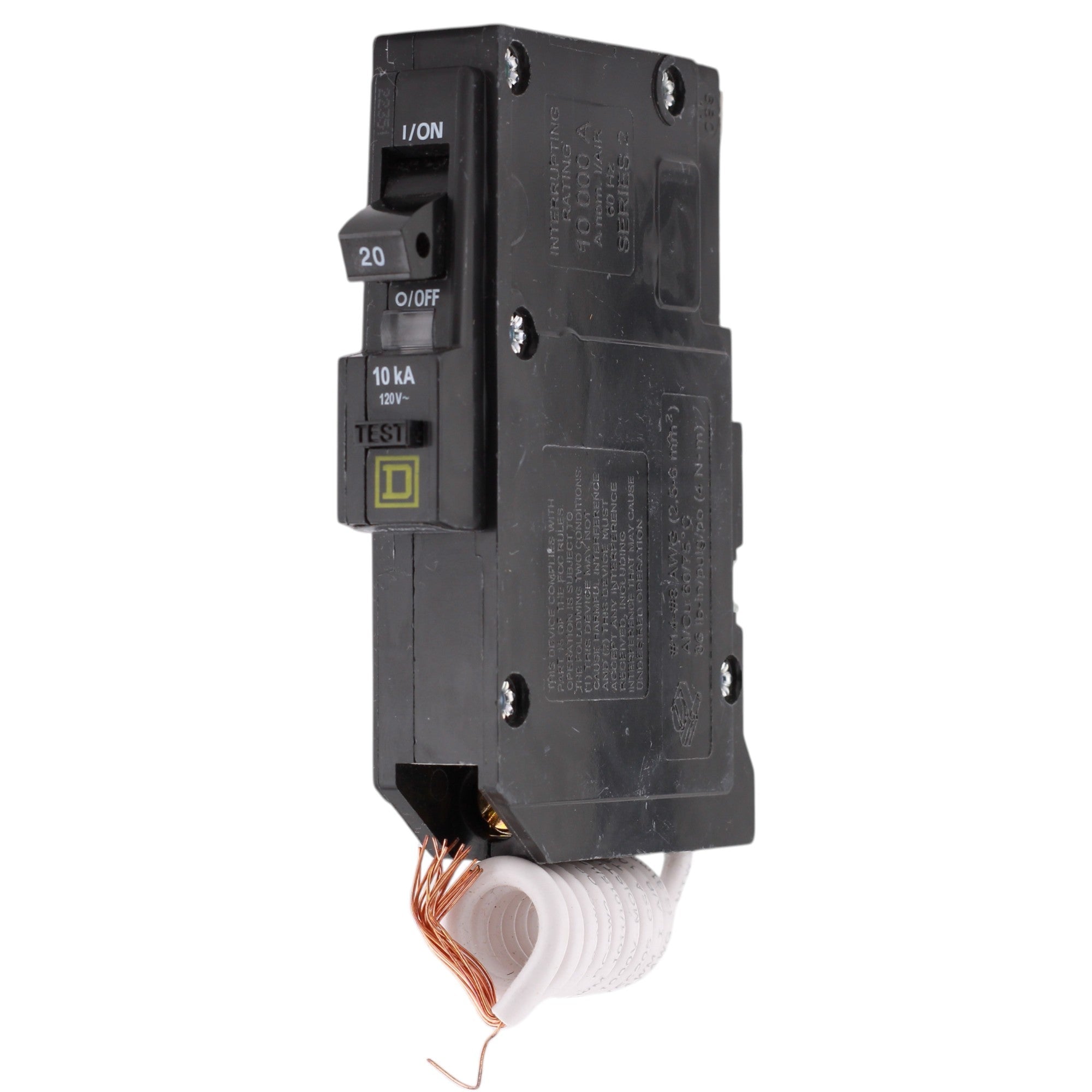

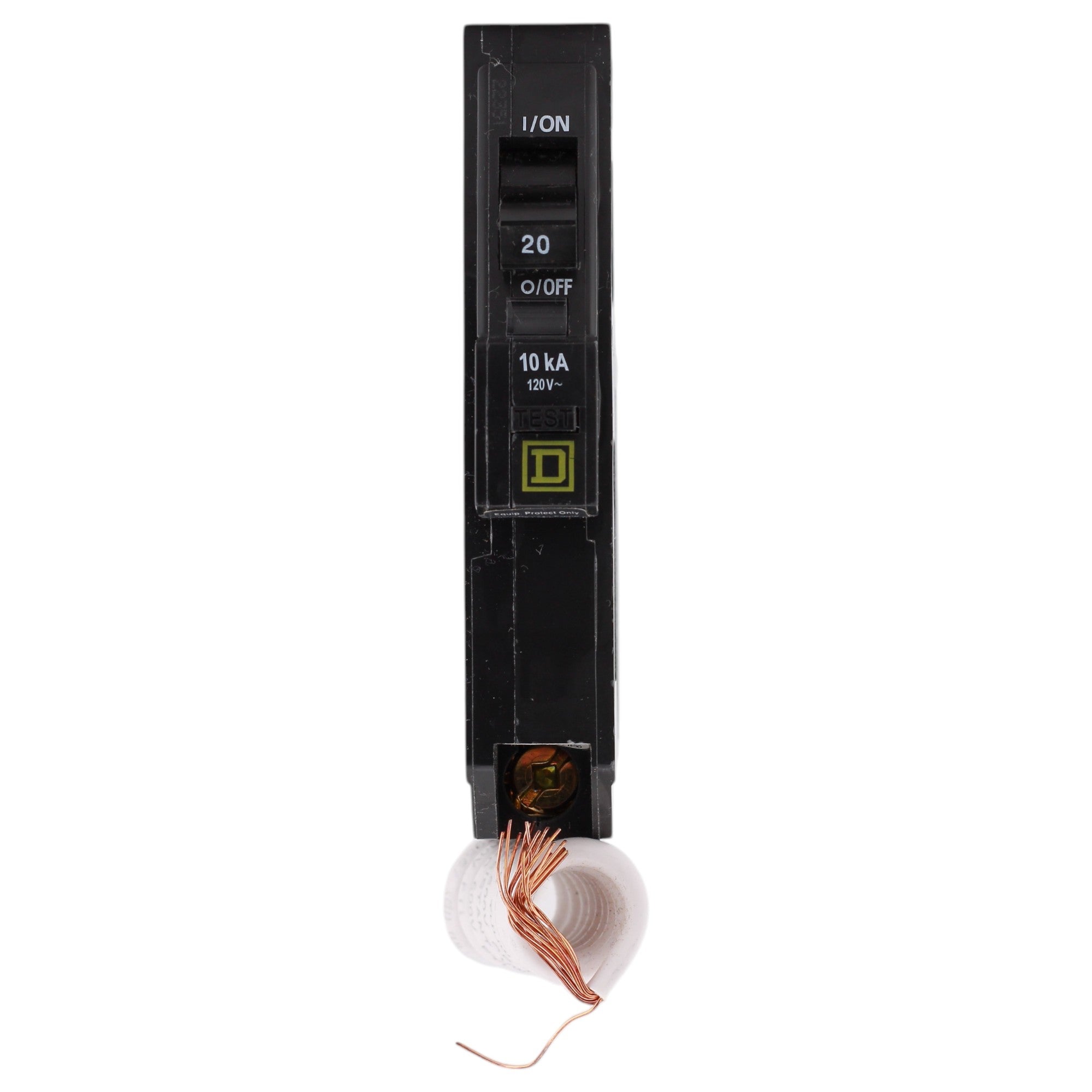

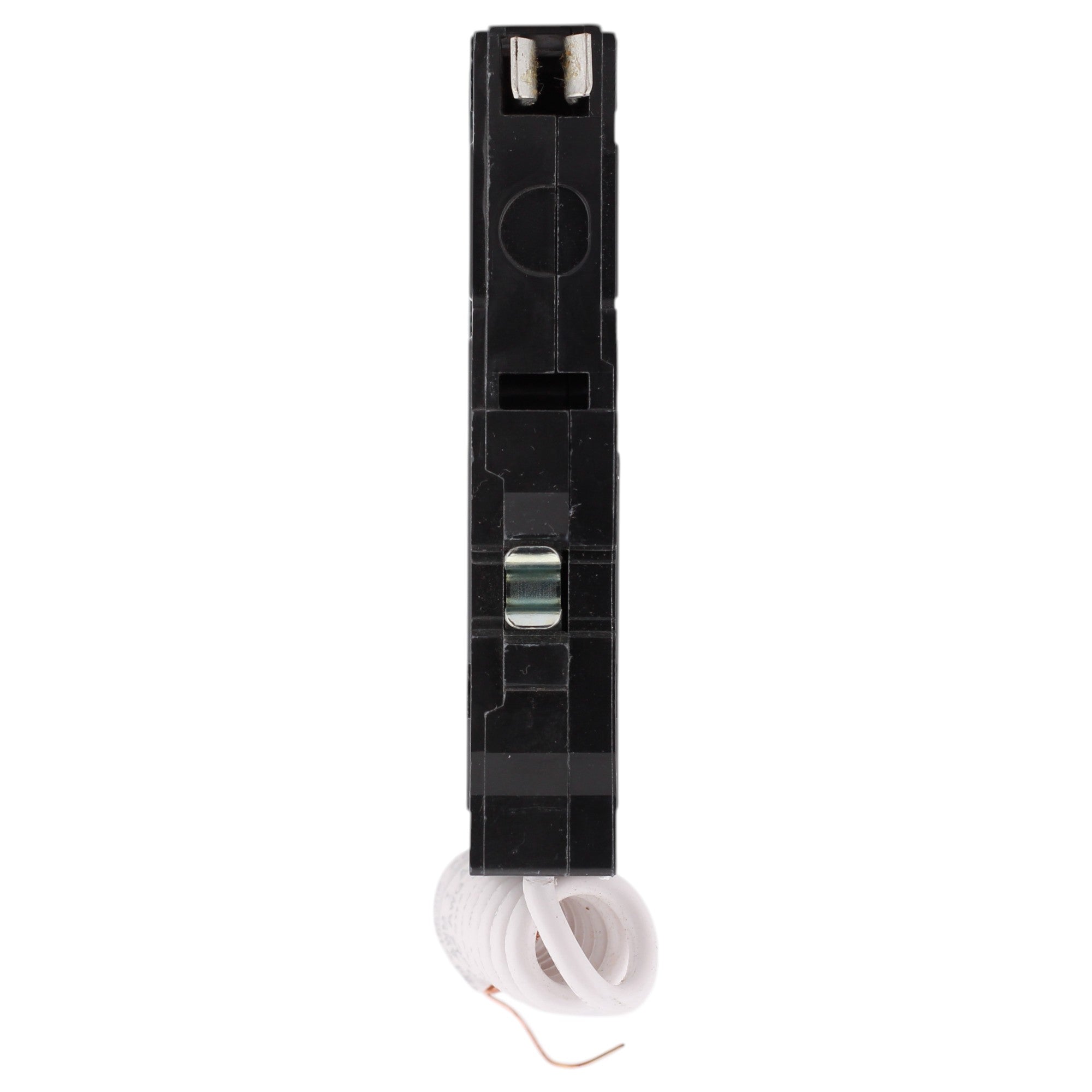

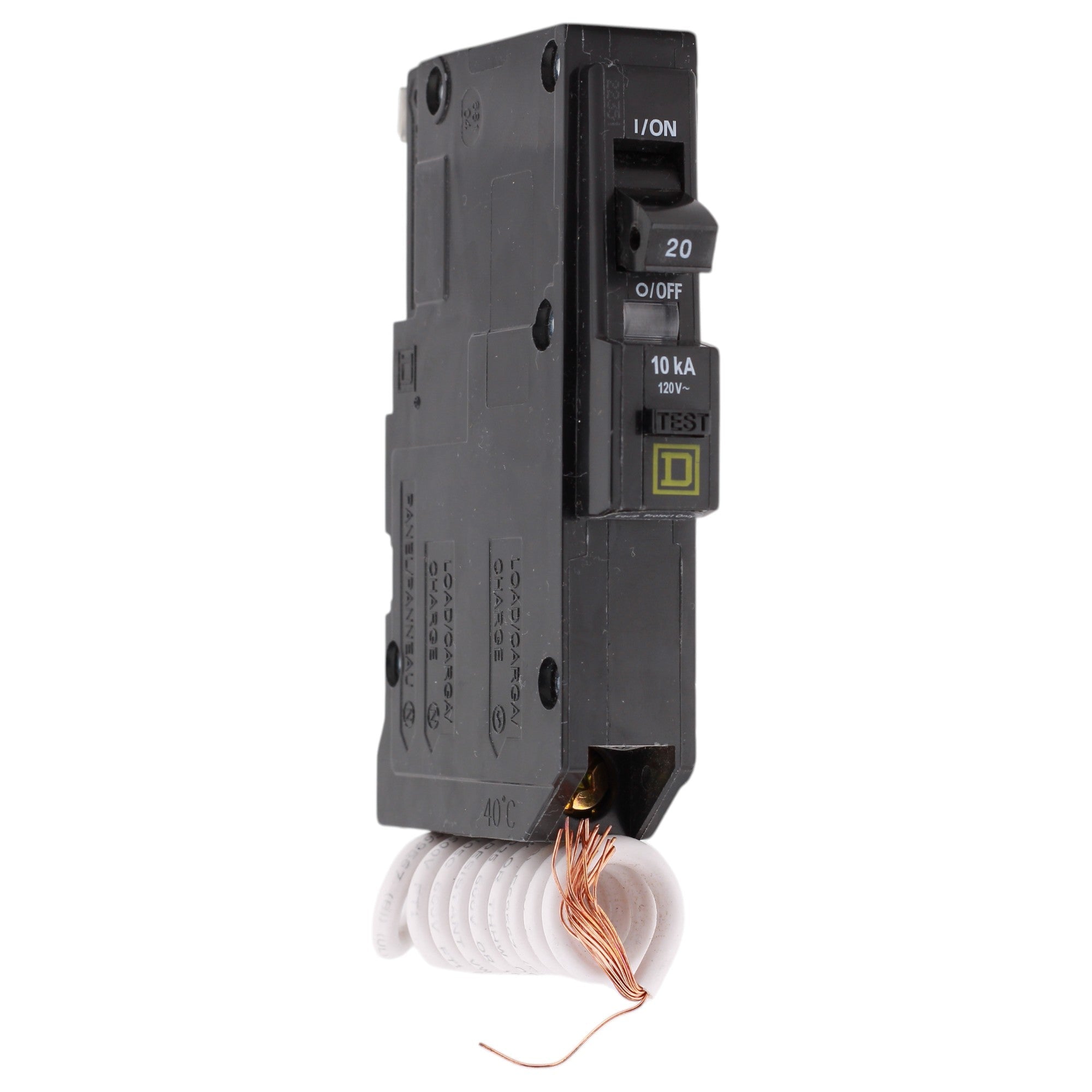

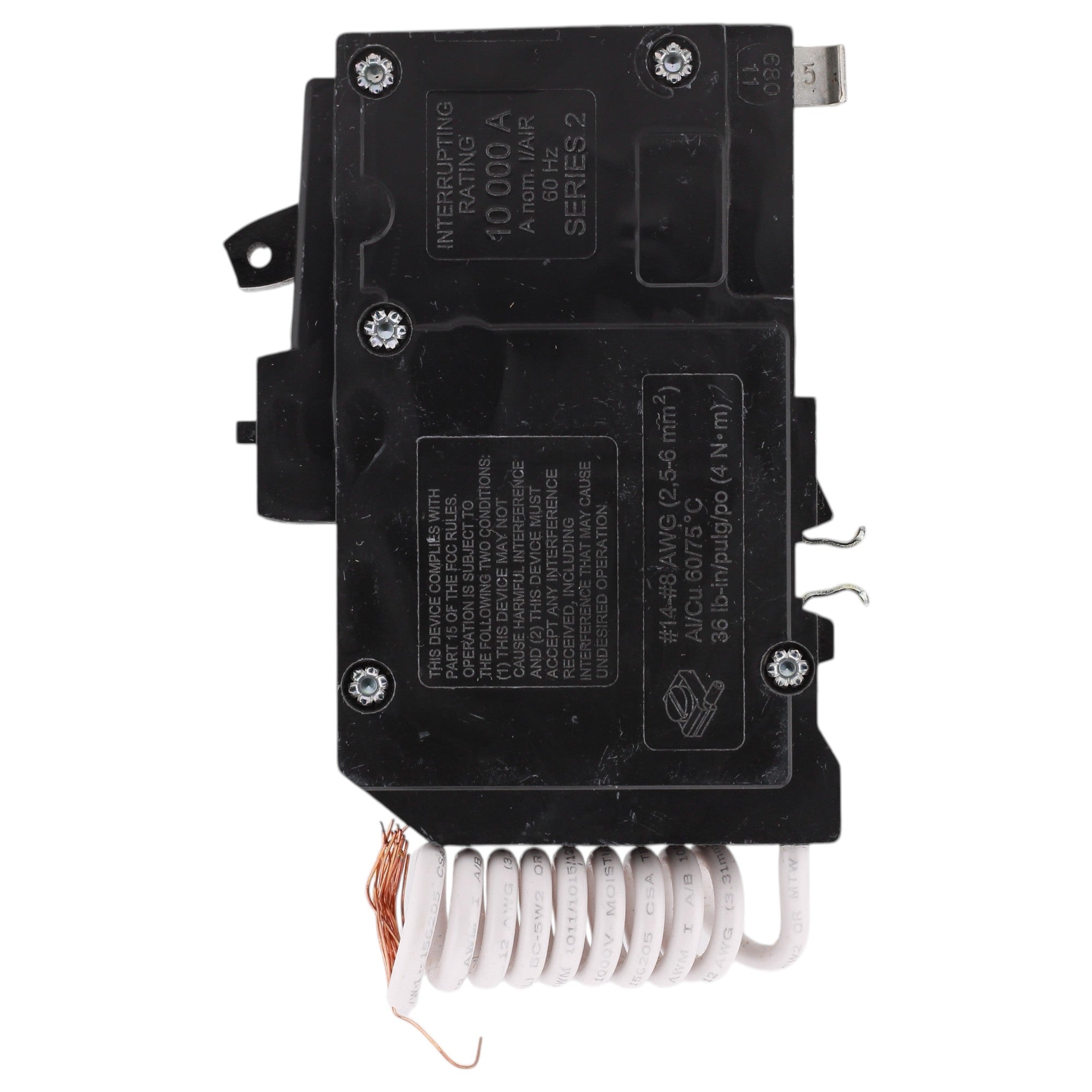

Square D QO, QO120EPD, 20A, 1P, 120V, GFEP, Pigtail Neutral, Circuit Breaker

Square D QO120EPD: 20 Amp, 1-Pole, Ground Fault Equipment Protection (GFEP) breaker, 120VAC, 10kA, pigtail neutral, 30mA Class B trip sensitivity, UL listed, CSA certified.

• Manufacturer: Schneider Electric (Square D)
• Brand: Square D
• Product Range: QO (for Square D QO load centers, NQOD/NQ panelboards, and CSEDs)
• UPC: 785901763833
• Model Number: QO120EPD
• Breaker Type: Ground Fault Equipment Protection (GFEP) — Class B, 30 mA
• Amperage: 20 Amps
• Poles: 1-Pole
• Voltage: 120 Volts AC
• Interrupt Rating: 10 kAIC
• Mounting Mode: Plug-in
• Connections Terminals: Pigtail Neutral
• Wire Size: #14–#8 AWG Cu; #12–#8 AWG Al
• Tightening Torque: 40.71 lb-in
• Dimensions: Height: 4.13 in; Width: 0.75 in; Depth: 2.91 in
• Certifications: UL Listed, CSA Certified
• Trip Sensitivity: 30 mA ground fault protection (Class B)
• Weight :0.44 lb

This Square D QO120EPD pigtail neutral circuit breaker provides reliable 20 Amp, 1-Pole Class B ground fault equipment protection for 120V circuits in QO load centers. With 30 mA ground fault detection, it protects equipment from damaging ground faults in commercial and industrial applications.
