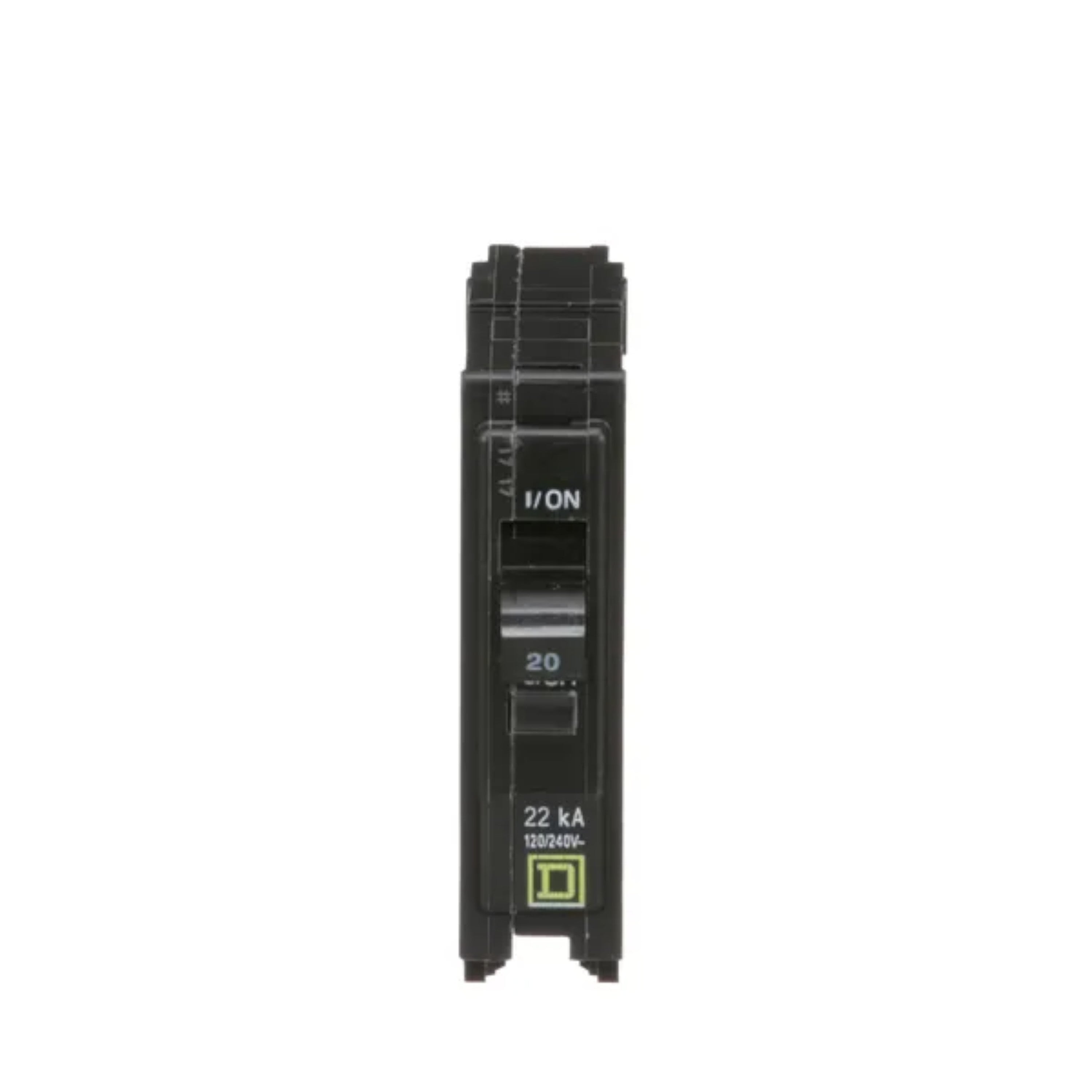

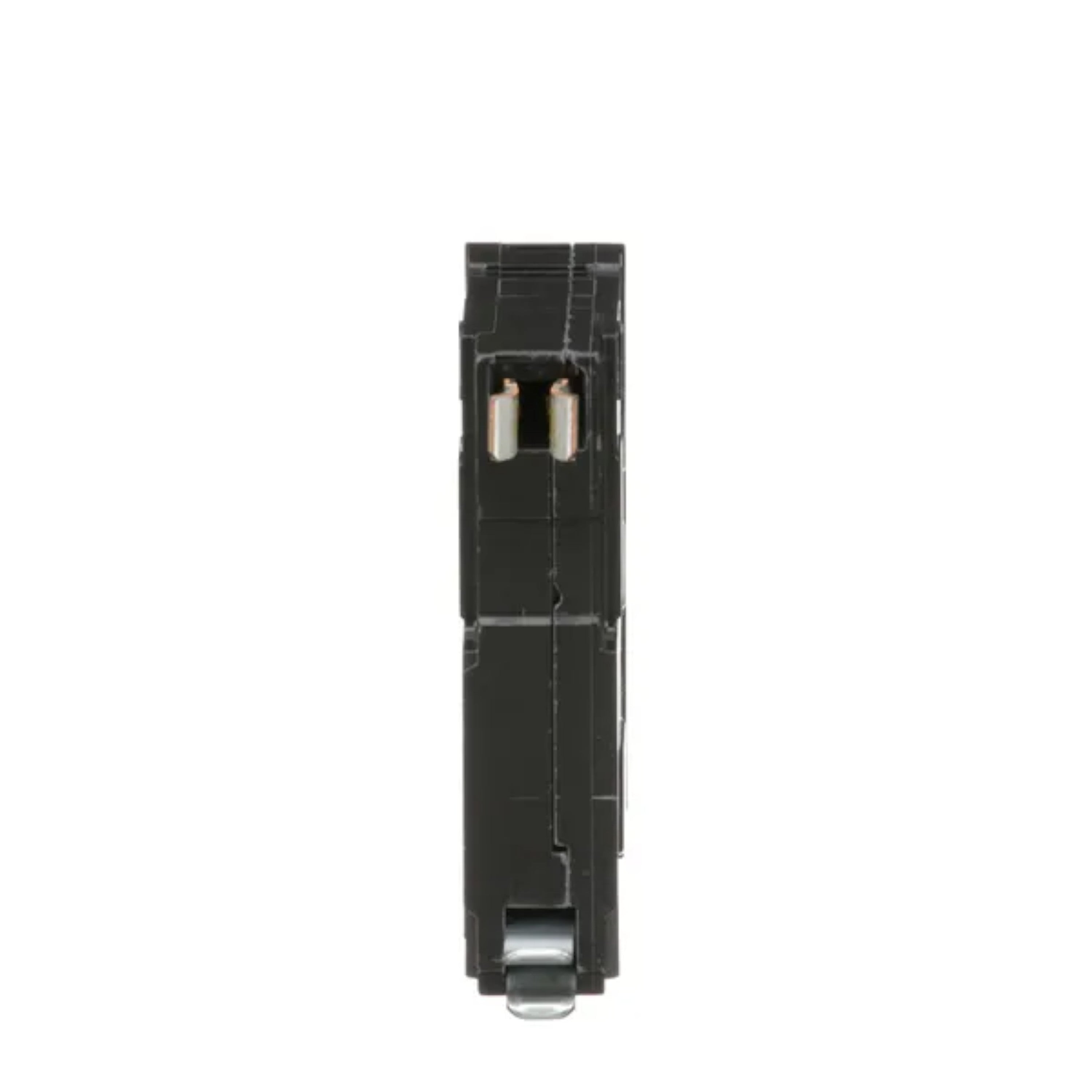

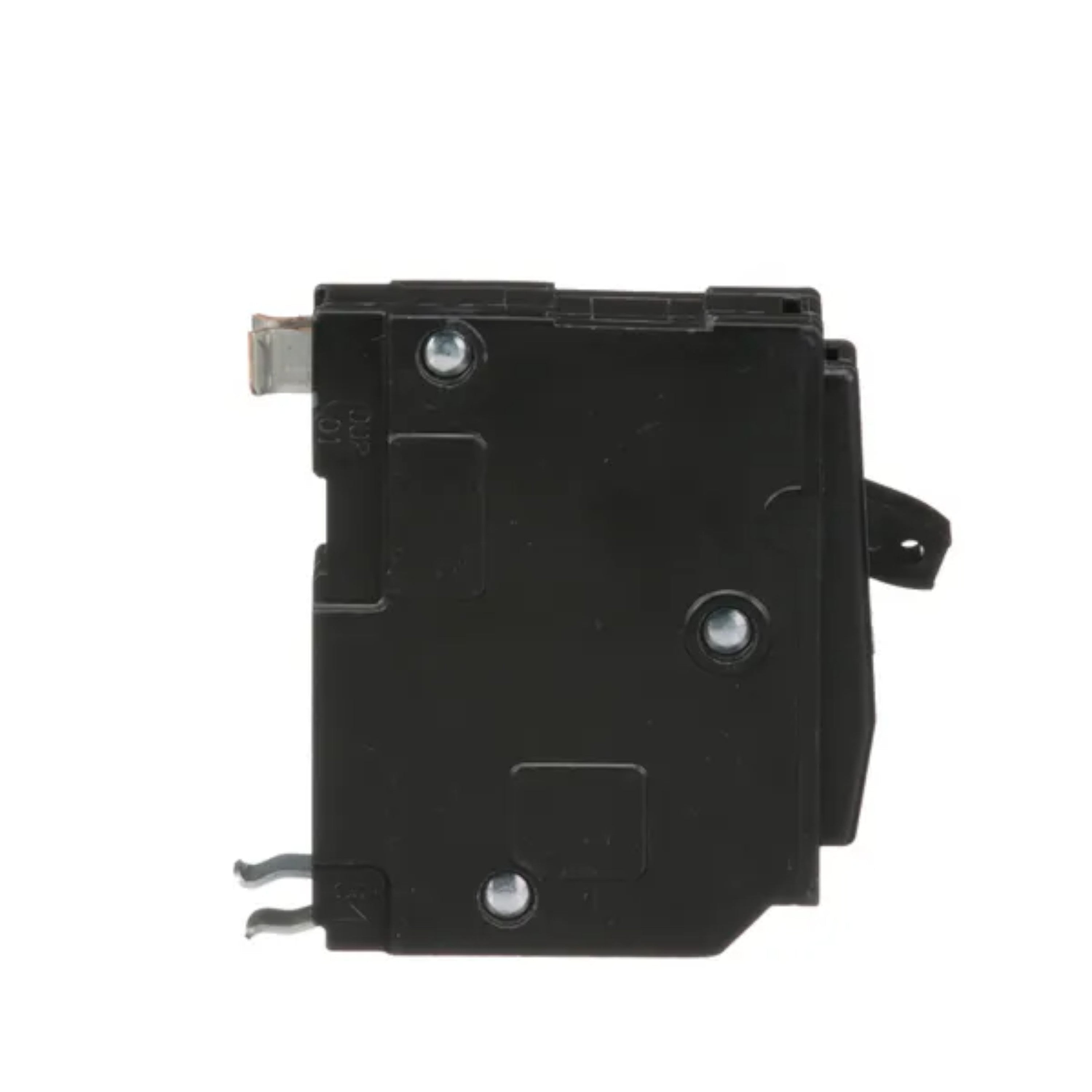

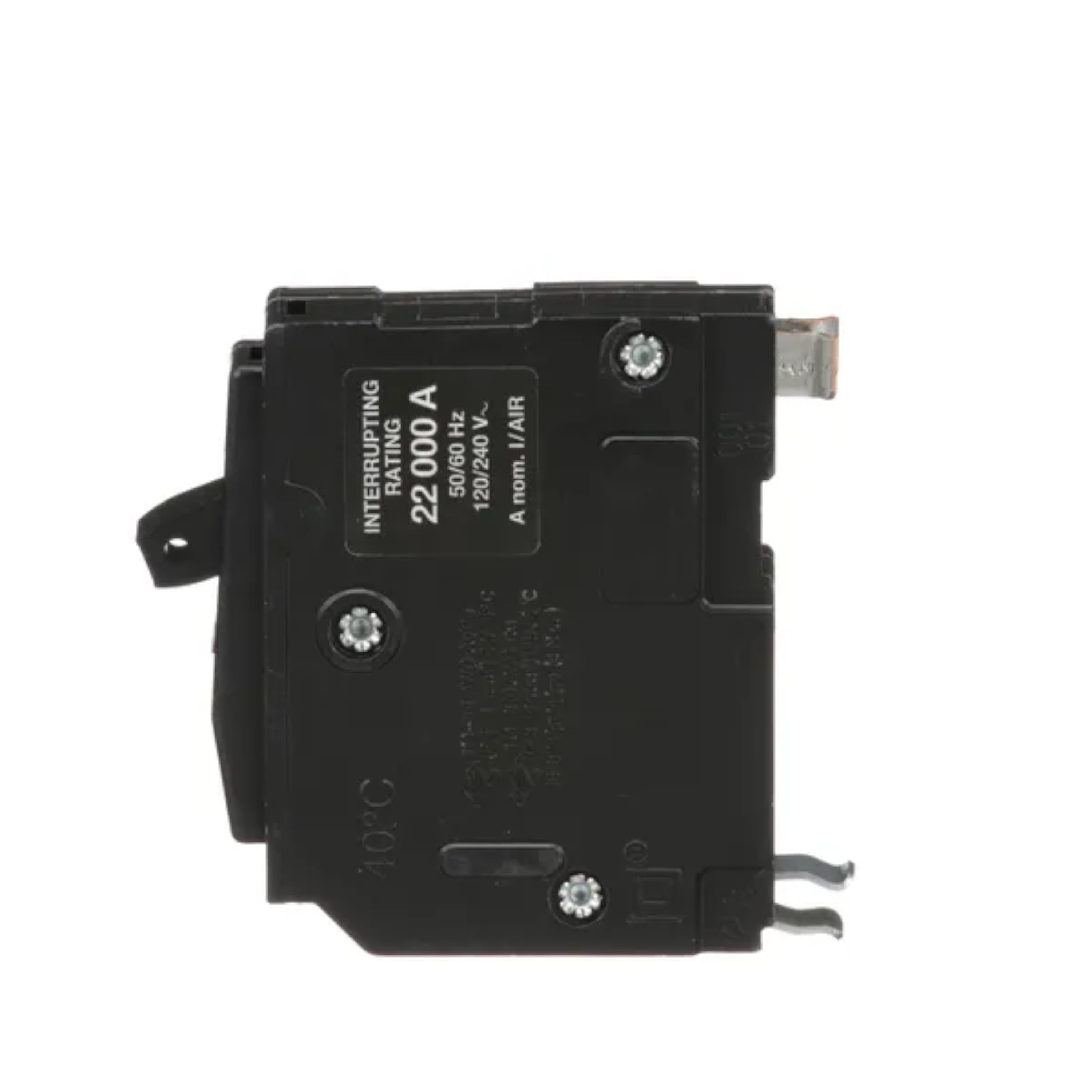

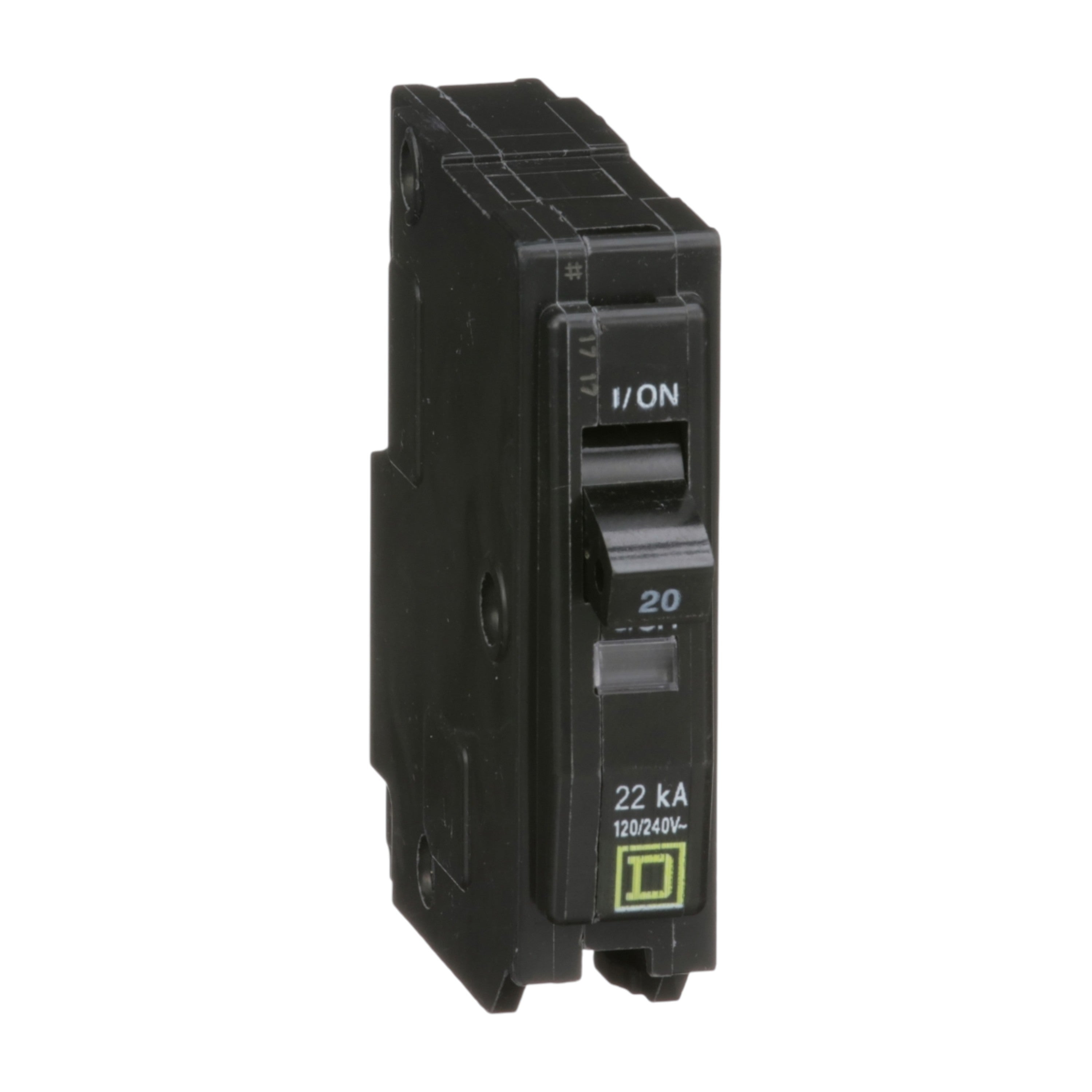

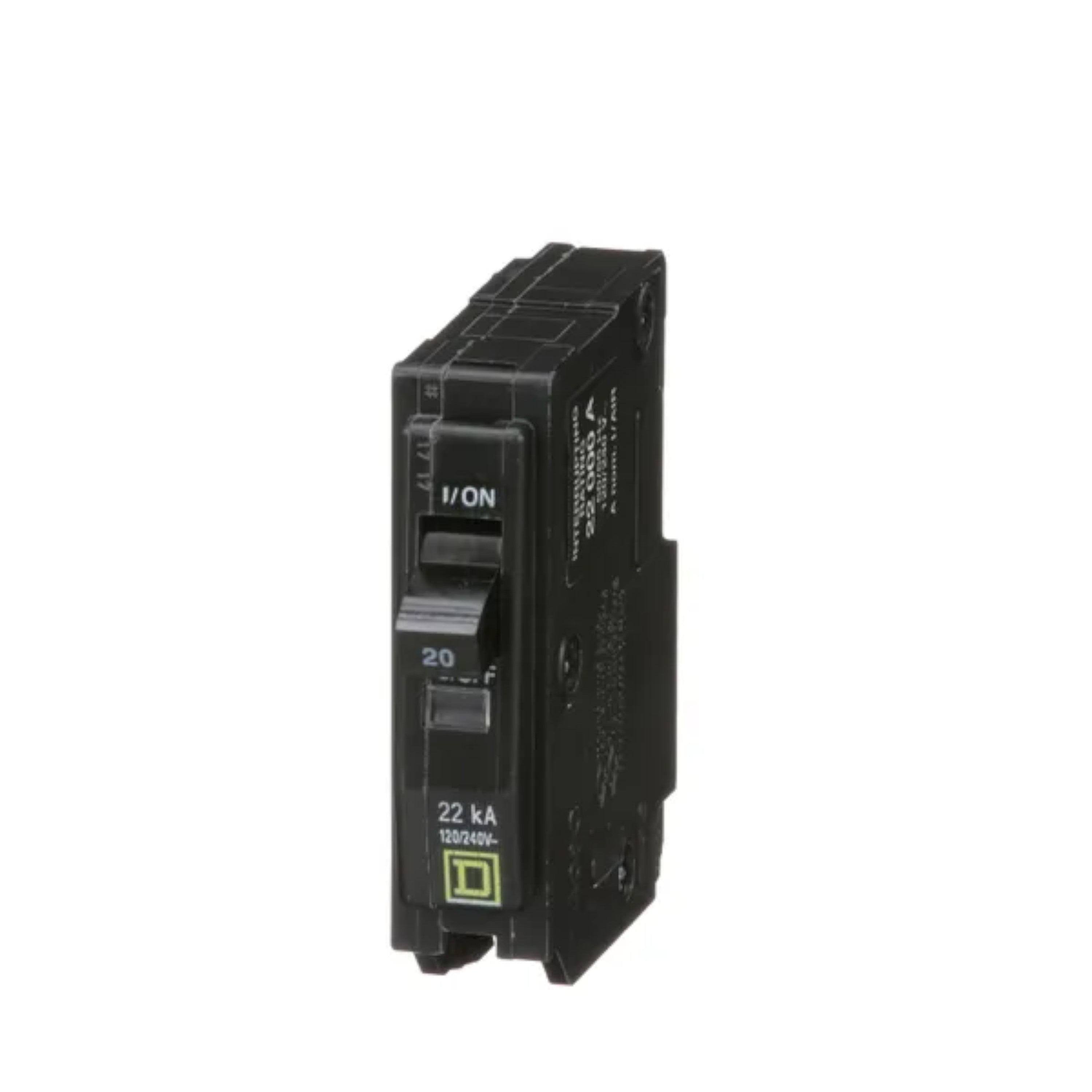

Square D QO QO120VH 20A 1P 120/240V 22kA Plug-In Circuit Breaker

Square D QO120VH: 20 Amp 1-Pole standard thermal-magnetic circuit breaker, 120/240V, 22kA, plug-in mount, UL listed.

• Manufacturer: Schneider Electric
• Brand: Square D
• Product Range: QO (for Square D QO loadcenters and equipment)
• UPC: 785901371786
• Model Number: QO120VH
• Breaker Type: Standard
• Amperage: 20 Amps
• Poles: 1-Pole
• Voltage: 120/240 Volts AC
• Interrupt Rating: 22 kAIC
• Mounting Mode: Plug-in
• Connections Terminals: Pressure plate
• Wire Size: AWG 14...AWG 8 copper or aluminium
• Tightening Torque: 40.7 lb-in
• Dimensions: Height: 3.0 in; Width: 0.75 in; Depth: 2.9 in
• Weight: 0.280 lbs
• Certifications: UL Listed, CSA

This Square D QO QO120VH plug-in circuit breaker provides reliable 20A, 1-pole overcurrent protection for 120/240V circuits in QO loadcenters. With a high 22kA interrupt rating and thermal-magnetic trip mechanism, it ensures durable performance and enhanced safety for residential and light commercial applications.
