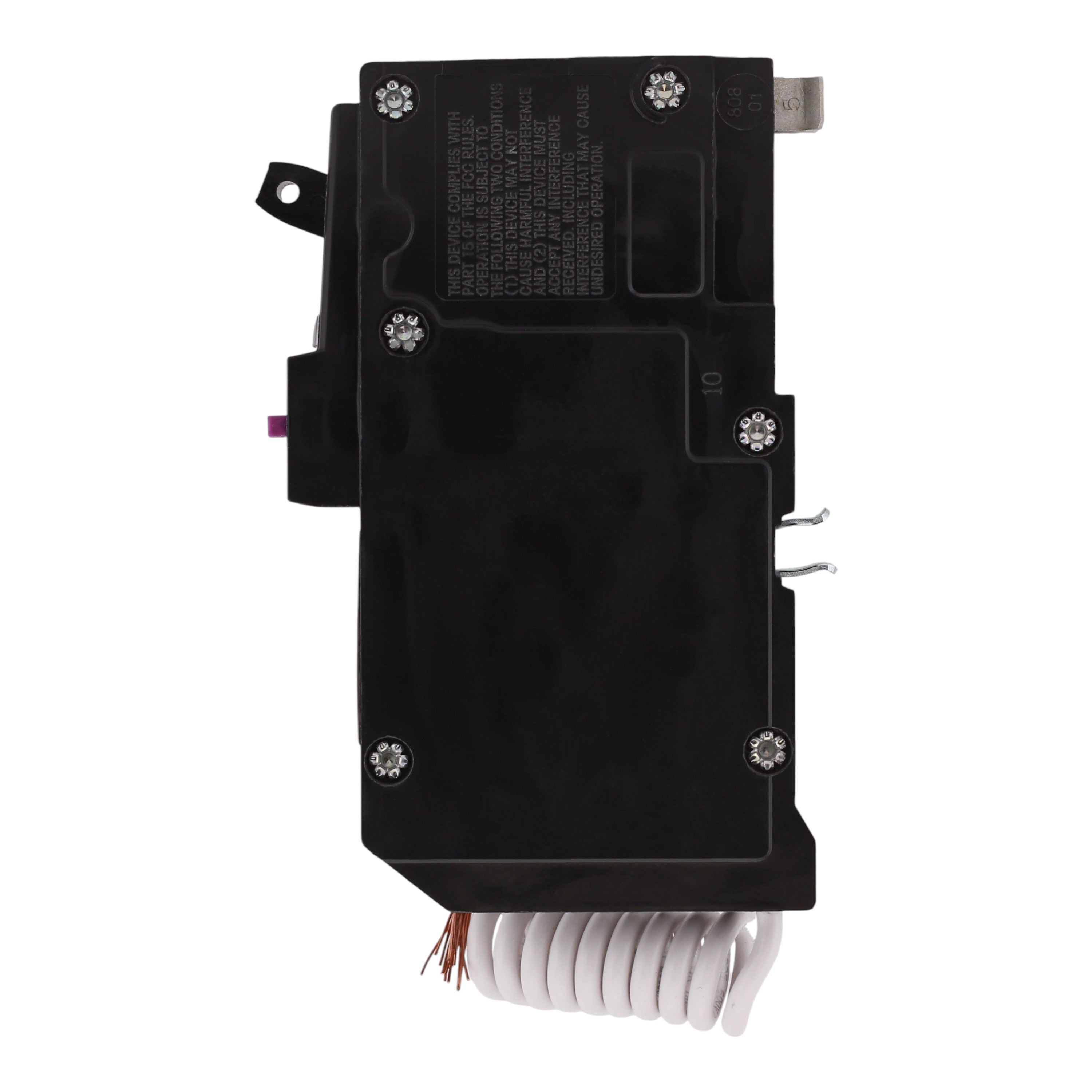

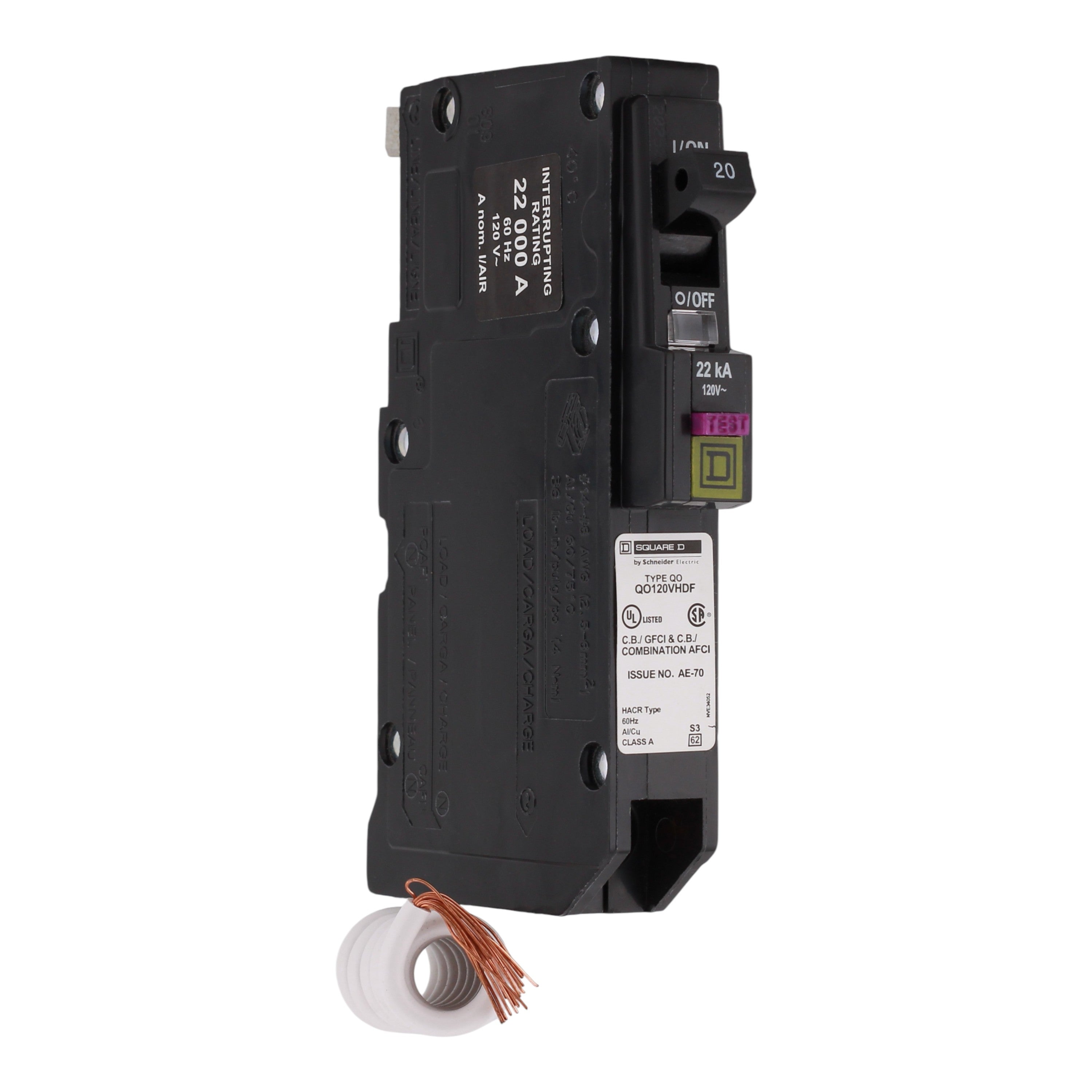

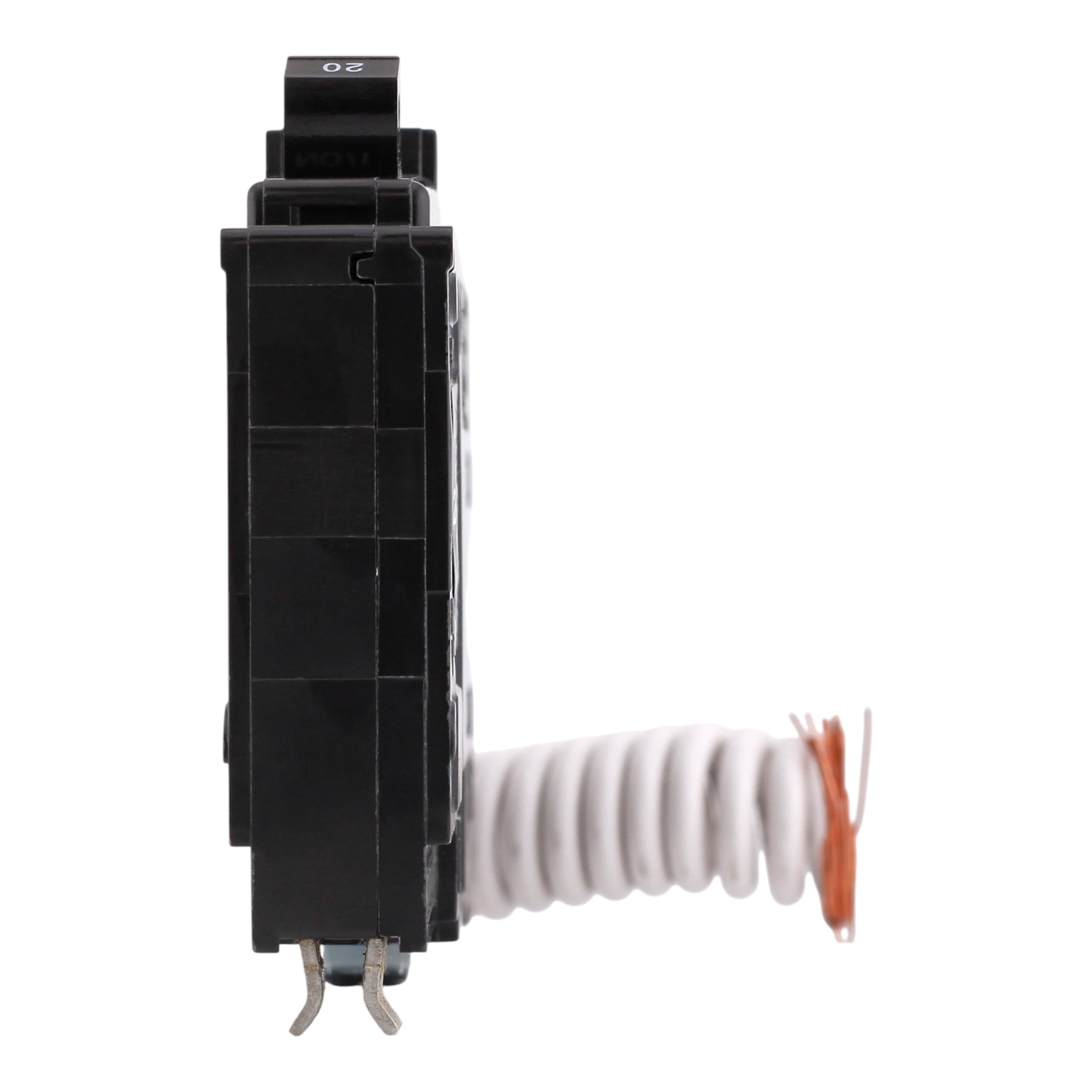

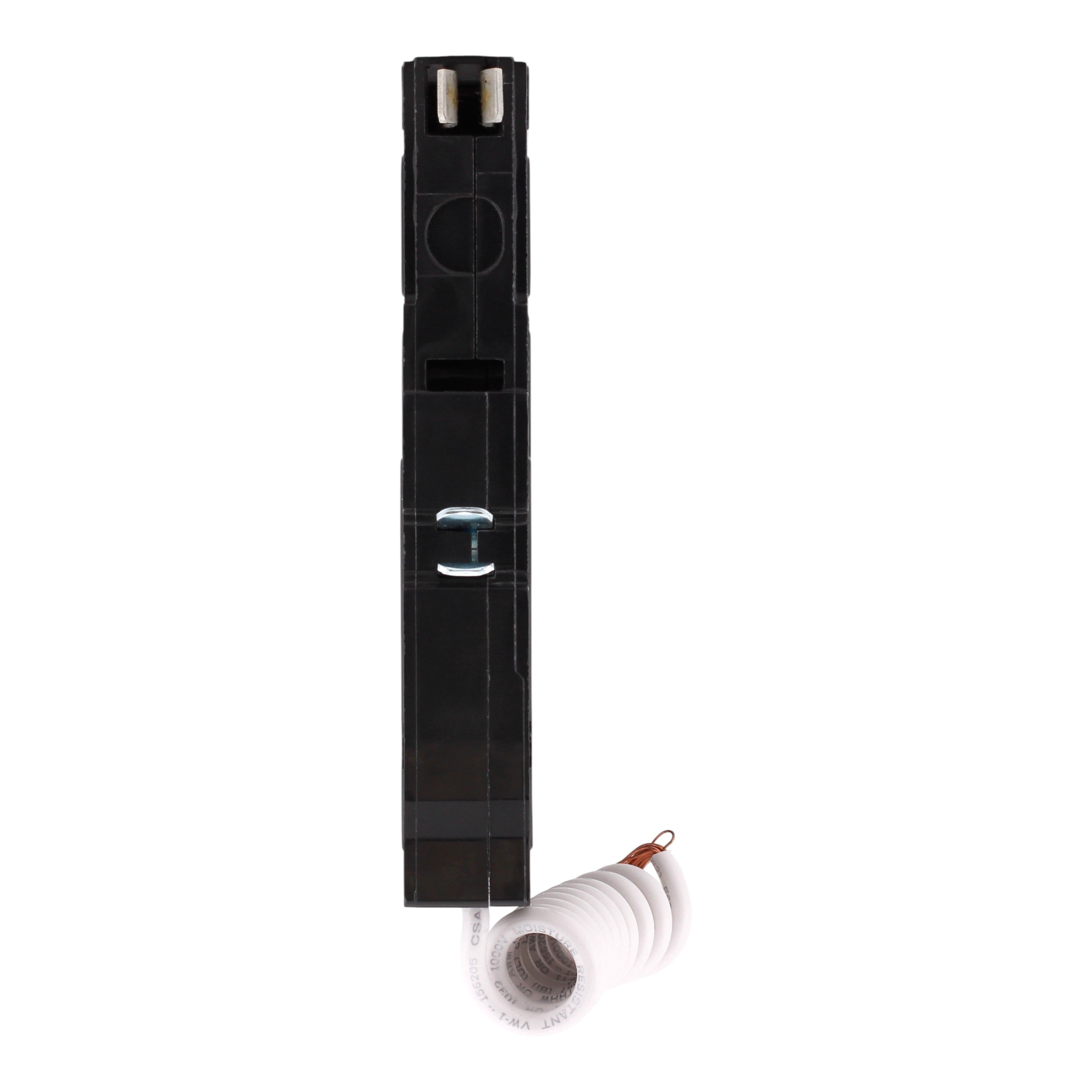

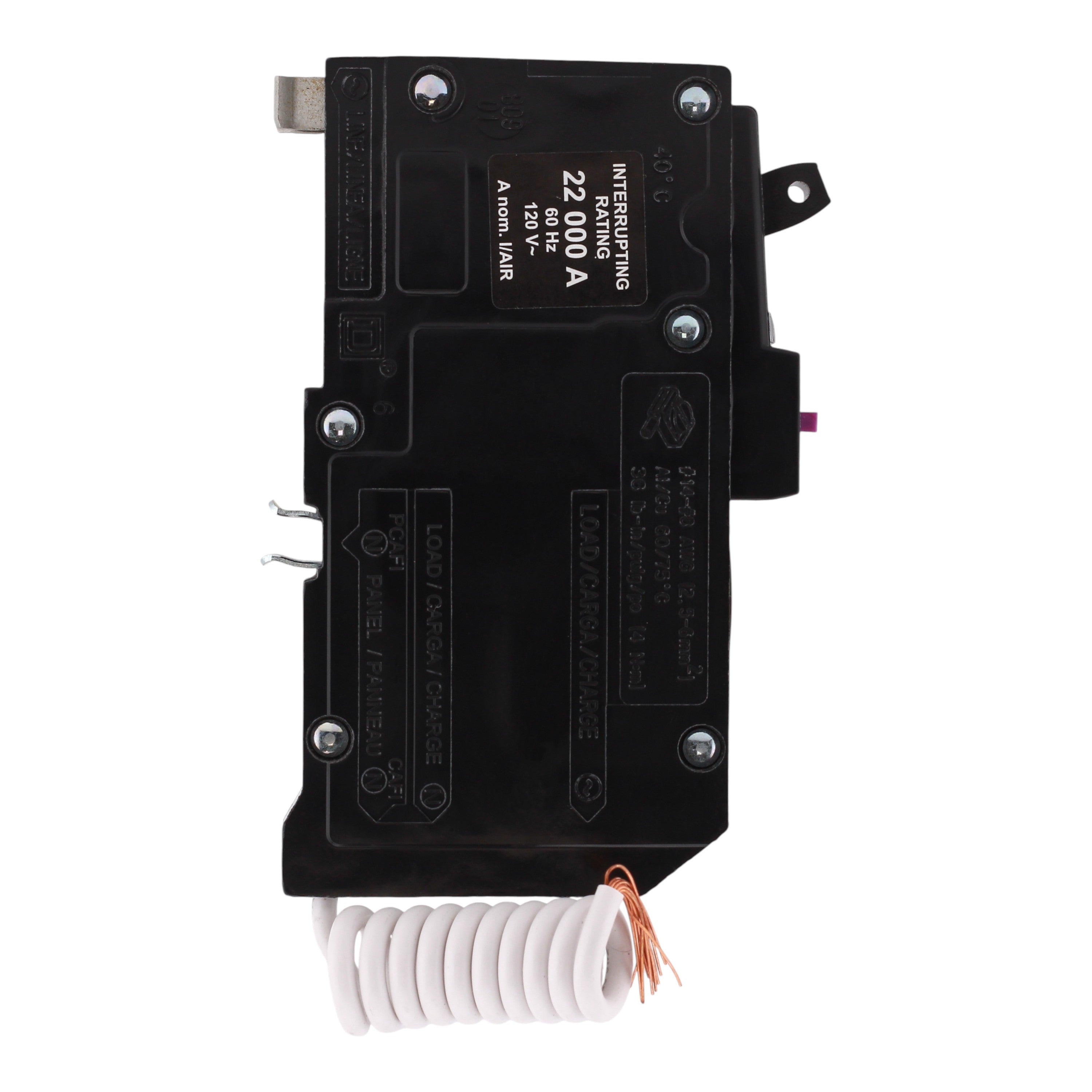

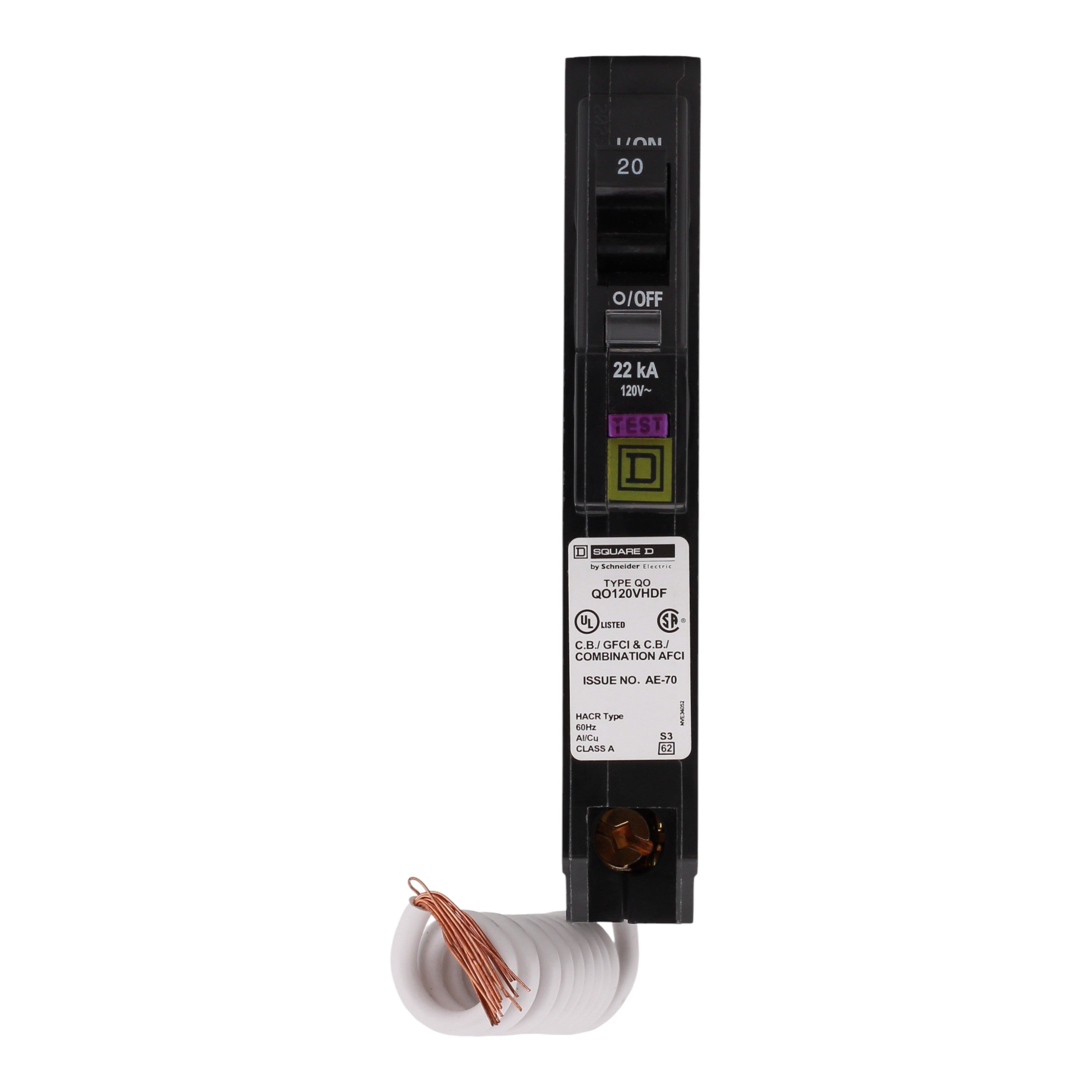

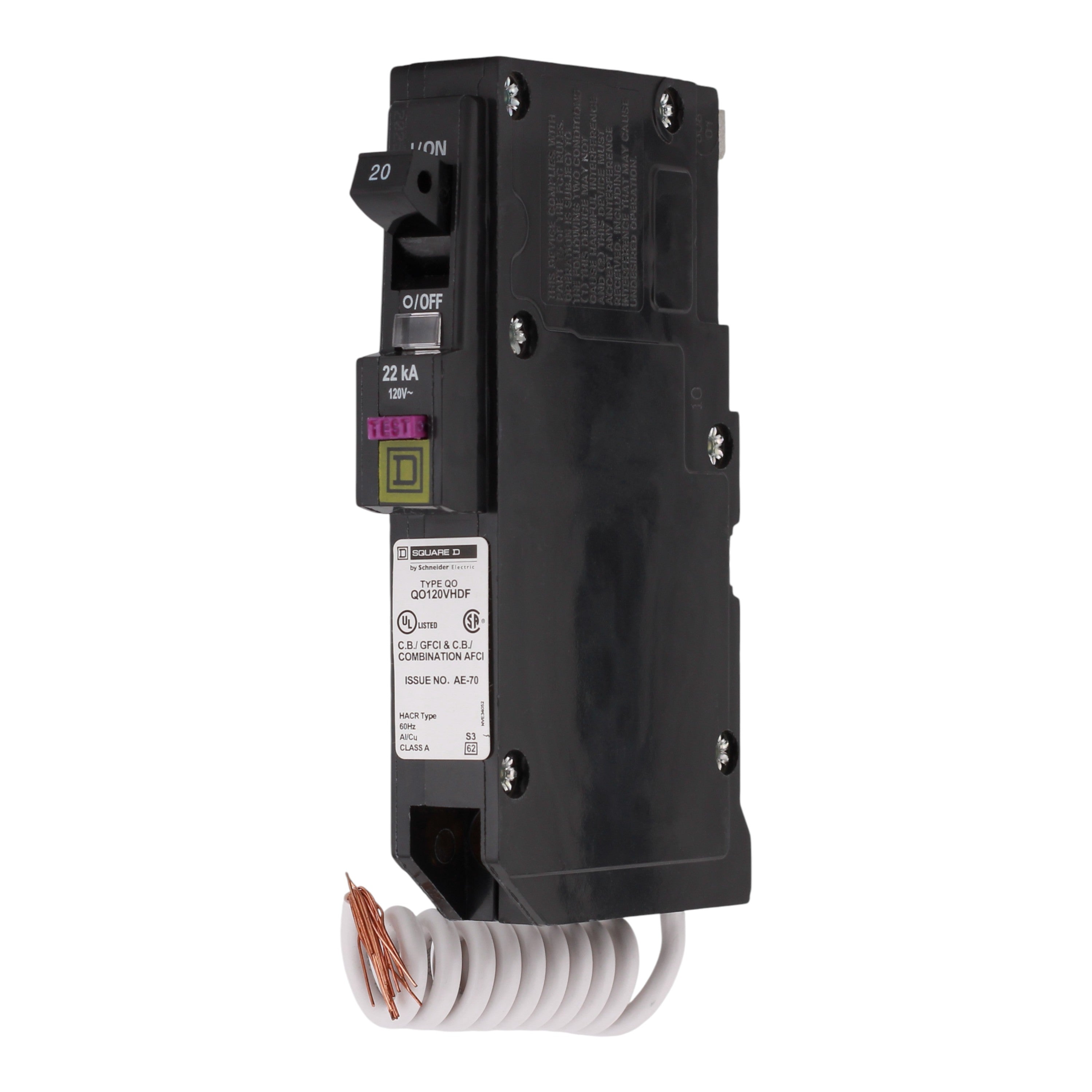

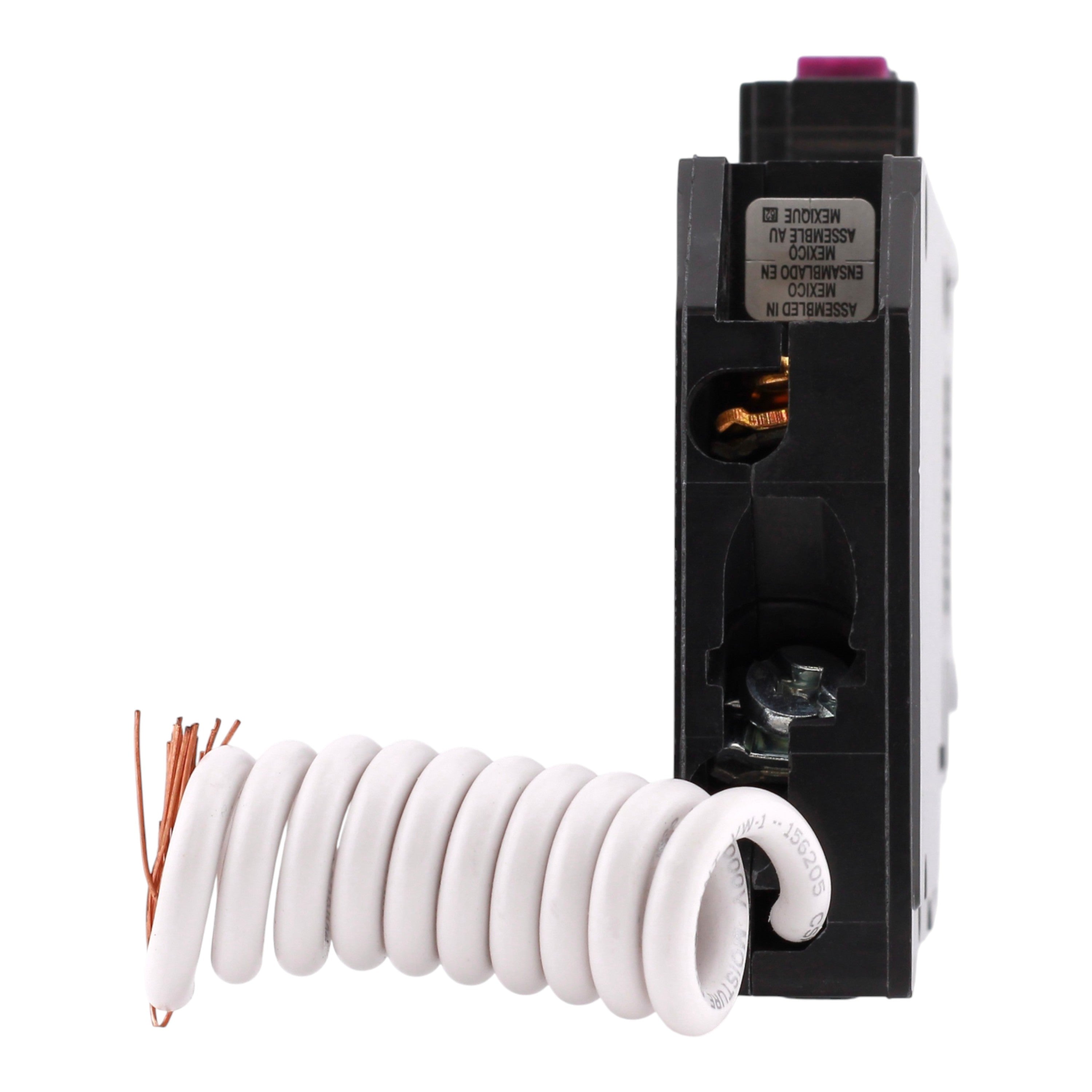

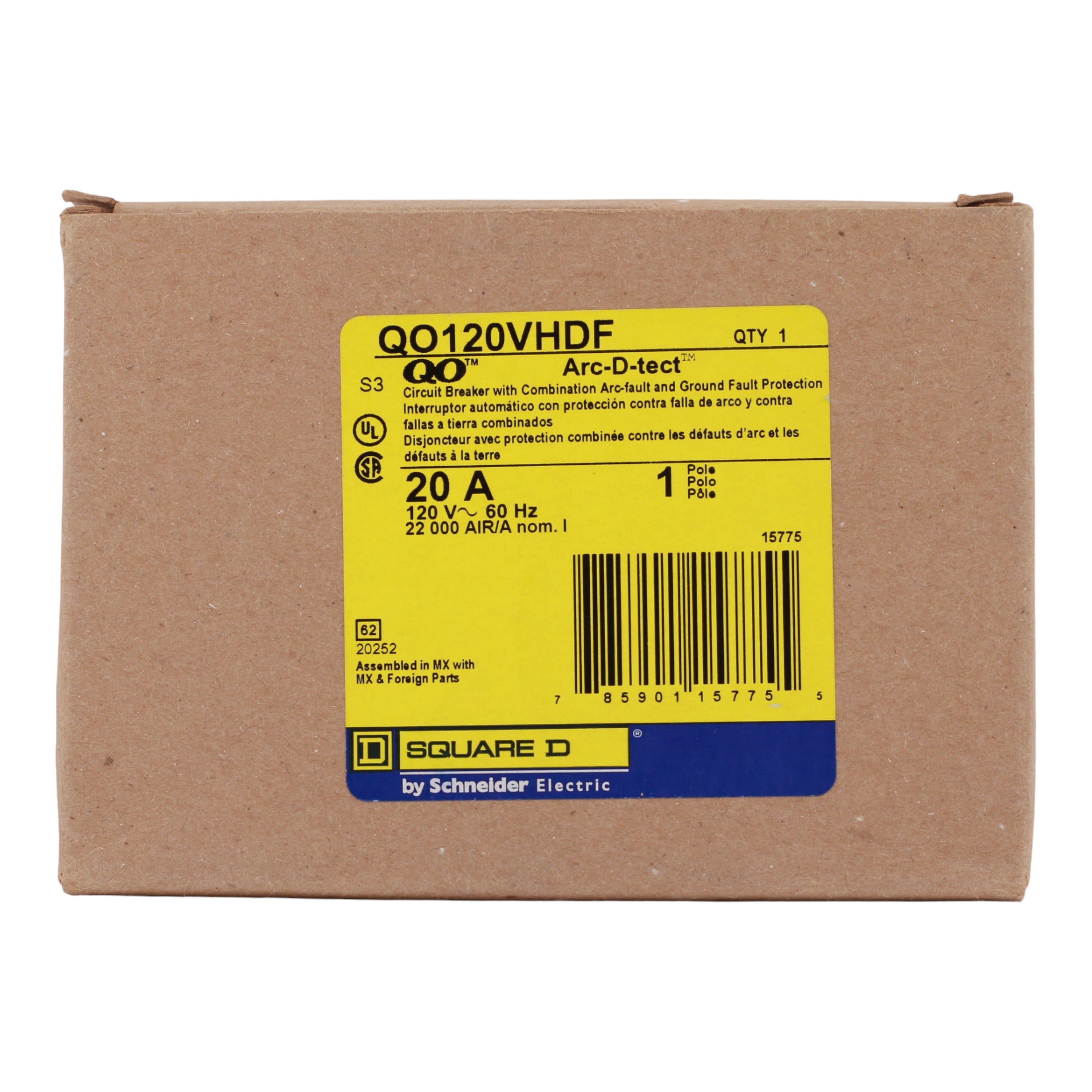

Square D QO QO120VHDF 20A 1P 120V AFCI/GFCI Pigtail Neutral Circuit Breaker 22kA

Square D QO120VHDF: 20 Amp 1-Pole AFCI/GFCI Arc-Fault/Ground-Fault Circuit Interrupter breaker, 120V, 22kA, pigtail neutral, 6mA trip sensitivity, UL listed, CSA certified.

• Manufacturer: Schneider Electric
• Brand: Square D
• Product Range: QO (for Square D QO loadcenters and equipment)
• UPC: 785901157755
• Model Number: QO120VHDF
• Breaker Type: Combination Arc-Fault/Ground-Fault Circuit Interrupter (AFCI/GFCI)
• Amperage: 20 Amps
• Poles: 1-Pole
• Voltage: 120 Volts AC
• Interrupt Rating: 22 kAIC
• Mounting Mode: Plug-in
• Connections Terminals: Pigtail neutral
• Wire Size: (1) #14-8 AWG Cu/Al
• Tightening Torque: 40.7 lb-in
• Dimensions: Height: 4.8 in; Width: 0.75 in; Depth: 2.91 in
• Weight: 0.549 lbs
• Certifications: UL Listed, CSA Certified, HACR Rated
• Trip Sensitivity: 6 mA ground fault protection

This Square D QO QO120VHDF pigtail neutral circuit breaker provides reliable 20A, 1-pole AFCI/GFCI protection for 120V circuits in QO loadcenters. With 22kA interrupt rating, 6mA ground fault detection and combination arc-fault protection, it delivers superior safety and faster installation in residential and light commercial applications.
