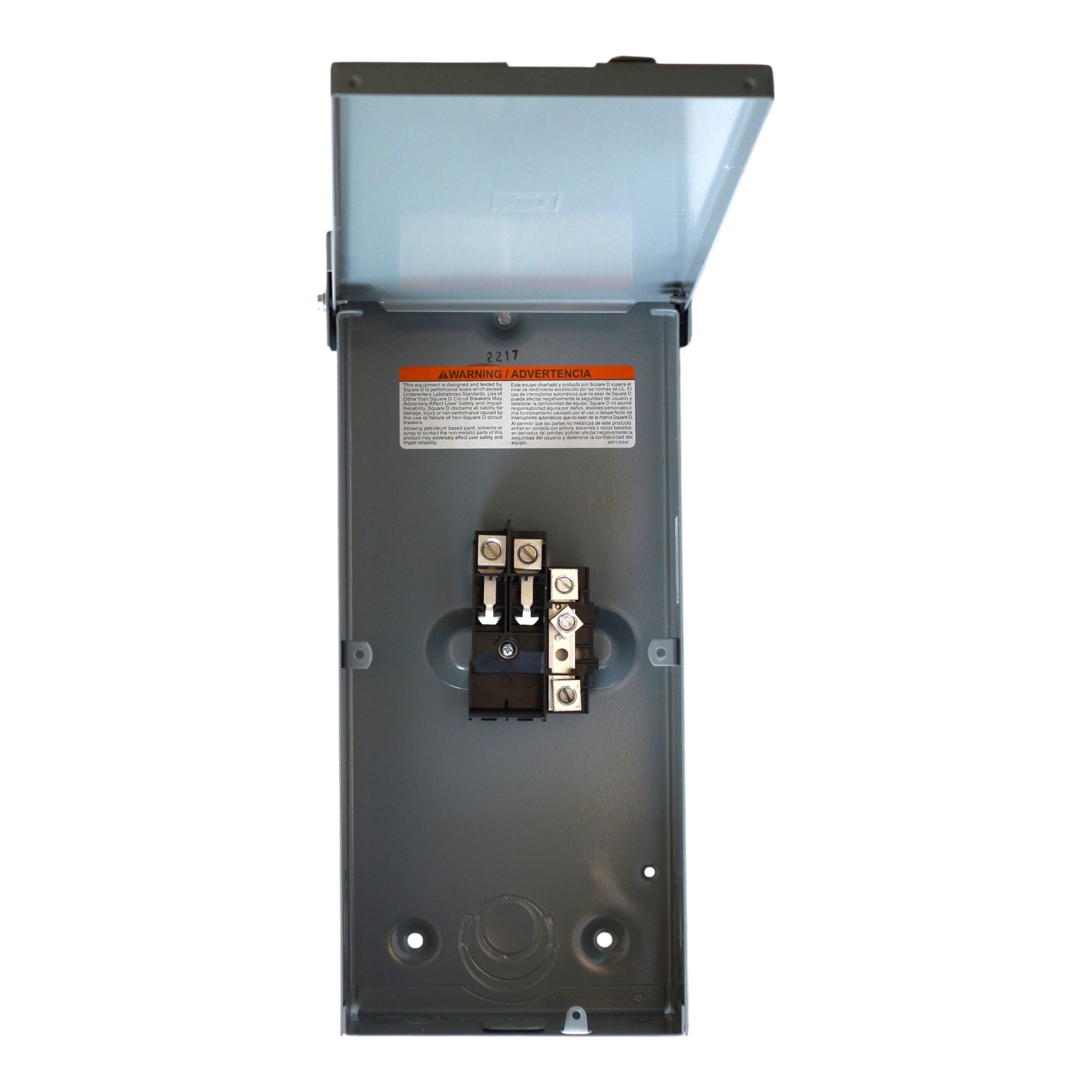

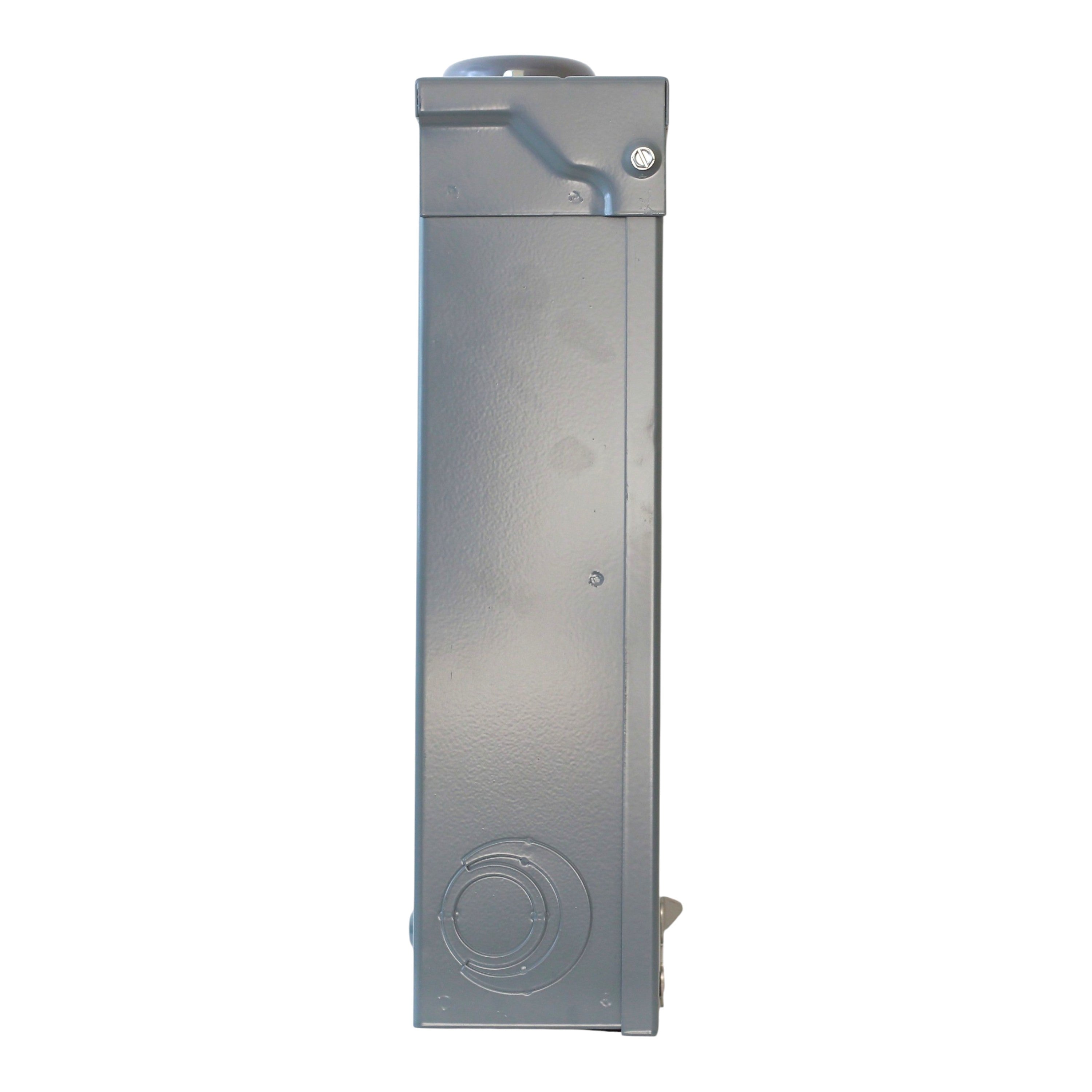

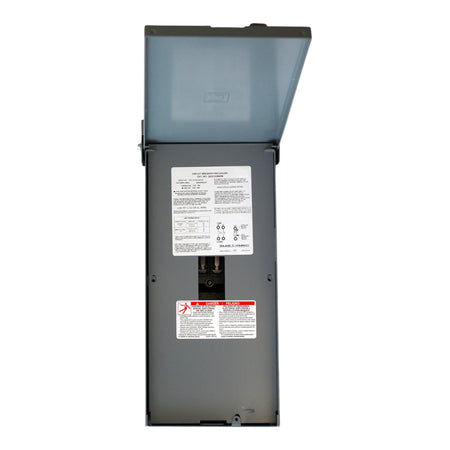

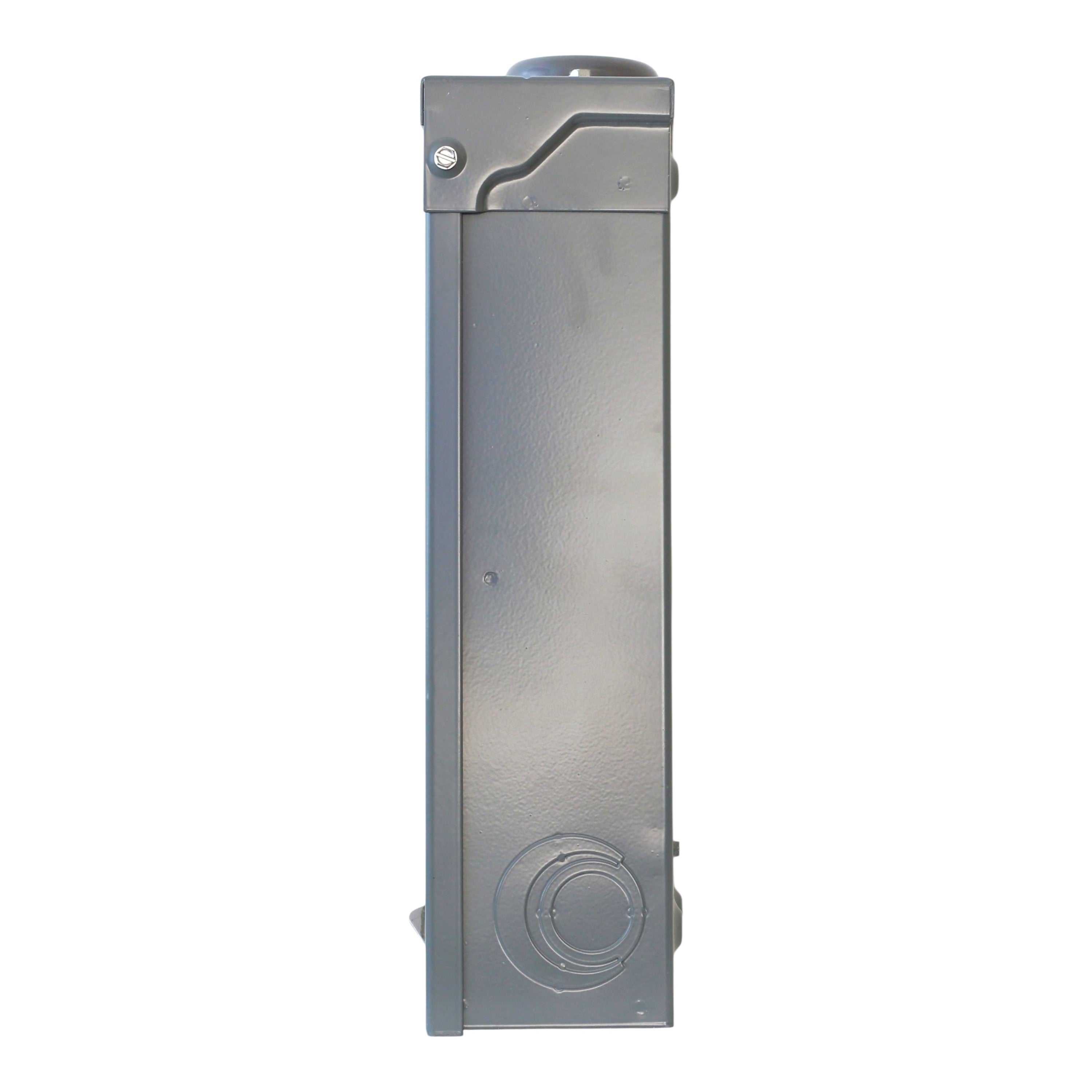

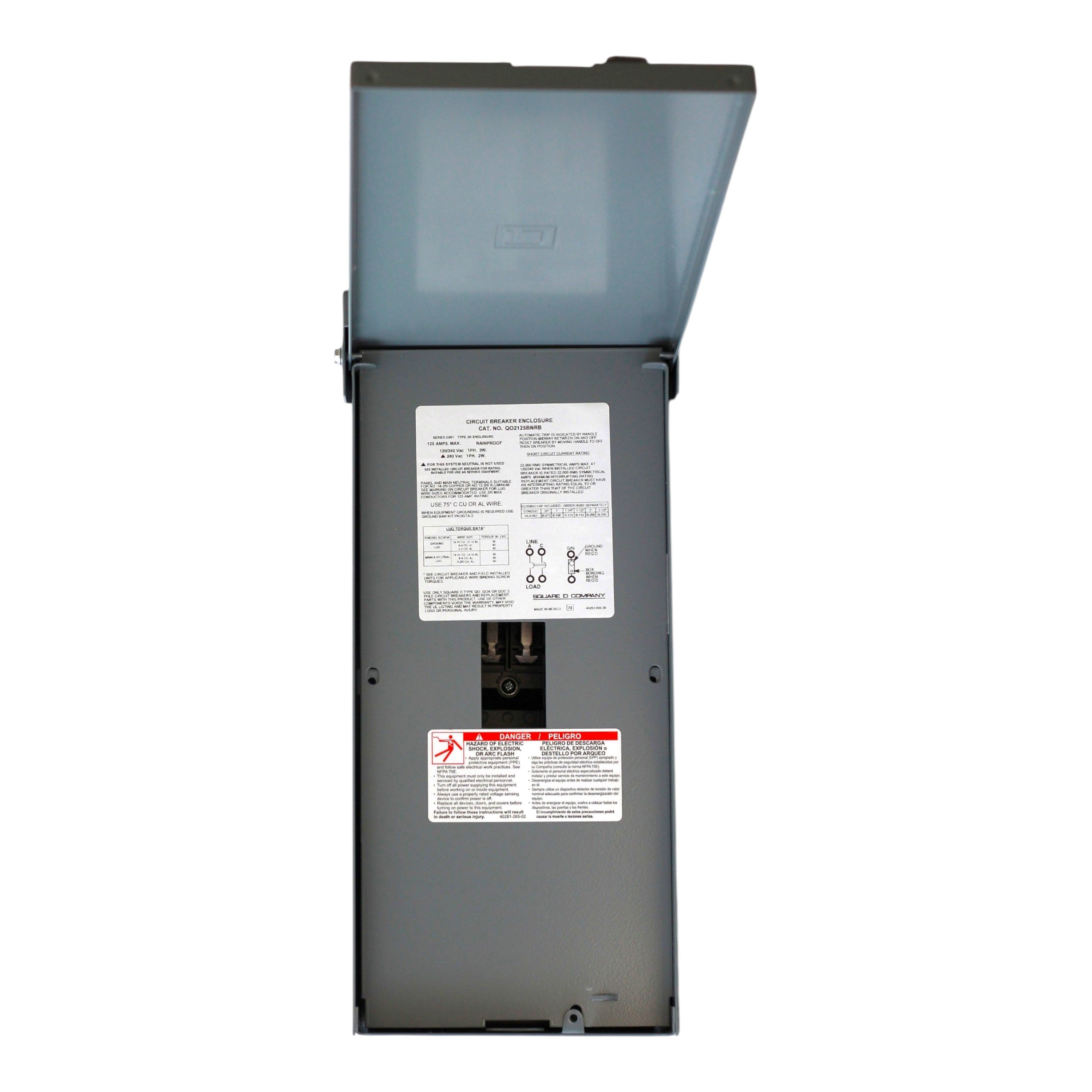

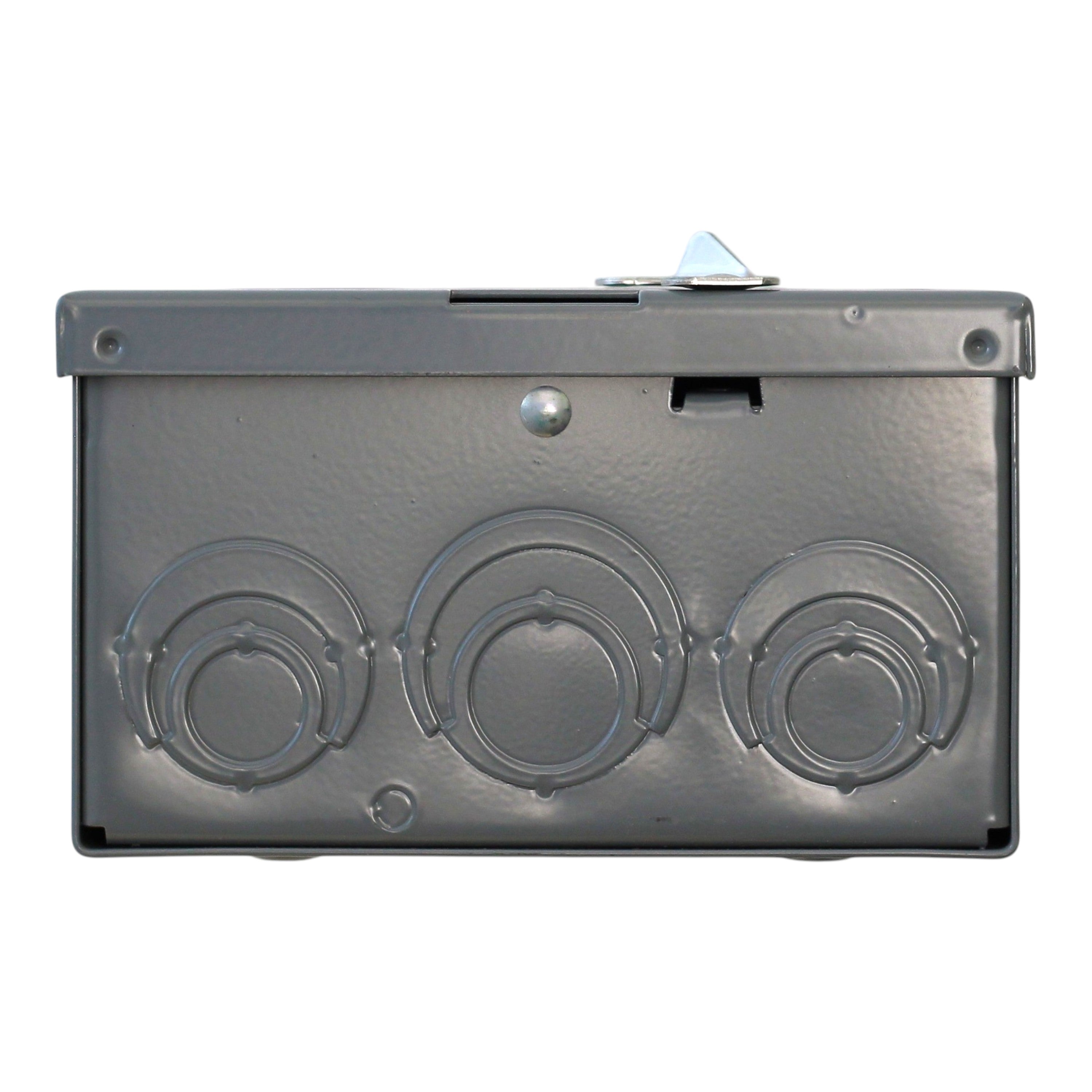

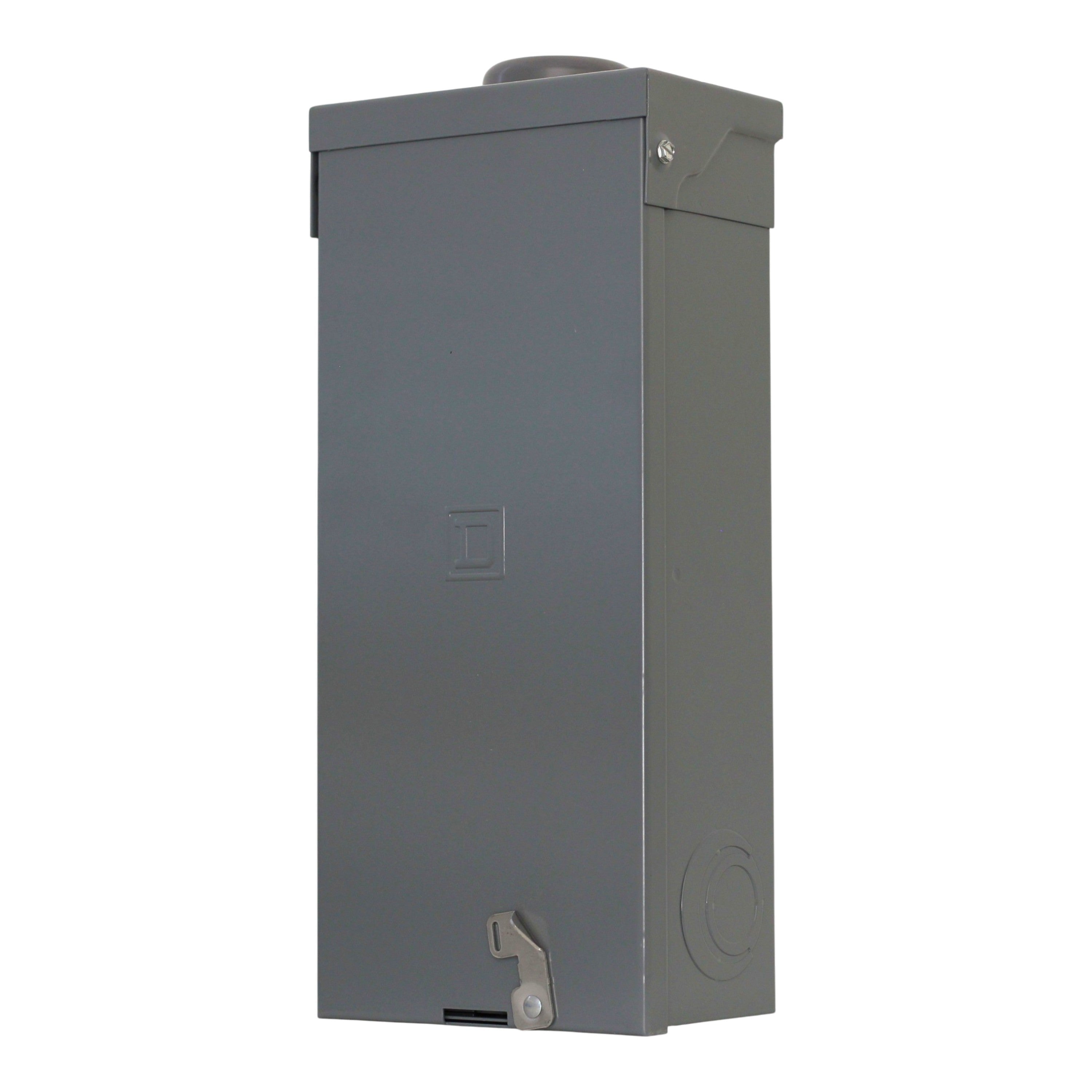

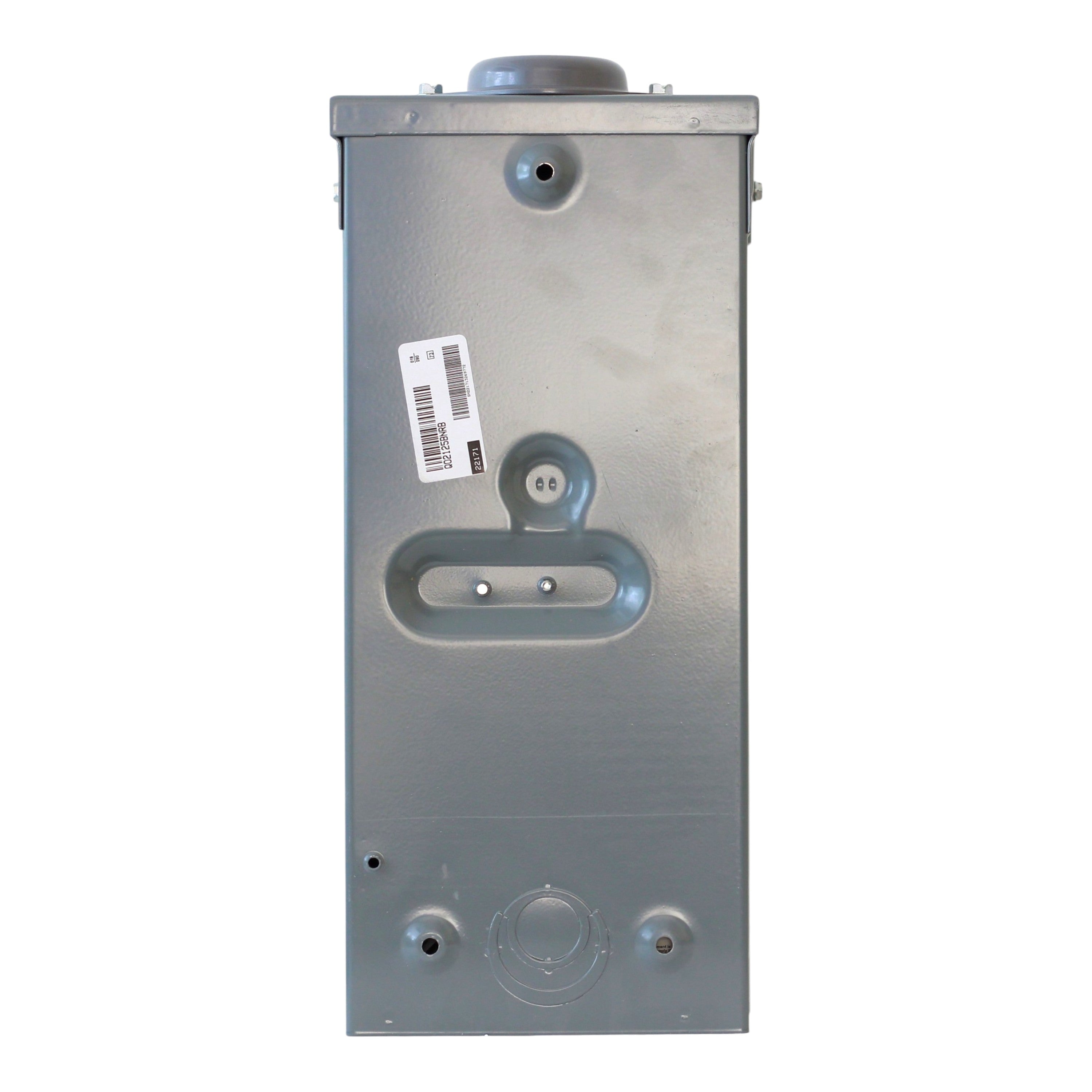

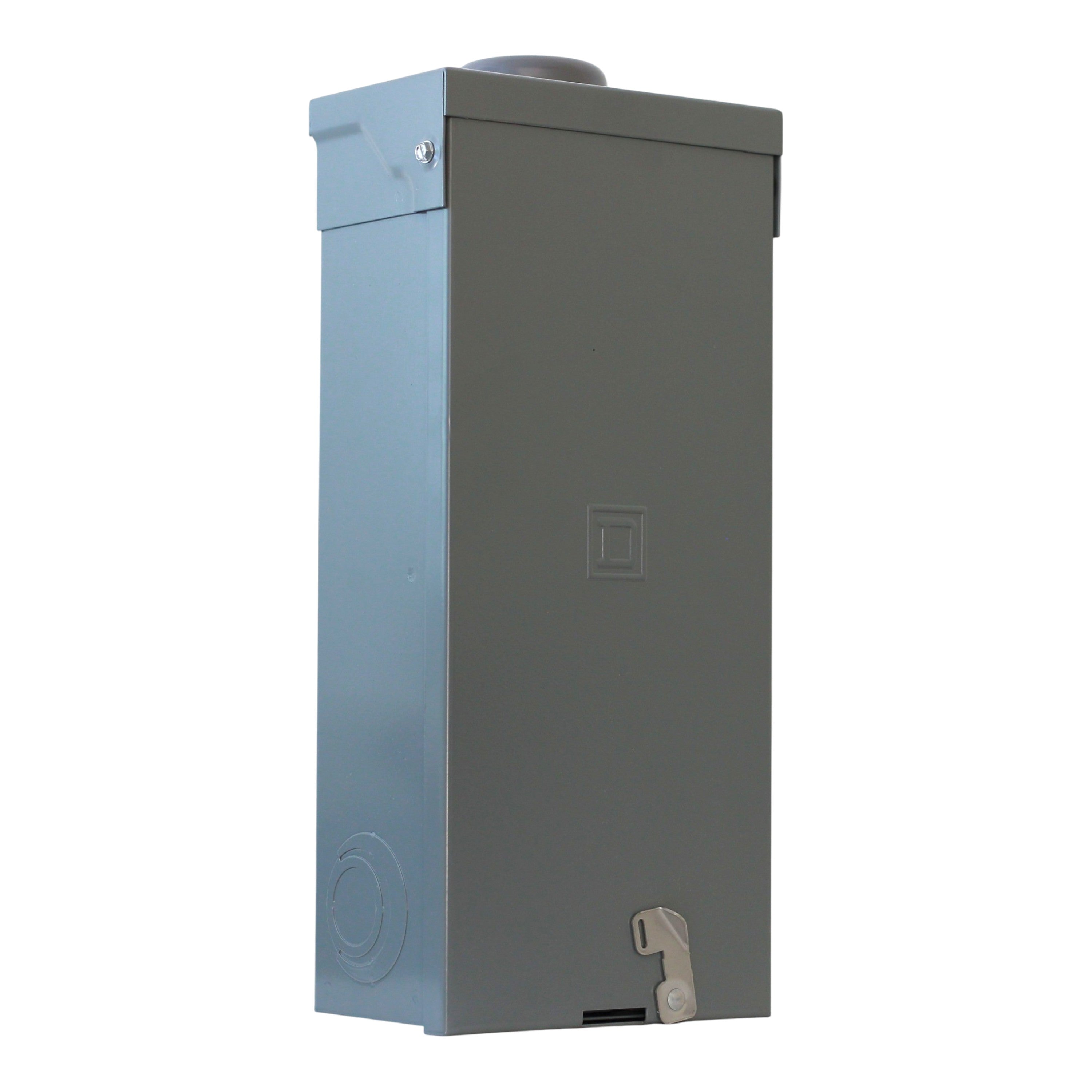

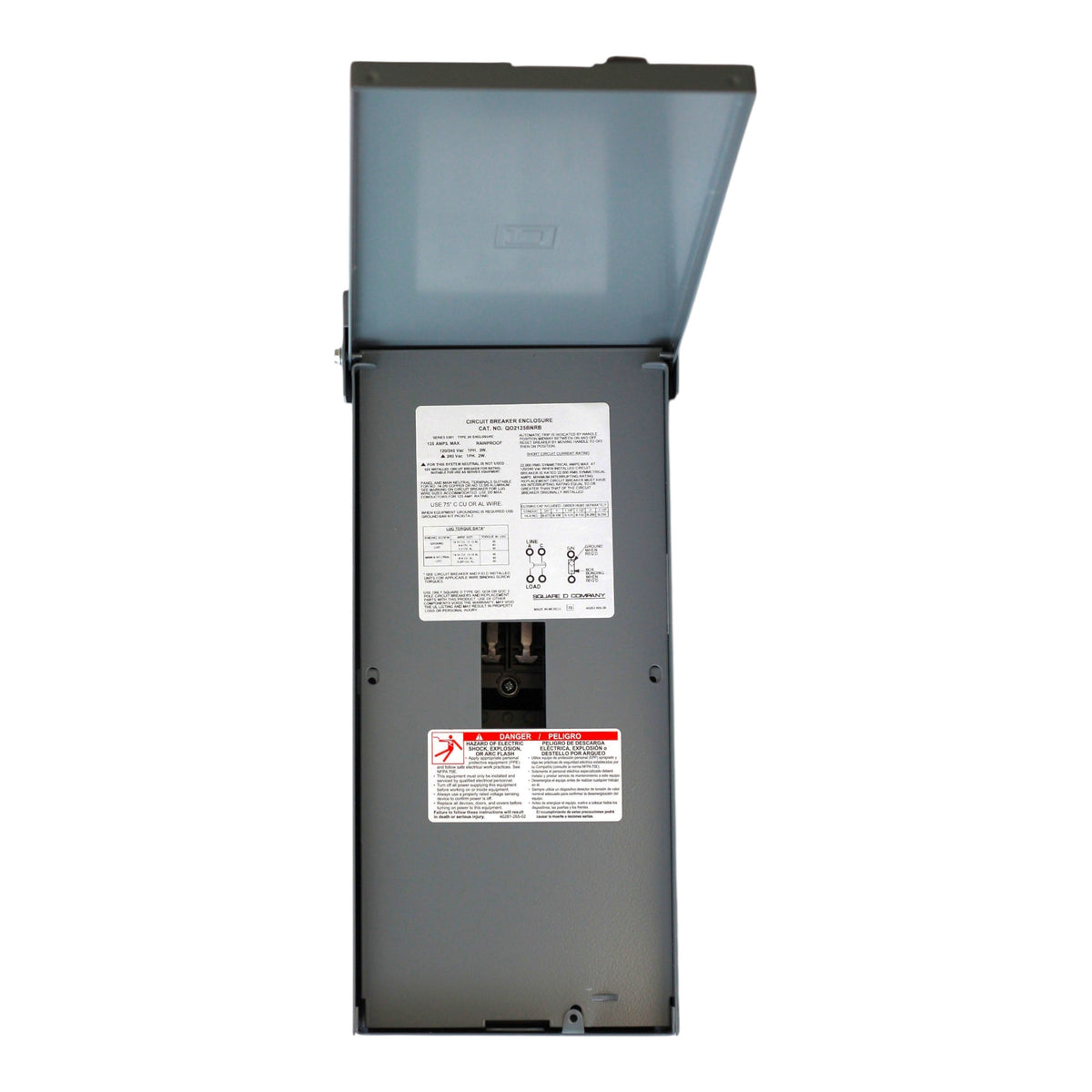

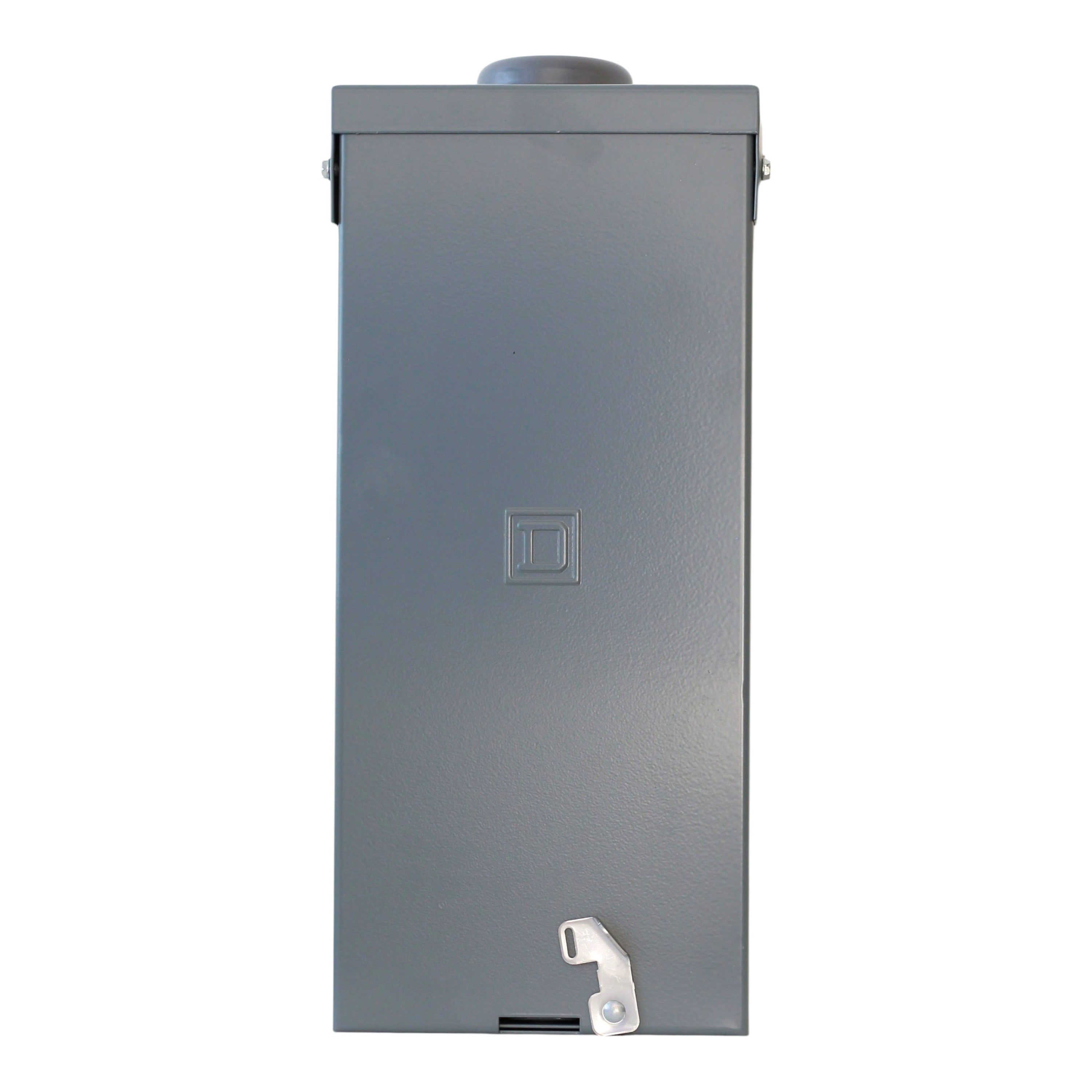

Square D QO2125BNRB: 125 Amp, 1-Phase, 2-Space, QO Circuit Breaker Enclosure, NEMA 3R Outdoor, 22kA, UL Listed.
-
Manufacturer: Schneider Electric
-
Brand: Square D
-
Product Range: QO
-
UPC: 785901051800
-
Model Number: QO2125BNRB
-
Product Type: Circuit Breaker Enclosure
-
Current Rating: 125 Amps
-
Interrupt Rating: 22 kA
-
Number of Spaces: 2
-
Maximum Single Pole Circuits: 2
-
Maximum Tandem Breakers: 0
-
Phase: 1-Phase
-
Wiring Configuration: 3-Wire
-
Enclosure Rating: NEMA 3R (Outdoor, Rainproof)
-
Breaker Compatibility: Square D QO 2-Pole circuit breakers
-
Electrical Connection: Lugs
-
Wire Size: #14–2/0 AWG Cu, #12–2/0 AWG Al
-
Tightening Torque: 35 lb-in (#14–10 AWG Cu); 35 lb-in (#12–10 AWG Al); 40 lb-in (#8–4 AWG Cu/Al); 50 lb-in (#3–2 AWG Cu/Al); Main lugs 50 lb-in (#3–2/0 AWG Cu/Al)
-
Enclosure Material: Welded galvannealed steel
-
Busbar Material: Tin plated copper
-
Surface Finish: Baked enamel, gray
-
Ground Bar: Ordered separately
-
Dimensions: Height: 16.2 in; Width: 6.9 in; Depth: 4.0 in
-
Weight: 9.59 lbs
-
Certifications: UL Listed
This Square D QO2125BNRB outdoor rainproof circuit breaker enclosure delivers reliable 125 Amp, 1-Phase, 2-space protection for QO 2-pole breakers in NEMA 3R outdoor applications. Constructed from welded galvannealed steel with a baked enamel finish, it supports 22kA interrupt capacity for residential and light commercial installations.
