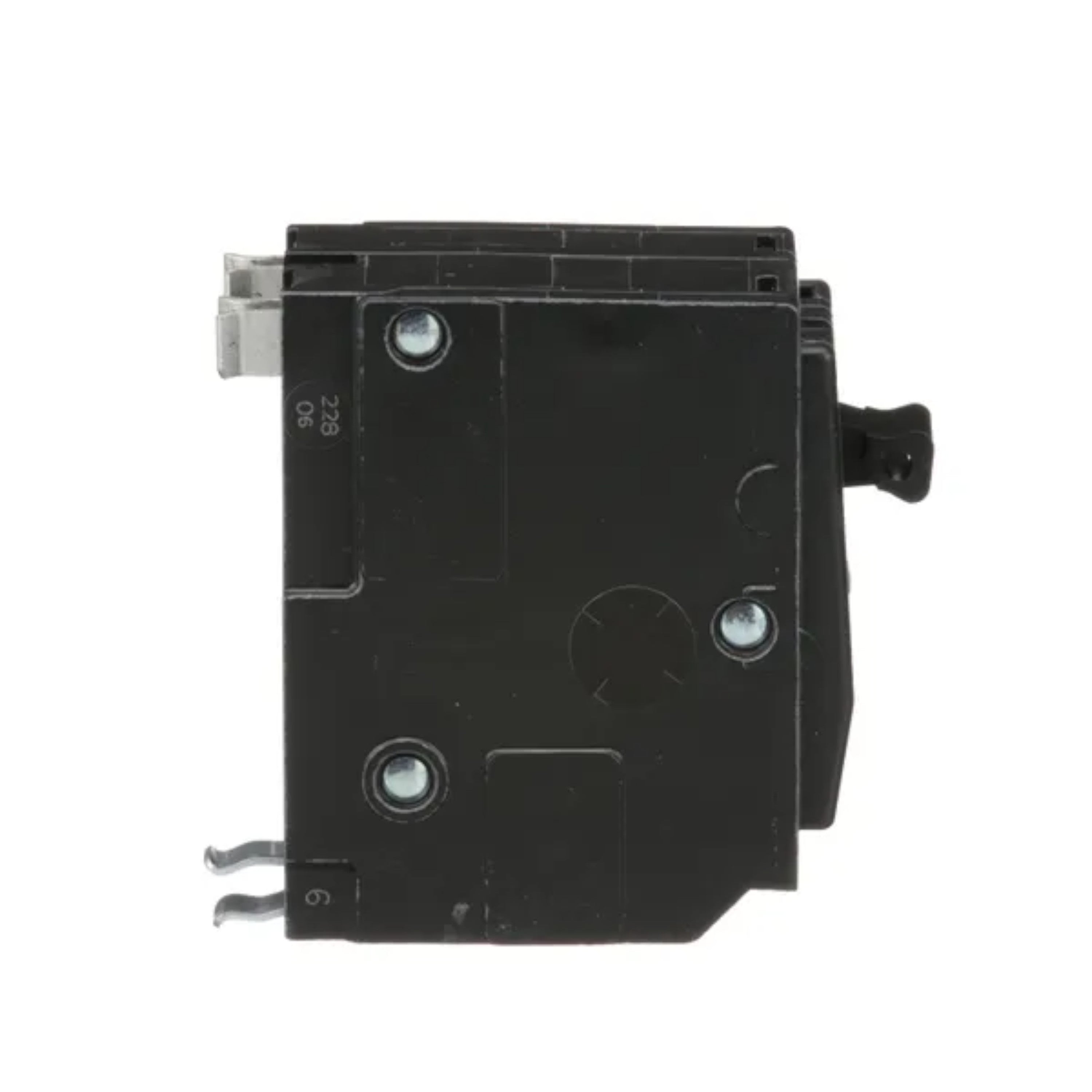

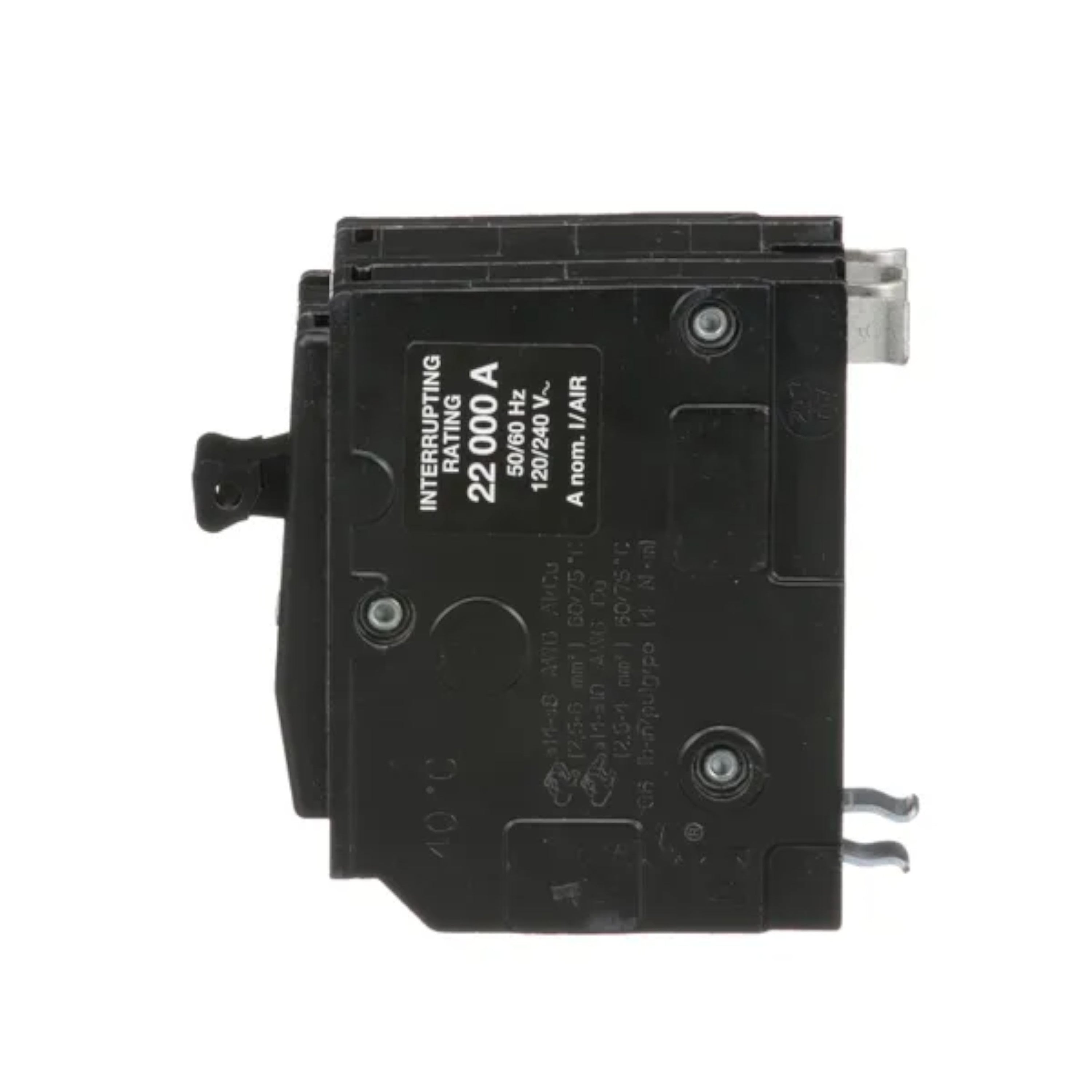

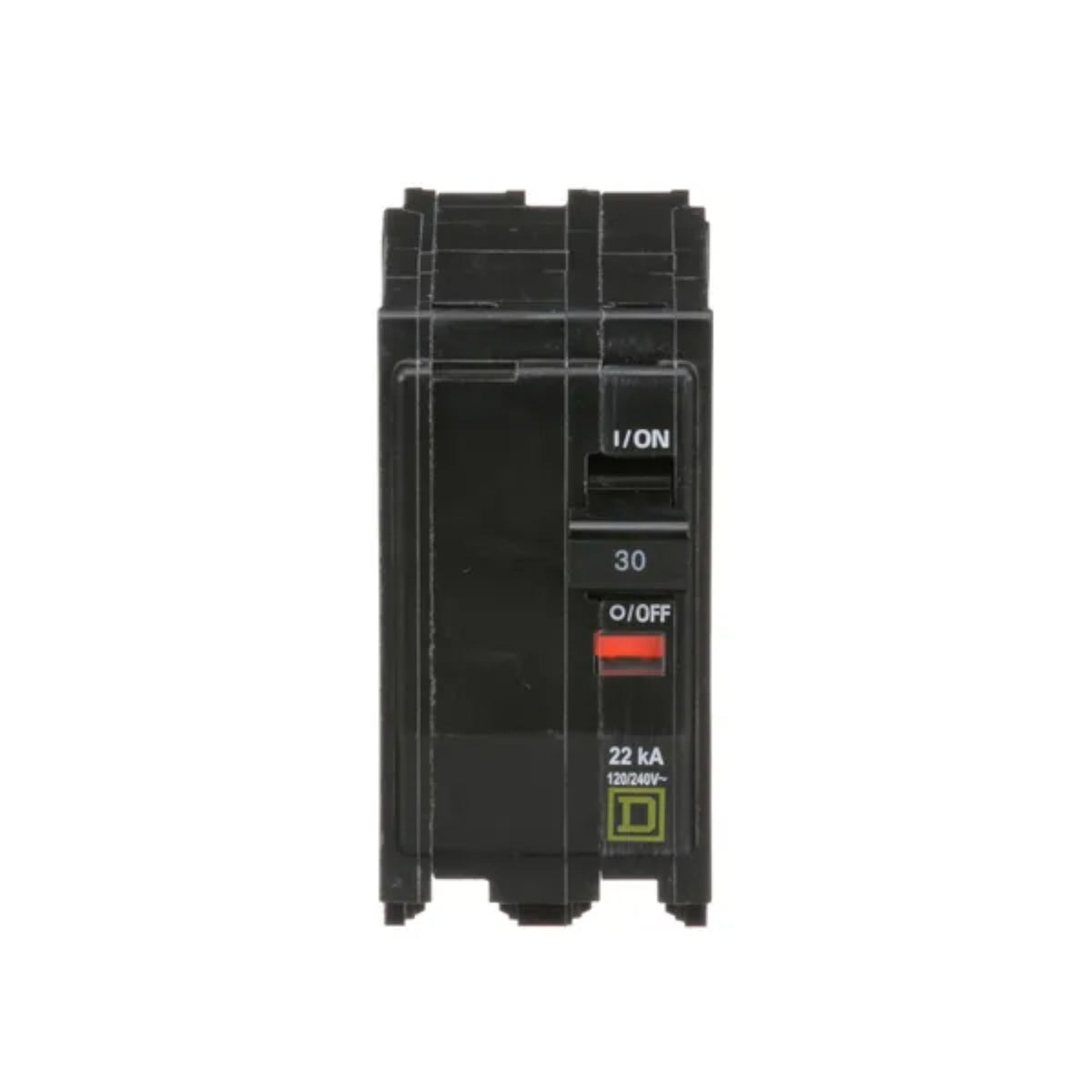

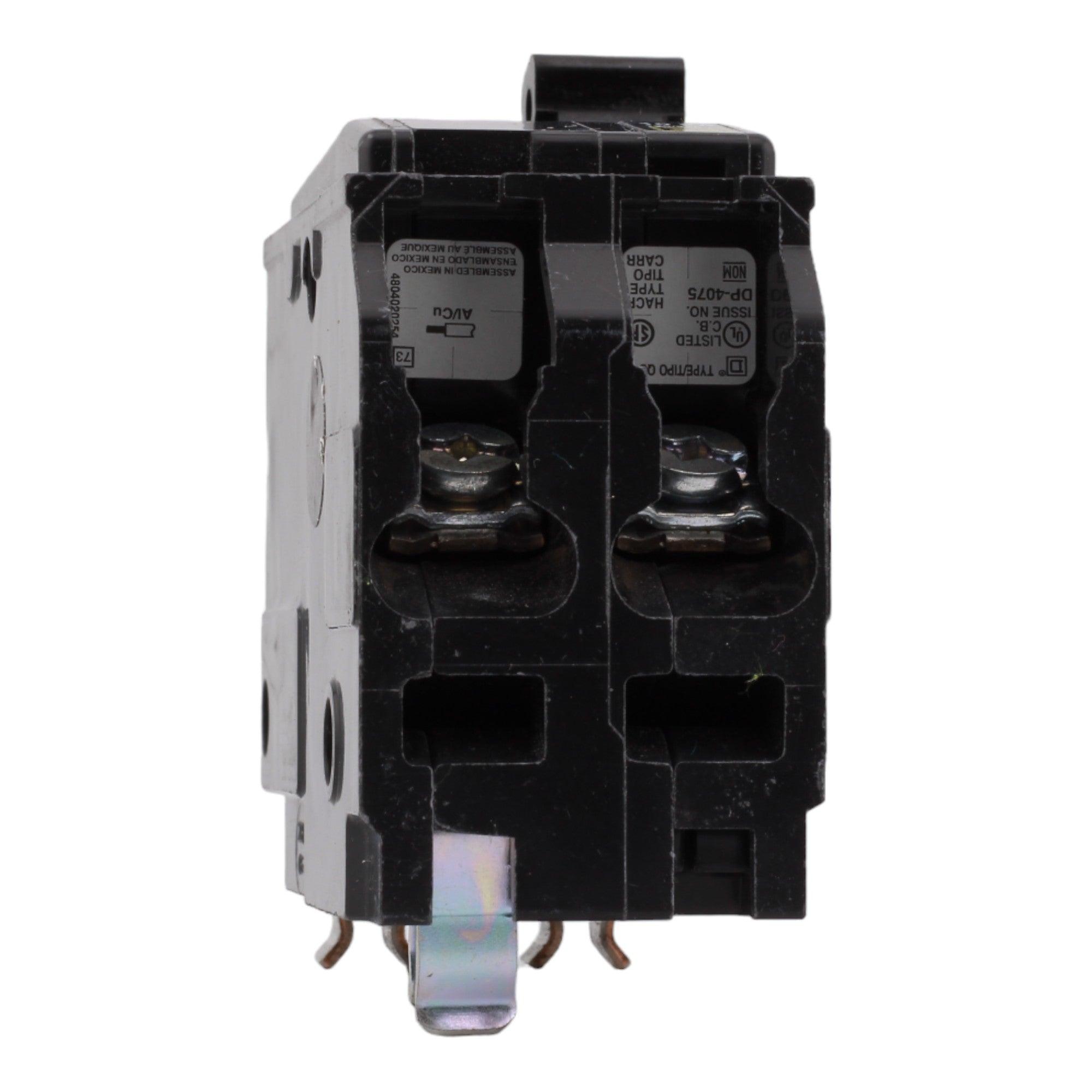

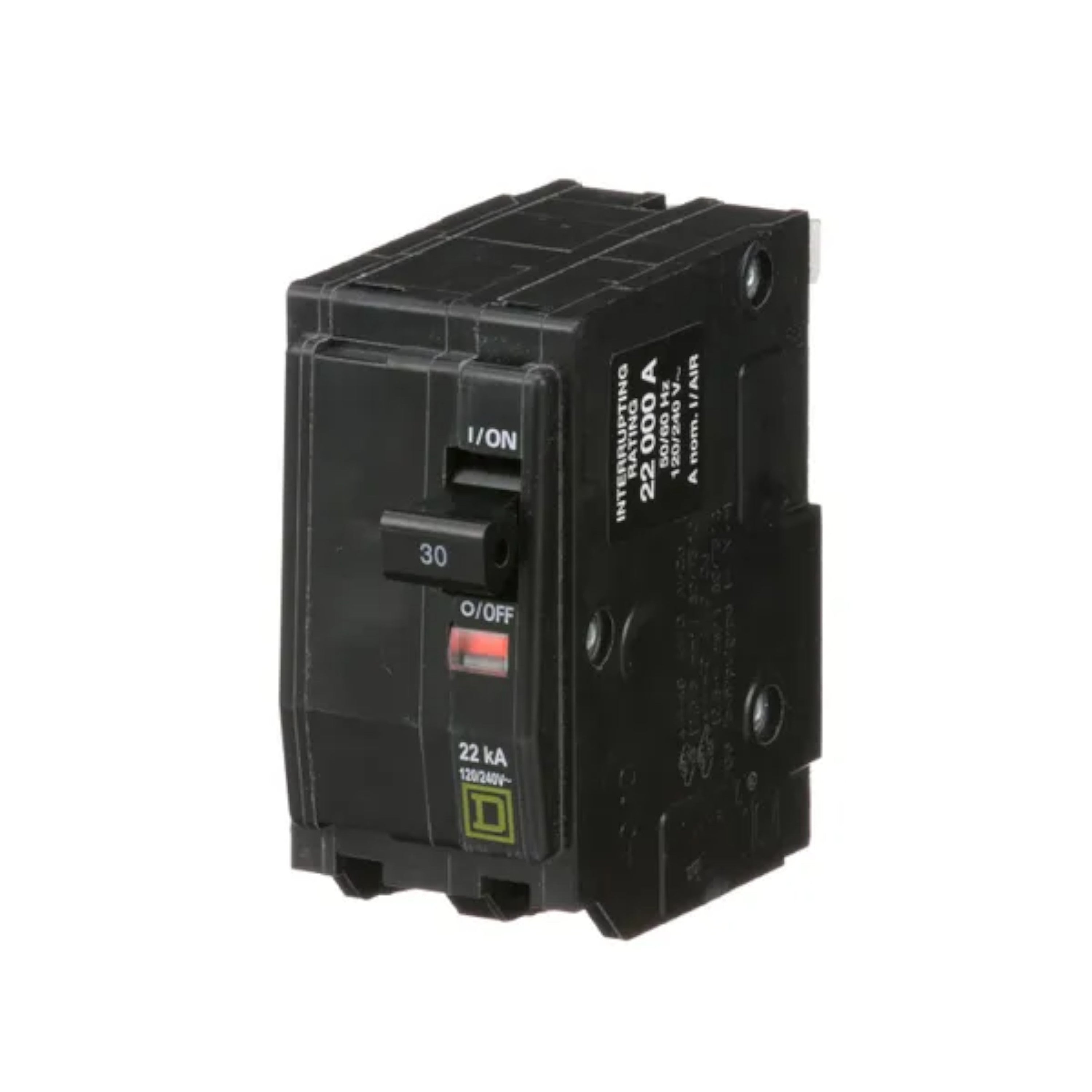

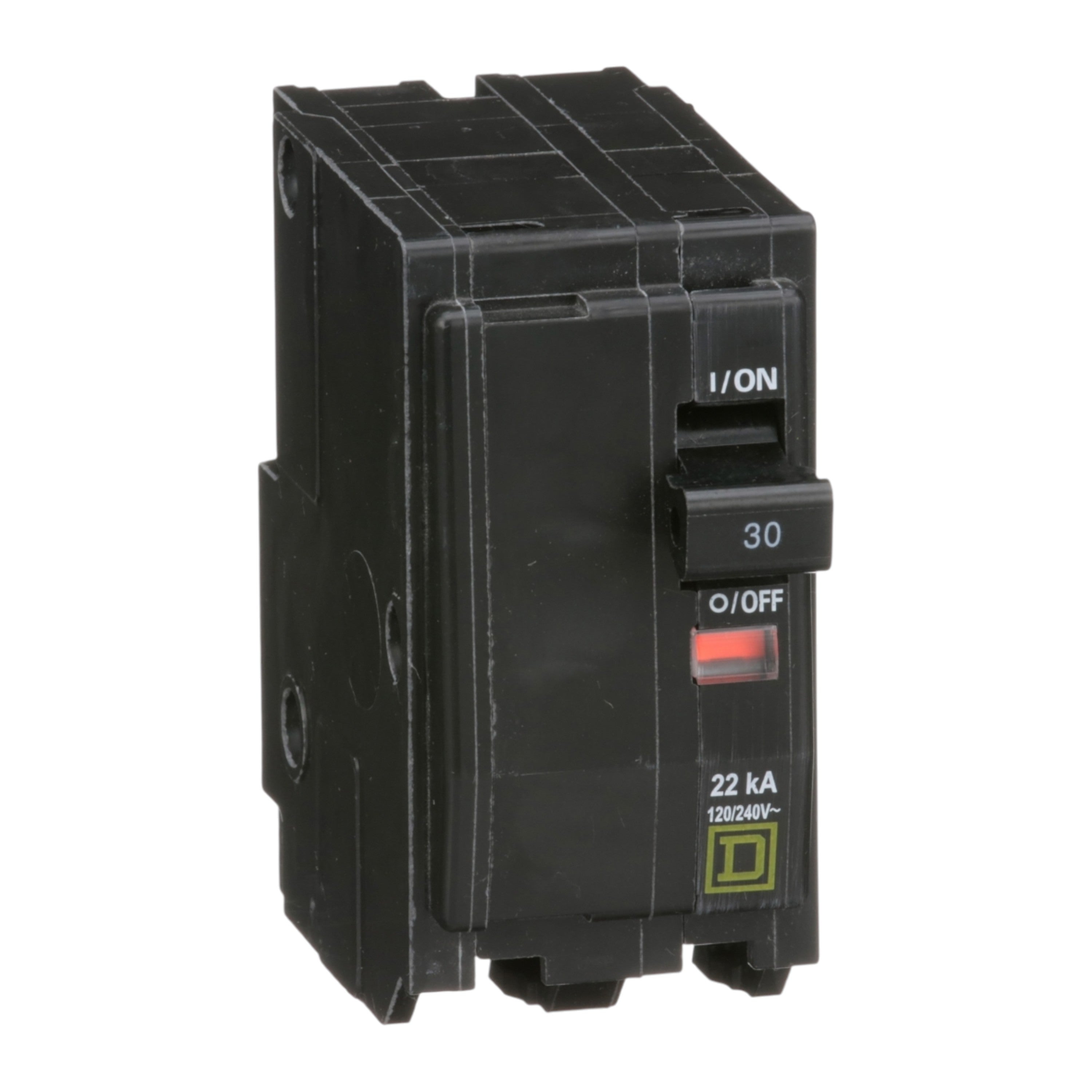

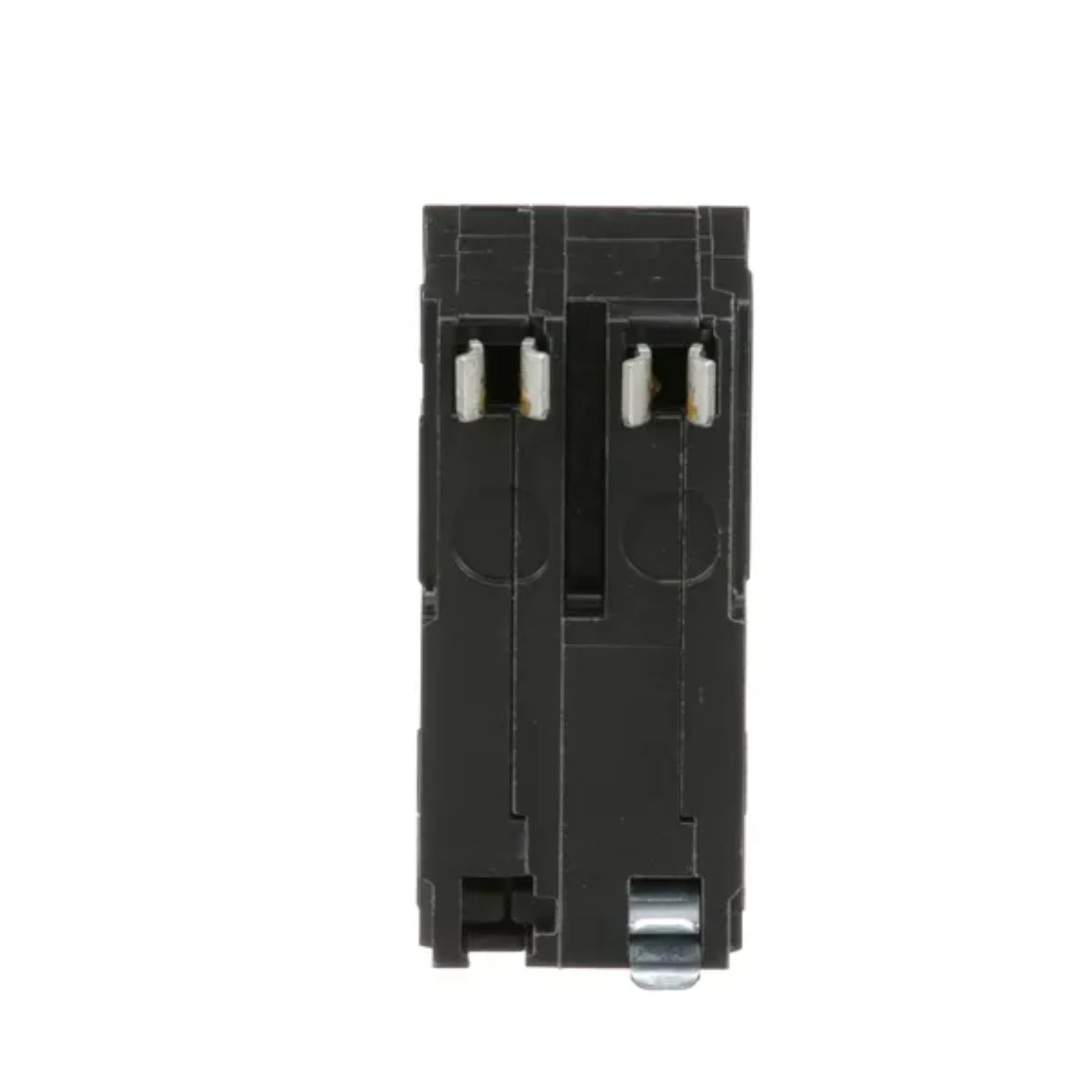

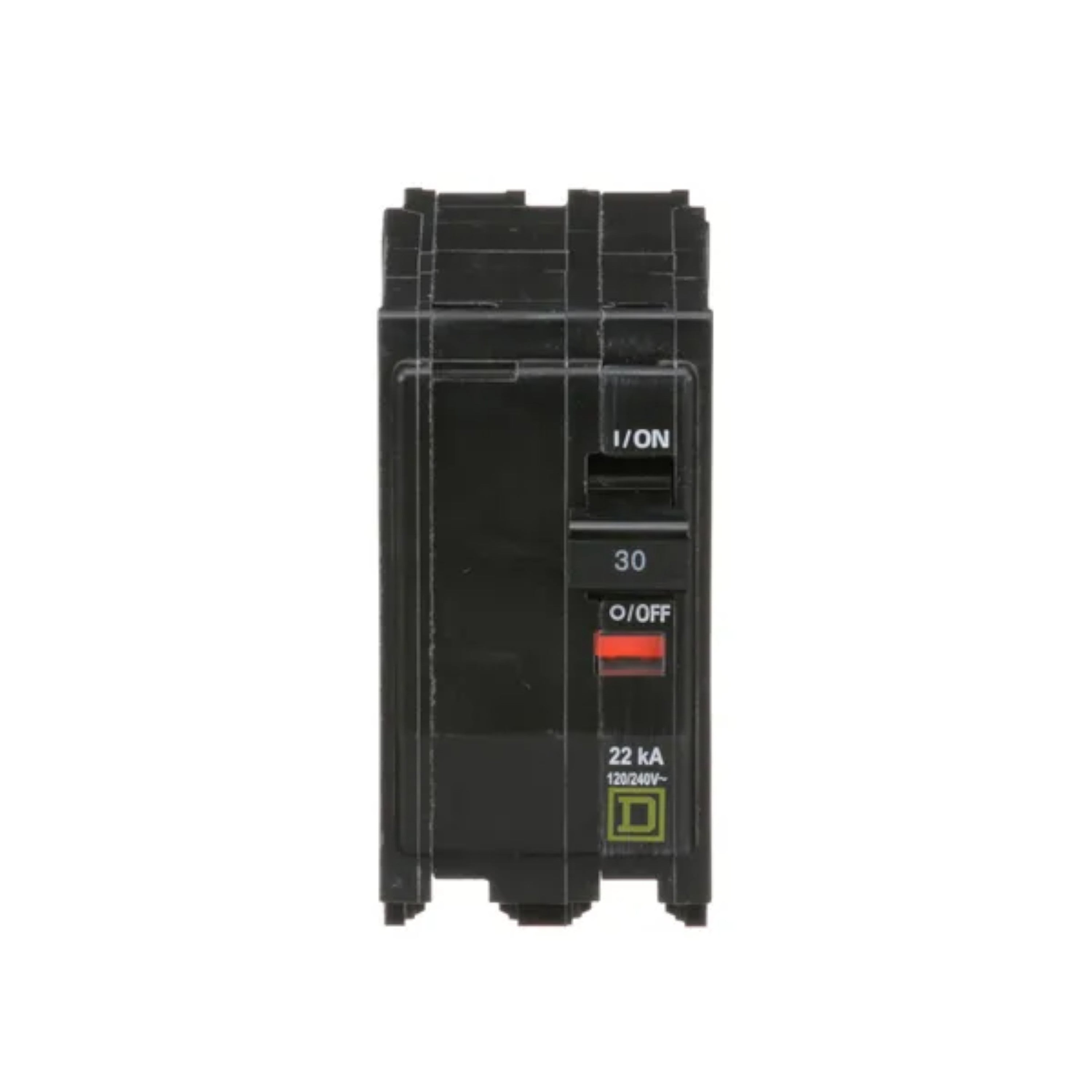

Square D QO QO230VH 30A 2P 120/240V 22kA Plug-In Circuit Breaker

Square D QO230VH: 30 Amp 2-Pole standard thermal-magnetic circuit breaker, 120/240V, 22kA, plug-in mount, UL listed.

• Manufacturer: Schneider Electric
• Brand: Square D
• Product Range: QO (for Square D QO loadcenters and equipment)
• UPC: 785901371847
• Model Number: QO230VH
• Breaker Type: Standard
• Amperage: 30 Amps
• Poles: 2-Pole
• Voltage: 120/240 Volts AC
• Interrupt Rating: 22 kAIC
• Mounting Mode: Plug-in
• Connections Terminals: Pressure plate
• Wire Size: AWG 14...AWG 8 copper or aluminium
• Tightening Torque: 40.7 lb-in
• Dimensions: Height: 3.0 in; Width: 1.5 in; Depth: 2.9 in
• Weight: 0.580 lbs
• Certifications: UL Listed, CSA

This Square D QO QO230VH plug-in circuit breaker provides reliable 30A, 2-pole thermal-magnetic protection for 120/240V circuits in QO loadcenters. With a high 22kA interrupt rating and VisiTrip indication, it delivers superior overcurrent protection and easy troubleshooting for residential and light commercial applications.
