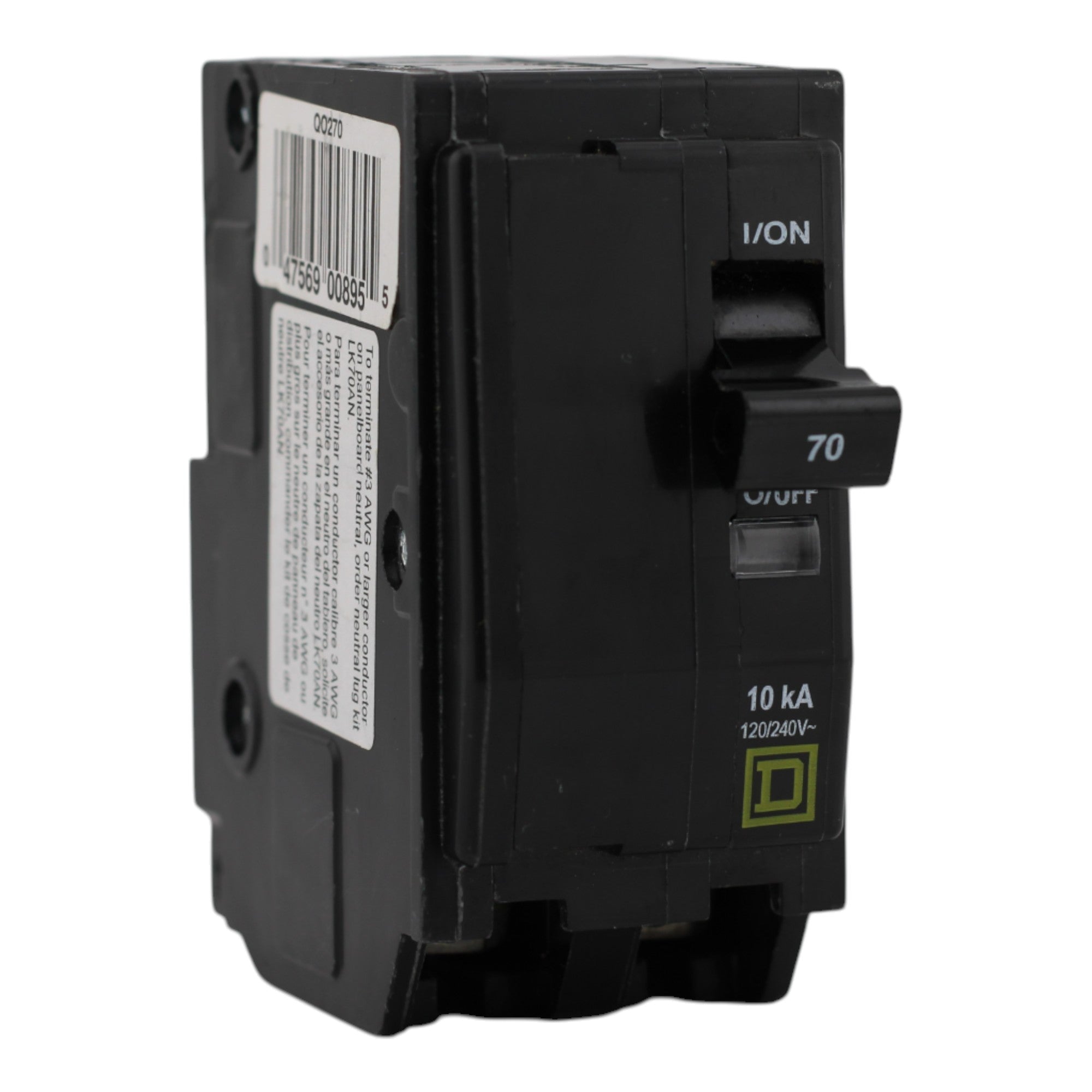

Square D QO QO270 70A 2P 120/240V Circuit Breaker

Square D QO270: 70A 2P standard breaker, 120/240V, 10kA SCCR, plug-in mount for QO panels, UL listed, CSA certified, HACR rated, VisiTrip indication.

Product Specifications

• Manufacturer: Schneider Electric
• Brand: Square D
• UPC: 785901400585
• Model Number: QO270
• Product Type: Standard Circuit Breaker
• Product Line: QO Series
• Amperage Rating: 70A
• Voltage Rating: 120/240V AC
• Number of Poles: 2-Pole
• Short Circuit Current Rating: 10 kA
• Mounting Type: Plug-in
• Connection Type: Box lugs
• Wire Size Compatibility: 8-2 AWG (copper or aluminum)
• Tightening Torque: 44.3 lbf.in (5 N.m)
• Dimensions: Height: 3.1 in; Width: 1.5 in; Depth: 2.9 in
• Weight: 0.6 lb
• Certifications: UL Listed, CSA Certified
• HACR Rated: Yes
• Features: VisiTrip trip indication
