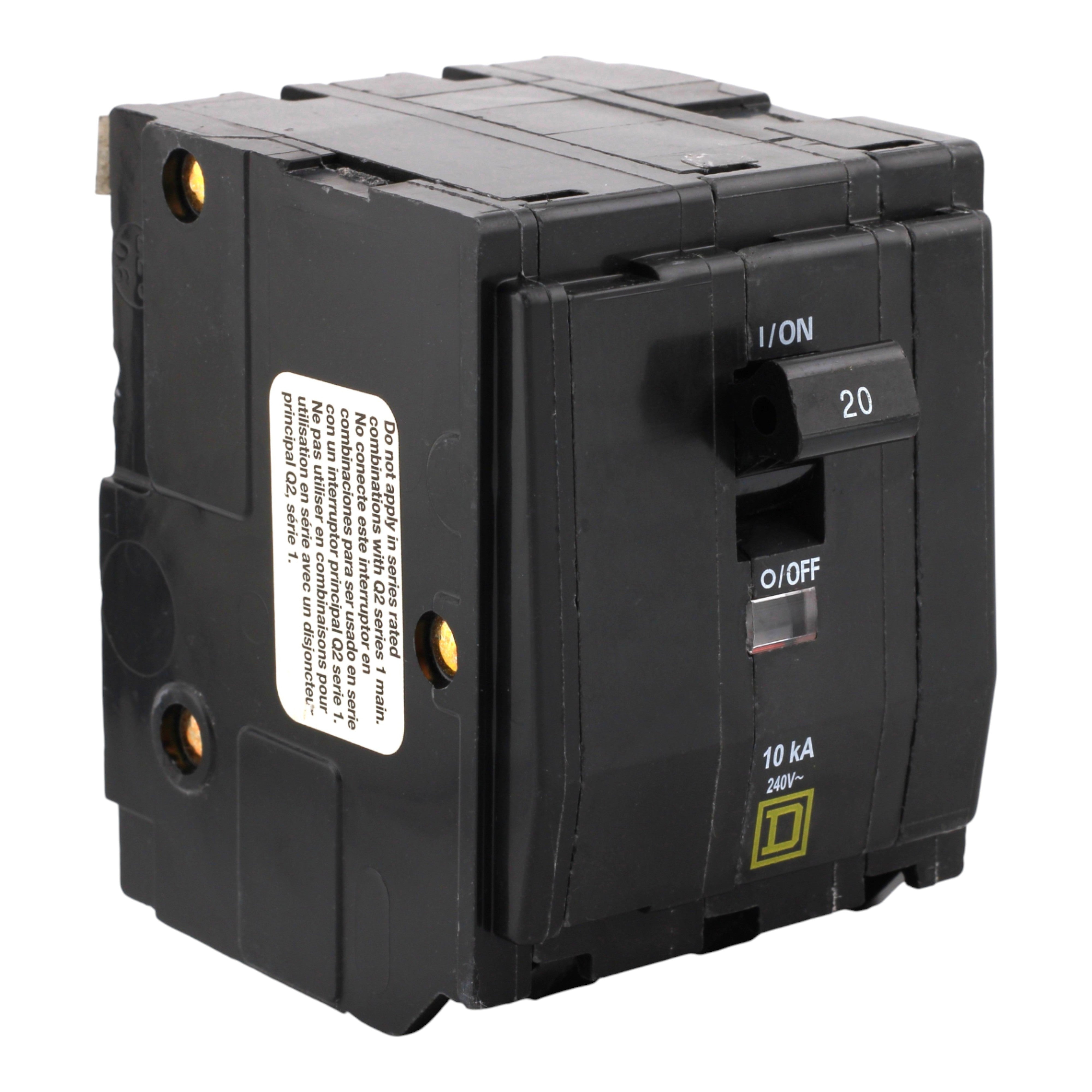

Square D QO QO320 20A 3P 120/240V Standard Plug-In Circuit Breaker

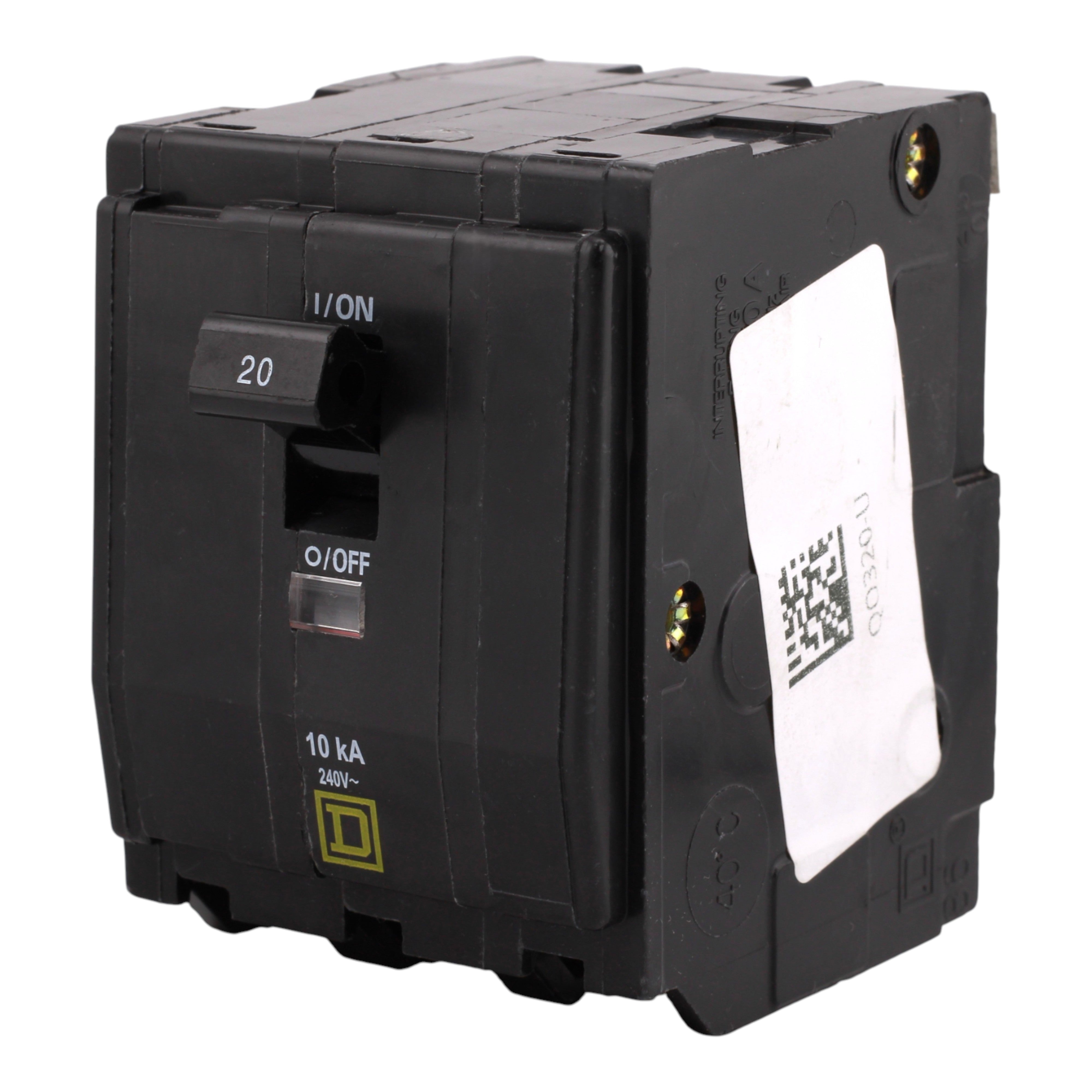

Square D QO QO320 20A 3P 120/240V Standard Plug-In Circuit Breaker - Image 2

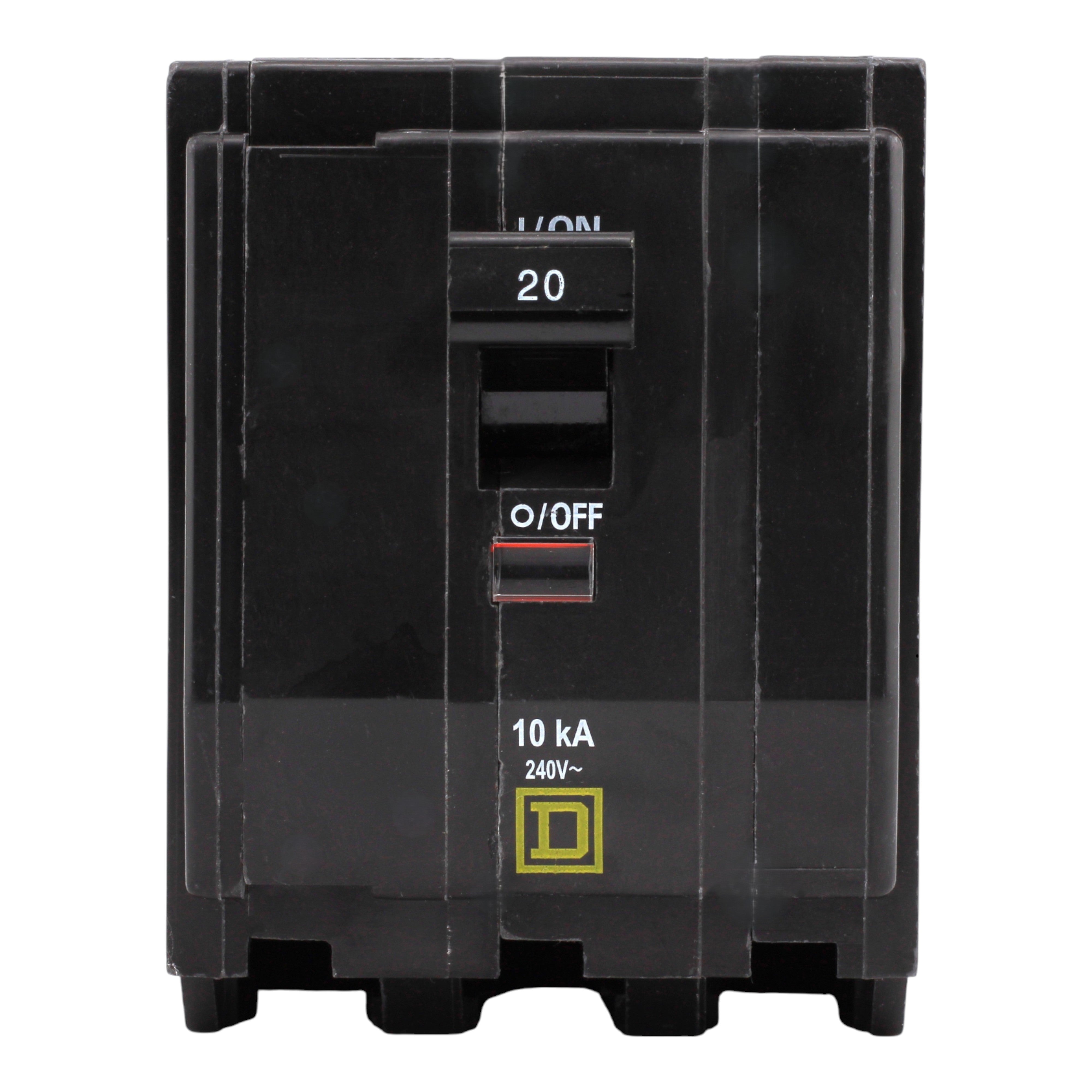

Square D QO QO320 20A 3P 120/240V Standard Plug-In Circuit Breaker - Image 3

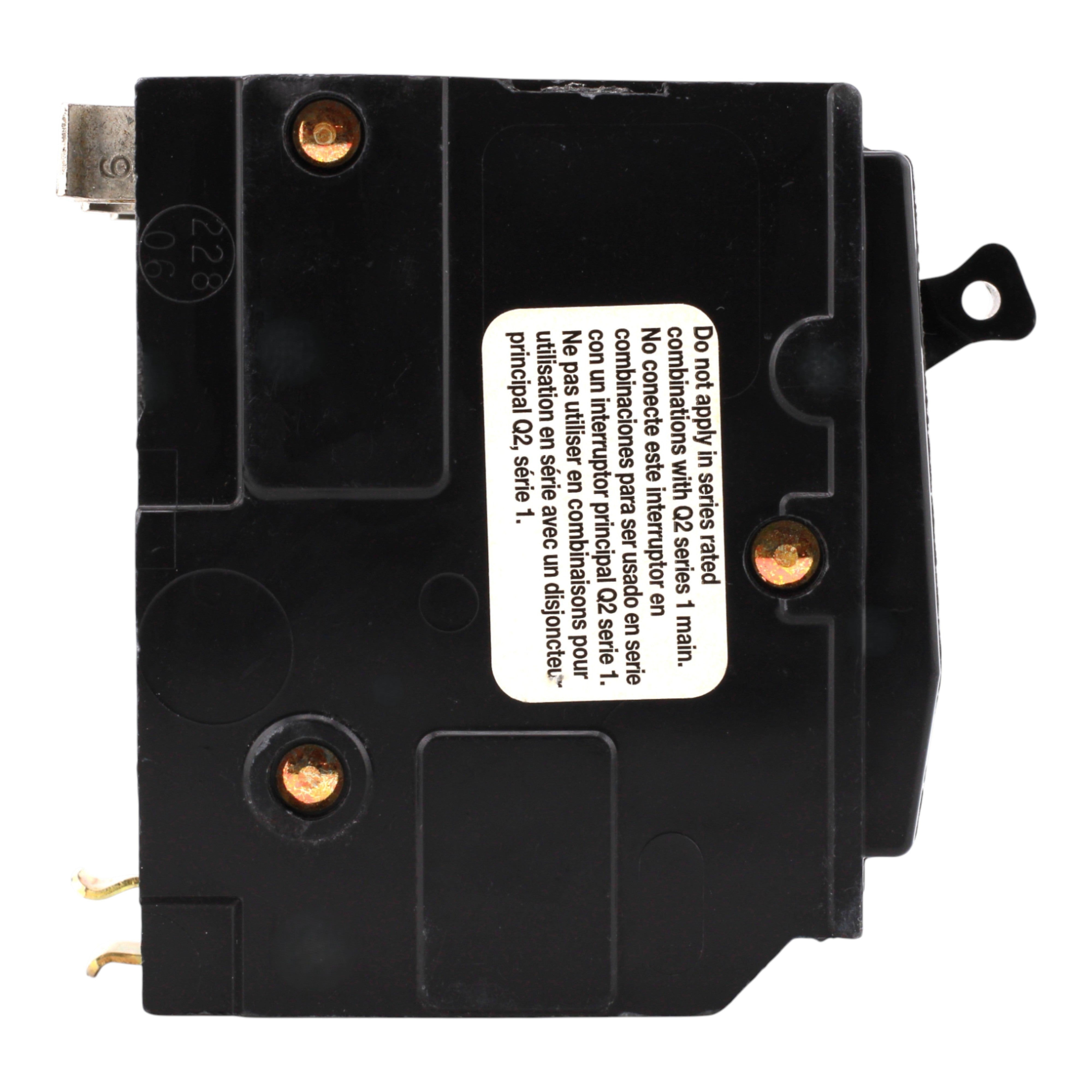

Square D QO QO320 20A 3P 120/240V Standard Plug-In Circuit Breaker - Image 4

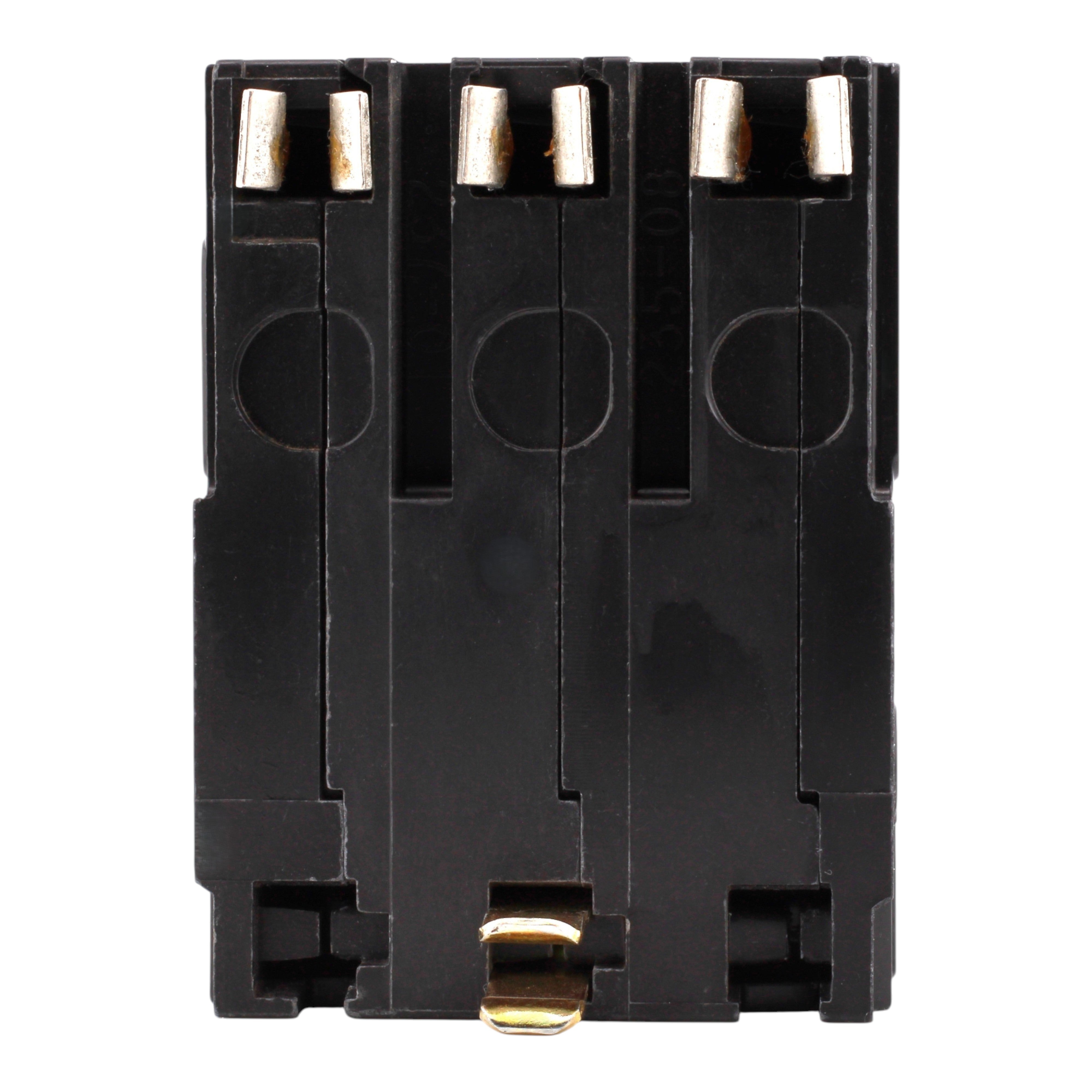

Square D QO QO320 20A 3P 120/240V Standard Plug-In Circuit Breaker - Image 5

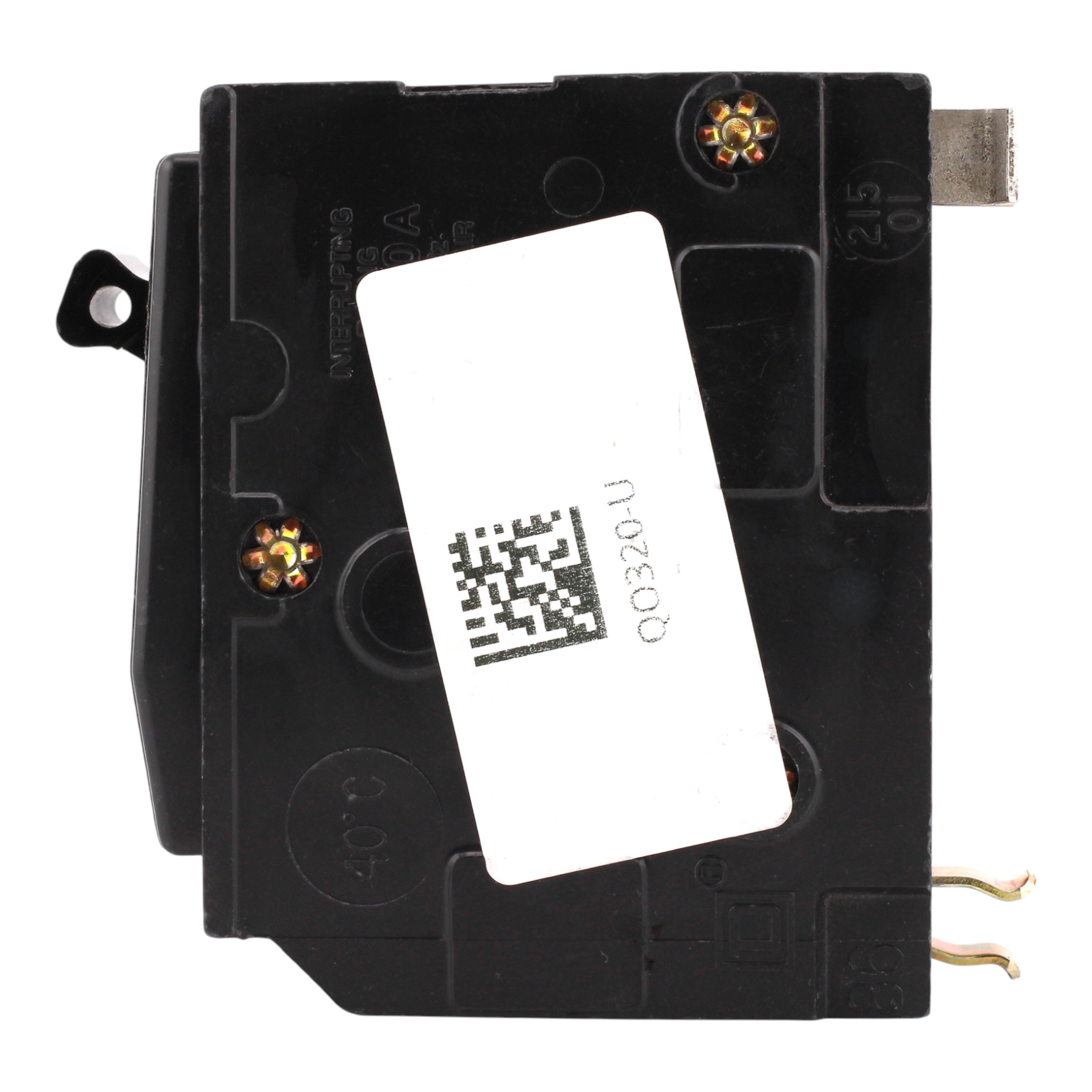

Square D QO QO320 20A 3P 120/240V Standard Plug-In Circuit Breaker - Image 6

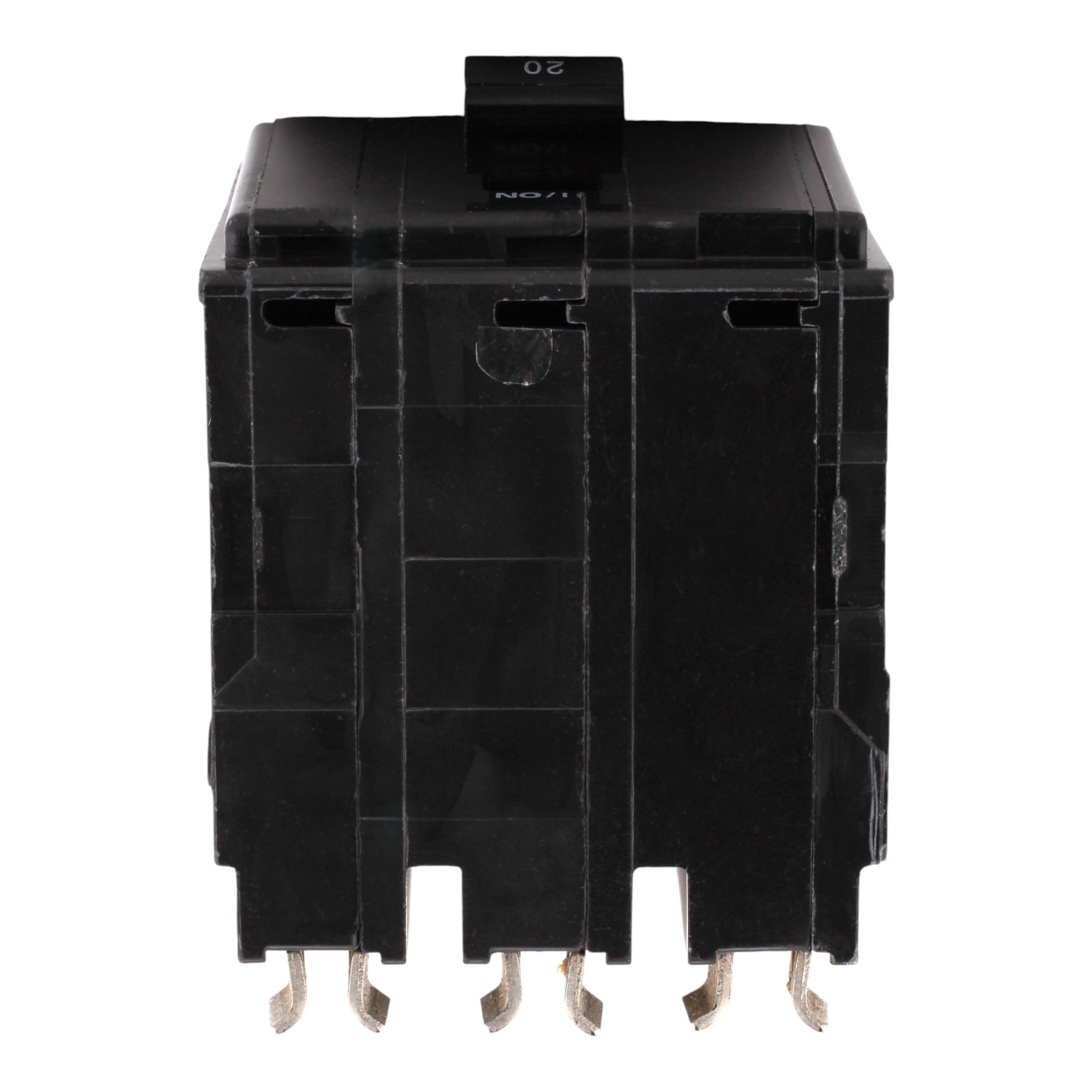

Square D QO QO320 20A 3P 120/240V Standard Plug-In Circuit Breaker - Image 7

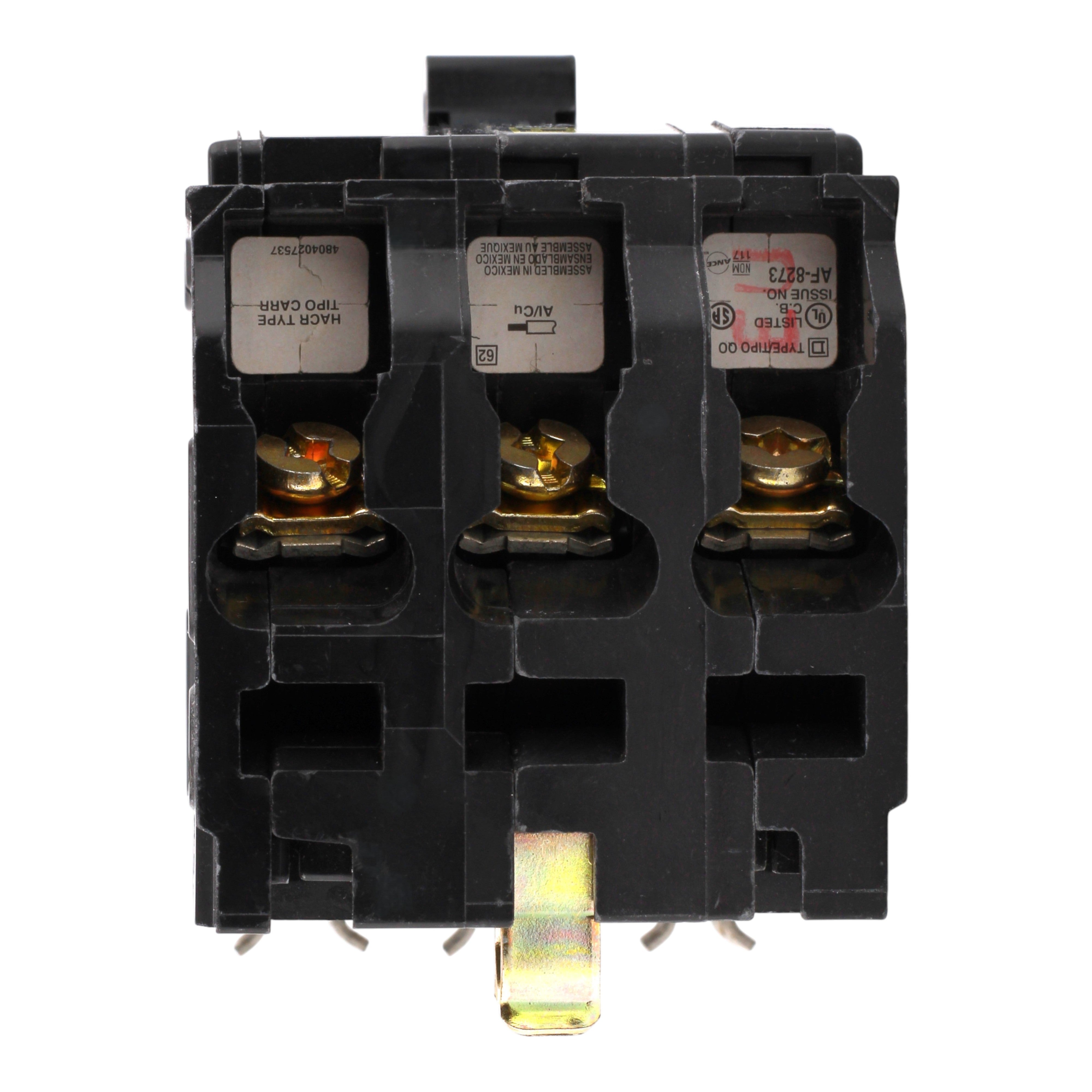

Square D QO QO320 20A 3P 120/240V Standard Plug-In Circuit Breaker - Image 8
Square D QO QO320 20A 3P 120/240V Standard Plug-In Circuit Breaker
Square D QO QO320 20A 3P 120/240V Standard Plug-In Circuit Breaker - Image 2
Square D QO QO320 20A 3P 120/240V Standard Plug-In Circuit Breaker - Image 3
Square D QO QO320 20A 3P 120/240V Standard Plug-In Circuit Breaker - Image 4
Square D QO QO320 20A 3P 120/240V Standard Plug-In Circuit Breaker - Image 5
Square D QO QO320 20A 3P 120/240V Standard Plug-In Circuit Breaker - Image 6
Square D QO QO320 20A 3P 120/240V Standard Plug-In Circuit Breaker - Image 7
Square D QO QO320 20A 3P 120/240V Standard Plug-In Circuit Breaker - Image 8

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Square D

Square D QO QO320 20A 3P 120/240V Standard Plug-In Circuit Breaker

SKU: QO320
(0)
$69.00
Out of stock
Condition

Square D QO320: 20 Amp 3-Pole Standard Circuit Breaker, 120/240V, 10kA, plug-in, UL listed, CSA certified.

  • Manufacturer: Schneider Electric
  • Brand: Square D
  • Product Range: QO (for Square D QO loadcenters and equipment)
  • UPC: 785901400684
  • Model Number: QO320
  • Breaker Type: Standard
  • Amperage: 20 Amps
  • Poles: 3-Pole
  • Voltage: 120/240 Volts AC
  • Interrupt Rating: 10 kAIC
  • Mounting Mode: Plug-in
  • Connections Terminals: Pressure plate
  • Wire Size: AWG 14...AWG 8 copper or aluminium
  • Tightening Torque: 35.4 lb-in
  • Dimensions: Height: 3.0 in; Width: 2.2 in; Depth: 2.9 in
  • Weight: 0.851 lbs
  • Certifications: UL Listed, CSA Certified, HACR Rated

This Square D QO320 plug-in circuit breaker provides reliable 20A, 3-pole protection for 120/240V circuits in QO loadcenters. With a 10kA interrupt rating and VisiTrip indication, it ensures dependable overcurrent protection and easy trip detection for residential and commercial applications.
