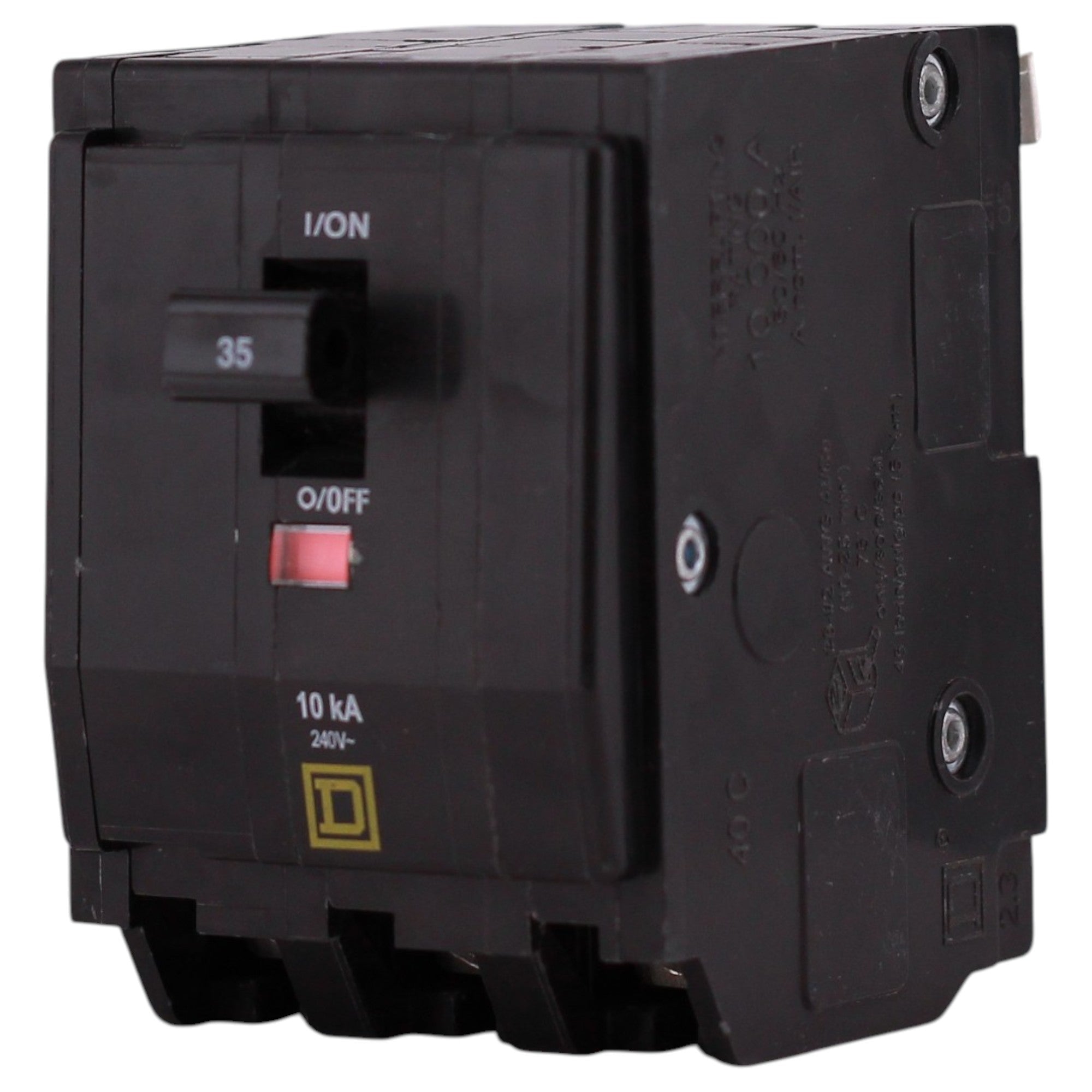

Square D QO, QO335, 35A, 3P, 120/240V, Thermal Magnetic, Plug-In, Circuit Breaker - Image 3
Square D QO, QO335, 35A, 3P, 120/240V, Thermal Magnetic, Plug-In, Circuit Breaker - Image 4
Square D QO, QO335, 35A, 3P, 120/240V, Thermal Magnetic, Plug-In, Circuit Breaker - Image 5
Square D QO, QO335, 35A, 3P, 120/240V, Thermal Magnetic, Plug-In, Circuit Breaker - Image 6
Square D QO, QO335, 35A, 3P, 120/240V, Thermal Magnetic, Plug-In, Circuit Breaker - Image 7

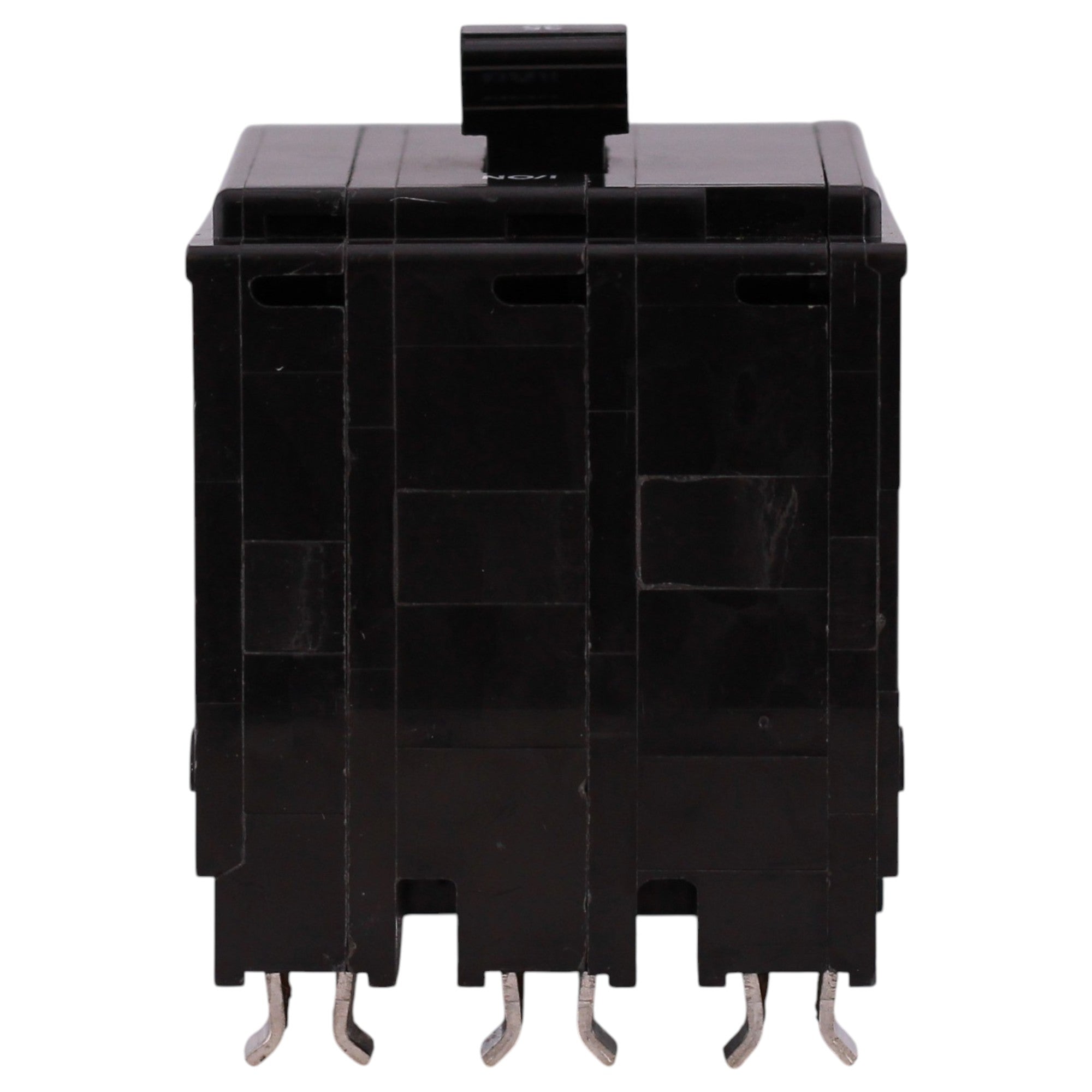

Square D QO, QO335, 35A, 3P, 120/240V, Thermal Magnetic, Plug-In, Circuit Breaker - Image 8

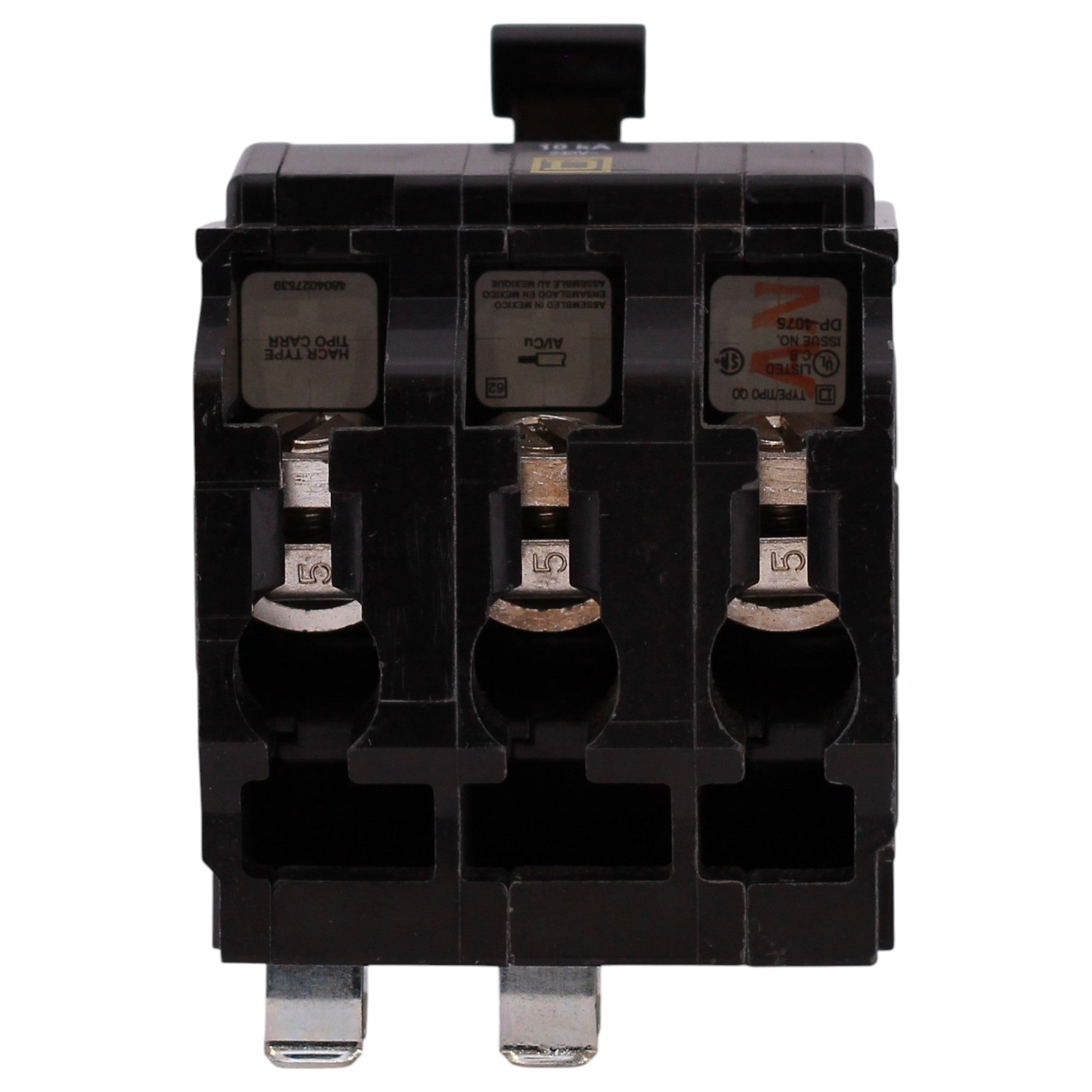

Square D QO, QO335, 35A, 3P, 120/240V, Thermal Magnetic, Plug-In, Circuit Breaker - Image 9

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Square D

Square D QO, QO335, 35A, 3P, 120/240V, Thermal Magnetic, Plug-In, Circuit Breaker

SKU: QO335
(0)
$68.50
-38% $110.00 $68.50
Out of stock
Condition

Square D QO335: 35 Amp, 3-Pole, Thermal Magnetic Circuit Breaker, 120/240V, 10kA, Plug-In, Common Trip, HACR Rated, UL Listed.

  • Manufacturer: Schneider Electric
  • Brand: Square D
  • Product Range: QO (for Square D QO load centers, NQOD panelboards, OEM interiors, and Speed-D switchboard distribution panels)
  • UPC: 785901012474
  • Model Number: QO335
  • Breaker Type: Thermal Magnetic Circuit Breaker, Common Trip
  • Amperage: 35 Amps
  • Poles: 3-Pole
  • Phase: 3-Phase
  • Voltage: 120/240 Volts AC; 48 Volts DC
  • Interrupt Rating: 10 kAIC @ 120/240VAC; 5 kAIC @ 48VDC
  • Mounting Mode: Plug-in
  • Wire Size: #8–2 AWG Cu/Al; (2) #14–10 AWG Cu
  • Dimensions: Height: 3.00 in; Width: 2.25 in; Depth: 2.91 in
  • Certifications: UL Listed, CSA Certified, HACR Rated
  • Weight: 0.82 lbs

This Square D QO335 thermal magnetic circuit breaker delivers dependable 35 Amp, 3-Pole protection for 120/240V, 3-phase circuits in Square D QO load centers, NQOD panelboards, and Speed-D switchboard distribution panels. With 10kAIC interrupt rating, Visi-Trip indicator, and common trip, it supports residential, commercial, and light industrial distribution applications.
