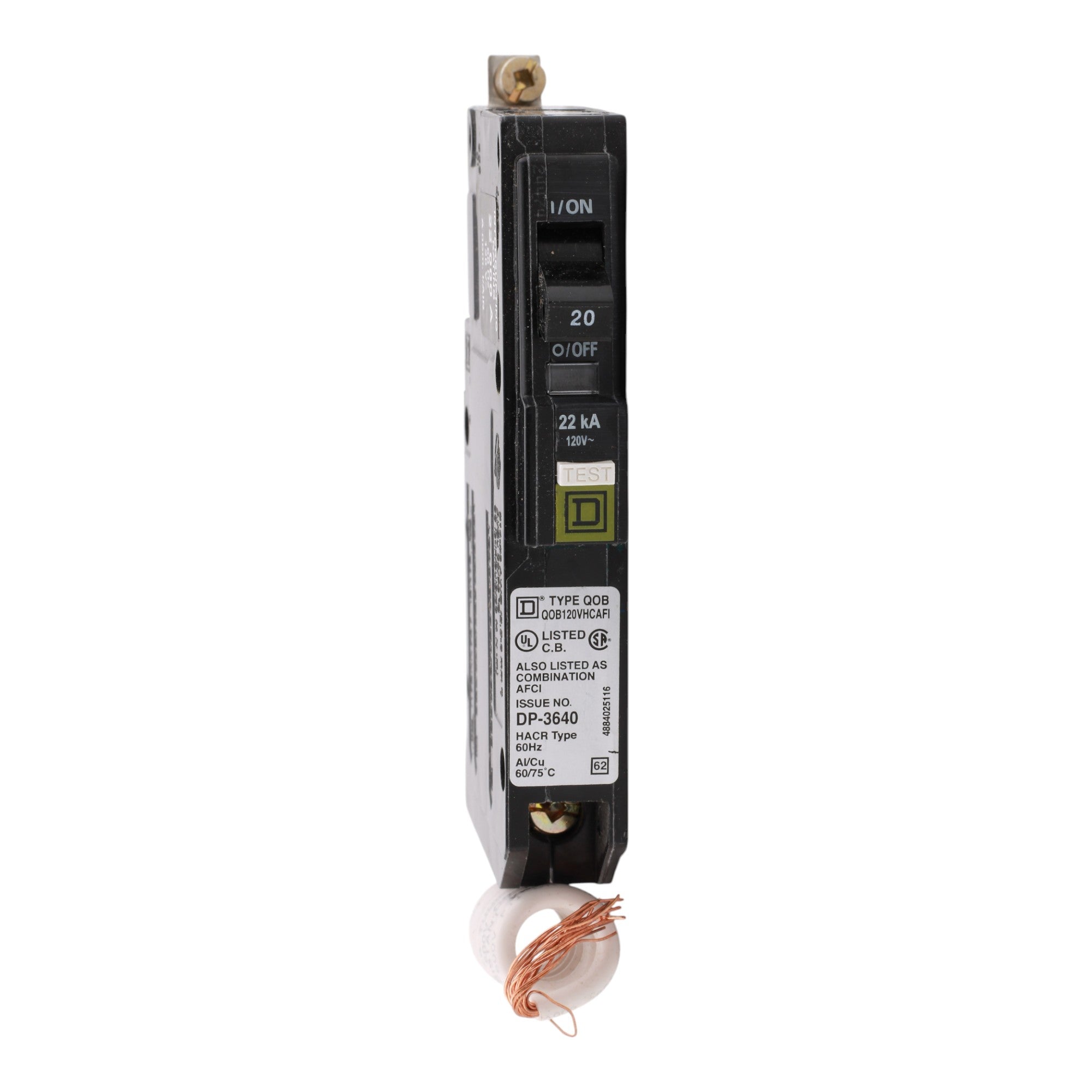

Square D QO QOB120VHCAFI 20A 1P 120V CAFI Circuit Breaker
Square D QO QOB120VHCAFI 20A 1P 120V CAFI Circuit Breaker - Image 2
Square D QO QOB120VHCAFI 20A 1P 120V CAFI Circuit Breaker - Image 3
Square D QO QOB120VHCAFI 20A 1P 120V CAFI Circuit Breaker - Image 4
Square D QO QOB120VHCAFI 20A 1P 120V CAFI Circuit Breaker - Image 5
Square D QO QOB120VHCAFI 20A 1P 120V CAFI Circuit Breaker - Image 6
Square D QO QOB120VHCAFI 20A 1P 120V CAFI Circuit Breaker
Square D QO QOB120VHCAFI 20A 1P 120V CAFI Circuit Breaker - Image 2
Square D QO QOB120VHCAFI 20A 1P 120V CAFI Circuit Breaker - Image 3
Square D QO QOB120VHCAFI 20A 1P 120V CAFI Circuit Breaker - Image 4
Square D QO QOB120VHCAFI 20A 1P 120V CAFI Circuit Breaker - Image 5
Square D QO QOB120VHCAFI 20A 1P 120V CAFI Circuit Breaker - Image 6

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Square D

Square D QO QOB120VHCAFI 20A 1P 120V CAFI Circuit Breaker

Out of stock
SKU: QOB120VHCAFI UPC: 785901677918
(0)
$55.00
-8% $60.00 $55.00
Out of stock
Condition

Square D QOB120VHCAFI: 20A 1P CAFI breaker, 120V, 22kA SCCR, bolt-on mount for QO panels, pigtail neutral connection, UL/CSA listed, HACR rated.

Manufacturer: Schneider Electric
Brand: Square D
UPC: 785901677918
Model Number: QOB120VHCAFI

Circuit Breaker Type: Combination Arc Fault (CAFI)
Amperage Rating: 20 Amps
Voltage Rating: 120V AC
Interrupt Rating: 22kA
Number of Poles: 1-Pole
Mounting Type: Bolt-on
Number of Panel Spaces Required: 1
Connection Type: Pressure Plate with Pigtail Neutral
Certifications: UL Listed, CSA Certified
HACR Rated: Yes
Wire Size Compatibility: 14-8 AWG Copper, 12-8 AWG Aluminum
Dimensions: Height: 4.8 in; Width: 0.7 in; Depth: 2.9 in
Weight: 0.56 lbs
Ambient Temperature Rating: 104°F (40°C) Maximum

There is a $15 charge for delivery under $250 orders. Additional charges will be imposed by our couriers for delivery to remote areas, a surcharge may be levied to cover carriage to these areas.

Warranty Coverage

We stand behind every product we sell. Coverage depends on the condition of the item at time of purchase:

  • New: 12-month warranty
  • New Open Box: 10-month warranty
  • Reconditioned: 90-day warranty

Warranty coverage begins on the date of delivery and covers manufacturing and functional defects under normal use. It does not cover damage from misuse, improper installation, or unauthorized repair. To make a warranty claim, contact us at support@breakersmart.com with your order number and a description of the issue.
