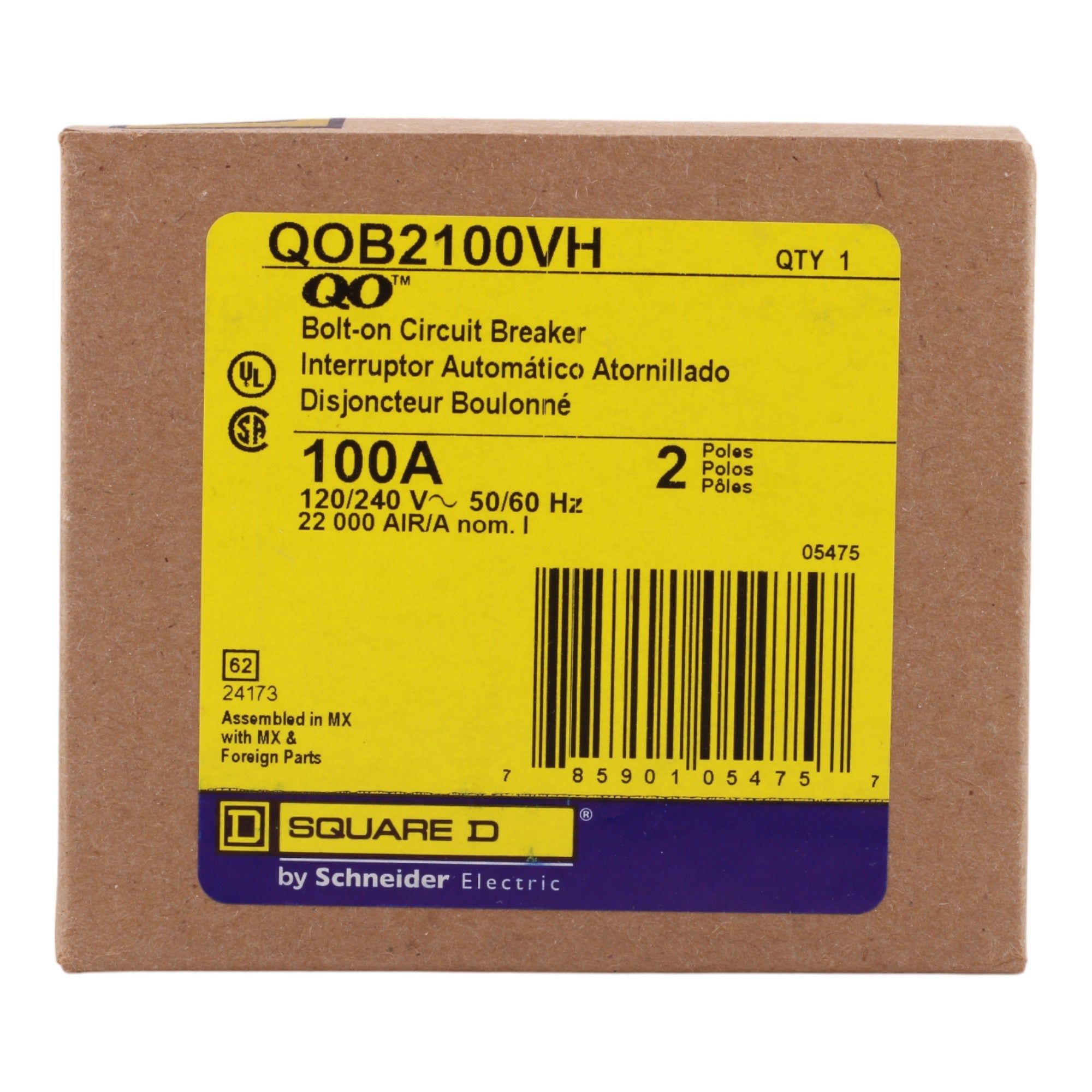

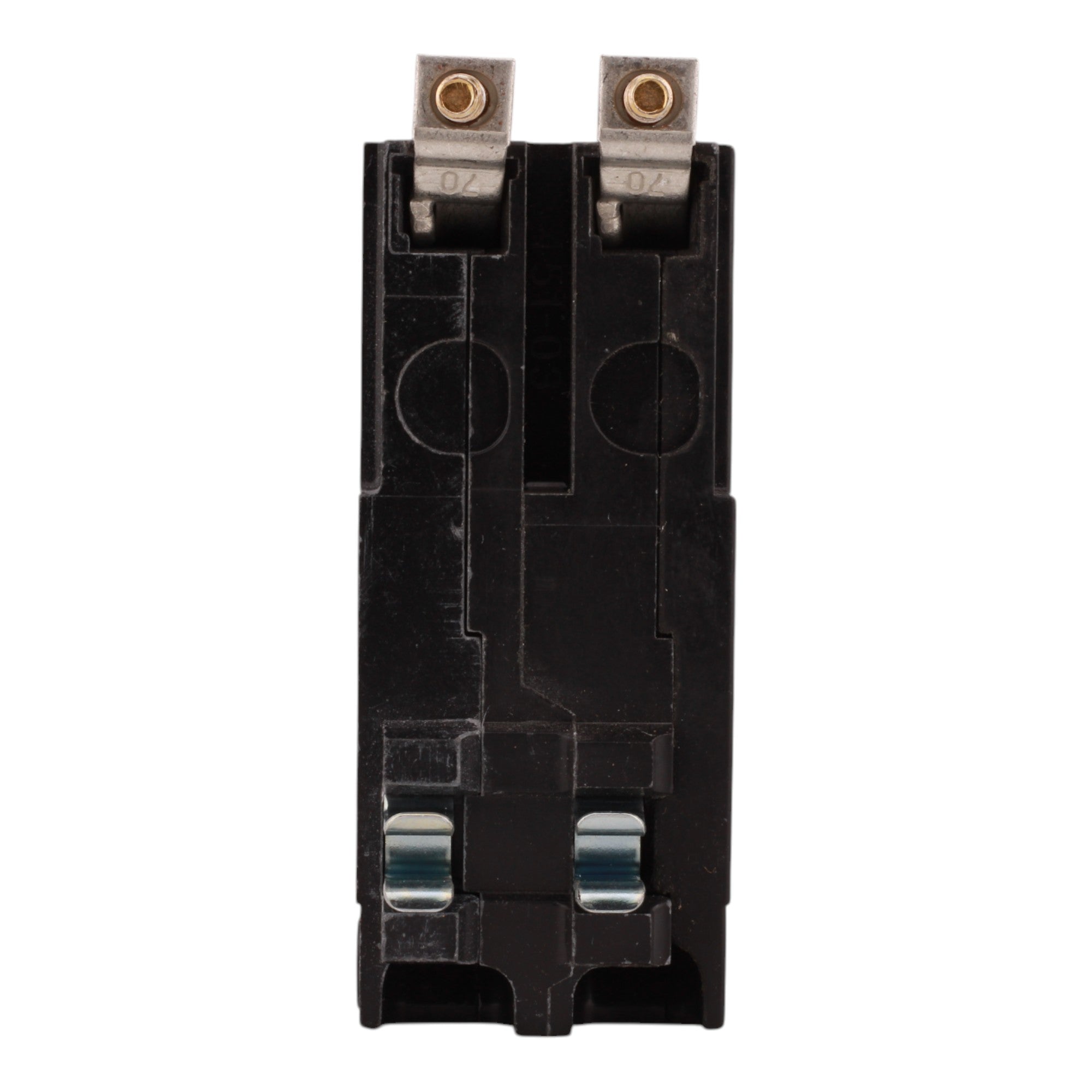

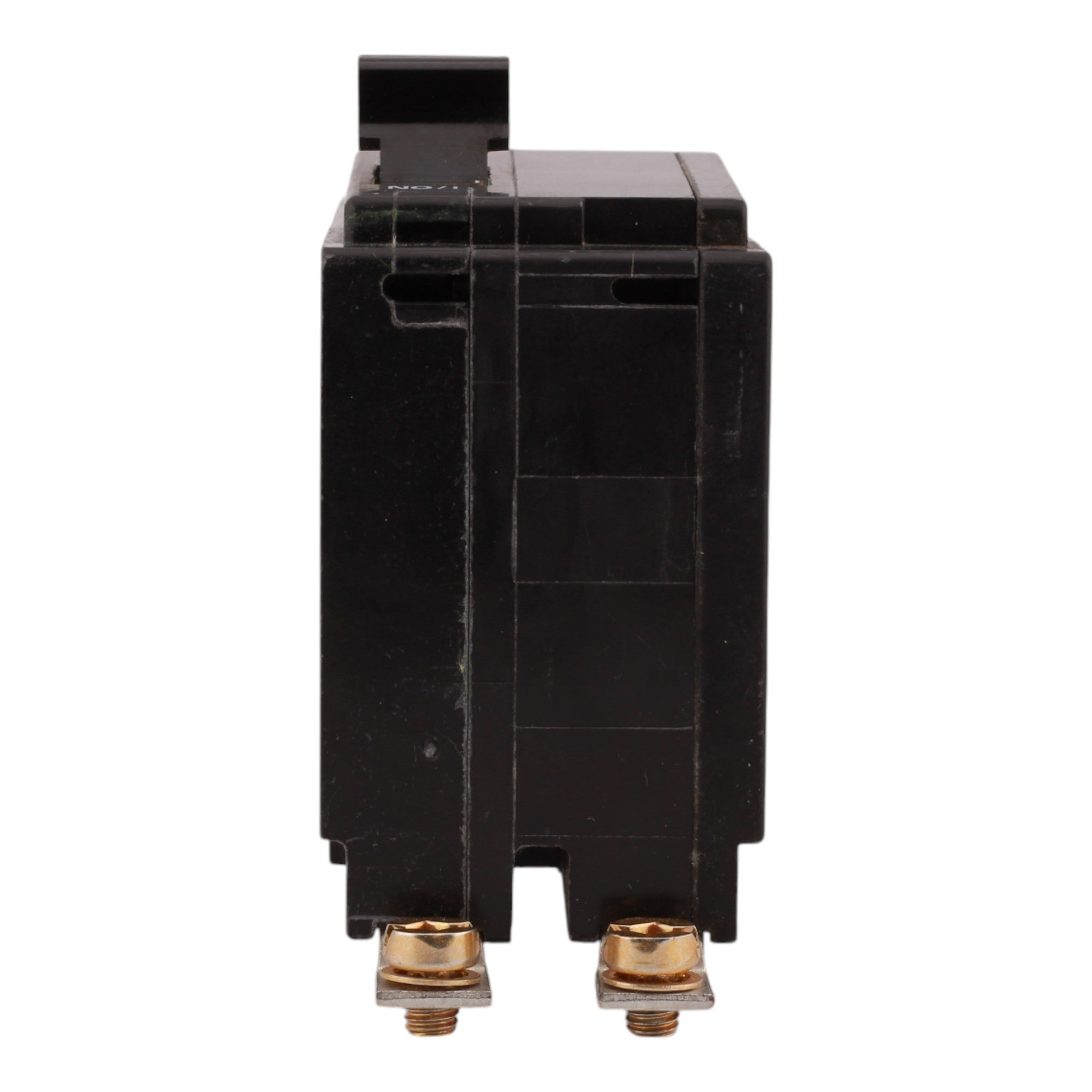

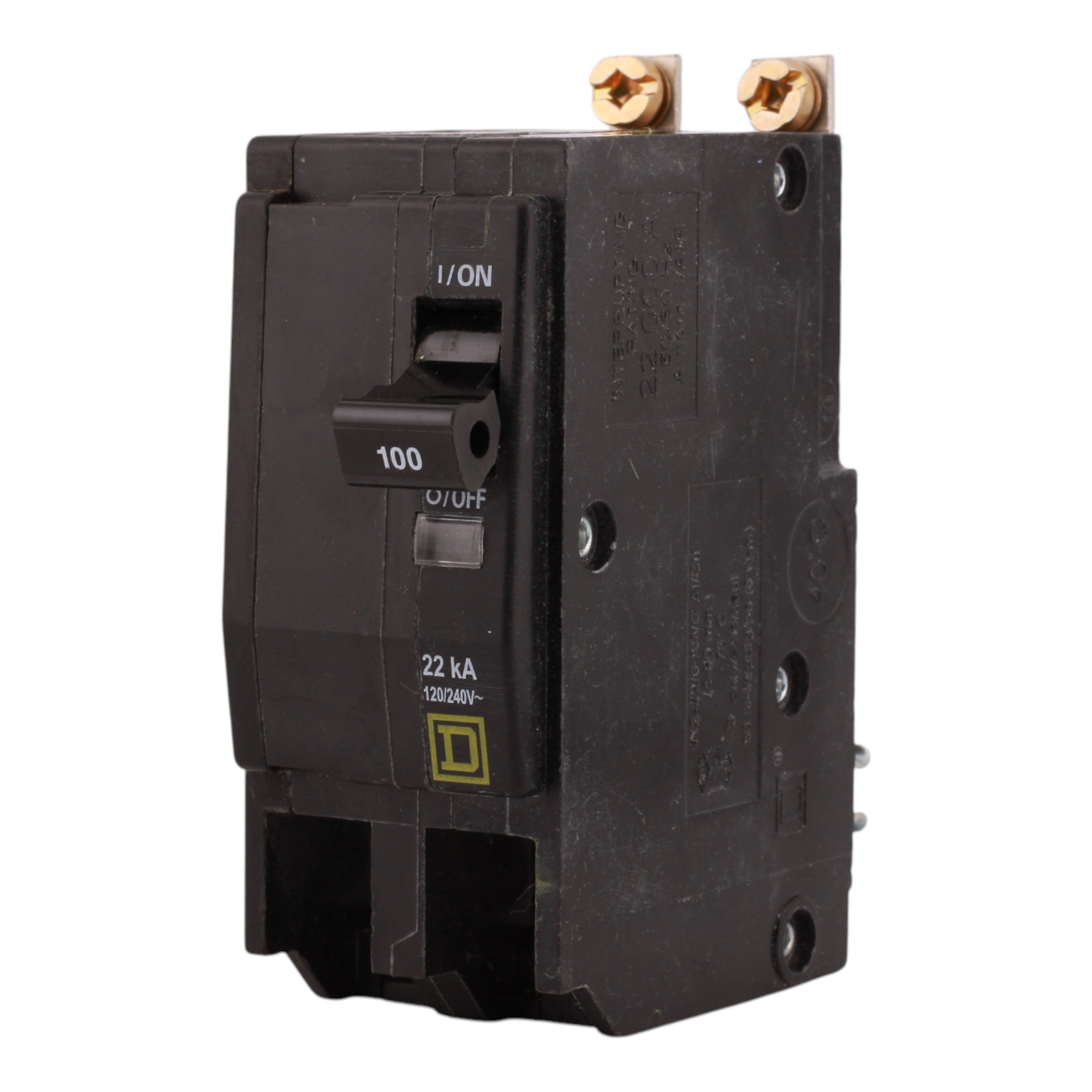

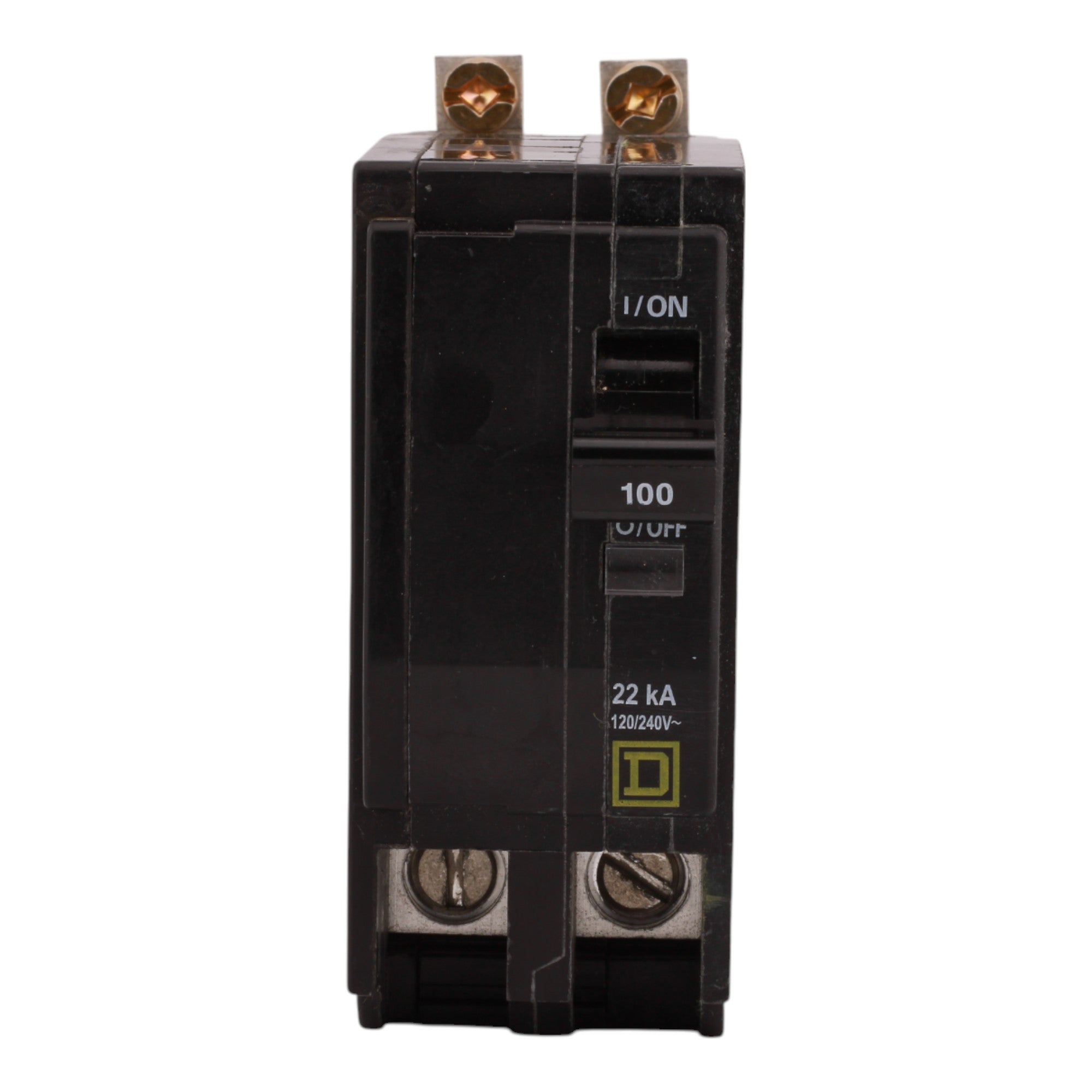

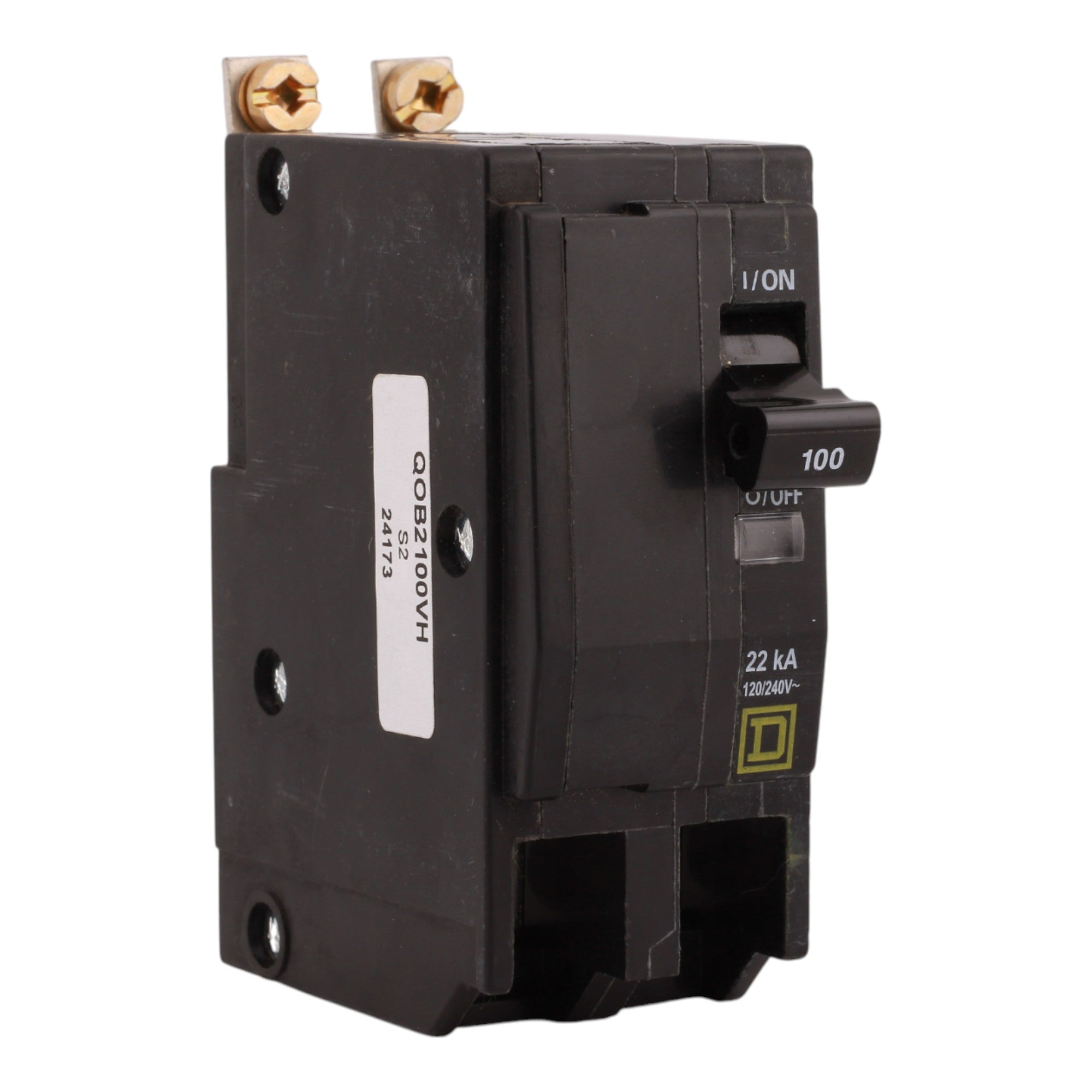

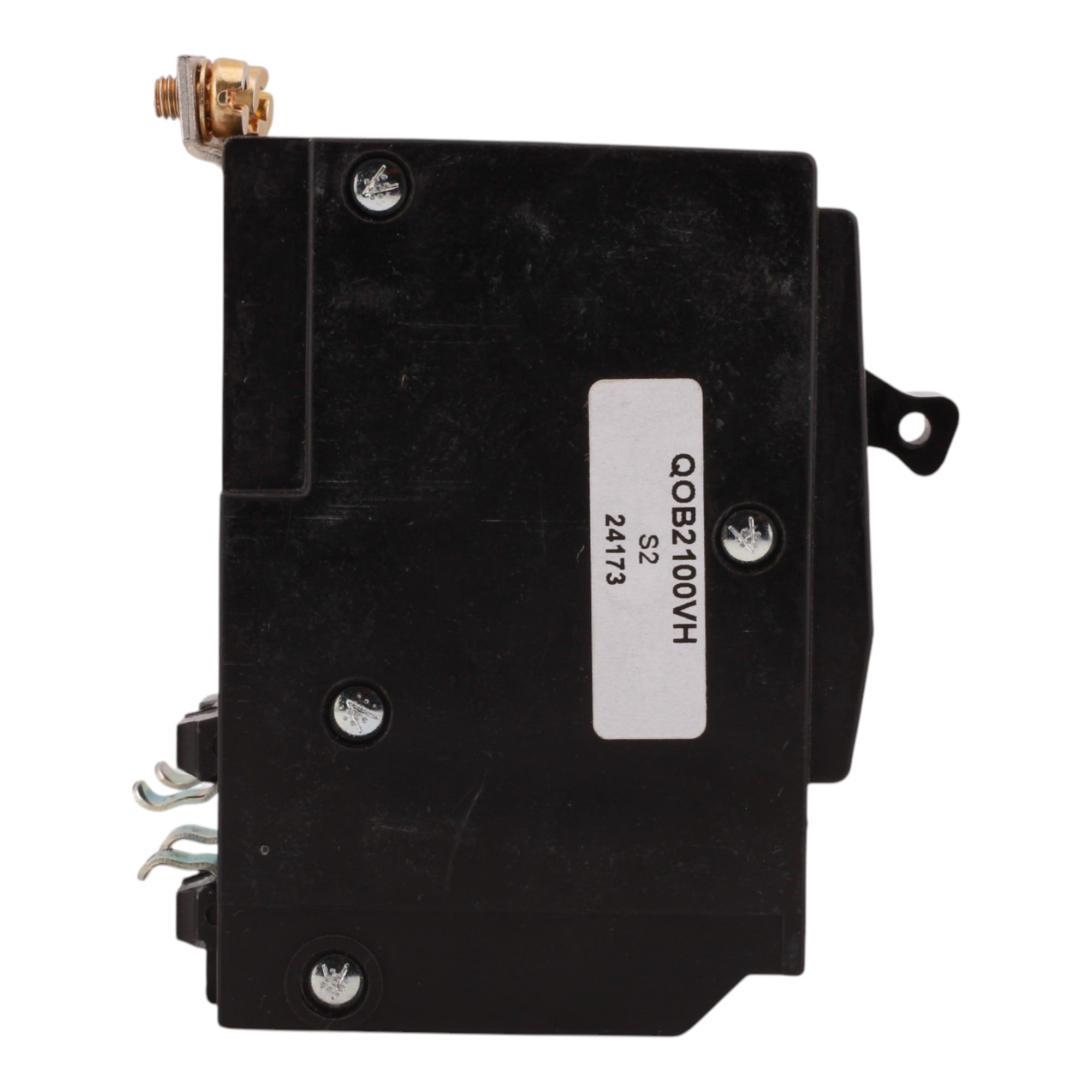

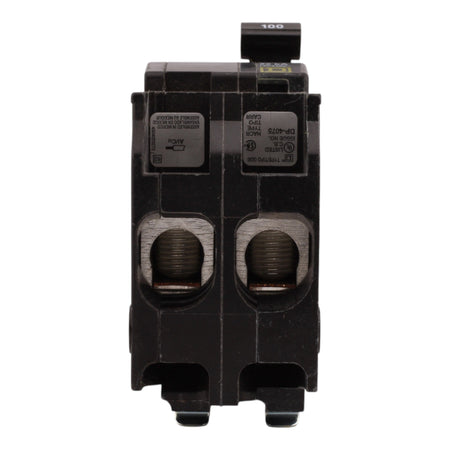

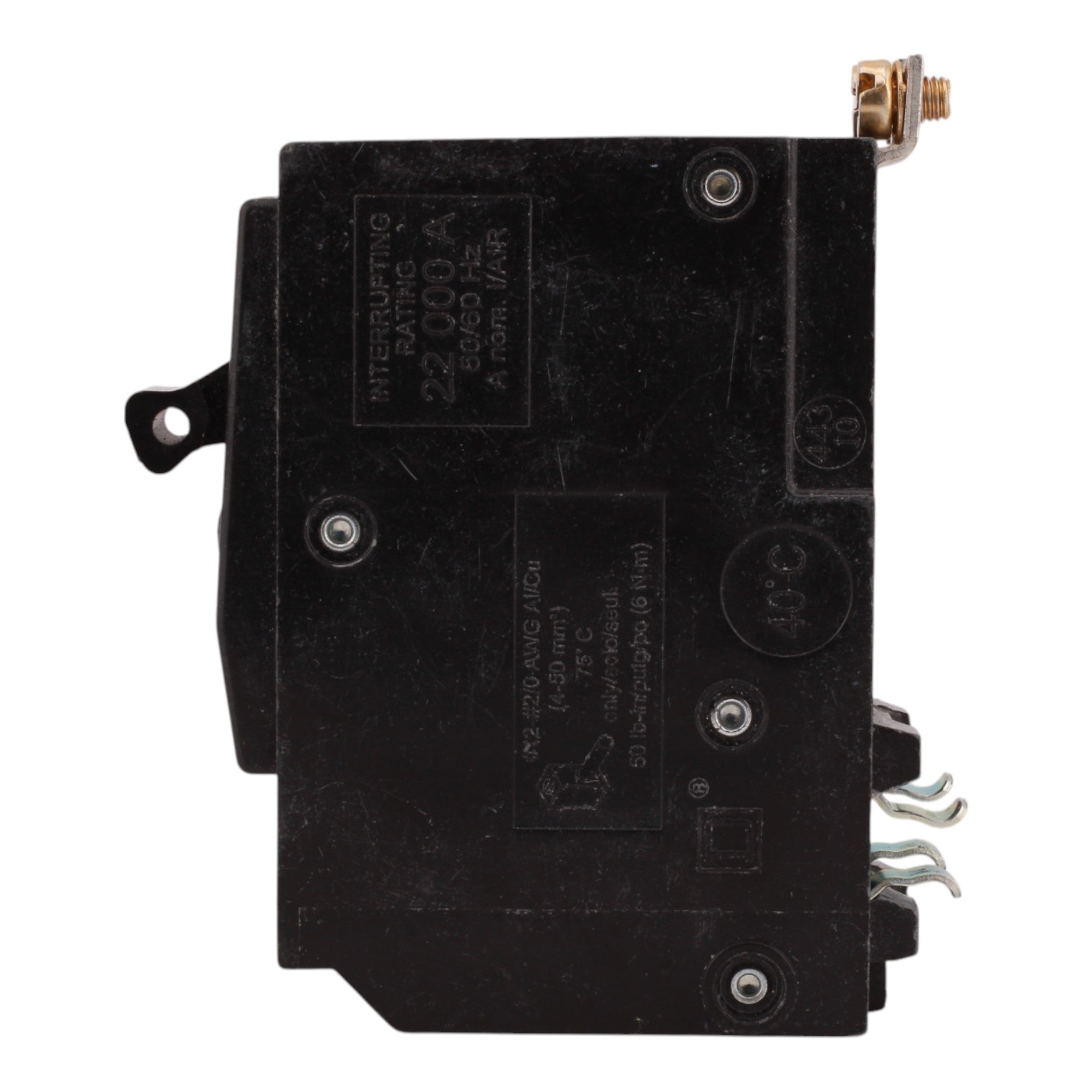

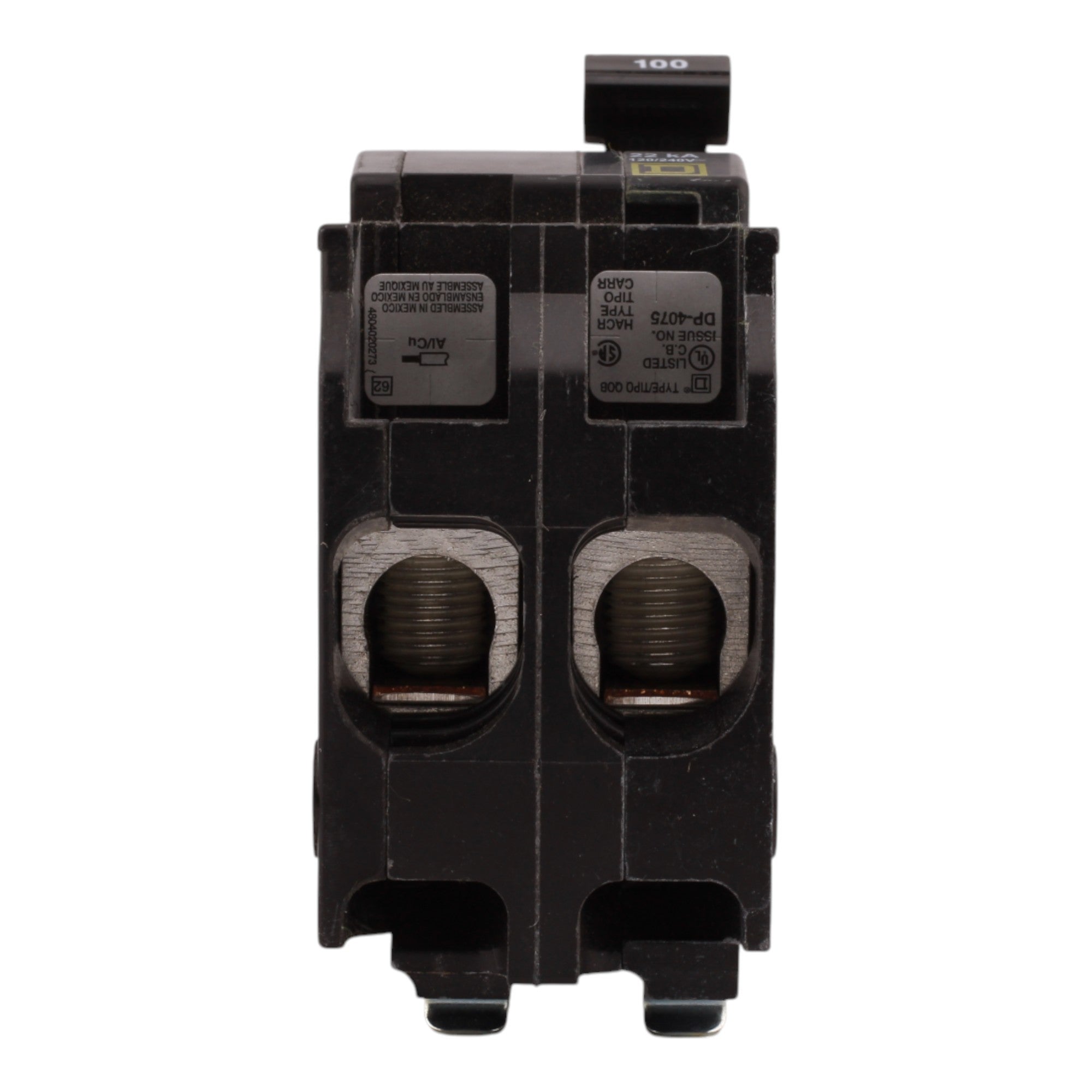

Square D QO QOB2100VH 100A 2P 120/240V Circuit Breaker

Square D QOB2100VH: 100 Amp 2-Pole Standard Circuit Breaker, 120/240V, 22kA interrupt rating, bolt-on mounting, box lugs, UL and CSA listed.

Product Specifications

• Manufacturer: Schneider Electric
• Brand: Square D
• Range: QO Series
• UPC: 785901054757
• Model Number: QOB2100VH
• Breaker Type: Standard (Thermal Magnetic)
• Amperage: 100 Amps
• Poles: 2-Pole
• Voltage: 120/240 Volts AC
• Interrupt Rating: 22kA
• Mounting Mode: Bolt-On
• Connections Terminals: Box lugs
• Wire Size: AWG 4 to AWG 2/0 (copper or aluminum)
• Tightening Torque: 49.6 lbf.in (5.6 N.m)
• Dimensions: Height: 3.5 in; Width: 1.5 in; Depth: 2.9 in
• Weight: 0.750 lbs
• Certifications: UL Listed, CSA Certified
• Special Features: VisiTrip trip indication, HACR rated

There is a $15 charge for delivery under $250 orders. Additional charges will be imposed by our couriers for delivery to remote areas, a surcharge may be levied to cover carriage to these areas.

Warranty Coverage

We stand behind every product we sell. Coverage depends on the condition of the item at time of purchase:

• New: 12-month warranty
• New Open Box: 10-month warranty
• Reconditioned: 90-day warranty

Warranty coverage begins on the date of delivery and covers manufacturing and functional defects under normal use. It does not cover damage from misuse, improper installation, or unauthorized repair. To make a warranty claim, contact us at support@breakersmart.com with your order number and a description of the issue.
