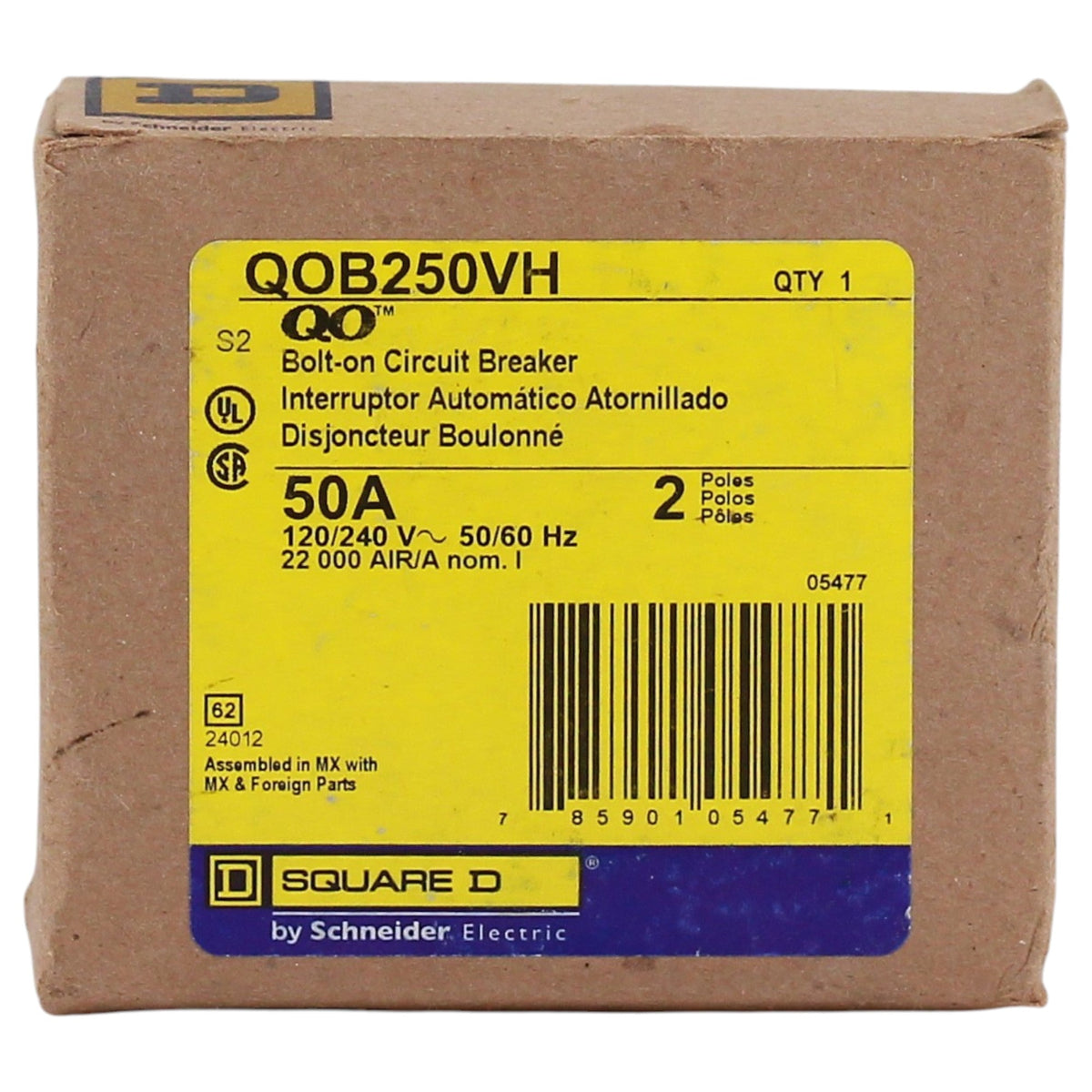

Square D QO, QOB250VH, 50A, 2P, 120/240V, Thermal Magnetic, Bolt-On, Circuit Breaker - Image 2

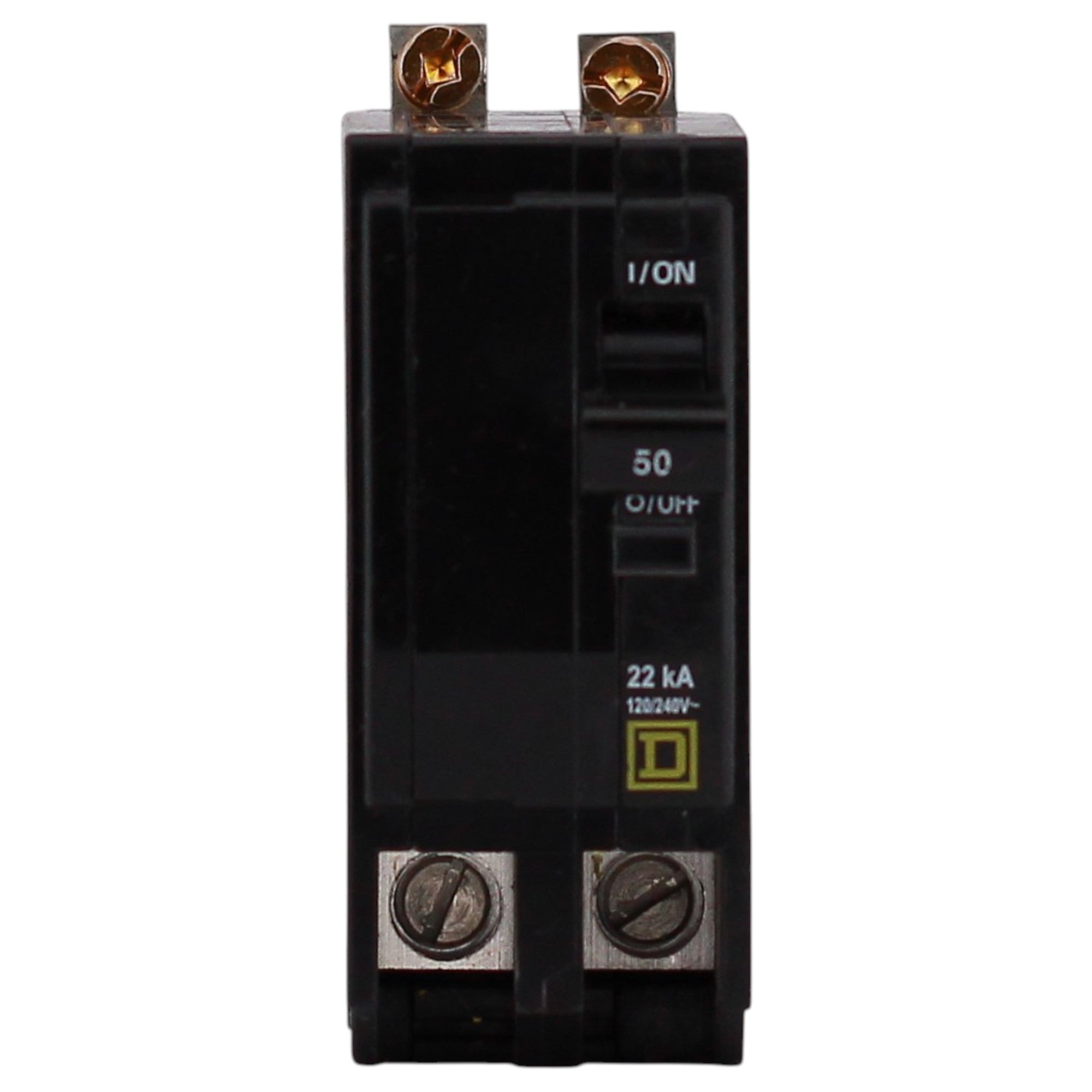

Square D QO, QOB250VH, 50A, 2P, 120/240V, Thermal Magnetic, Bolt-On, Circuit Breaker - Image 3
Square D QO, QOB250VH, 50A, 2P, 120/240V, Thermal Magnetic, Bolt-On, Circuit Breaker - Image 4
Square D QO, QOB250VH, 50A, 2P, 120/240V, Thermal Magnetic, Bolt-On, Circuit Breaker - Image 5
Square D QO, QOB250VH, 50A, 2P, 120/240V, Thermal Magnetic, Bolt-On, Circuit Breaker - Image 6
Square D QO, QOB250VH, 50A, 2P, 120/240V, Thermal Magnetic, Bolt-On, Circuit Breaker - Image 7
Square D QO, QOB250VH, 50A, 2P, 120/240V, Thermal Magnetic, Bolt-On, Circuit Breaker - Image 8
Square D QO, QOB250VH, 50A, 2P, 120/240V, Thermal Magnetic, Bolt-On, Circuit Breaker - Image 9

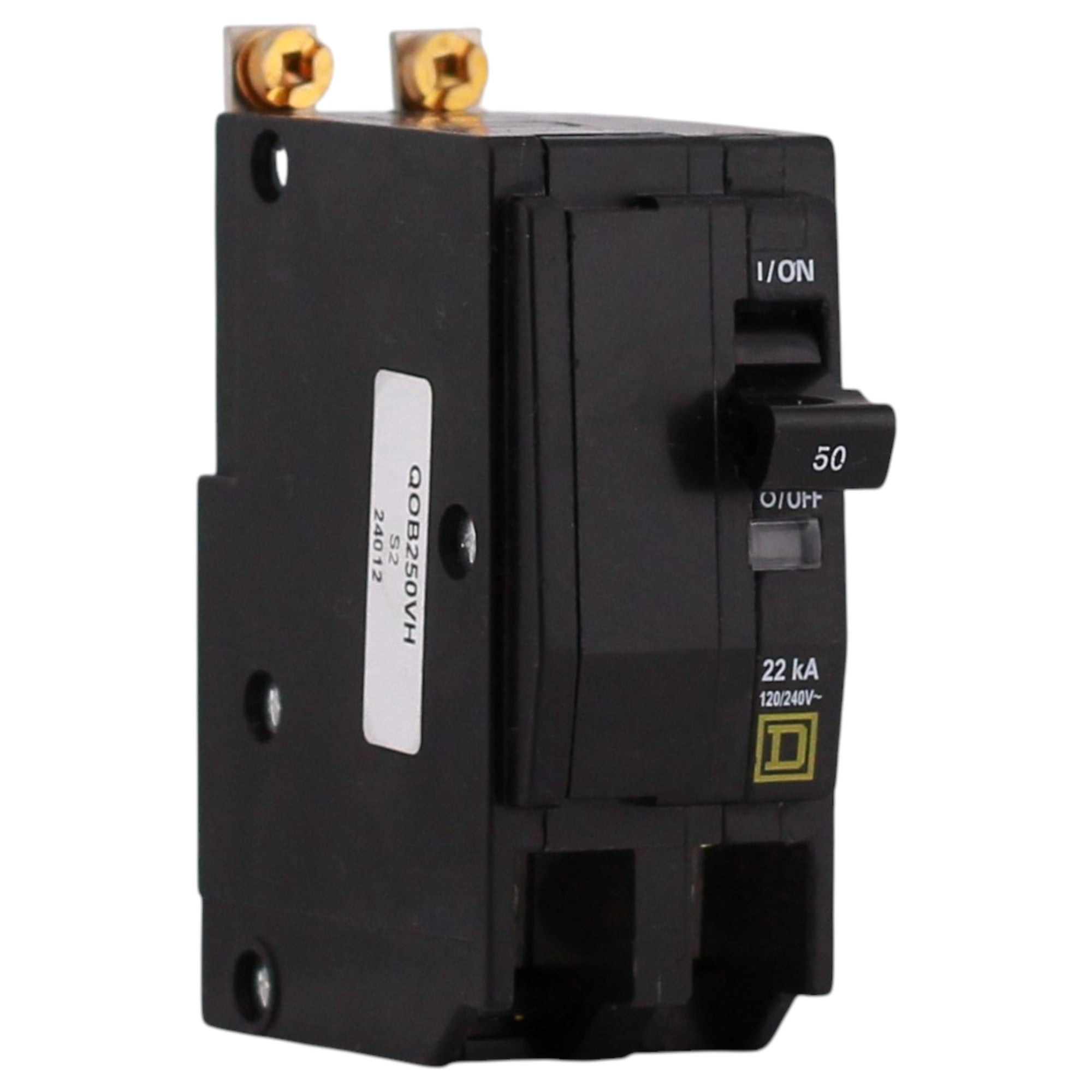

Square D QO, QOB250VH, 50A, 2P, 120/240V, Thermal Magnetic, Bolt-On, Circuit Breaker

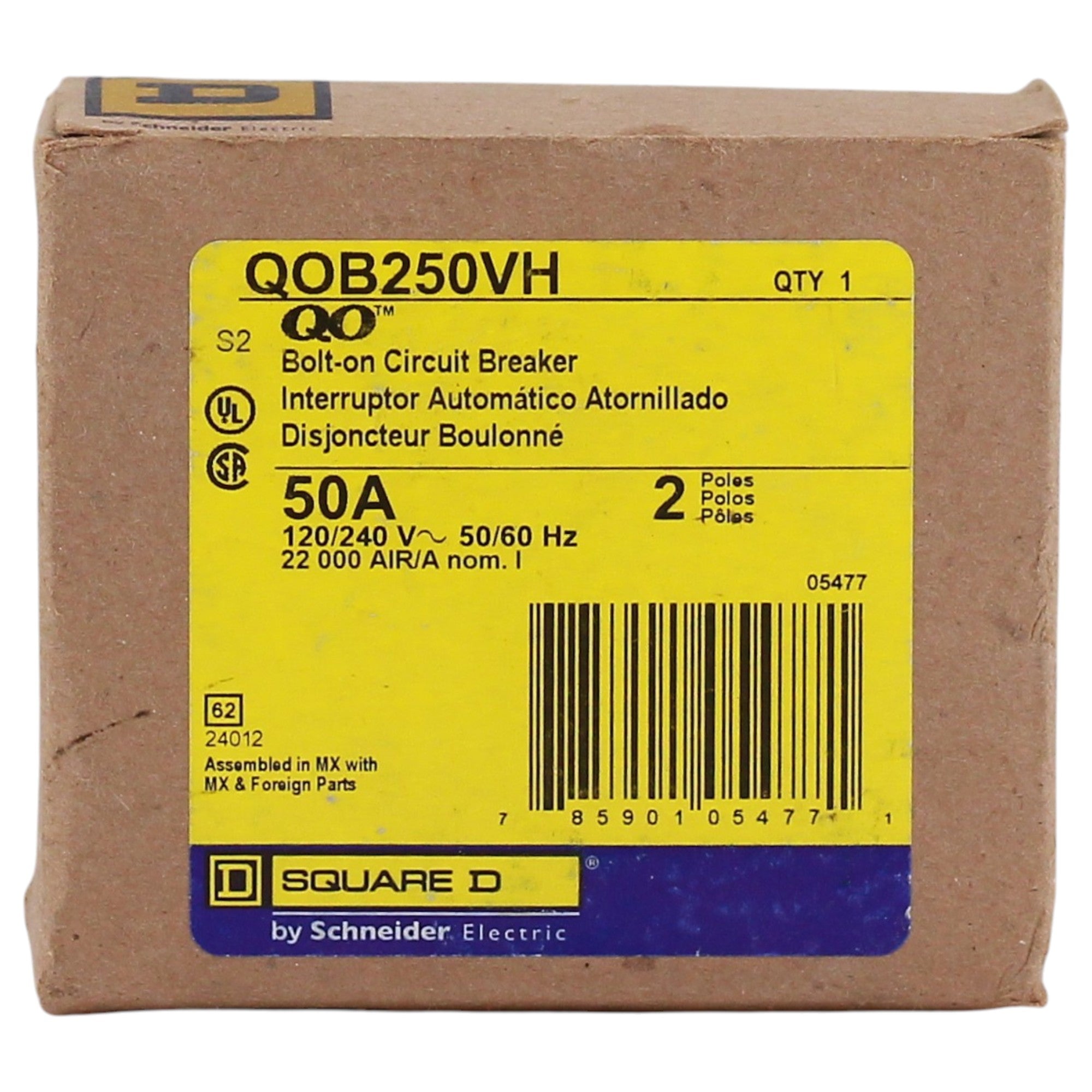

Square D QO, QOB250VH, 50A, 2P, 120/240V, Thermal Magnetic, Bolt-On, Circuit Breaker - Image 2
Square D QO, QOB250VH, 50A, 2P, 120/240V, Thermal Magnetic, Bolt-On, Circuit Breaker - Image 3

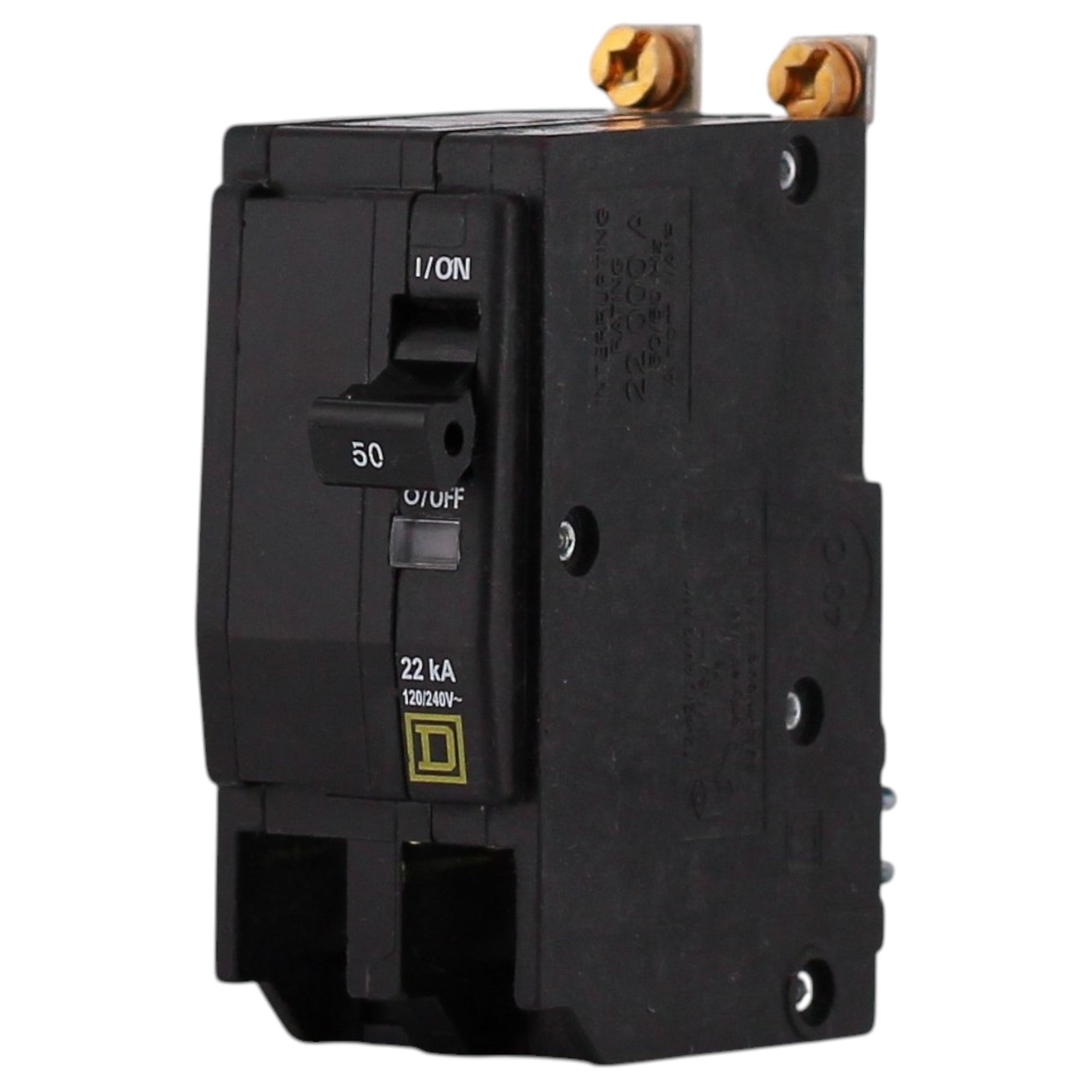

Square D QO, QOB250VH, 50A, 2P, 120/240V, Thermal Magnetic, Bolt-On, Circuit Breaker - Image 4

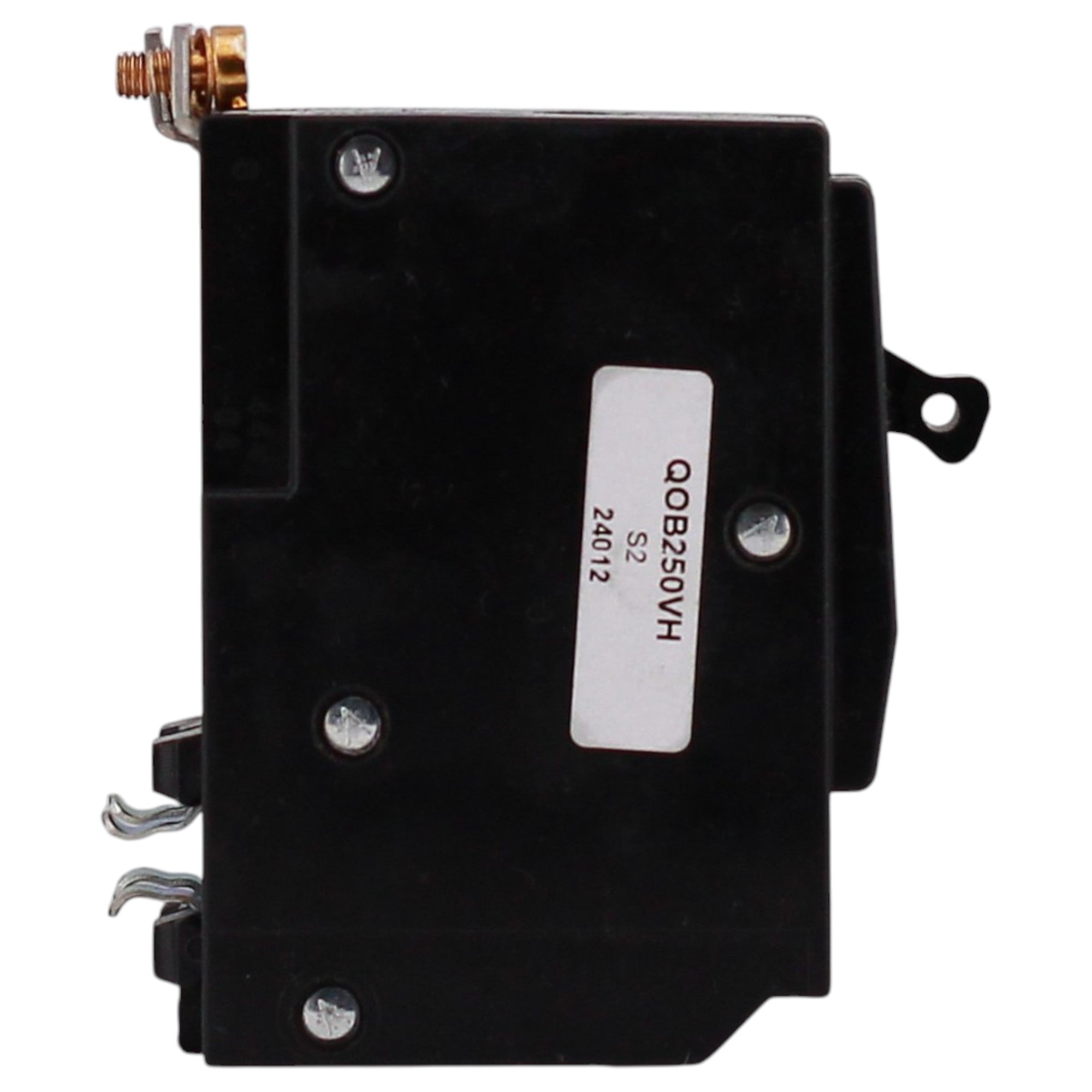

Square D QO, QOB250VH, 50A, 2P, 120/240V, Thermal Magnetic, Bolt-On, Circuit Breaker - Image 5

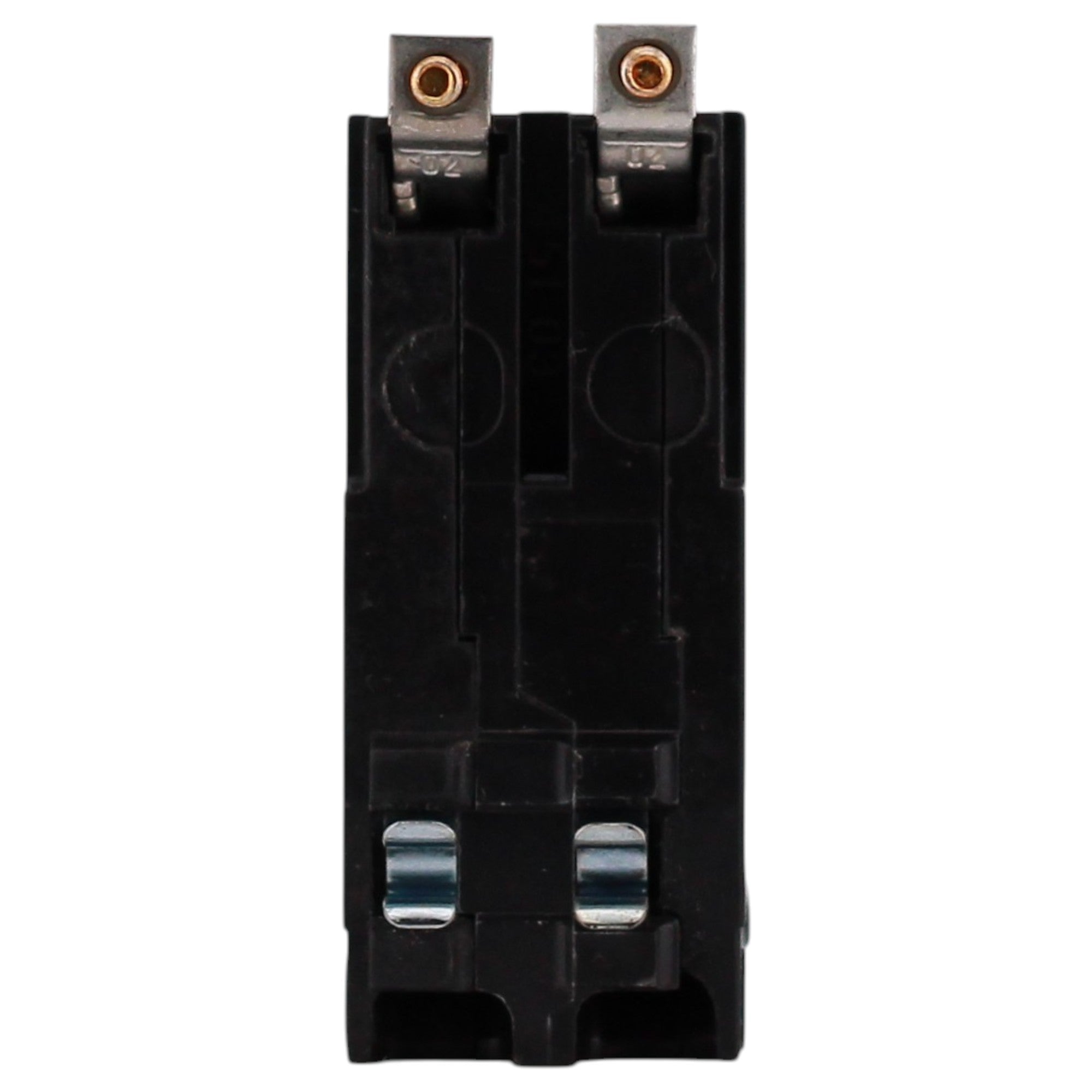

Square D QO, QOB250VH, 50A, 2P, 120/240V, Thermal Magnetic, Bolt-On, Circuit Breaker - Image 6

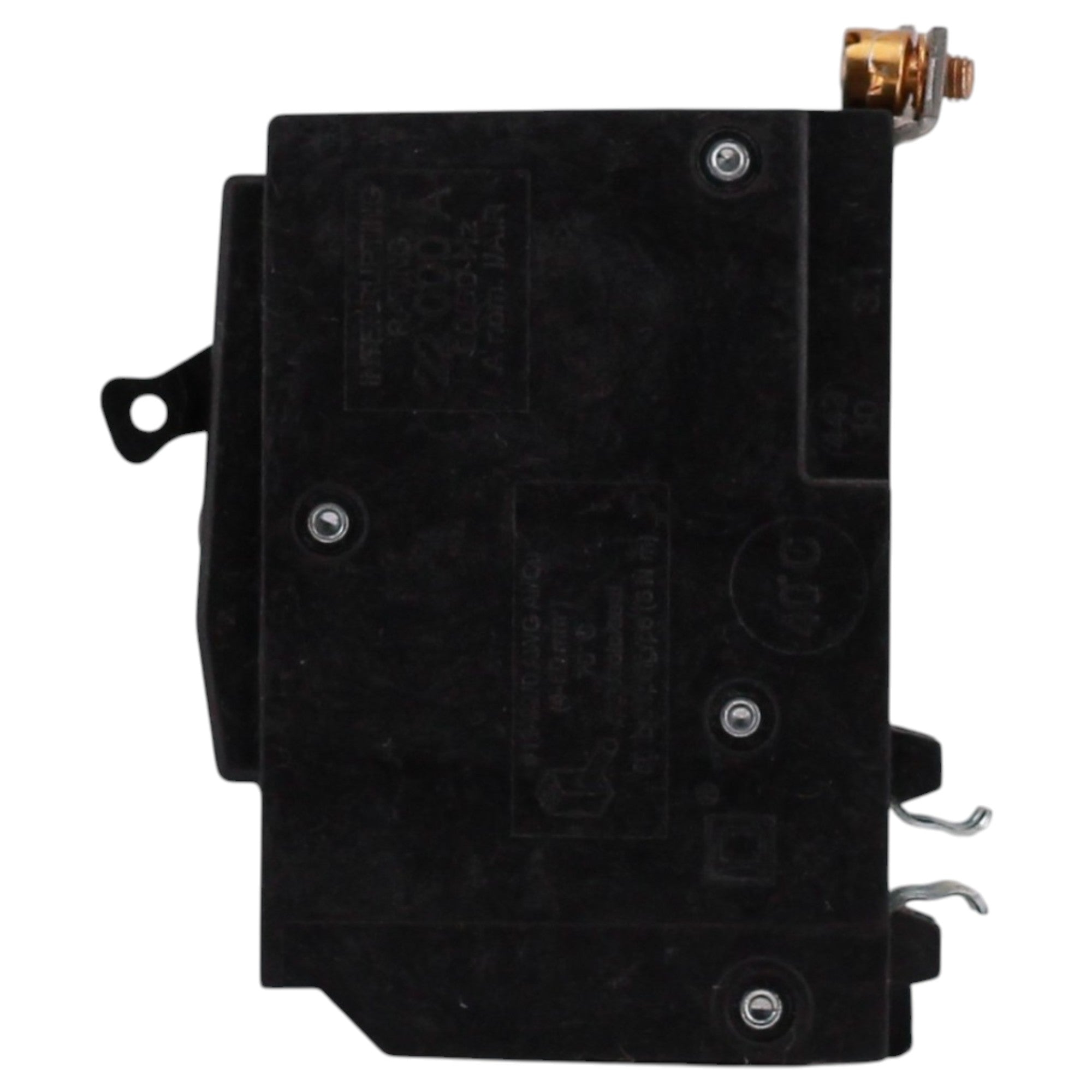

Square D QO, QOB250VH, 50A, 2P, 120/240V, Thermal Magnetic, Bolt-On, Circuit Breaker - Image 7

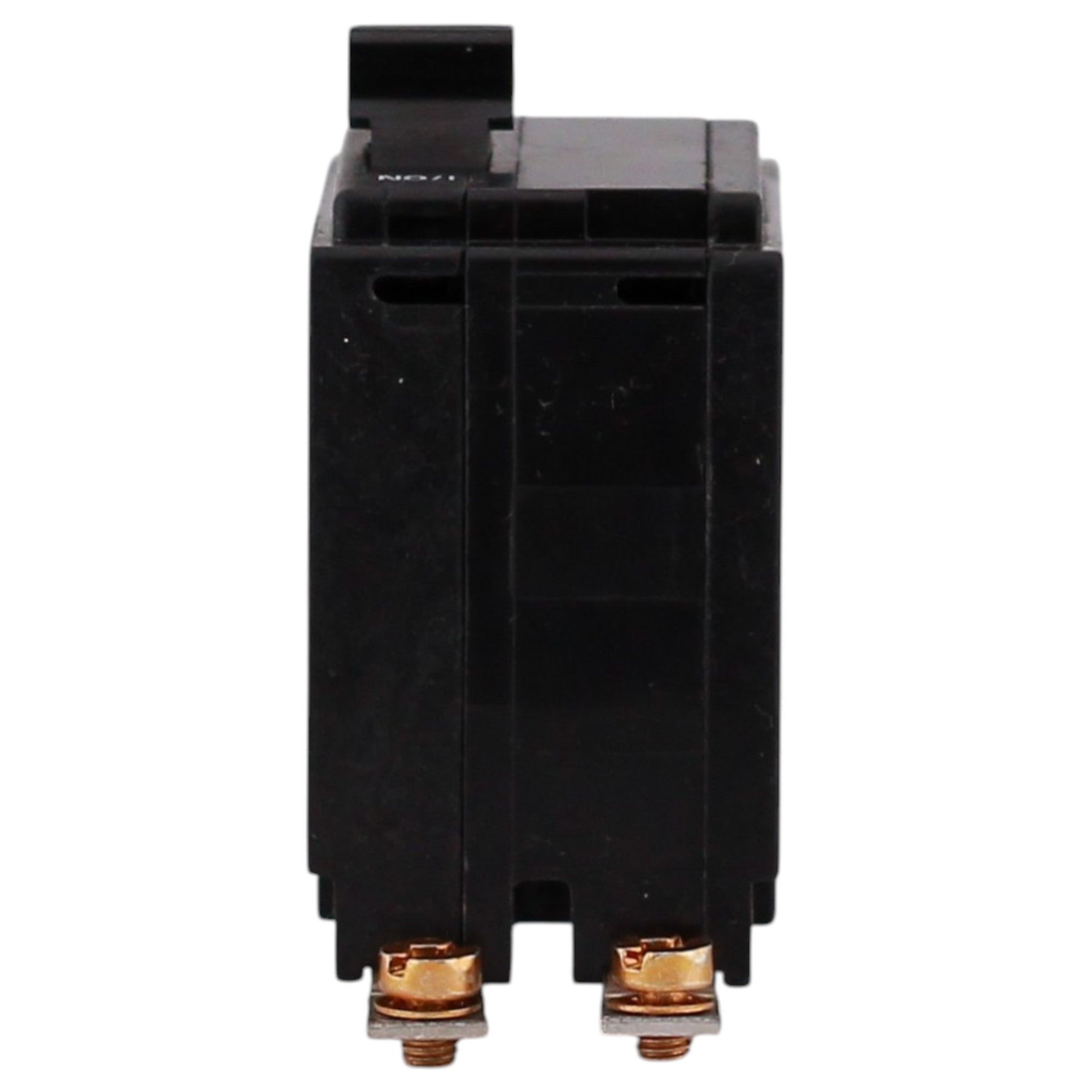

Square D QO, QOB250VH, 50A, 2P, 120/240V, Thermal Magnetic, Bolt-On, Circuit Breaker - Image 8

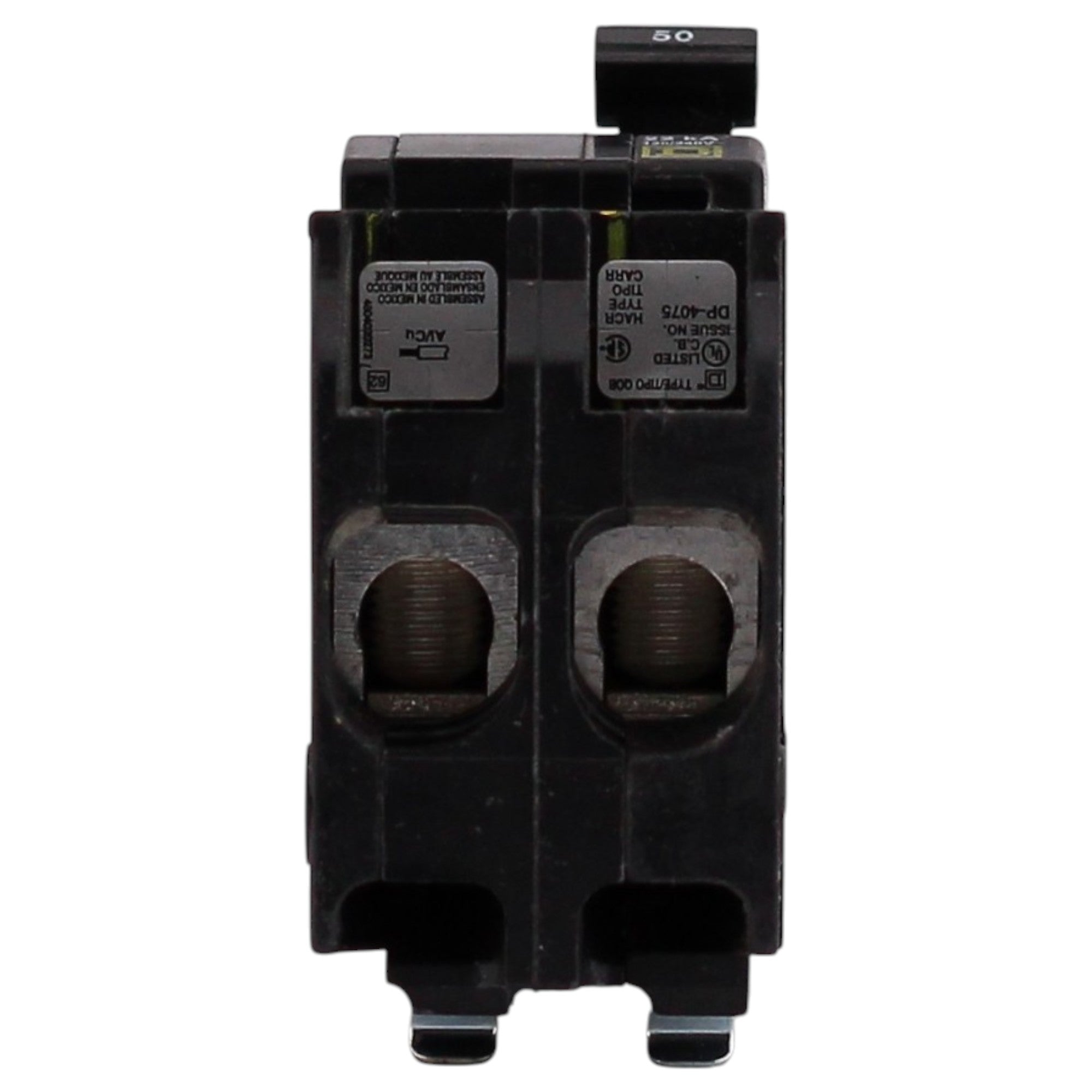

Square D QO, QOB250VH, 50A, 2P, 120/240V, Thermal Magnetic, Bolt-On, Circuit Breaker - Image 9

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Square D

Square D QO, QOB250VH, 50A, 2P, 120/240V, Thermal Magnetic, Bolt-On, Circuit Breaker

Out of stock
SKU: QOB250VH UPC: 785901054771
(0)
$34.95
-39% $57.00 $34.95
Out of stock
Condition

Square D QOB250VH: 50 Amp, 2-Pole, Thermal Magnetic Circuit Breaker, 120/240V, 22kA, Bolt-On, Common Trip, HACR Rated, UL Listed.

  • Manufacturer: Schneider Electric
  • Brand: Square D
  • Product Range: QO (for Square D QO and NQ bolt-on panelboards)
  • UPC: 785901054771
  • Model Number: QOB250VH
  • Breaker Type: Thermal Magnetic Miniature Circuit Breaker, Common Trip — High Interrupting
  • Amperage: 50 Amps
  • Poles: 2-Pole
  • Phase: 1-Phase
  • Voltage: 120/240 Volts AC
  • Interrupt Rating: 22 kAIC @ 120/240V
  • Mounting Mode: Bolt-on
  • Connections / Terminals: Box lug
  • Wire Size: #8–2 AWG Cu/Al
  • Dimensions: Height: 3.12 in; Width: 1.50 in; Depth: 2.91 in
  • Weight: 0.73 lbs
  • Certifications: UL Listed, CSA Certified, HACR Rated

This Square D QOB250VH thermal magnetic circuit breaker delivers dependable 50 Amp, 2-Pole protection for 120/240V circuits in Square D QO and NQ bolt-on panelboards. With a 22kAIC high interrupt rating and common trip, it supports commercial and light industrial distribution applications.
