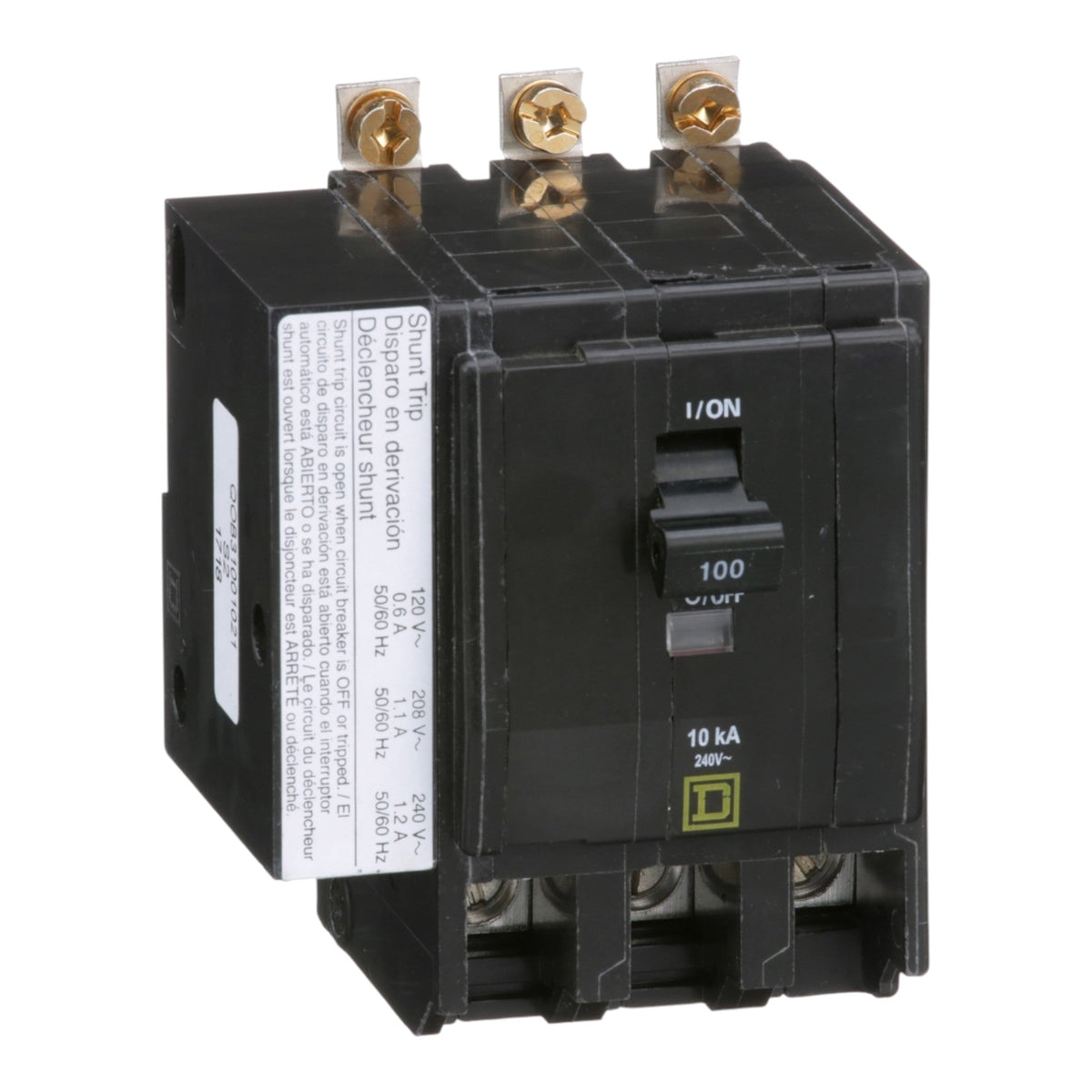

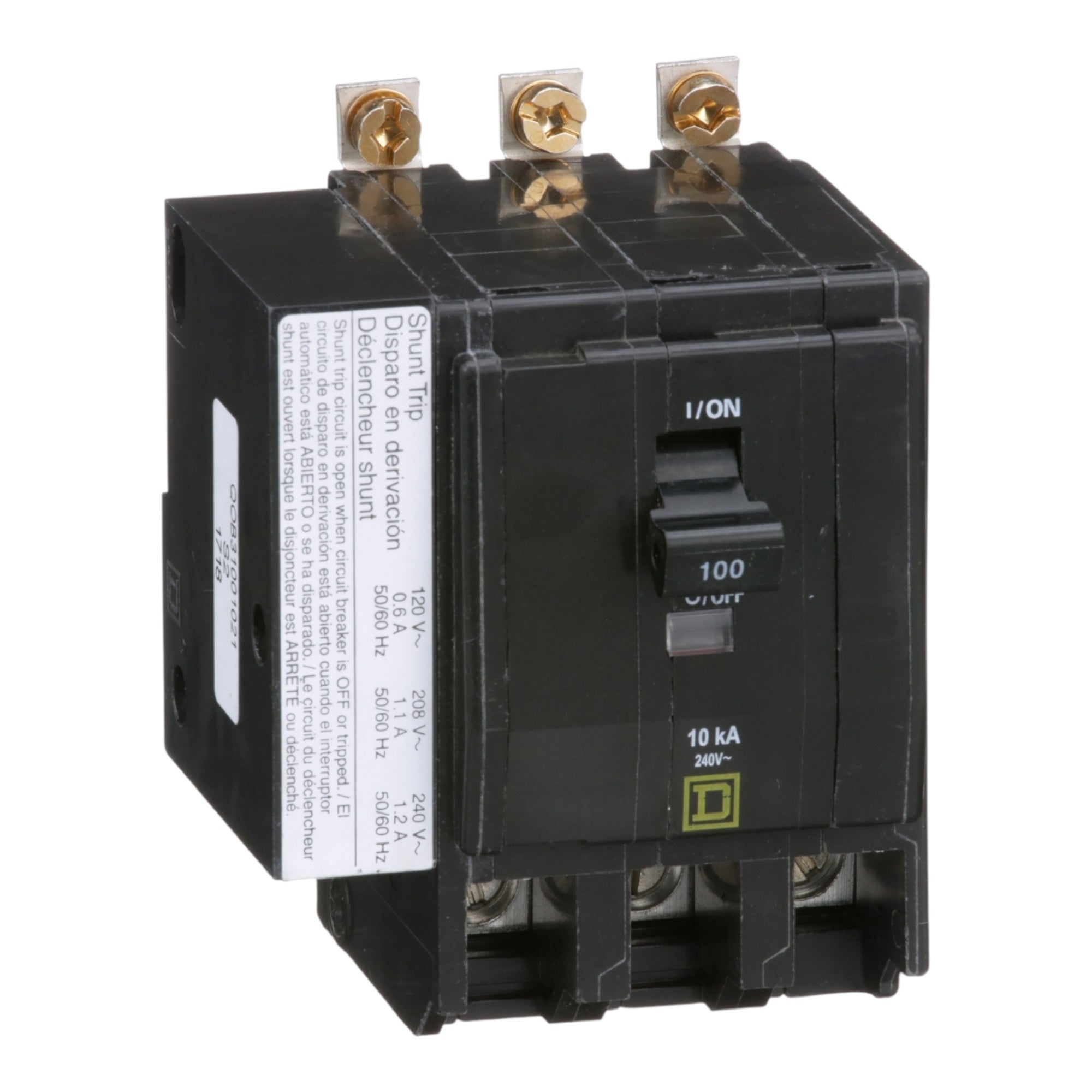

Square D, QO, QOB31001021, 100A, 3P, 120/240V, 10kA, Thermal Magnetic Shunt Trip, Bolt-On, Circuit Breaker
Square D, QO, QOB31001021, 100A, 3P, 120/240V, 10kA, Thermal Magnetic Shunt Trip, Bolt-On, Circuit Breaker

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Square D

Square D, QO, QOB31001021, 100A, 3P, 120/240V, 10kA, Thermal Magnetic Shunt Trip, Bolt-On, Circuit Breaker

SKU: QOB31001021
(0)
$299.00
-15% $350.00 $299.00
Out of stock
Condition

Square D QOB31001021: 100 Amp, 3-Pole, thermal magnetic circuit breaker with AC shunt trip, 120/240V, 10kA interrupt rating, bolt-on mounting, HACR rated, UL listed.

  • Manufacturer: Schneider Electric

  • Brand: Square D

  • Product Range: QO / QOB (for Square D QO and QOB loadcenters and panelboards)

  • UPC: 785901031024

  • Model Number: QOB31001021

  • Breaker Type: Thermal Magnetic Circuit Breaker with AC Shunt Trip

  • Amperage: 100 Amps

  • Poles: 3-Pole

  • Voltage: 120/240 Volts AC

  • Interrupt Rating: 10 kAIC

  • Mounting Mode: Bolt-On

  • Connection Terminals: Box Lugs

  • Wire Size: #4–2/0 AWG Cu/Al

  • Tightening Torque: 49.6 lb-in

  • Dimensions: Height: 3.50 in; Width: 3.00 in; Depth: 2.90 in

  • Weight: 1.349 lbs

  • Certifications: UL Listed, CSA Certified, HACR Rated

  • Trip Sensitivity: Not Applicable

This Square D QOB31001021 100A 3-pole bolt-on thermal magnetic circuit breaker with AC shunt trip provides reliable overcurrent protection and remote tripping capability for 120/240V systems in QO and QOB loadcenters and panelboards, supporting commercial and industrial control applications.
