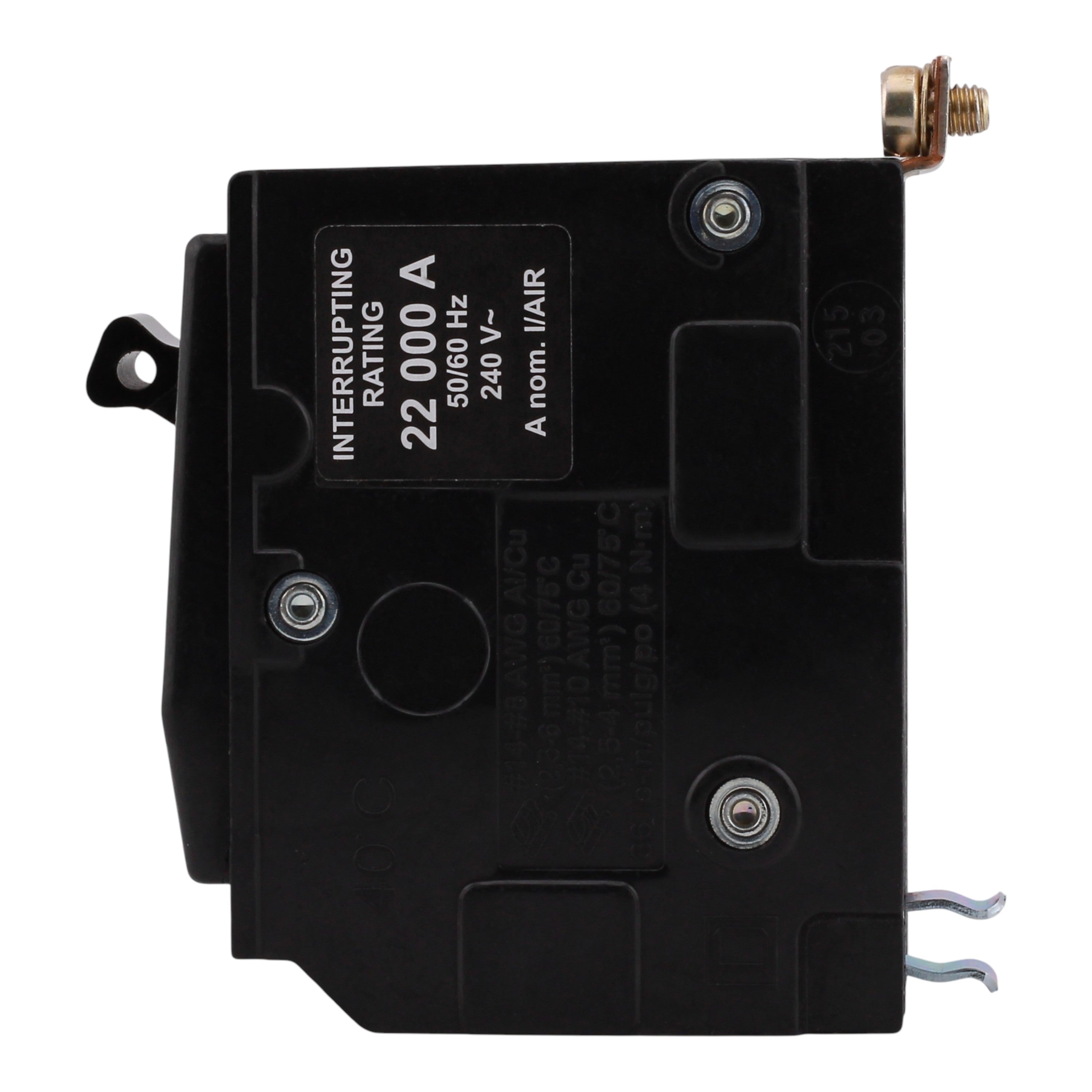

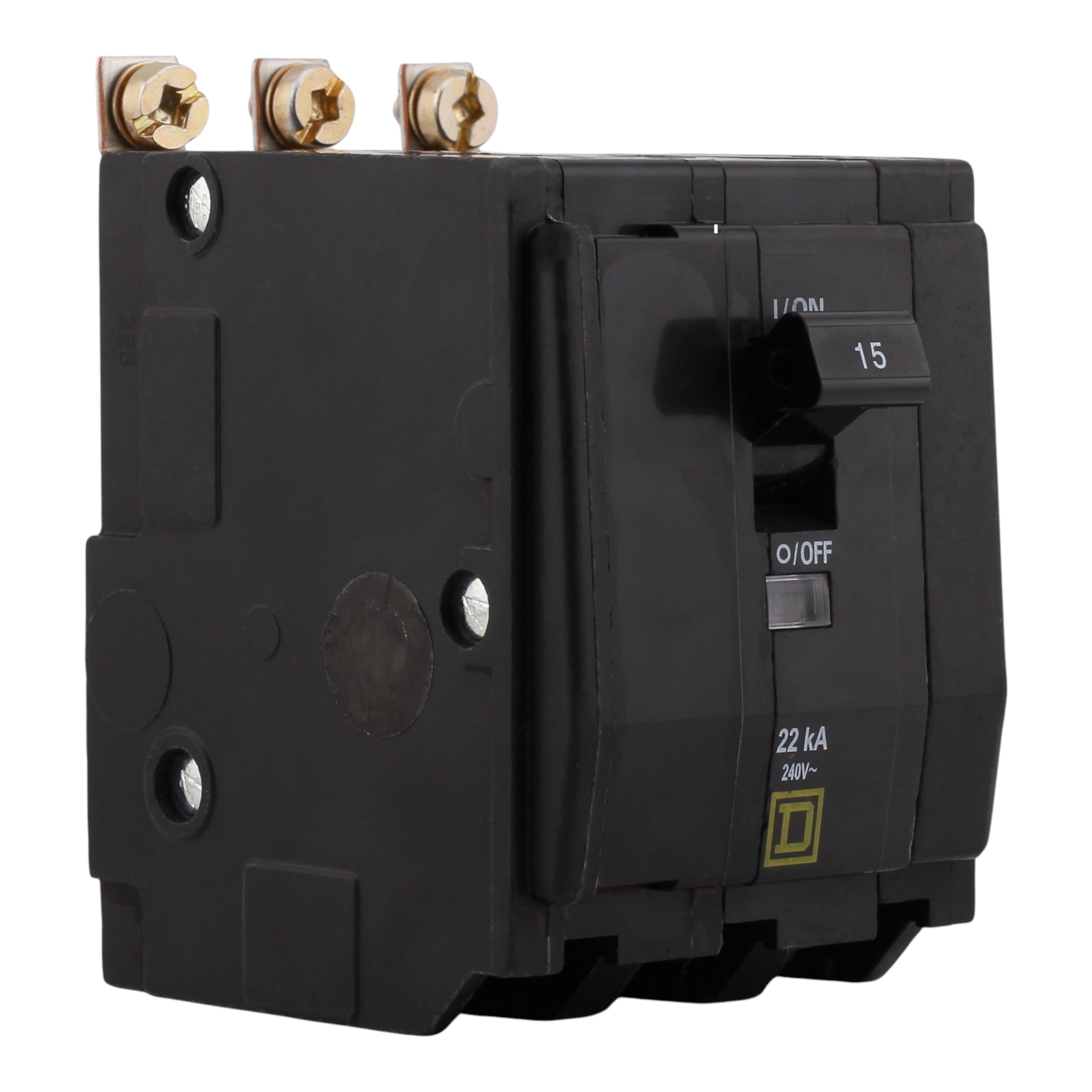

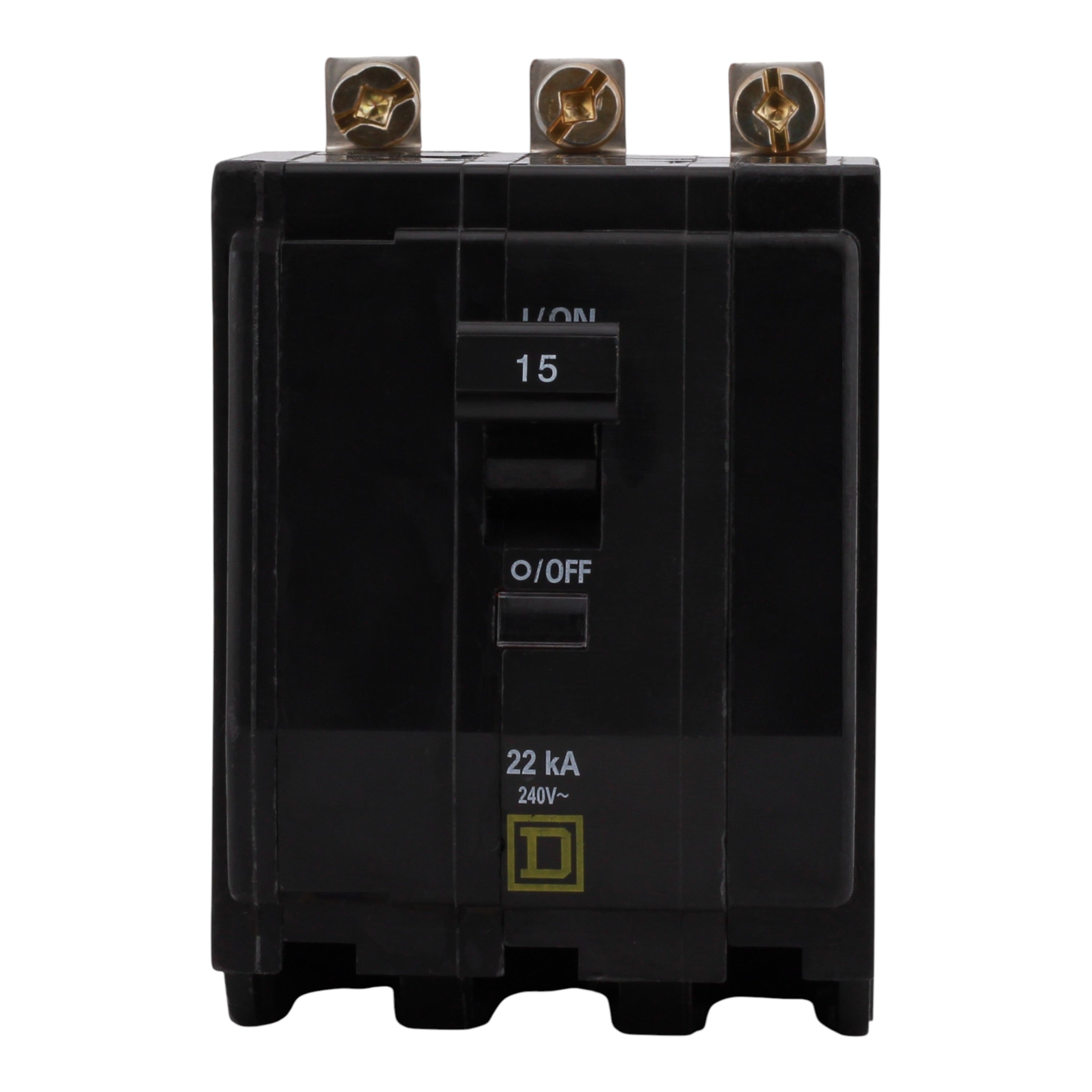

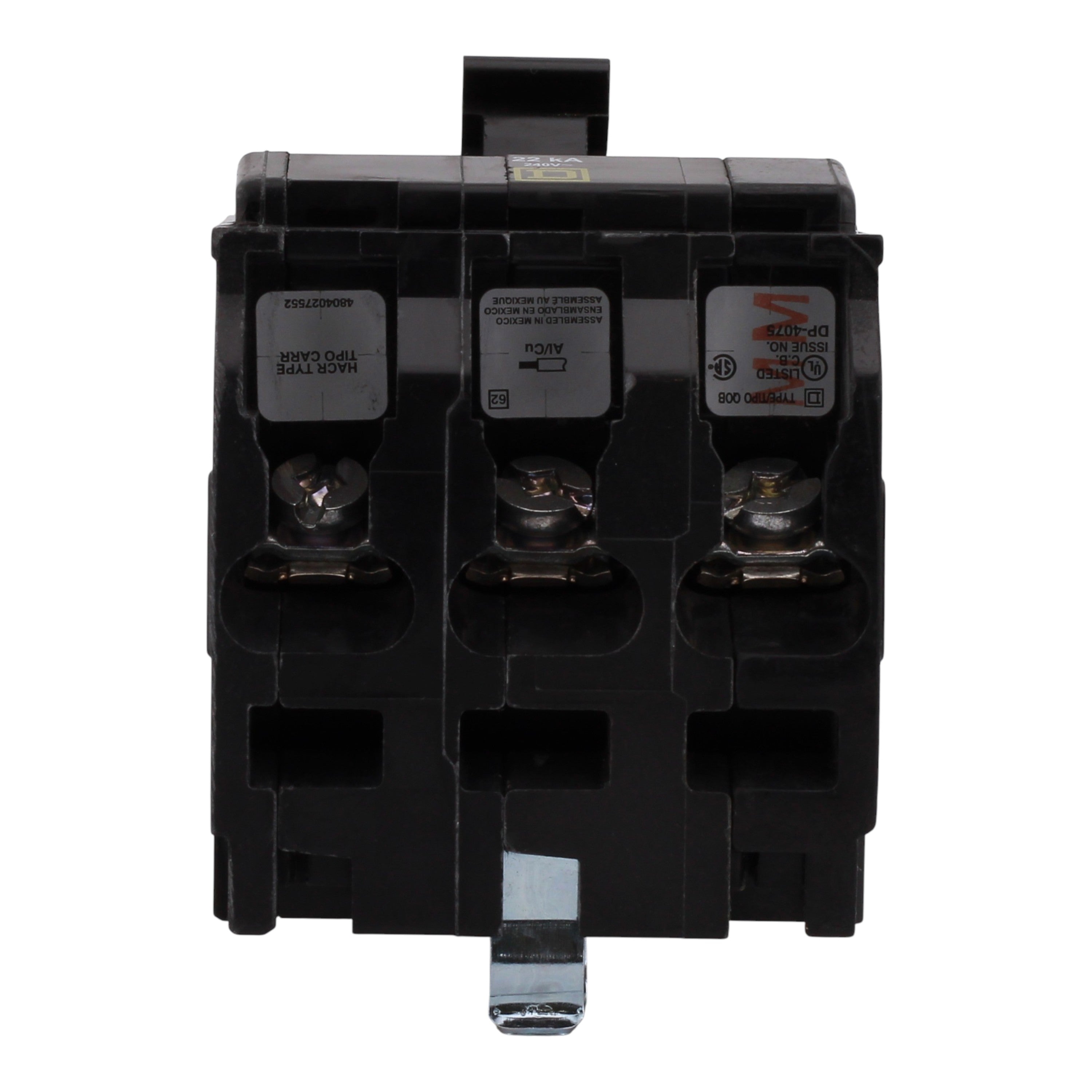

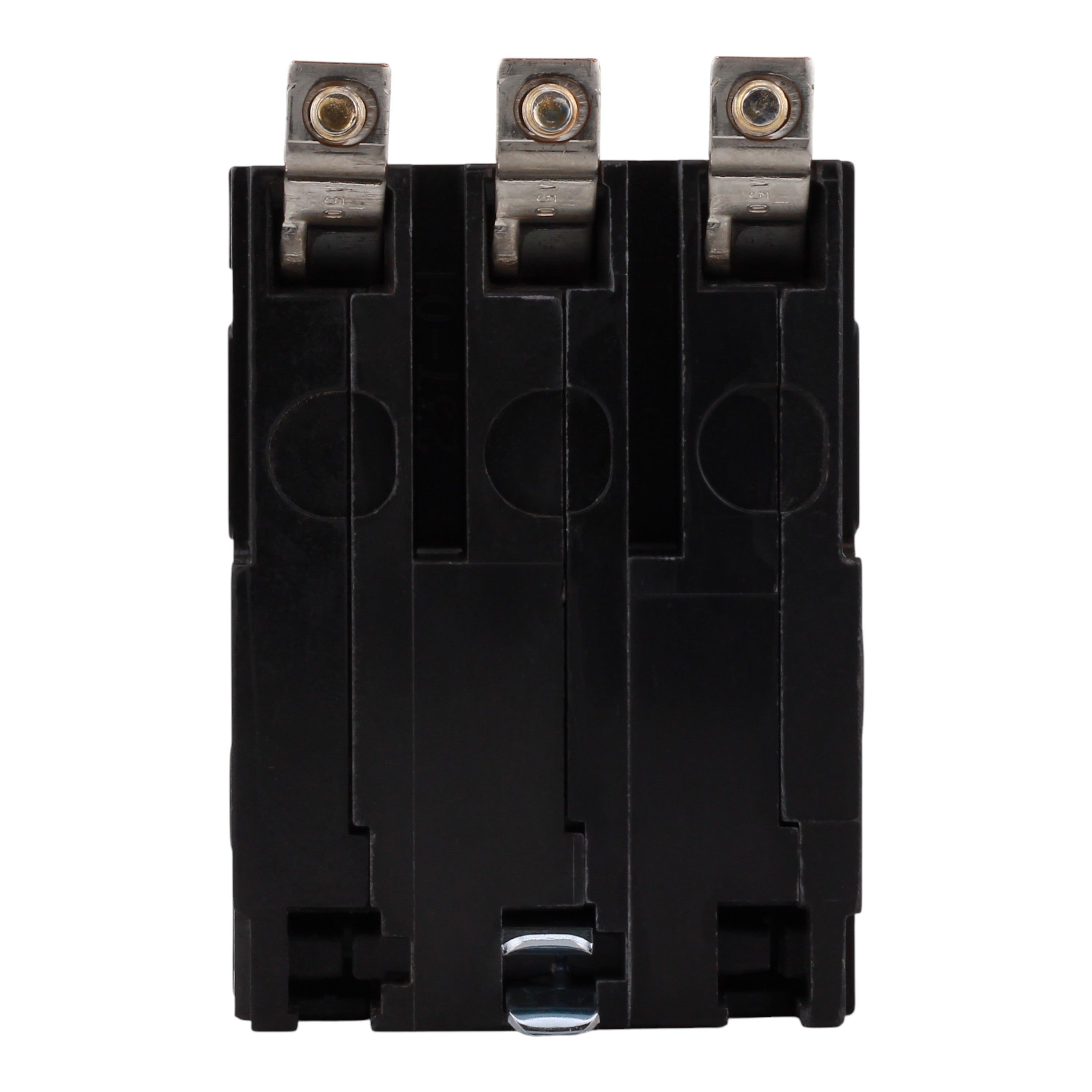

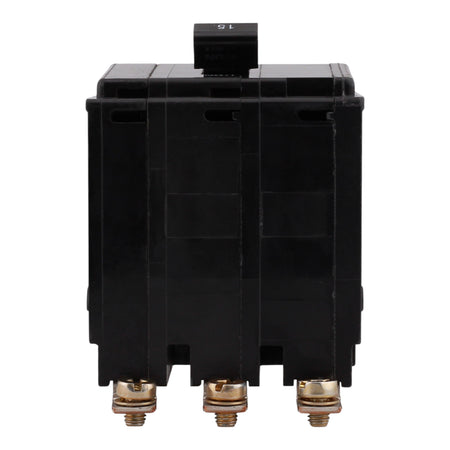

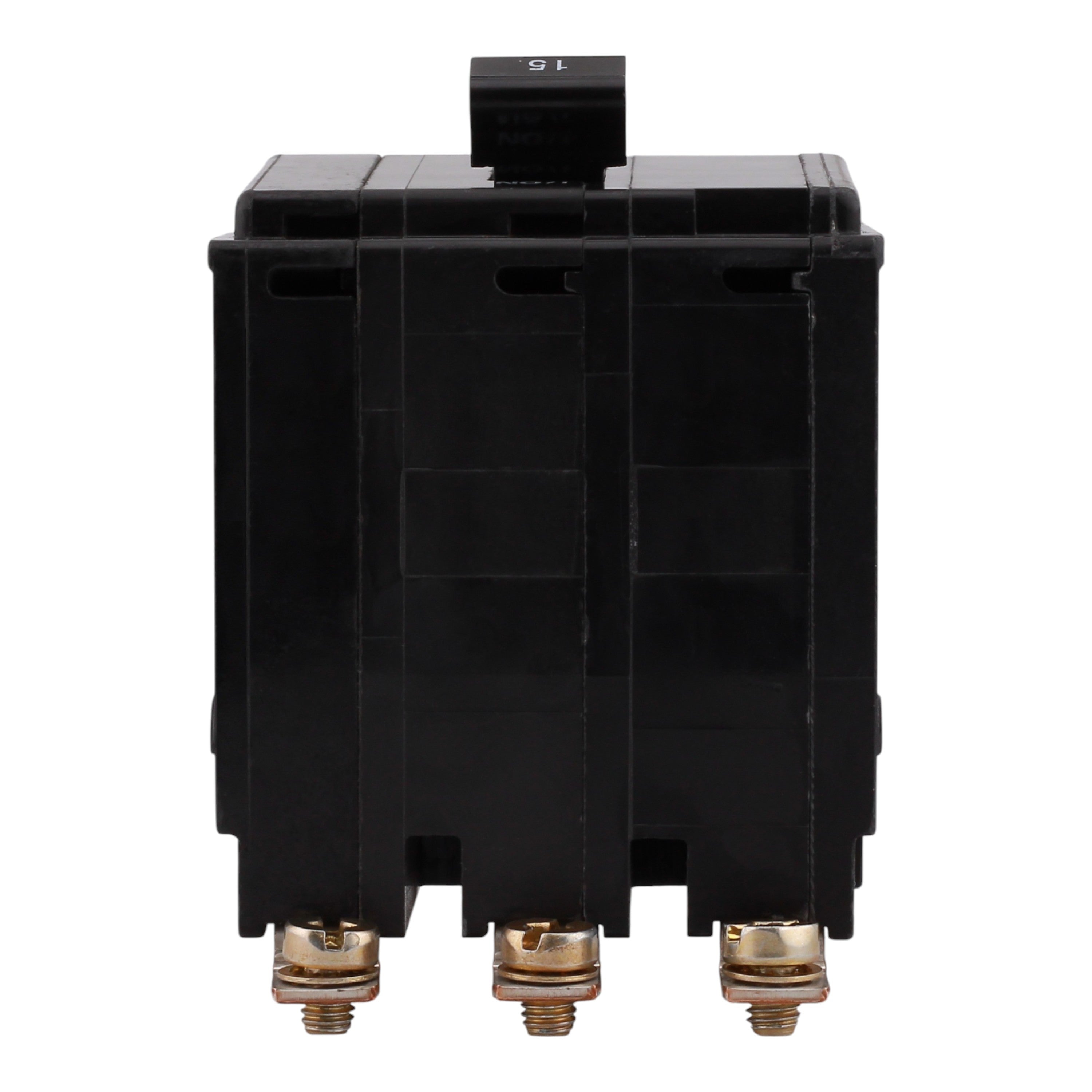

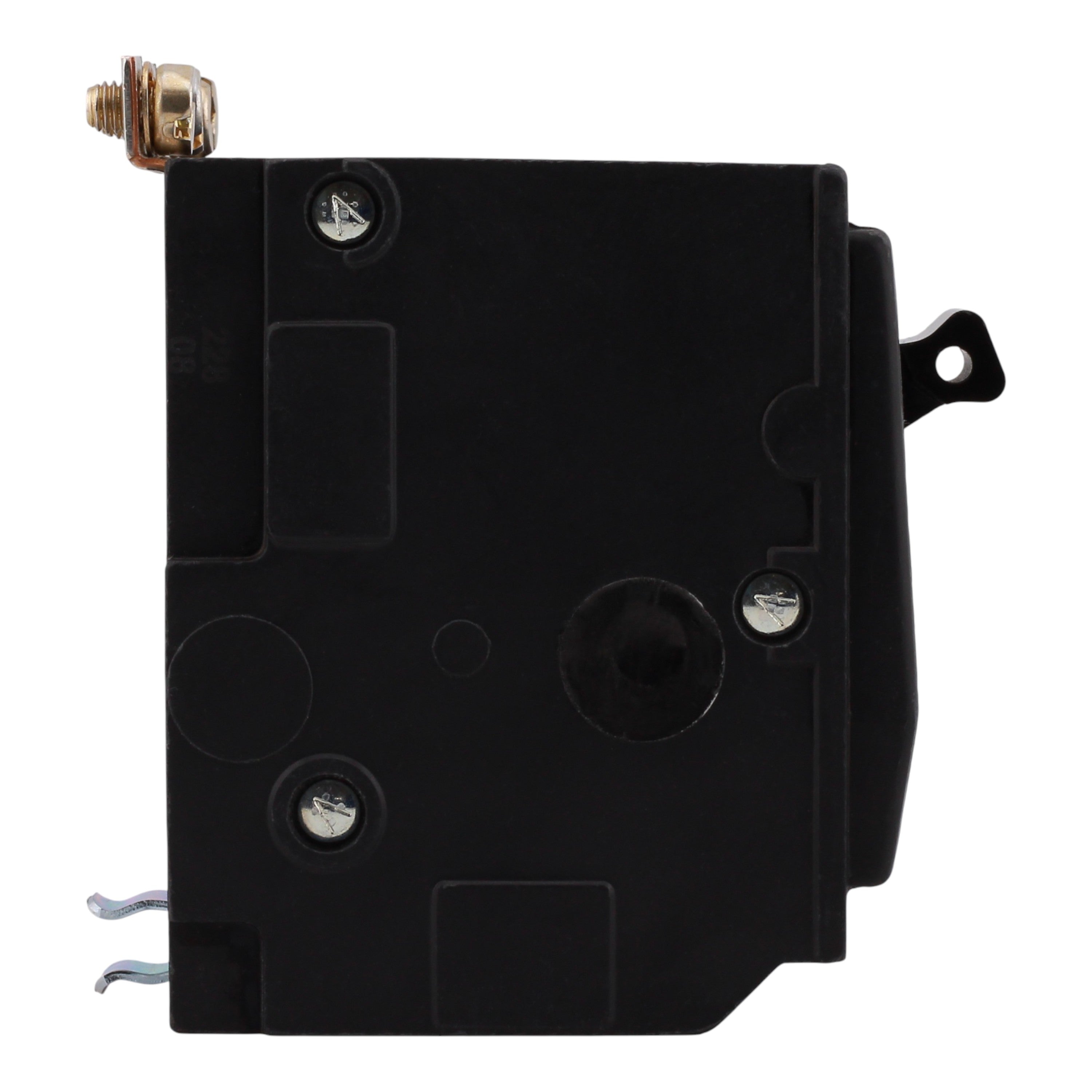

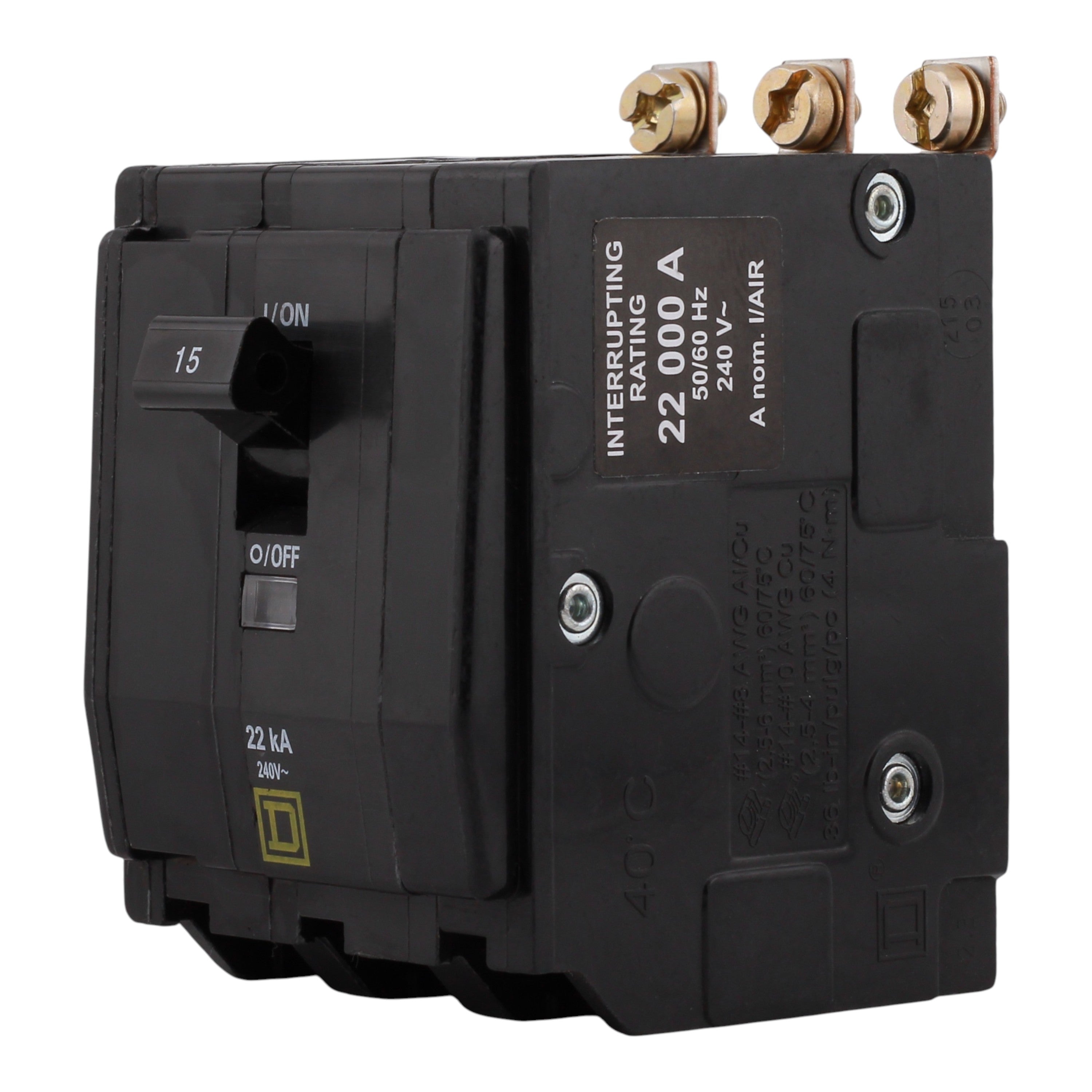

Square D QO QOB315VH 15A 3P 120/240V 22kA Bolt-On Circuit Breaker

Square D QOB315VH: 15 Amp 3-Pole Standard thermal magnetic circuit breaker, 120/240V AC, 22kA interrupt rating, bolt-on mounting, pressure plate terminals, UL Listed, CSA Certified.

• Manufacturer: Schneider Electric
• Brand: Square D
• Product Range: QO (for Square D QO loadcenters and equipment)
• UPC: 785901371953
• Model Number: QOB315VH
• Breaker Type: Standard
• Amperage: 15 Amps
• Poles: 3-Pole
• Voltage: 120/240 Volts AC
• Interrupt Rating: 22 kAIC
• Mounting Mode: Bolt-on
• Connections Terminals: Pressure plate
• Wire Size: (1) #14-8 AWG Cu/Al
• Tightening Torque: 49.6 lb-in
• Dimensions: Height: 3.0 in; Width: 2.2 in; Depth: 2.9 in
• Weight: 0.800 lbs
• Certifications: UL Listed, CSA Certified, HACR Rated This Square D QOB315VH bolt-on circuit breaker provides reliable 15A, 3-pole thermal magnetic protection for 120/240V circuits in QO loadcenters. With 22kA interrupt rating, VisiTrip indicator, and overcenter toggle mechanism, it ensures durable overcurrent protection and easy trip identification for commercial and residential applications.
