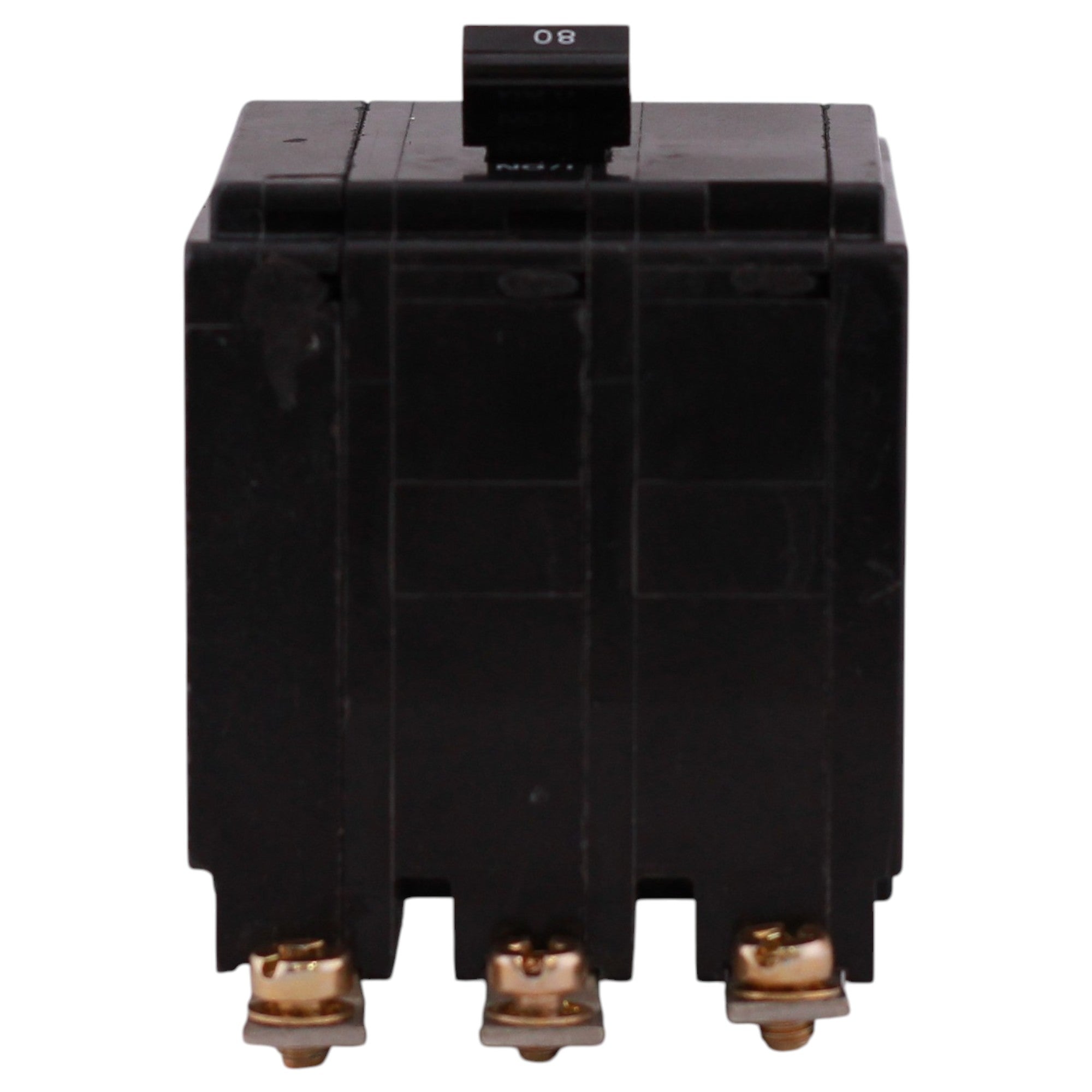

Square D QO, QOB380VH, 80A, 3P, 120/240V, Thermal Magnetic, Bolt-On, Circuit Breaker - Image 7
Square D QO, QOB380VH, 80A, 3P, 120/240V, Thermal Magnetic, Bolt-On, Circuit Breaker - Image 8

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Square D

Square D QO, QOB380VH, 80A, 3P, 120/240V, Thermal Magnetic, Bolt-On, Circuit Breaker

Out of stock
SKU: QOB380VH UPC: 785901054856
(0)
$155.00
-23% $200.00 $155.00
Out of stock
Condition

Square D QOB380VH: 80 Amp, 3-Pole, Thermal Magnetic Circuit Breaker, 120/240V, 22kA, Bolt-On, Common Trip, HACR Rated, UL Listed.

  • Manufacturer: Schneider Electric
  • Brand: Square D
  • Product Range: QO (for Square D NQ, NQOB, and NQOD bolt-on panelboards)
  • UPC: 785901054856
  • Model Number: QOB380VH
  • Breaker Type: Thermal Magnetic Molded Case Circuit Breaker, Common Trip — High Interrupting
  • Trip Functions: LI — Long-Time and Instantaneous
  • Amperage: 80 Amps
  • Poles: 3-Pole
  • Phase: 3-Phase
  • Voltage: 120/240 Volts AC
  • Interrupt Rating: 22 kAIC @ 120/240V
  • Frame Size: 100A/QO
  • Mounting Mode: Bolt-on
  • Connections / Terminals: Box lug
  • Wire Size: #4–2/0 AWG Cu/Al
  • Dimensions: Height: 2.91 in; Width: 2.25 in; Depth: 3.50 in
  • Weight: 1.09 lbs
  • Certifications: UL Listed (File E84967), CSA Certified, HACR Rated

This Square D QOB380VH thermal magnetic circuit breaker delivers dependable 80 Amp, 3-Pole protection for 120/240V, 3-phase circuits in Square D NQ, NQOB, and NQOD bolt-on panelboards. With 22kAIC high interrupt rating and common trip, it supports commercial and light industrial distribution applications.
