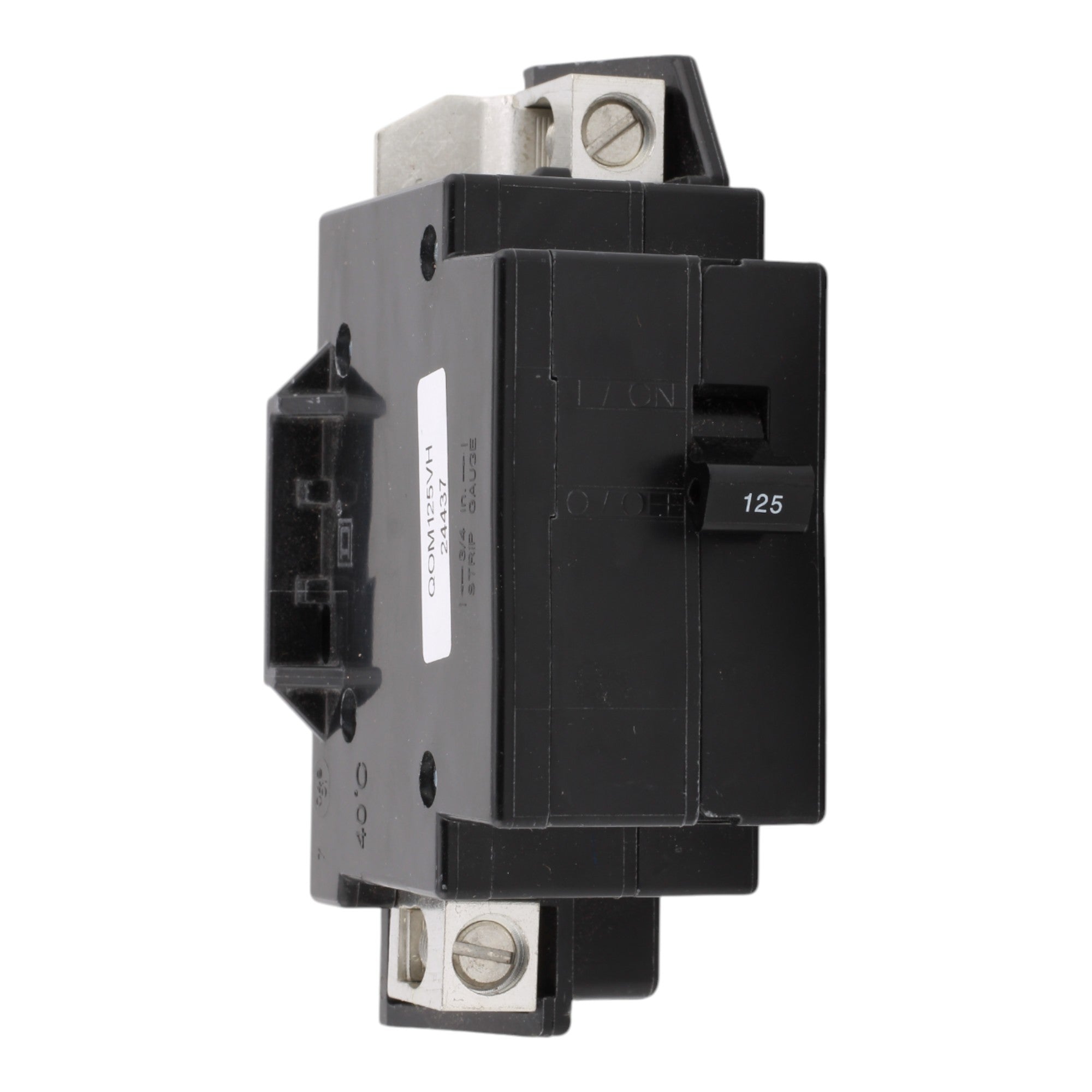

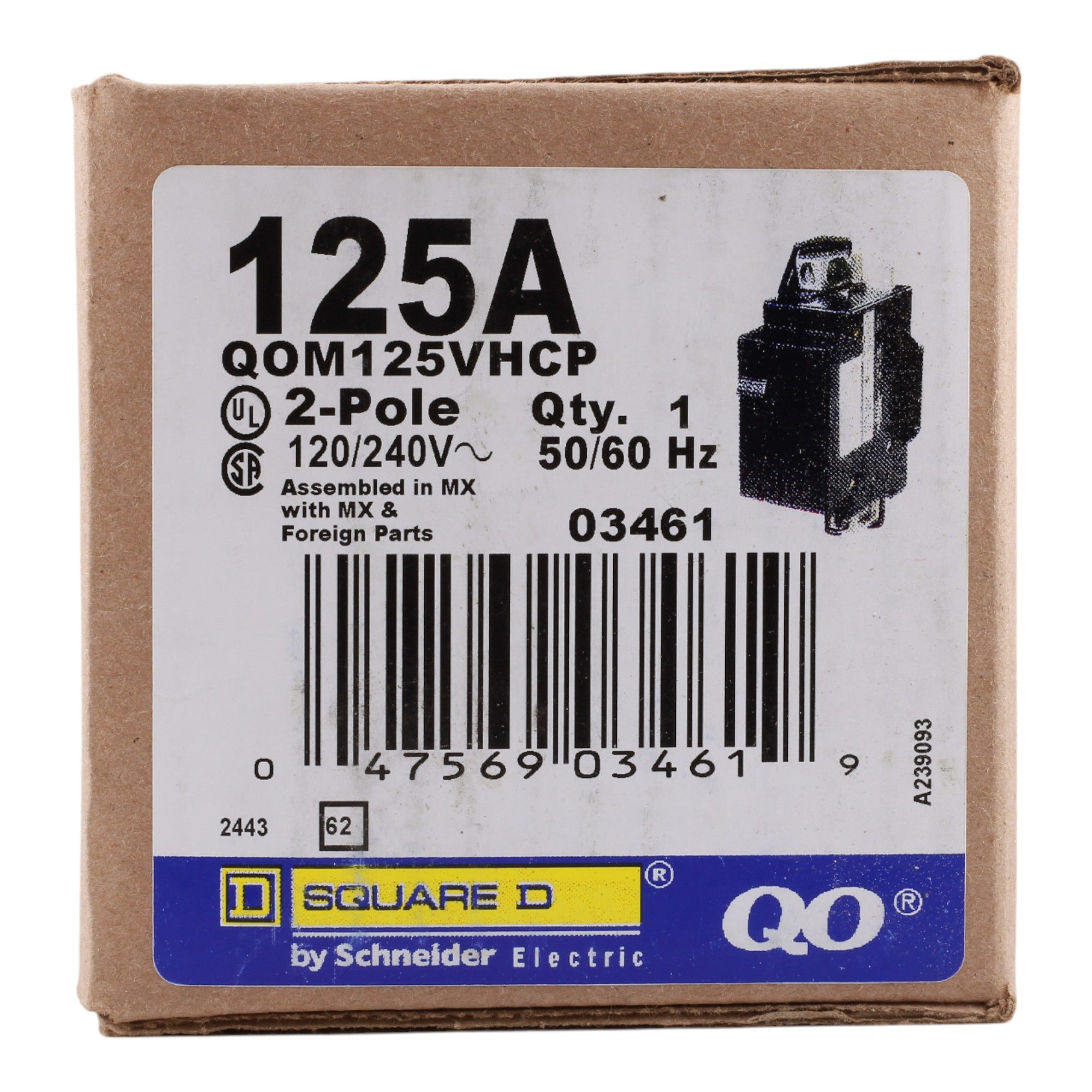

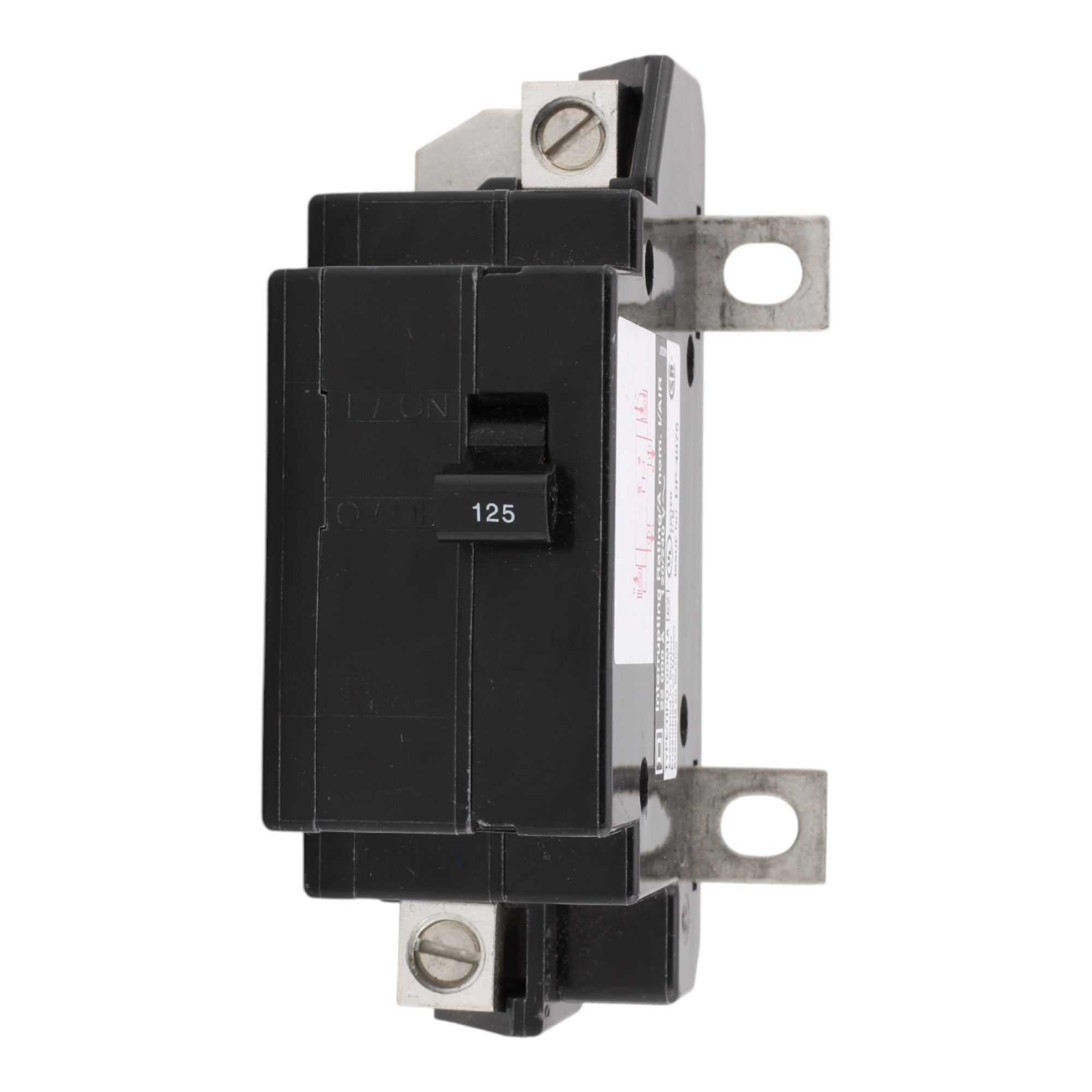

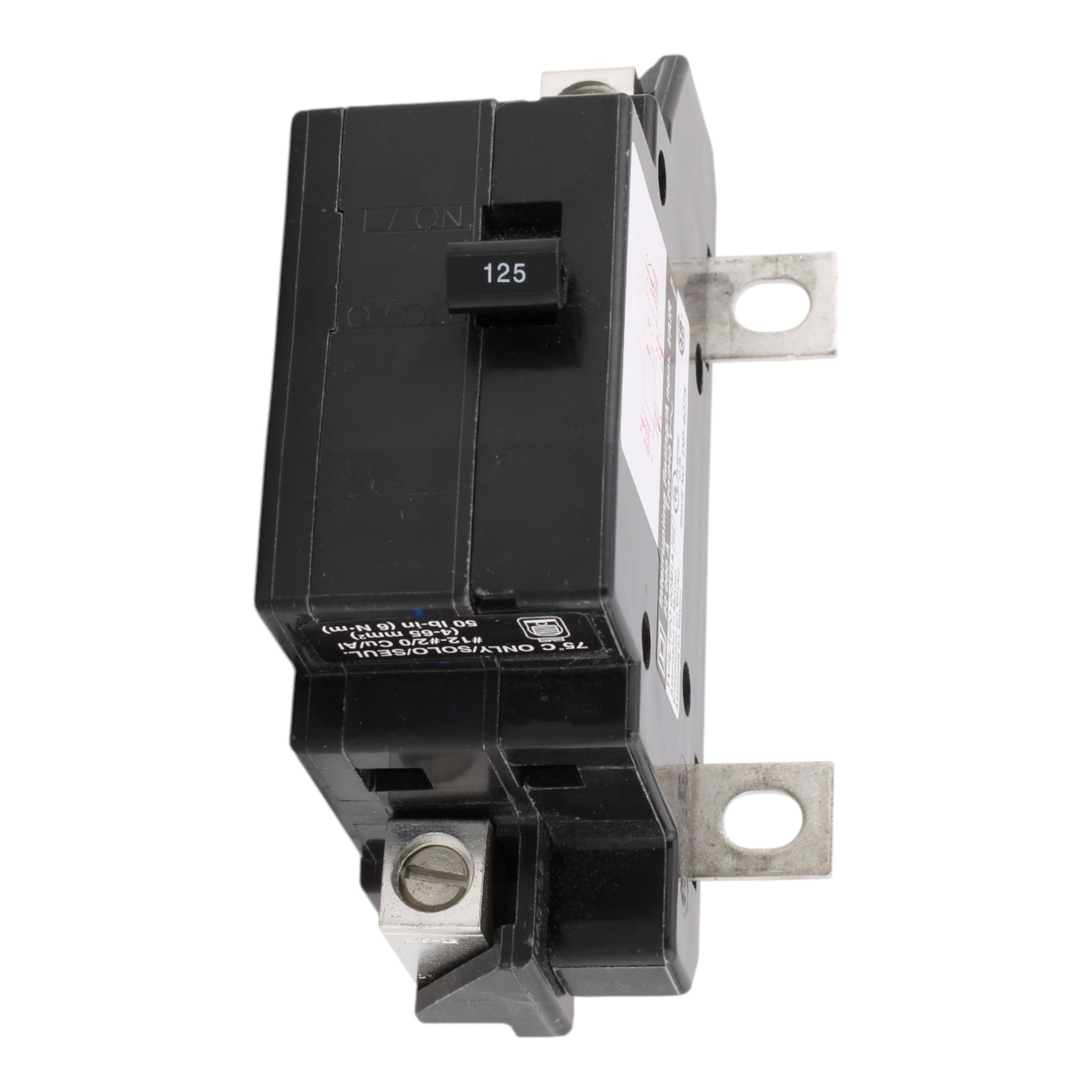

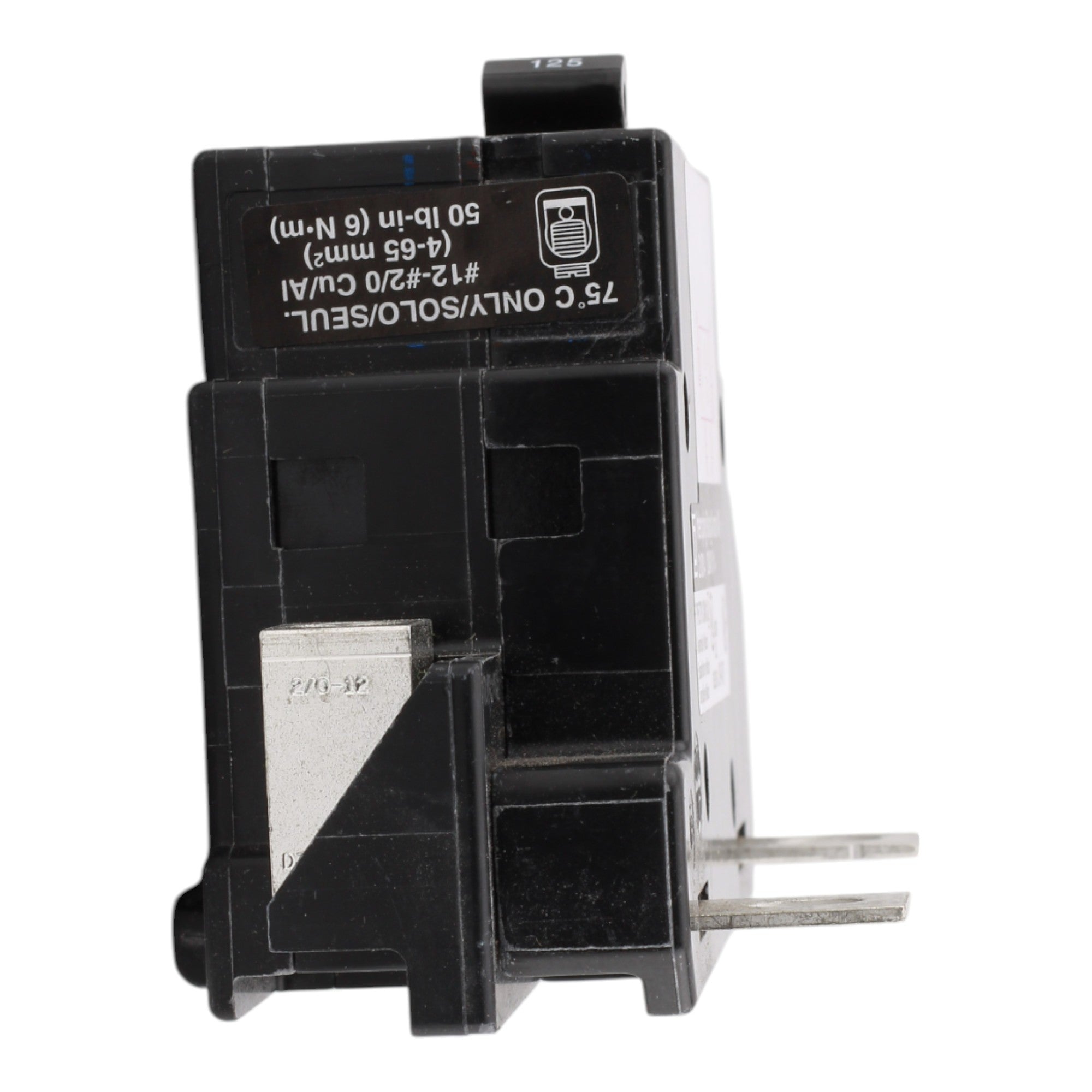

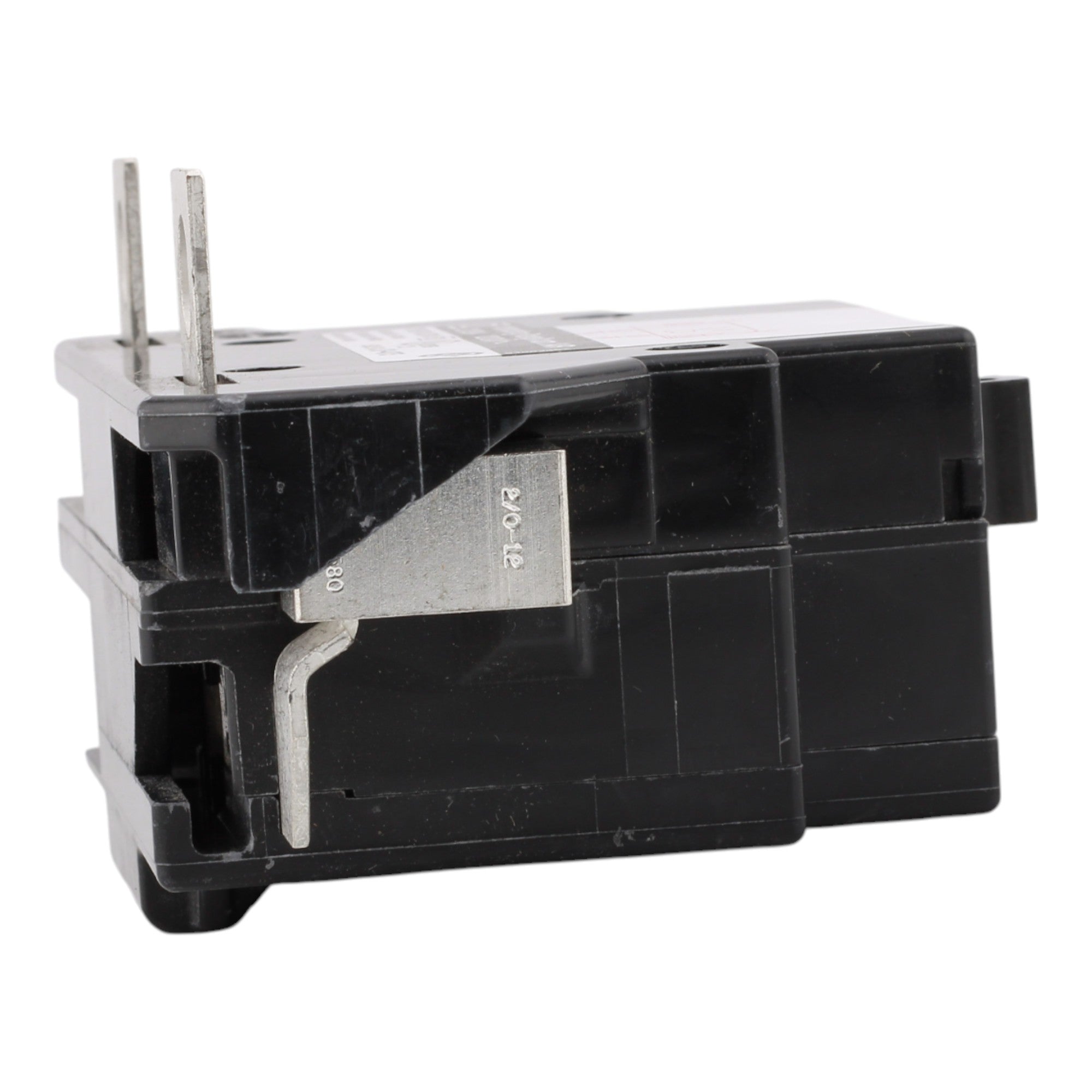

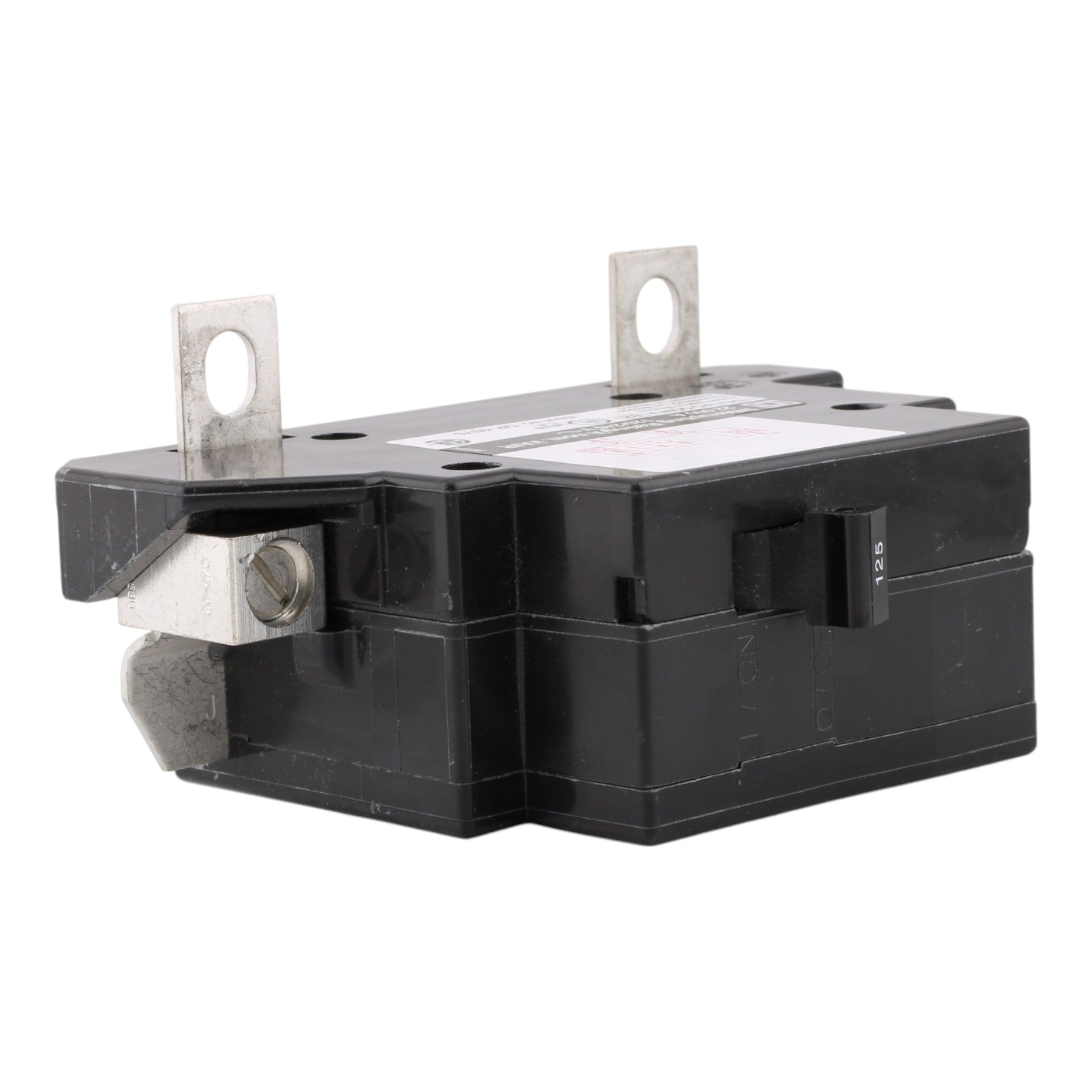

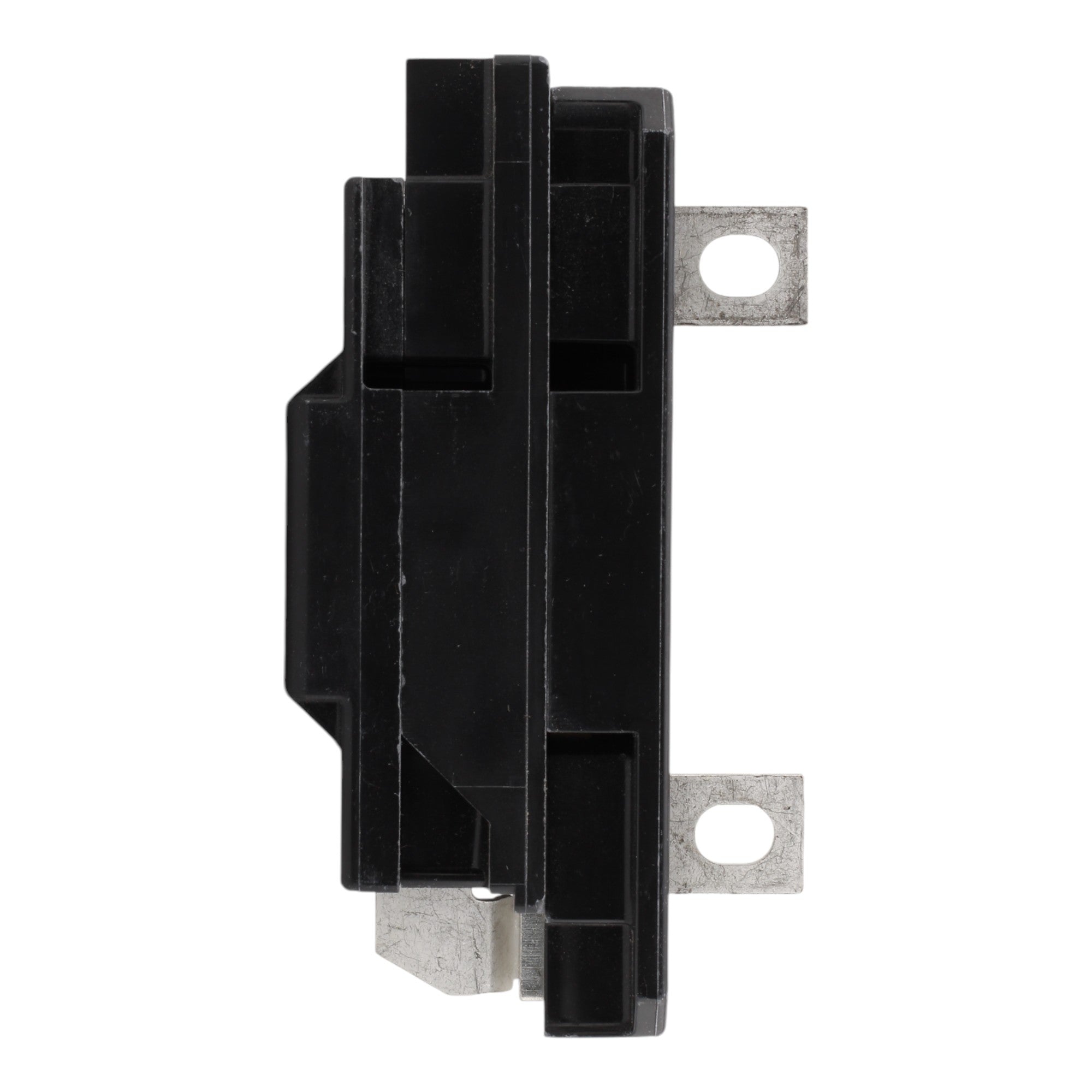

Square D QO QOM125VHCP 125A 2P 120/240V Main Circuit Breaker

QOM125VHCP specifications

Square D QOM125VHCP: 125A 2P main breaker, 120/240V, 22kA SCCR, bolt-on mount for QO load centers, lug connection, UL/CSA listed, consumer packaging, compatible with single-phase systems.

Manufacturer: Schneider Electric
Brand: Square D
UPC: 047569034619
Model Number: QOM125VHCP

Circuit Breaker Type: Main Breaker
Amperage Rating: 125 Amps
Voltage Rating: 120/240V AC
Interrupt Rating: 22kA
Number of Poles: 2-Pole
Mounting Type: Bolt-on
Frame Size: QOM1
Connection Type: Lugs
Certifications: UL Listed, CSA Certified
Wire Size Compatibility: 4-2/0 AWG Copper or Aluminum
Tightening Torque: 53.1 lbf.in for 12-2/0 AWG
Dimensions: Height: 5.08 in; Width: 5.0 in; Depth: 3.5 in
Weight: 1.301 lbs
Ambient Temperature Rating: 104°F (40°C) Maximum
Load Center Type: Primary Main Breaker
Number of Phases: Single Phase
For Use With: QO Load Centers
