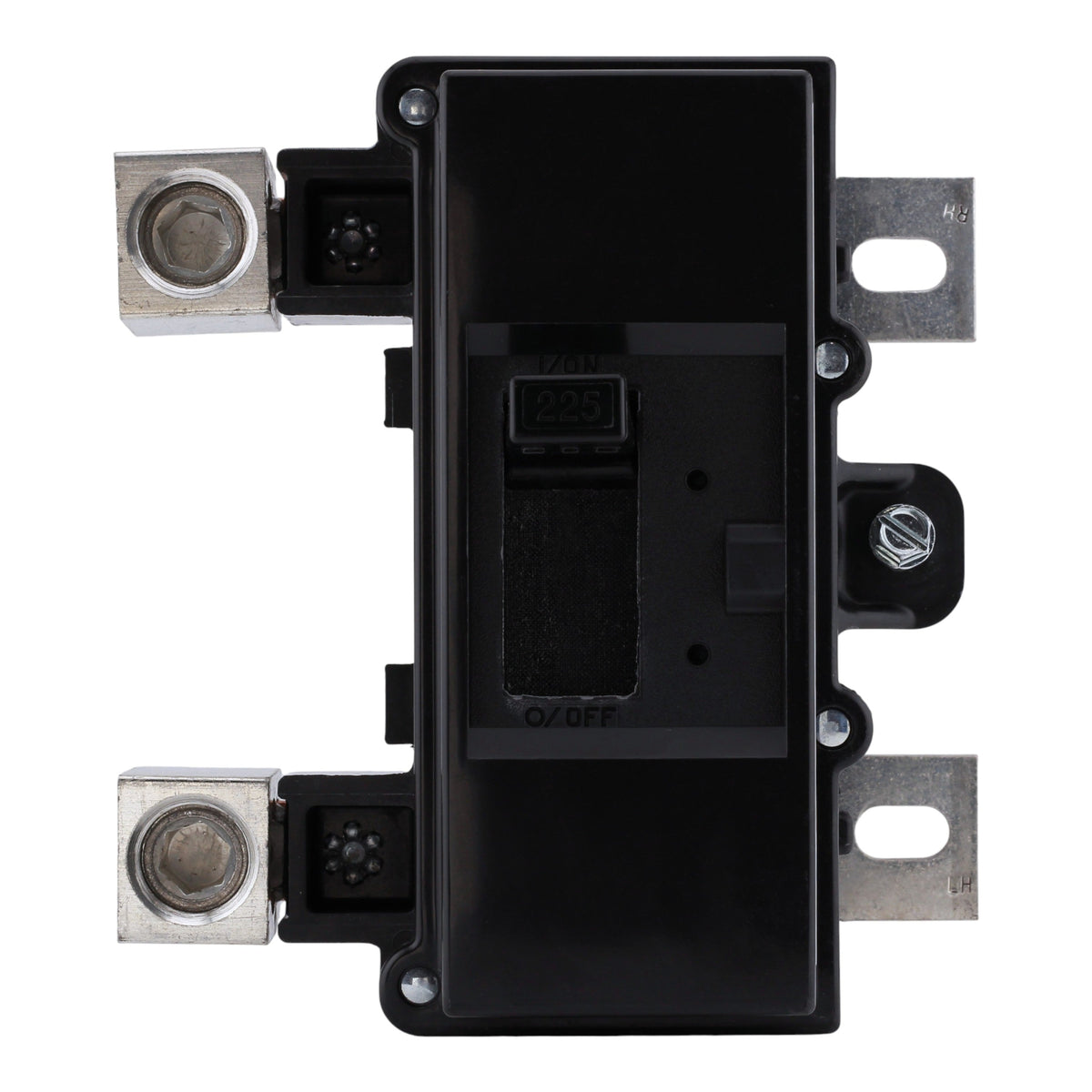

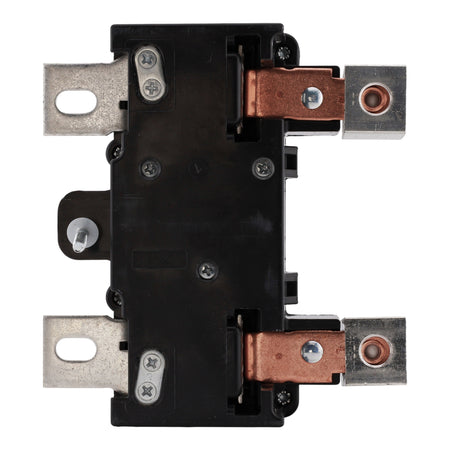

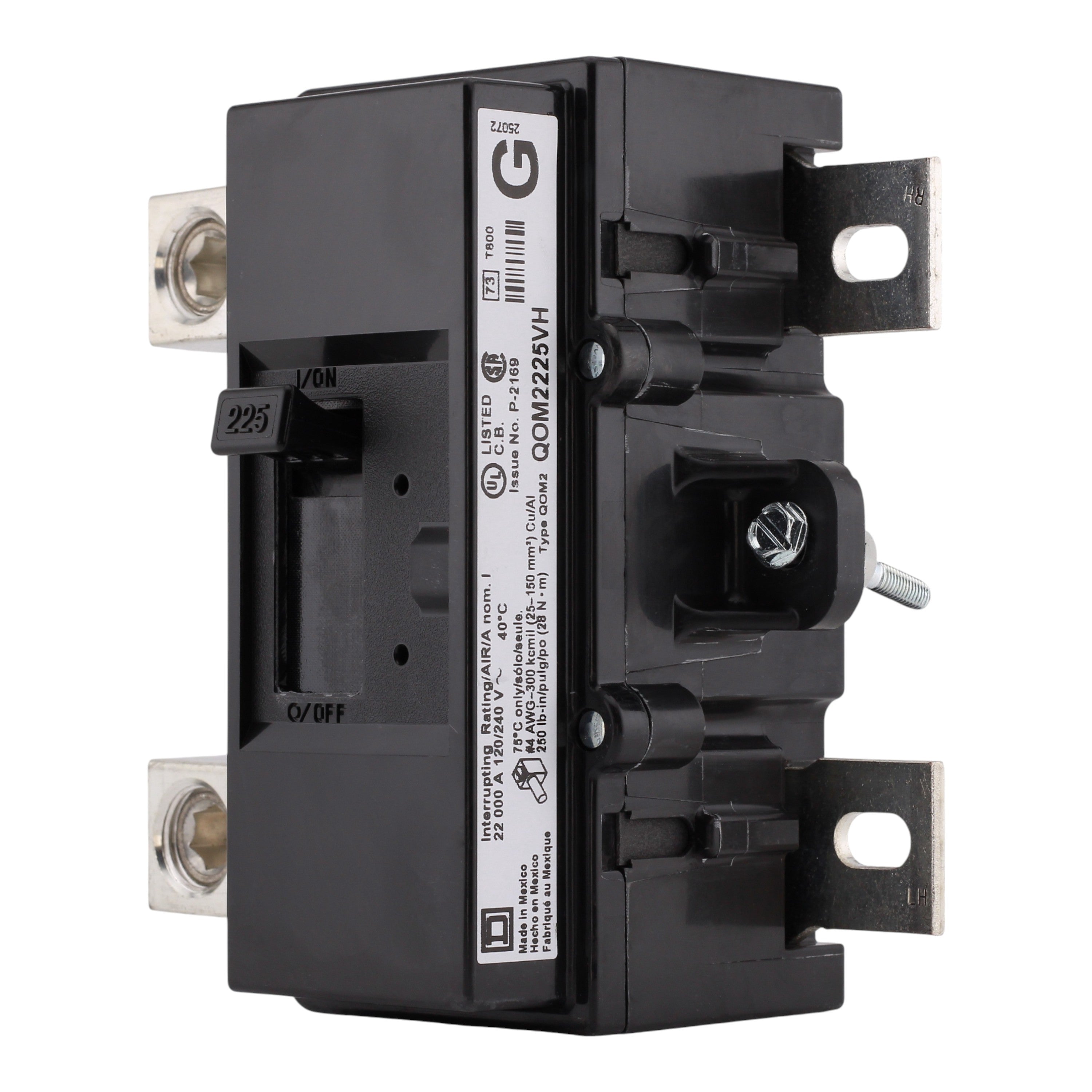

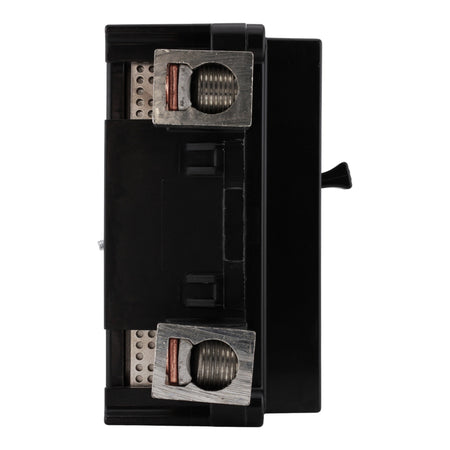

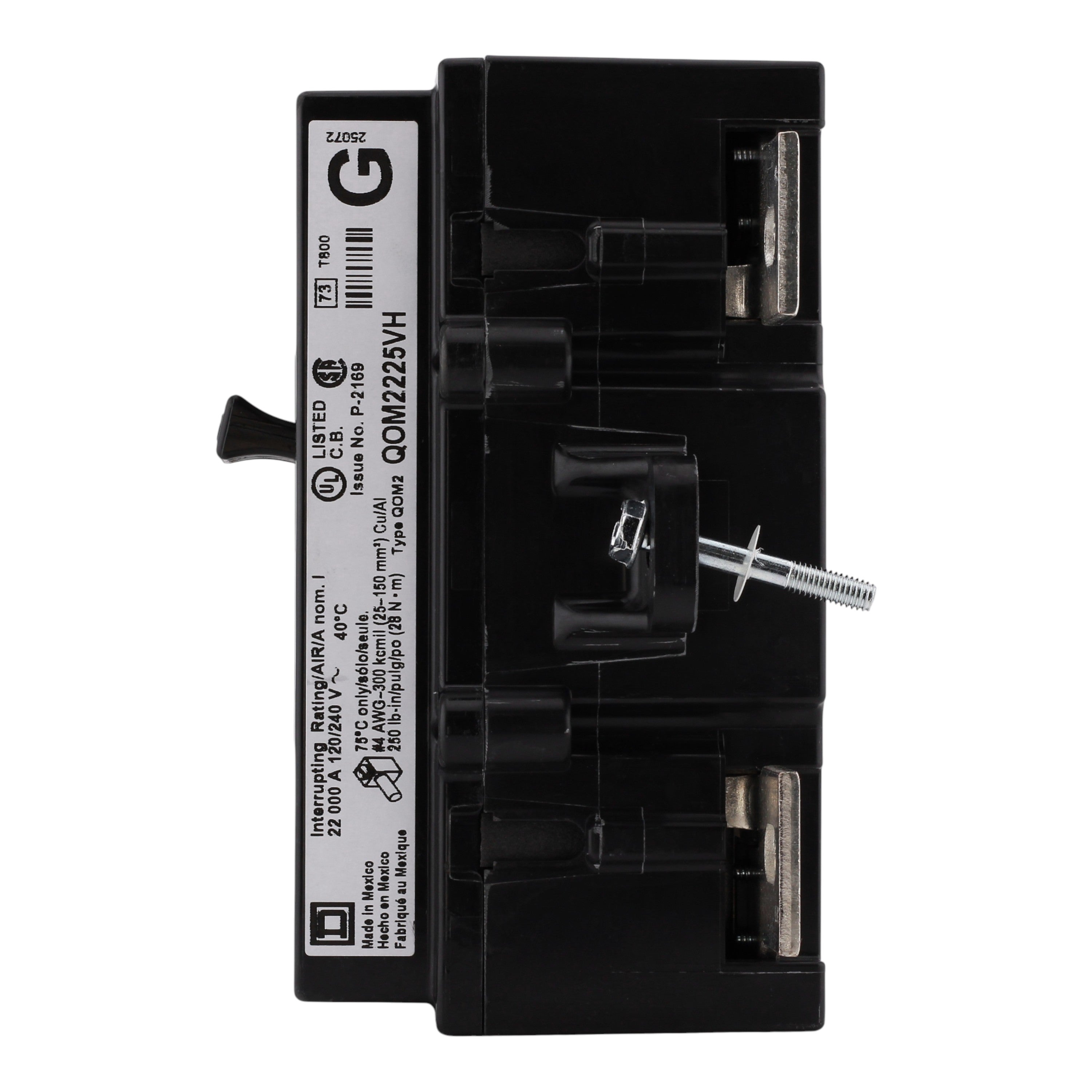

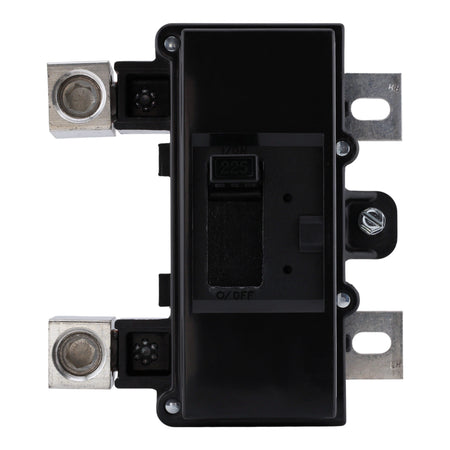

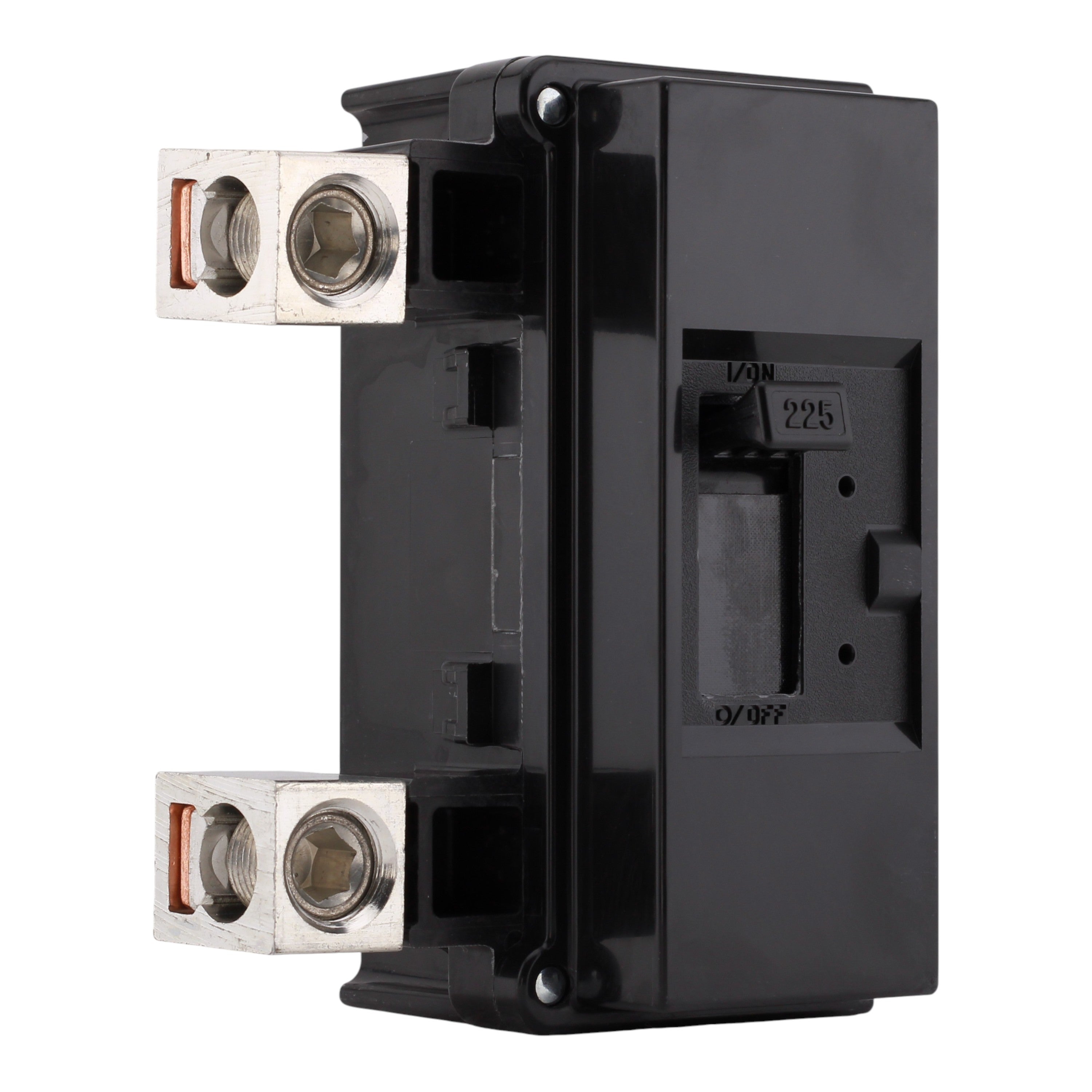

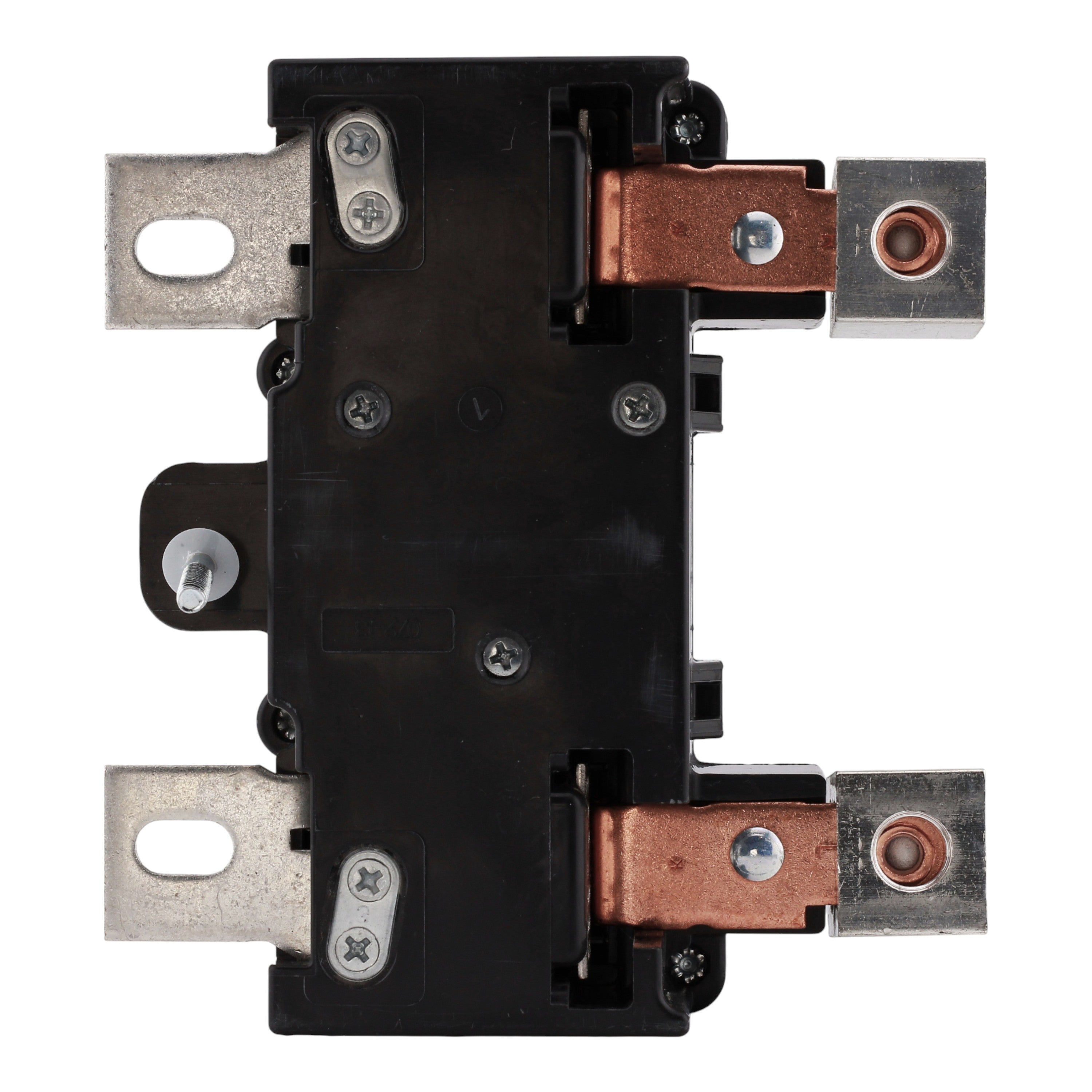

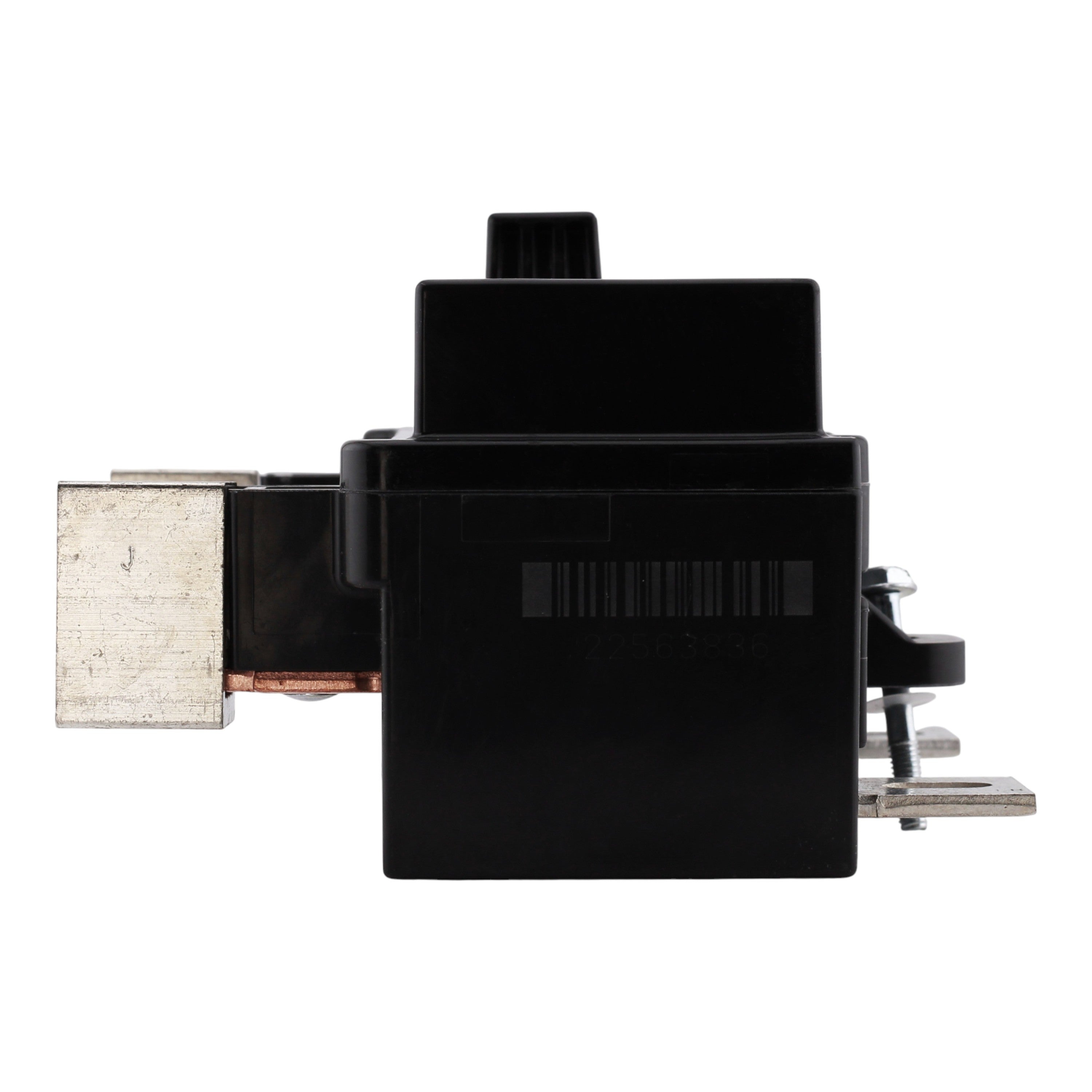

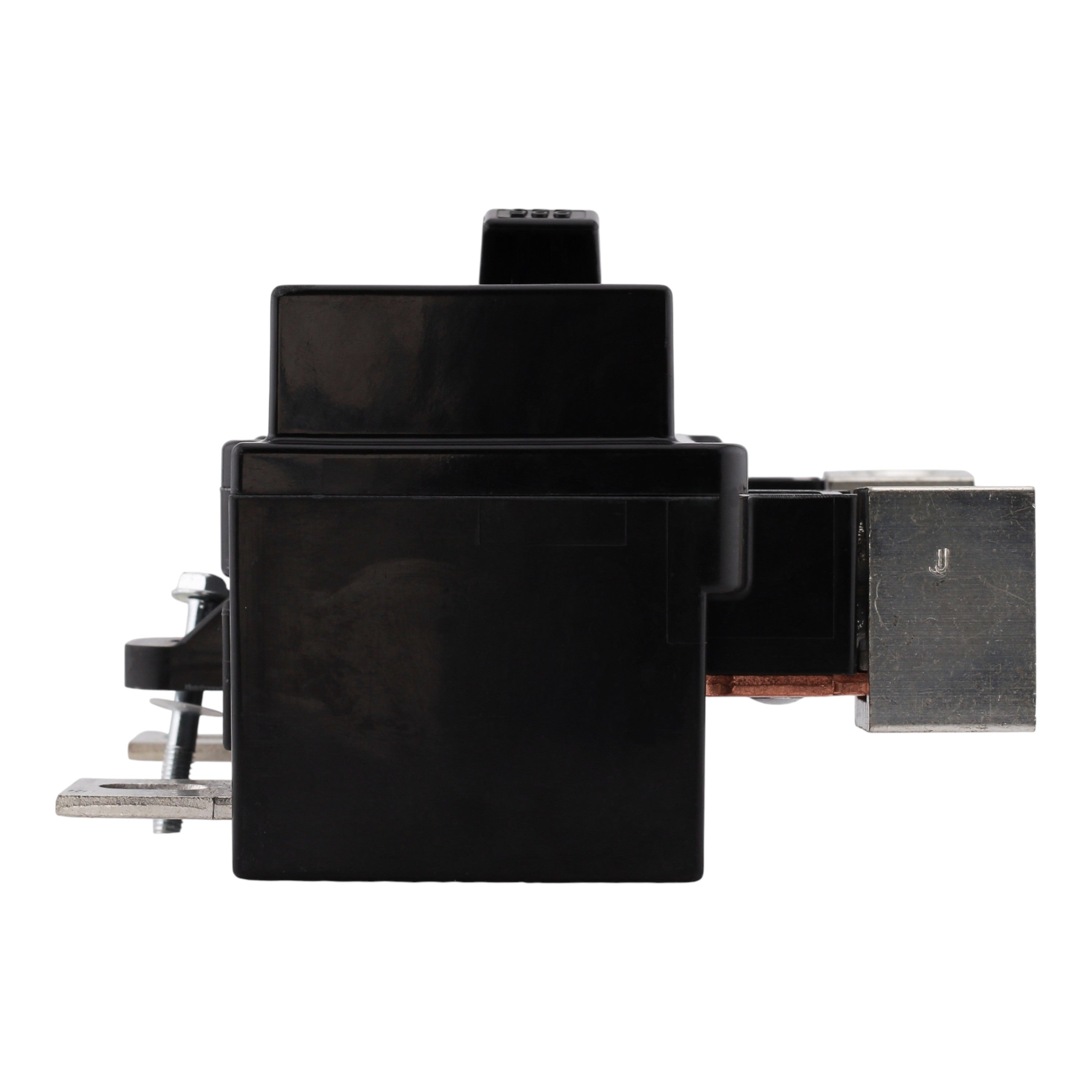

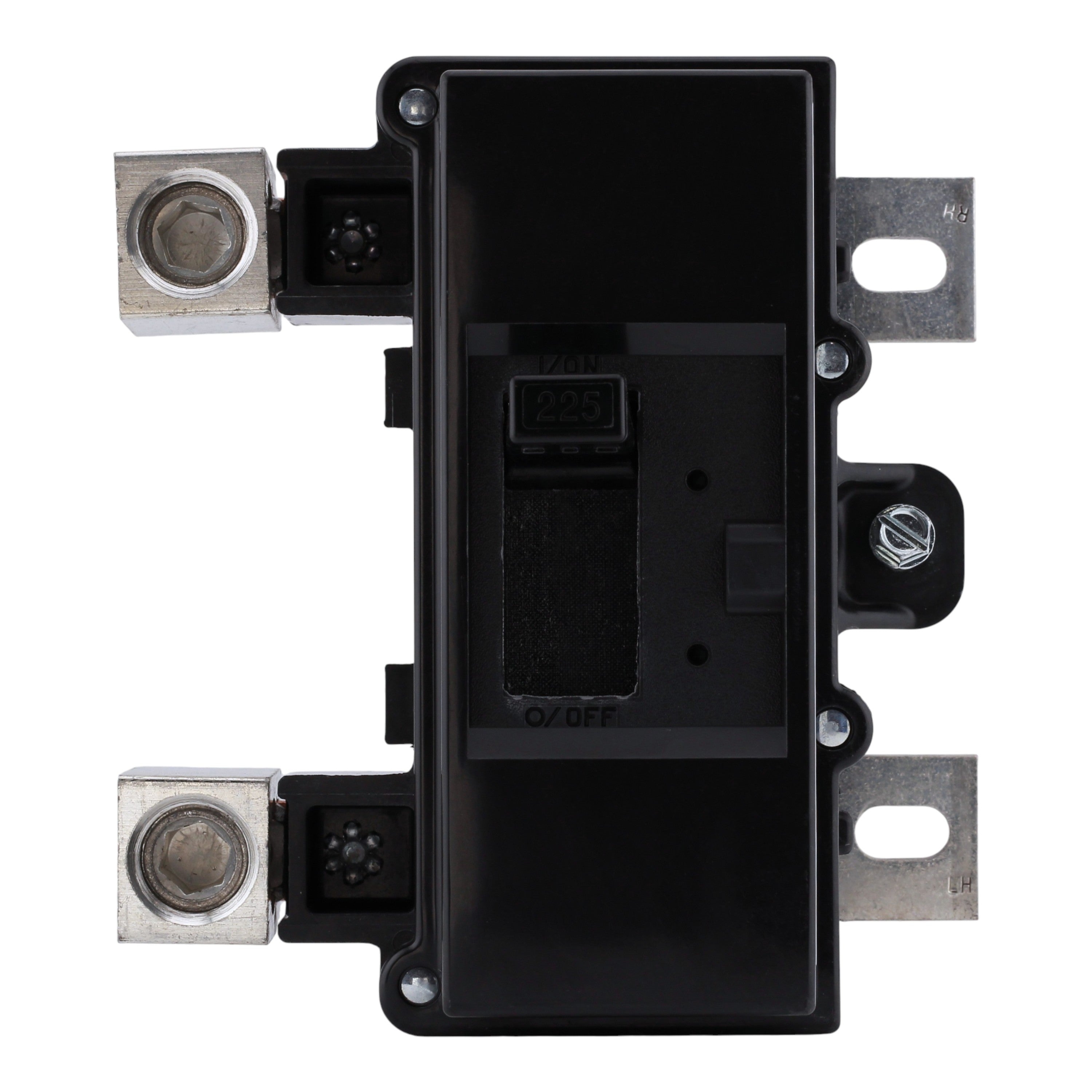

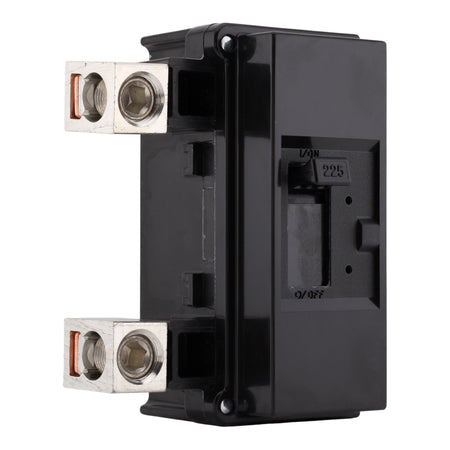

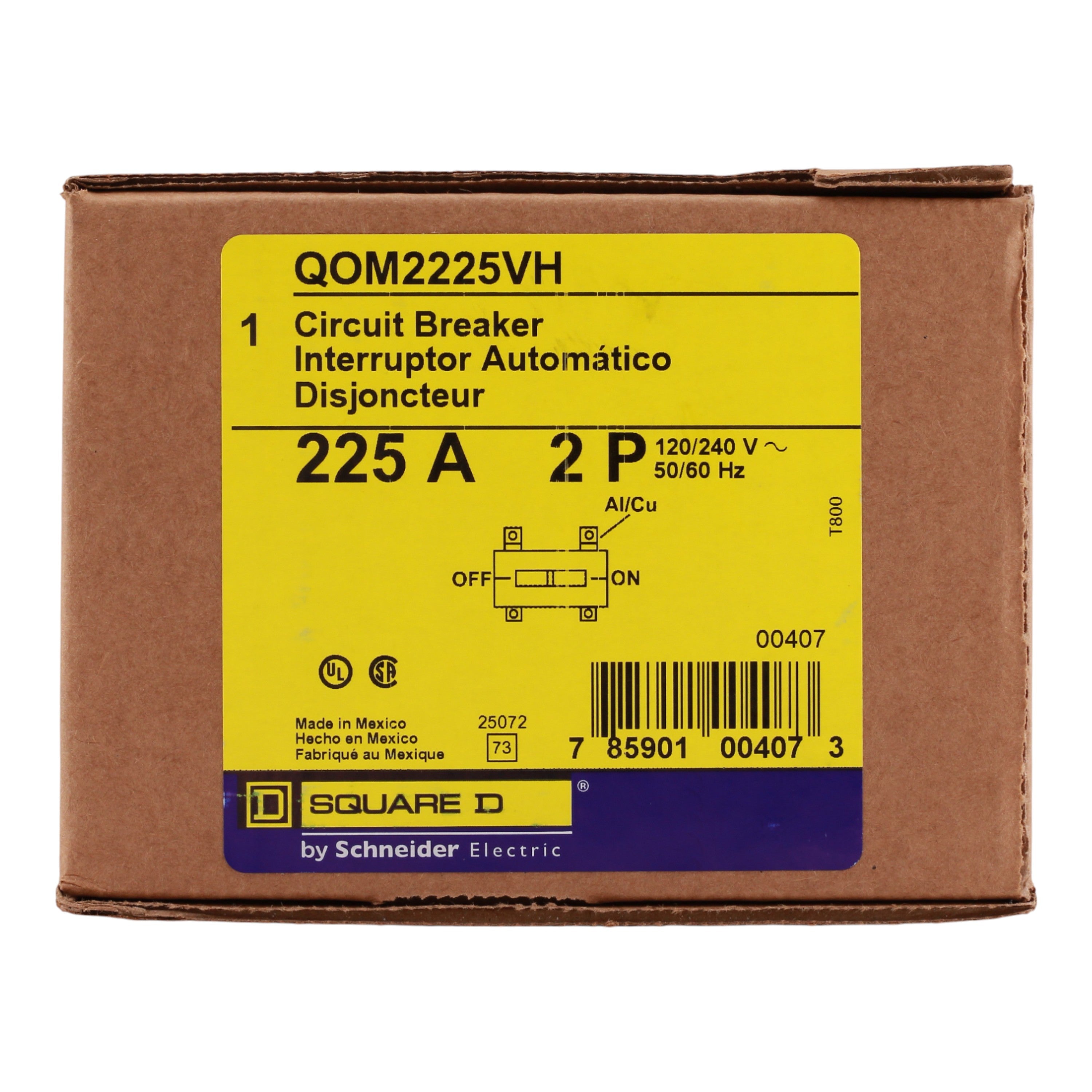

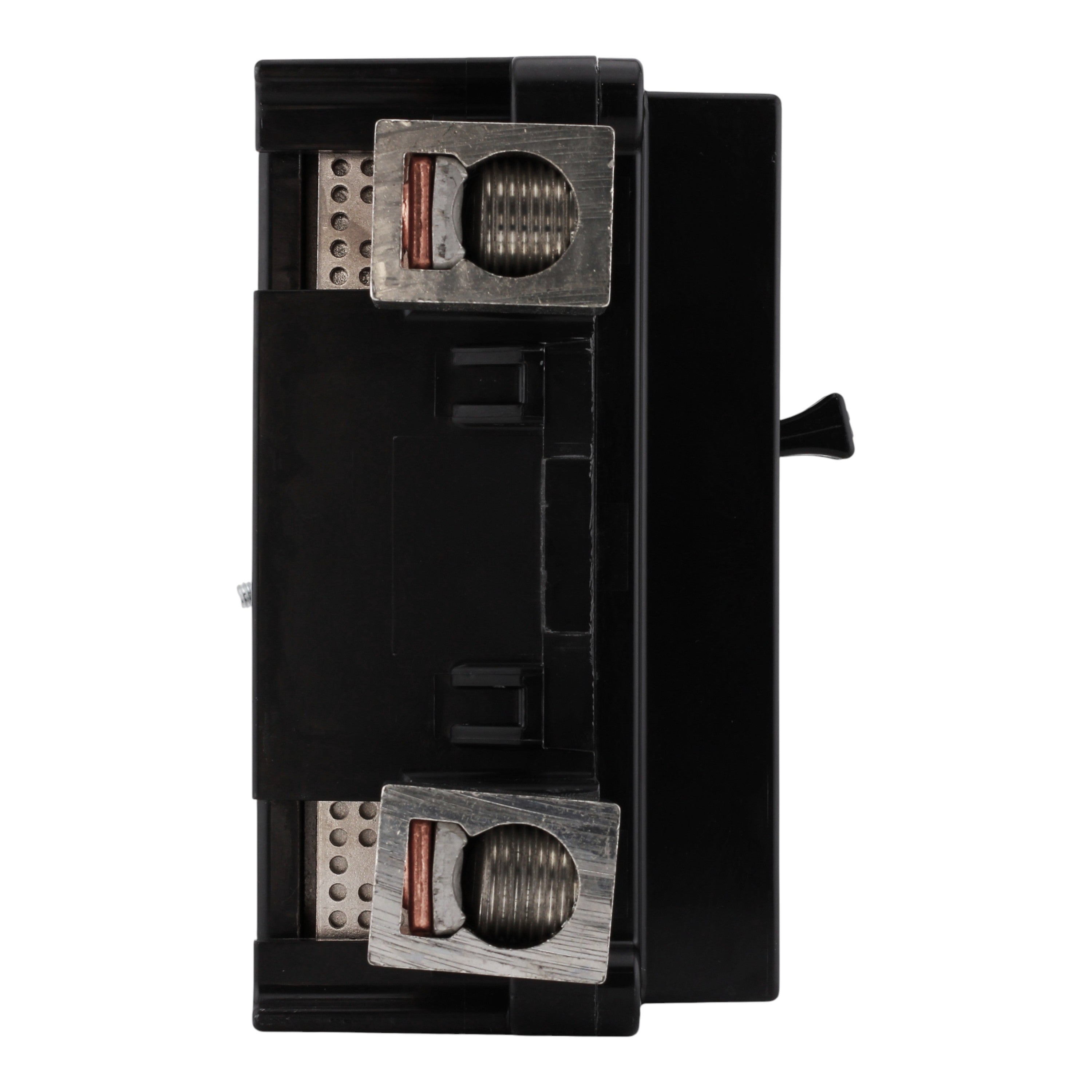

Square D QO QOM2225VH 225A 2P 120/240V 22kA Bolt-On Main Circuit Breaker

QOM2225VH specifications

• Manufacturer: Schneider Electric
• Brand: Square D
• Product Range: QO (for Square D QO load centers and equipment)
• UPC: 785901004073
• Model Number: QOM2225VH
• Breaker Type: Standard Main Circuit Breaker (Thermal-Magnetic)
• Amperage: 225 Amps
• Poles: 2-Pole
• Voltage: 120/240 Volts AC
• Interrupt Rating: 22 kAIC
• Mounting Mode: Bolt-on
• Electrical Connection: Lugs (line and load side)
• Wire Size: AWG 4…300 kcmil (Cu/Al)
• Tightening Torque: 53.1 lb-in
• Dimensions: Height: 5.6 in; Width: 3.6 in; Depth: 5.08 in
• Weight: 2.668 lbs
• Certifications: UL Listed, CSA Certified
• Number of Phases: 1 Phase

This Square D QO QOM2225VH bolt-on main breaker delivers reliable 225A, 2-pole overcurrent protection and switching for 120/240V AC systems in QO load centers. Featuring a high 22kA interrupt rating, VisiTrip indicator, and thermal-magnetic trip mechanism, it provides superior performance and easy identification of tripped circuits in residential and light commercial applications.

There is a $15 charge for delivery. Additional charges will be imposed by our couriers for delivery to remote areas, a surcharge may be levied to cover carriage to these areas.

Warranty Coverage

We stand behind every product we sell. Coverage depends on the condition of the item at time of purchase:

• New: 12-month warranty
• New Open Box: 10-month warranty
• Reconditioned: 90-day warranty

Warranty coverage begins on the date of delivery and covers manufacturing and functional defects under normal use. It does not cover damage from misuse, improper installation, or unauthorized repair. To make a warranty claim, contact us at support@breakersmart.com with your order number and a description of the issue.
