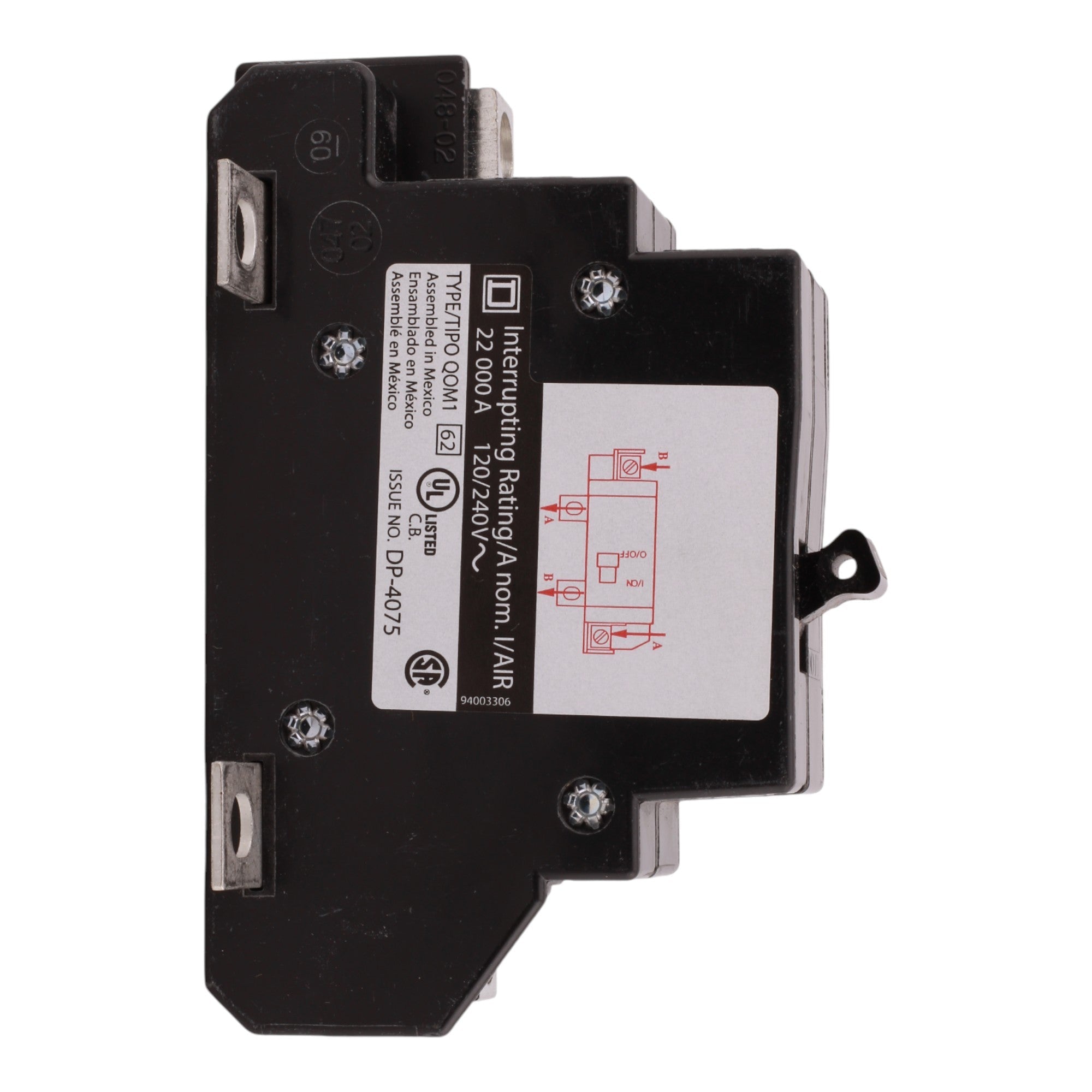

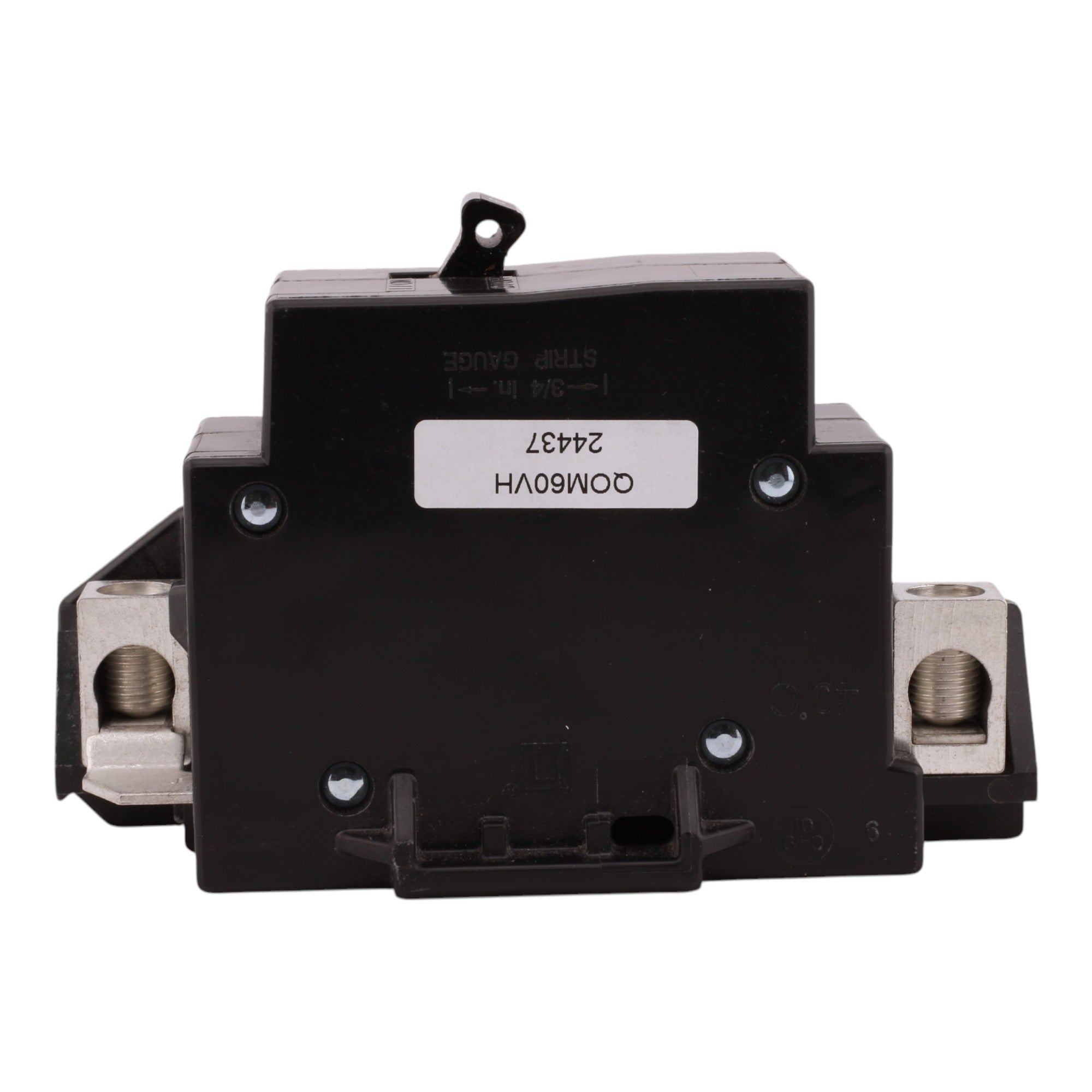

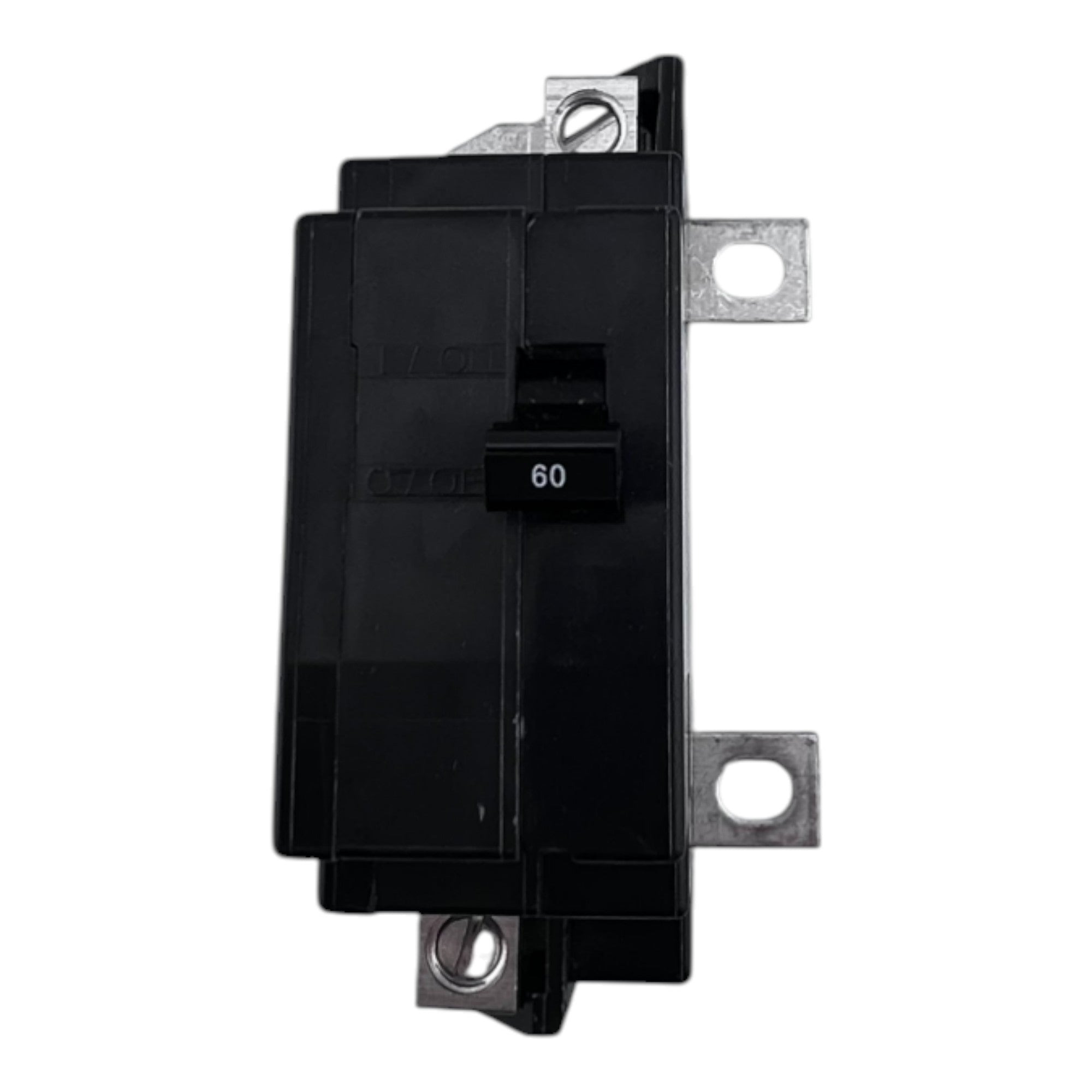

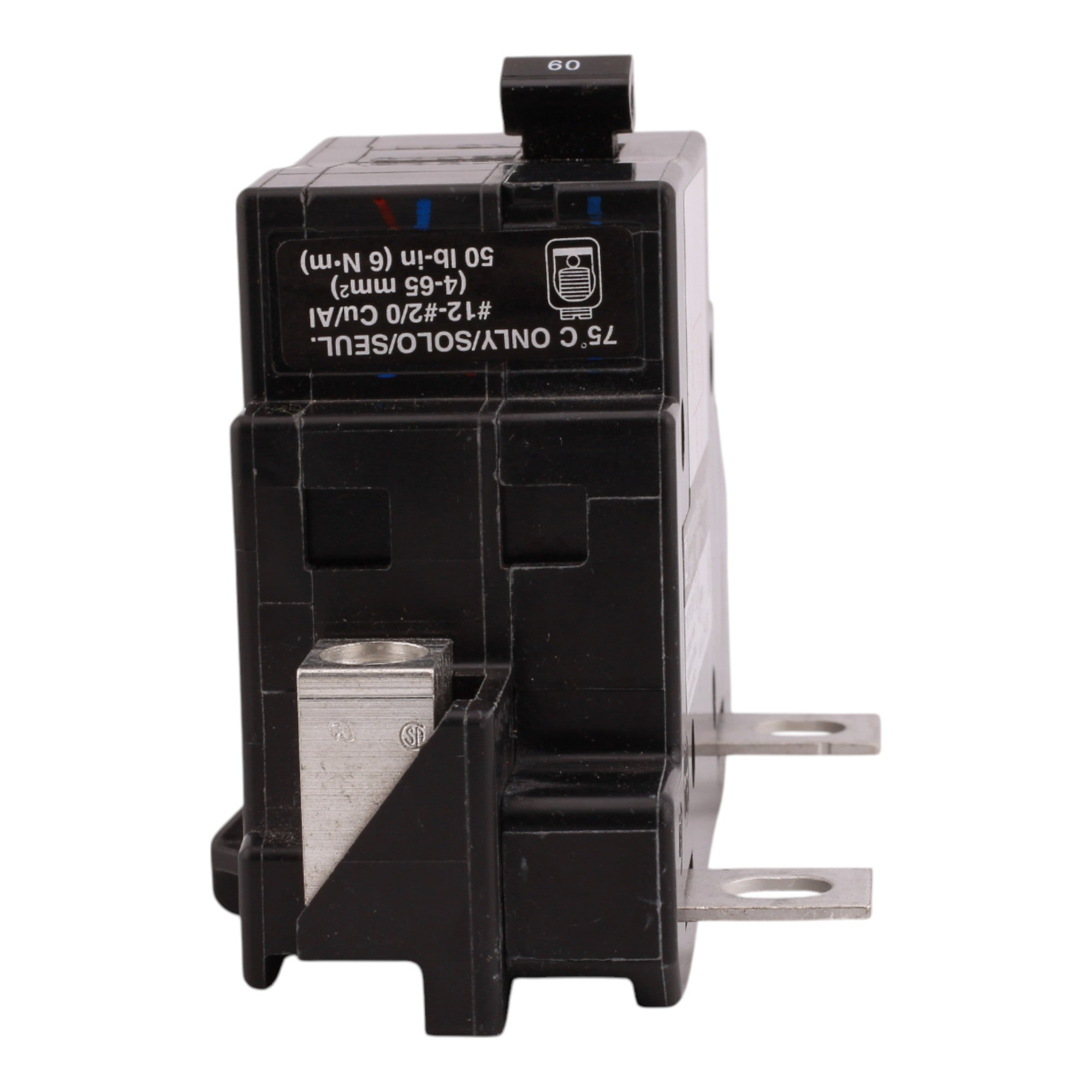

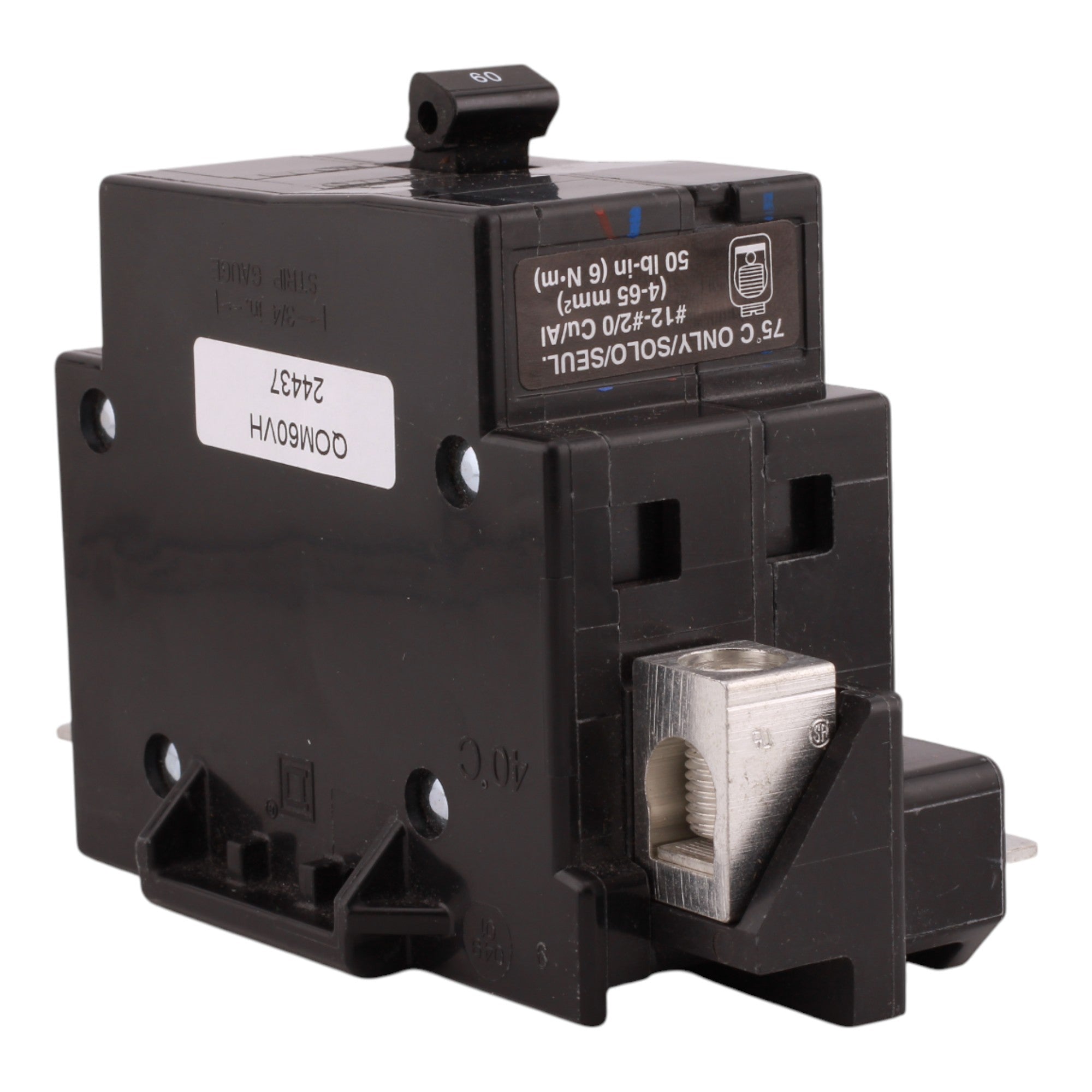

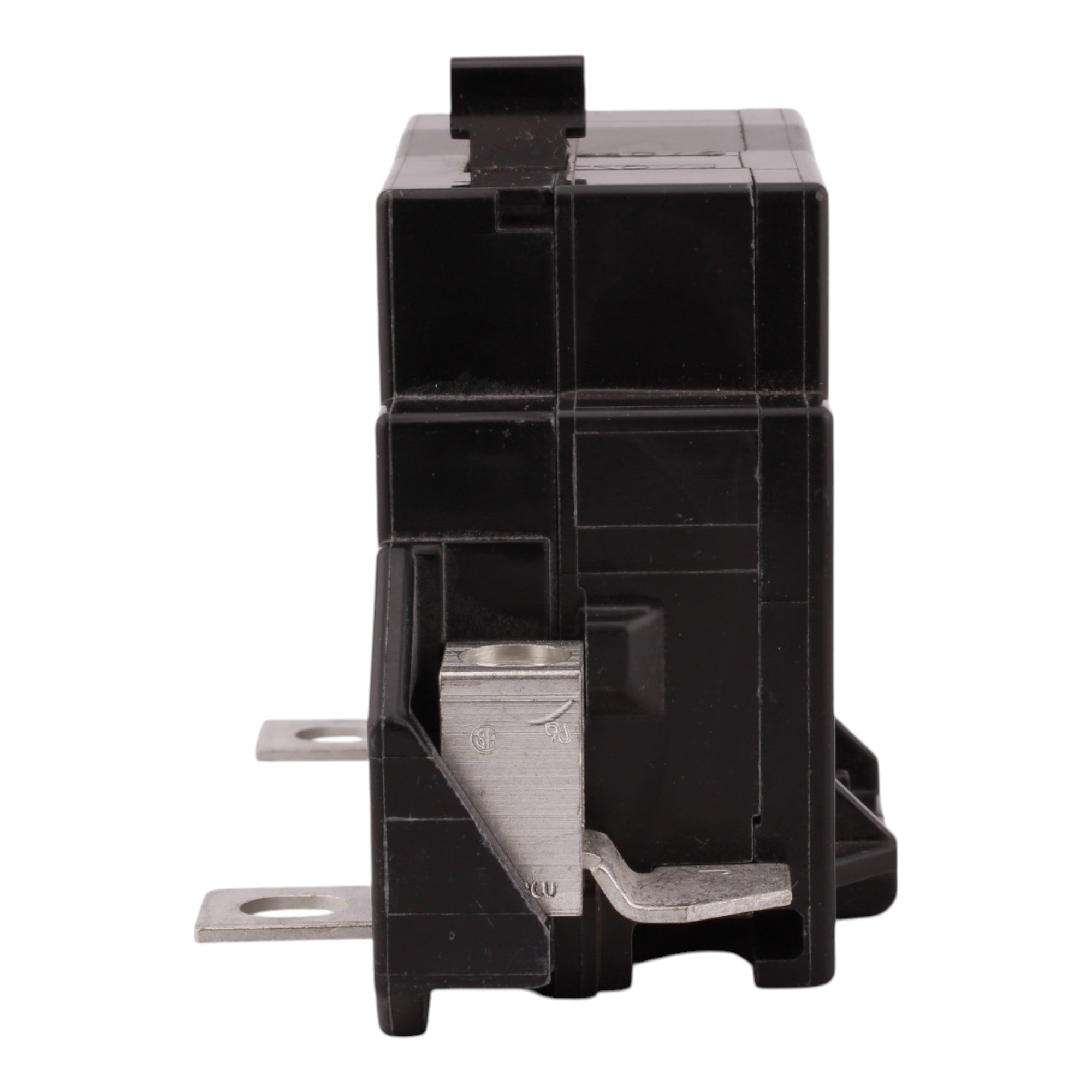

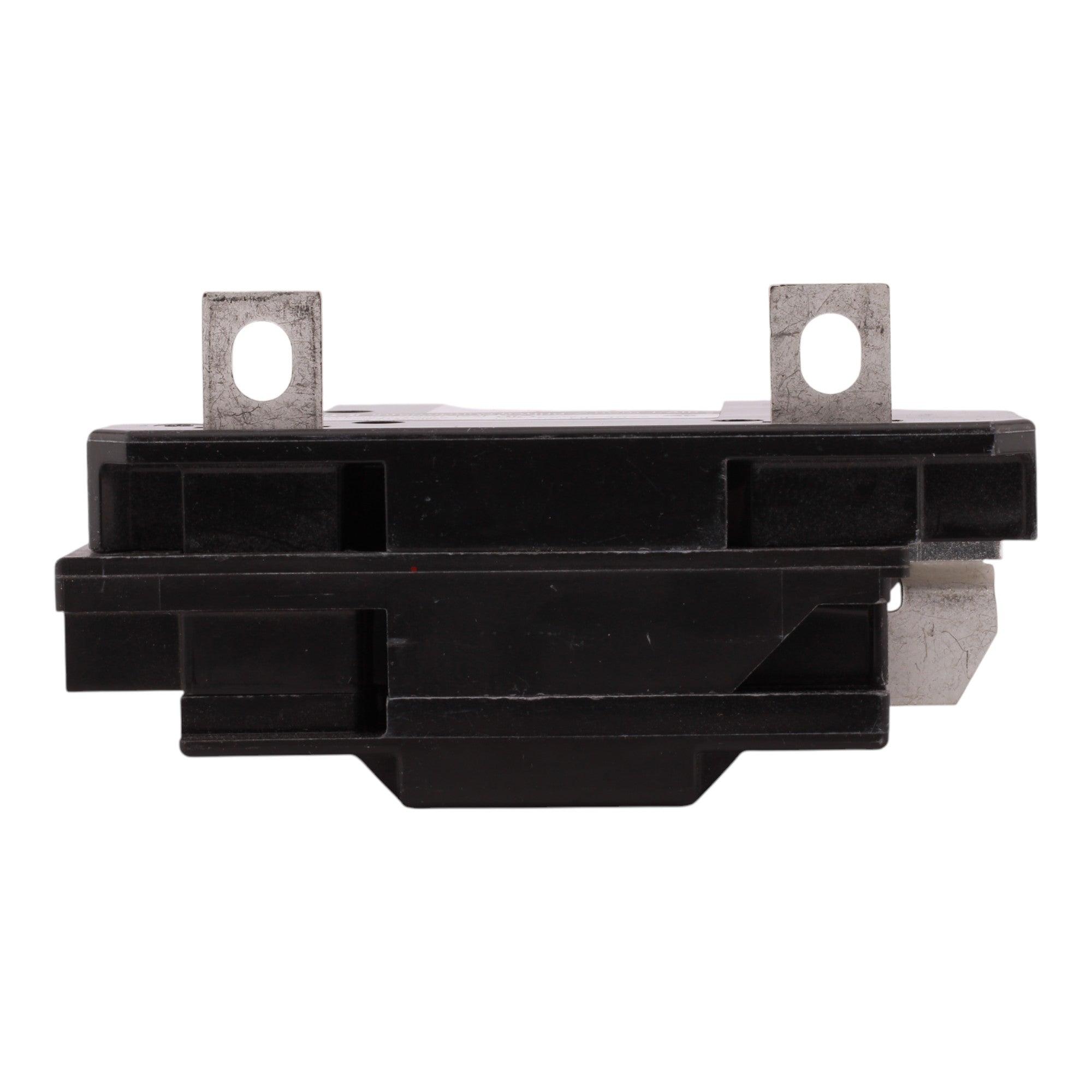

Square D QO QOM60VH 60A 2P 120/240V Main Breaker

Square D QOM60VH: 60 Amp 2-Pole Main Circuit Breaker, 120/240V, 22kA interrupt rating, bolt-on mounting, lugs connection, UL and CSA listed.

Product Specifications

• Manufacturer: Schneider Electric
• Brand: Square D
• Range: QO Series
• UPC: 785901879602
• Model Number: QOM60VH
• Breaker Type: Standard (Main breaker)
• Amperage: 60 Amps
• Poles: 2-Pole
• Voltage: 120/240 Volts AC
• Interrupt Rating: 22kA
• Mounting Mode: Bolt-On
• Connections Terminals: Lugs
• Wire Size: AWG 4 to AWG 2/0 (aluminum/copper)
• Tightening Torque: 53.1 lbf.in (6 N.m)
• Dimensions: Height: 5.08 in; Width: 3.5 in; Depth: 5.0 in
• Weight: 1.239 lbs
• Certifications: UL Listed, CSA Certified
• Special Features: VisiTrip trip indication
• Compatible With: QO load center, Homeline load center
• Frame Size: QOM1
