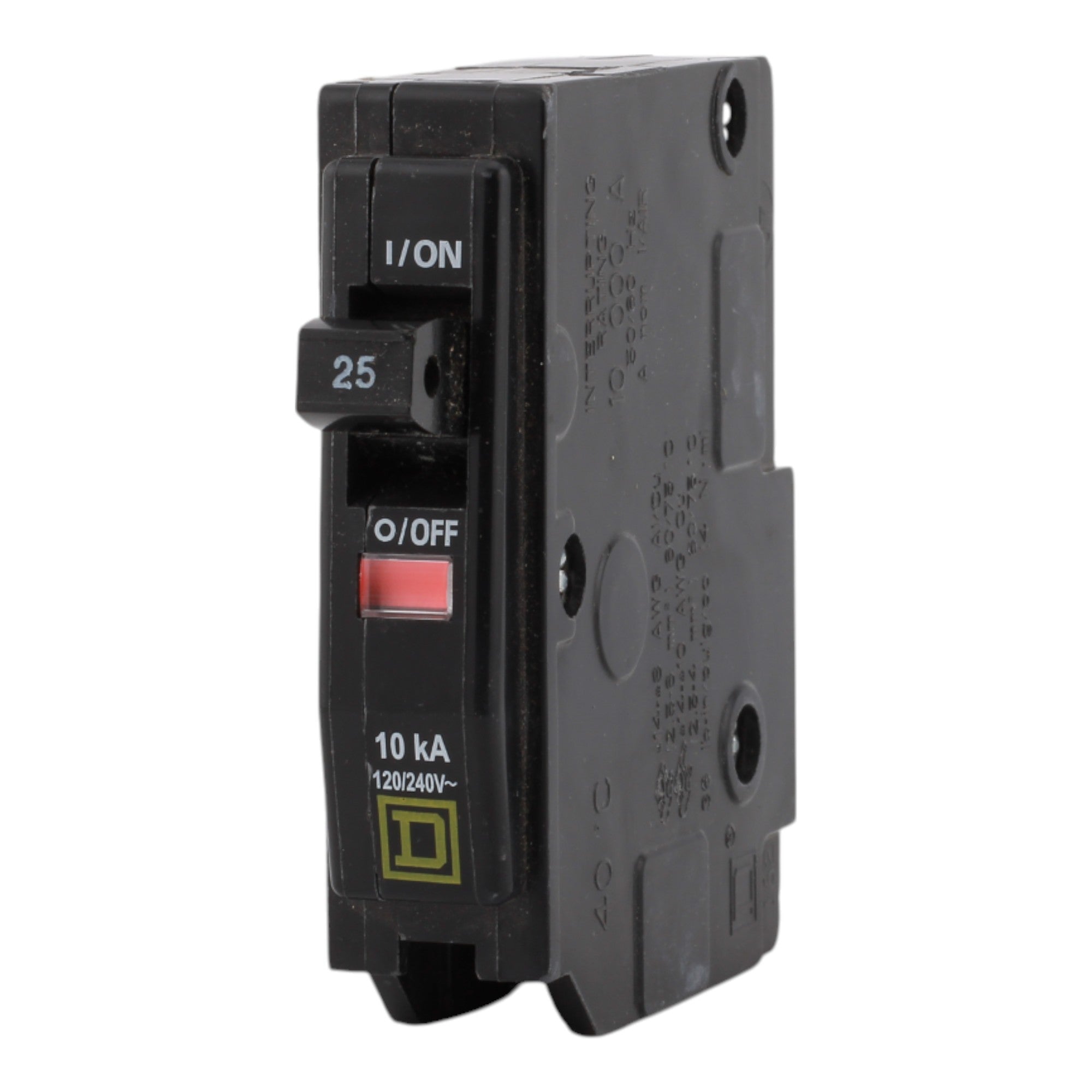

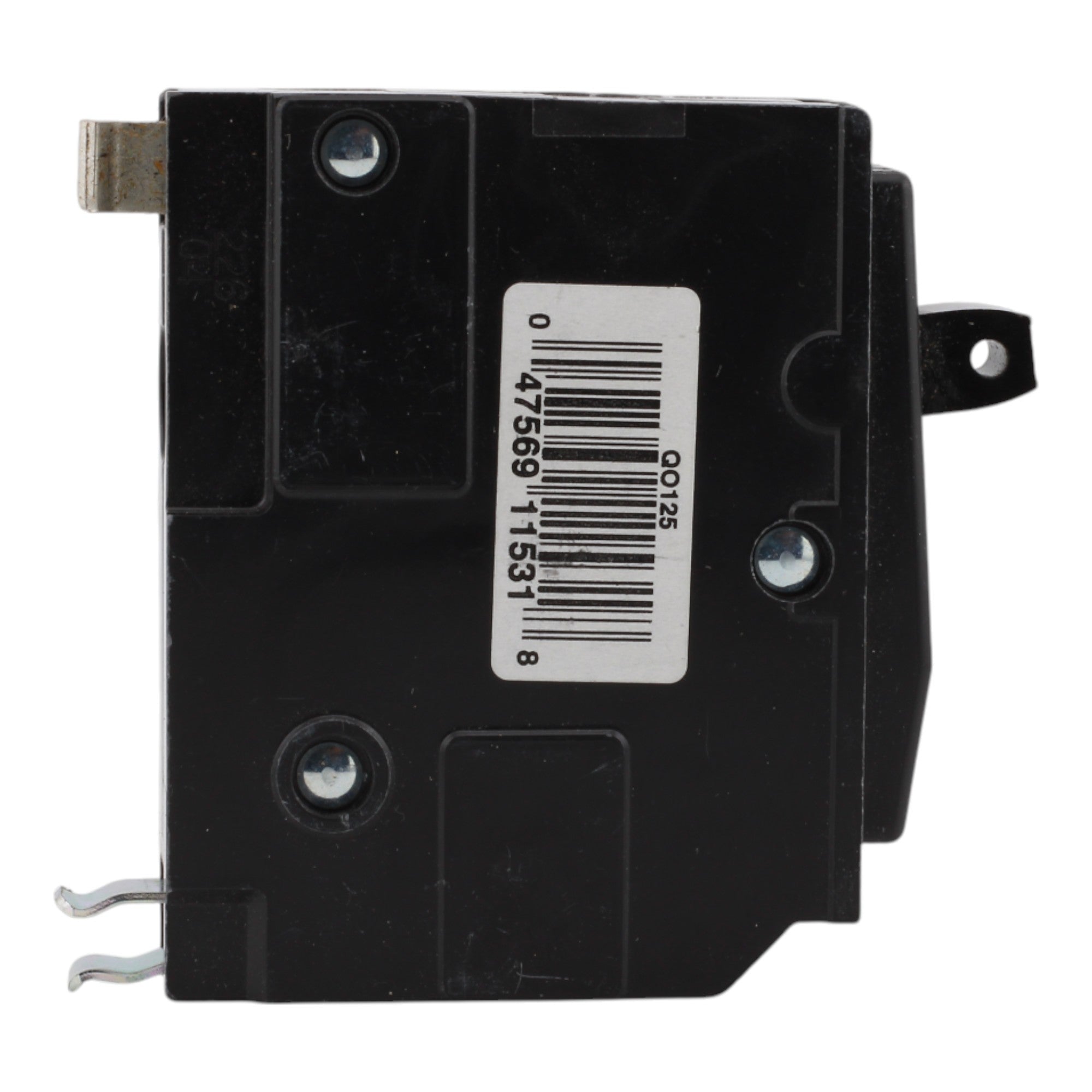

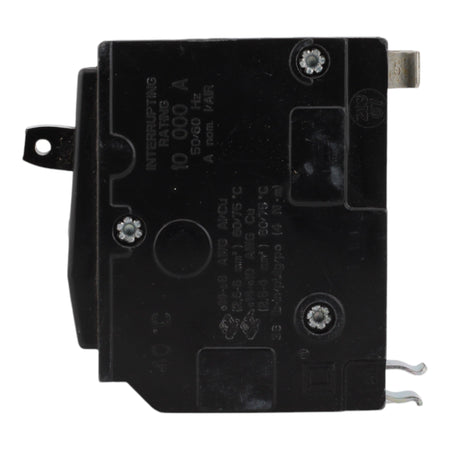

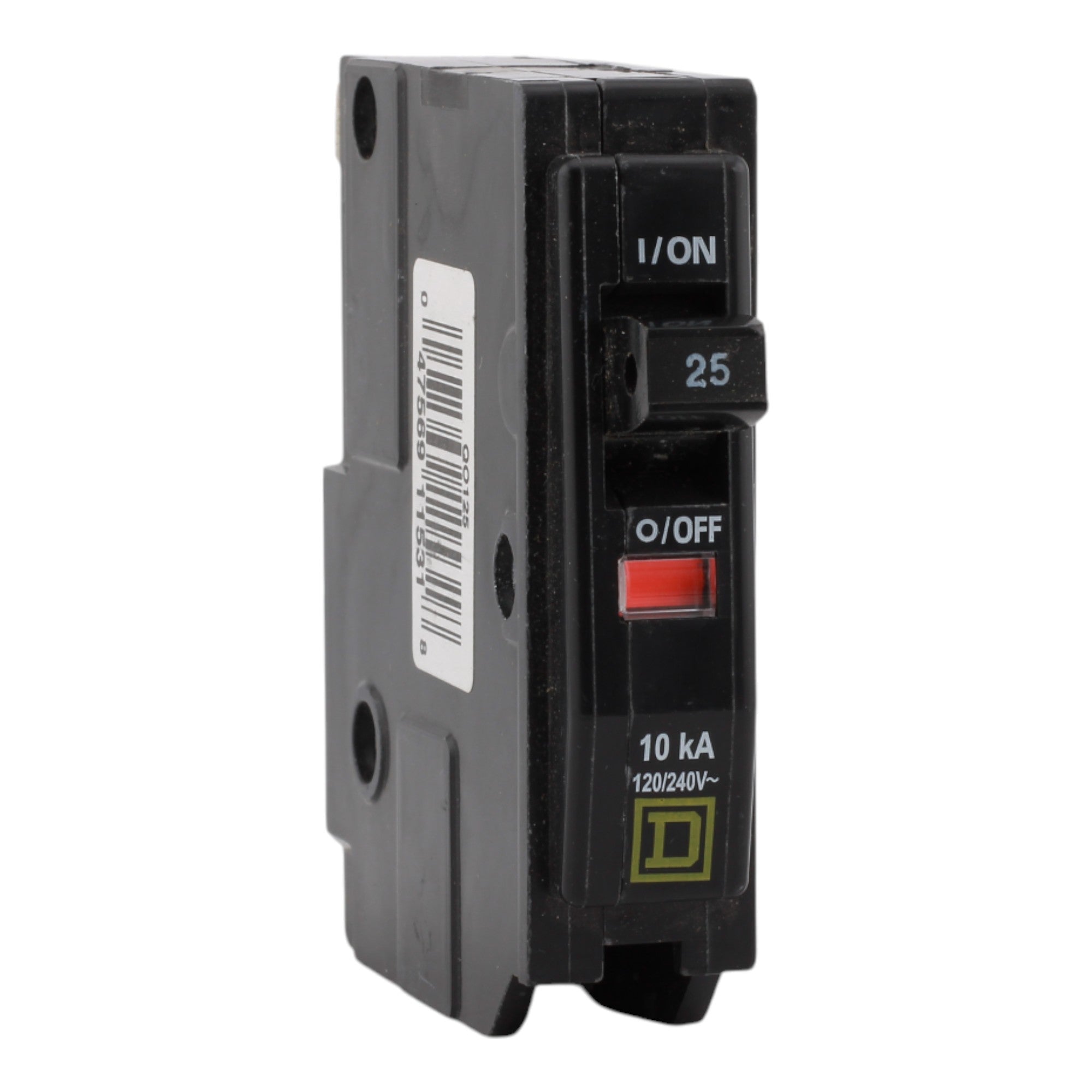

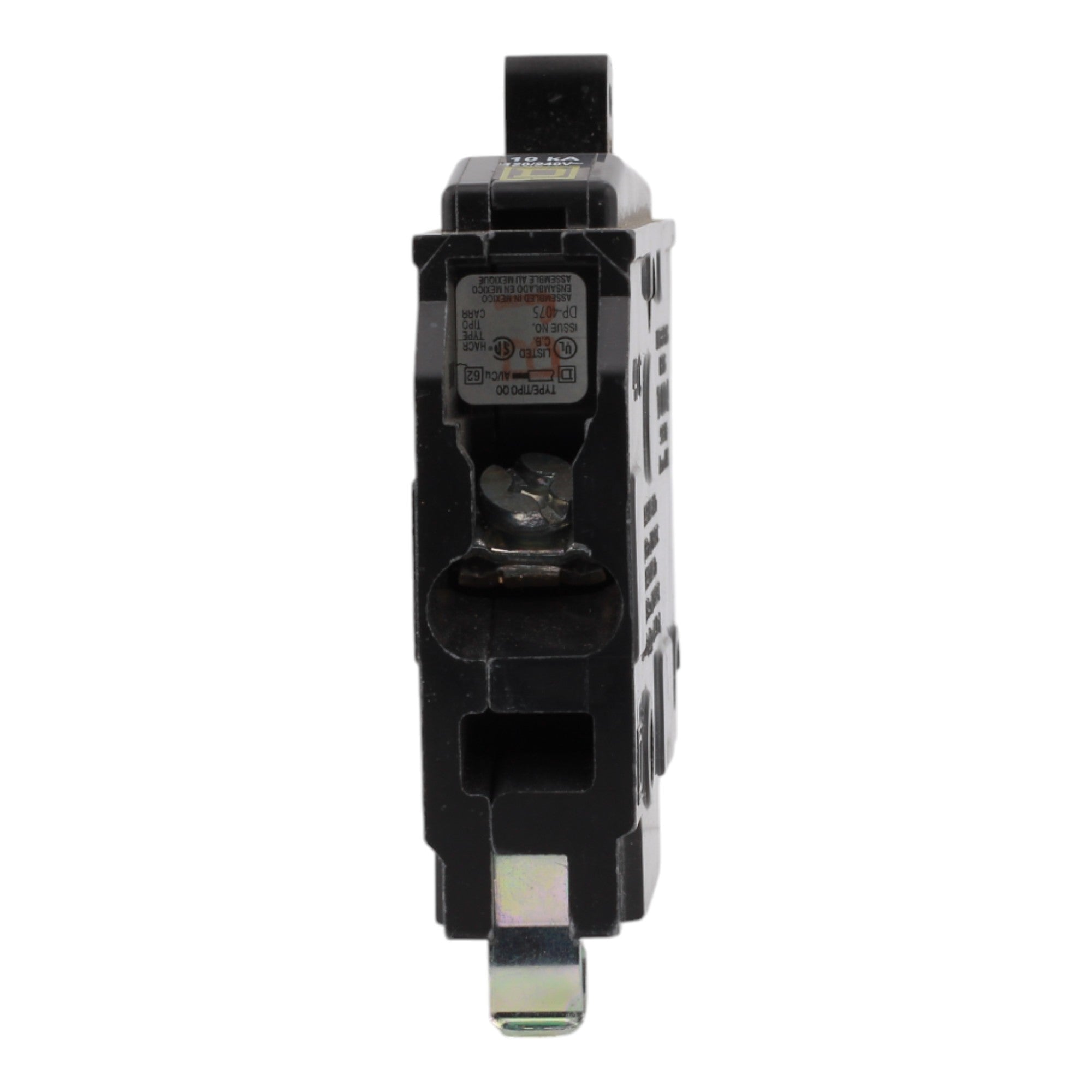

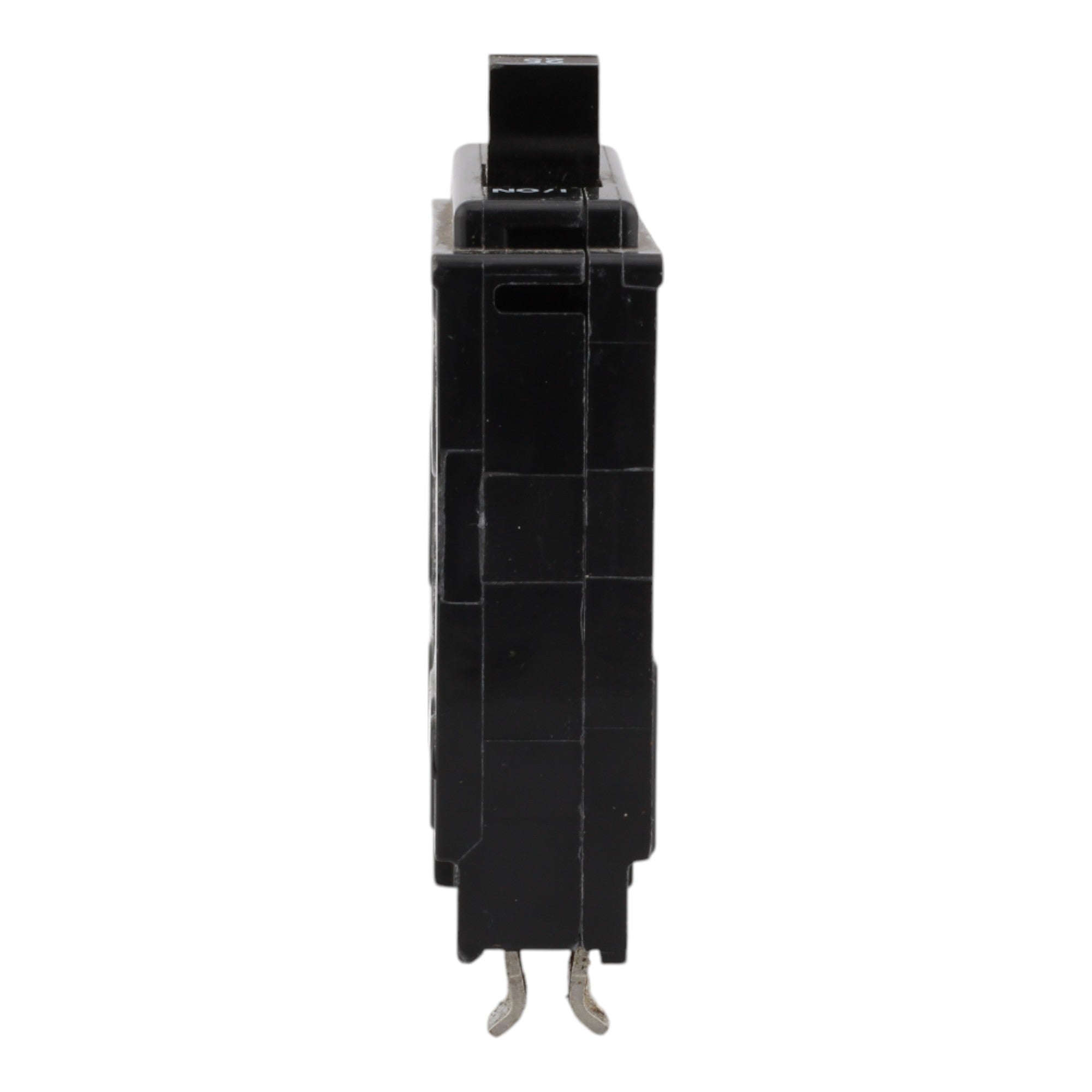

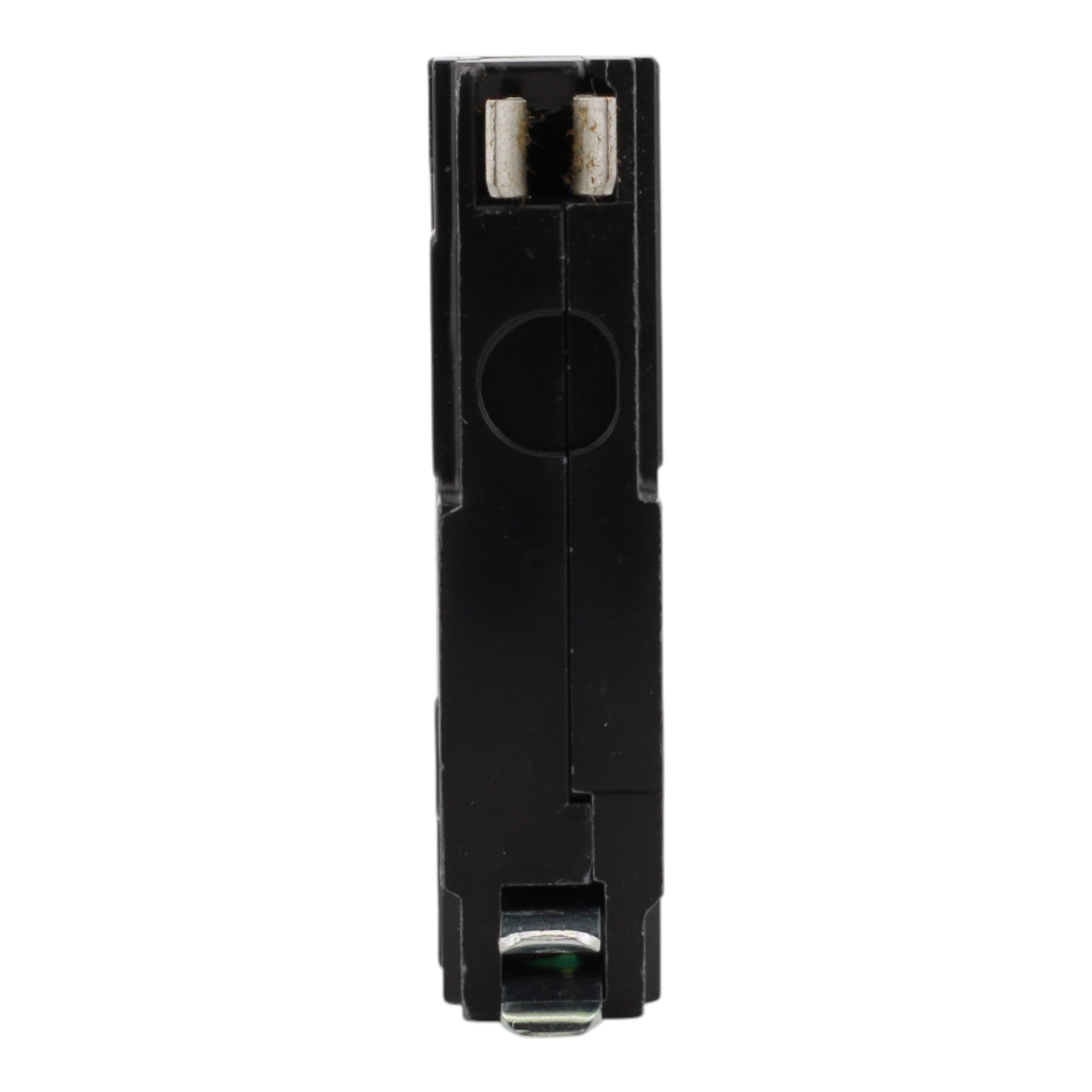

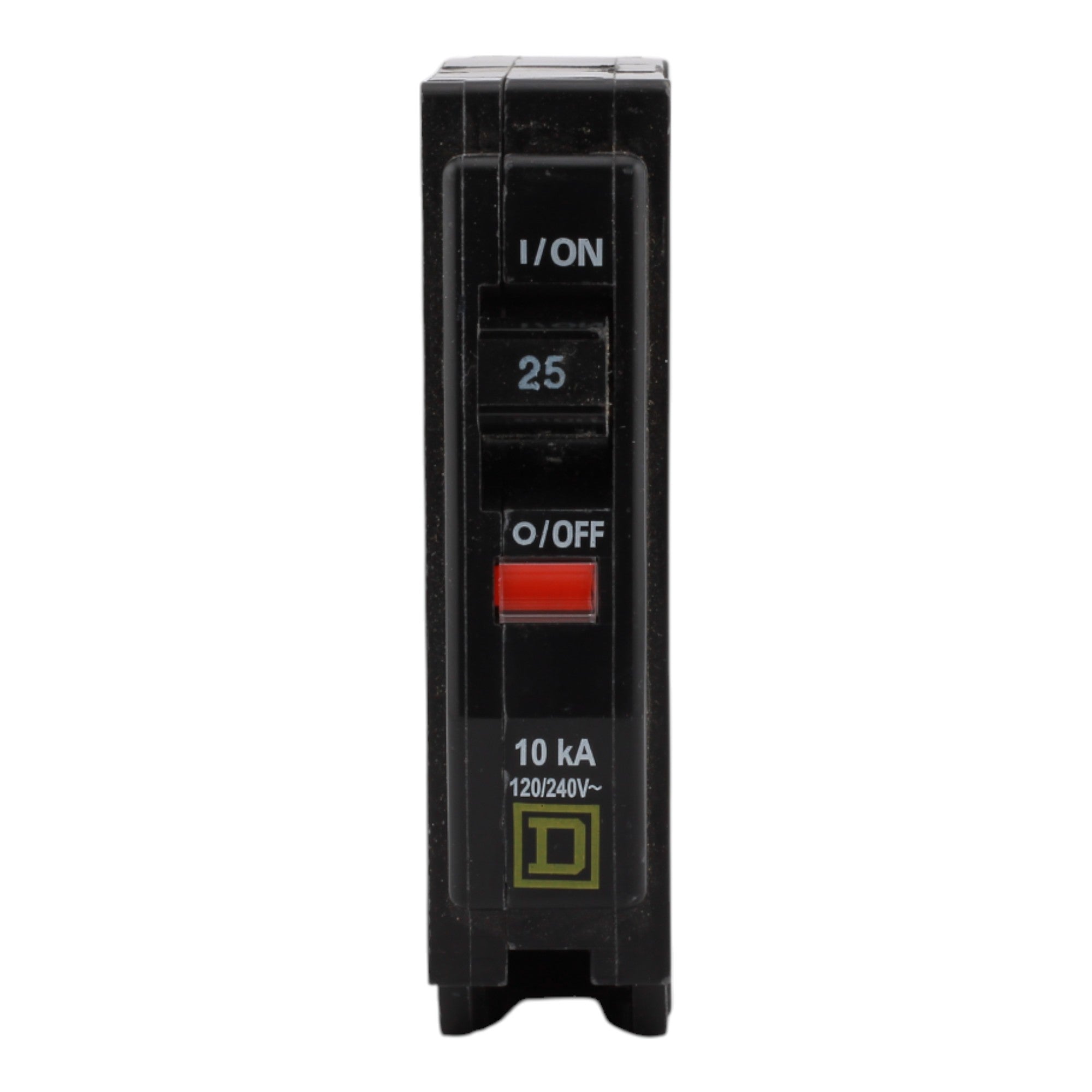

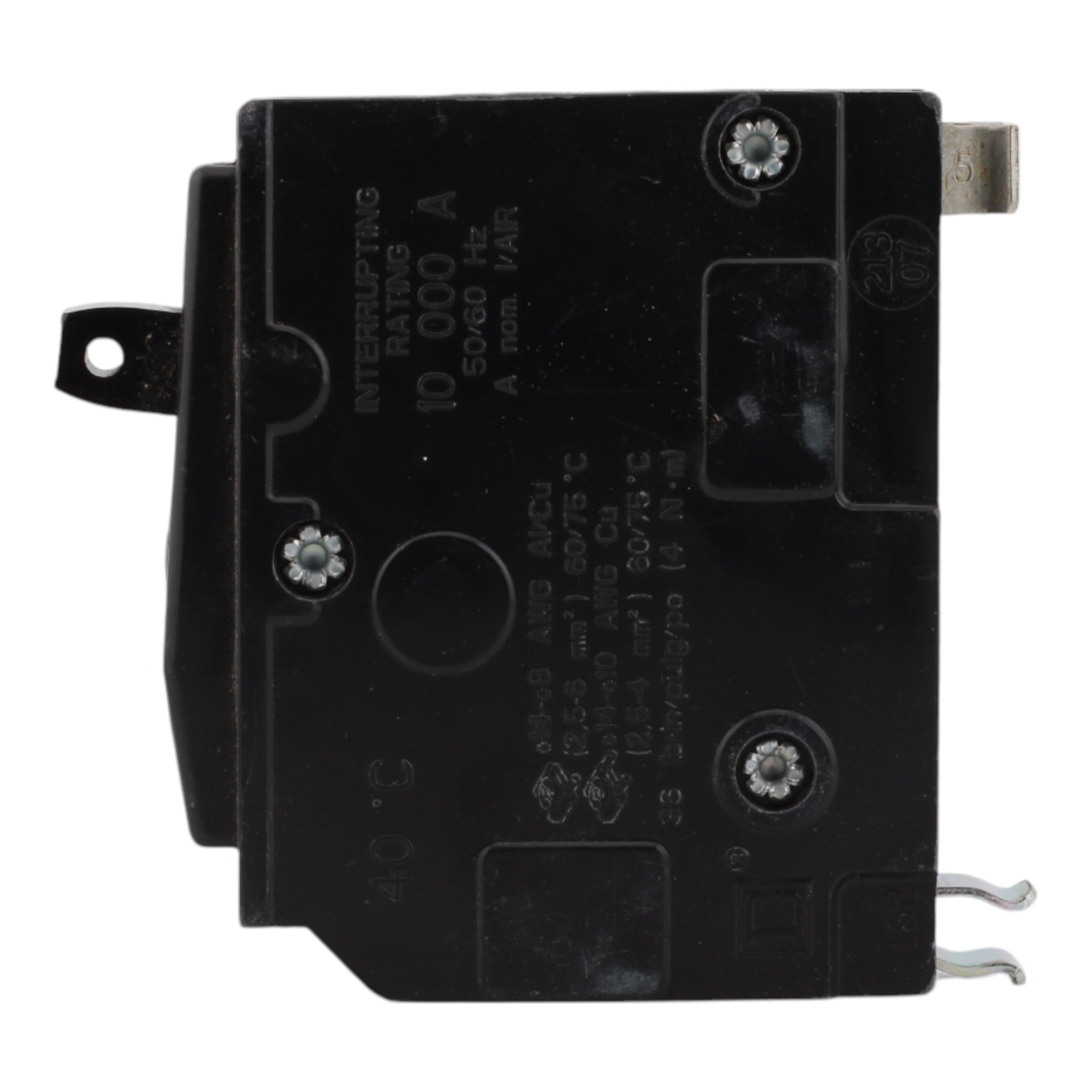

Square D QO125 25A 1P 120/240VAC Miniature Circuit Breaker

Schneider Electric QO125: 25A 1P thermal-magnetic circuit breaker, 120/240VAC, 10kA interrupt rating, plug-in mount, VisiTrip indication, HACR rated, UL listed, CSA certified."

Product Specifications

Product Identification:

• Manufacturer: Schneider Electric
• Brand: QO
• UPC: 785901010418
• Model Number: QO125

Technical Specifications:

• Circuit Breaker Type: QO Miniature Circuit Breaker
• Number of Poles: 1-Pole
• Amperage Rating: 25A
• Voltage Rating: 120/240VAC
• Interrupt Rating: 10kA at 120/240VAC
• Mounting Type: Plug-in
• Electrical Connection: Pressure plate
• Wire Compatibility: 14-8 AWG copper or aluminum
• Tightening Torque: 35.4 lbf.in (4 N.m)
• Special Features: Over-center trip-free toggle mechanism, quick make/break action, VisiTrip trip indication
• Application Rating: HACR rated
• Panel Spaces Required: 1
• Certifications: UL Listed, CSA Certified
• Ambient Rating: 104°F (40°C)

Dimensions:

• Dimensions: Height: 3.0 in; Width: 0.7 in; Depth: 2.9 in
• Weight: 0.269 lb
